  1. Chap 2 WANs and Routers Andres, Wen-Yuan Liao Department of Computer Science and Engineering De Lin Institute of Technology andres@dlit.edu.tw http://www.cse.dlit.edu.tw/~andres

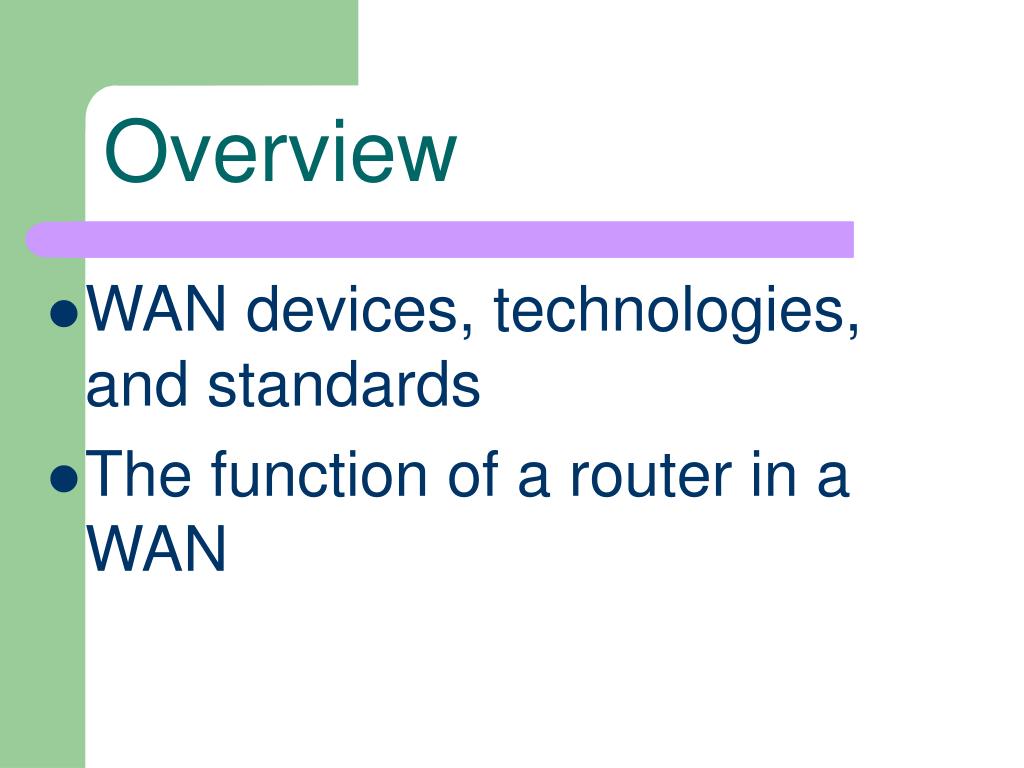

  2. Overview • WAN devices, technologies, and standards • The function of a router in a WAN

  3. WANs • WANs and devices • WAN standards • WAN technologies

  4. WANs and devices • Operates at the physical layer and the data link layer • Interconnects LANs that are usually separated by large geographic areas

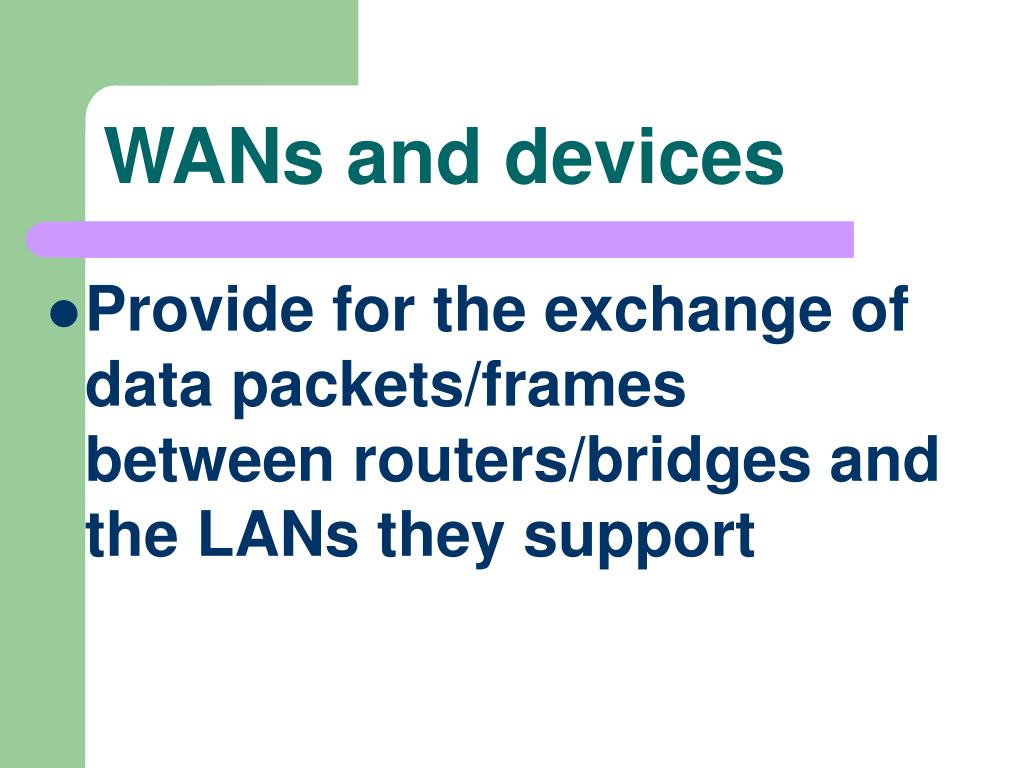

  5. WANs and devices • Provide for the exchange of data packets/frames between routers/bridges and the LANs they support

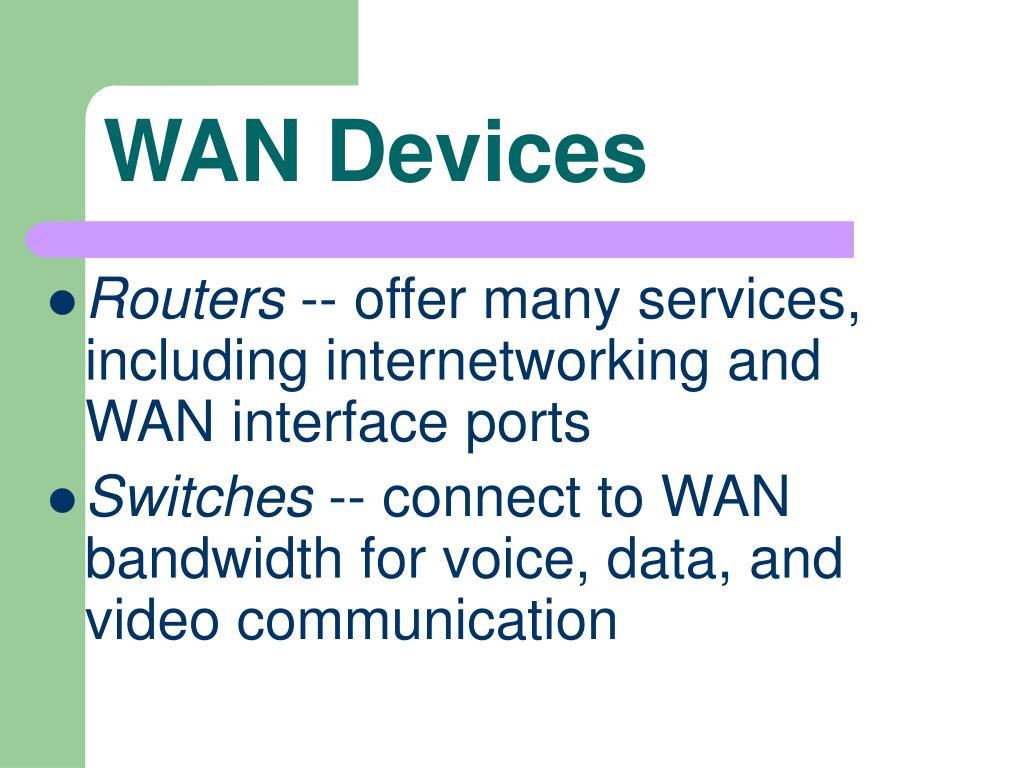

  6. WAN Devices • Routers -- offer many services, including internetworking and WAN interface ports • Switches -- connect to WAN bandwidth for voice, data, and video communication

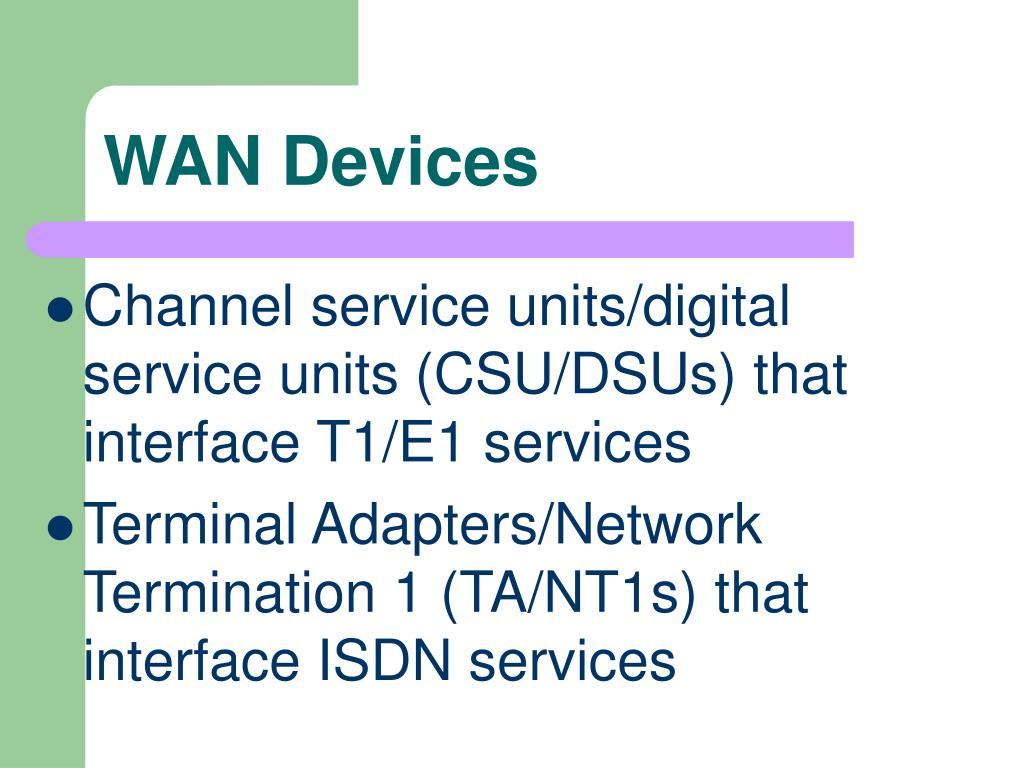

  7. WAN Devices • Channel service units/digital service units (CSU/DSUs) that interface T1/E1 services • Terminal Adapters/Network Termination 1 (TA/NT1s) that interface ISDN services

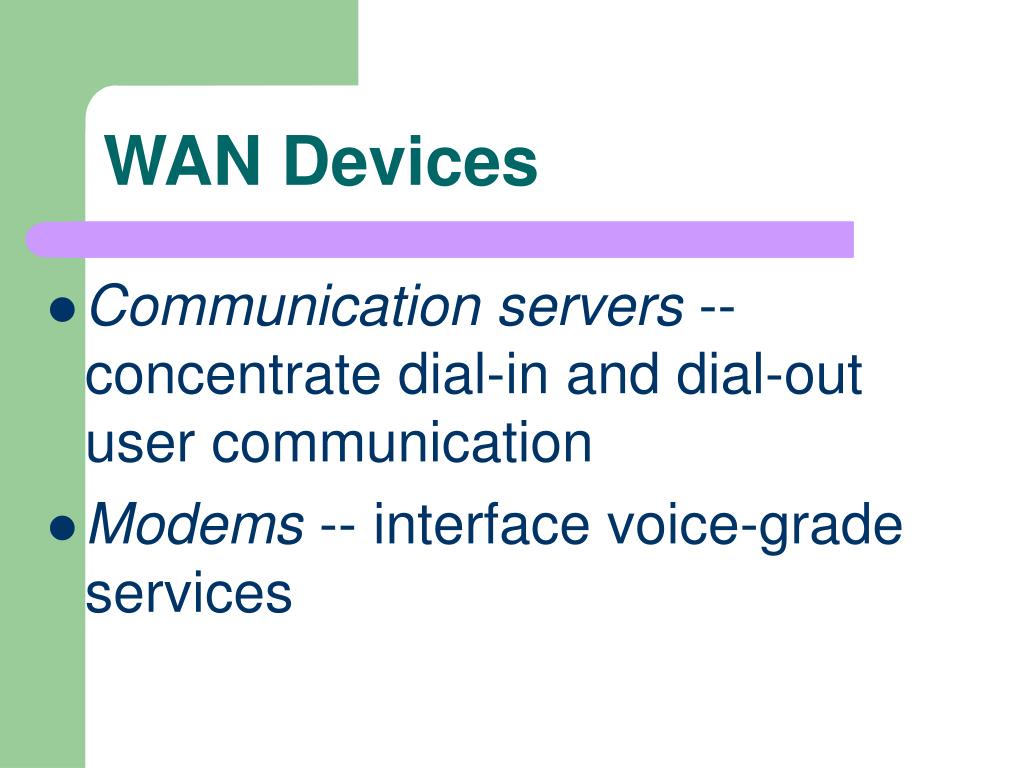

  8. WAN Devices • Communication servers -- concentrate dial-in and dial-out user communication • Modems -- interface voice-grade services

  9. WAN Standards

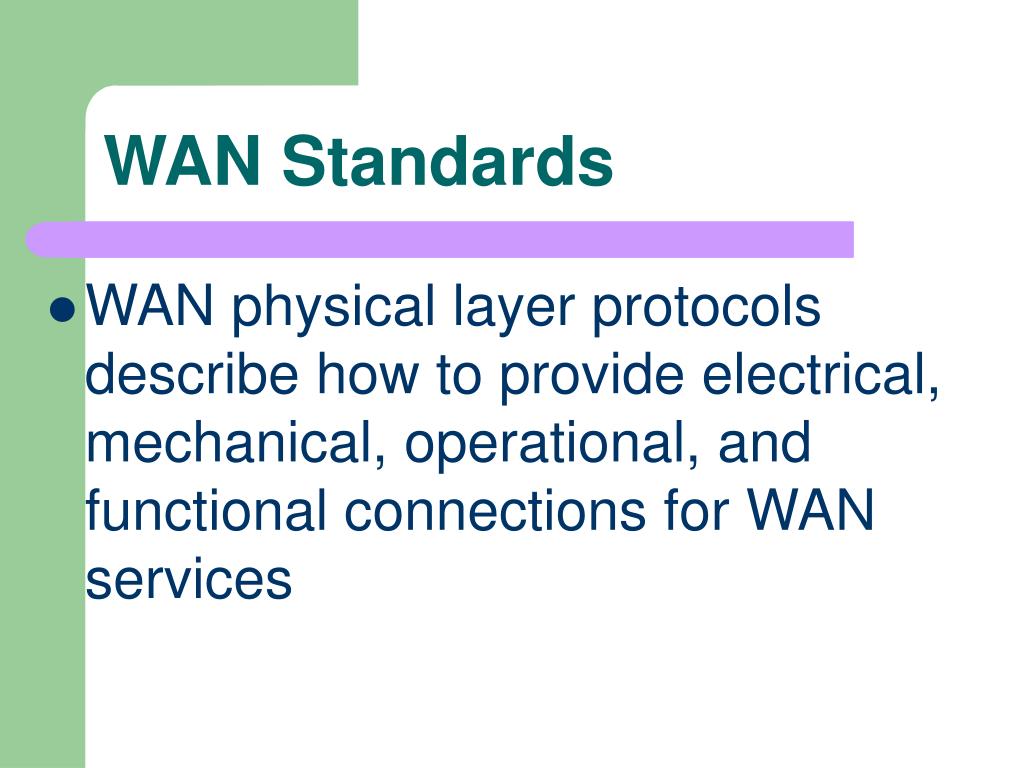

  10. WAN Standards • WAN physical layer protocols describe how to provide electrical, mechanical, operational, and functional connections for WAN services

  11. WAN Standards • WAN data link protocols describe how frames are carried between systems on a single data link

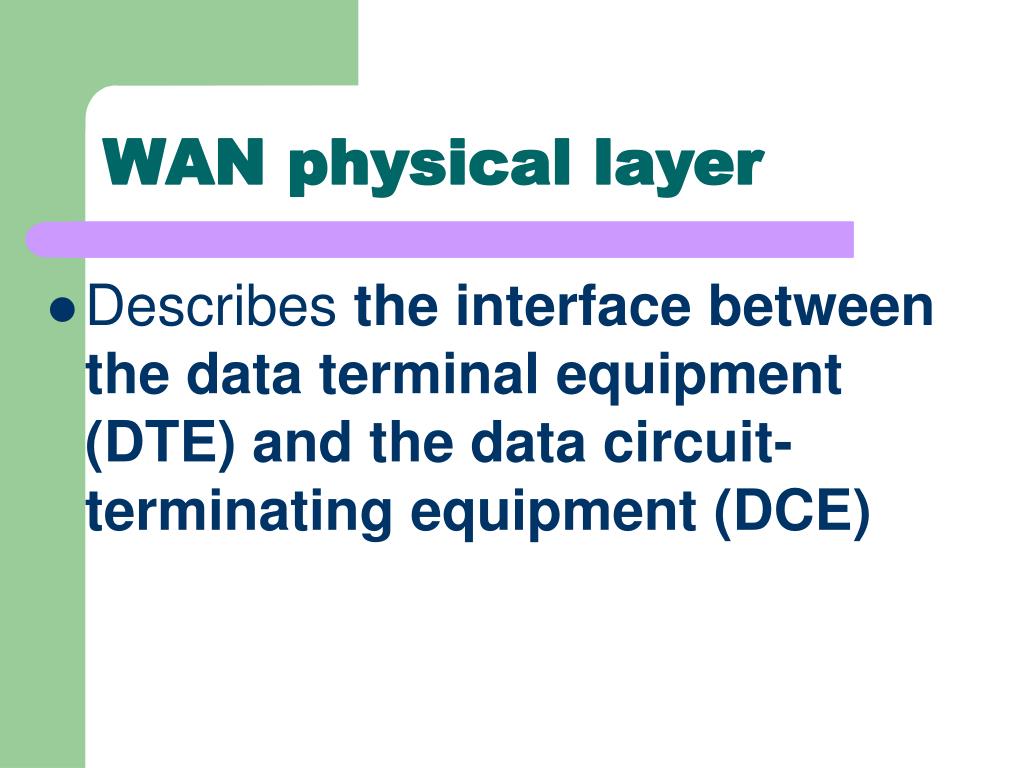

  12. WAN physical layer • Describes the interface between the data terminal equipment (DTE) and the data circuit-terminating equipment (DCE)

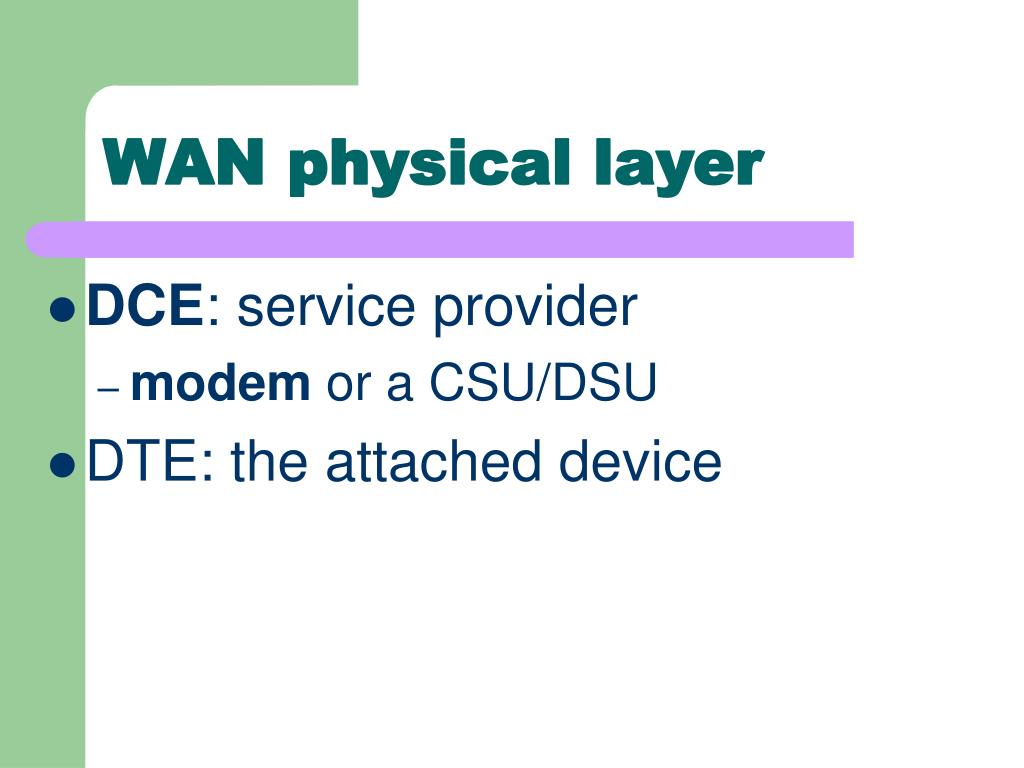

  13. WAN physical layer • DCE: service provider • modem or a CSU/DSU • DTE: the attached device

  14. EIA/TIA-232 EIA/TIA-449 V.24 V.35 X.21 G.703 EIA-530 Physical layer standards

  15. Data link encapsulations • HDLC -- IEEE standard • May not be compatible with different vendors • Supports both point-to-point and multipoint configurations with minimal overhead

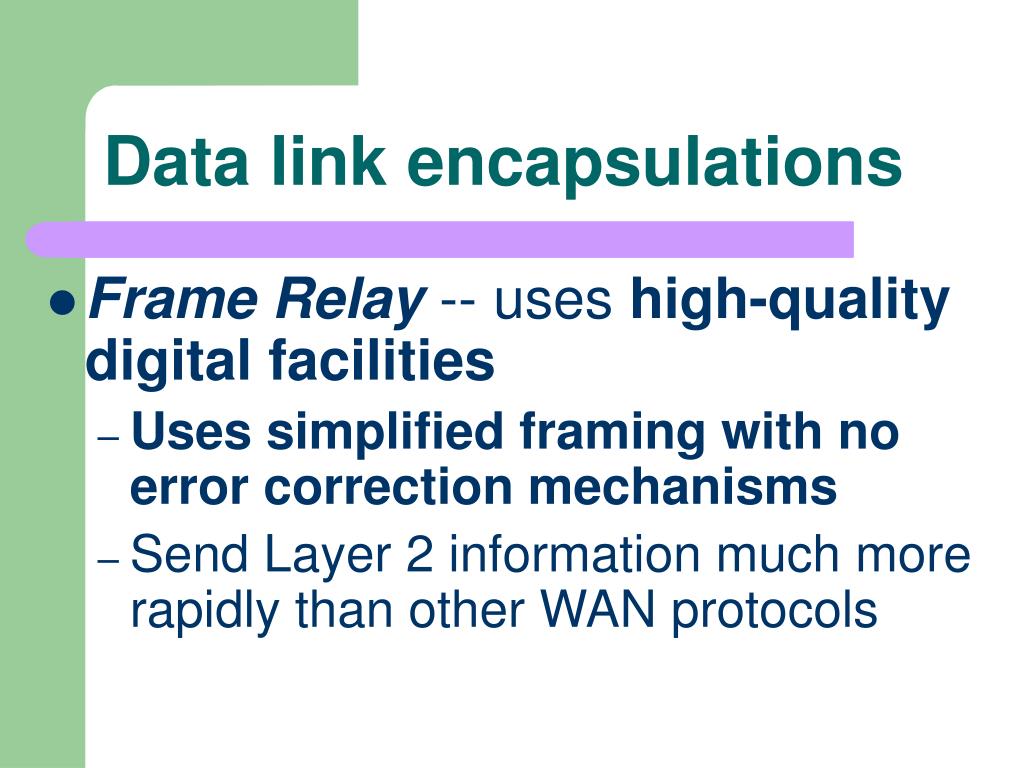

  16. Data link encapsulations • Frame Relay -- uses high-quality digital facilities • Uses simplified framing with no error correction mechanisms • Send Layer 2 information much more rapidly than other WAN protocols

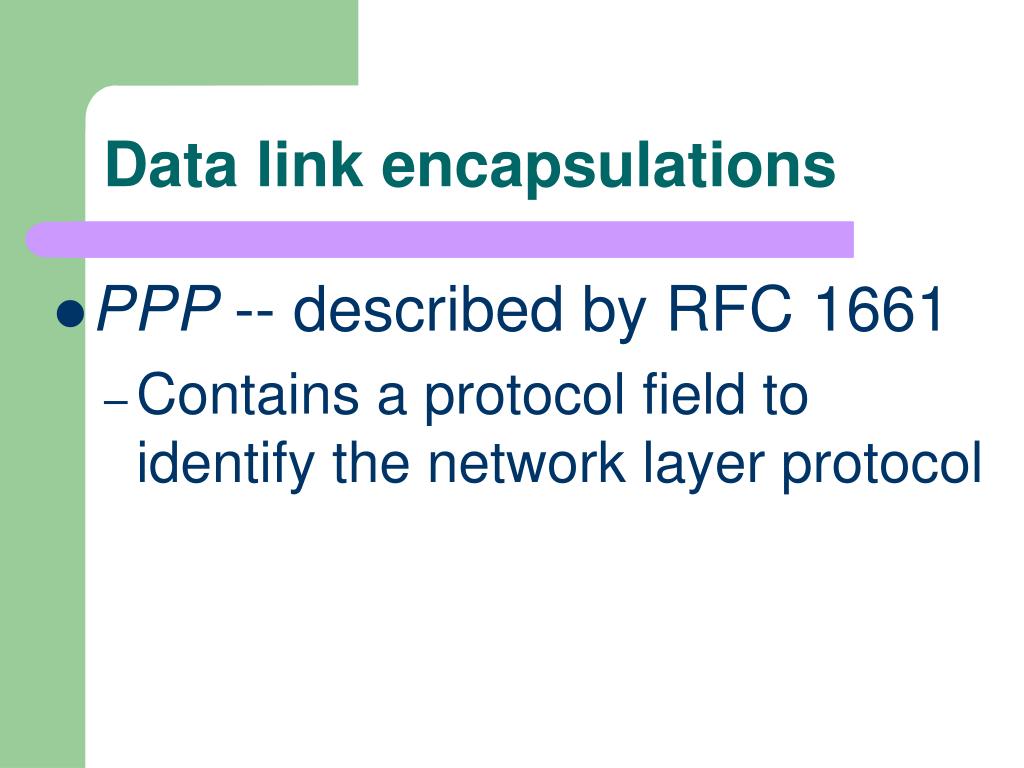

  17. Data link encapsulations • PPP -- described by RFC 1661 • Contains a protocol field to identify the network layer protocol

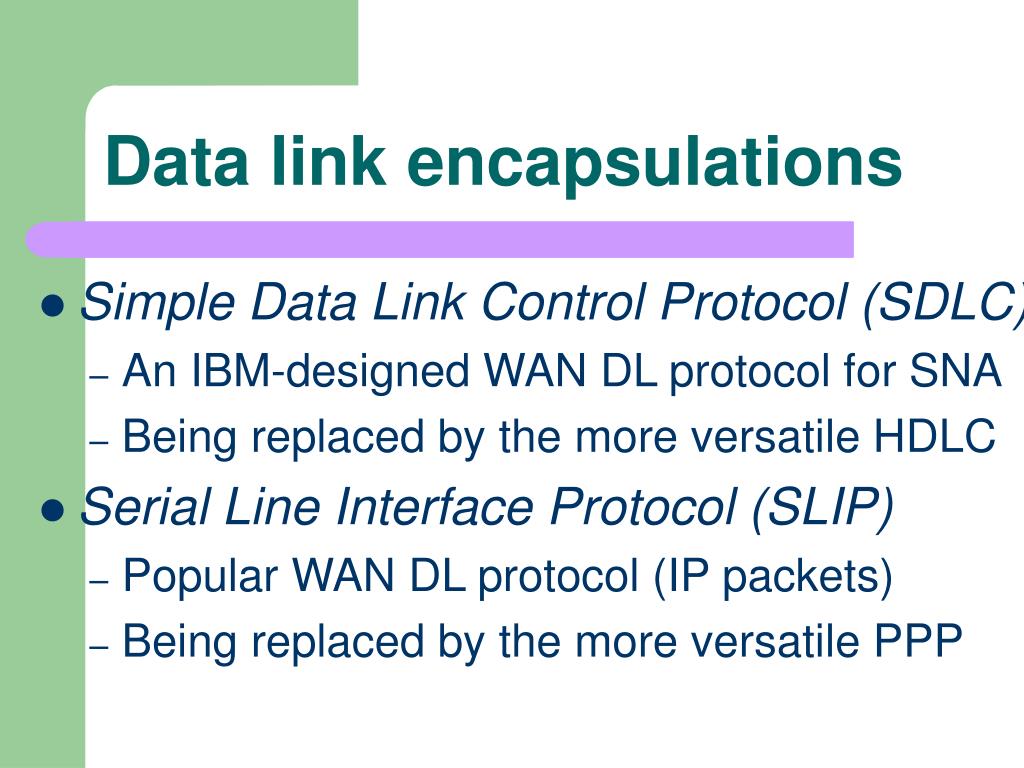

  18. Data link encapsulations • Simple Data Link Control Protocol (SDLC) • An IBM-designed WAN DL protocol for SNA • Being replaced by the more versatile HDLC • Serial Line Interface Protocol (SLIP) • Popular WAN DL protocol (IP packets) • Being replaced by the more versatile PPP

  19. Data link encapsulations • Link Access Procedure Balanced (LAPB) • A data link protocol used by X.25 • Has extensive error checking capabilities • Link Access Procedure D-channel (LAPD) • The WAN DL protocol used for signaling and call setup on an ISDN D-channel • Data transmissions take place on the ISDN B channels

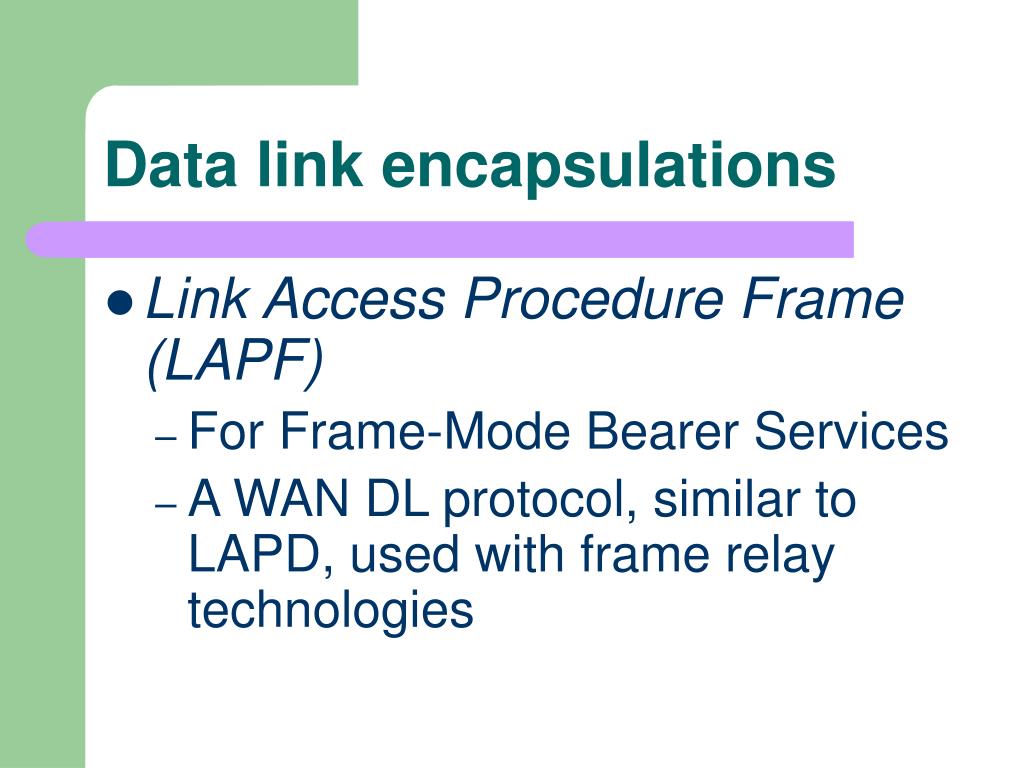

  20. Data link encapsulations • Link Access Procedure Frame (LAPF) • For Frame-Mode Bearer Services • A WAN DL protocol, similar to LAPD, used with frame relay technologies

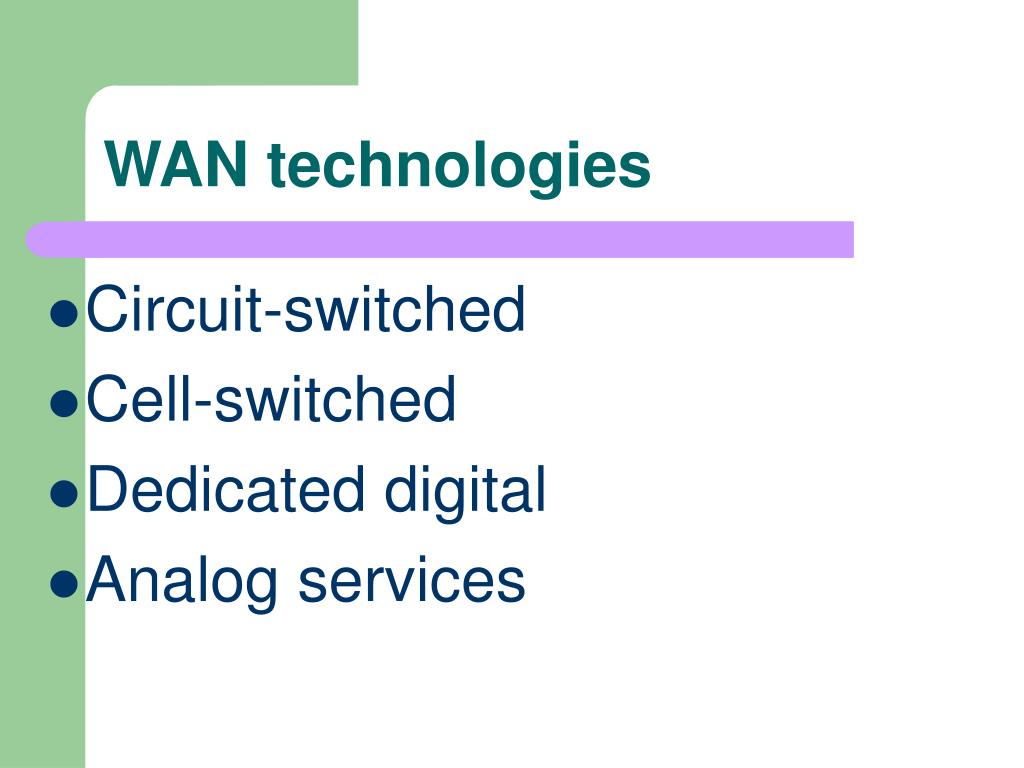

  21. WAN technologies • Circuit-switched • Cell-switched • Dedicated digital • Analog services

  22. Circuit-Switched Services • POTS (Plain Old Telephone Service) • Not a computer data service, but included • Narrowband ISDN • The first all-digital dial-up service • 128 kbps (BRI) • 3 Mbps (PRI)

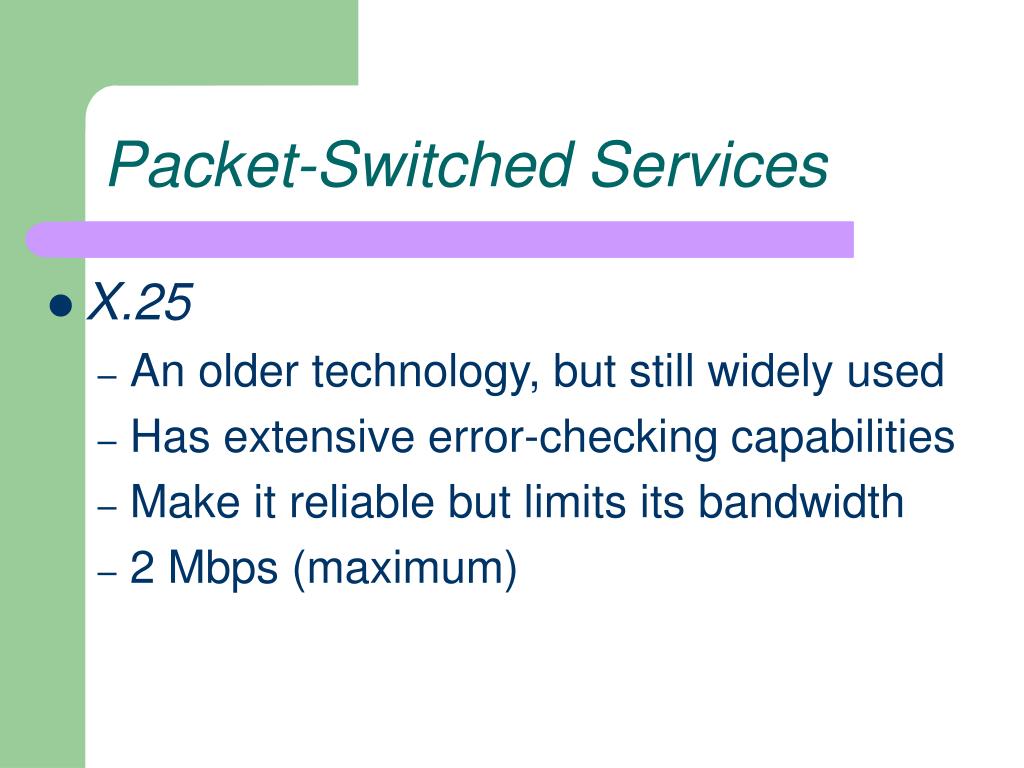

  23. Packet-Switched Services • X.25 • An older technology, but still widely used • Has extensive error-checking capabilities • Make it reliable but limits its bandwidth • 2 Mbps (maximum)

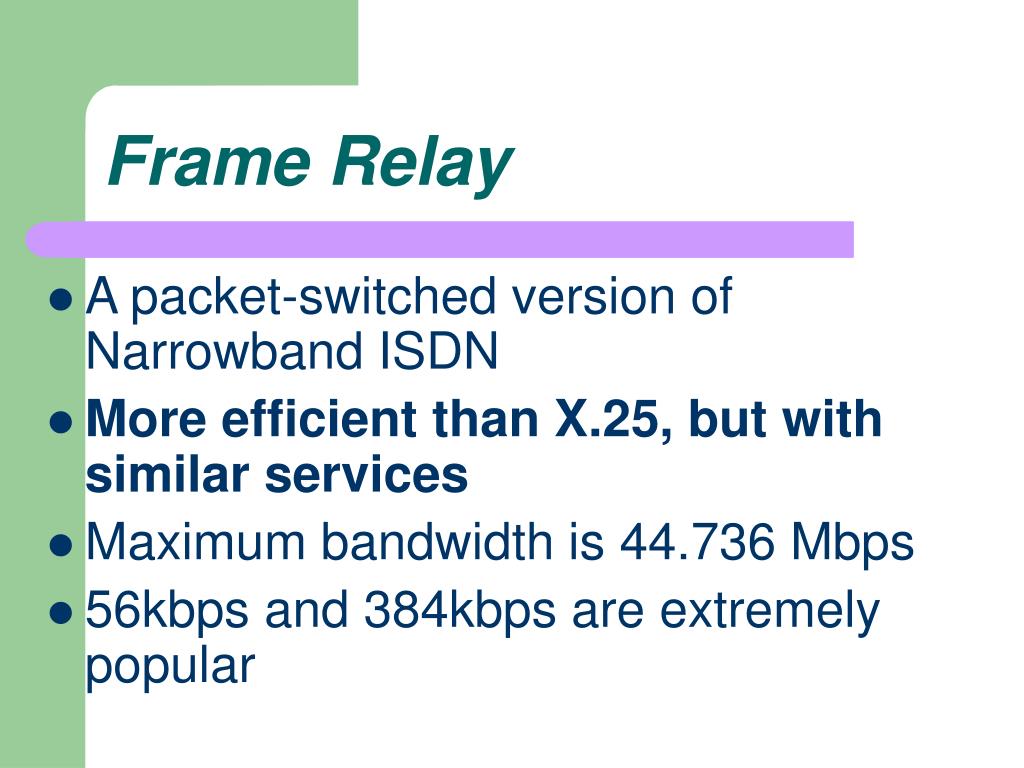

  24. Frame Relay • A packet-switched version of Narrowband ISDN • More efficient than X.25, but with similar services • Maximum bandwidth is 44.736 Mbps • 56kbps and 384kbps are extremely popular

  25. Cell-Switched Services • ATM (Asynchronous Transfer Mode) • Closely related to broadband ISDN • An increasingly important WAN/LAN • Small, fixed length (53 byte) frames • Maximum bandwidth is 622 Mbps

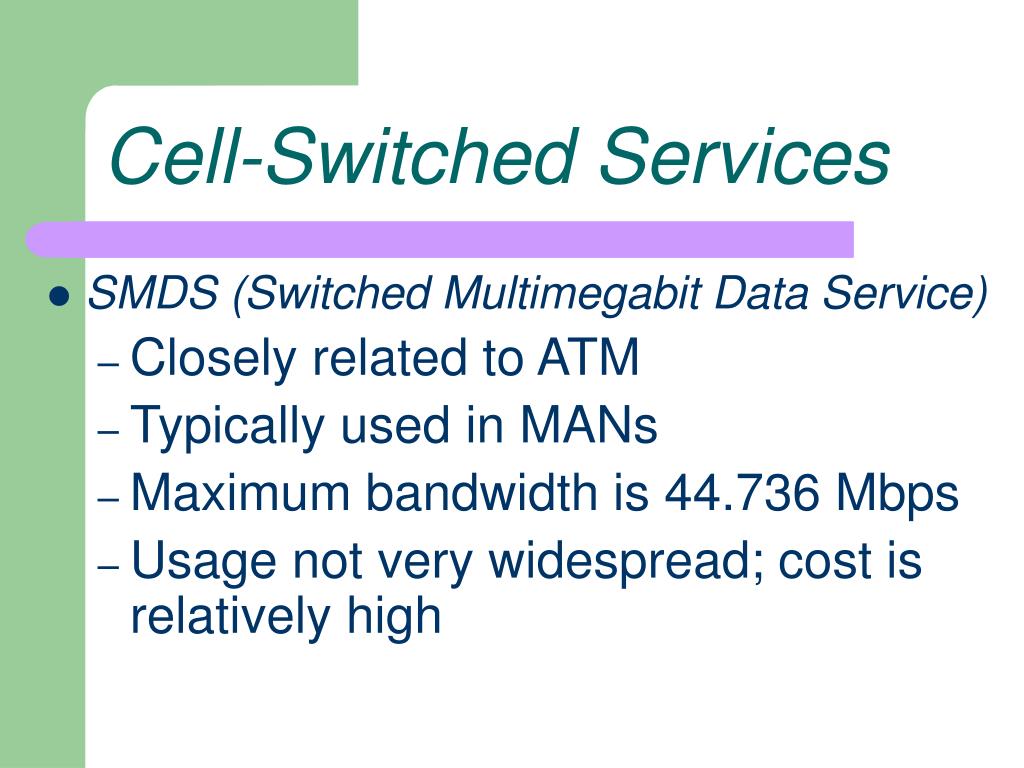

  26. Cell-Switched Services • SMDS (Switched Multimegabit Data Service) • Closely related to ATM • Typically used in MANs • Maximum bandwidth is 44.736 Mbps • Usage not very widespread; cost is relatively high

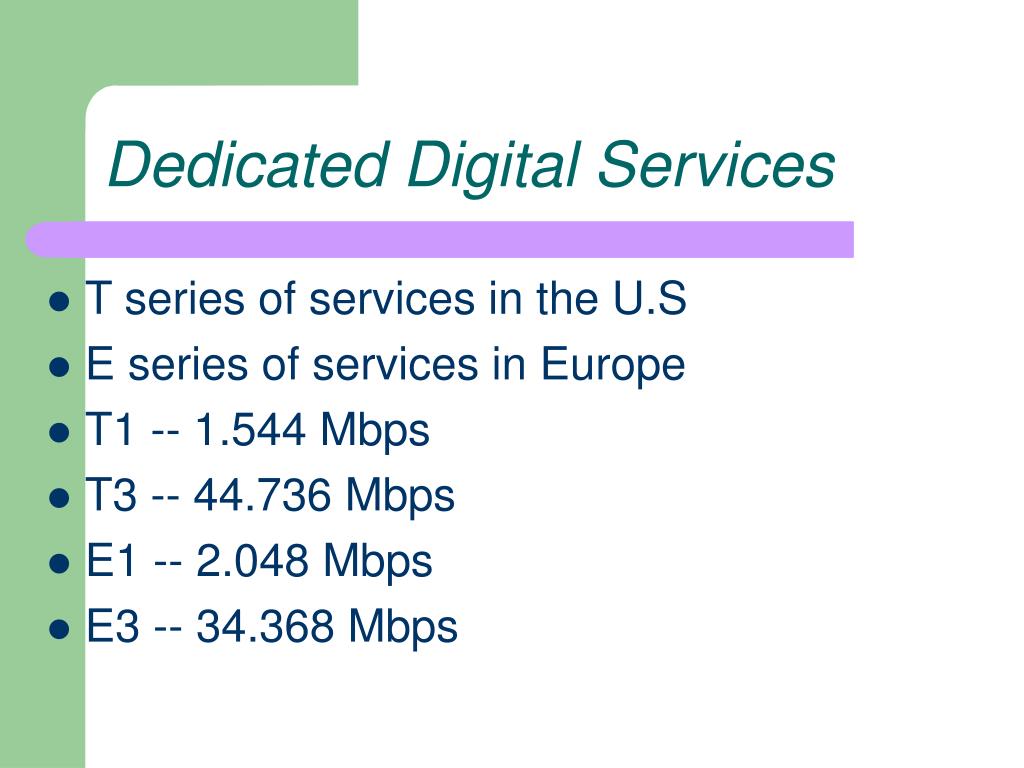

  27. Dedicated Digital Services • T series of services in the U.S • E series of services in Europe • T1 -- 1.544 Mbps • T3 -- 44.736 Mbps • E1 -- 2.048 Mbps • E3 -- 34.368 Mbps

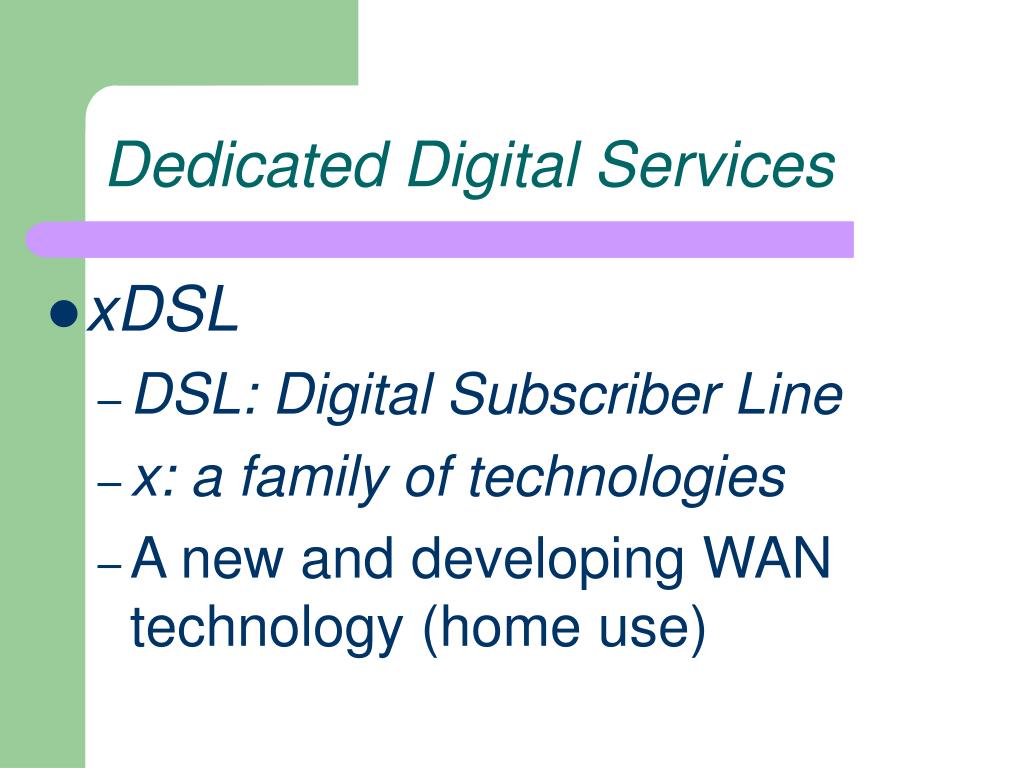

  28. Dedicated Digital Services • xDSL • DSL: Digital Subscriber Line • x: a family of technologies • A new and developing WAN technology (home use)

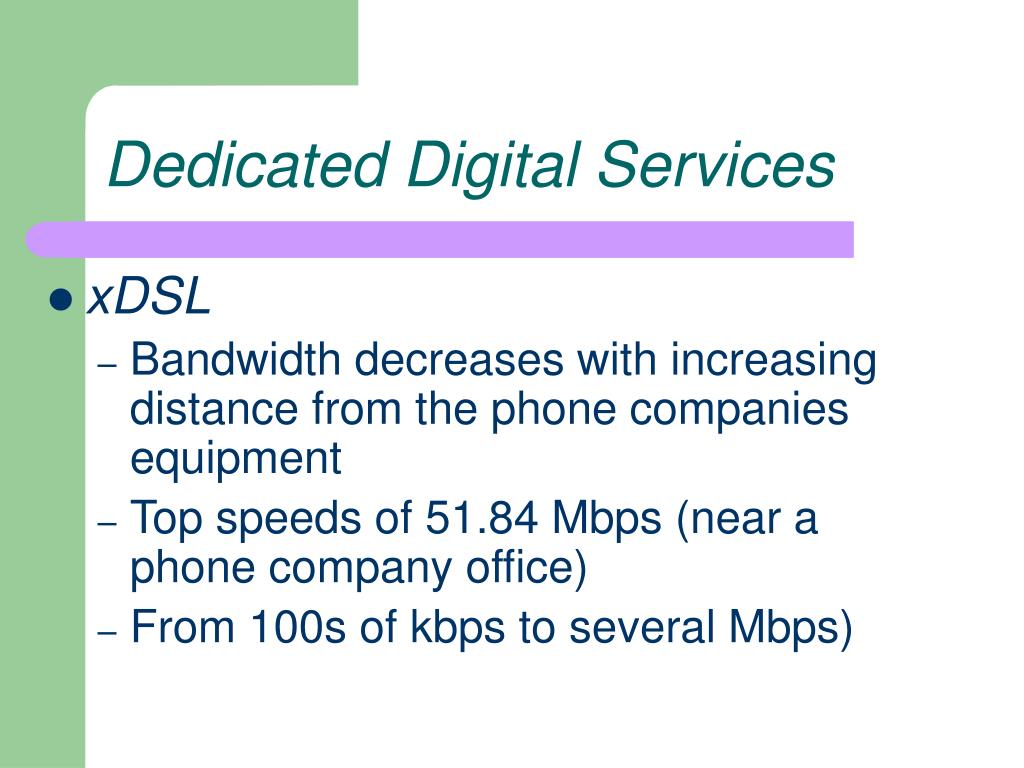

  29. Dedicated Digital Services • xDSL • Bandwidth decreases with increasing distance from the phone companies equipment • Top speeds of 51.84 Mbps (near a phone company office) • From 100s of kbps to several Mbps)

  30. Dedicated Digital Services • HDSL -- high-bit-rate DSL • SDSL -- single-line DSL • ADSL -- asymmetric DSL • VDSL -- very-high-bit-rate DSL • RADSL -- rate adaptive DSL

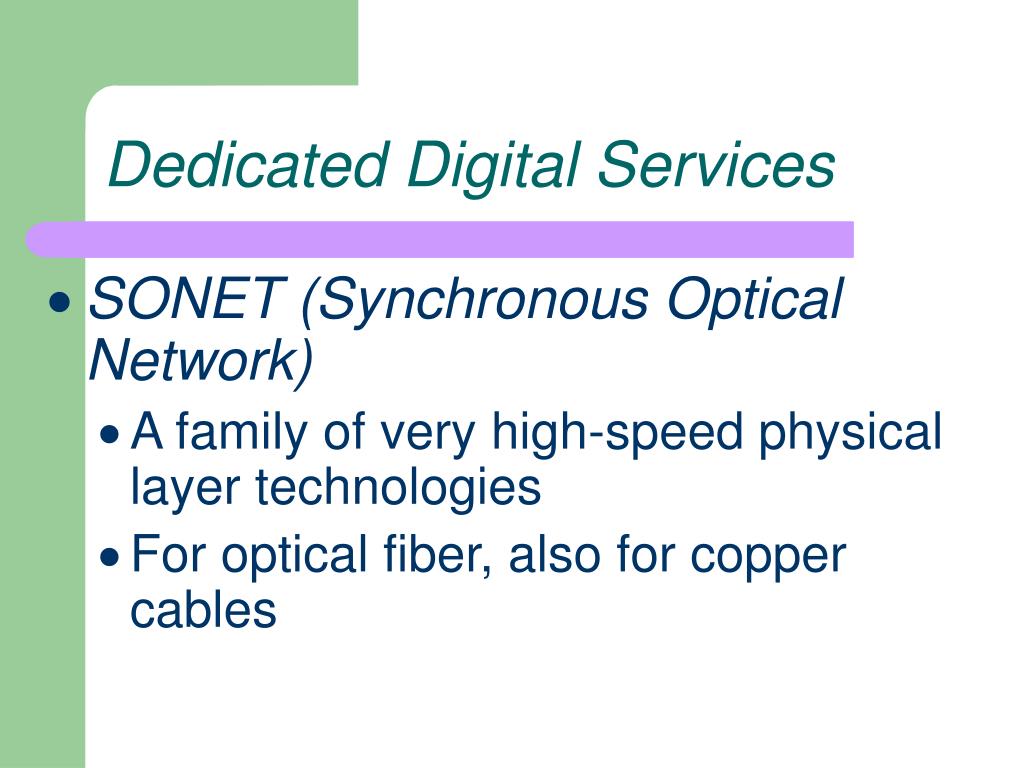

  31. Dedicated Digital Services • SONET (Synchronous Optical Network) • A family of very high-speed physical layer technologies • For optical fiber, also for copper cables

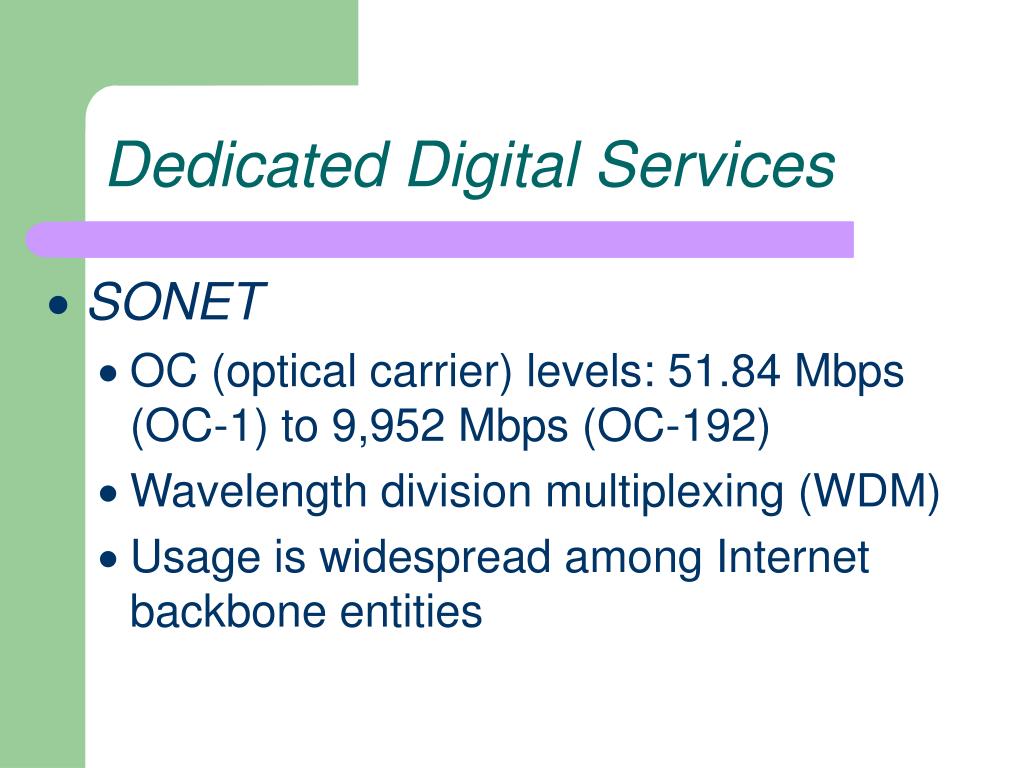

  32. Dedicated Digital Services • SONET • OC (optical carrier) levels: 51.84 Mbps (OC-1) to 9,952 Mbps (OC-192) • Wavelength division multiplexing (WDM) • Usage is widespread among Internet backbone entities

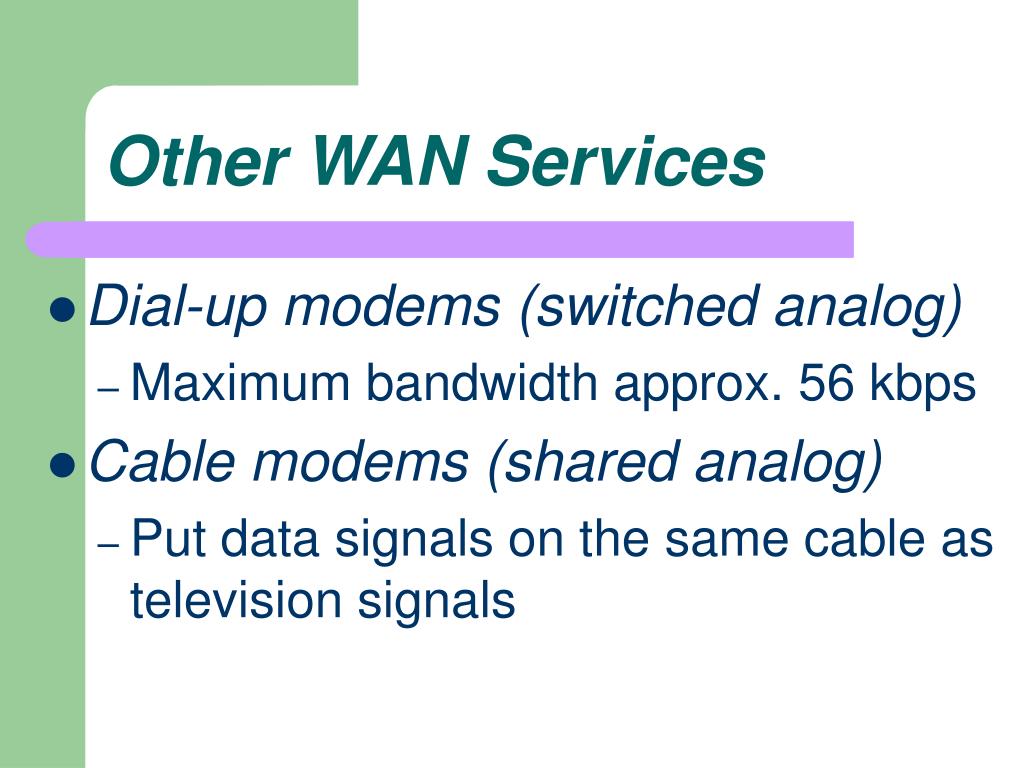

  33. Other WAN Services • Dial-up modems (switched analog) • Maximum bandwidth approx. 56 kbps • Cable modems (shared analog) • Put data signals on the same cable as television signals

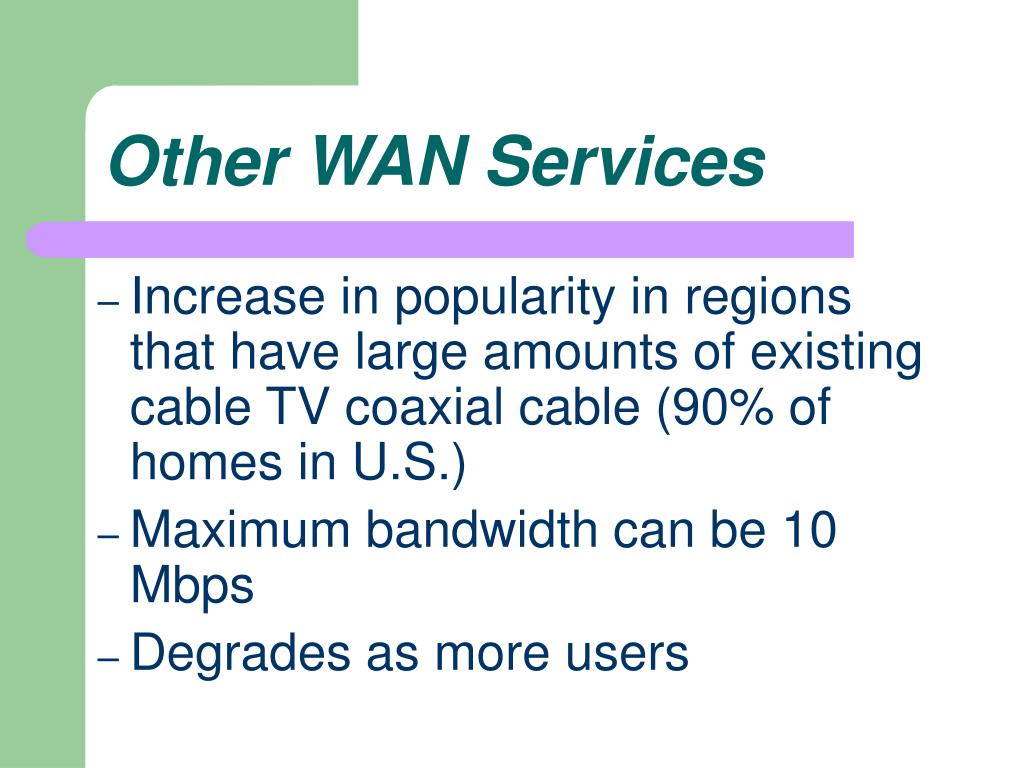

  34. Other WAN Services • Increase in popularity in regions that have large amounts of existing cable TV coaxial cable (90% of homes in U.S.) • Maximum bandwidth can be 10 Mbps • Degrades as more users

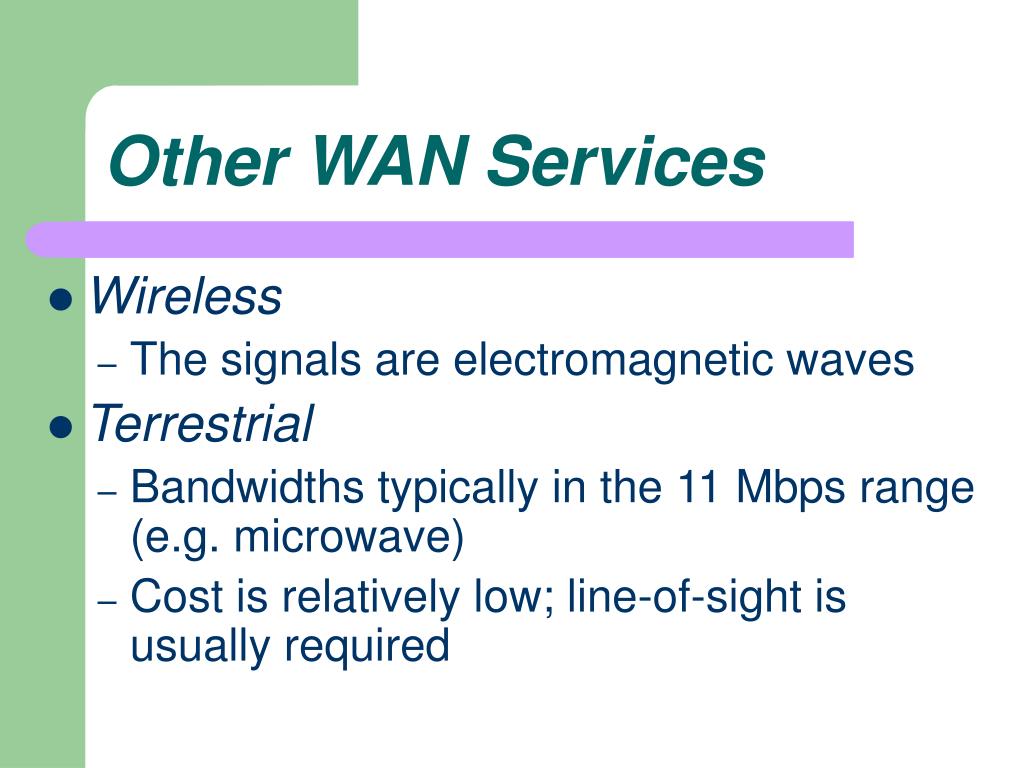

  35. Other WAN Services • Wireless • The signals are electromagnetic waves • Terrestrial • Bandwidths typically in the 11 Mbps range (e.g. microwave) • Cost is relatively low; line-of-sight is usually required

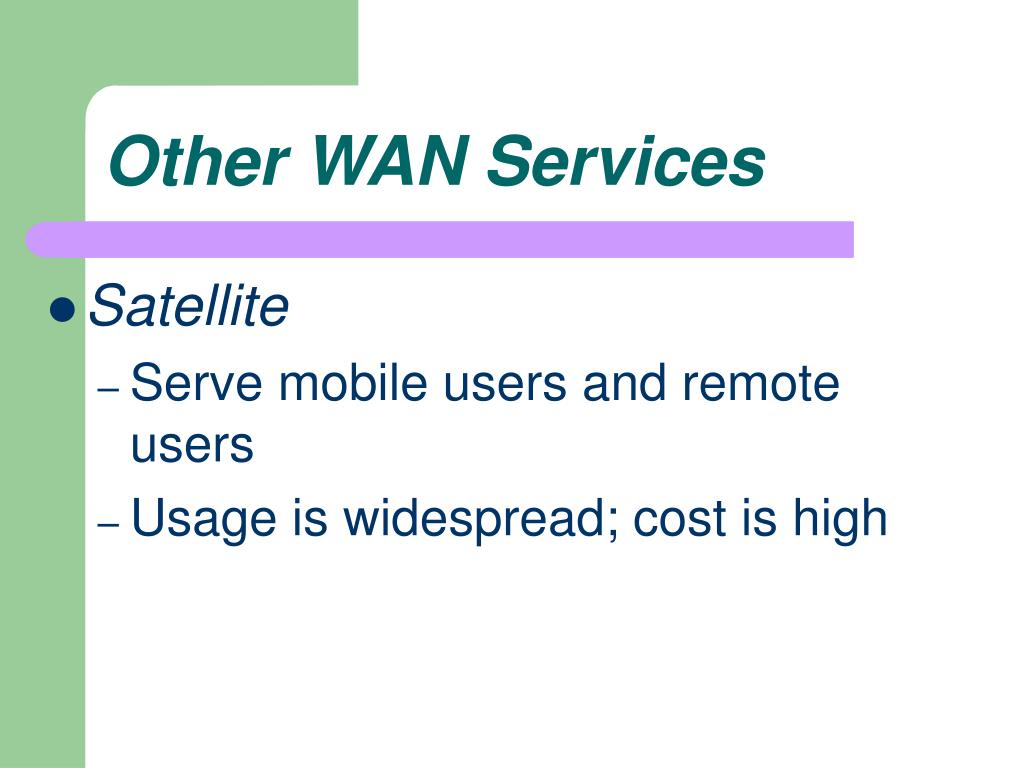

  36. Other WAN Services • Satellite • Serve mobile users and remote users • Usage is widespread; cost is high

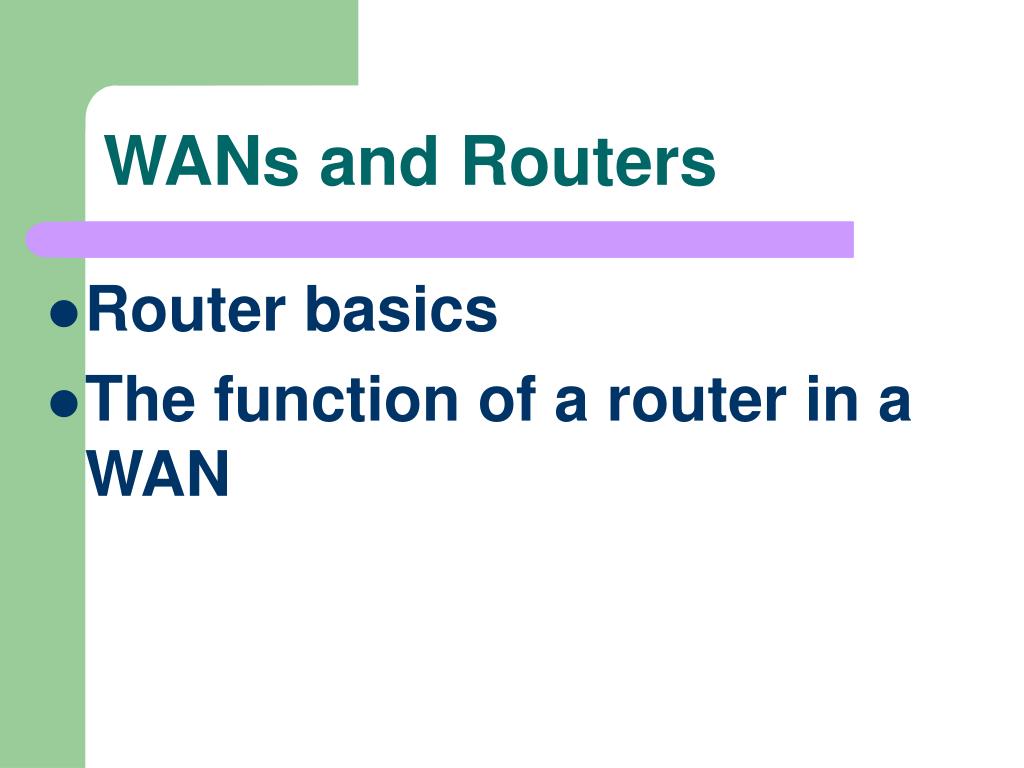

  37. WANs and Routers • Router basics • The function of a router in a WAN

  38. Router basics • Routers need the Internetworking Operating Software (IOS) to run configuration files • Selects the best paths and manages the switching of packets • Network layer

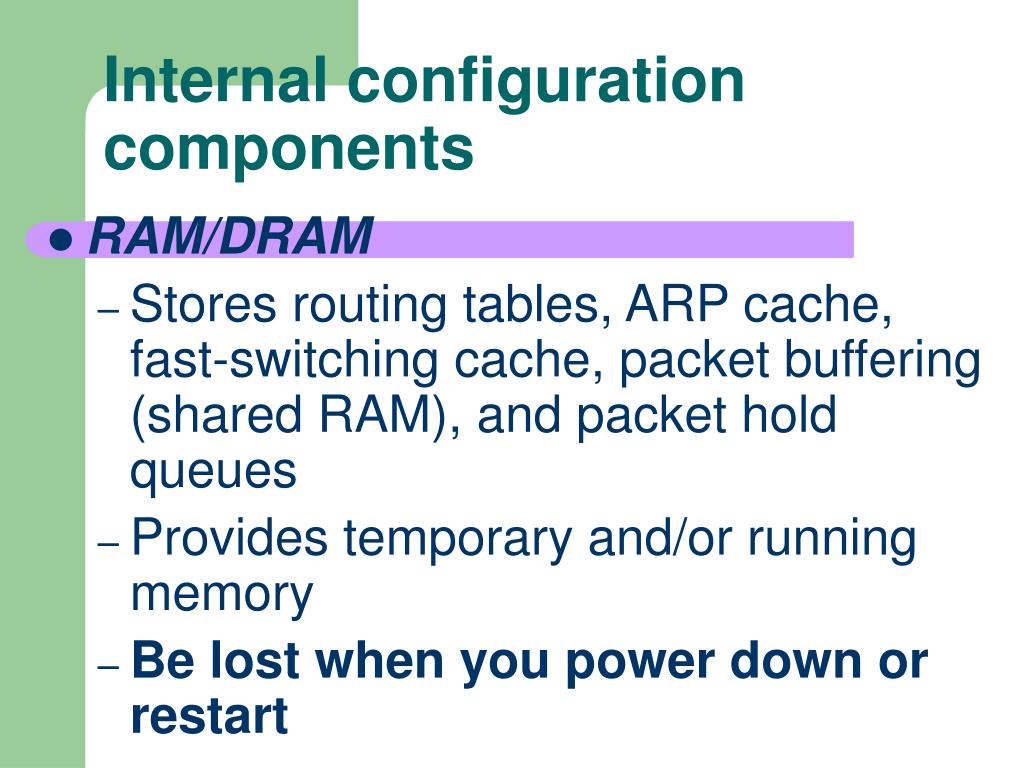

  39. Internal configuration components • RAM/DRAM • Stores routing tables, ARP cache, fast-switching cache, packet buffering (shared RAM), and packet hold queues • Provides temporary and/or running memory • Be lost when you power down or restart

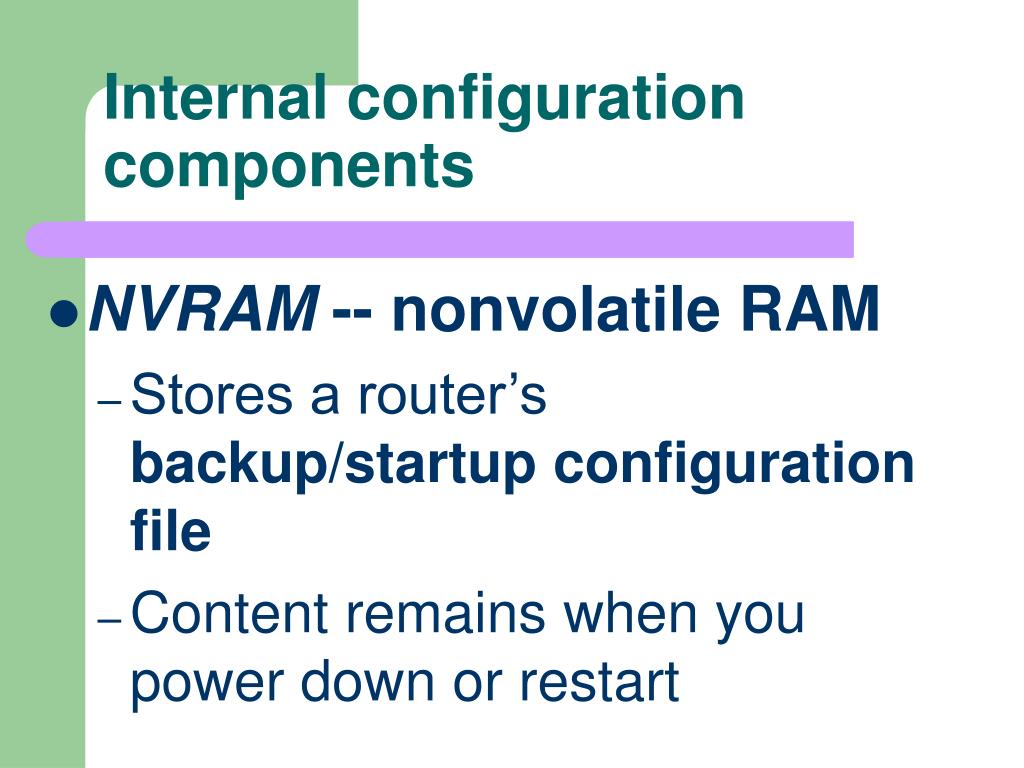

  40. Internal configuration components • NVRAM -- nonvolatile RAM • Stores a router’s backup/startup configuration file • Content remains when you power down or restart

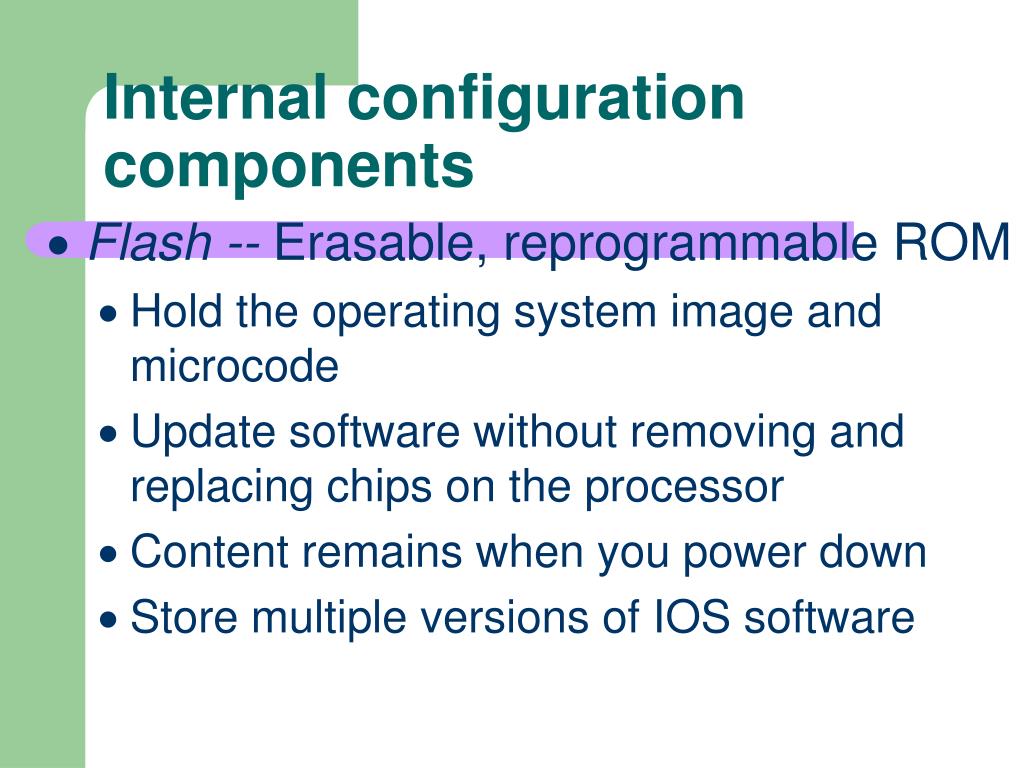

  41. Internal configuration components • Flash -- Erasable, reprogrammable ROM • Hold the operating system image and microcode • Update software without removing and replacing chips on the processor • Content remains when you power down • Store multiple versions of IOS software

  42. Internal configuration components • ROM • Contains power-on diagnostics, a bootstrap program, and operating system software • Software upgrades: replacing pluggable chips

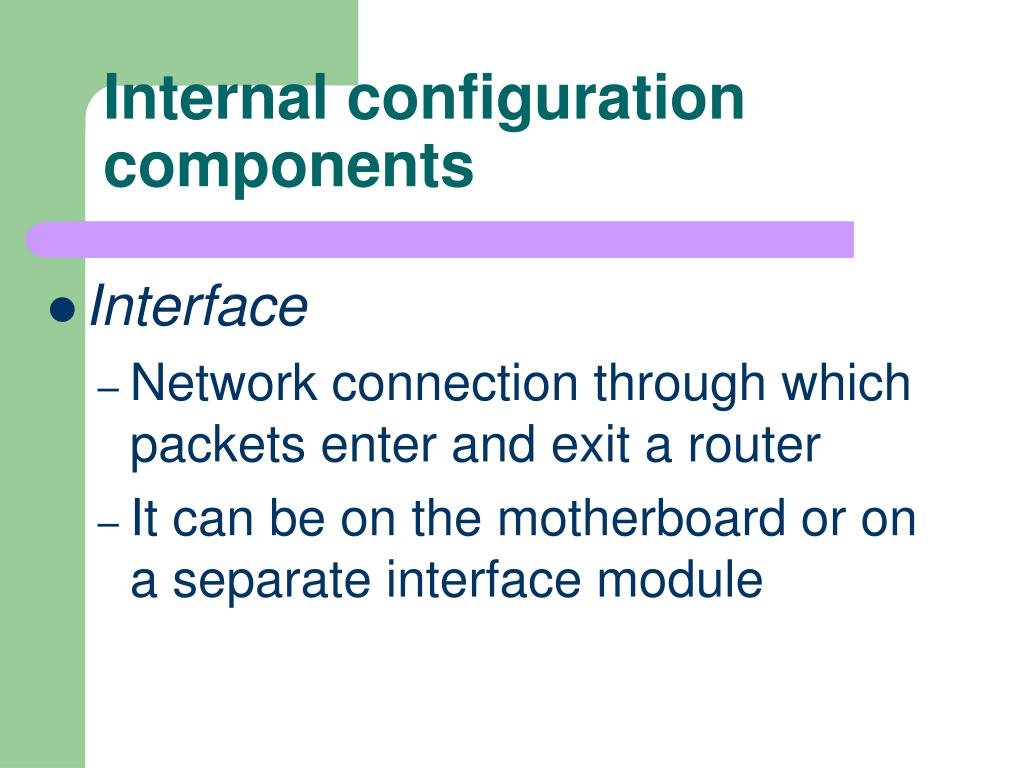

  43. Internal configuration components • Interface • Network connection through which packets enter and exit a router • It can be on the motherboard or on a separate interface module

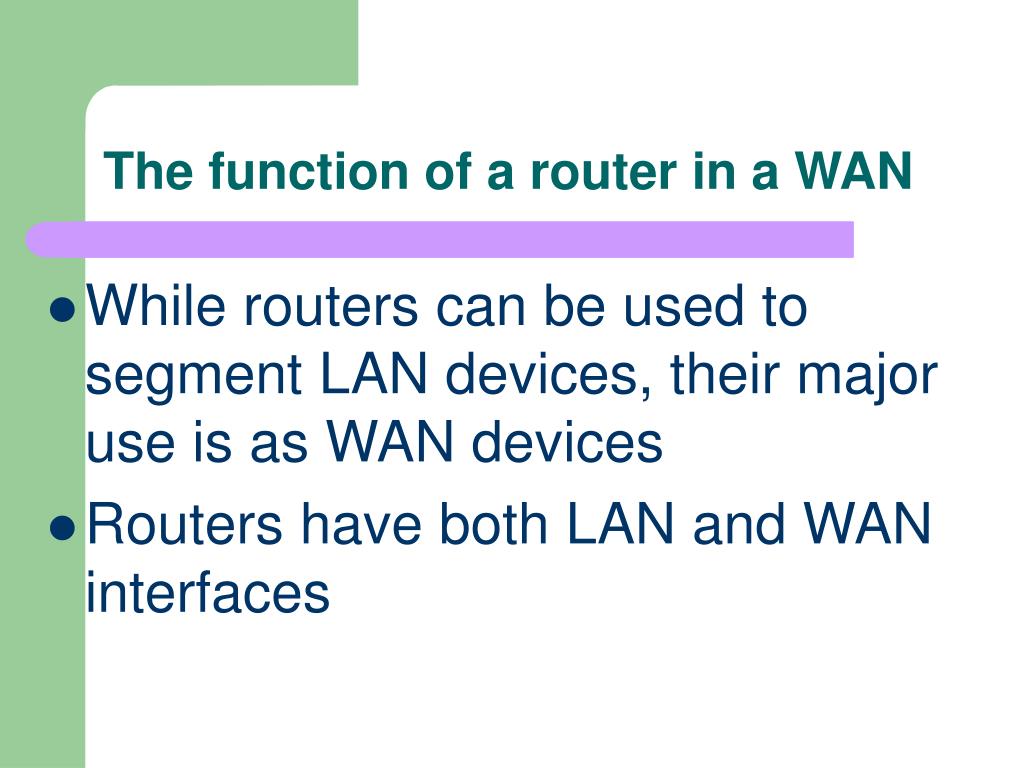

  44. The function of a router in a WAN • While routers can be used to segment LAN devices, their major use is as WAN devices • Routers have both LAN and WAN interfaces
