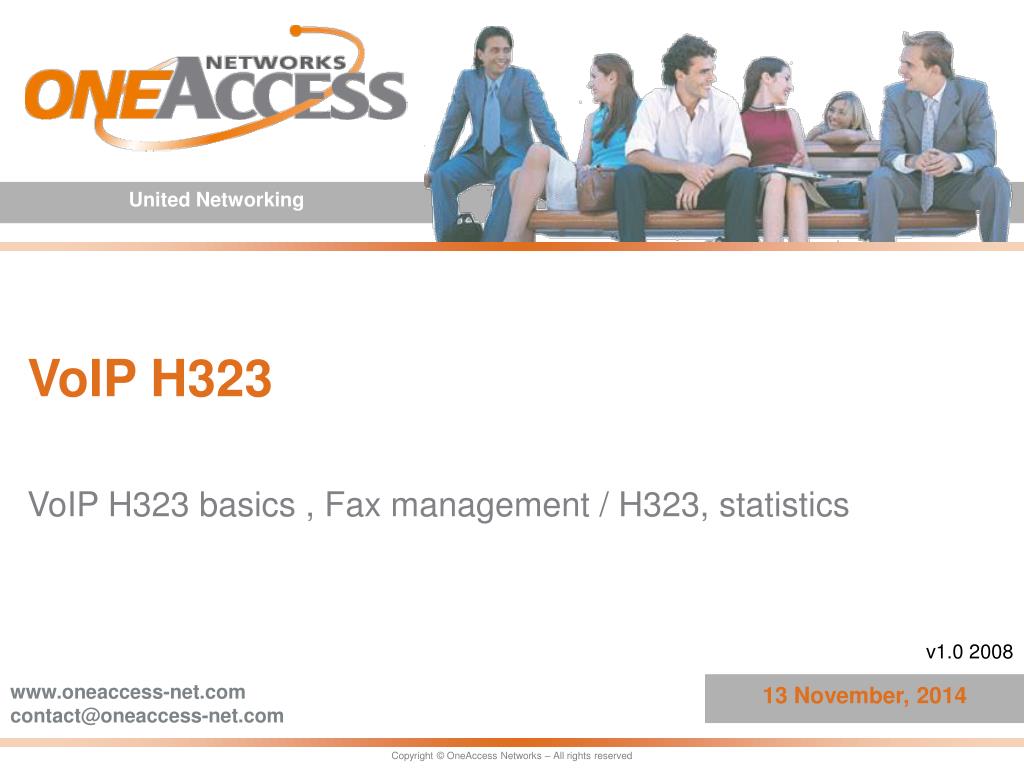

  1. VoIP H323 VoIP H323 basics , Fax management / H323, statistics v1.0 2008

  2. VoIP • VoIP Typical Architecture Media Gateway SS7/ISUP PSTN H.323 Voice Gateway ONE 400 ISDN T0/T2 IP H.323 Voice Gateway ONE 200 Softswitch Gatekeeper ISDN S0 or FXS

  3. VoIP Basics • H.323 v4 • H.323 Annex D for FAX (T38) • H.225: Call signalling channel • Q931: Call signalling • RAS: Registration, Admission, Status (with gatekeeper) • RTP/RTCP: • media streams packetization and synchronisation • H.245: Call control channel (capabilities, master/slave, logical channels) • G.7XX: audio compression algorithms

  4. VoIP Basics Q.931 Terminal Control and Management AV App Data App G.7XX • H.323 Protocol Architecture Conference Manager T.125 Terminal to Gatekeeper Signaling H.225.0 Call Signaling H.26X H.245 T.124 (RAS) RTP RTCP TPKT T.123 Unreliable Transport (UDP) Reliable Transport (TCP) Network Layer (IP) Link Layer Physical Layer

  5. VoIP Basics • H.323 Protocol Overview Registration Registration Gatekeeper RAS (UDP) Admission H.323 Terminal SETUP SETUP Q.931 H.323 Terminal CONNECT (TCP) CONNECT (H245 Address) H.245 Messages H.245 Open Logical Channels (TCP) (RTCP address) (RTCP & RTP addresses) (RTCP address) (RTCP & RTP addresses) RTP stream Media RTP stream (UDP) RTCP stream

  6. VoIP Interoperability • ONEx00 (Voice gateway) interworking with: • IP phones • Softphone on PC (Netmeeting, Openphone,…) • Interactive Voice Response server (IVR) • Multi Conference Unit (MCU) • Gatekeeper / Softswitch • Nortel CS2K, Cirpack, Italtel, Sonus, Netcentrex,… • Media Gateway

  7. VoIP: Support of H323 Gatekeepers • Use of a gatekeeper: parameters for registration • Gatekeeper identifier • Gatekeeper IP address • H.323 identifier (alias) • Gateway prefix • Alternate gatekeepers for backup • Pre-defined list (static mode) • List defined by the gatekeeper (dynamic mode)

  8. VoIP: Dialing Modes • Dialling: In-bloc ISDN terminal ONE200/400 Gatekeeper Remote End SETUP SETUP ACK INFO Digit 3 INFO Digit 0 INFO Digit 2 CALL PROCEEDING ARQ N° 302 ACF SETUP N° 302 SETUP N° 302 SETUP ACK CALL PROCEEDING ALERT ALERT ALERT CONNECT CONNECT CONNECT

  9. VoIP: Dialing modes • Dialing: Overlap ISDN terminal ONE200/400 Gatekeeper Remote End SETUP SETUP ACK INFO Digit 3 INFO Digit 0 INFO Digit 2 ARQ N° 302 ACF SETUP N° 302 SETUP N° 302 SETUP ACK INFO Digit 1 INFO Digit 1 INFO Digit 1 INFO Digit 7 INFO Digit 7 INFO Digit 7 INFO Digit 9 INFO Digit 9 INFO Digit 9 CALL PROCEED. CALL PROCEED. CALL PROCEEDING ALERT ALERT ALERT CONNECT CONNECT CONNECT

  10. VoIP: FAX/Modem processing • Fax / Modem processing • Three types of devices are supported: • G3 FAX (up to V17 – 14400 bps) • Super G3 FAX (V34): processed as a Modem • Modem (up to V90) • The ONE200/400 detects the type of communication: voice, G3 FAX, Modem/SG3 Fax , (analysis of the FAX answer tone) • Requirements: • For Modem / SG3 FAX, the coder must be G.711 and the echo canceller must be disabled , SG3toG3 facility is also available to force the SG3 FAX in G3 mode • For G3 FAX: the Non Linear Processor is disabled. Transport in G.711 coding mode or FAX Relay T38

  11. VoIP: FAX/Modem Processing • In-band processing • The coder used is G.711 Selected for all the calls or for specific subscriber numbers only (routing table) • Echo canceller automatically disabled in case of Modem • NLP automatically disabled in case of G3 Fax • FAX / Modem pass-through • Direct switchover to G.711 coder upon fax and/or modem detection (called side only). ( oneway G729 to G711 fallback) or H245 request mode or TCS null or NSE RTP packets (Cisco) • Echo canceller automatically disabled in case of Modem • NLP automatically disabled in case of G3 Fax • FAX Relay T38 • V27 ter (4800 bps) and V29 (9600 bps) • T.30 messages analysis • Transparent transport for data (UDP) with optional redundancy • SG3toG3 fallback / allows to use same bandwidth for G3 and SG3 FAX

  12. VoIP: DTMF Processing • DTMF processing • Transparent mode • If G.711 coder used (Voice is not compressed, DTMF signal is transported as a voice signal) • In band transmission (RTP frames carrying the DTMF tone indication instead of voice) • RFC2833 ( dedicated RTP packets with specific packet type ) • H.245 • Use of H.245 message ( out of band transmission ) • Alphanumeric format : DTMF code. Configurable level & duration • Signal format : DTMF code + duration & level are transmitted • Detection, Suppression, Regeneration

  13. VoIP Configuration • Configuration diagram (1) H.323 Gateway Voice-port Voice Routing Dial-peer Voice Voip Dial-peer Voice POTS Physical Port Interface BRI/PRI VoIP coder profile

  14. VoIP Configuration • Configuration diagram (2) • 1 - Physical voice ports • 2 - Interface if BRI or PRI • 3 - Dial-peer voice POTS • 4 - Dial-peer voip • 5 - VoiP coder profile • 6 - Voice routing • 7 - H323-gateway

  15. Voice Port Configuration • 1 - Physical voice ports (1/3) • BRI (2 or 4 or 8 ports) or FXS (4 or 8 ports) • PRI CLI# configure terminal CLI(configure)# voice-port 5/0 CLI(voice-port)# exit CLI(configure)# voice-port 5/1 CLI(voice-port)# exit . . . CLI(configure)# voice-port 5/7 CLI(voice-port)# exit one200>conf t one200(configure)>voice-port 5/0 one200(voice-port)>exit

  16. VoIP Configuration • 1 - Physical voice ports (2/3) one200(voice-port)> ? analog-aoc-type - Analog AOC type (FXS port only) aoc-d-service - method for AOC-D behaviour aoc-e-service - method for AOC-E behaviour call-hold - Set VOIP call hold call-waiting - Set VOIP call waiting caller-id - Set VOIP caller id cas-conf - Configuration of cas signal analysis clock-source - Synchro source options (global over voice ports) coder-law - Set coder law dialing-timer - Set maximum time-out for receiving 1st digit (in sec) echo-cancellation - Set echo cancellation echo-cancellation-le - Set echo-cancellation-length echo-disable - For echo cancellation Modem:remove echo on 2100Hz phase reversal detection Voicemodem: modem + reactivate echo when voice is back again end-of-dialing-timer - Digit timeout (in sec) to consider a call as complete exit - Exit intermediate mode force-clir - Set caller line identity request initial-ring - Initial ring tone in ms for caller-id ...

  17. VoIP Configuration • 1 - Physical voice ports (3/3) ... input-gain - Set input gain inter-digit - Set VOIP DTMF inter-digit duration (in sec) isdn-release-tone - set isdn-release-tone localy and force PI isdn-ringback-tone - set isdn-ringback-tone localy and force PI max-ringing - Maximum time for ringing before off_hook detection metering - metering choice no - no output-gain - Set output gain power-source-one - Set Power source 1 for all BRI voice-ports pulse-dial - Select country to validate pulse dial ring - Select country to define current ring shutdown - Shutdown for voice-port sig-conf - Configuration of signal analysis signal-analysis - Set signal transparency sntp-time - SNTP date/time inserted when ie is absent tone - Select a country to validate tone tone-level - Set level tone user-metering - User metering pulse profile user-ring - Modify the userdefined ring user-tone - Select the type of userdefined tone to modify: dial, network-failure, congestion, busy, callback without-loss-signal - Set without loss signal <cr>

  18. VoIP Configuration • 2 - Interfaces (1/4) • FXS: No configuration • BRI • PRI one200(configure)>interface bri 5/0 one200(config-if)> ? exit - exit isdn - Set isdn level no - no shutdown - shutdown one200(configure)>interface pri 5/0 one200(config-if)> ? exit - Exit intermediate mode framing - Set type of frames isdn - Set isdn level linecode - Select line physical code no - no physical-interface - Select the type of interface : E1 or T1 shutdown - Shutdown for the PRI interface

  19. VoIP Configuration • 2 - Interfaces (2/4) • BRI one200(isdn)> ? application-interfac - Set the application interface name exit - Exit to root node facility - facility message is transmit k-window - Set the value of k window layer1-emulation - Set the layer 1 emulation type layer2-emulation - Set the layer 2 emulation type life-line-hold - Life line hold for line 0 on ISDN Voice Board max - max modulo-window - Set the modulo window value n200-counter - Set the value of N200 counter n202-counter - Set the value of N202 counter no - no operator - Set the operator name protocol-emulation - Set the type of protocol emulation static-tei - Set the value of static tei t200-timer - Set the value of T200 timer ... t310-timer - Set the value of T310 timer --> can be set to 100 for GSM calls tei-negotiation - Set the tei negociation mode <cr> one200(isdn)>

  20. VoIP Configuration • 2 - Interfaces (3/4) • BRI: Example with ISDN phone • BRI: Example with PBX one200(configure)>interface bri 5/0 one200(conf-if)> isdn one200(isdn)> protocol-emulation isdn-nt one200(isdn)> exit one200(conf-if)> no shutdown one200(conf-if)> execute one200(conf-if)> exit one200(configure)> interface bri 5/0 one200(conf-if)> isdn one200(isdn)> tei-negotiation static one200(isdn)> protocol-emulation isdn-nt one200(isdn)> exit one200(conf-if)> no shutdown one200(conf-if)> execute one200(conf-if)> exit

  21. VoIP Configuration • 2 - Interfaces (4/4) • PRI one200(isdn)> ? application-interfac - Set the application interface name exit - Exit to root node facility - message facility is transmit k-window - Set the value of k window layer2-emulation - Set the layer 2 emulation type max - max n200-counter - Set the value of N200 counter no - no operator - Set the operator name protocol-emulation - Set the type of protocol emulation t200-timer - Set the value of T200 timer t203-timer - Set the value of T203 timer t301-timer - Set the value of T301 timer t302-timer - Set the value of T302 timer t303-timer - Set the value of T303 timer t304-timer - Set the value of T304 timer t305-timer - Set the value of T305 timer t306-timer - Set the value of T306 timer t308-timer - Set the value of T308 timer t309-timer - Set the value of T309 timer t310-timer - Set the value of T310 timer t313-timer - Set the value of T313 timer

  22. Logical Local Voice Port • 3 - Internal Local Voice Port (POTS) CLI(configure)# dial-peer voice pots <id> CLI(pots)# pots-group <port> CLI(pots)# port 5/<port> CLI(pots)# no shutdown CLI(pots)# exit One Dial-peer voice POTS must be configured for each physical voice port. It binds a physical port to a pots-group. Several physical ports can be bound to the same pots-group. Calls are then routed to pots-group.

  23. Logical Local Voice Port - For an outgoing Voip call, user part of From header field is based on 6C IE (calling party number) for BRI interface. For FXS port, that information must be added at the dial-peer voice pots adding “insert-calling-number”. That will be used also for 40x challenge on Invite method (to resolve user and its digest username and password. CLI(configure)# dial-peer voice pots <id> CLI(pots)# pots-group <id> CLI(pots)# port 5/<port> CLI(pots)# insert-calling-number <E164 number> CLI(pots)# no shutdown CLI(pots)# exit

  24. Logical Local Voice Port • 3 – Local Voice Port optional parameters one200(configure)> dial-peer voice pots 0 one200(pots)> ? bearer-cap - Payload category direct-call - Set direct call number exit - Exit intermediate mode implicit-routing - Sets implicit routing to specified pots group or voip dial peer insert-calling-numbe - Set VOIP insert calling number no - no port - Links local suscriber and voice port pots-group - Set VOIP pots group priority - Set priority service - to provide a service by the voice pots. shutdown - Shutdown for dial peer POTS suppress-calling-num - Set VOIP suppresion of the calling number <cr> one200(pots)>

  25. VoIP Configuration • 4 - Dial-peer VoIP (1/2) one200(configure)> dial-peer voice voip 0 one200(voip)> ? aoc-format - Set VOIP remote AOC coding format call-media-independa - Set VOIP call media independant dtmf-relay - Set VOIP dtmf relay exit - Exit from command node fast-connect - Set VOIP fast connect fax-relay - Set VOIP fax relay force-rec-inband - Force reception of inband in Alert gatekeeper - Set VOIP gatekeeper gw-ip-address - Set VOIP gateway h245-tunnel - Set VOIP H245 tunnel implicit-routing - Set implicit routing jitter - Set VOIP jitter jitter-compensation - Set VOIP jitter comp max-conn - Set VOIP maximum call allowed modem-passthrough - Set VOIP modem passthrough NdiInsourceAddress - Force NDI in H323 sourceAddress no - no shutdown - Shutdown voip dial peer silence-detection - Set VOIP silence detection t38-redundancy - Set VOIP T38 redundancy voip-coder-profile - Set VOIP coder profile

  26. VoIP Configuration • 4 - Dial-peer VoIP (2/2) one200(configure)>dial-peer voice voip 0 one200(voip)>fast-connect one200(voip)>gatekeeper mandatory one200(voip)>voip-coder-profile 0 one200(voip)>no shutdown one200(voip)>exit

  27. Codec Profiles 1/2 • 5 - The following coders are supported: • G.711 A law (64Kbps) • G.711 law (64Kbps) • G.729A (8 Kbps, no silence suppression) • G.729AB (8 kbps, optional silence suppression) CLI(configure)# voip-coder-profile 0 CLI(voip-coder)# codec ? <pref-index> - Codec preference index: 0..8 CLI(voip-coder)# codec 0 ? <coder> - Coder type: g729ab | g711a | g711u CLI(voip-coder)# codec 0 g729ab ? <timestamp> - Timestamp value: 10..90 depending on the coder <cr> one200(voip-coder)# codec 0 g729ab 30 one200(voip-coder)# codec 1 g711a 20 one200(voip-coder)# exit

  28. Codec Profiles 2/2 one200>show running ... voip-coder-profile 0 codec 0 g729ab 30 codec 1 g711a 20 exit voip-coder-profile 1 codec 0 g711a 20 exit

  29. VoIP Configuration • 6 - VoIP Routing table (1/10) one200(configure)>voice-routing one200(voice-route)> ? display-routes - Show voice routing table exit - Exit from command node insert - Insert VOIP voice route move - Move VOIP voice route no - no route - Set VOIP voice route test-route - Test voice routing table <cr> one200(voice-route)>

  30. VoIP Configuration • 6 - VoIP Routing table (2/10) one200(voice-route)>route 1 one200(conf-voice-route)> ? dial-peer - Set route dial peer exit - Exit from command node force-bearer-cap - Set force bearer capability fields force-clir - Set caller line identity request force-numplan - Set origin/destination numplan insert-calling - Set route calling insertion insert-prefix - Set route prefix insertion insert-suffix - Set route suffix insertion no - no prefix - Set route prefix(prefix [number-type][length][timer] [overlap]) prefix-type - Set route direction and type of call startup-file - Set restart equipment with the file name. suppress-prefix - Set route prefix suppression translate - Set route number translate wildcard - Set wildcard value for prefix <cr>

  31. VoIP Configuration • 6 - VoIP Routing table (3/10) one200(configure)>voice-routing one200(voice-route)>route 1 one200(conf-voice-route)>dial-peer pots-group 0 alias one200(conf-voice-route)>prefix-type outgoing called last one200(conf-voice-route)>prefix 110 length 3 one200(conf-voice-route)>exit one200(voice-route)>route 2 one200(conf-voice-route)>dial-peer voip 0 one200(conf-voice-route)>prefix-type outgoing called last one200(conf-voice-route)>prefix 11X length 3 one200(conf-voice-route)>exit one200(voice-route)>exit one200(configure)>exit one200(voice-route)>display-routes 1 - 110 all length 3 / pots 0 / outgoing - called - last 2 – 11X all length 3 / voip 0 / outgoing - called - last one200(voice-route)>

  32. VoIP Configuration • 6 - VoIP Routing table (4/10) one200>show running-config ... voice-routing route 1 dial-peer pots-group 0 prefix 110 length 3 prefix-type outgoing called last exit route 2 dial-peer voip 0 prefix 11X length 3 prefix-type outgoing called last exit exit ...

  33. VoIP Configuration • 6 - VoIP Routing table (5/10) 1234 Pots-group 0 12011234 VoIP 0 route 1 dial-peer pots-group 0 prefix 120A. length 4 suppress-prefix 4 called wildcard A 0123 exit

  34. VoIP Configuration • 6 - VoIP Routing table (6/10) Pots-group 0 Incoming Table 986902739 VoIP 1 VoIP 2 986911111 Pots-group 4 route 14 dial-peer voip 1 prefix 986902739 length 9 prefix-type incoming called exit route 15 dial-peer voip 2 prefix . length 0 prefix-type incoming called exit

  35. VoIP Configuration • 6 - VoIP Routing table (7/10) ing : 019869027391111 ing : 986902739 ed : 120012345678 Incoming Table Outgoing Table ed : 12345678 ing : 986902735 ed : 12345678 ing : 019869027352222 ed : 12345678 Pots-group 0

  36. VoIP Configuration • 6 - VoIP Routing table (8/10) route 2 dial-peer pots-group 0 translate .98690273A. 98690273A calling prefix . length 0 prefix-type incoming calling next exit route 3 dial-peer pots-group 0 alias insert-prefix 1200 called prefix 986902739 length 9 prefix-type incoming calling exit alias added to register the number 1200 in the RAS

  37. VoIP Configuration • 6 - VoIP Routing table (9/10) ing : 986902739 ed : 120012345678 ing : 019869027391111 ing : 986902739 ed : 120012345678 Incoming Table Outgoing Table ed : 12345678 Voip 1 ing : 986902735 ed : 12345678 ing : 019869027352222 ed : 12345678 Voip 0 Pots-group 0 ing : 986902735 ed : 12345678

  38. VoIP Configuration • 6 - VoIP Routing table (10/10) route 4 dial-peer voip 1 prefix 1200. length 4 prefix-type outgoing called last exit route 5 dial-peer voip 0 prefix . length 0 prefix-type outgoing called last exit

  39. Voice routing table testing One_Training(voice-route)>display-route 1 - . all length 10 / pots 0 / incoming - called - last / +prefix-calling 0 10 - . all timer / voip 0 / outgoing - called - last 20 - . all length 9 / pots 0 / outgoing - called - last / -prefix-called 1 One_Training(voice-route)> One_Training> configure terminal One_Training(configure)>voice-routing One_Training(voice-route)>test-route 0141877422 260402020 from-voip 0 --> test_route : Calling=0141877422 Called=260402020 Route match : Calling=0141877422 Called=60402020 Incoming Routes = Outgoing Routes = 20, Incoming call from voip id:0 Send towards Isdn on local port: 5/0 One_Training(voice-route)> One_Training(voice-route)> One_Training(voice-route)>test-route 260402020 0141877422 from-pots 0 --> test_route : Calling=260402020 Called=0141877422 Route match : Calling=0260402020 Called=0141877422 Incoming Routes = 1, Outgoing Routes = 10, Outgoing call from local port: 5/0 -> Send towards H323 on voip id:0 One_Training(voice-route)>

  40. VoIP Configuration • 7 - H.323 Gateway (1/6) • Global parameters for H.323 gateway (gatekeeper, RTP ports, timeouts,…) • Must be shutdown to modify parameters one200(configure)>h323-gatewayone200(h323gw)>

  41. VoIP Configuration • 7 - H.323 Gateway (2/6) one200(h323gw)> ? alt-gatekeeper - Set H323 gateway - alternative gatekeeper altgk-list - Set H323 gateway - alternative gatekeeper list altgk-mode - Set H323 gateway - alternate gatekeeper mode altgk-timeout - The timeout, in seconds, to check Primary gatekeeper status when registered to an alternate gatekeeper. bandwidth-control - Set H323 gateway - bandwidth control call-test - Set H323 gateway - set call testing when gateway is ready. callsig-port - Set H323 gateway - H225/Q931 listening TCP port email-id - Set H323 email identifier for the gateway exit - Exit from command node gatekeeper - Set H323 gateway - main gatekeeper parameters gw-address - Set H323 gateway - gateway address mode gw-interface - Output Interface category for H323 GW - default fastethernet 0 gw-interface-bw-ctrl - Set H323 gateway - gw interface bandwidth control gw-prefix - Set H323 gateway – prefix h235-authentication - Set H235 authentication h245-response-timeou - Set H323 gateway - timeout used for H245 protocol

  42. VoIP Configuration • 7 - H.323 Gateway (3/6) h323-id - Set H323 identifier for the gateway max-bandwidth - Set H323 gateway - maximum bandwidth allowed no - no payload-64k-unrestricted - Set H323 gateway - payload for 64k unrestricted polling - Set H323 gateway q931-connection-timeout - Set H323 gateway (timeout for receiving CONNECT message) q931-response-timeout - Set H323 gateway (timeout for the response to a SETUP message) ras-bandwidth-control - Set H323 gateway - bandwith control by gatekeeper ras-full-rrq - Set H323 gateway - timeout used to send ras full registration ras-intrusive-voiceport - Set H323 gateway - register/unregister on voice-port condition ras-keepalive-timeout - Set H323 gateway - keepalive timeout used for RAS ras-max-retries - Set H323 gateway - max retries for RAS protocol ras-multicast - Set H323 gateway (multicast address and port for gatekeeper discover) ras-port - Set H323 gateway - UDP port used for RAS protocol

  43. VoIP Configuration • 7 - H.323 Gateway (4/6) ras-response-timeout - Set H323 gateway - timeout used for RAS protocol ras-timetolive - Set H323 gateway - timetolive used for RAS protocol register - Register gateway resource - Set H323 gateway - Set h323 resource parameters rtp-dscp - Set H323 gateway (DSCP field value for transmitted RTP packet) rtp-port-range - Set H323 gateway - UDP port range used for RTP rtp-uplink-analysis - Enable or disable the rtp jitter analysis set-portability - Set H323 portability shutdown - shutdown sig-dscp - Set H323 gateway (DSCP field value for transmitted signalling packet) snmp-sysdescr-hw-ident - add hw ident to sysdescr

  44. VoIP Configuration • 7 - H.323 Gateway (5/6) ... start-h245-discarded - Set H323 gateway - facility start h245 is discarded tcp-keepalive - Set H323 gateway - tcp keepalive option (default) unregister - Unregister gateway <cr>

  45. VoIP Configuration • 7 - H.323 Gateway (6/6) one200(config)> h323-gateway one200(h323gw)> gw-interface fastethernet 0/0 one200(h323gw)> gatekeeper id training address 192.168.1.1 one200(h323gw)> h323-id GW1 one200(h323gw)> max-bandwidth 600000 one200(h323gw)> no shutdown

  46. VoIP Statistics • BRI statistics CLI# show voice voice-port bri index 0 voice port 5/0 protocol descriptor BRI_NT current state activated config state up layer 1 status activated attached vmoabri dial peer 0 number of voice communication 0 bri Tx frames on D channel 40 bri Rx frames on D channel 41 Outgoing calls : 102 Outgoing calls failures : 5 Physical Interface down : 0 Cause Class 0 (normal event) : 0 Cause Class 1 (normal event) : 5 Normal Cause (16) : 2 User busy (17) : 3 No answer (18) : 0 Cause Class 2 (unavailable ressources) : 0 Cause Class 3 (unavailable service) : 0 Cause Class 4 (service not provided) : 0 Cause Class 5 (invalid message) : 0 Cause Class 6 (protocol error) : 0 Cause Class 7 (interworking) : 0 Incoming calls : 54 Incoming calls failures : 7 Remote failure : 0 Unknown number : 5 DSP unavailable : 0 Not specified : 2

  47. VoIP Statistics • PRI statistics CLI# show voice voice-port pri index 0 voice port 5/0 physical type E1 protocol descriptor E1_PRI current state activated config state up layer 1 status deactivated number of voice communications 0 pri AIS occurence 0 pri RDI occurence 0 Outgoing calls : 67 Outgoing calls failures : 3 Physical Interface down : 0 Cause Class 0 (normal event) : 0 Cause Class 1 (normal event) : 3 Normal Cause (16) : 0 User busy (17) : 3 No answer (18) : 0 Cause Class 2 (unavailable ressources) : 0 Cause Class 3 (unavailable service) : 0 Cause Class 4 (service not provided) : 0 Cause Class 5 (invalid message) : 0 Cause Class 6 (protocol error) : 0 Cause Class 7 (interworking) : 0 Incoming calls : 23 Incoming calls failures : 2 Remote failure : 2 Unknown number : 0 DSP unavailable : 0 Not specified : 0

  48. VoIP Statistics • FXS statistics CLI# show voice voice-port fxs index 0 voice port 5/0 current state on hook config state up attached vmoa fxs dial peer 0 voice communication no Outgoing calls : 32 Outgoing calls failures : 3 User busy : 2 No answer : 1 Incoming calls : 6 Incoming calls failures : 0 Remote failure : 0 Unknown number : 0 DSP unavailable : 0 Not specified : 0

  49. VoIP Statistics • Dial-peer VoIP Statistics (1) • one200> show voice dial-peer voice voiptype index <port id> [reset] • or • one200> show voice dial-peer voice voiptype global[reset] • type may be : • current : statistics on current calls • outgoing : outgoing calls only • incoming : incoming calls only • user-plan : voice & fax only • all (default) : all the statistics are provided

  50. VoIP Statistics • Dial-peer VoIP Statistics (2): Outgoing Calls Dial Peer 1 Current Calls 0 Outgoing Calls 4 Outgoing calls failures 0 RAS Call Failures 0 Gatekeeper Unavailable 0 Admission Rejects 0 H225/Q931 Call failures 0 Cause Class 0 (normal event) 0 Cause Class 1 (normal event) 0 Normal Cause (16) 0 User busy (17) 0 No answer (18) 0 Cause Class 2 (unavailable ressources) 0 Cause Class 3 (unavailable service) 0 Cause Class 4 (service not provided) 0 Cause Class 5 (invalid message) 0 Cause Class 6 (protocol error) 0 Cause Class 7 (interworking) 0 H245 Call failures 0 Incompatible capabilities 0 Protocol errors 0 Internal call failures 0 DSP unavailable 0 Max-bandwidth exceeded 0 Max-connection exceeded 0 Not specified 0
