Testing FENDL-3/SLIB Neutron Cross-Section Data for IFMIF Neutron Source Applications

DESCRIPTION

This study evaluates the FENDL-3/SLIB neutron data library concerning its application to the IFMIF Neutron Source Facility. Utilizing the testing methodology, we performed neutronic calculations using the McDeLicious Monte Carlo code and a global 3D model of the IFMIF Test Cell. Our analysis covered neutron and gamma fluxes, nuclear heating, gas production, and displacement damage in High Flux Test Module (HFTM) irradiation rigs containing Eurofer specimens. Comparisons with standard IFMIF libraries and ACE data are discussed to validate the FENDL-3/SLIB results.

1 / 32

Télécharger la présentation

Testing FENDL-3/SLIB Neutron Cross-Section Data for IFMIF Neutron Source Applications

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

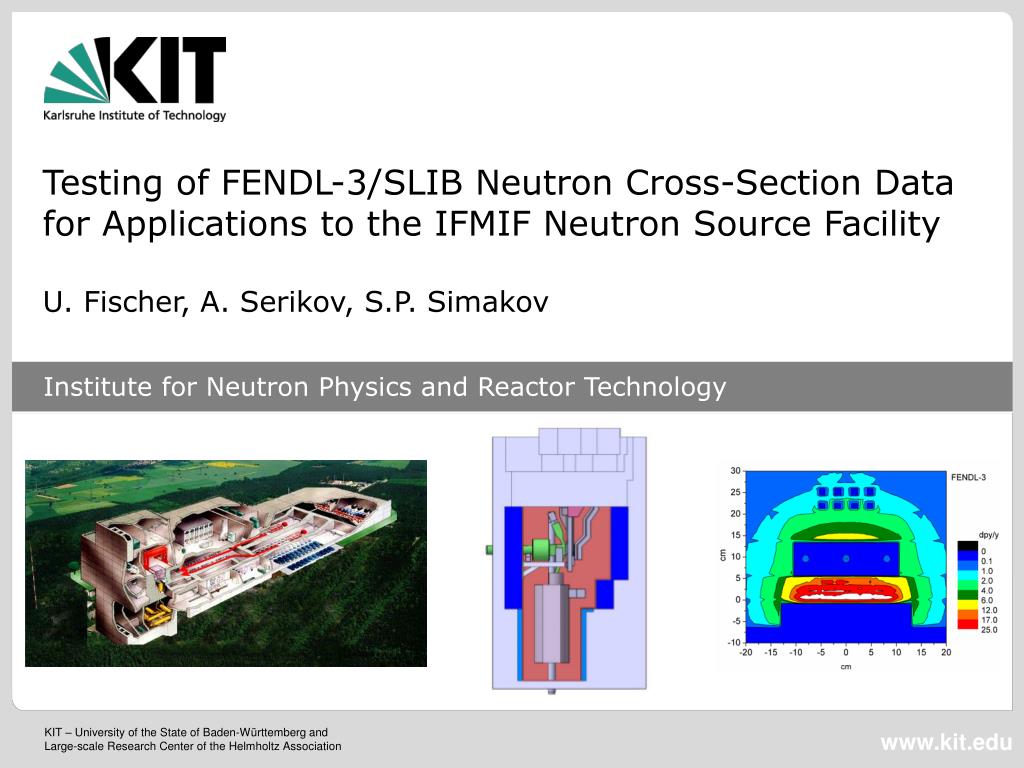

  1. Testing of FENDL-3/SLIB Neutron Cross-Section Data for Applications to the IFMIF Neutron Source Facility U. Fischer, A. Serikov, S.P. Simakov

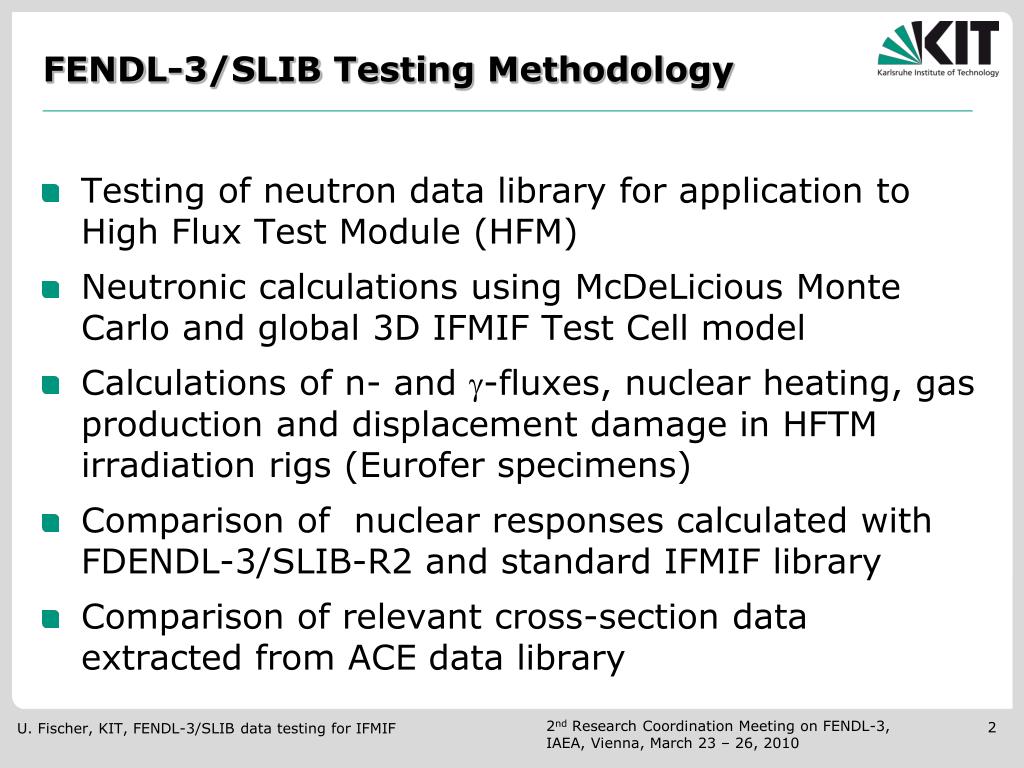

  2. FENDL-3/SLIB Testing Methodology • Testing of neutron data library for application to High Flux Test Module (HFM) • Neutronic calculations using McDeLicious Monte Carlo and global 3D IFMIF Test Cell model • Calculations of n- and g-fluxes, nuclear heating, gas production and displacement damage in HFTM irradiation rigs (Eurofer specimens) • Comparison of nuclear responses calculated with FDENDL-3/SLIB-R2 and standard IFMIF library • Comparison of relevant cross-section data extracted from ACE data library U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

  3. IFMIF Test Cell Model – CAD vs. MCNP CAD model (CATIA) MCNP model (visualised by CATIA) Irradiation test modules Beam lines Li target U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

  4. IFMIF High Flux Test Module (HFTM) HFTM container HFTM test rig vertical cut horizontal cut U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

  5. Global IFMIF Neutronics Test Cell Model* HFTM section * developed by F. Wasastjerna, VTT U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

  6. Global IFMIF Neutronics Test Cell Model Test Module section with irradiation rigs U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

  7. IFMIF Neutron Flux Spectrum (HFTM) U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

  8. Chemical Composition of Eurofer U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

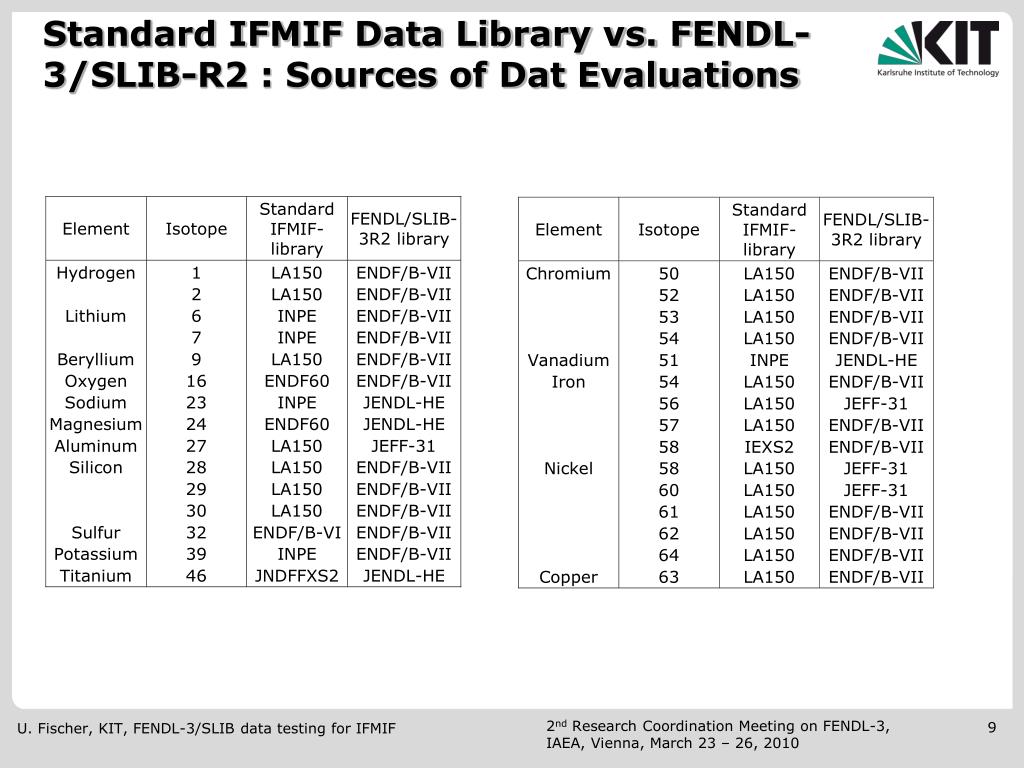

  9. Standard IFMIF Data Library vs. FENDL-3/SLIB-R2 : Sources of Dat Evaluations U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

  10. 1-1 2-1 1-2 3-1 2-3 2-2 3-2 1-3 3-3 1-4 2-4 3-4 Standard IFMIF Library vs. FENDL-3/SLIB :Neutron fluxes in HFTM HFTM rigs Material compositions U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

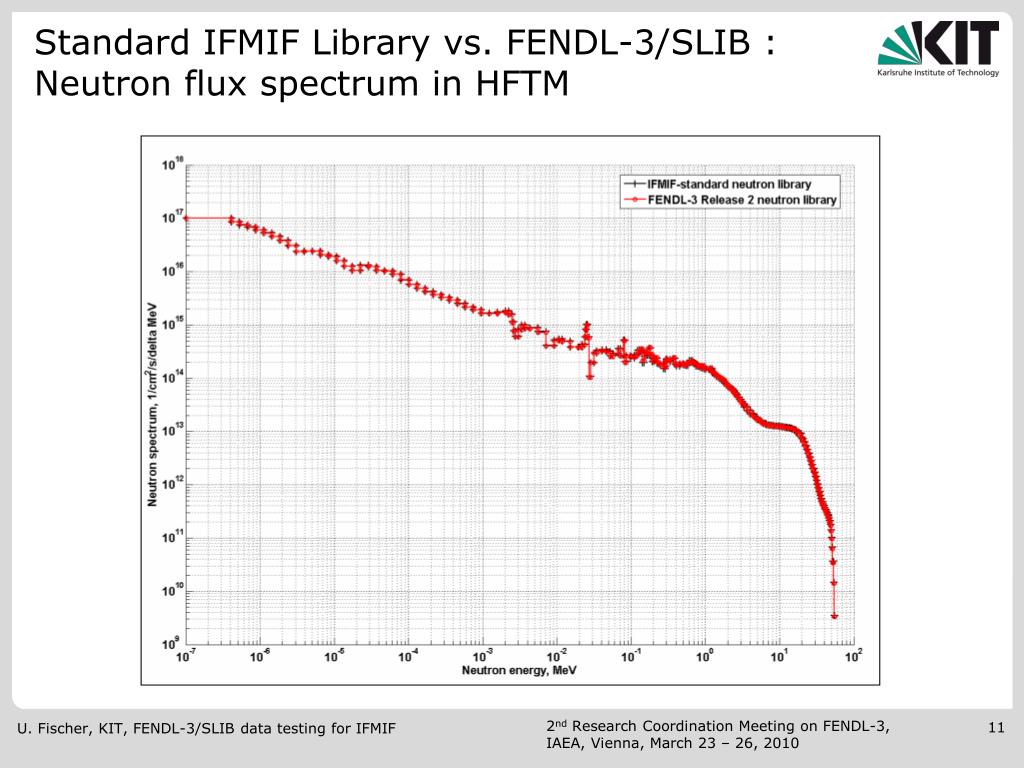

  11. Standard IFMIF Library vs. FENDL-3/SLIB :Neutron flux spectrum in HFTM U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

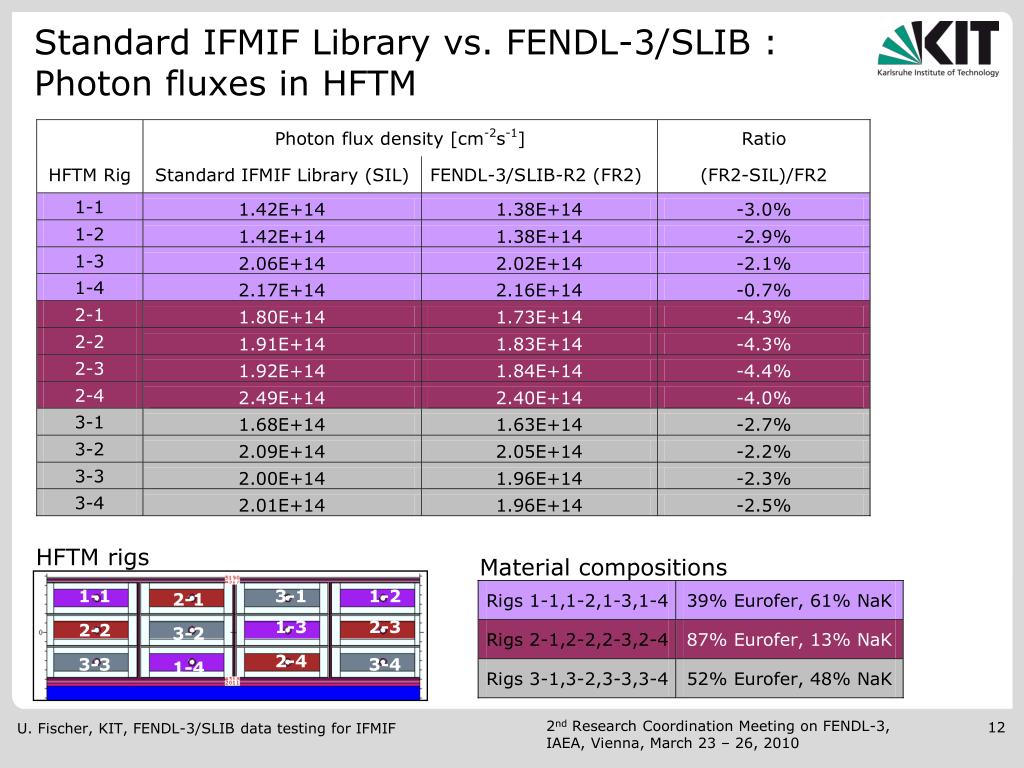

  12. 1-1 2-1 1-2 3-1 2-3 2-2 3-2 1-3 3-3 1-4 2-4 3-4 Standard IFMIF Library vs. FENDL-3/SLIB :Photon fluxes in HFTM HFTM rigs Material compositions U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

  13. Standard IFMIF Library vs. FENDL-3/SLIB :Photon flux spectrum in HFTM U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

  14. 1-1 2-1 1-2 3-1 2-3 2-2 3-2 1-3 3-3 1-4 2-4 3-4 Standard IFMIF Library vs. FENDL-3/SLIB :Nuclear heating rates in HFTM HFTM rigs Material compositions U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

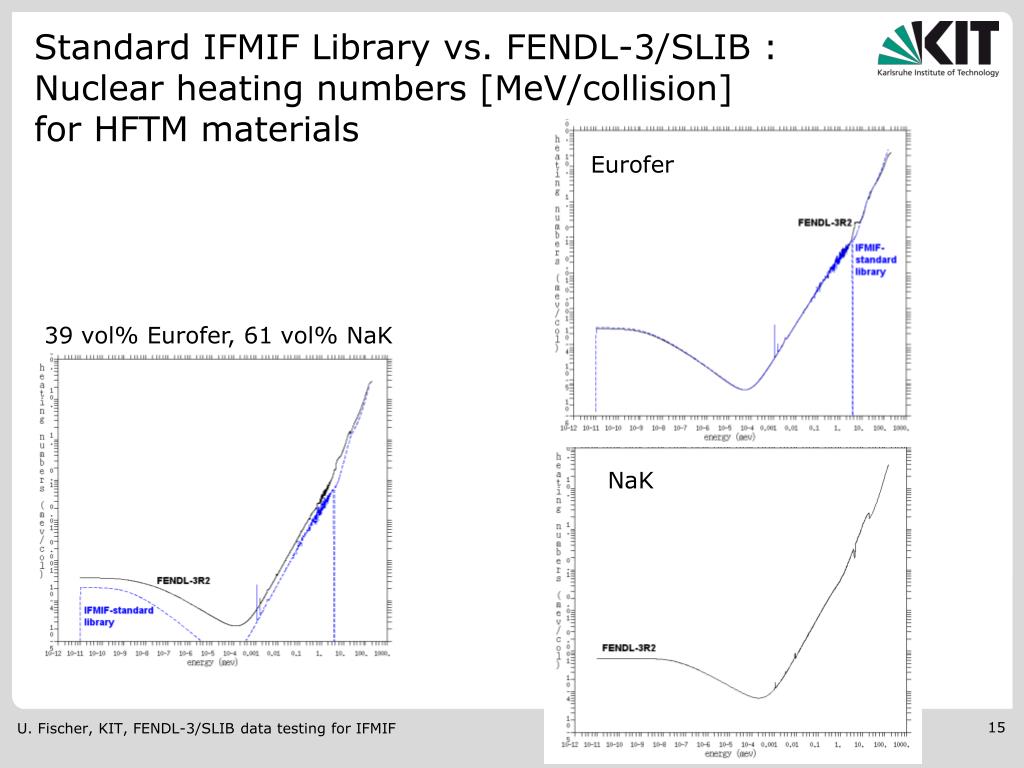

  15. Standard IFMIF Library vs. FENDL-3/SLIB :Nuclear heating numbers [MeV/collision] for HFTM materials Eurofer 39 vol% Eurofer, 61 vol% NaK NaK U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

  16. 1-1 2-1 1-2 3-1 2-3 2-2 3-2 1-3 3-3 1-4 2-4 3-4 Standard IFMIF Library vs. FENDL-3/SLIB :Protium production in iron of HFTM rigs HFTM rigs Material compositions U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

  17. 1-1 2-1 1-2 3-1 2-3 2-2 3-2 1-3 3-3 1-4 2-4 3-4 Standard IFMIF Library vs. FENDL-3/SLIB :Protium production in iron of HFTM rigs HFTM rigs Material compositions U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

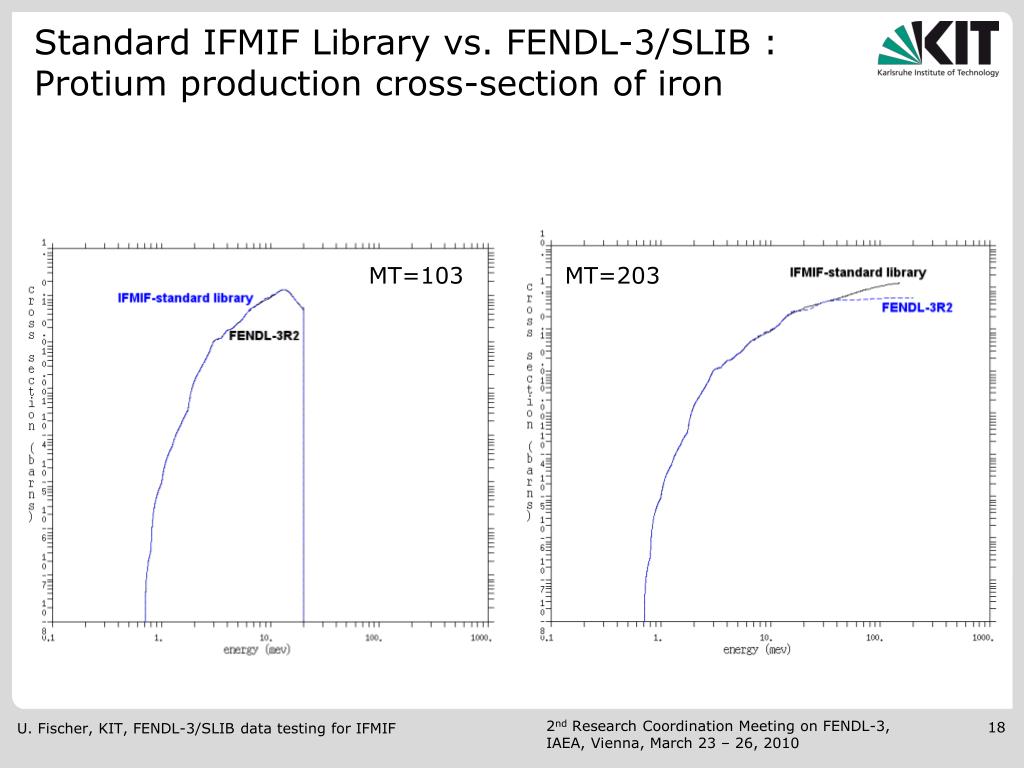

  18. Standard IFMIF Library vs. FENDL-3/SLIB :Protium production cross-section of iron MT=103 MT=203 U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

  19. 1-1 2-1 1-2 3-1 2-3 2-2 3-2 1-3 3-3 1-4 2-4 3-4 Standard IFMIF Library vs. FENDL-3/SLIB :Protium production in Eurofer of HFTM rigs HFTM rigs Material compositions U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

  20. Standard IFMIF Library vs. FENDL-3/SLIB :Deuterium production cross-section of iron MT=204 U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

  21. 1-1 2-1 1-2 3-1 2-3 2-2 3-2 1-3 3-3 1-4 2-4 3-4 Standard IFMIF Library vs. FENDL-3/SLIB :Tritium production in Iron of HFTM rigs HFTM rigs Material compositions U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

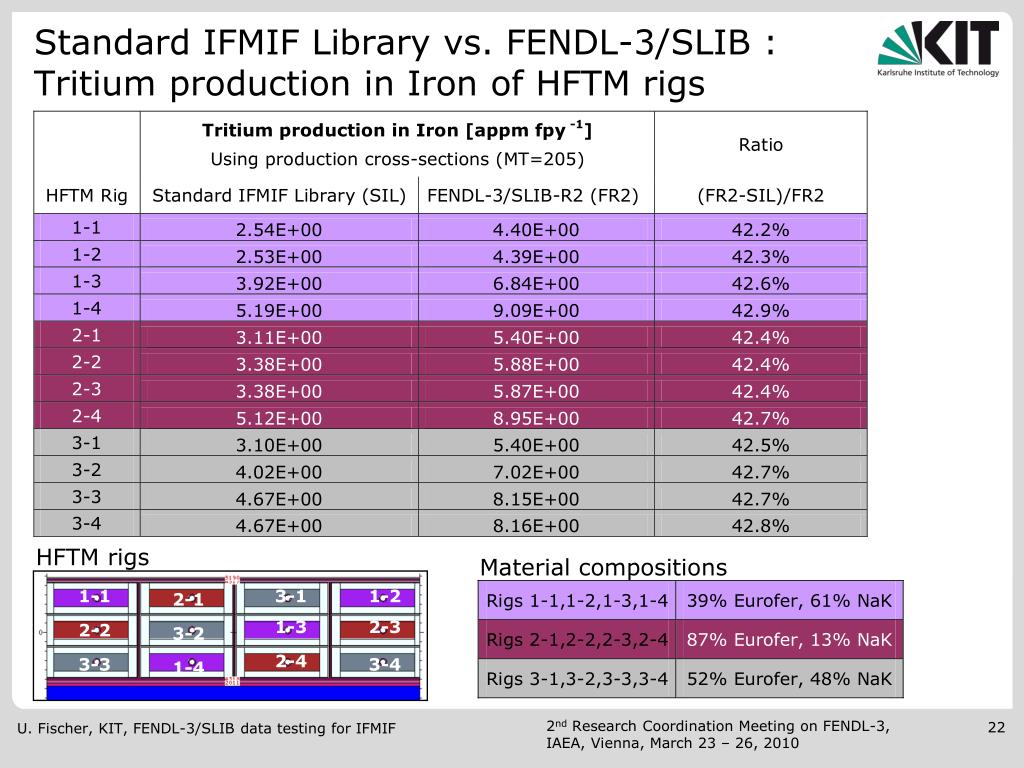

  22. 1-1 2-1 1-2 3-1 2-3 2-2 3-2 1-3 3-3 1-4 2-4 3-4 Standard IFMIF Library vs. FENDL-3/SLIB :Tritium production in Iron of HFTM rigs HFTM rigs Material compositions U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

  23. Standard IFMIF Library vs. FENDL-3/SLIB :Tritium production cross-section of iron MT=105 MT=205 U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

  24. 1-1 2-1 1-2 3-1 2-3 2-2 3-2 1-3 3-3 1-4 2-4 3-4 Standard IFMIF Library vs. FENDL-3/SLIB :Tritium production in Eurofer of HFTM rigs HFTM rigs Material compositions U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

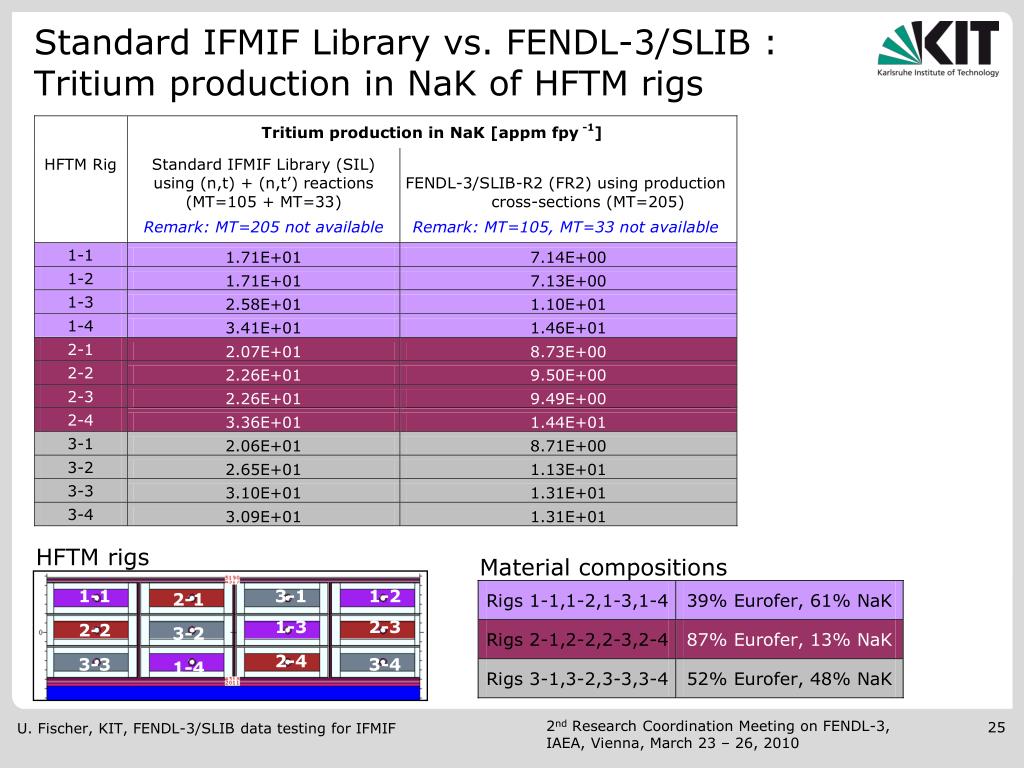

  25. 1-1 2-1 1-2 3-1 2-3 2-2 3-2 1-3 3-3 1-4 2-4 3-4 Standard IFMIF Library vs. FENDL-3/SLIB :Tritium production in NaK of HFTM rigs HFTM rigs Material compositions U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

  26. 1-1 2-1 1-2 3-1 2-3 2-2 3-2 1-3 3-3 1-4 2-4 3-4 Standard IFMIF Library vs. FENDL-3/SLIB :Helium production in Iron of HFTM rigs HFTM rigs Material compositions U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

  27. 1-1 2-1 1-2 3-1 2-3 2-2 3-2 1-3 3-3 1-4 2-4 3-4 Standard IFMIF Library vs. FENDL-3/SLIB :Total helium production in iron of HFTM rigs HFTM rigs Material compositions U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

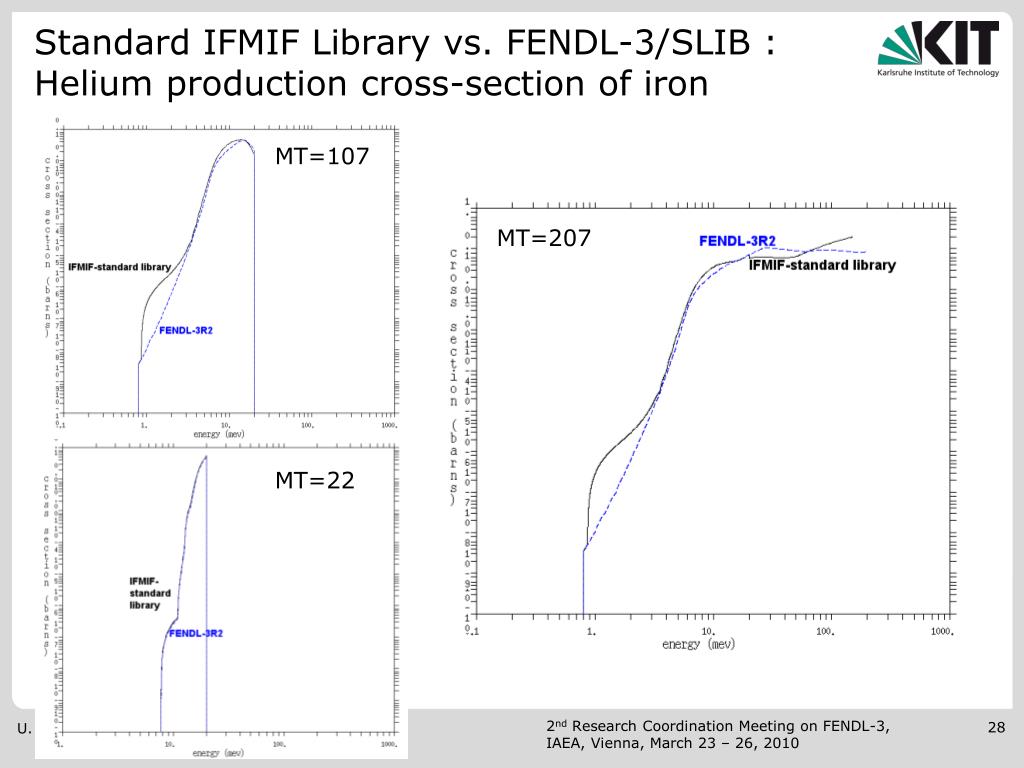

  28. Standard IFMIF Library vs. FENDL-3/SLIB :Helium production cross-section of iron MT=107 MT=207 MT=22 U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

  29. 1-1 2-1 1-2 3-1 2-3 2-2 3-2 1-3 3-3 1-4 2-4 3-4 Standard IFMIF Library vs. FENDL-3/SLIB :Helium production in Eurofer of HFTM rigs HFTM rigs Material compositions U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

  30. 1-1 2-1 1-2 3-1 2-3 2-2 3-2 1-3 3-3 1-4 2-4 3-4 Standard IFMIF Library vs. FENDL-3/SLIB :Damage production in iron of HFTM rigs HFTM rigs Material compositions U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

  31. Standard IFMIF Library vs. FENDL-3/SLIB :Displacement damage production cross-sections of iron Fe-56 (MT=444) Iron (MT=444) Fe-54 (MT=444) U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF

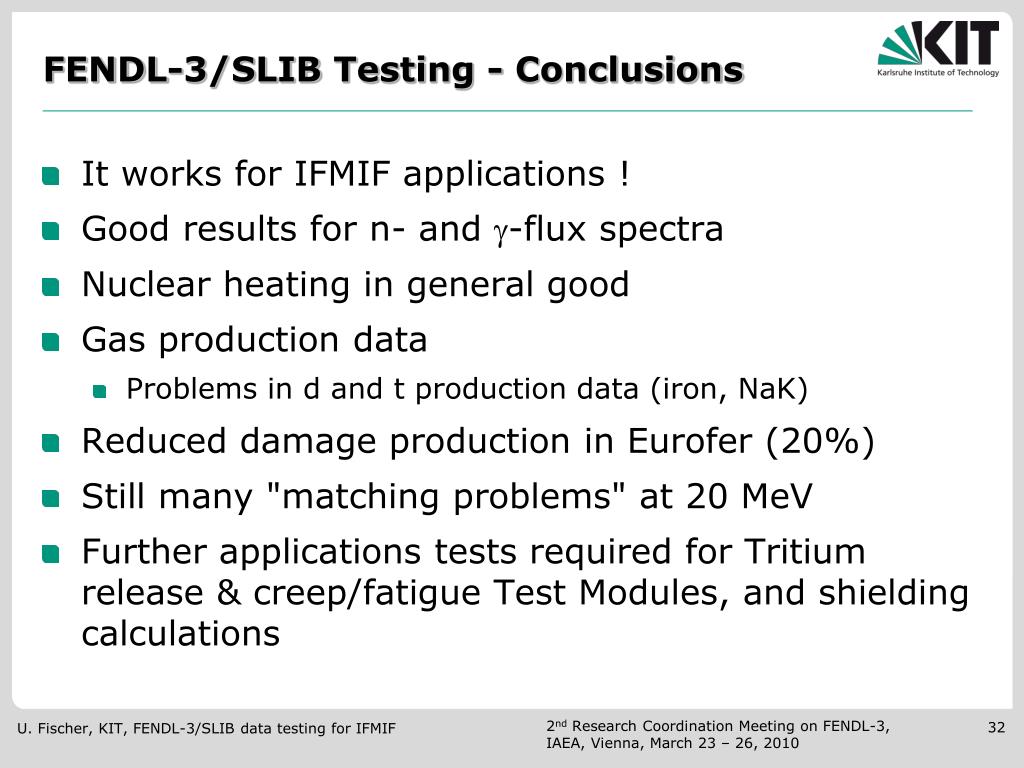

  32. FENDL-3/SLIB Testing - Conclusions • It works for IFMIF applications ! • Good results for n- and g-flux spectra • Nuclear heating in general good • Gas production data • Problems in d and t production data (iron, NaK) • Reduced damage production in Eurofer (20%) • Still many "matching problems" at 20 MeV • Further applications tests required for Tritium release & creep/fatigue Test Modules, and shielding calculations U. Fischer, KIT, FENDL-3/SLIB data testing for IFMIF
