Near threshold KK pair meson production in pp and pd collisions

Vera Grishina (INR RAS, Moscow, Russia) Leonid Kondratyuk (ITEP, Moscow, Russia) 26-30 ноября , 2007 , ИТЭФ, Москва Научная сессия-конференция секции ЯФ ОФН РАН «Физика фундаментальных взаимодействий». Near threshold KK pair meson production in pp and pd collisions. CONTENTS.

studs
Télécharger la présentation

Near threshold KK pair meson production in pp and pd collisions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Vera Grishina (INR RAS, Moscow, Russia) Leonid Kondratyuk (ITEP, Moscow, Russia) 26-30ноября, 2007, ИТЭФ, Москва Научная сессия-конференция секции ЯФ ОФН РАН «Физика фундаментальных взаимодействий» Near threshold KK pair meson production in pp and pd collisions

  2. CONTENTS • The pp dK+K0 : a0+ (980) resonance and non-resonance contributions • Mechanisms of the pp  da0+ (980) and pp dK+K0 reactions within the Effective Lagrangian Approach. Reggeized Nucleon Exchange Model for the pp  da0+ (980) reaction. Angular and mass distributions of the pp dK+K0 reaction. Extraction of the contributions from the lowest KK partial waves using the experimental data. • K0d mass distribution and K0d final state interaction • f(1020) meson contribution to the pd 3He K+K- reaction and the upper limits on the contributions from the scalar a0 (980)-f0(980) mesons. • On a possibility of the a0 (980)-f0(980) mixing effects.

  3. Two Step Model within the Effective Lagrangian Approach Diagrams for the pp  dK+K0 reaction(KK via a0(980)-resonance, p-exchange Nucleon exchange contribution: U-channel diagram (dominant) a) Nucleon exchange contribution: S-channel diagram (small) b) t-channel meson exchanges: r2 -,b1 -, f1(1285)-,h- c)

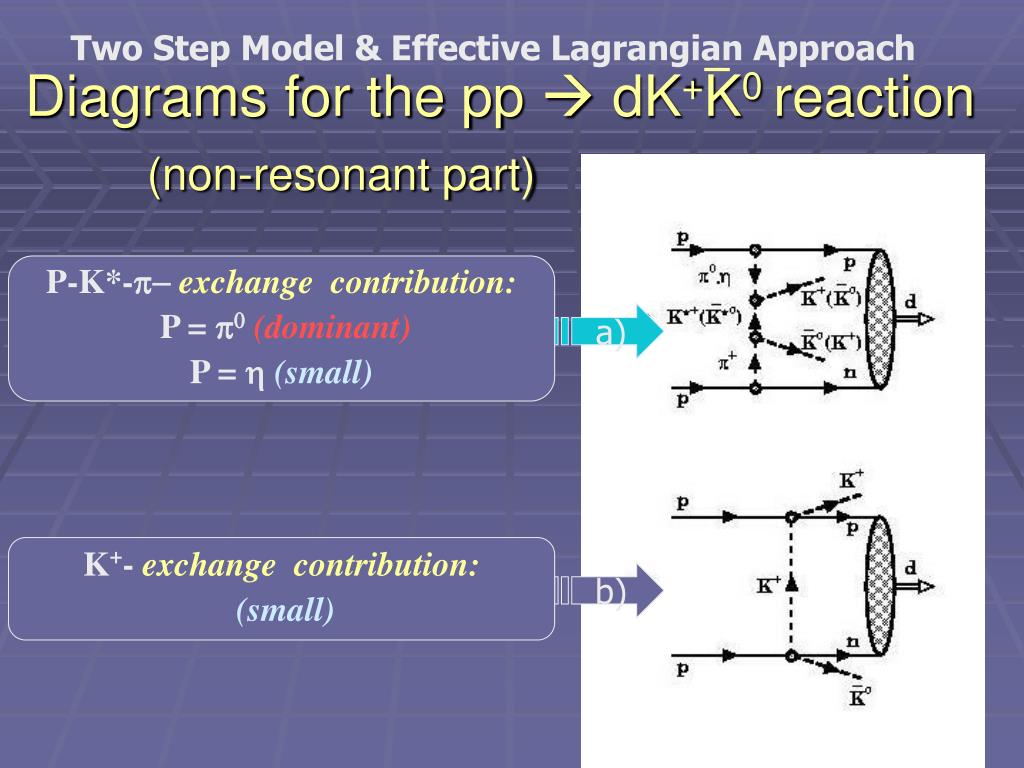

  4. Two Step Model & Effective Lagrangian Approach Diagrams for the pp  dK+K0 reaction(non-resonant part) P-K*-p-exchange contribution: P = p0(dominant) P = h(small) a) K+-exchange contribution: (small) b)

  5. Mechanisms of the pp  da0+(980) reaction : stot calculation V.Yu. Grishina, L.A. Kondratyuk, et al., EPJ A 9, 277 (2000); EPJ A 21 (2004) 507 1. Nucleon exchange contribution: a) U-channel diagram (dominant) b) S-channel diagram (small) 2. t-channel meson exchanges: a)r2 -,b1 -(extrapolated from the high energy data on p-p  a00n, using Regge-pole model), b) f1(1285)-,h - (calculated using vertex parameters from the Bonn & Jülich Models)

  6. Total pp  dK+K0 cross section V.Kleber et al., PRL 91, 172304 (2003) /Q=46MeV/ a0 resonance contribution as well as different mechanisms of the non-resonant part are calculated within the TSM V.Yu.Grishina,L.A.Kondratyuk,M.Buescher, et al. EPJ A 21(2004) 507, nucl-th/0402093

  7. pp  da0+ : Two Step Model Quark Gluon String Model Nucleon exchange Diquark and quark exchanges QGSM has been applied to gd  p n at Eg>1GeV V.Yu.Grishina, L.A.Kondratyuk, et al., EPJ A 10, 355 (2001), EPJ A 19, 117 (2004) Reggeized Nucleon Exchange

  8. pp  da0+  dK+K0 cross section:calculated within theQGSM and TSM V.Yu. Grishina, L.A. Kondratyuk, et al., EPJ A 21(2004) 507, nucl-th /0402093

  9. pp dK+K0: angular distribution of the deuteron a0 contribution [(K+K0)s d]P TSM QGSM Non-resonant background [(K+K0)p d]S

  10. pp dK+K0 : angular distribution of the K+K0 pair Q=46 MeV S-wave K+K0: a0+ [(K+K0)s d]P P-wave K+K0: Non-resonant background: p - K*- p - exchange

  11. pp  dK+K0 : P-wave K+K0 production for the p –K*-pexchange G-parity conservation for the ppK+K0 transition amplitude: GKK=(-1)L+I IKK=1, Gpp=+1 L=1 near threshold

  12. pp dK+K0 : mass distribution of the K+K0 system Q=46 MeV s (a0+)=31.5 nb s (backgr.)=6.5 nb Parameters of the Flatté distribution: m0=999 MeV, gph=324 MeV, gKK2/gph2=1.03 are taken from A.Abele et al., Phys. Rev. D 57, 3860 (1998)

  13. pp dK+K0 : K0d mass distribution. Kd FSI(Multiple Scattering Approach) We used only sets of the KN scattering lengths to satisfy: Im a(Kd) < 1.3 fm found by A. Sibirtsev et al., Phys. Lett. B 601 (2004) 132 Q=46 MeV The K0d FSI effect is important only for the [(K0 d)s K+]P partial wave

  14. pp dK+K0:A.Dzyuba, et al. EPJ A 29(2006) 245

  15. pp dK+K0 Near threshold amplitude analysis

  16. pp dK+K0 Q=104,7 MeV 95±4% of the KK in s-wave, But Flatté amplitude for a0+(980) was not included into fit

  17. pp dK+K0 Q=47,4 MeV 89±4% of the KK in s-wave

  18. pd  3He K+Kˉ The data are from the experiment by MOMO at COSY-Jülich proton Accelerator, F. Bellemann at al, Phys. Rev. C 75, 015204(2007): stot=9,5 nb, f part is 16%

  19. pd  3He K+Kˉ : Q=40,6 MeV Result of the fit with a0(980) Included (the Flatté amplitude parameters are taken from literature) a0(980)< 20% f [%]

  20. pd  3He K+Kˉ : Q=40,6 MeV Result of the fit with f0(980) Included (the Flatté amplitude parameters are taken from literature) f0(980)< 10%

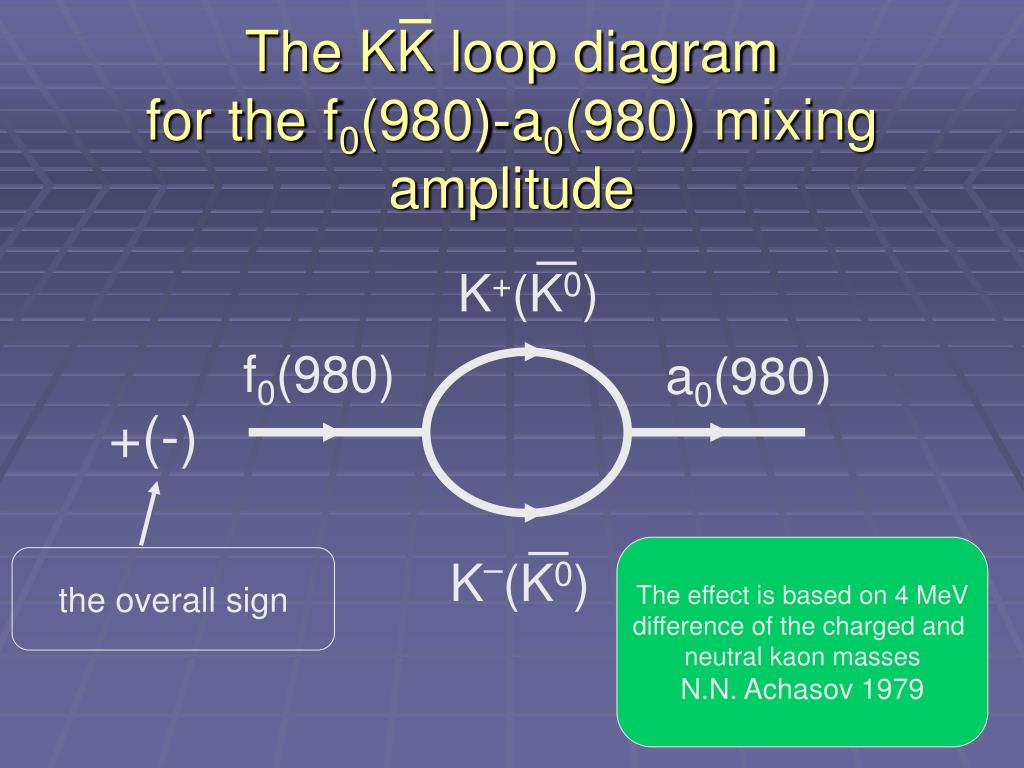

  21. The KK loop diagram for the f0(980)-a0(980) mixing amplitude K+(K0) f0(980) a0(980) +(-) The effect is based on 4 MeV difference of the charged and neutral kaon masses N.N. Achasov 1979 K–(K0) the overall sign

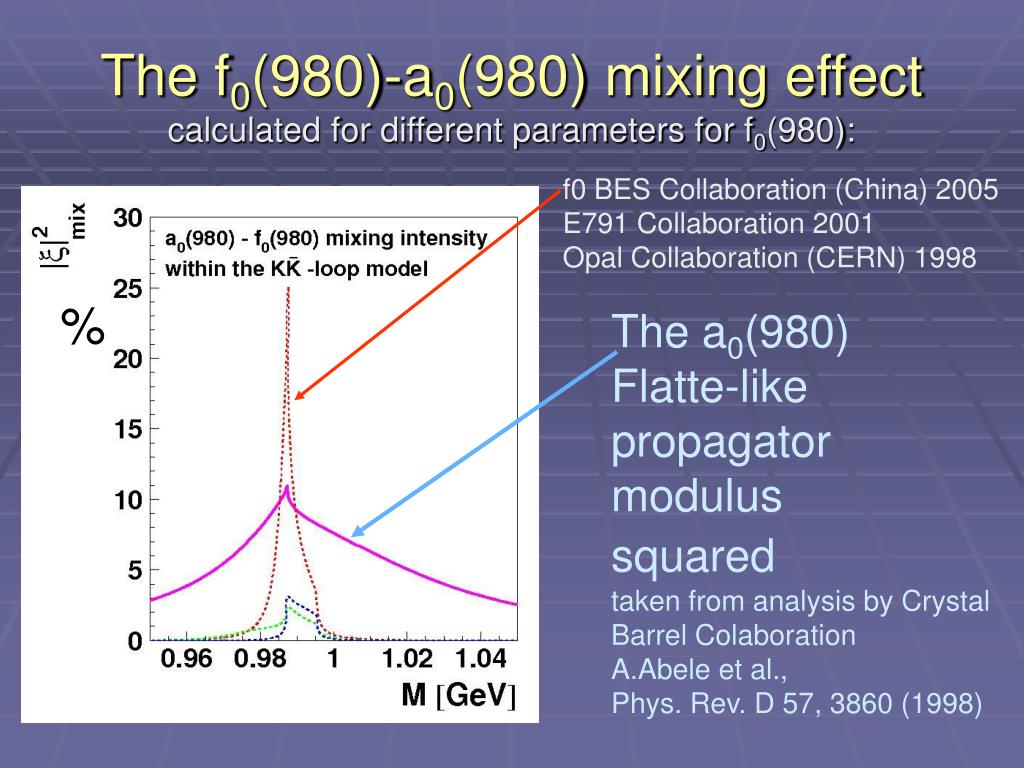

  22. The f0(980)-a0(980) mixing effectcalculated for different parameters for f0(980): f0 BES Collaboration (China) 2005 E791 Collaboration 2001 Opal Collaboration (CERN) 1998 % The a0(980) Flatte-like propagator modulus squared taken from analysis by Crystal Barrel Colaboration A.Abele et al., Phys. Rev. D 57, 3860 (1998)

  23. Conclusions There are theoretical arguments and experimental indications of the a0 (980) contribution to the pp  d K+K0 upper limits on a0 (980) and f0(980) in pd  3He K+Kˉ
