  1. MiNID version 1.0 (Beta)Product Description May 2013

  2. Agenda • Introduction to SAA • MiNID Product overview • Applications • Main features • Ordering information • Value proposition

  3. Service provider challenges • Price per Mbps is going down: Lower ARPU & higher bandwidth • Penalties due to (end) customer disputes over unmet SLAs • No visibility into 3rd party/multi-carrier networks to meet SLAs • Growing competition and higher customer churn • SP are integrating real time service performance monitoring (PM) * Heavy Reading Ethernet Executive Council Survey (50+ service providers worldwide), May 2012

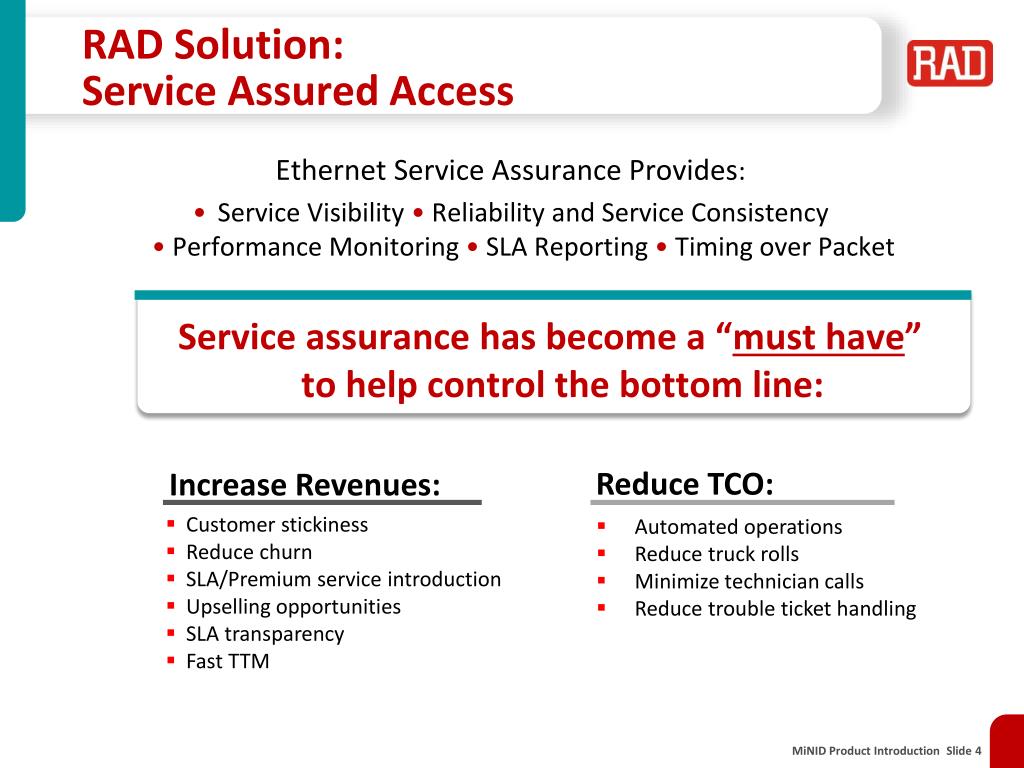

  4. RAD Solution:Service Assured Access Ethernet Service Assurance Provides: • Service Visibility • Reliability and Service Consistency • Performance Monitoring • SLA Reporting • Timing over Packet • Reduce TCO: • Increase Revenues: • Customer stickiness • Reduce churn • SLA/Premium service introduction • Upselling opportunities • SLA transparency • Fast TTM • Automated operations • Reduce truck rolls • Minimize technician calls • Reduce trouble ticket handling Service assurance has become a “must have” to help control the bottom line:

  5. RAD’s Service Assurance Toolkit Designed to increase revenues & reduce TCO by Delivering SLA-based Carrier Ethernet services Technician-Free Deployment • Performance Monitoring • Traffic Management • Timing • Fault Management

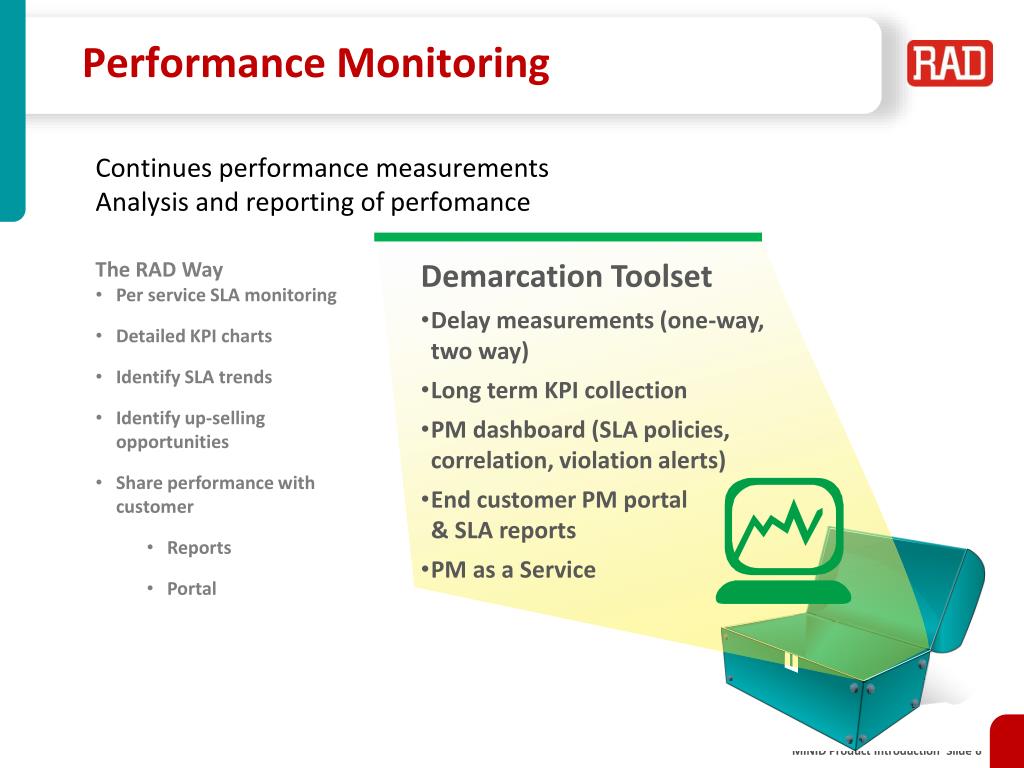

  6. Performance Monitoring Continues performance measurements Analysis and reporting of perfomance • Demarcation Toolset • Delay measurements (one-way, two way) • Long term KPI collection • PM dashboard (SLA policies, correlation, violation alerts) • End customer PM portal& SLA reports • PM as a Service • The RAD Way • Per service SLA monitoring • Detailed KPI charts • Identify SLA trends • Identify up-selling opportunities • Share performance with customer • Reports • Portal

  7. RAD Offering of Demarcation and Aggregation Devices RAD’s Service Assurance toolkit is available with the MiNID, ETX Carrier Ethernet demarcation and aggregation solutions, and the RADview management suite: MiNID Ethernet Demarcation SFP ETX-203AX Carrier Ethernet Demarcation Device ETX-203AM Universal CE DemarcationDevice ETX-205A CE Mobile Demarcation Device ETX-220A 10G CE DemarcationDevice ETX-5300A Ethernet Service Aggregation Platform RADview-PM Ethernet Performance Monitoring

  8. MiNID RAD “Service Assured Access” solution Access Network ETX-2xxA AccessAggregation • Demarcation and Aggregation solutions • Same service look and feel over: • Fiber and Copper • Native Ethernet, SHDSL, PDH, SDH • Linear, Dual-homed and Ring topologies • E-LINE and E-LAN services • Synchronization over Packet Metro/ Core First Mile ETX-203AM ETX-203AM ETX-2xxA FE/GbE IP / MPLS 1/10 GbE Cell- Site ETX-5300A ETX-5300A ETX-5300A SDH/ SONET PDH 10GbE Ring DSL GbE MSAN 1/10 GbE Ring Customer Premises Complete Access solution Service Assured Access

  9. MiNID Service Assured Access : Beyond Access Access Network ETX AccessAggregation Metro/ Core First Mile Core Services ETX ETX ETX ETX FE/GbE Internet Access Management Cloud/ Data Center 1/10 GbE Cell- Site ETX-5300A ETX-5300A ETX-5300A ETX-5300A SDH/ SONET Carriers Interconnection PDH/SDH IP / MPLS 10GbE Ring DSL GbE RAN Controller Site MSAN Customer Premises 1/10 GbE Ring FE/GbE /10GE • Complete Access solution with full service visibility Service Assured Access Service Assurance – End to End (VPN) Service Assurance – End to End

  10. Performance Management RAD’s PM Portal • PM Dashboard – quick status view • Detailed KPI Charts • Monthly Customized PDF reports • Customer portal ETX-5300A ETX-205A ETX-3300A ETX-203AX/AM ETX-220AX

  11. Agenda • Introduction to SAA • MiNID Product overview • Applications • Main features • Ordering information • Value proposition

  12. Traditional Ethernet Demarcation Demarcation Device Demarcation Device Demarcation Device BTS • Pain factors • Add new “boxes” at customer premises • Allocate rack space and power • Labor intensive installation • optical fiber wiring • power cabling • rack installation • Long and costly process • Site survey and engineering • Pre-fabrication of wiring and cables • Installation by expert technicians Without MiNID Router Switch Aggregator/ PE Packet SwitchedNetwork Painful process

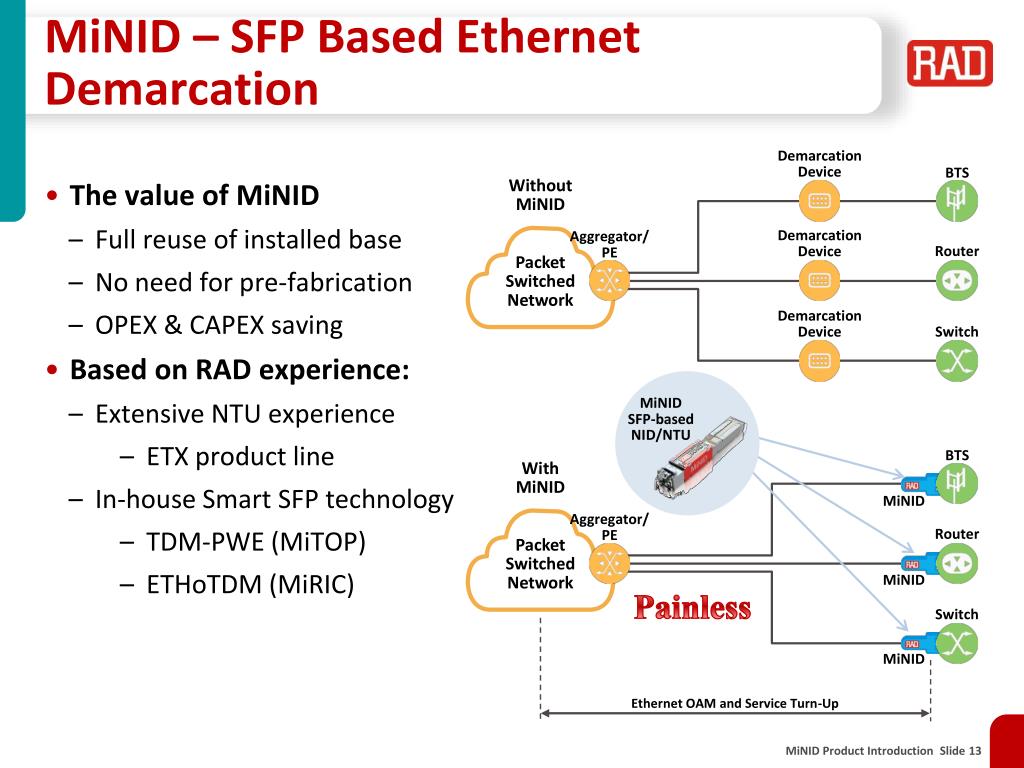

  13. MiNID – SFP Based Ethernet Demarcation Demarcation Device Demarcation Device Demarcation Device BTS BTS • The value of MiNID • Full reuse of installed base • No need for pre-fabrication • OPEX & CAPEX saving • Based on RAD experience: • Extensive NTU experience • ETX product line • In-house Smart SFP technology • TDM-PWE (MiTOP) • ETHoTDM (MiRIC) Without MiNID Router Router Switch Switch MiNID SFP-based NID/NTU Aggregator/ PE Aggregator/ PE Packet SwitchedNetwork Packet SwitchedNetwork With MiNID Painless MiNID MiNID MiNID Ethernet OAM and Service Turn-Up

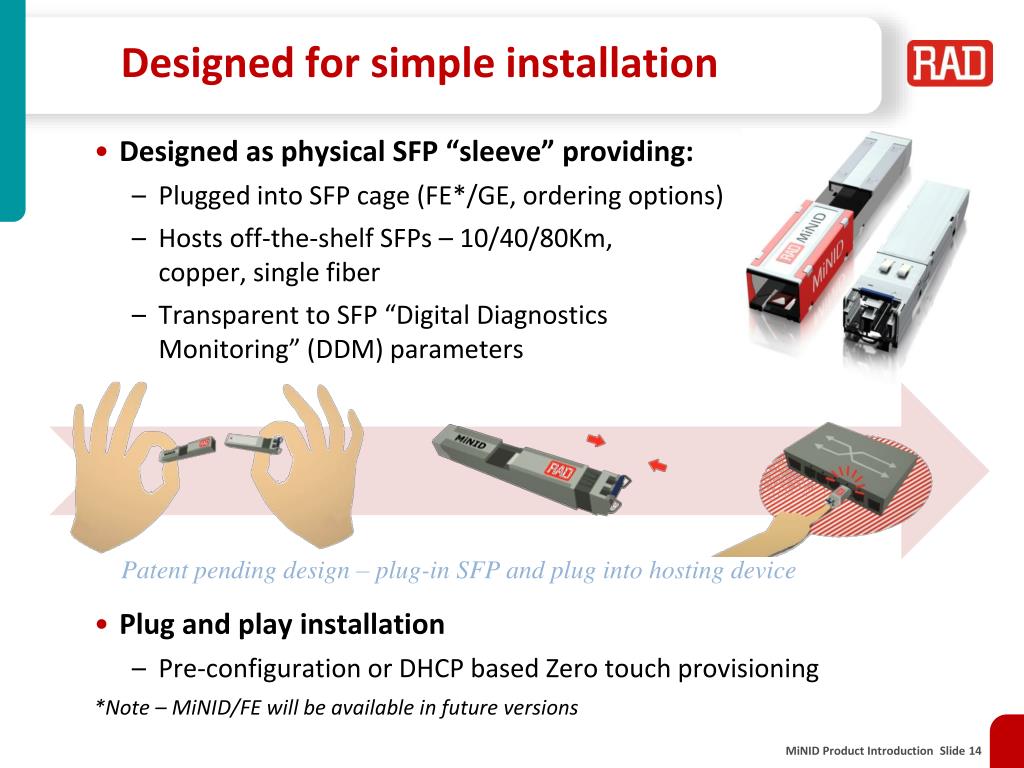

  14. Designed for simple installation • Designed as physical SFP “sleeve” providing: • Plugged into SFP cage (FE*/GE, ordering options) • Hosts off-the-shelf SFPs – 10/40/80Km, copper, single fiber • Transparent to SFP “Digital Diagnostics Monitoring” (DDM) parameters • Plug and play installation • Pre-configuration or DHCP based Zero touch provisioning • *Note – MiNID/FE will be available in future versions Patent pending design – plug-in SFP and plug into hosting device

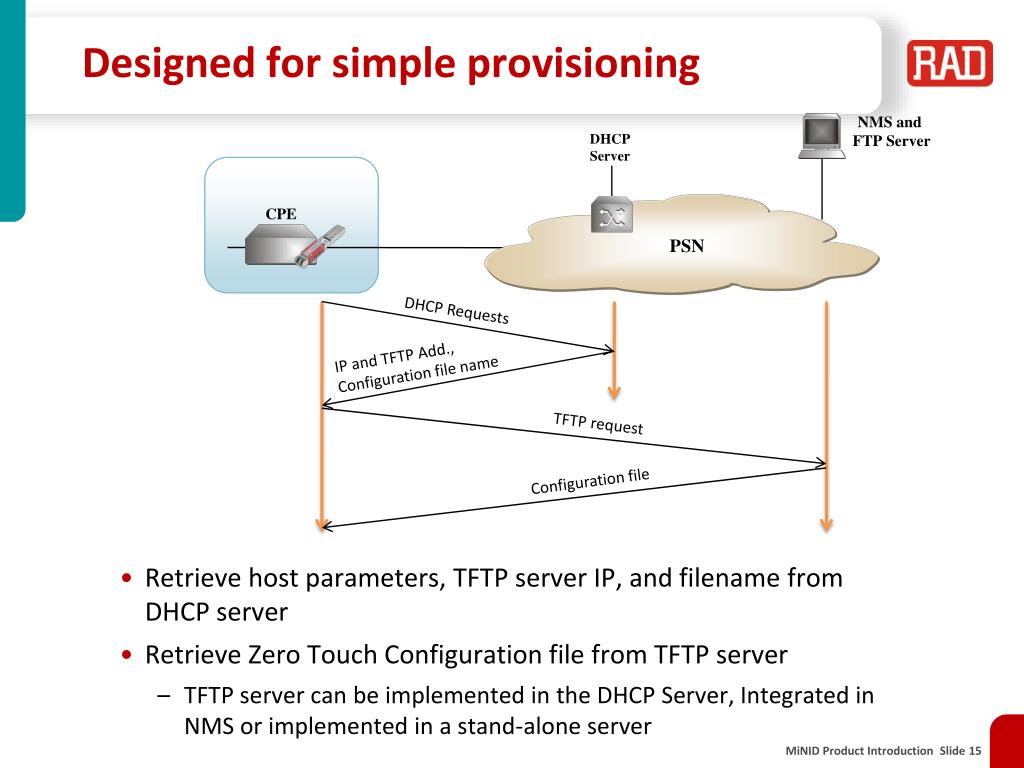

  15. PSN Designed for simple provisioning NMS and FTP Server DHCP Server CPE • Retrieve host parameters, TFTP server IP, and filename from DHCP server • Retrieve Zero Touch Configuration file from TFTP server • TFTP server can be implemented in the DHCP Server, Integrated in NMS or implemented in a stand-alone server DHCP Requests IP and TFTP Add., Configuration file name TFTP request Configuration file

  16. Agenda • Introduction to SAA • MiNID Product overview • Applications • Main features • Ordering information • Value proposition

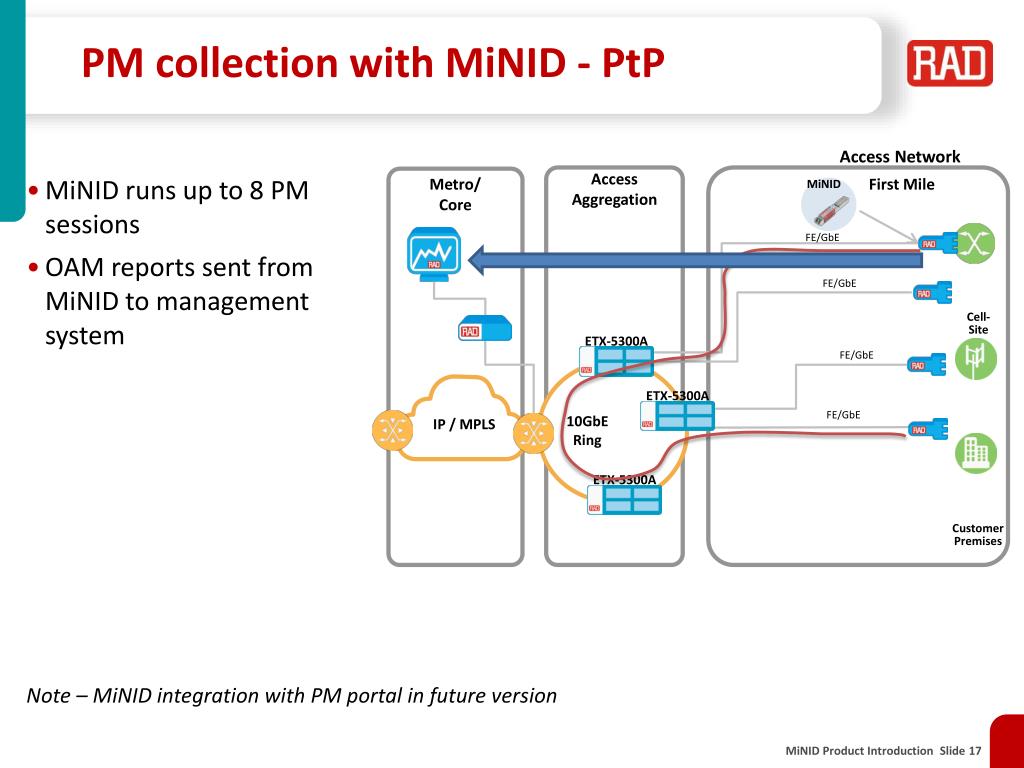

  17. MiNID PM collection with MiNID - PtP Access Network AccessAggregation • MiNID runs up to 8 PM sessions • OAM reports sent from MiNID to management system • Note – MiNID integration with PM portal in future version Metro/ Core First Mile FE/GbE IP / MPLS FE/GbE Cell- Site ETX-5300A ETX-5300A ETX-5300A FE/GbE FE/GbE 10GbE Ring Customer Premises

  18. MiNID PM collection with MiNID - PtMP Access Network AccessAggregation • PM actuator (ETX) connected to every end point • OAM sessions activated between MiNIDs and PM actuator • ETX-205A (128 sessions) • ETX-5300A (1K sessions in Ver. 1.5) • OAM reports sent from PM collector to RADview Metro/ Core First Mile FE/GbE IP / MPLS FE/GbE Cell- Site ETX-5300A ETX-5300A ETX-5300A FE/GbE FE/GbE 10GbE Ring Customer Premises • PM collected and reported via central site SLA measurement

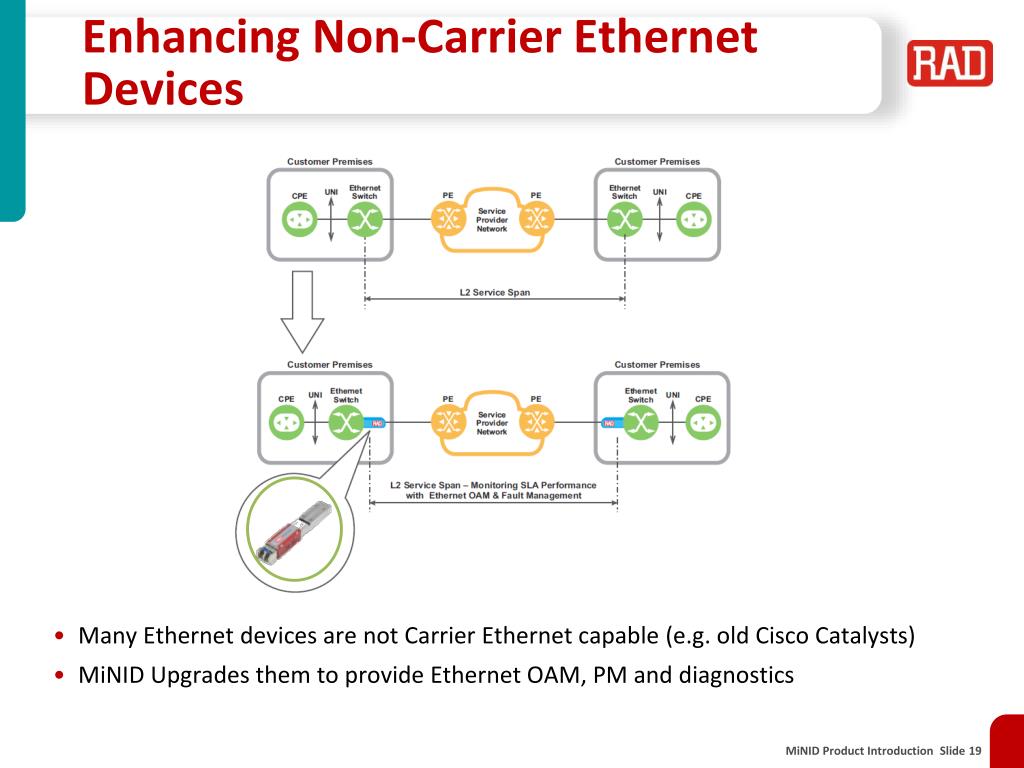

  19. Enhancing Non-Carrier Ethernet Devices • Many Ethernet devices are not Carrier Ethernet capable (e.g. old Cisco Catalysts) • MiNID Upgrades them to provide Ethernet OAM, PM and diagnostics

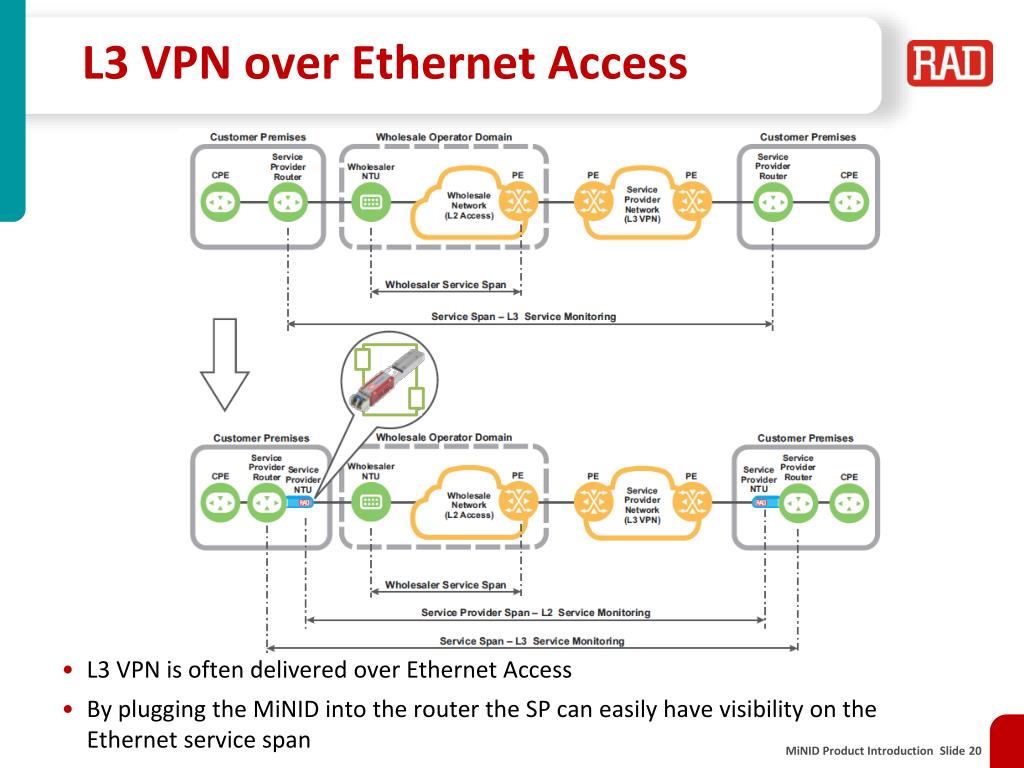

  20. L3 VPN over Ethernet Access • L3 VPN is often delivered over Ethernet Access • By plugging the MiNID into the router the SP can easily have visibility on the Ethernet service span

  21. MiNID in a Base Station RADview Service Mgt. • Plugged into a BS MiNID3 can verify Transport Provider’s SLA • MiNID size makes it attractive for small Cells sites Small Cells Aggregation/ IP DSLAM Macro Cell Macro Cell ETX-5300A Packet Switched Network RNC/aGW PE PE Mobile Operator verifying Transport provider’s SLA

  22. Agenda • Introduction to SAA • MiNID Product overview • Applications • Main features • Ordering information • Value proposition

  23. MiNID Functional Highlights • Service Demarcation • Flexible classification with wire-speed packet handling up to 1Gbps • S-VLAN attachment, Priority marking and L2CP tunneling • Monitoring and Diagnostics • Service validation with RFC 2544 responder • Continuity check and SLA assurance with 802.1ag, Y.1731 • On-demand loopback with IP and MAC swap • Dying Gasp message upon power failure • Management capabilities • Controlled via in-band management channel • Operated through Web-Menu and CLI for user friendly operation • Integrated with RADView NMS

  24. Designed for Service Demarcation • 15 flows with classification per: • Port • VLAN; VLAN Range; Pbits, Pbit Range; VLAN+Pbits, DSCP • EtherType • MAC SA; MAC DA; MAC SA+DA • Configurable Pbit marking or remarking per: • Fixed (pre-defined Pbit for all frames) • Pbits (mapping in-coming Pbit to out going Pbit values) • DSCP bits (mapping incoming DSCP to Pbit values) • VLAN manipulation (attach/detach, change) • Unclassified frames handling with drop or map • L2CP tunneling including L2PT with MAC change • Max frame size: 2K bytes

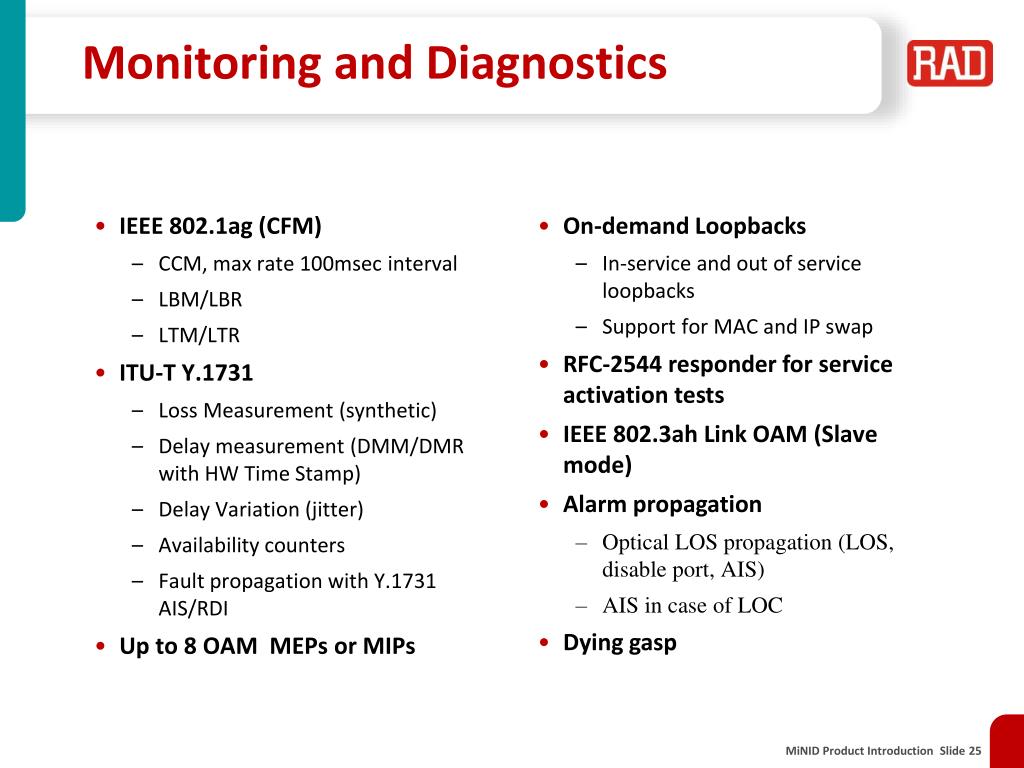

  25. Monitoring and Diagnostics • On-demand Loopbacks • In-service and out of service loopbacks • Support for MAC and IP swap • RFC-2544 responder for service activation tests • IEEE 802.3ah Link OAM (Slave mode) • Alarm propagation • Optical LOS propagation (LOS, disable port, AIS) • AIS in case of LOC • Dying gasp • IEEE 802.1ag (CFM) • CCM, max rate 100msec interval • LBM/LBR • LTM/LTR • ITU-T Y.1731 • Loss Measurement (synthetic) • Delay measurement (DMM/DMR with HW Time Stamp) • Delay Variation (jitter) • Availability counters • Fault propagation with Y.1731 AIS/RDI • Up to 8 OAM MEPs or MIPs

  26. Management • Independent IP host • Separating management of MiNID from host for VNID applications • Reached via User configurable management VLAN • Management interfaces: • Web based menus • Telnet for CLI management • Alarms and traps reported via SNMPv1 • PM collected into a binary file which is retrieved by SNMPv1 command in TFTP • Integration into RADview NMS

  27. Agenda • Introduction to SAA • MiNID Product overview • Applications • Main features • Ordering information • Value proposition

  28. Ordering information • MiNID • MiNID/GE – ordering for MiNID with GE support • SFPs • For detailed list of supported SFPs, please refer to the latest release note • Recommended accessories • SFP-CA allowing for simple configuration in lab an field. For detailed information on SFP-CA, please refer to MiNID User Manual.

  29. Value proposition • Boosting existing networks with Carrier Ethernet capabilities: • Service activation tests insuring SLA from day-1 • Continues service monitoring for SLA assurance • Network diagnostics tool for faster fault detection and localization • Remote management, independent of hosting device • Robust SLA report tool PM portal for full service visibility & control • Painless integration • Lower installation costs by integrating MiNID into existing equipment • Single MiNID hosts variety of SFPs (locked and un-locked) • Based on RAD in-house technology • The smart SFP pioneer
