  1. Review of Discrete-TimeSignal Processing

  2. Sampling CT DT

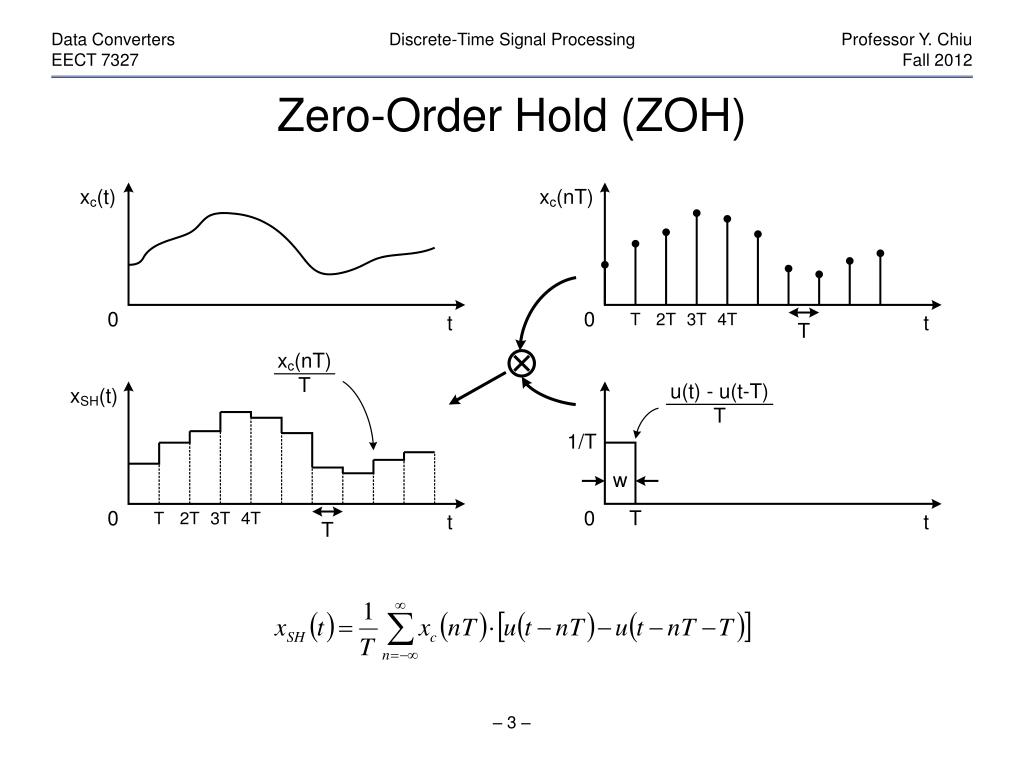

  3. Zero-Order Hold (ZOH)

  4. Sampling Impulse train

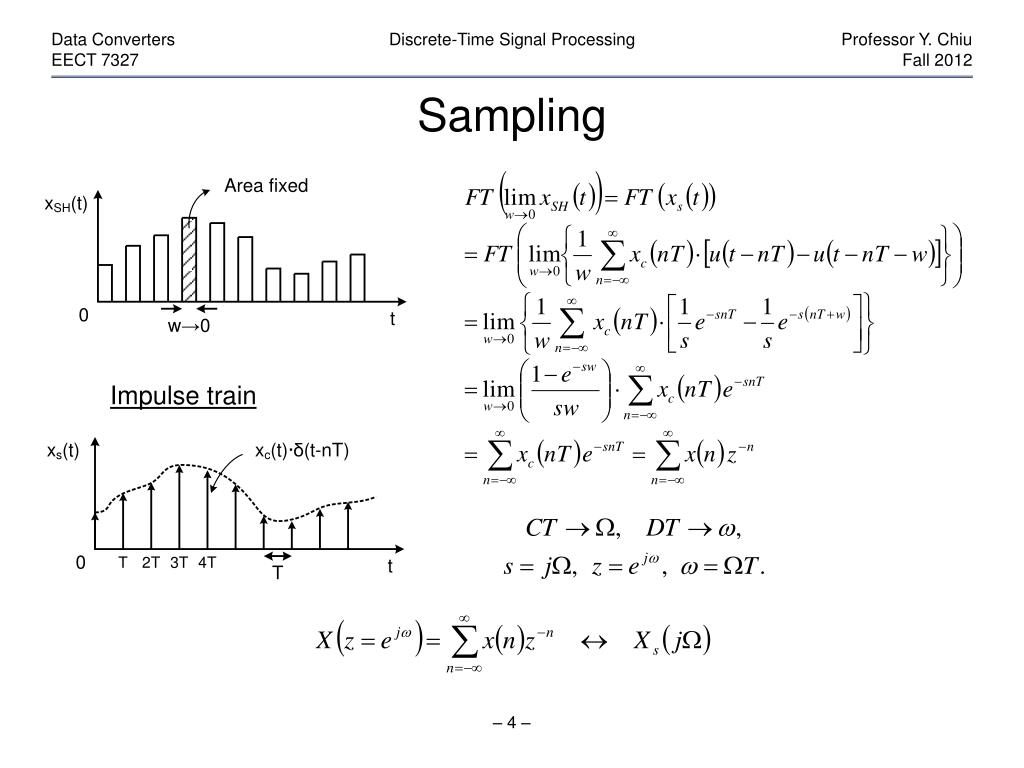

  5. Sampling δ(t-nT)

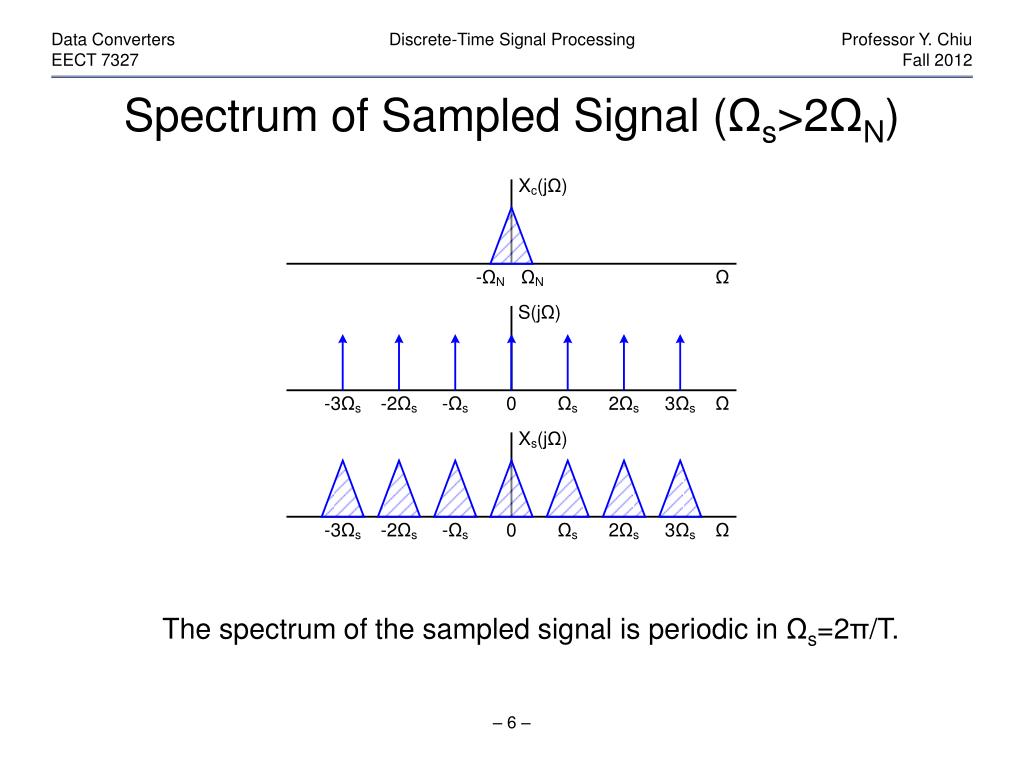

  6. Spectrum of Sampled Signal (Ωs>2ΩN) The spectrum of the sampled signal is periodic in Ωs=2π/T.

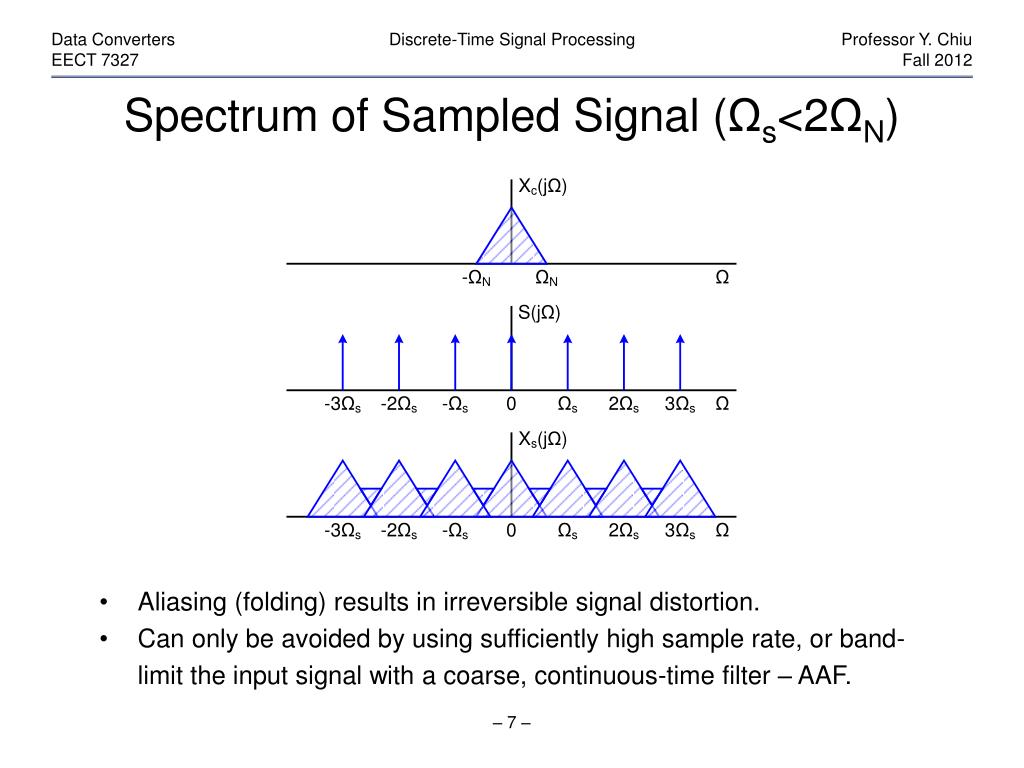

  7. Spectrum of Sampled Signal (Ωs<2ΩN) • Aliasing (folding) results in irreversible signal distortion. • Can only be avoided by using sufficiently high sample rate, or band- limit the input signal with a coarse, continuous-time filter – AAF.

  8. Reconstruction Filter (Nyquist) Reconstruction filter = “smoothing” filter = “interpolation” filter
