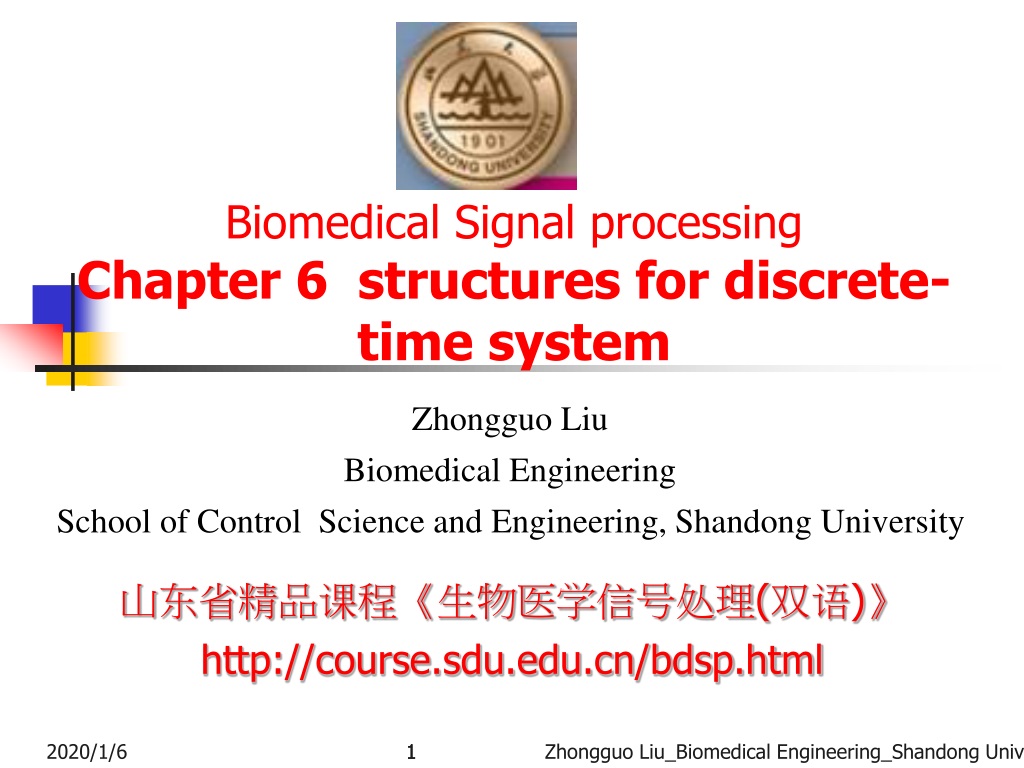

  1. Biomedical Signal processingChapter 6 structures for discrete-time system Zhongguo Liu Biomedical Engineering School of Control Science and Engineering, Shandong University 山东省精品课程《生物医学信号处理(双语)》 http://course.sdu.edu.cn/bdsp.html 1 Zhongguo Liu_Biomedical Engineering_Shandong Univ.

  2. §6 structures for discrete-time system 6.0 Introduction 6.1 Block Diagram Representation of Linear Constant-Coefficient Difference Equations 6.2Signal Flow Graph Representation of Linear Constant-Coefficient Difference Equations 6.3 Basic Structures for IIR Systems 6.4 Transposed(转置) Forms 6.5 Basic Network Structures for FIR Systems

  3. Structures for Discrete-Time Systems 6.0 Introduction

  4. 6.0 Introduction Characterization of an LTI System: • Impulse Response • z-Transform: system function • Difference Equation →Frequency response • converted to a algorithm or structure that can be realized in the desired technology, when implemented with hardware. • Structure consists of an interconnection of basic operations of addition, multiplication by a constant and delay

  5. Illustration for the IIR case by convolution Example: find the output of the system with input x[n]. Solution1: IIR Impulse Response even if we only wanted to compute the output over a finite interval, it would not be efficient to do so by discrete convolution, since the amount of computation required to compute y[n] would grow with n .

  6. Example: find the output of the system with input x[n]. Solution2: LTI recursive computation of output initial-rest conditions(for n<0, if x[n]=0, then y[n]=0) The algorithm suggested by the equation is not the only computational algorithm, there are unlimited variety of computational structures (shown later).

  7. Why Implement system Using Different Structures? • Equivalent structures with regard to their input-output characteristics for infinite-precision representation, may have vastly different behavior when numerical precision is limited. • Effects of finite-precision of coefficients and truncation or rounding of intermediate computations are considered in latter sections. • Computational structures(Modeling methods): • Block Diagram • Signal Flow Graph

  8. Structures for Discrete-Time Systems 6.1 Block Diagram Representation of Linear Constant-Coefficient Difference Equations

  9. x2[n] x1[n] x1[n] + x2[n] + b0 ax[n] x[n] x[n-1] z1 x[n] 6.1 Block Diagram Representation of Linear Constant-Coefficient Difference Equations Implementation of an LTI system by iteratively evaluating a recur­rence formula needs three basic elements: system function Unit Delay (Memory, storage) z-M x[n-M] M sample Delay Multiplier Adder

  10. b0 + a1 + a2 Ex. 6.1 draw Block Diagram Representation of a Second-order Difference Equation 1 Solution: x[n] y[n] z1 y[n-1] z1 y[n-2]

  11. Nth-Order Difference Equations Form changed to a’[0] normalized to unity

  12. x[n] y[n] b0 + + z1 z1 b1 a1 x[n-1] y[n-1] + + z1 z1 x[n-2] y[n-2] bM1 aN1 + + z1 z1 bM aN x[n-M] y[n-N] Block Diagram Representation(Direct Form I) v[n]

  13. b0 y[n] x[n] + + z1 z1 b1 a1 x[n-1] y[n-1] + + z1 z1 x[n-2] y[n-2] bM1 aN1 + + z1 z1 bM aN x[n-M] y[n-N] Block Diagram Representation(Direct Form I) Implementing zeros Implementing poles v[n]

  14. b0 y[n] x[n] + + z1 z1 b1 a1 x[n-1] y[n-1] + + z1 z1 x[n-2] y[n-2] bM1 aN1 + + z1 z1 bM aN x[n-M] y[n-N] Block Diagram Representation(Direct Form I) Implementing zeros Implementing poles v[n]

  15. y[n] x[n] b0 + + z1 z1 b1 a1 x[n-1] y[n-1] + + z1 z1 x[n-2] y[n-2] bM1 aN1 + + z1 z1 bM aN x[n-M] y[n-N] Block Diagram Representation(Direct Form I) How many Adders? How many multipliers? How many delays? N +M N +M+1 N+M v[n]

  16. x[n] y[n] b0 + + z1 z1 b1 a1 x[n-1] y[n-1] + + z1 z1 x[n-2] y[n-2] bM1 aN1 + + z1 z1 bM aN x[n-M] y[n-N] Block Diagram Representation(Direct Form I) v[n]

  17. x[n] y[n] b0 + + z1 z1 a1 b1 w[n-1] + + z1 z1 w[n-2] aN1 bN1 + + z1 z1 aN bN w[n-N] Block Diagram Representation (Direct Form II) 规范直接型 (or called Canonic direct Form) w[n] Assume M = N

  18. w[n] b0 x[n] y[n] + + z1 z1 a1 b1 w[n-1] + + z1 z1 w[n-2] Assume M = N aN1 bN1 + + z1 z1 aN bN w[n-N] Block Diagram Representation (Direct Form II) Implementing poles Implementing zeros

  19. w[n] b0 x[n] y[n] + + z1 z1 a1 b1 w[n-1] + + z1 z1 w[n-2] Assume M = N aN1 bN1 + + z1 z1 aN bN w[n-N] Block Diagram Representation (Direct Form II) Implementing poles Implementing zeros

  20. x[n] w[n] y[n] b0 + + z1 z1 a1 b1 w[n-1] + + z1 z1 w[n-2] Assume M = N aN1 bN1 + + z1 z1 aN bN w[n-N] Block Diagram Representation (Direct Form II) N +M How many Adders? How many multipliers? How many delays? N +M+1 N+M

  21. x[n] y[n] b0 + + z1 b1 a1 + + z1 aN1 bN1 + + z1 aN bN Block Diagram Representation (Canonic Direct Form or direct Form II) How many Adders? How many multipliers? How many delays? max(M, N) N +M N +M+1 N w[n] w[n-1] 规范直接型 w[n-2] Assume M = N w[n-N]

  22. x[n] y[n] b0 + + z1 b1 a1 + + z1 aN1 bN1 + + z1 aN bN Block Diagram Representation (Canonic Direct Form or direct Form II) w[n] w[n-1] 规范直接型 w[n-2] Assume M = N w[n-N]

  23. Ex. 6.2 draw Direct Form I(II) implementation of an LTI system Solution: 1 x[n] y[n] + + v[n] z1 z1 2 1.5 y[n-1] x[n-1] + z1  0.9 y[n-2] Direct Form I

  24. Ex. 6.2 draw Direct Form I（II）implementation of an LTI system v[n] 1 1 x[n] y[n] + + + + w[n] y[n] Solution: z1 z1 z1 z1 2 2 1.5 1.5 y[n-1] y[n-1] x[n-1] + + w[n-1] Direct Form I z1 z1 Direct Form II  0.9  0.9 y[n-2] y[n-2] x[n]

  25. w[n] 1 y[n] + + x[n] z1 2 1.5 + w[n-1] z1  0.9 w[n-2] Ex. 6.2 draw Direct Form I（II）implementation of an LTI system 1 + + w[n] y[n] Solution: z1 z1 2 1.5 y[n-1] + w[n-1] z1 Direct Form II  0.9 y[n-2] x[n]

  26. Structures for Discrete-Time Systems 6.2 Signal Flow Graph(信号流图) Representation of Linear Constant-Coefficient Difference Equations

  27. Node k Node j 6.2 Signal Flow Graph Representation of Linear Constant-Coefficient Difference Equations • A Signal Flow Graph is a network of directed branches(有向支路)that connect at nodes(节点). Associated with each node is a variable or node value, being denoted wj[n]. 梅森(Mason)信号流图 Sequence wj[n] wk[n] Signal Flow Graph (SFG)

  28. Nodes And Branches We will only consider linearSignal Flow Graph Output:A linear transformation of input, such as constant gain and unit delay. Input wj[n] if omitted, it indicates unity unit delay a or z-1 Brach (j, k) Sequences wj[n] wk[n] Node j Node k Each branch has an input signal and an output signal. An internal node serves as a summer, i.e., its value is the sum of outputs of all branches entering the node.

  29. Sink node k Source node j yk[n] wj[n] xj[n] wk[n] Source Nodes (源点 ) • Nodes that have no entering branches inputs outputs Sink Nodes (汇点, 阱点) • Nodes that have only entering branches

  30. d a w2[n] b e w1[n] y[n] x[n] c Example : determine Linear Constant-Coefficient Difference Equations of SFG Sink Node Source Node Solution:

  31. b0 + + z1 b1 a b0 3 b1 2 1 a 4 Block Diagram vs. Signal Flow Graph w[n] y[n] x[n] branching point Canonic direct Form Source Node w1[n] Sink Node w2[n] x[n] y[n] w3[n] Delay branch By convention, variables is represented as sequences rather than as z-transforms z1 w4[n] =w2[n-1] Delay branch cannot be represented in time domain by a branch gain by z-transform, a unit delay branch has a gain of z-l.

  32. b0 + + z1 b1 a b0 1 2 3 z1 a b1 4 Block Diagram vs. Signal Flow Graph Determine the difference equation (System Function) from the Flow Graph. Solution: x[n] w[n] y[n] w1[n] x[n] y[n] w2[n] w3[n] w4[n]

  33. Block Diagram vs. Signal Flow Graph Determine difference equation difficult in time-domain

  34. Ex. 6.3 Determine the System Function from Flow Graph causal system Solution:

  35. Ex. 6.3 Determine the System Function from Flow Graph for causal system :

  36. a -a x[n] y[n] z-1 z-1 Ex. 6.3 compare two implementation requires only one multiplication andone delay (memory) element direct form I implementation twomultiplication andtwo delay

  37. Structures for Discrete-Time Systems 6.3Basic Structure for IIR Systems

  38. 6.3Basic Structure for IIR Systems • for a rational system function, there are manyequivalent difference equationsor network structures. • Reduce the number of constant multipliers • Increase speed • Reduce the number of delays • Reduce the memory requirement • A criteriain the choice among these differentstructures is computational complexity:

  39. Basic Structures for IIR Systems • Direct Forms • Cascade Form • Parallel Form

  40. b0 x[n] y[n] + + z1 z1 b1 a1 x[n-1] y[n-1] + + z1 z1 x[n-2] y[n-2] bM1 aN1 + + z1 z1 bM aN x[n-M] y[n-N] 6.3.1 Direct Forms v[n]

  41. x[n] y[n] v[n] b0 + + z1 z1 a1 b1 y[n-1] x[n-1] + + z1 z1 x[n-2] y[n-2] bM1 aN1 + + z1 z1 bM aN y[n-N] x[n-M] Direct Form I Block Diagram v[n] b0 x[n] y[n] z1 z1 a1 b1 x[n-1] y[n-1] z1 z1 b2 a2 y[n-2] Signal Flow Graph x[n-2] bN-1 aN-1 y[nN+1] x[nM+1] z1 z1 bN aN x[n-M] y[n-N]

  42. Direct Form I Signal Flow Graph Draw SFG Directly v[n] v[n] b0 y[n] x[n] z1 z1 a1 b1 x[n-1] y[n-1] z1 z1 b2 a2 y[n-2] x[n-2] bN-1 aN-1 y[nN+1] x[nM+1] z1 z1 bN aN x[n-M] y[n-N]

  43. Direct Form II

  44. Direct Form II

  45. w[n] y[n] x[n] b0 z1 a1 b1 z1 a2 b2 aN-1 bN-1 z1 aN bN Direct Form II w[n-1] w[n-2] w[n-N-1] w[n-N]

  46. w[n] y[n] x[n] b0 z1 b1 a1 z1 b2 a2 bN-1 aN-1 z1 bN aN Direct Form II Draw SFG Directly

  47. x[n] y[n] z1 z1 z1 z1 y[n] x[n] z1 z1 Ex. 6.4 draw Direct Form I andDirect Form II structures of system Solution: 1 1 0.75 2 Direct Form I 0.125 1 2 0.75 Direct Form II 0.125

  48. 6.3.2 Cascade Form(串联形式) when all the coefficients are real 1st-order factors represent real zeros at gkand real poles at ck , and the 2nd-order factors represent complex conjugate pairs of zeros at hk and h*k and poles at dk ,d*k

  49. 2nd Order System 2nd Order System 2nd Order System Cascade Form A modular structure

  50. b01 b02 b03 z1 z1 z1 a11 b11 a12 b12 a13 b13 z1 z1 z1 a21 b21 a22 b22 a23 b23 Cascade Form For example, assume Ns=3 x[n] y[n] 1 2 3 It is used(see 6.9)when implemented with fixed-point arithmetic, the structure can control the size of signals at various critical points , because they make it possible to distribute the overall gain of the system.
