  1. The NCA-2

  2. NCA-2 Features • Notifier Universal Protocol (NUP) compatible • Optically isolated EIA-232 printer interface • EIA-485 ACS Annunciator interface (96 points per annunciator) • Support for 80-character (LCD-80) or 160-character (LCD-160) remote text display • 640-character LCD • 4000 event History capacity • 1000 Alarm History capacity • Support for a custom “system normal” bitmap graphic • Power supply supervision with AMPS-24 power supply

  3. NCA-2 Features • Individual Enable/Disable or Group Enable/Disable local for networked Onyx Panels • Control On/Off networked Onyx Panel control points • Read Status networked Onyx panel points and zones • One Master Level, nine User Level passwords. • Interactive Summary Event Count display • Advanced/Basic Walk Test program • History filters for report displaying and printing: • All Events, Alarms Only, Troubles Only, Supervisory Only, Security Only, Time Interval, and Point Range • Meets NFPA requirements for FireFighters Smoke Control Station (FSCS) and HVAC.

  4. J1 NUP J6 SCTY J2 LCD J5 TROUBLE J4 BACKLIGHT J13 AMPS-24 J9 KEYPAD TB9 RDP TB4 TB3 TB2 TB1 ALARMTROUBLE SUPVSCTY TB5 PRN TB7 ACS USB TB6 +24V

  5. Function Keys Display & Function Keys Function LEDs

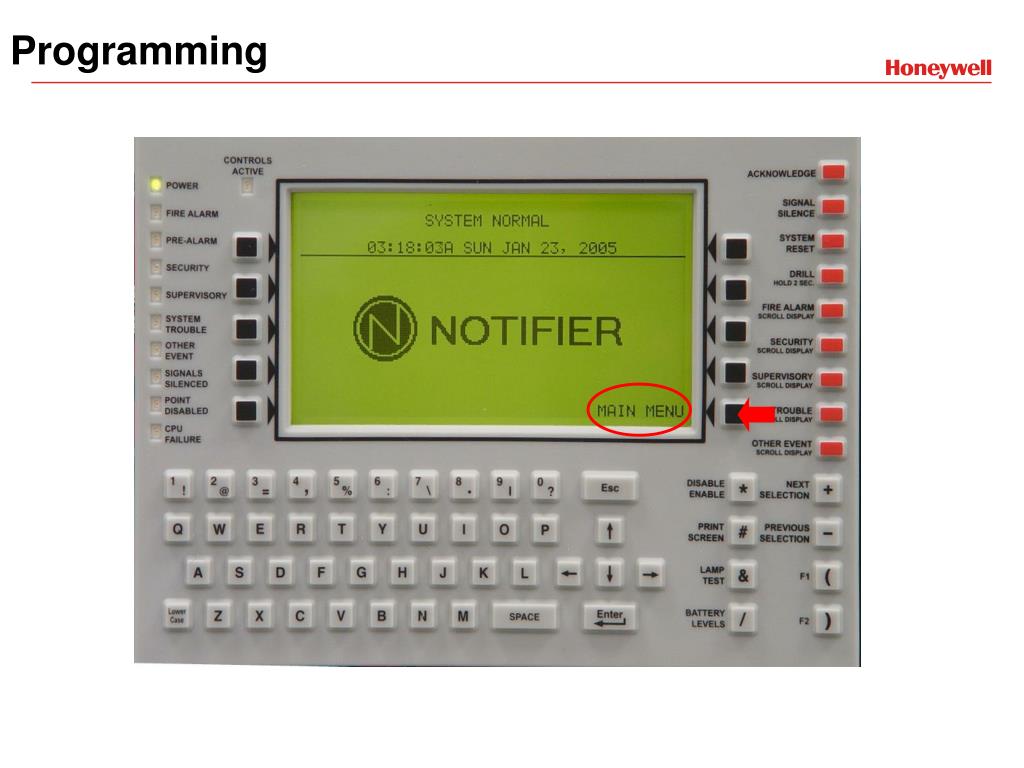

  6. Programming

  7. PASSWORD CHANGE SYSTEM NORMAL 10:16:54A WED JAN 14, 2009 MAIN MENU READ STATUS EVENT COUNTS DISPLAY PROGRAM/ALTER STATUS PRINTER FUNCTIONS MULTIPLE EVENT LIST GRAPHIC SCREEN HISTORY DISPLAY

  8. PASSWORD CHANGE PROGRAM/ALTER STATUS ENTRY SCREEN ******** ENTER PASSWORD: _______________ INVALID PASSWORD 4297-04A4-61EC-1E39-6AFE ACCEPT BACK

  9. PASSWORD CHANGE PROGRAM/ALTER STATUS MENU ALTER STATUS MENU NODE PROGRAM N000 PANEL PROGRAM MENU POINT PROGRAM MENU BACK

  10. PASSWORD CHANGE PANEL PROGRAM MENU LCD DISPLAY NETWORK PARAMETERS NETWORK MAPPING ACS PROGRAMMING SUPERVISION PANEL SETTINGS MORE PANEL TIMERS EVENT MONITORING BACK

  11. PASSWORD CHANGE PANEL PROGRAM MENU EVENT LOGGING PASSWORD CHANGE BACK

  12. PASSWORD CHANGE PASSWORD CHANGE MASTER PASSWORD USER PASSWORD BACK

  13. PASSWORD CHANGE USER PASSWORD USER: 1 REFERENCE: KEVIN ******** ENTER PASSWORD: _______________ ******** RE-ENTER PASSWORD: _______________ MODE: PROGRAM/ALTER STATUS ACCEPT BACK

  14. NETWORK PARAMETERS PANEL PROGRAM MENU LCD DISPLAY NETWORK PARAMETERS NETWORK MAPPING ACS PROGRAMMING SUPERVISION PANEL SETTINGS MORE PANEL TIMERS EVENT MONITORING BACK

  15. NETWORK PARAMETERS NETWORK PARAMETERS NODE: 150 NODE LABEL: _______________________________________________________ IP ACCESS STYLE: STYLE 4 ACCEPT CH A. THRESHOLD: HIGH CH B. THRESHOLD: HIGH BACK

  16. NETWORK MAPPING PANEL PROGRAM MENU LCD DISPLAY NETWORK PARAMETERS NETWORK MAPPING ACS PROGRAMMING SUPERVISION PANEL SETTINGS MORE PANEL TIMERS EVENT MONITORING BACK

  17. NETWORK MAPPING NETWORK MAPPING SCREEN 01 OF 15 001: OFFLINE / _____________ 002: OFFLINE / _____________ 003: OFFLINE / _____________ 004: OFFLINE / _____________ 005: OFFLINE / _____________ 006: OFFLINE / _____________ 007: OFFLINE / _____________ 008: OFFLINE / _____________ 009: OFFLINE / _____________ 010: ONLINE / MAPPED 011: OFFLINE / _____________ 012: OFFLINE / _____________ 013: OFFLINE / _____________ 014: OFFLINE / _____________ 015: OFFLINE / _____________ 016: OFFLINE / _____________ ACCEPT AUTOPROGRAM NEXT BACK

  18. PANEL SETTINGS PANEL PROGRAM MENU LCD DISPLAY NETWORK PARAMETERS NETWORK MAPPING ACS PROGRAMMING SUPERVISION PANEL SETTINGS MORE PANEL TIMERS EVENT MONITORING BACK

  19. PANEL SETTINGS PANEL SETTINGS REMINDER MENU LOCAL CONTROL: YES PIEZO: ON MORE ACCEPT EVENT ORDERING: USA DISPLAY ADDRESS: YES BACK

  20. EVENT MONITORING PANEL PROGRAM MENU LCD DISPLAY NETWORK PARAMETERS NETWORK MAPPING ACS PROGRAMMING SUPERVISION PANEL SETTINGS MORE PANEL TIMERS EVENT MONITORING BACK

  21. EVENT MONITORING EVENT MONITORING PREALARM: YES FIRE ALARM: YES DISABLED POINT: YES TROUBLE: YES SUPERVISORY: YES SECURITY: YES ACCEPT OTHER: YES BACK

  22. LCD DISPLAY PANEL PROGRAM MENU LCD DISPLAY NETWORK PARAMETERS NETWORK MAPPING ACS PROGRAMMING SUPERVISION PANEL SETTINGS MORE PANEL TIMERS EVENT MONITORING BACK

  23. LCD DISPLAY LCD DISPLAY LCD INTENSITY: 040% BRIGHTER DEFAULT CURRENT DARKER LANGUAGE: ENGLISH ACCEPT BACK BACKLIGHT: ON

  24. SUPERVISION PANEL PROGRAM MENU LCD DISPLAY NETWORK PARAMETERS NETWORK MAPPING ACS PROGRAMMING SUPERVISION PANEL SETTINGS MORE PANEL TIMERS EVENT MONITORING BACK

  25. SUPERVISION SUPERVISION MAIN PS NODE: 010 PRINTER: 80-COLUMN SUPERVISED AUXILIARY TROUBLE REPORTING: NO ACCEPT TAMPER INPUT: NO BACK

  26. ALTER STATUS MENU PROGRAM/ALTER STATUS MENU ALTER STATUS MENU NODE PROGRAM N000 PANEL PROGRAM MENU POINT PROGRAM MENU BACK

  27. ALTER STATUS MENU TROUBLE PROGRAM MODE ACTIVATED 10:16:54A WED JAN 14, 2009 ALTER STATUS MENU WALK TEST ENABLE/DISABLE CHANGE TIME/DATE DETECTOR SENSITIVITY CONTROL ON/OFF CLEAR VERIFY COUNTS N010 BACK CLEAR HISTORY

  28. Any Questions
