  1. Design Kit

  2. CoolRunner-II RealDigital CPLDs • Advanced .18 process technology • JTAG In-System Programming Support • IEEE 1532 Compliant • Advanced design features • Multiple I/O standards • Multiple I/O banks • Input hysteresis • Extra clocking modes • New enhanced architecture allows design flexibility • 16 macrocells per function block • Global signals available at each macrocell • New DataGATE and CoolCLOCK features • Patented full-CMOS circuitry runs at extremely low power without compromising performance • Very low Static Icc

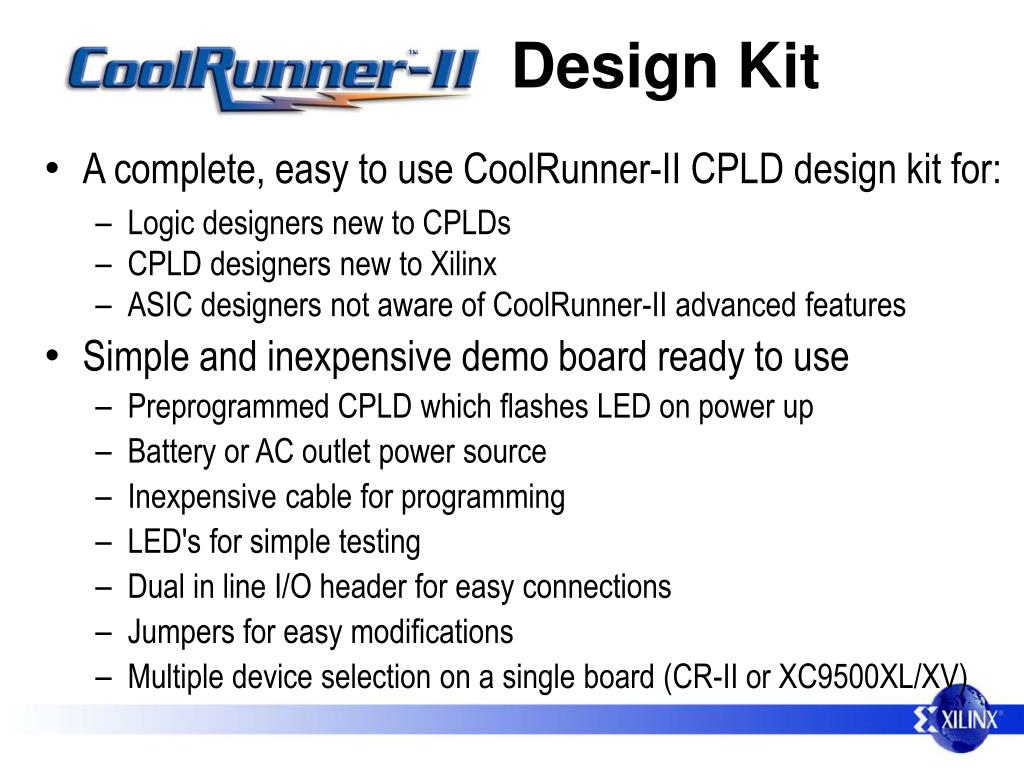

  3. Design Kit • A complete, easy to use CoolRunner-II CPLD design kit for: • Logic designers new to CPLDs • CPLD designers new to Xilinx • ASIC designers not aware of CoolRunner-II advanced features • Simple and inexpensive demo board ready to use • Preprogrammed CPLD which flashes LED on power up • Battery or AC outlet power source • Inexpensive cable for programming • LED's for simple testing • Dual in line I/O header for easy connections • Jumpers for easy modifications • Multiple device selection on a single board (CR-II or XC9500XL/XV)

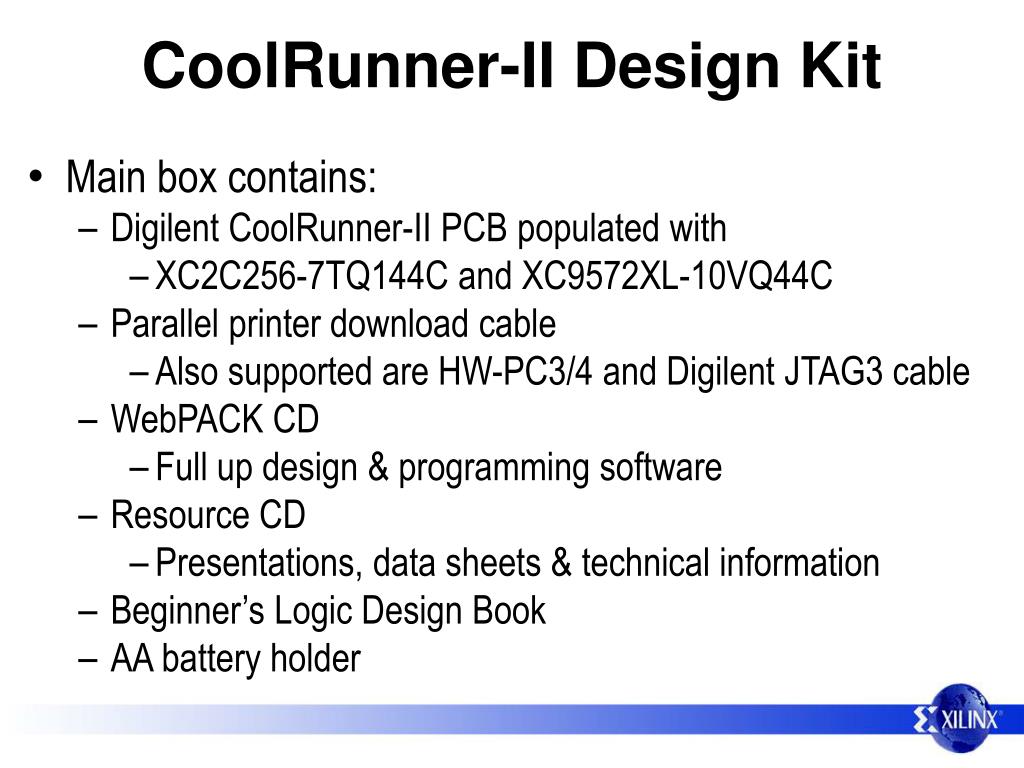

  4. CoolRunner-II Design Kit • Main box contains: • Digilent CoolRunner-II PCB populated with • XC2C256-7TQ144C and XC9572XL-10VQ44C • Parallel printer download cable • Also supported are HW-PC3/4 and Digilent JTAG3 cable • WebPACK CD • Full up design & programming software • Resource CD • Presentations, data sheets & technical information • Beginner’s Logic Design Book • AA battery holder

  5. Digilent Board Description • Populated with • IC1 • XC9572XL-10VQ44C • IC2 • XC2C256-7TQ144C

  6. Digilent Board Description • JTAG connection for programming CPLD

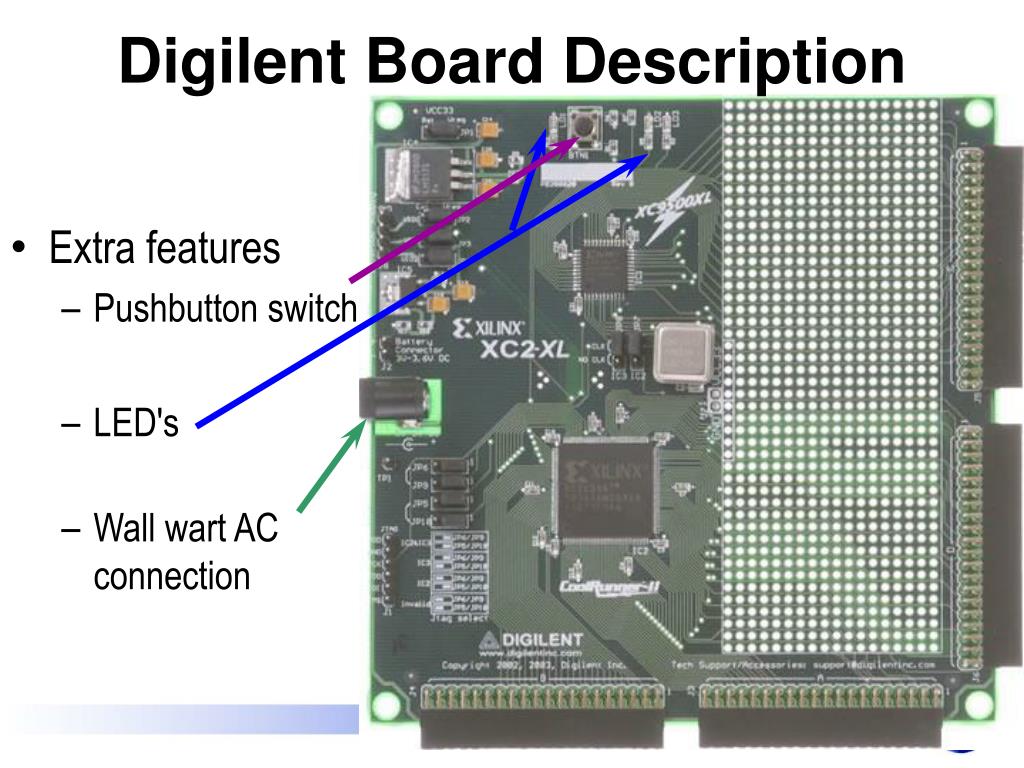

  7. Digilent Board Description • Extra features • Pushbutton switch • LED's • Wall wart AC connection

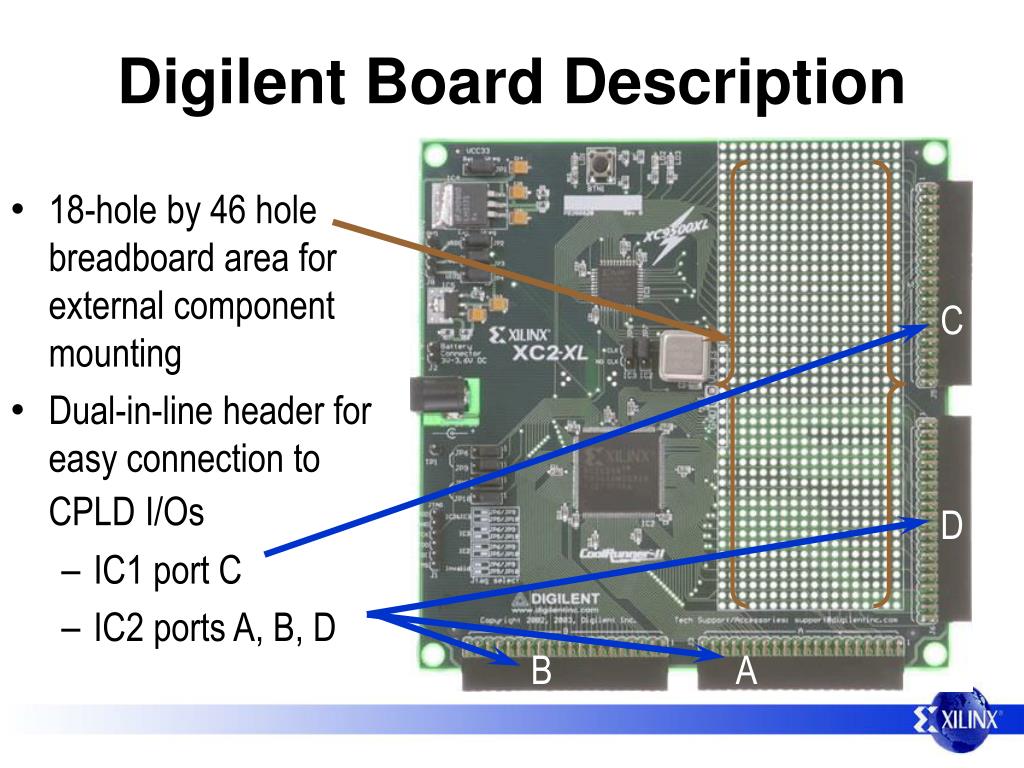

  8. Digilent Board Description • 18-hole by 46 hole breadboard area for external component mounting • Dual-in-line header for easy connection to CPLD I/Os • IC1 port C • IC2 ports A, B, D C D B A

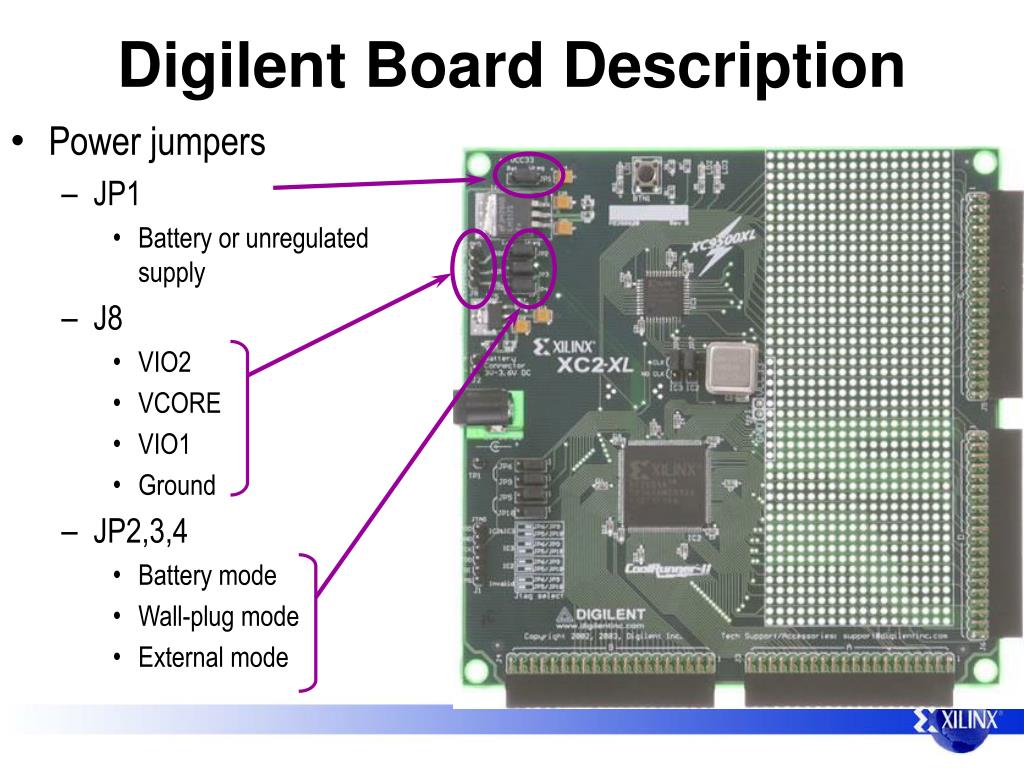

  9. Digilent Board Description • Power jumpers • JP1 • Battery or unregulated supply • J8 • VIO2 • VCORE • VIO1 • Ground • JP2,3,4 • Battery mode • Wall-plug mode • External mode

  10. Digilent Board Description • Device Selection • JP 7, 8 • IC1 or IC2 or both • JTAG Programming • JP 6,9, JP 5,10 • Diagram of JTAG jumper settings

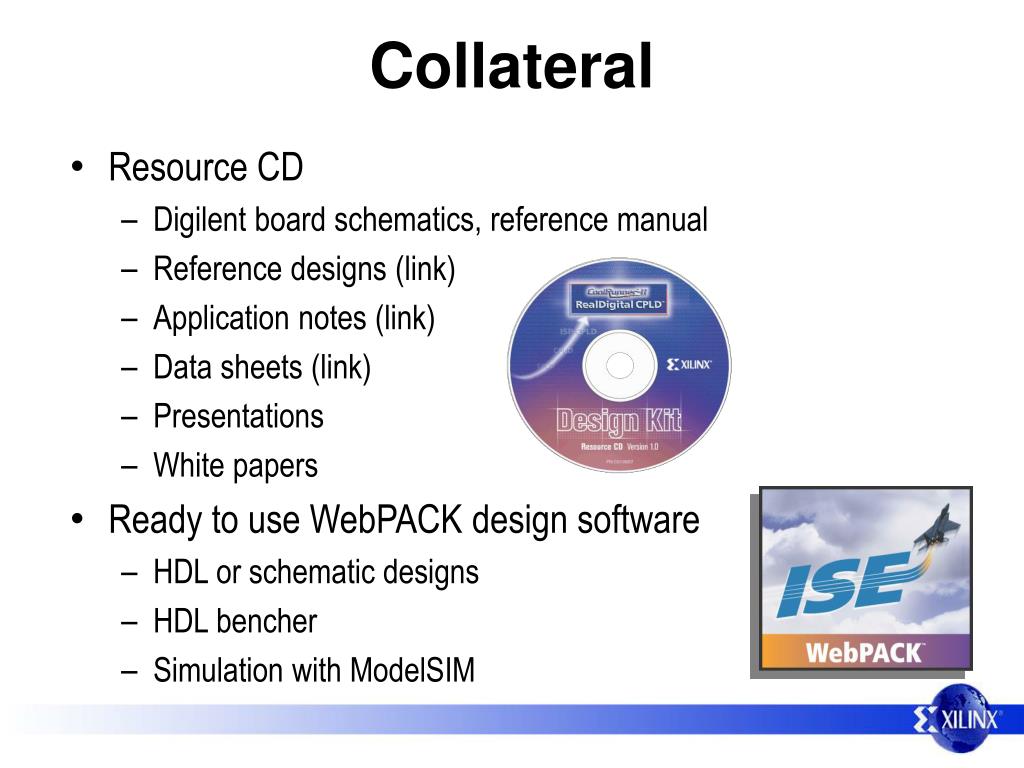

  11. Collateral • Resource CD • Digilent board schematics, reference manual • Reference designs (link) • Application notes (link) • Data sheets (link) • Presentations • White papers • Ready to use WebPACK design software • HDL or schematic designs • HDL bencher • Simulation with ModelSIM

  12. Online Software Solutions • Free ISE WebPACK™ • Downloadable desktop solution • HDL / ABEL synthesis & simulation • JTAG & 3rd party EDA support • Supports all Xilinx CPLD families • Supports Spartan-II, IIE & III, Virtex-E & II (up to 300K gates) FPGAs • Links to online purchasing • Free WebFITTER™ • Easily fit designs for all Xilinx CPLDs online • Accepts VHDL/verilog/abel & standard netlists • Simple PLD & competitive conversions • Fitting & timing reports • Online price quotes for purchasing the best PLD silicon solution

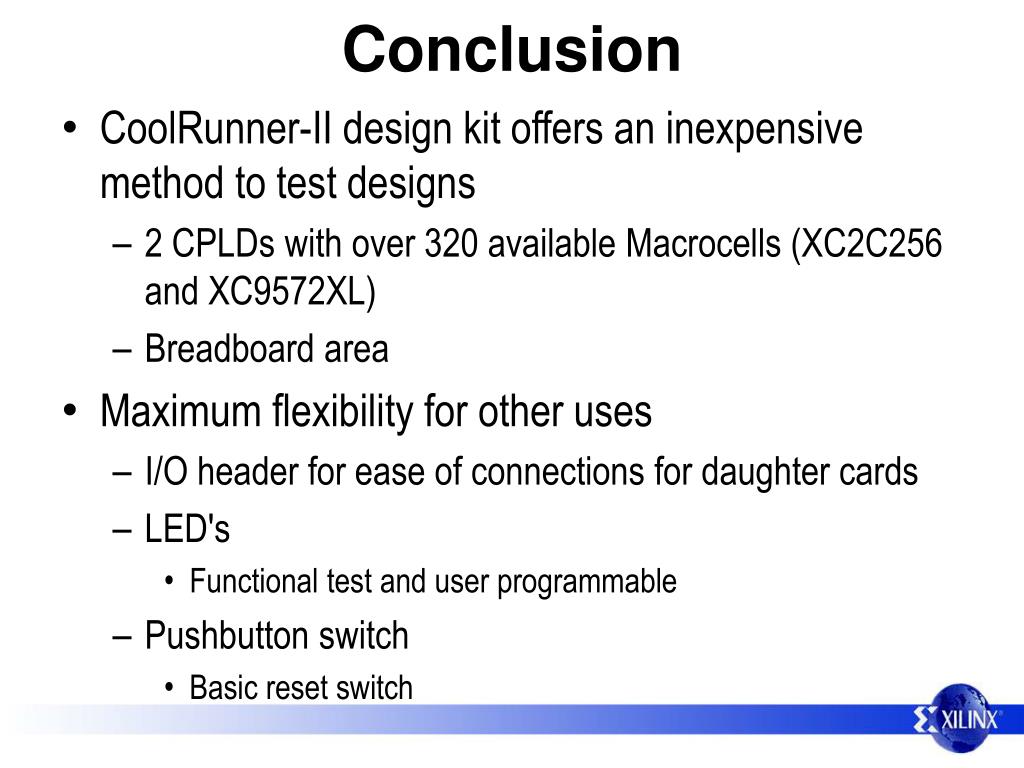

  13. Conclusion • CoolRunner-II design kit offers an inexpensive method to test designs • 2 CPLDs with over 320 available Macrocells (XC2C256 and XC9572XL) • Breadboard area • Maximum flexibility for other uses • I/O header for ease of connections for daughter cards • LED's • Functional test and user programmable • Pushbutton switch • Basic reset switch
