  1. A Comparative Study of Extensible Routers Yitzchak Gottlieb

  2. Extensibility: Why? • New Services • Packet taggers • Firewalls • Filters • Network Overlays • Old Routers • Can’t support new protocols and services

  3. Extensibility: How? • Software routers • Easy to change • Hard to change correctly • Hard to write from scratch • Hard to extend • Extensible software routers • Easy to extend correctly

  4. Extensibility: Who? • Scout • Princeton University • Stand-alone, SILK • Click • MIT • Linux Kernel Module • Router Plugins (Crossbow) • Washington U St. L, ETH Zürich, Ascom • BSD Hack

  5. ICMP IP ARP ARP ETH ETH eth0 eth1 Scout • Path orientation • Modularity • Modules • Stages • Classifier Hierarchy • Extensiblity • Write a new module • Create a path through it

  6. Click • Modular • Typed interface • Push • Pull • Small elements • Small tasks • Millions and millions...

  7. Router Plugins (Crossbow) • BSD Core • Plugins = LKMs • Gates • Between Stages • Fixed Number • Keys • Fixed fields • Wildcards • Fast algorithm

  8. How To Choose? • Choose Scout • Might be slightly biased • Compare strength and weaknesses • Does your application fit its model? • Does it offer what you need? • Is it hard to program?

  9. Modeling Extensible Routers • Basis for comparison • Abstracts away implementation • Simple • Few components • Comprehensible • Powerful • Models behavior in all three systems

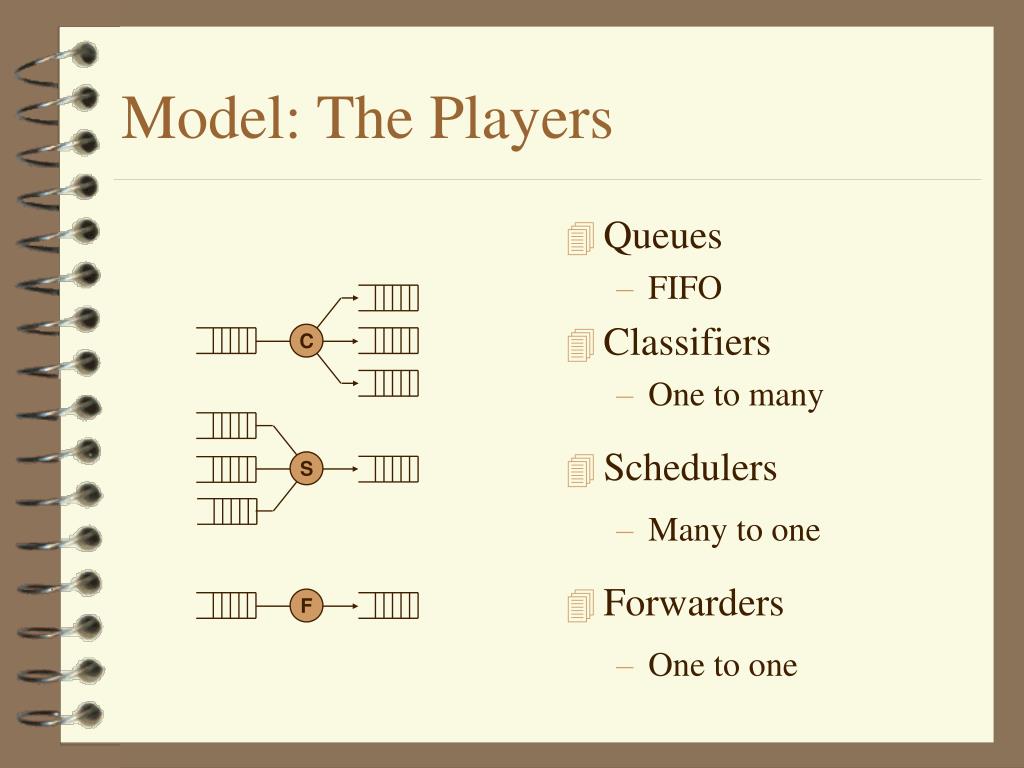

  10. C S F Model: The Players • Queues • FIFO • Classifiers • One to many • Schedulers • Many to one • Forwarders • One to one

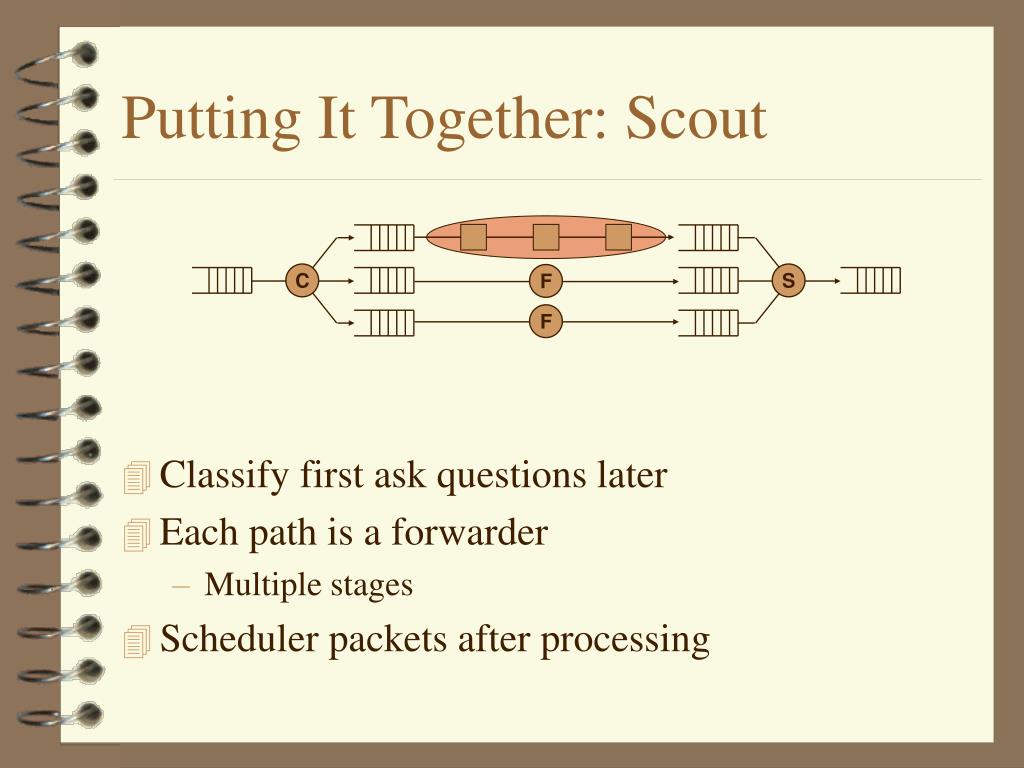

  11. C S F F Putting It Together: Scout • Classify first ask questions later • Each path is a forwarder • Multiple stages • Scheduler packets after processing

  12. F C S Putting It Together: Click • Each element does a little of everything • Pull elements must specify schedulers • Push elements must specify classifiers • All elements forward

  13. F F C F C S F Putting It Together: Plugins Plugins Gate IP Code • Each gate classifies • FIFO scheduler between sections • IP forwarders connect gates • Or maybe...

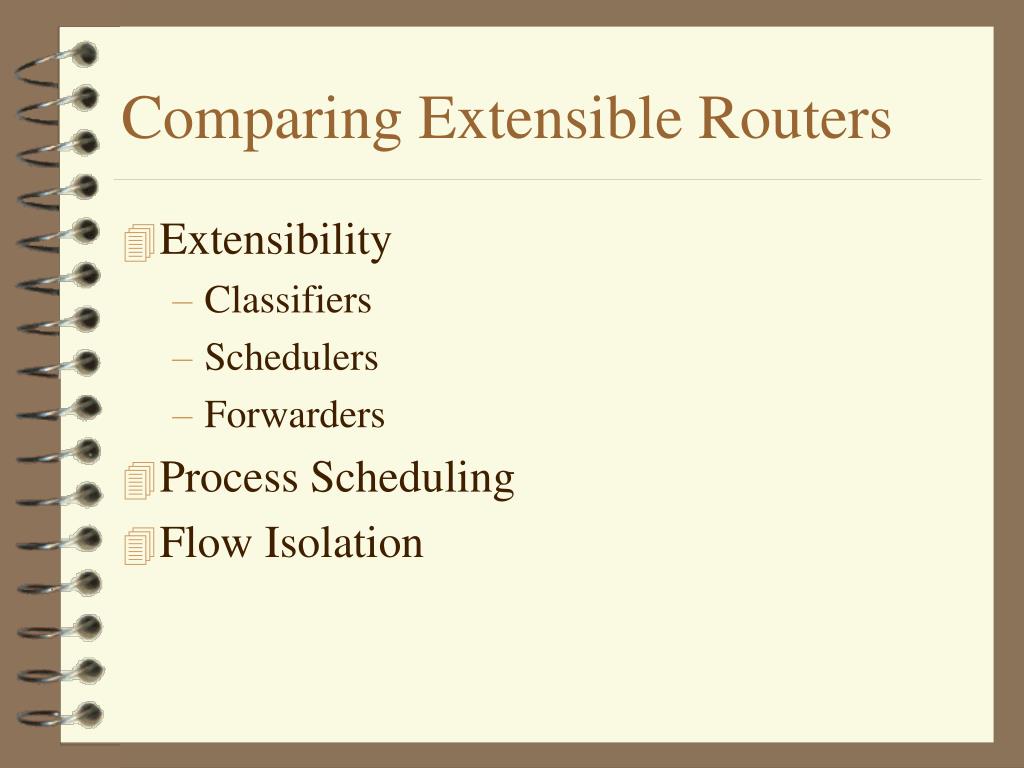

  14. Comparing Extensible Routers • Extensibility • Classifiers • Schedulers • Forwarders • Process Scheduling • Flow Isolation

  15. Extensibility: Two approaches • Outside the architecture • Extend the fixed pieces • Why use extensible routers • Within the architecture • Insert • Replace • Program • Parameterize • Add Code

  16. Extending Components

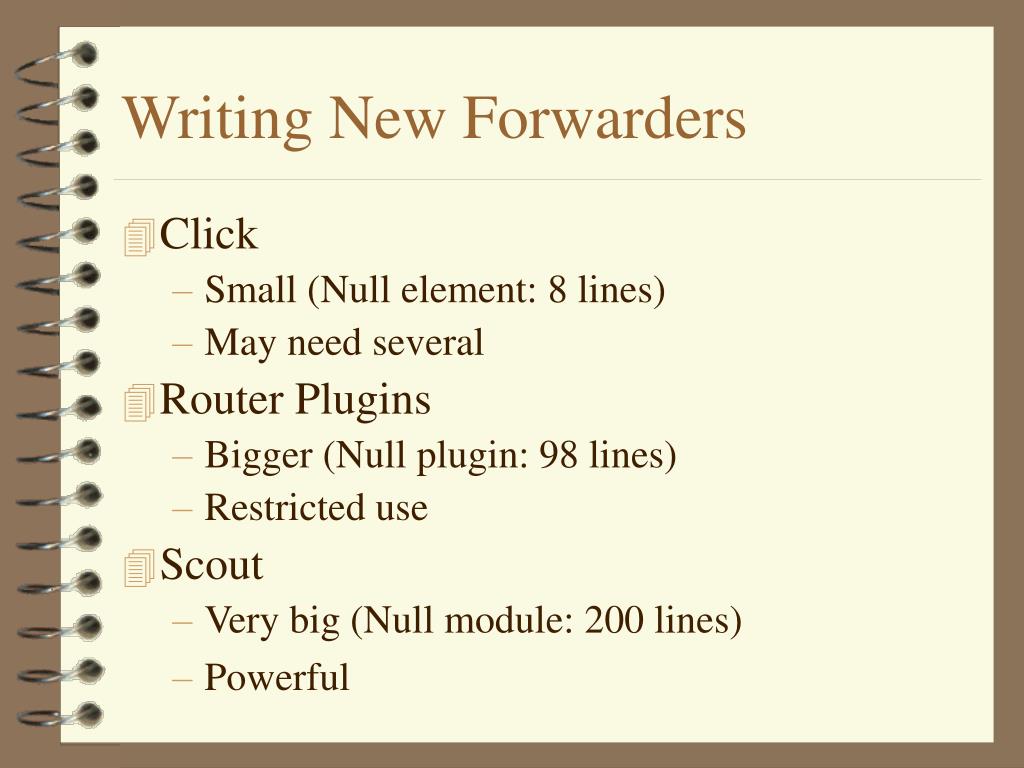

  17. Writing New Forwarders • Click • Small (Null element: 8 lines) • May need several • Router Plugins • Bigger (Null plugin: 98 lines) • Restricted use • Scout • Very big (Null module: 200 lines) • Powerful

  18. Other Points of Comparison • Process scheduling • Scout—by path after classification • Click—push until queue, pull from queue • Crossbow—as packets arrive • Flow isolation • Scout—paths separate • Click/Crossbow—all packets are the same

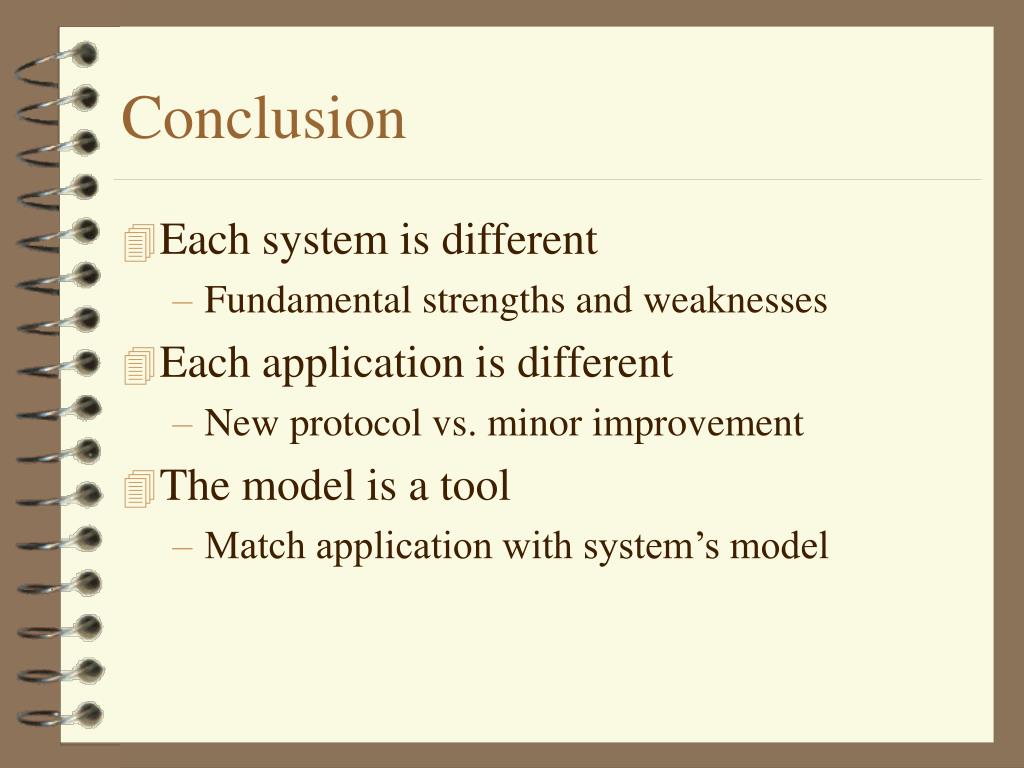

  19. Conclusion • Each system is different • Fundamental strengths and weaknesses • Each application is different • New protocol vs. minor improvement • The model is a tool • Match application with system’s model
