  1. The Abstract simulator

  2. Simulator/Simulation Concepts • Simulator:responsible for executing a model’s dynamics (resented as instructions) in a given formalism. • Abstract simulator: a characterization of what needs to be done in executing a model’s instructions • atomic simulator • coupled simulator • Simulation engines: enforce particular realizations of abstract simulator • Simulations can be executed as: • Sequential • Parallel • Distributed (sequential/parallel) • Real-Time

  3. Standard DES mechanisms Time Event routine t1 E1 : : < Event list > Transition: event generation until event listempty • Simulationperformance : event list management • event list: insert, delete, location • search time: not constant (solution : priority queue implementation heap)

  4. Abstract simulation : Hierarchical simulation (scheduling) algorithm C:ABC ABC C:AB AB S:C C S:A A S:B B • (i) Concept : separation of control (scheduling) algorithm from data(model) User’s spec System’s simulation algorithm request Ack Passive agent (data) server Active agent (control) client S : C : simulator for model C (simulation algorithm) C: AB : Coordinator for model AB (simulation algorithm) (ii) Hierarchical scheduling  No global event list

  5. Processors: two types of simulation entities (iii) Two classes of simulations  simulator class Associated with atomic DEVS (int, ext, ta, ) invoke  coordinator class Associated with coupled DEVS Event routing Hierarchical scheduling < GEN-BUF-PROC model > <BUF-PROC model> out in out in out out GEN BUFFER PROC done

  6. Simulation entities example

  7. Message passing • External Events • Internal Events

  8. Types of messages involved and their interaction C: GENBUFPROC GENBUFPROC (x, t) (*, t) (x, t) (*, t) (done, tN) (done, tN) C: BUFPROC BUFPROC S : GEN GEN (x, t) (*, t) (x, t) (*, t) (done, tN) (done, tN) S : BUF BUF S : PROC PROC  (x, t) : external input event arrival at time t  (*, t) : internally-generated event at time t that notifies the scheduled time is completely elapsed  (done, tN) : synchronization event generated at time tN that notifies the next scheduled time is tN

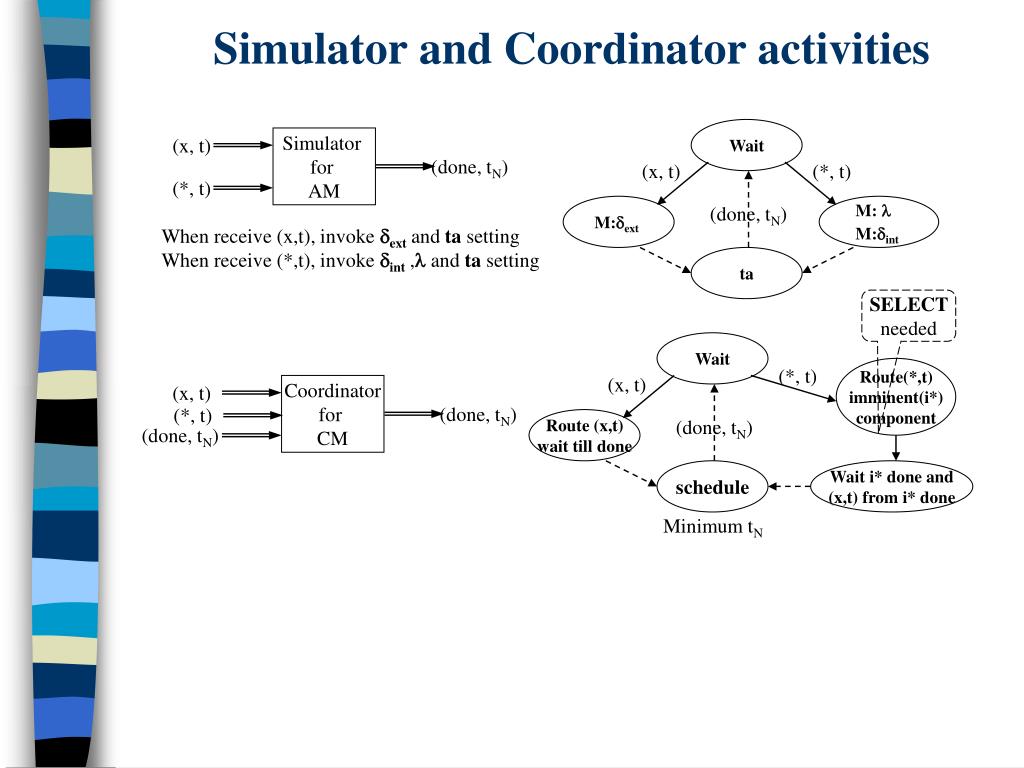

  9. Simulator and Coordinator activities Wait (x, t) Simulator for AM (done, tN) (x, t) (*, t) (*, t) M:ext (done, tN) M:  M:int When receive (x,t), invokeextand ta setting When receive (*,t), invokeint, and ta setting ta SELECT needed Wait (*, t) Route(*,t) imminent(i*) component (x, t) (x, t) Coordinator for CM (done, tN) (*, t) Route (x,t) wait till done (done, tN) (done, tN) schedule Wait i* done and (x,t) from i* done Minimum tN

  10. Coordinator activities (*, t) Wait Route(*,t) imminent(i*) component (x, t) tL Coordinator tN (done, tN) (x, t) (done, tN) Route (x,t) wait till done schedule Wait i* done and (x,t) from i* done (*, t) When receive (*,t) if t = tN then find component(s) with tN select one i* send (*,t) to i* wait response: (yi, port) translate yi* to x send x to its influencees wait i* and its influencees done tL := t tN := min{tNi | i: i* + its influencees } send (done, tN ) to upper level coordinator else error When receive (x,t) if tL t  tN then send (x,t) to connected component(s) wait all component(s) done tL := t tN := min{tNi | i: component} send (done, tN ) to upper level coordinator else error

  11. Coordinator: example GEN+BUF+PROC BUF+PROC out in GEN BUF PROC out in out done Root SELECT GEN C : G+B+P G B P 1 2 3 4 5 6 7 8 G B S : G C : B+P B P ta(BUF) : 2 1 3 2 1 ta(PROC) : 1 2 1 3 2 S : B S : P G P

  12. Coordinator: example (contd.) t S : GEN S : BUF S : PROC C : B+P C : G+B+P ROOT (done, tN=1) 0 2 1 3 (*, 1) t = 1 2 3 1 (s) int(s)  (6) ext(s) (5) Route: (4) Route: ta = 1 ta = 2 S:BUF C:B+P tN=3 schedule tN=2 tN=3 (done, 2) 2 1 3 t = 2 (*, 2) 2 3 1 (s) int(s)  ext(s) ta = 2 ta = 1 schedule tN=4 tN=3 tN=3 (done, 3) 2 1 3 (*, 3) t = 3 2 3 1 (S) int(s)  ext(s) ta = 1 ta =1 schedule tN=4 tN=4 tN=4 (done, 4) 2 1 3 (*, 4) t = 4 2 3 1 (s) int(s)  ext(s) ta = 2 ta = 2 schedule tN=6 tN=4 tN=4 (done, 4) 2 1 3

  13. Note on abstract simulator 1. Modeler has no responsibility in time control No worry about execution sequence (No explicit initial state) 2. Separation of characteristic functions in modeling simplicity, reusability 3. Close under coupling operation Example of 2 : Buffer BUF ext :X  Q  S int : S  S  : S  Y ta : S  R+0, reusable FIFO (First-in, First-out) LIFO (Last-in, First-out) insert delete insert delete FIFO LIFO

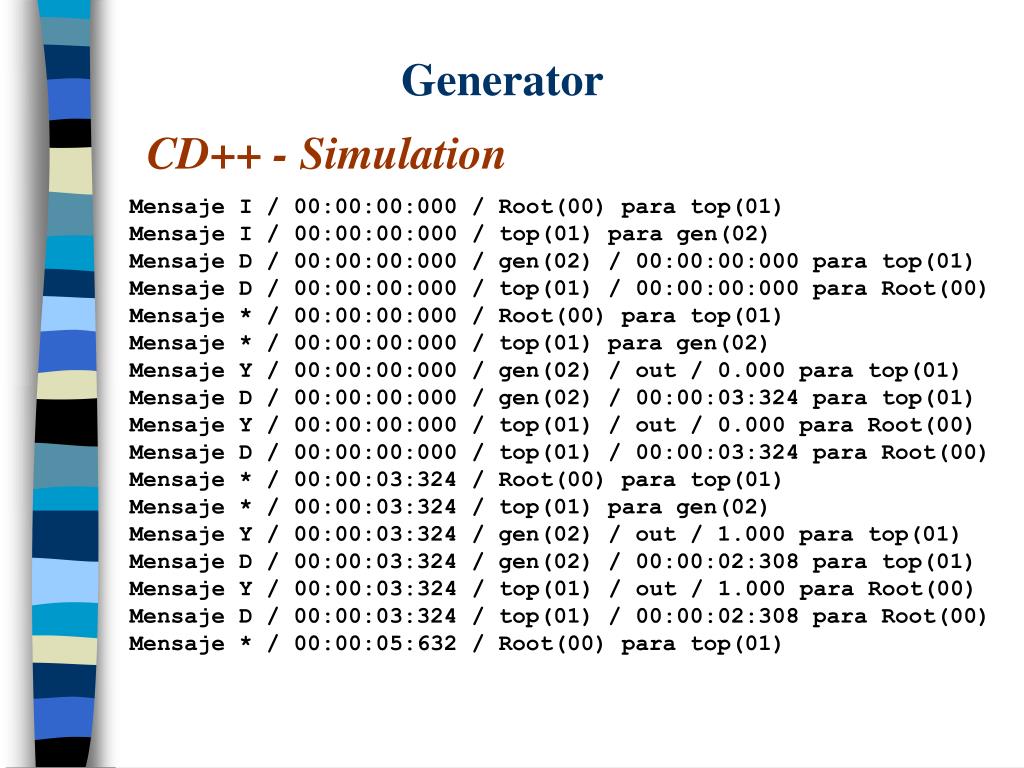

  14. Generator CD++ - Simulation Mensaje I / 00:00:00:000 / Root(00) para top(01) Mensaje I / 00:00:00:000 / top(01) para gen(02) Mensaje D / 00:00:00:000 / gen(02) / 00:00:00:000 para top(01) Mensaje D / 00:00:00:000 / top(01) / 00:00:00:000 para Root(00) Mensaje * / 00:00:00:000 / Root(00) para top(01) Mensaje * / 00:00:00:000 / top(01) para gen(02) Mensaje Y / 00:00:00:000 / gen(02) / out / 0.000 para top(01) Mensaje D / 00:00:00:000 / gen(02) / 00:00:03:324 para top(01) Mensaje Y / 00:00:00:000 / top(01) / out / 0.000 para Root(00) Mensaje D / 00:00:00:000 / top(01) / 00:00:03:324 para Root(00) Mensaje * / 00:00:03:324 / Root(00) para top(01) Mensaje * / 00:00:03:324 / top(01) para gen(02) Mensaje Y / 00:00:03:324 / gen(02) / out / 1.000 para top(01) Mensaje D / 00:00:03:324 / gen(02) / 00:00:02:308 para top(01) Mensaje Y / 00:00:03:324 / top(01) / out / 1.000 para Root(00) Mensaje D / 00:00:03:324 / top(01) / 00:00:02:308 para Root(00) Mensaje * / 00:00:05:632 / Root(00) para top(01)
