Determination of Buffer Capacity

sutton avatar
sutton
12 diapositives · 530 Views · Jul 19, 2014

Determination of Buffer Capacity . Lab 11. Outline. Purpose Buffers Buffer Example Equilibrium Expression and the Henderson- Hasselbalch Equation Things to Remember Buffer Capacity Solutions and Waste Skill Evaluations Reminder. Purpose .

Determination of Buffer Capacity - slide 1
01 / 12Determination of Buffer Capacity
1 / 17

Télécharger la présentation

Determination of Buffer Capacity
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

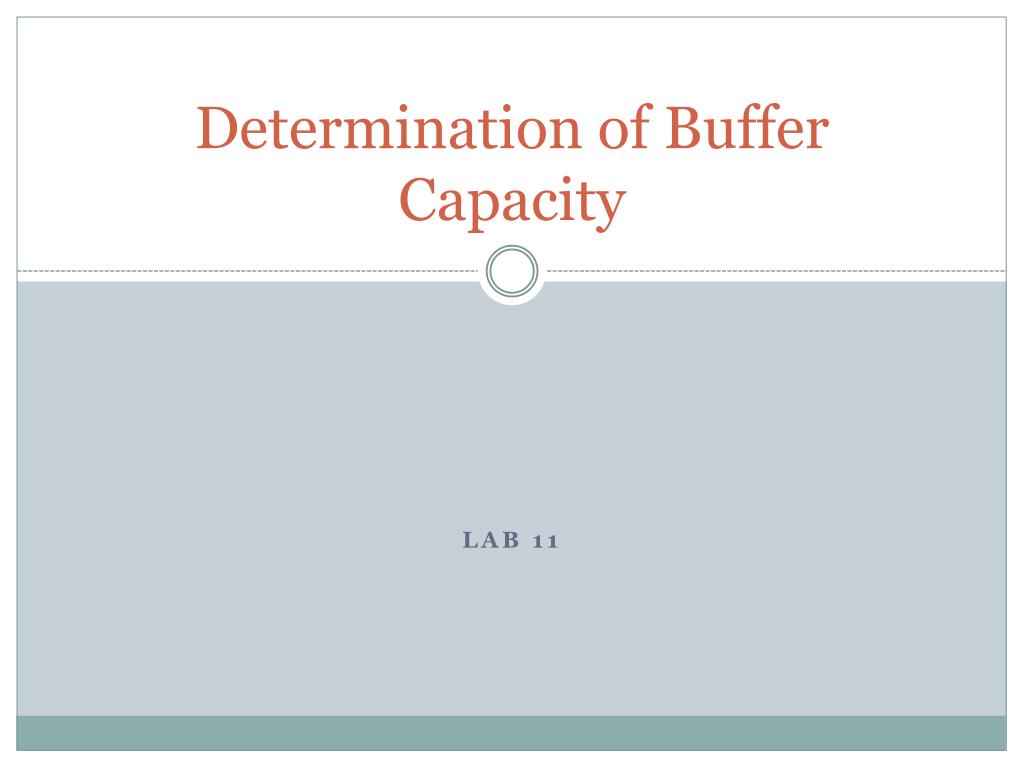

  1. Determination of Buffer Capacity Lab 11

  2. Outline Purpose Buffers Buffer Example Equilibrium Expression and the Henderson-Hasselbalch Equation Things to Remember Buffer Capacity Solutions and Waste Skill Evaluations Reminder

  3. Purpose Students will determine the buffer capacity of several acetic acid / acetate buffer solutions using a pH probe.

  4. Buffers • A buffered solution is a solution that resists a change in pH. • In order to have a buffer, two components are essential: • a weak acid • a weak base • These two must have a common ion: called a conjugate acid-base pair

  5. Buffer Solution Your buffer solution will have an equimolar concentration of acetic acid and the acetate ion! CH3COOH Na+ CH3COO- CH3COO- Na+ CH3COOH CH3COO- Na+ CH3COOH

  6. Buffer Example • Acetic Acid / Acetate Ion: CH3COOH CH3COO-+ H+ • Weak acid neutralizes OH-: OH- + CH3COOH CH3COO-+ H2O • Weak base neutralizes H+: H+ +CH3COO- CH3COOH Thus, a change in pH is resisted.

  7. Equilibrium Expression and theHenderson-Hasselbalch Equation CH3COOH CH3COO- + H+ Ka = pH = pKa + log

  8. Things to remember: Buffers are most effective when the pH of the buffered system is equal to the pKa of the conjugate acid. Buffers are only effective when the pH is within 1 unit from the pKa. pH = pKa ± 1 When this pH is exceeded, we have exceeded the buffer capacity.

  9. Buffer Capacity • The amount of acid or base that can be absorbed by a buffered system without changing the pH by more than one unit. Cb = • The concentrations of all your buffers for today were set at a 1:1 ratio. • We will titrate to a change in pH of exactly 1 unit.

  10. Safety Concerns • Reagents: • Acetic Acid (1 N) • Acetate Buffers • Sodium Hydroxide (0.1 N) / Potassium Hydroxide (0.1 N) • Eye Contact: • Irritation, tearing, redness, pain, impaired vision, severe burns and irreversible eye injury. • Skin Contact: • Severe skin irritation, soreness, redness, destruction of skin (penetrating ulcers) . May cause sensitization and / or allergic reaction. • Inhalation: • May cause coughing, serious burns, pneumonitis, pulmonary edema, and coma. • Ingestion: • Toxic. Corrosive to mucous membranes. May cause perforation of the esophagus and stomach, abdominal pain, nausea, vomiting, diarrhea, general gastro-intestinal upset.

  11. Solutions and Waste Please conserve distilled water during cleanup. Only solutions with a pH between 6 and 8 can go down the drain. All other solutions need to go in the acid/base waste container in the fume hood.

  12. Next Week – Skill Evaluations • Study for the quiz. • You may be evaluated on any of the posted skills. • Read through pages 283 – 302 in your lab manual. • Remember your goggles, lab manual, and Lab 11 Report!
