  1. Preliminary Design ReviewWeek 10 THE DUKES OF HAZARD CAMILLE LEGAULT, NEIL KENNEDY, OMAR ROJAS, FERNANDO QUIJANO, AND JIMMY BUFFI March 27, 2008

  2. Previous Week’s Action Items • Order All Necessary Parts • McMaster-Carr • Complete Machining of Platform Base and Fit to Chassis • Continue Working on Program • Interfacing with Peripheral Equipment • Search Algorithm

  3. Previous Week Action Items and Status CURRENT STATUS: Slightly Behind Schedule, No Serious Showstoppers

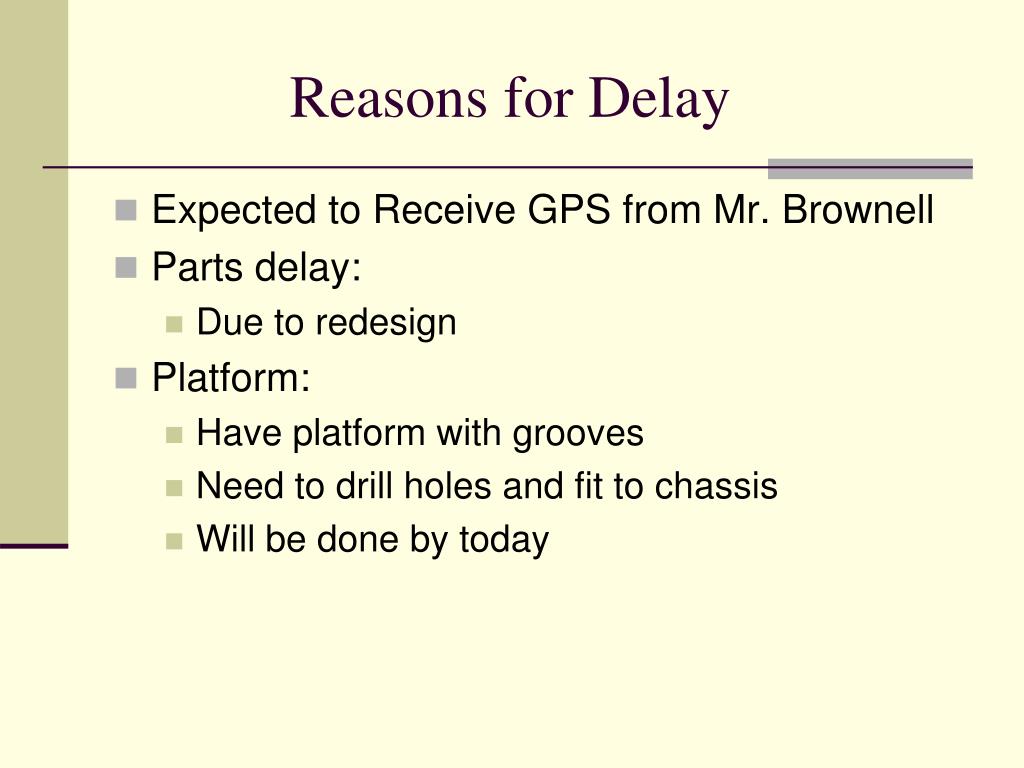

  4. Reasons for Delay • Expected to Receive GPS from Mr. Brownell • Parts delay: • Due to redesign • Platform: • Have platform with grooves • Need to drill holes and fit to chassis • Will be done by today

  5. Close Up of the Final Prototype Design

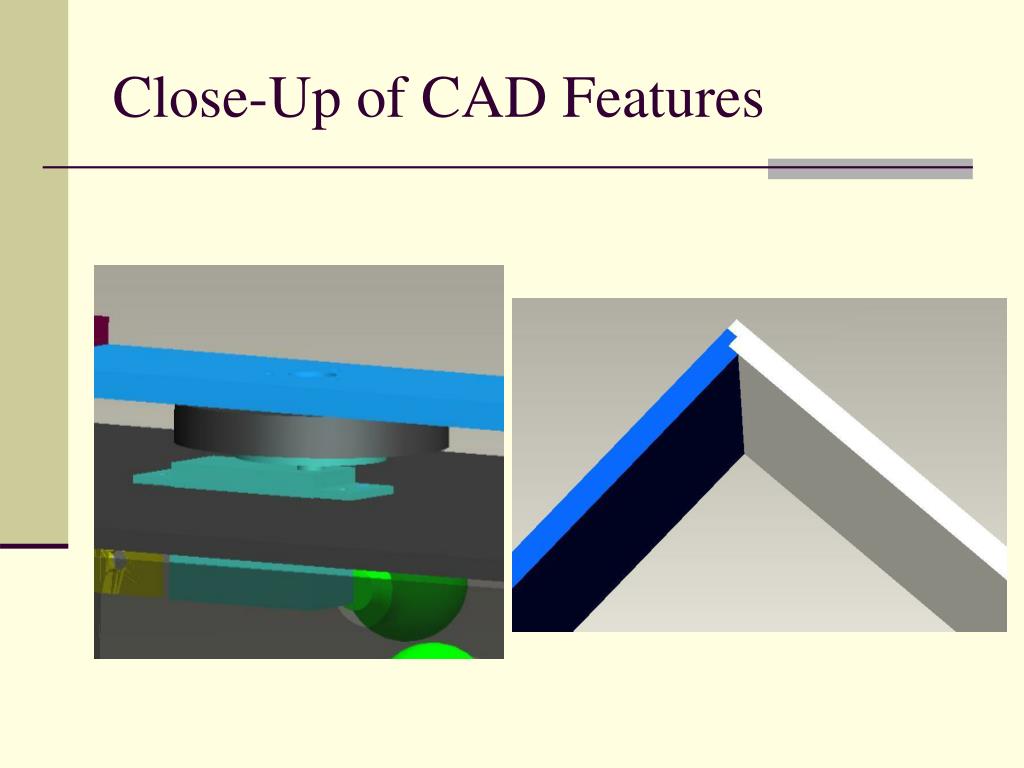

  6. Close-Up of CAD Features

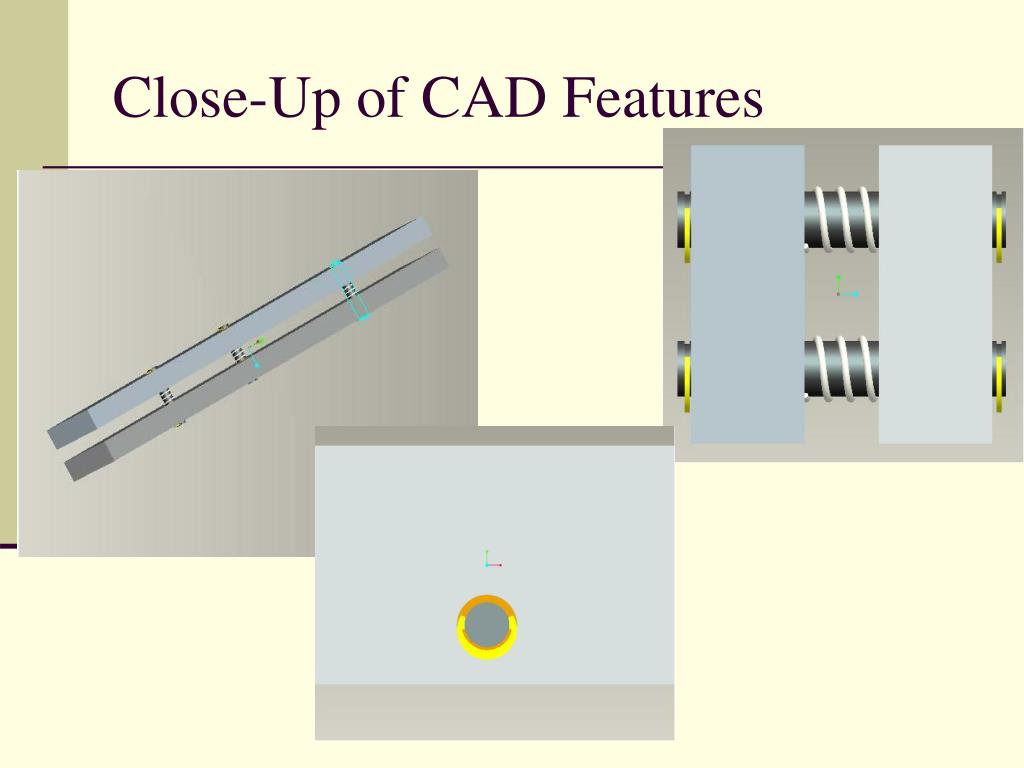

  7. Close-Up of CAD Features

  8. Acquired Parts • 12” x 24” x 3/8” Gray PVC • 12” x 24” x 3/16” Clear PVC • 15 lb/in Springs • 57 lb-oz Servo Motor • Digital Compass • Bumper – Maximum deflection of 0.000406”

  9. Ordered Parts • 6” Long 3/16” Dia. Precision Ground Rod • 6 Brass Bushings • C-Clips • L-Brackets • 2 Hinges To be acquired from local stores: • 4 Colored Light Bulbs • 4 Light Bulb Mounts • Set Screws

  10. Vehicle Interfacing • Utilized keypad to interface with chassis • Cued search algorithm steps with keypad • Interfaced with LCD • Need math.h file for certain math operations • Trigonometry • Square roots • Etc.

  11. Next Week’s Action Items • Complete Machining of Enclosure Walls and Top • Obtain and Test GPS from Mr. Brownell • Continue Working on Program • Search algorithm and field work • Interface with GPS

  12. QUESTIONS?
