Presentation Transcript

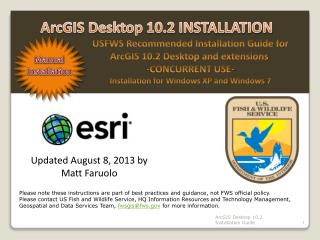

  1. ArcGIS Desktop 10.2 INSTALLATION USFWS Recommended Installation Guide for ArcGIS 10.2 Desktop and extensions -CONCURRENT USE- Installation for Windows XP and Windows 7 Manual Installation Updated August 8, 2013 by Matt Faruolo Please note these instructions are part of best practices and guidance, not FWS official policy. Please contact US Fish and Wildlife Service, HQ Information Resources and Technology Management, Geospatial and Data Services Team, fwsgis@fws.gov for more information. ArcGIS Desktop 10.2 Installation Guide

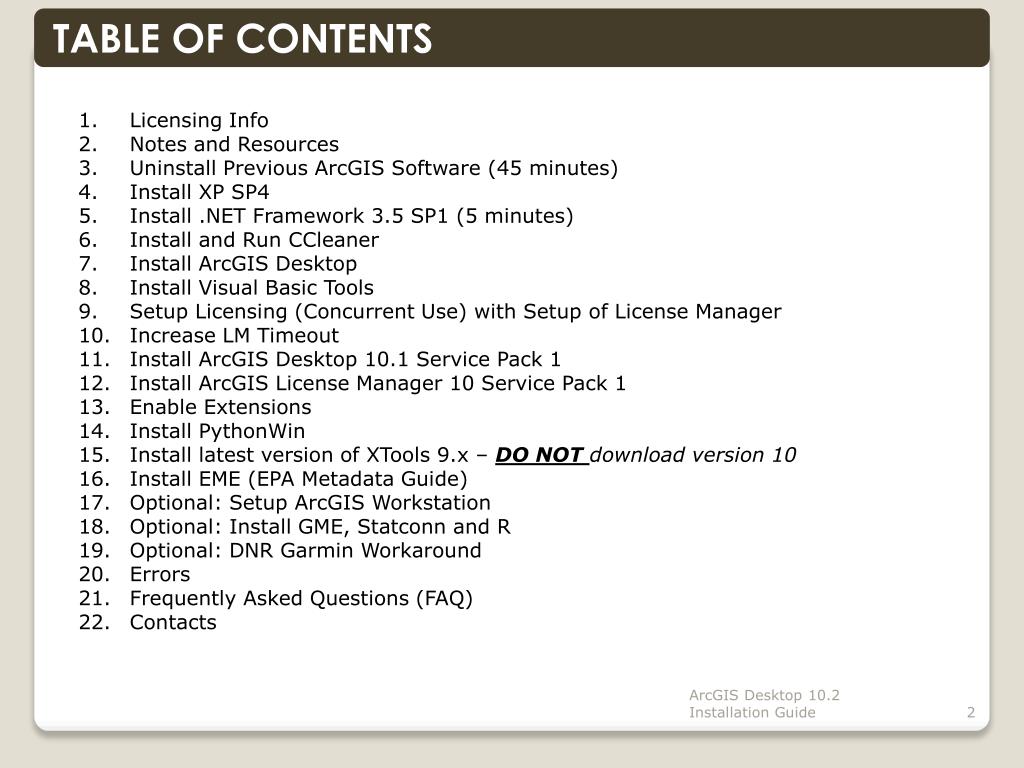

  2. TABLE OF CONTENTS • Licensing Info • Notes and Resources • Uninstall Previous ArcGIS Software (45 minutes) • Install XP SP4 • Install .NET Framework 3.5 SP1 (5 minutes) • Install and Run CCleaner • Install ArcGIS Desktop • Install Visual Basic Tools • Setup Licensing (Concurrent Use) with Setup of License Manager • Increase LM Timeout • Install ArcGIS Desktop 10.1 Service Pack 1 • Install ArcGIS License Manager 10 Service Pack 1 • Enable Extensions • Install PythonWin • Install latest version of XTools 9.x – DO NOT download version 10 • Install EME (EPA Metadata Guide) • Optional: Setup ArcGIS Workstation • Optional: Install GME, Statconn and R • Optional: DNR Garmin Workaround • Errors • Frequently Asked Questions (FAQ) • Contacts ArcGIS Desktop 10.2 Installation Guide

  3. 1. LICENSING INFORMATION Whether you are doing a new installation of ArcGIS 10.2, or upgrading to the latest version, you MUST contact your Regional GIS Contact to let that person know that you wish to obtain or upgrade ArcGIS. Find your GIS Contact here: https://fishnet.fws.doi.net/projects/gisnew/gisinfo/SitePages/Contacts.aspx Provide your GIS Contact with: 1. Your Org Code 2. First Name 3. Last Name 4: Title 5. Phone 6. Email 7. Address (including city, state and ZIP code) 8. Install Type (New Install, or upgrade from older product on this computer?) 9. License Mode (Will this computer always be connected to the network, or will it be disconnected from time to time?) 10. Host Name (computer name) 11. Operating System 12. Any additional comments Once your license is processed, you will be emailed a provisioning file (.prvs). Save this to your computer in a new folder called C:\ArcGIS_10_2_License ArcGIS Desktop 10.2 Installation Guide

  4. 2. NOTES AND RESOURCES IMPORTANT: With the release of ArcGIS Desktop 10.2, ESRI now allows you to install directly over an existing instance of ArcGIS Desktop 10.1; this preserves your extensions, tools, license settings and other components of your existing 10.1 installation. If you currently have ArcGIS 10.1, please refer to our Installation Guide “Installing 10.2 over 10.1” found here. If installing GIS for the first time or replacing a version older than 10.1, please continue reading... Note: Please contact your Regional GIS Contact to update your license information in the Enterprise Licensing Info System (ELIS). Inform them if you are upgrading to 10.2, or installing Desktop for the firsttime. Your Regional GIS Contact will then provide you with a license file if needed. Note: This manual installation is the only option if Apps to Go and/or the Automation Script do not work. This is also the only option if you do not currently have ArcGIS Desktop on your computer or if you have versions earlier than Desktop 10.1. CONCURRENT USE (setup license server) sets up concurrent use licensing and includes the setup of a license manager as well as a local machine-specific license. The computer should be configured to contact the two USFWS National License servers first and - as a third measure - the machine’s local license as a back-up in case network connectivity is lost or for laptops used out in the field off-of-network. ArcGIS Desktop 10.2 Installation Guide

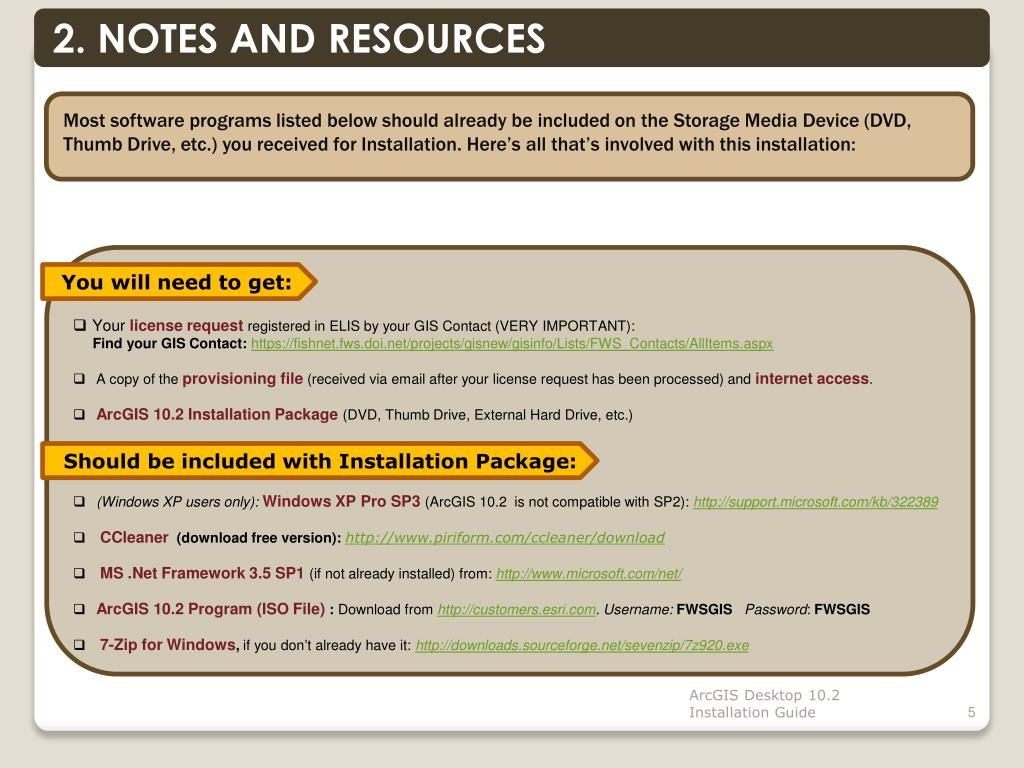

  5. 2. NOTES AND RESOURCES Most software programs listed below should already be included on the Storage Media Device (DVD, Thumb Drive, etc.) you received for Installation. Here’s all that’s involved with this installation: You will need to get: • Your license request registered in ELIS by your GIS Contact (VERY IMPORTANT): • Find your GIS Contact:https://fishnet.fws.doi.net/projects/gisnew/gisinfo/Lists/FWS_Contacts/AllItems.aspx • A copy of the provisioning file (received via email after your license request has been processed) and internet access. • ArcGIS 10.2 Installation Package (DVD, Thumb Drive, External Hard Drive, etc.) • (Windows XP users only): Windows XP Pro SP3(ArcGIS 10.2 is not compatible with SP2):http://support.microsoft.com/kb/322389 • CCleaner (download free version): http://www.piriform.com/ccleaner/download • MS .Net Framework 3.5 SP1 (if not already installed) from:http://www.microsoft.com/net/ • ArcGIS 10.2 Program (ISO File) : Download from http://customers.esri.com. Username:FWSGIS Password: FWSGIS • 7-Zip for Windows, if you don’t already have it: http://downloads.sourceforge.net/sevenzip/7z920.exe Should be included with Installation Package: ArcGIS Desktop 10.2 Installation Guide

  6. 2. NOTES AND RESOURCES • General Notes: • It is recommended you use FULL ADMINISTRATION RIGHTSfor the successful install of ArcGIS 10.2 and all associated programs, patches, and service packs. • Ask your user if they need the ArcGIS Workstation (i.e., ArcInfo) Optional Install. • ArcGIS 10.2 is compatible with RLGIS. • ArcGIS 10.2 can be used with ArcSDE 9.3.1, but ArcGIS 9.3.1 cannot be used with ArcSDE10.2. • Licensing setup with provisioning files or switching licensing in Desktop Administrator requires administrative rights. • There are slight differences in the installation process between Windows XP and Windows 7. Where applicable, they will be notated in this installation guide. • ArcGIS Desktop 10.2 is NOT compatible Xtools 9.2!!! • ArcGIS Desktop 10.2 is NOT compatible with FIMT (wildland fire tools)!!! Let’s get started! ArcGIS Desktop 10.2 Installation Guide

  7. 3. UNINSTALL PREVIOUS ARCGIS SOFTWARE IMPORTANT: You can skip this step if you are installing ArcGIS Desktop 10.2 for the first time on this computer. However, if you have ArcGIS 9.3 or ArcGIS 10.0 already installed on your machine, you will first need to uninstall any existing instances of ArcGIS from your computer. 3a: Log in as an administrator 3b: Go to Start -> Settings -> Control Panel -> Add or Remove Programs (Sudowin users: Open Sudo from program menu, click “Add/Remove Programs”) 3c: Uninstall ALL ArcGIS applications/extensions including, and in the following order: 1. RLGIS (must be uninstalled first) 2. Data Reviewer/Interoperability/Tracking Analyst 3. Xtools 4. Anything with ArcGIS, ArcInfo, ArcIMSin the name 5. Finally, uninstall ArcGIS Desktop 3d: Delete all folders (directories) associated with ArcGIS: c:\ESRI, c:\arcgis, c:\workspace, c:\python, c:\Program Files\ArcGIS NOTE: You must uninstall all ESRI extensions BEFORE uninstalling ArcGIS Desktop! Windows 7: Windows XP: Rename: c:\Users\<username>\AppData\Roaming\ESRI TO: c:\Users\<username>\AppData\Roaming\ESRI_old Rename: c:\Documents and Settings\<username>\Application Data\ESRI TO: c:\Documents and Settings\<username>\Application Data\ESRI_old REBOOT COMPUTER ArcGIS Desktop 10.2 Installation Guide

  8. 4. INSTALL / UPGRADE XP SP3 • IMPORTANT: If on a Windows 7 operating system, proceed to the next page >>> • If using Windows XP, follow these steps: • 4a: Go to Start -> Settings -> Control Panel -> Add or Remove Programs • 4b: Check if Windows XP Service Pack 3 is listed • 4c: If it is NOT listed, install SP3 from Storage Media Device or from: http://support.microsoft.com/kb/322389 • NOTE: Windows XP Pro 64-bit and Windows 7 will not have SP3 ArcGIS Desktop 10.2 Installation Guide

  9. 5. INSTALL .NET FRAMEWORK • 5a: Go to Start -> Settings -> Control Panel -> Add or Remove Programs • 5b: Check if Microsoft .NET Framework 3.5 SP1 or later version is listed • 5c: If NOT listed, install the .NET 3.5 SP1 Framework from Storage Media Device or from this site: • http://www.microsoft.com/downloads/en/details.aspx?familyid=AB99342F-5D1A-413D-8319-81DA479AB0D7&displaylang=en ArcGIS Desktop 10.2 Installation Guide

  10. 6. INSTALL AND RUN CCLEANER • 6a: Click ccsetup405.exe from Storage Media Device, or alternatively you may download it at http://www.piriform.com/ccleaner/download • 6b: If you are prompted to install Google Chrome or any toolbars, UNCHECK any third-party add-ons! • 6c: Choose “English”, then “Next”. • 6d: Unselect (uncheck) ALL options, then click “Install”. Unselect (uncheck) ALL options, then click “Install”. ArcGIS Desktop 10.2 Installation Guide

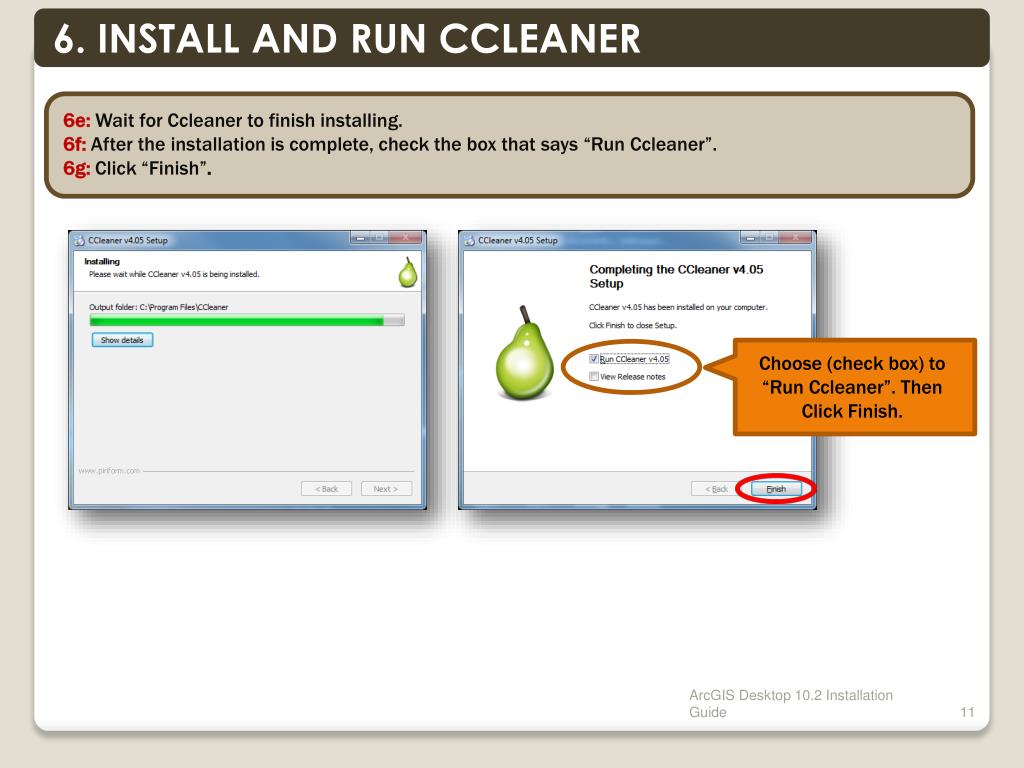

  11. 6. INSTALL AND RUN CCLEANER • 6e: Wait for Ccleaner to finish installing. • 6f: After the installation is complete, check the box that says “Run Ccleaner”. • 6g: Click “Finish”. Choose (check box) to “Run Ccleaner”. Then Click Finish. ArcGIS Desktop 10.2 Installation Guide

  12. 6. INSTALL AND RUN CCLEANER • 6h: If prompted, select “Yes” to Intelligently scan for cookies (you may or may not see this window). • 6i: Click “OK” when warned Ccleaner will permanently delete files from your system. • 6j: Accept all defaults, then select “Run Ccleaner”. • 6k: Once Ccleaner finishes scanning your computer (this may take some time), close out of the program completely. ArcGIS Desktop 10.2 Installation Guide

  13. 7. INSTALL ARCGIS 10.2 DESKTOP IMPORTANT: If installing ArcGIS 10.2 from a Storage Media Device (DVD, thumb drive, etc.) proceed to the next page >>> Otherwise, if you download the ArcGIS Desktop ISO file from the ESRI website: If you downloaded ArcGIS Desktop directly from the ESRI website, the file will have downloaded as an .ISO file. The ISO file is like a ZIP file, bundling all of the programs and applications required for a successful install of ArcGIS Desktop. You have two options for extracting this file: If you click on the file, your DVD burning program should come up with the intent of burning the ISO file onto a DVD disc. Once the disc is created, you can install ArcGIS Desktop directly from the disc. If you don’t have a DVD burner or do not feel like burning a disc, you can install and run 7-Zip which will extract the ISO file’s contents into a new folder on your computer. ArcGIS Desktop 10.2 Installation Guide

  14. 7. INSTALL ARCGIS 10.2 DESKTOP IMPORTANT: Please ensure your installation folder “ArcGIS Desktop 10_2 Installation” is transferred from the physical media device and onto your computer’s DESKTOP , and that your provisioning (license) file is stored in the directory C:/LICENSE • 7a: Open (or unzip) the “ArcGIS_10_2_Install” folder *on your desktop*. • Note: If you downloaded files individually, make sure they all reside in a common desktop folder. • 7b: Navigate to ArcGIS_Desktop_102  Desktop • 7c: Double-click “setup.exe”. Double-click “setup.exe” ArcGIS Desktop 10.2 Installation Guide

  15. 7. INSTALL ARCGIS 10.2 DESKTOP 7d: Once clicking “setup.exe”, ArcGIS 10.2 should introduce a series of splash screens which will walk you through the motions of installing the software package. Accept all defaults, and click either “OK”, “Accept” or “Next” until you get confirmation the program has installed. If prompted to participate in the ESRI User Experience Improvement program, UNCHECK the box. We’re Not Done Yet! Next, we must install License Manager 10.2 ArcGIS Desktop 10.2 Installation Guide

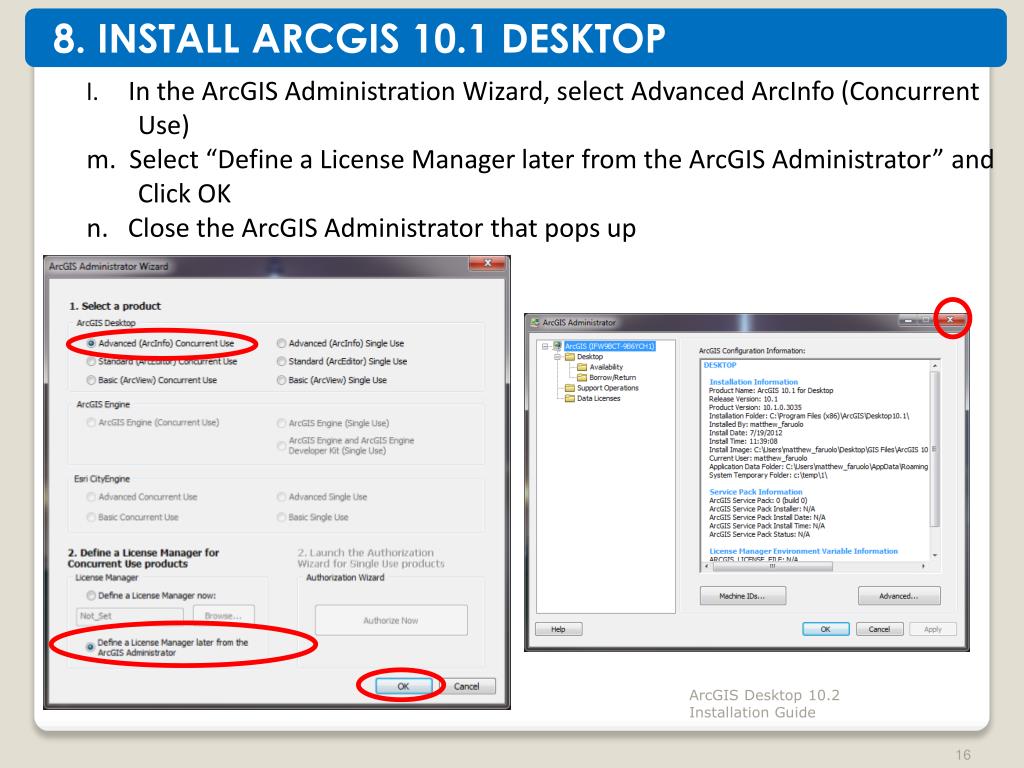

  16. 8. INSTALL ARCGIS 10.1 DESKTOP • l. In the ArcGIS Administration Wizard, select Advanced ArcInfo (Concurrent Use) • m. Select “Define a License Manager later from the ArcGIS Administrator” and Click OK • n. Close the ArcGIS Administrator that pops up ArcGIS Desktop 10.2 Installation Guide

  17. 9. INSTALL VISUAL BASIC TOOLS • On the ESRI ArcGIS Desktop 10.1 Storage Media Device or file folder on your computer, navigate to ArcGIS_10_1  VBACompatability and click “setup.exe” within that folder. (Sudowin users right-click setup file) • a. Accept the License Agreement and click Next ArcGIS Desktop 10.2 Installation Guide

  18. 9. INSTALL VISUAL BASIC TOOLS • b. Click Next • c. Click Next • d. Click Finish ArcGIS Desktop 10.2 Installation Guide

  19. 10. SETUP LICENSING (CONCURRENT USE) WITH SETUP OF LICENSE MANAGER • Go to the Storage Media Device or file folder on your computer, navigate to ArcGIS_10_1  License Manager and click “setup.exe” (Sudowin right-click) • Click apply on Cisco Security Agent (if prompted) • A new Setup window will open ArcGIS Desktop 10.2 Installation Guide

  20. 10. SETUP LICENSING (CONCURRENT USE) WITH SETUP OF LICENSE MANAGER • Click Next on the Welcome Screen • Accept the License agreement and click Next • Click Next to accept the default Destination Folder • Click Next to start installation ArcGIS Desktop 10.2 Installation Guide

  21. 10. SETUP LICENSING (CONCURRENT USE) WITH SETUP OF LICENSE MANAGER • Click Finish on the Setup screen • Make sure Version 10.1/CE2 is selected, and click “Authorize Now” on the License Server Administrator Screen (be patient while it opens) • Note: If you have exited setup and need to get this screen again, go to • Start->Programs-> ArcGIS->License Manager-> License Server Administrator (sudo users will have to right-click “License Server Administrator” to open it) ArcGIS Desktop 10.2 Installation Guide

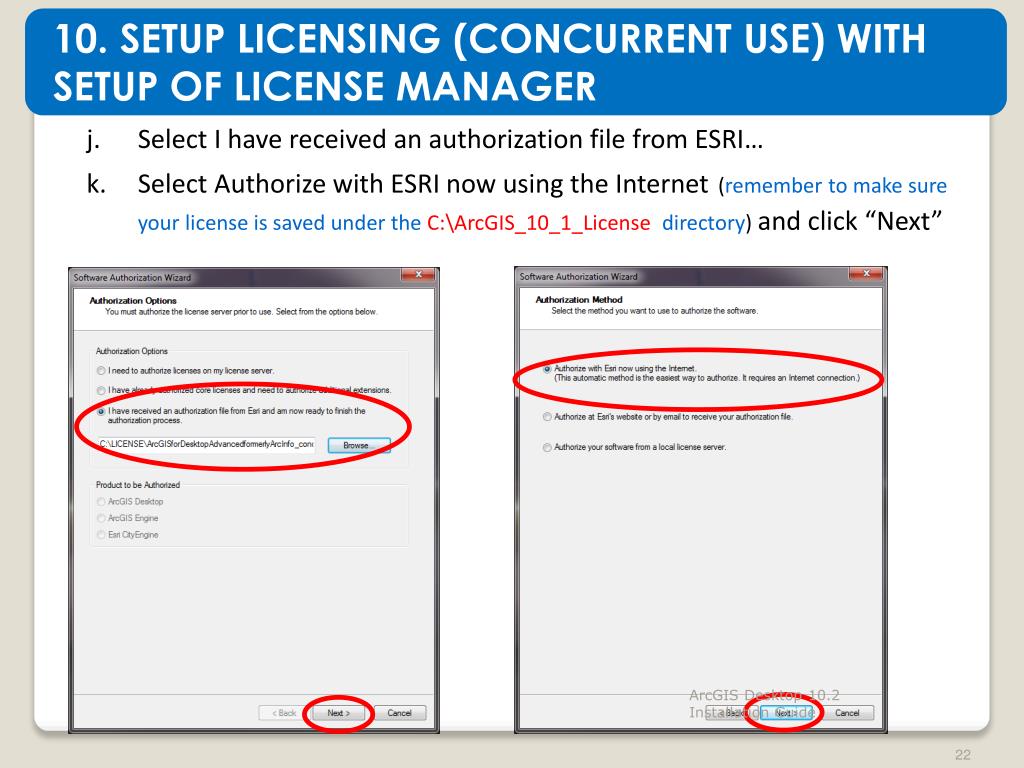

  22. 10. SETUP LICENSING (CONCURRENT USE) WITH SETUP OF LICENSE MANAGER • Select I have received an authorization file from ESRI… • Select Authorize with ESRI now using the Internet(remember to make sure your license is saved under the C:\ArcGIS_10_1_License directory) and click “Next” ArcGIS Desktop 10.2 Installation Guide

  23. 10. SETUP LICENSING (CONCURRENT USE) WITH SETUP OF LICENSE MANAGER • Review the Authorization Information and click Next (fill in any missing fields if necessary) • Enter requested info and click Next ArcGIS Desktop 10.2 Installation Guide

  24. 10. SETUP LICENSING (CONCURRENT USE) WITH SETUP OF LICENSE MANAGER • n. Click Next on the Software Authorization Number screen (accept defaults) • o. Click Next on the Authorize Software Extensions screen (accept defaults) • NOTE:Add any additional purchased extensions in these screens if applicable • NOTE: If you receive an error message stating ArcGIS could not detect an internet connection, you will have to authorize your provisioning file through email. Ignore or cancel the message and continue with the rest of the installation process as outlined in this installation guide. Then see Section 21: Alternate Authentication Method (Email Authentication) at the end of this guide to finish authentication process. ArcGIS Desktop 10.2 Installation Guide

  25. 10. SETUP LICENSING (CONCURRENT USE) WITH SETUP OF LICENSE MANAGER • p. Click Finish when setup completes • q. On the Server Administrator screen click Configure • r. Deselect Allow License Borrowing and click OK ArcGIS Desktop 10.2 Installation Guide

  26. 10. SETUP LICENSING (CONCURRENT USE) WITH SETUP OF LICENSE MANAGER • s. Open ArcGIS Administrator using admin rights (sudo users, right click) • t. Click Desktop • u. Under “License Manager” Click Change • v. Enter IFW9BCT-VMLIC01;IFW1WAL-SLIC;yourrcomputername • w. Click OK to close the dialog box, “Apply” and “OK” to close out of everything…. Note: All computers should use the above syntax of IFW9BCT-VMLIC01;IFW1WAL-SLIC;yourcomputername Note: Off-network computers should ONLY enter their computer name ArcGIS Desktop 10.2 Installation Guide

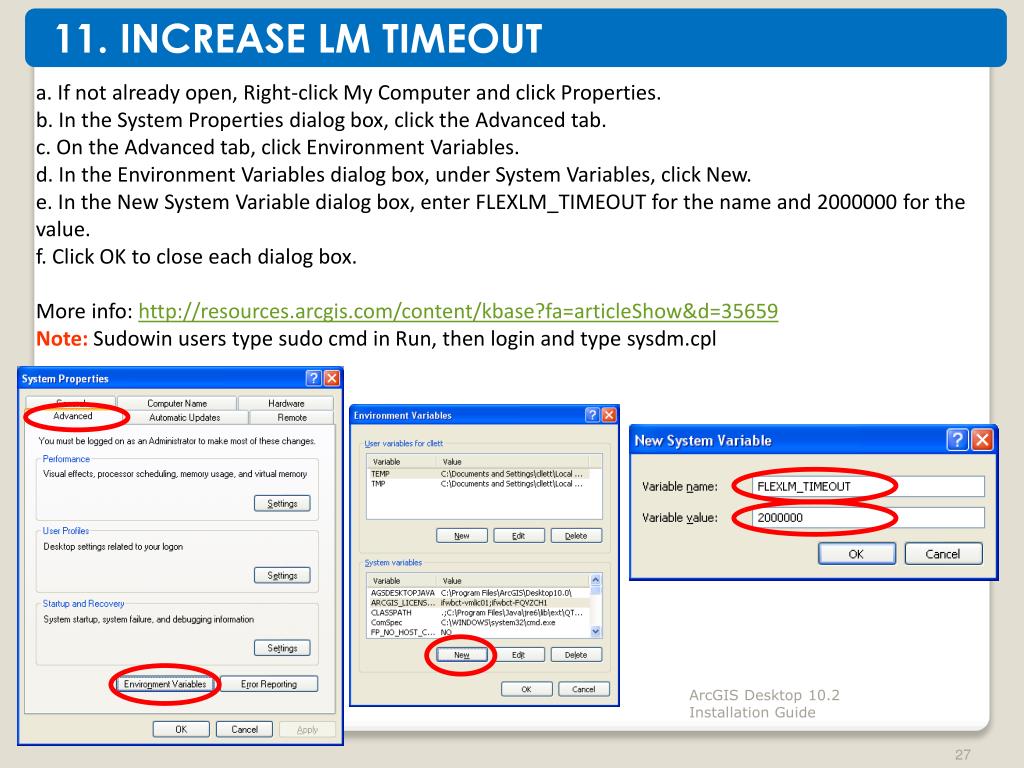

  27. 11. INCREASE LM TIMEOUT a. If not already open, Right-click My Computer and click Properties. b. In the System Properties dialog box, click the Advanced tab. c. On the Advanced tab, click Environment Variables. d. In the Environment Variables dialog box, under System Variables, click New. e. In the New System Variable dialog box, enter FLEXLM_TIMEOUT for the name and 2000000 for the value. f. Click OK to close each dialog box. More info: http://resources.arcgis.com/content/kbase?fa=articleShow&d=35659 Note: Sudowin users type sudo cmd in Run, then login and type sysdm.cpl ArcGIS Desktop 10.2 Installation Guide

  28. 12. INSTALL ARCGIS DESKTOP SERVICE PACK 1 • a. If not already on the Storage Media Device you may have been supplied, download ArcGIS 10.1 Desktop SP1 here: • http://support.esri.com/en/downloads/patches-servicepacks/view/productid/160/metaid/1913#choose-product • b. Save or transfer this file to your DESKTOP. • c. Because this is an .msp file, you can not right-click on the file and open it with Sudowin. We must use the Sudo command prompt for this. • d. In your start menu, type “sudocmd” into the search bar. • e. Enter your active directory password. • e. Type in C:\Users\YourUserName\Desktop\ArcGISDesktop101sp1.msp ArcGIS Desktop 10.2 Installation Guide

  29. 12. INSTALL ARCGIS DESKTOP SERVICE PACK 1 • f. Once the installation window opens, click “Next”. • g. Be patient as SP1 installs. It may take over 10 minutes. • h. After the installation has completed, click “Finish”. ArcGIS Desktop 10.2 Installation Guide

  30. 13. INSTALL LICENSE MANAGER SERVICE PACK 1 • a. Once the installation window opens, click “Next”. • b. Be patient as SP1 installs. • c. After the installation has completed, click “Finish”. • d. When prompted to restart your computer, click “No”. ArcGIS Desktop 10.2 Installation Guide

  31. 14. ENABLE EXTENSIONS ArcGIS 10.1 Desktop offers a few extensions that are bundled with the program, including Spatial Analyst, Network Analyst, and 3D Analyst. You must enable these extensions in ArcMap before using them. Open ArcMap 10.1 from your Start  Programs menu Go to the Customize pull-down menu, then click Extensions Ensure a checkmark is next to 3D Analyst, Network Analyst, and Spatial Analyst. If you’ve arranged for other extensions, click those as well Close ArcMap ArcGIS Desktop 10.2 Installation Guide

  32. 15. INSTALL PYTHONWIN • PythonWin is not automatically installed along with the ArcGIS 10.1 installation, even though it comes bundled with Storage Media Device or download package. This is another program that must be installed separately. • To install PythonWin: • Navigate to ArcGIS_10_1  Python • Click on Matplotib-1.1.0.win32-py2.7.exe (Sudowin users right-click) ArcGIS Desktop 10.2 Installation Guide

  33. 15. INSTALL PYTHONWIN On the Setup screen, accept defaults (all users), click Next Accept the default directory, click Next Accept defaults for the screen to Customize Python, click Next Click Finish after successful installation ArcGIS Desktop 10.2 Installation Guide

  34. 16. INSTALL XTOOLS 9.X • a. Download the latest version of XtoolsPro Version 9.x from: • http://vc.dataeast.ru/Download/default.asp?mFile=XToolsPro&mVer=9x • Note: DO NOT download Xtools 10. USFWS is currently not licensed for it. • b. Unzip the Xtools file to the computer • c. Sudo users: Right-click XToolsProSetup.exe • d. Uninstall previous version (if you have an older version) ArcGIS Desktop 10.2 Installation Guide

  35. 16. INSTALL XTOOLS 9.X • e. Click Next to accept defaults on the next 2 screens • f. Click Install ArcGIS Desktop 10.2 Installation Guide

  36. 16. INSTALL XTOOLS 9.X • i. If prompted, DO NOT open ArcMap. Then click Finish • Open ArcMap 10.1 (sudo users, find ArcMap 10.1 from Start -> Programs, right-click, open with Sudo) • Click Customize, Extensions, and check the box next to XTools Pro, then click Close DO NOT choose to Run ArcMap (uncheck box) ArcGIS Desktop 10.2 Installation Guide

  37. 13. INSTALL LICENSE MANAGER SERVICE PACK 1 • a. If not already on the Storage Media Device you may have been supplied, download ArcGIS 10.1 License Manager SP1 here: • http://support.esri.com/en/downloads/patches-servicepacks/view/productid/160/metaid/1913#choose-product • b. Save or transfer this file to your DESKTOP. • c. Because this is an .msp file, you can not right-click on the file and open it with Sudowin. We must use the Sudo command prompt for this. • d. In your start menu, type “sudocmd” into the search bar. • e. Enter your active directory password. • e. Type in C:\Users\YourUserName\Desktop\ArcGISLicenseManager101sp1.msp ArcGIS Desktop 10.2 Installation Guide

  38. 16. INSTALL XTOOLS 9.X • l. Click Customize, Toolbars, and then XTools Pro (at the bottom) • m. On the Xtools Toolbar, select XTools Pro, Customize XTools Pro Components ArcGIS Desktop 10.2 Installation Guide

  39. 16. INSTALL XTOOLS 9.X • n. Click Register • Copy and paste the information below into the form shown in the Registering XTools Pro screen shot; be sure to include the begin and end license key lines and enter code *EXACTLY* as it appears in the text document at this link. Please note you must include the header and footer in the license code: https://fishnet.fws.doi.net/projects/gisnew/gisinfo/Geospatial%20Library/XTools_Latest_Registration_Code.txt • p. Click OK, OK, OK and exit ArcMap ArcGIS Desktop 10.2 Installation Guide

  40. 17. INSTALL EME (EPA METADATA EDITOR) • Notes: • a. You can find training materials and download the application from: • https://edg.epa.gov/EME/Resources.htm • b. You can find the FWS metadata database and config.xml at: https://fishnet.fws.doi.net/projects/gisnew/gisinfo/Geospatial%20Library/Forms/AllItems.aspx?View={20918255-19F7-4EEF-9DF3-C443946232BB}&FilterField1=Sub%5Fx002d%5FCategory&FilterValue1=Metadata ArcGIS Desktop 10.2 Installation Guide

  41. 17. INSTALL EME (EPA METADATA EDITOR) • Downloading the EPA Metadata Editor (EME): • a. Browse to https://edg.epa.gov/EME/Download.htm • b. You will be asked to fill out a brief form • c. Select EME v3.1.2 for ArcGIS 10 • d. Read and agree to the license agreement • e. Download EME_installer.zip ArcGIS Desktop 10.2 Installation Guide

  42. 17. INSTALL EME (EPA METADATA EDITOR) • Installing EME: • a. If you are a Sudowin user, right click EME_installer.zip and select • sudo, enter your password, allow changes and accept the license • agreement, if prompted. Install in the default location. • b. Create new directory – C:\metadata_fws • c. Download metadata_fws.mdb and config.xml from: https://fishnet.fws.doi.net/projects/gisnew/gisinfo/Geospatial%20Library/Forms/AllItems.aspx?View={20918255-19F7-4EEF-9DF3-C443946232BB}&FilterField1=Sub%5Fx002d%5FCategory&FilterValue1=Metadata ArcGIS Desktop 10.2 Installation Guide

  43. 17. INSTALL EME (EPA METADATA EDITOR) • Accessing the EPA Metadata Editor Database: • a. The EPA Metadata Editor, EME, uses an Access Database to store commonly used values for many metadata elements • b. The U.S. Fish and Wildlife version of this database should be installed at • C:\metadata_fws (metadata_fws.mdb) • c. Config.xml defines the path to the database for the metadata editor and is necessary to use and edit the FWS metadata database. A copy should be located in C:\metadata_fws • d. You will need to view hidden files on the computer in order to place this file in the proper location • e. There will be a default copy of config.xml placed in • C:\Users\<your username>\AppData\Roaming\Innovate! Inc\ EPA Metadata Editor v3.1.2\ • f. Replace that copy of config.xml with the copy located at C:\metadata_fws • g. This step should be performed for each GIS user who will log onto a shared computer so that they can use the metadata database. ArcGIS Desktop 10.2 Installation Guide

  44. 18. OPTIONAL: SETUP ARCGIS WORKSTATION If you would like to install ArcGIS Workstation, you must download the software from ESRI’s website. Please follow the steps below: Go to http://customers.esri.com Login name: FWSGIS Login password: FWSGIS Click the “Software Download” icon Select “ArcInfo Workstation 10 for Windows and Sun Solaris on SPARC” Proceed to download the software and install ArcGIS Desktop 10.2 Installation Guide

  45. 18. OPTIONAL: SETUP ARCGIS WORKSTATION • f. Click Next on the Welcome screen • g. Accept the License Agreement and click Next • h. Select Complete and click Next ArcGIS Desktop 10.2 Installation Guide

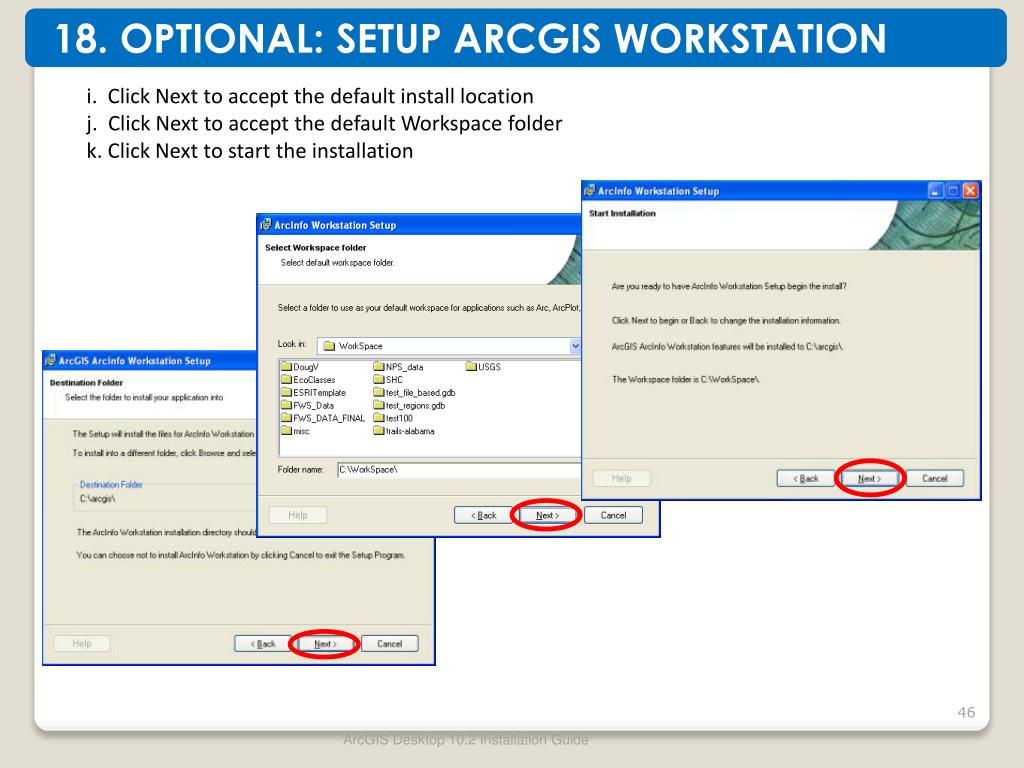

  46. 18. OPTIONAL: SETUP ARCGIS WORKSTATION • i. Click Next to accept the default install location • j. Click Next to accept the default Workspace folder • k. Click Next to start the installation ArcGIS Desktop 10.2 Installation Guide

  47. 18. OPTIONAL: SETUP ARCGIS WORKSTATION • l. Click Finish • m. Select Yes and Don’t ask me again and click Apply on Cisco Security Agent • n. Workstation Administrator – input ifw9bct-vmlic01;yourcomputername ArcGIS Desktop 10.2 Installation Guide

  48. 19. OPTIONAL: INSTALL GME, STATCONN AND R • (free extension – see GME/Statconn install Guide): https://fishnet.fws.doi.net/projects/gisnew/gisinfo/SitePages/Software_GME_R.aspx ArcGIS Desktop 10.2 Installation Guide

  49. 20. DNR GARMIN WORKAROUND • NOTE:The current version of DNRGarmin is not entirely compatible with ArcGIS 10.1. That is, the toolbar will show up in ArcMap10.1 and it will launch the DNRGarmin application but DNRGarmin does not recognize that ArcMap is openThe work around for the time being is:File->Save To->File and File->Load From->File. You can save to a shapefile and add it manually to ArcGIS 10.1, as well as load from shapefiles created/modified in ArcGIS 10.1 • More info at: • http://www.dnr.state.mn.us/mis/gis/tools/arcview/extensions/DNRGarmin/DNRGarmin.html ArcGIS Desktop 10.2 Installation Guide

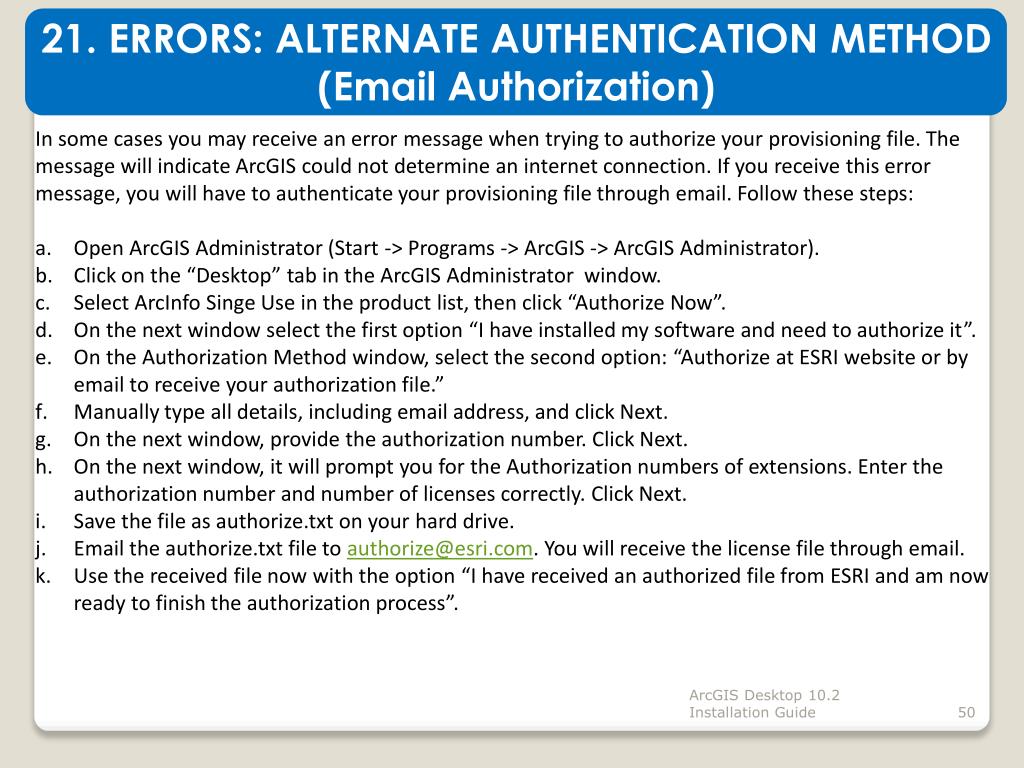

  50. 21. ERRORS: ALTERNATE AUTHENTICATION METHOD (Email Authorization) In some cases you may receive an error message when trying to authorize your provisioning file. The message will indicate ArcGIS could not determine an internet connection. If you receive this error message, you will have to authenticate your provisioning file through email. Follow these steps: Open ArcGIS Administrator (Start -> Programs -> ArcGIS -> ArcGIS Administrator). Click on the “Desktop” tab in the ArcGIS Administrator window. Select ArcInfo Singe Use in the product list, then click “Authorize Now”. On the next window select the first option “I have installed my software and need to authorize it”. On the Authorization Method window, select the second option: “Authorize at ESRI website or by email to receive your authorization file.” Manually type all details, including email address, and click Next. On the next window, provide the authorization number. Click Next. On the next window, it will prompt you for the Authorization numbers of extensions. Enter the authorization number and number of licenses correctly. Click Next. Save the file as authorize.txt on your hard drive. Email the authorize.txt file to authorize@esri.com. You will receive the license file through email. Use the received file now with the option “I have received an authorized file from ESRI and am now ready to finish the authorization process”. ArcGIS Desktop 10.2 Installation Guide
