  1. A Semi-Lagrangian Laplace Transform Filtering Integration Scheme Colm Clancy and Peter Lynch Meteorology & Climate Centre School of Mathematical Sciences University College Dublin

  2. Aim • To develop a time-stepping scheme that filters high-frequency noise based on Laplace Transform theory • First used by Lynch (1985). Further work in Lynch (1986), (1991) and Van Isacker & Struylaert (1985), (1986) PDEs On The Sphere 2010

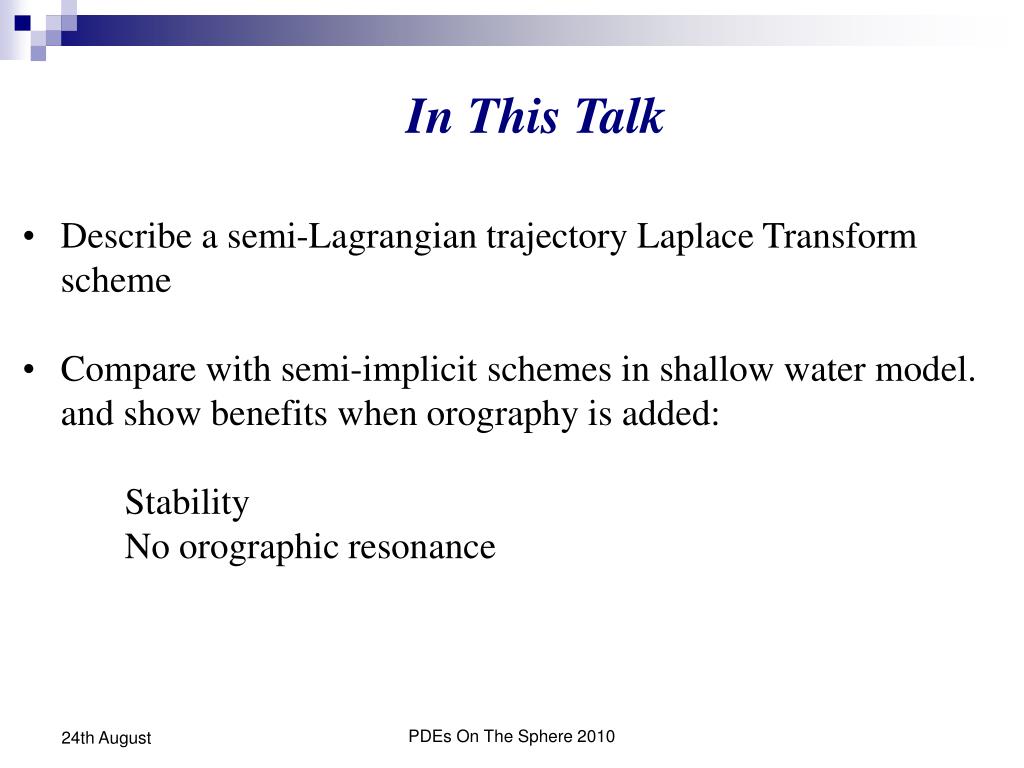

  3. In This Talk • Describe a semi-Lagrangian trajectory Laplace Transform scheme • Compare with semi-implicit schemes in shallow water model. and show benefits when orography is added: Stability No orographic resonance PDEs On The Sphere 2010

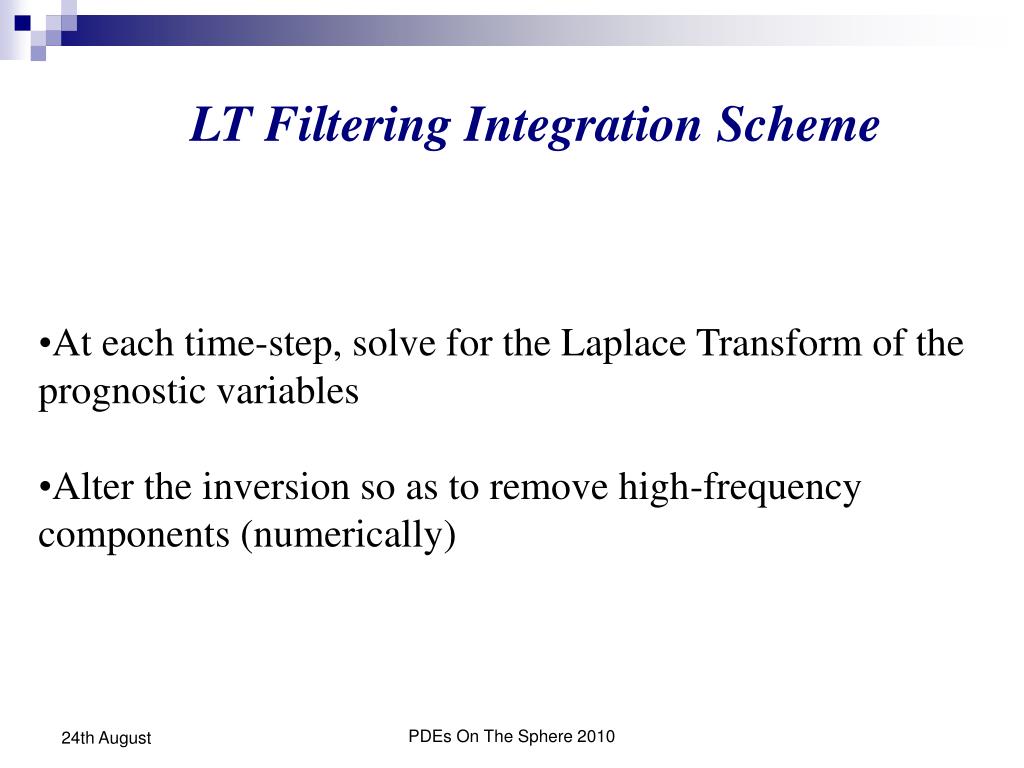

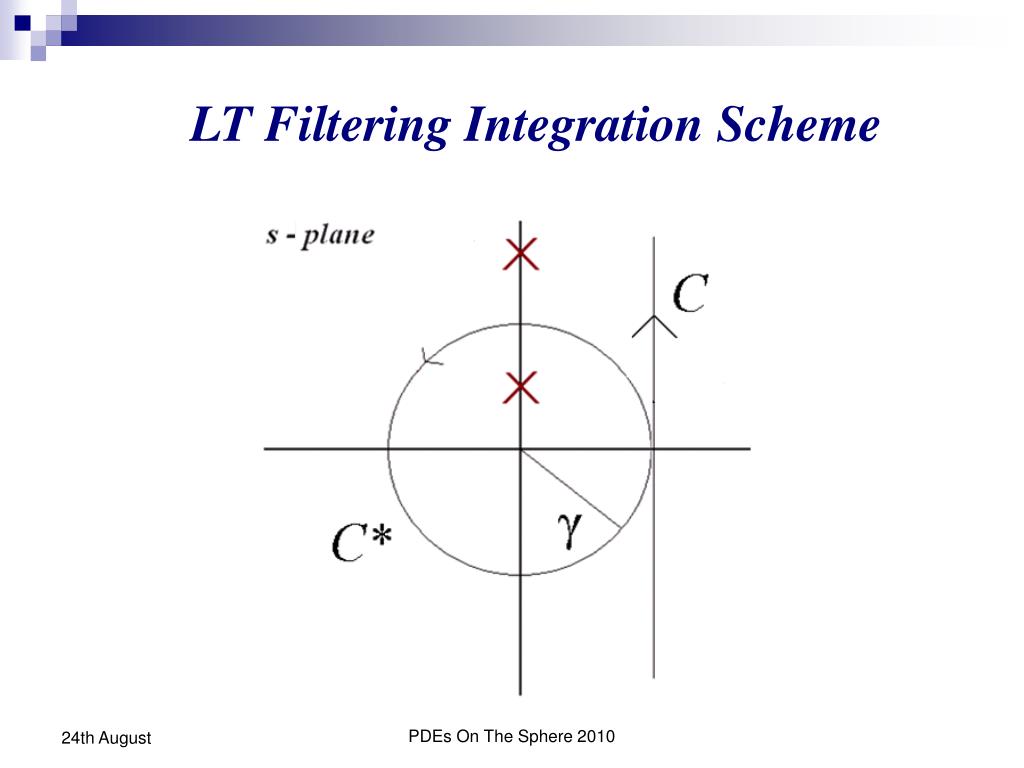

  4. LT Filtering Integration Scheme • At each time-step, solve for the Laplace Transform of the prognostic variables • Alter the inversion so as to remove high-frequency components (numerically) PDEs On The Sphere 2010

  5. LT Filtering Integration Scheme PDEs On The Sphere 2010

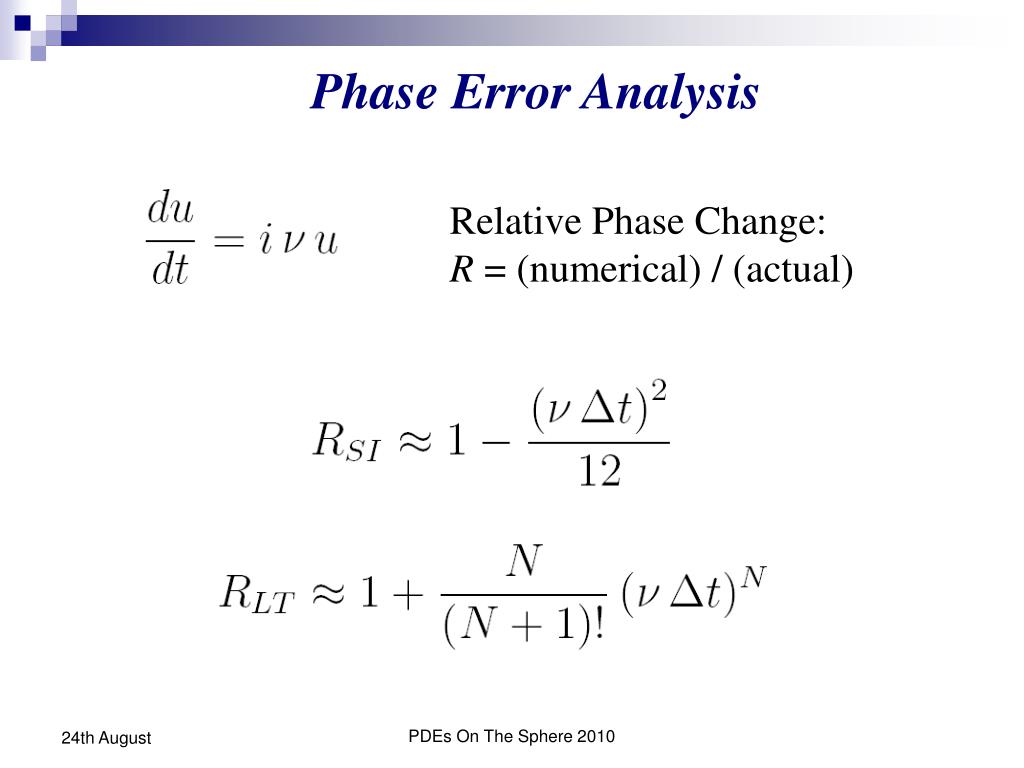

  6. Phase Error Analysis Relative Phase Change: R = (numerical) / (actual) PDEs On The Sphere 2010

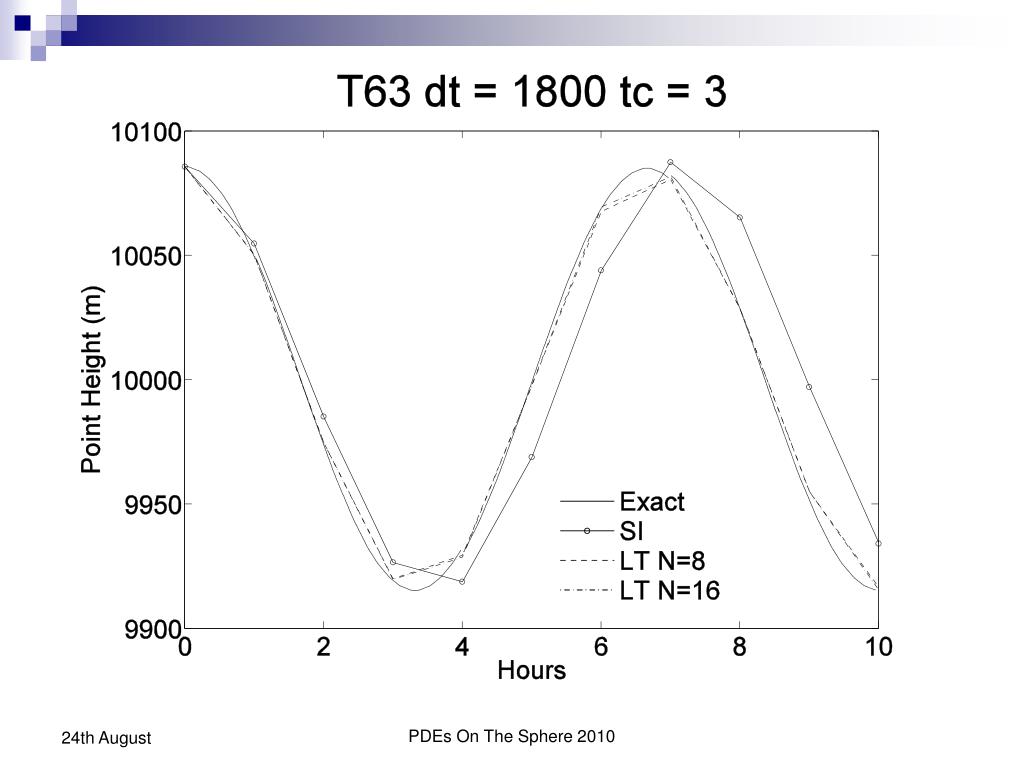

  7. PDEs On The Sphere 2010

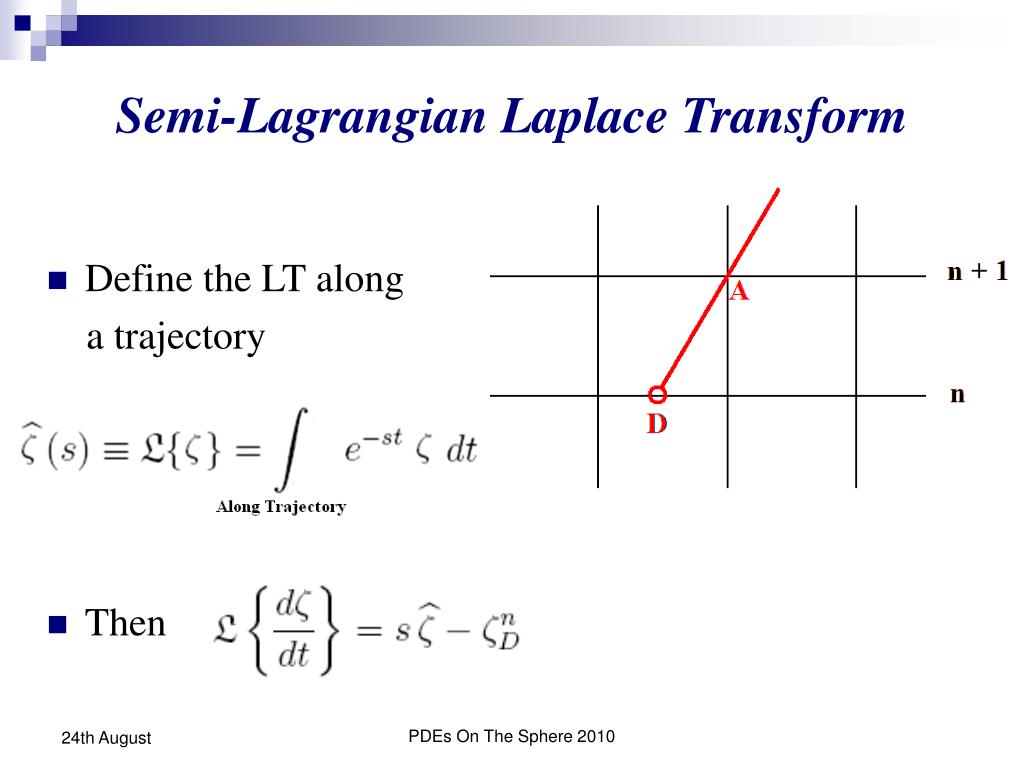

  8. Semi-Lagrangian Laplace Transform • Define the LT along a trajectory • Then PDEs On The Sphere 2010

  9. Semi-Lagrangian Laplace Transform SLLT • Based on spectral SWEmodel (John Drake, ORNL) • Compared with semi-Lagrangian semi-implicit SLSI • Stability not dependent on reference geopotential PDEs On The Sphere 2010

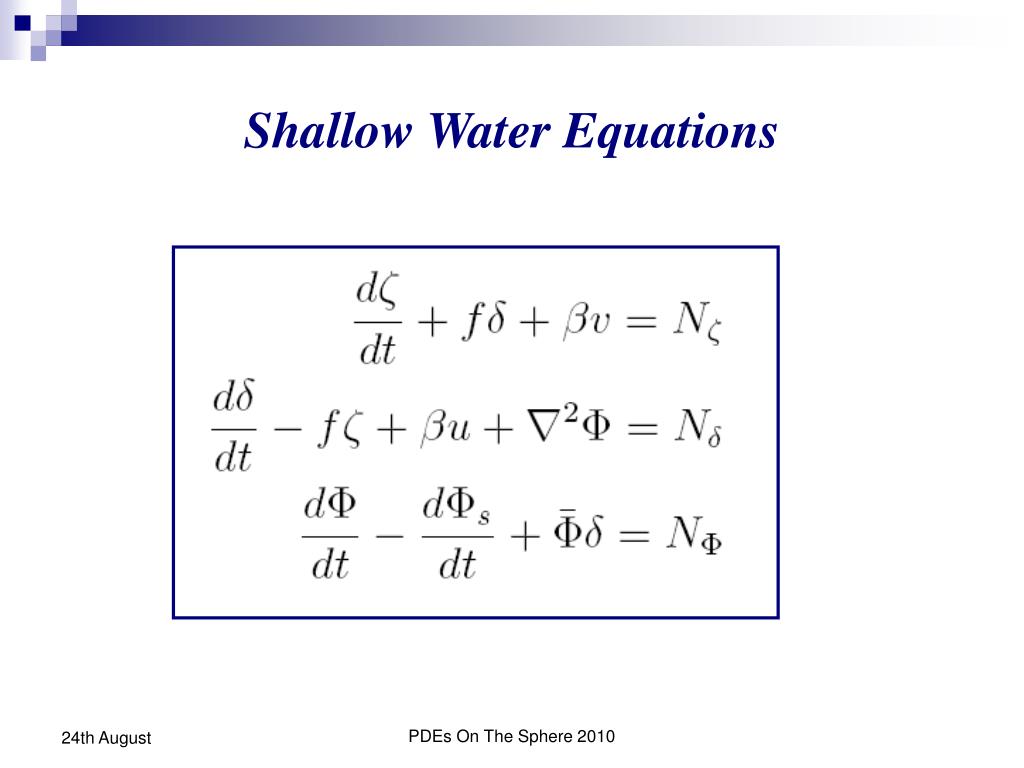

  10. Shallow Water Equations PDEs On The Sphere 2010

  11. Orographic Resonance • Spurious resonance from coupling semi-Lagrangian and semi-implicit methods [reviewed in Lindberg & Alexeev (2000)] • LT method has benefits over semi-implicit schemes • Motivates investigating orographic resonance in SLLT model PDEs On The Sphere 2010

  12. Orographic Resonance Analysis • Linear analysis of orographically forced stationary waves • Numerical simulations with shallow water SLLT • Results consistently show benefits of SLLT scheme PDEs On The Sphere 2010

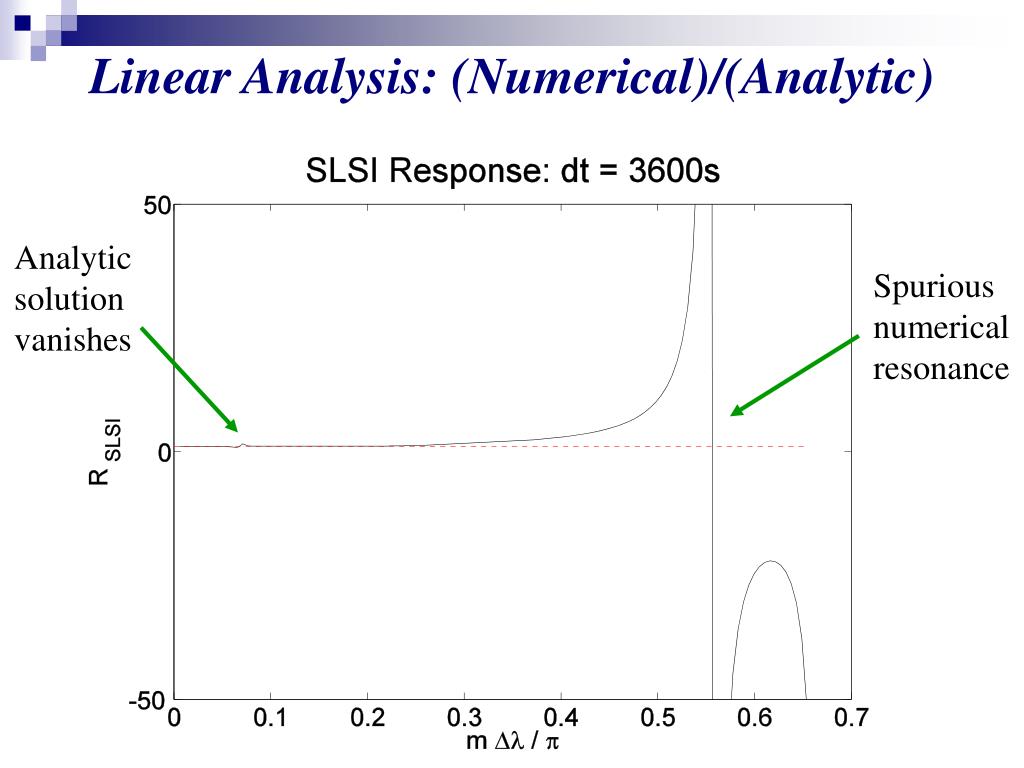

  13. Linear Analysis: (Numerical)/(Analytic) Analytic solution vanishes Spurious numerical resonance PDEs On The Sphere 2010

  14. Linear Analysis: (Numerical)/(Analytic) Analytic solution vanishes PDEs On The Sphere 2010

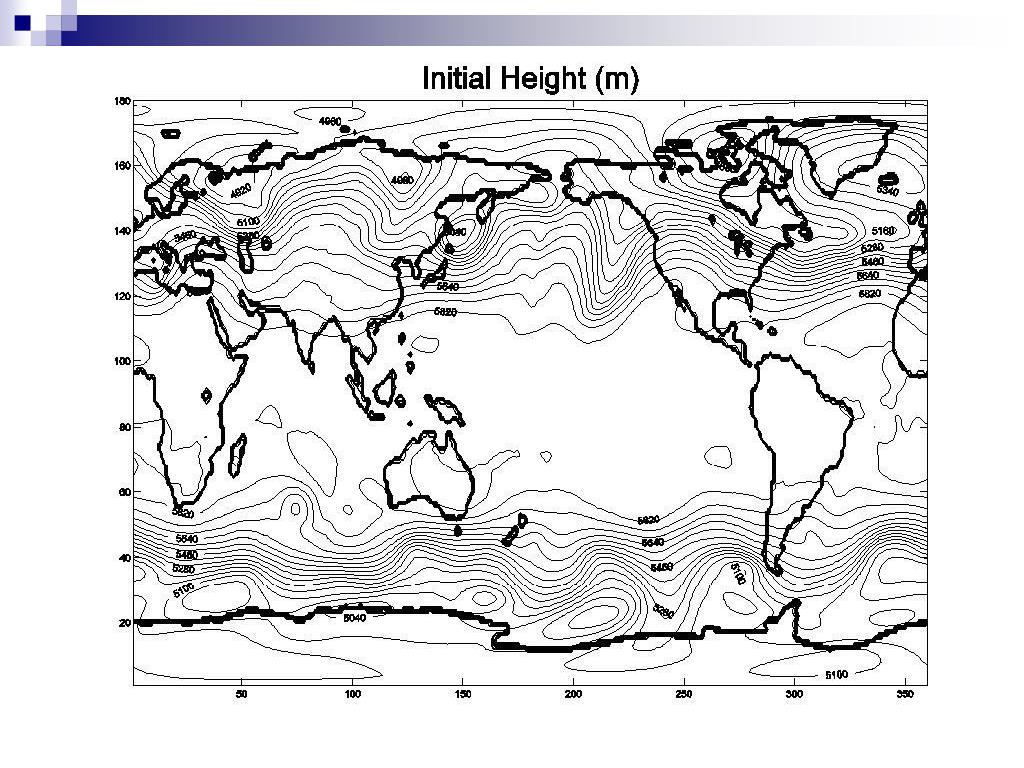

  15. Test Case with 500hPa Data • Initial data: ERA-40 analysis of 12 UTC 12th February 1979 • Used by Ritchie & Tanguay (1996) and Li & Bates (1996) • Running at T119 resolution PDEs On The Sphere 2010

  16. PDEs On The Sphere 2010

  17. PDEs On The Sphere 2010

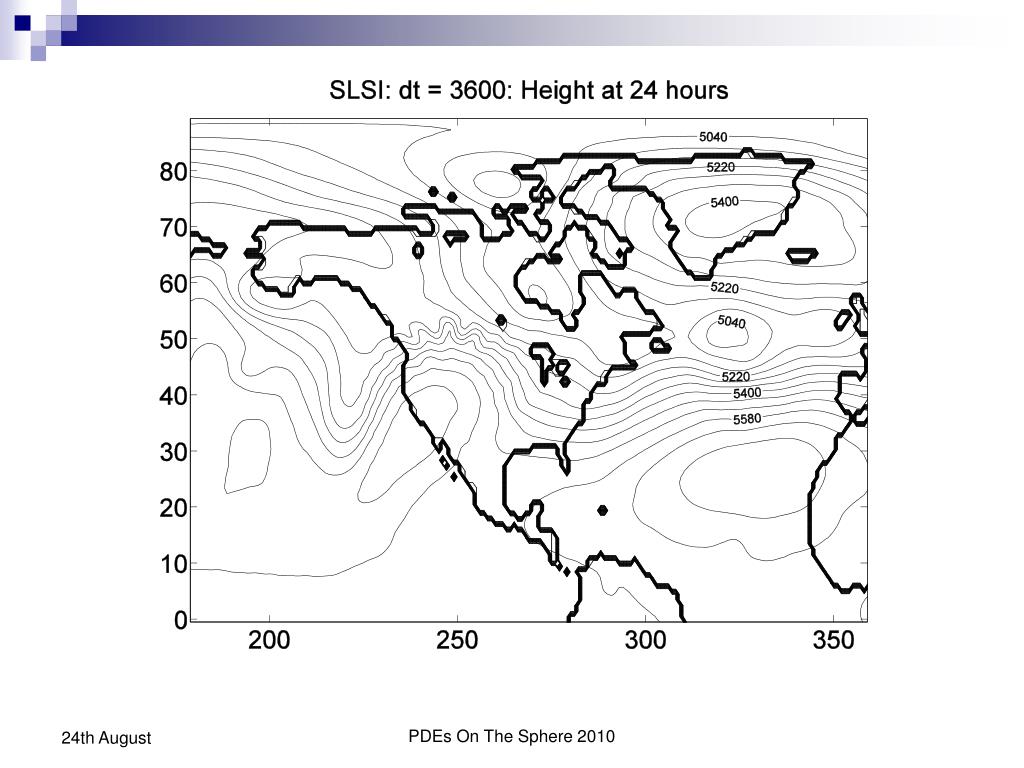

  18. PDEs On The Sphere 2010

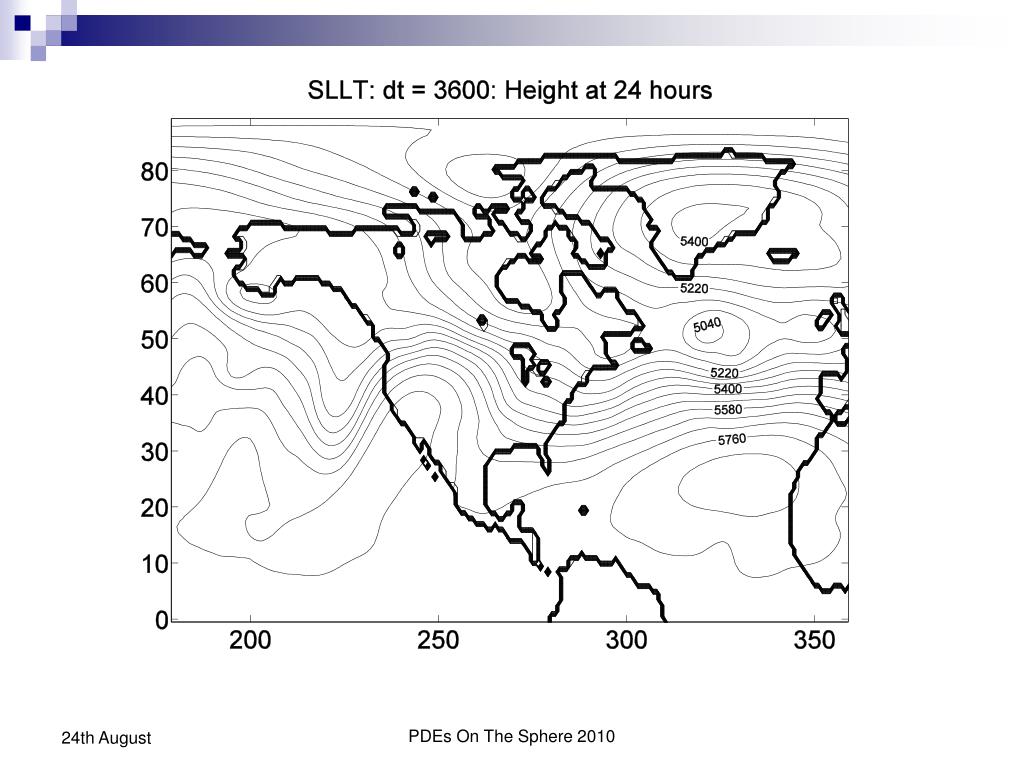

  19. PDEs On The Sphere 2010

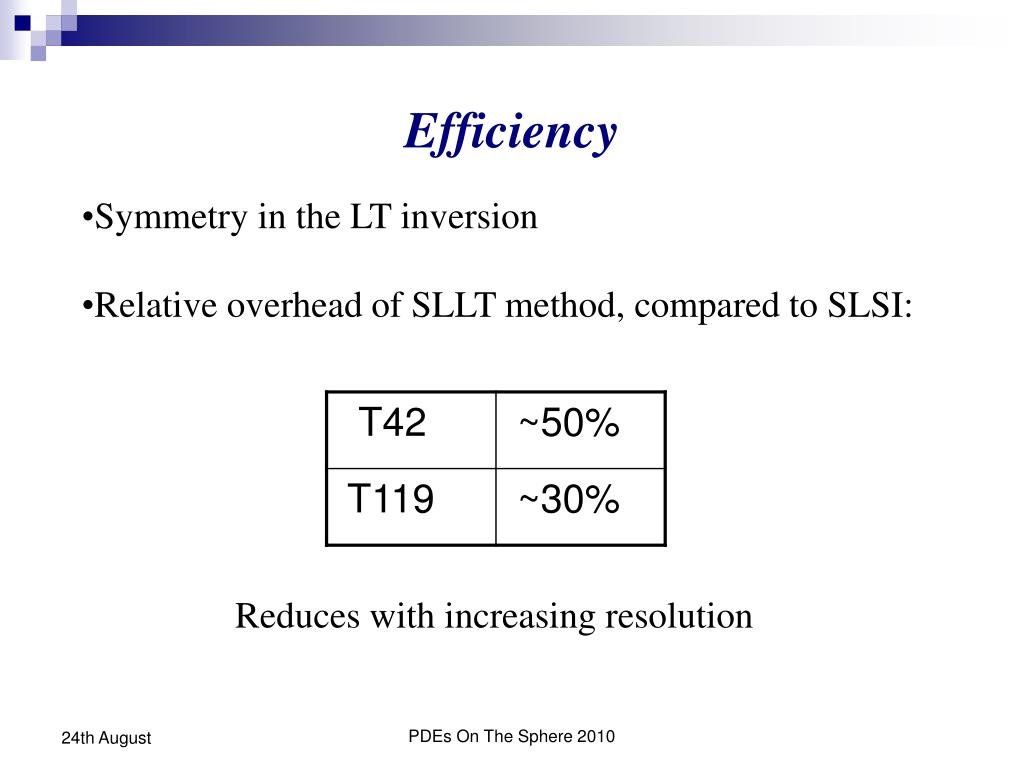

  20. Efficiency • Symmetry in the LT inversion • Relative overhead of SLLT method, compared to SLSI: • Reduces with increasing resolution PDEs On The Sphere 2010

  21. Conclusions • Shallow water model using a semi-Lagrangian Laplace Transform method • Advantages over a semi-implicit method • Accurate phase speed • Stability • No orographic resonance PDEs On The Sphere 2010

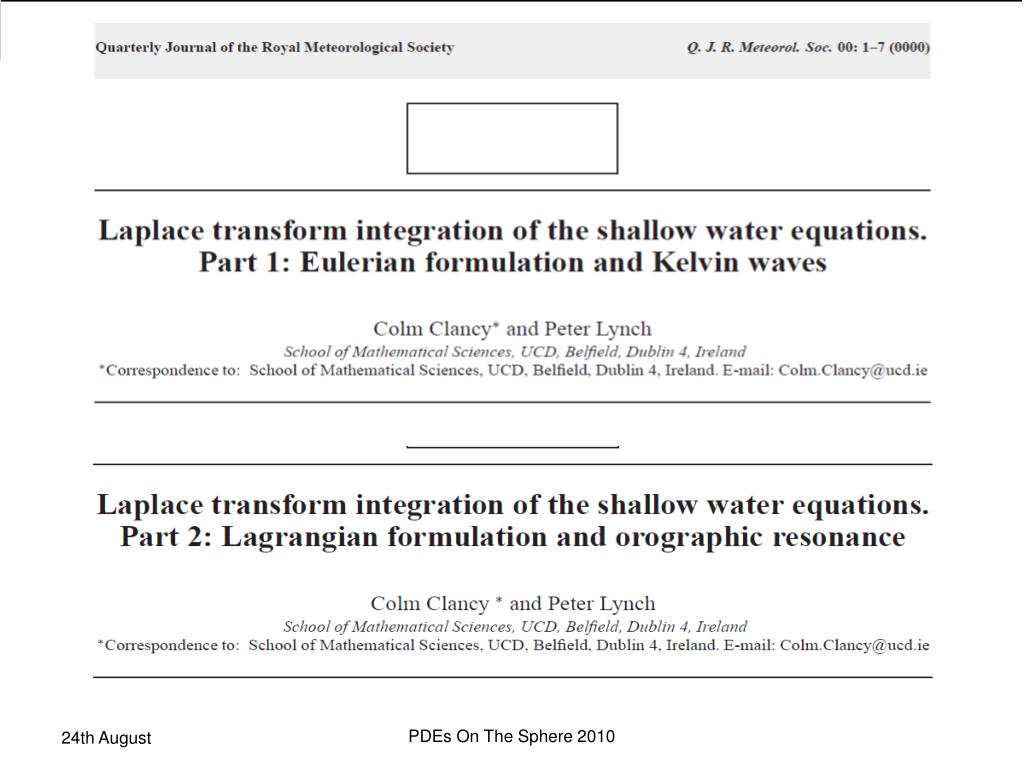

  22. PDEs On The Sphere 2010

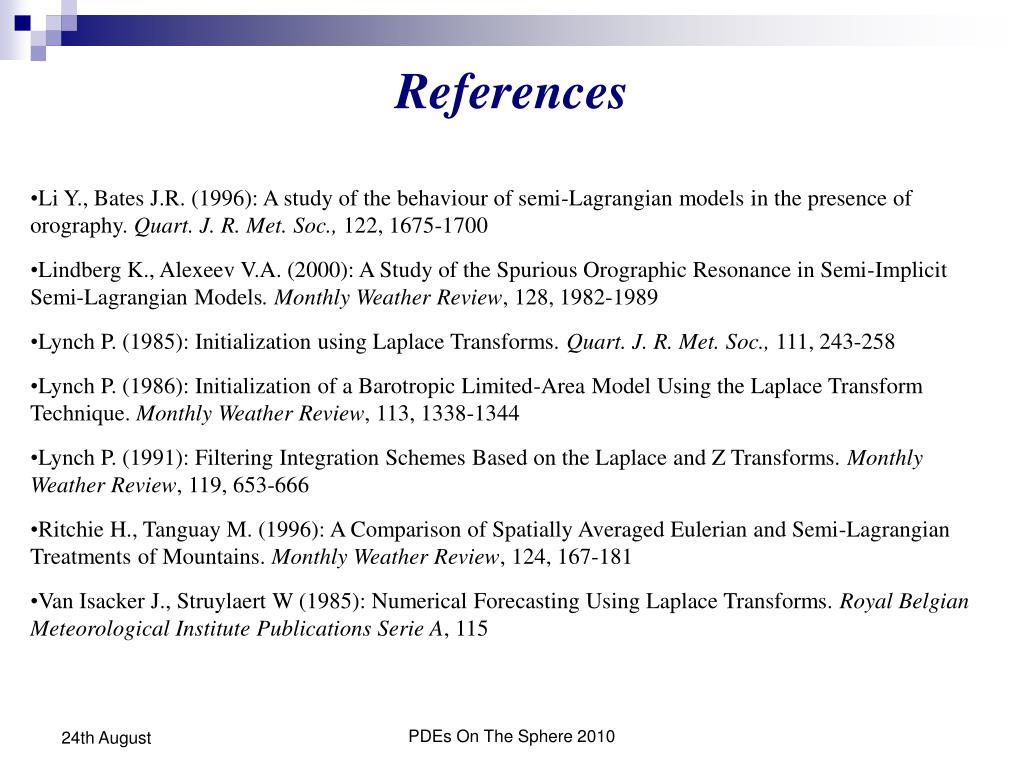

  23. References • Li Y., Bates J.R. (1996): A study of the behaviour of semi-Lagrangian models in the presence of orography. Quart. J. R. Met. Soc., 122, 1675-1700 • Lindberg K., Alexeev V.A. (2000): A Study of the Spurious Orographic Resonance in Semi-Implicit Semi-Lagrangian Models.Monthly Weather Review, 128, 1982-1989 • Lynch P. (1985): Initialization using Laplace Transforms. Quart. J. R. Met. Soc., 111, 243-258 • Lynch P. (1986): Initialization of a Barotropic Limited-Area Model Using the Laplace Transform Technique. Monthly Weather Review, 113, 1338-1344 • Lynch P. (1991): Filtering Integration Schemes Based on the Laplace and Z Transforms. Monthly Weather Review, 119, 653-666 • Ritchie H., Tanguay M. (1996): A Comparison of Spatially Averaged Eulerian and Semi-Lagrangian Treatments of Mountains. Monthly Weather Review, 124, 167-181 • Van Isacker J., Struylaert W (1985): Numerical Forecasting Using Laplace Transforms. Royal Belgian Meteorological Institute Publications Serie A, 115 PDEs On The Sphere 2010
