  1. ANALYSIS OF INSULATION OF MATERIAL Wang Deyu, Li Dejun ZhongHaoyuan XuShanshan Li Yaqiong, Yan Li

  2. Contents 1 • Executive Summary Literature Review 2 3 Choice of Experimental Design Performing the Experiment 4 Eliminating Noise 5 Data analysis & Conclusion 6

  3. Executive Summary

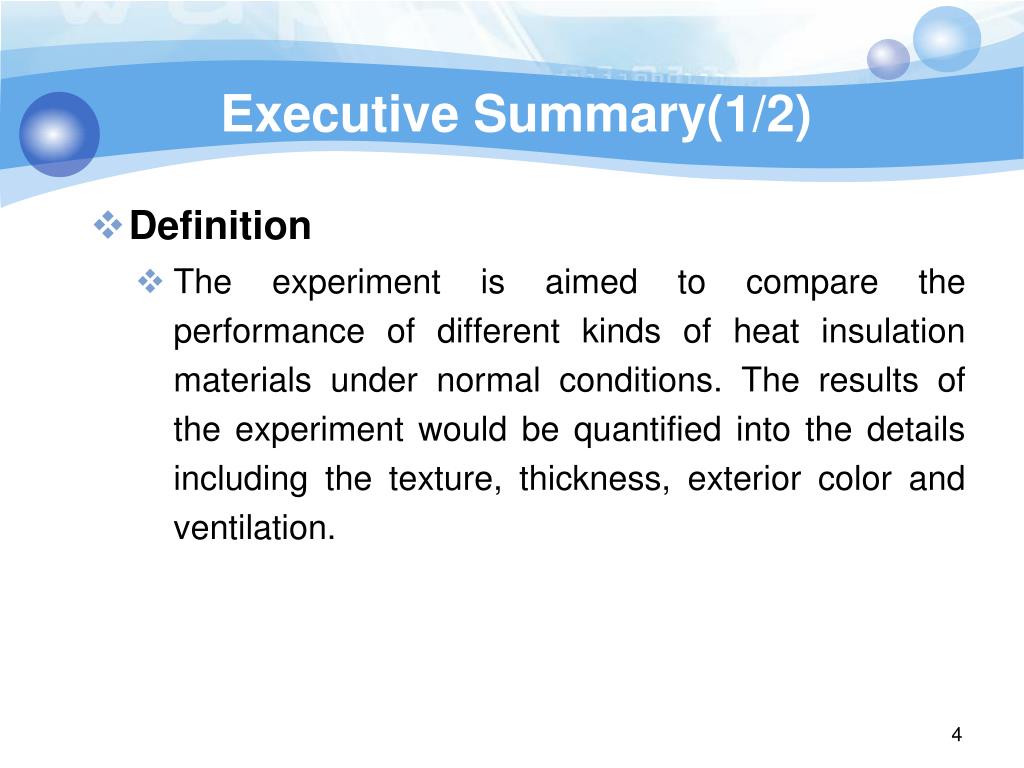

  4. Executive Summary(1/2) • Definition • The experiment is aimed to compare the performance of different kinds of heat insulation materials under normal conditions. The results of the experiment would be quantified into the details including the texture, thickness, exterior color and ventilation.

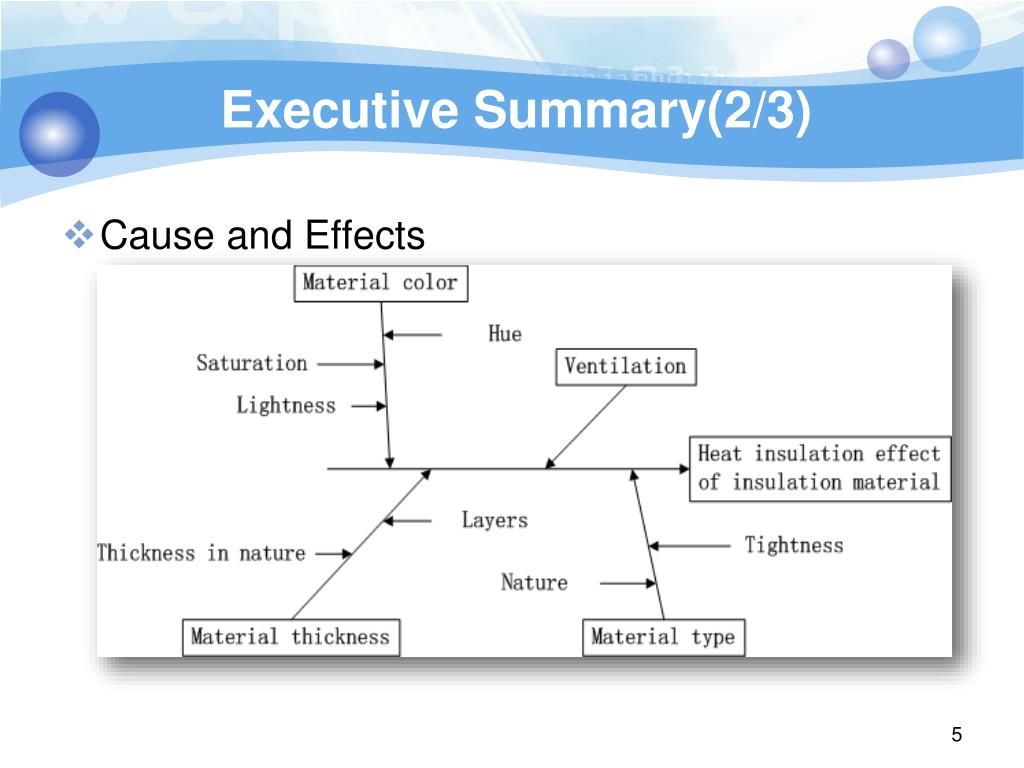

  5. Executive Summary(2/3) • Cause and Effects

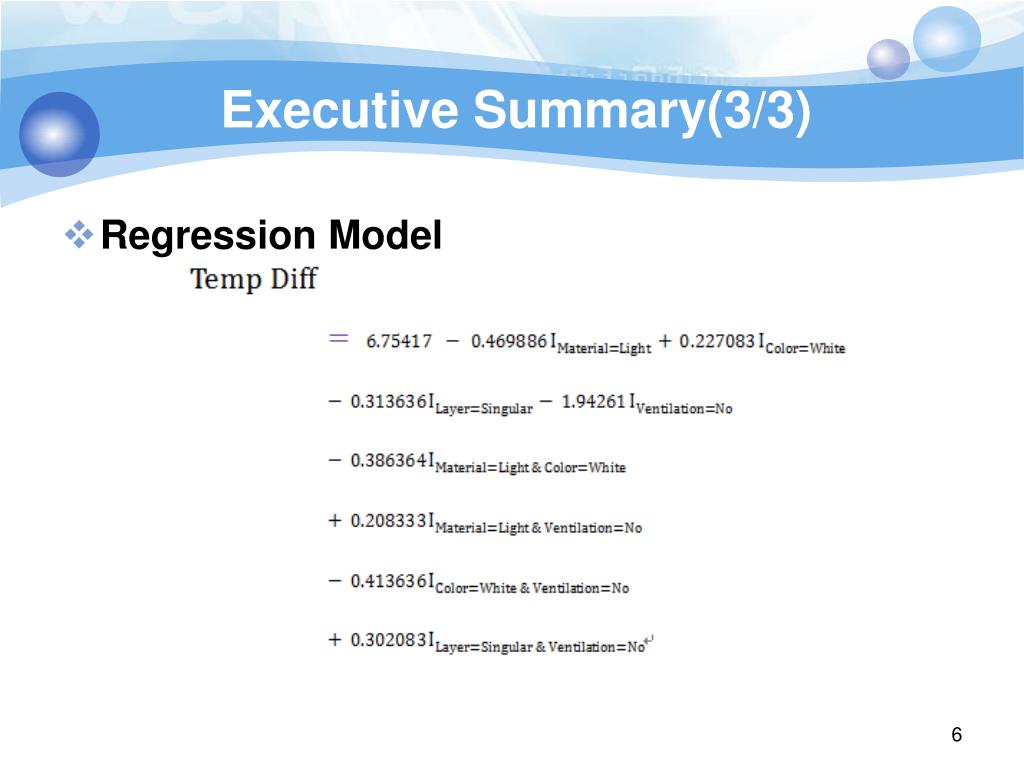

  6. Executive Summary(3/3) • Regression Model

  7. LiteratureReview

  8. Literature Review(1/2) • Define how various factors would accelerate or decelerate the cooling rate. • 《Fabric Selection for a Liquid Cooling Garment》 • 《水压机泵站工作液体降温问题分析》

  9. Literature Review(2/2) △T=f(LP, S, M, C, T, HC, CA) Factors properties of the liquid size of the container physical properties of insulation material Heat conduction property of container contact of the air color of the material thickness of the material

  10. Choice of Experimental Design

  11. Cotton, Black Flax, Black Flax, White Cotton, White Beaker,150ml Preparation & Location • Preparation • Material • Container: Beaker • Kerosene thermometer • Experiment Location • C Builiding, Room 306. • The room temperature is 26 centigrade.

  12. Variables & Blocking • Variable Selection • Material, Color, Layer, and Ventilation • Setting Variables • Blocking • Two thermometers which have different calibration • 4 variables, 2 levels per variable, • 2 replications per treatment, 2 blocks, Full factorial

  13. Performing Experiment

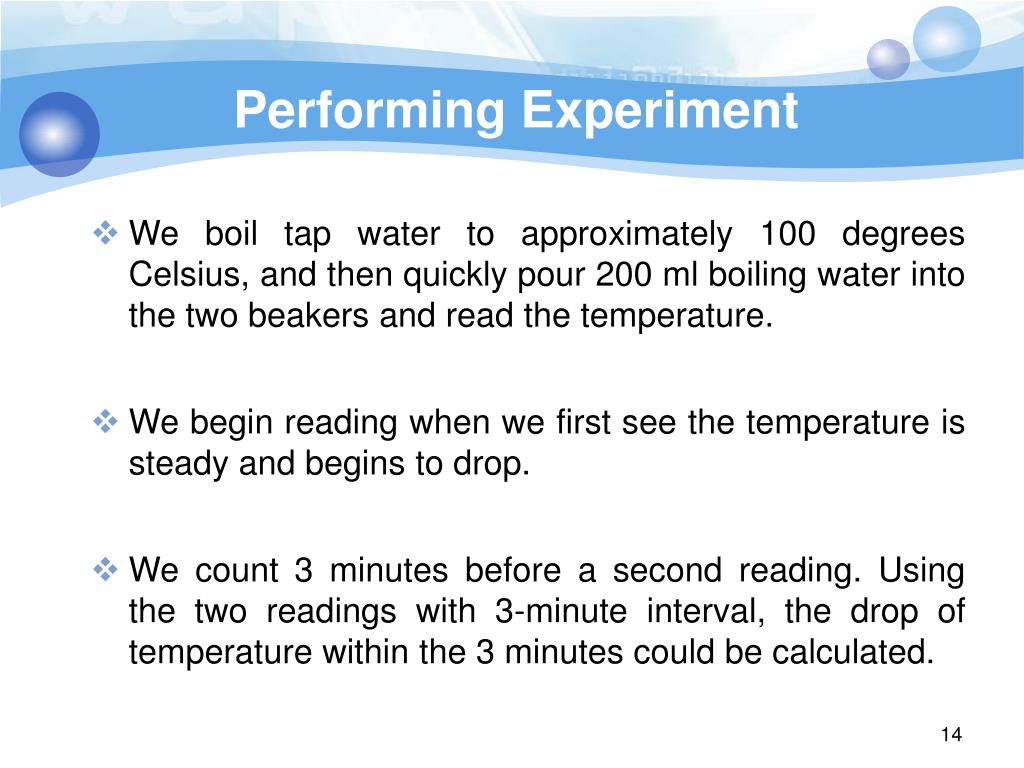

  14. Performing Experiment • We boil tap water to approximately 100 degrees Celsius, and then quickly pour 200 ml boiling water into the two beakers and read the temperature. • We begin reading when we first see the temperature is steady and begins to drop. • We count 3 minutes before a second reading. Using the two readings with 3-minute interval, the drop of temperature within the 3 minutes could be calculated.

  15. Eliminating Noise

  16. Eliminating Noise • Warm up of the beakers and the thermometers • To ensure that the heat won’t lose through other channels. • Wrap the cloth tightly to the beaker • Use slim clip to ensure that the least width is overlapped. • Pad the cup with a paper dish underneath • To minimize the heat conducted through the bottom.

  17. Data analysis & Conclusion

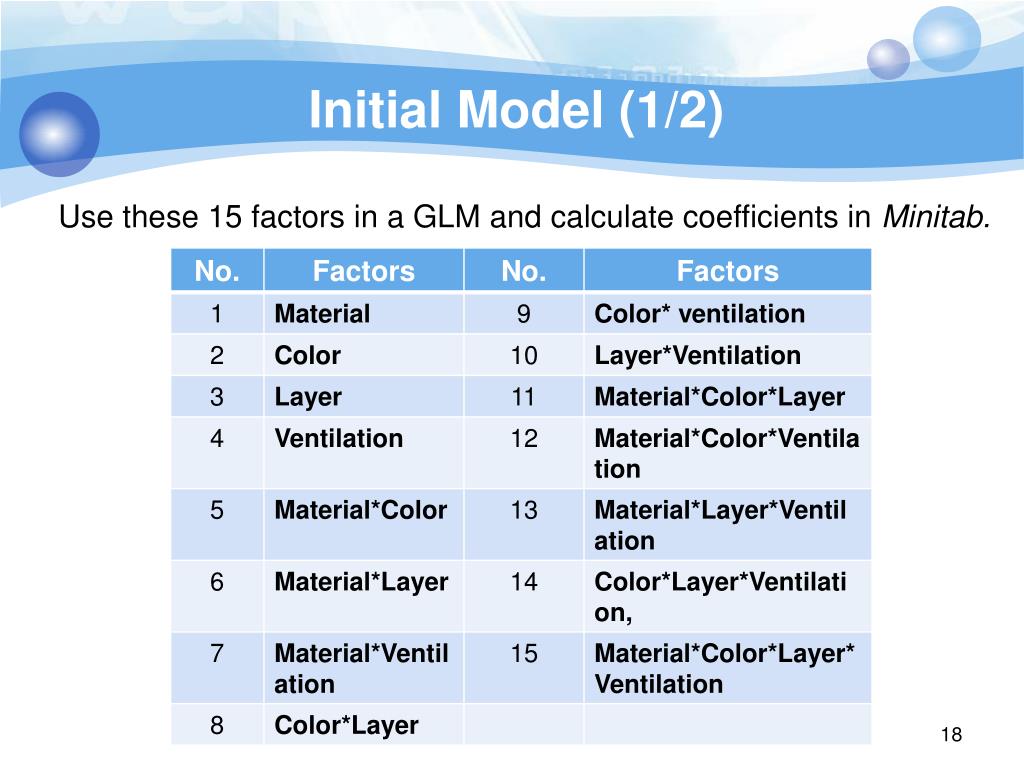

  18. Initial Model (1/2) Use these 15 factors in a GLM and calculate coefficients in Minitab.

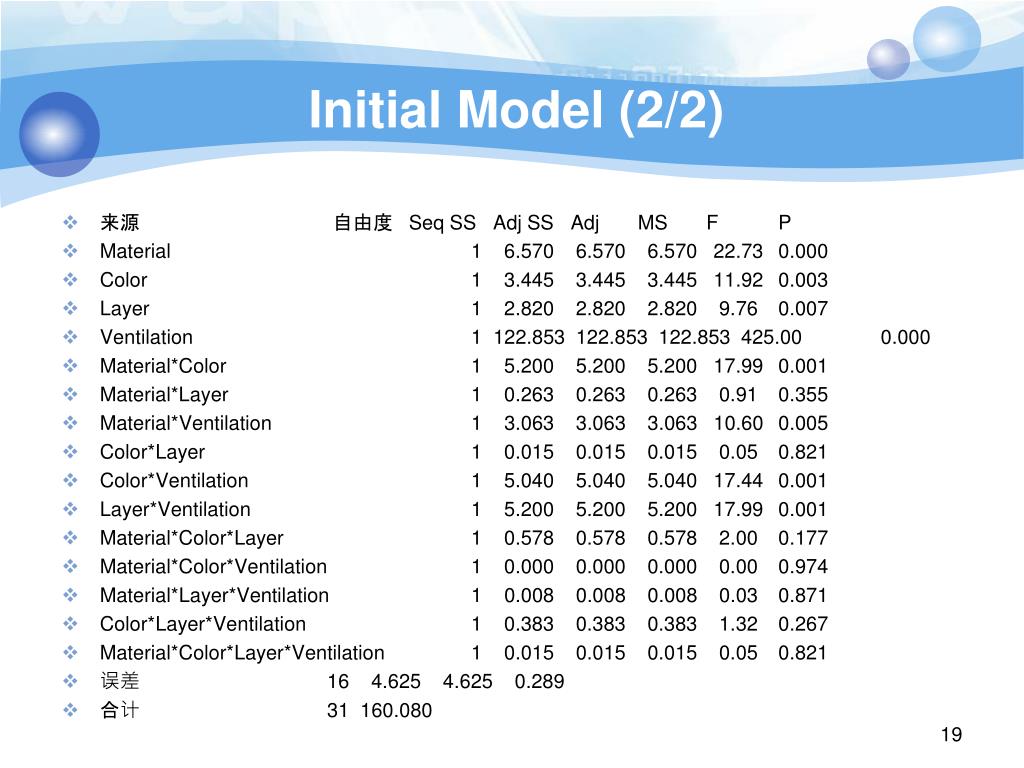

  19. Initial Model (2/2) • 来源自由度Seq SS Adj SS Adj MS F P • Material 1 6.570 6.570 6.570 22.73 0.000 • Color 1 3.445 3.445 3.445 11.92 0.003 • Layer 1 2.820 2.820 2.820 9.76 0.007 • Ventilation 1 122.853 122.853 122.853 425.00 0.000 • Material*Color 1 5.200 5.200 5.200 17.99 0.001 • Material*Layer 1 0.263 0.263 0.263 0.91 0.355 • Material*Ventilation 1 3.063 3.063 3.063 10.60 0.005 • Color*Layer 1 0.015 0.015 0.015 0.05 0.821 • Color*Ventilation 1 5.040 5.040 5.040 17.44 0.001 • Layer*Ventilation 1 5.200 5.200 5.200 17.99 0.001 • Material*Color*Layer 1 0.578 0.578 0.578 2.00 0.177 • Material*Color*Ventilation 1 0.000 0.000 0.000 0.00 0.974 • Material*Layer*Ventilation 1 0.008 0.008 0.008 0.03 0.871 • Color*Layer*Ventilation 1 0.383 0.383 0.383 1.32 0.267 • Material*Color*Layer*Ventilation 1 0.015 0.015 0.015 0.05 0.821 • 误差 16 4.625 4.625 0.289 • 合计 31 160.080

  20. Modified Model (1/3) • Then we delete the following factors and recalculate one by one. • Material*Color*Layer*Ventilation • Material*Color*Layer • Material* Layer*Ventilation • Color*Layer*Ventilation • Material*Color*Layer • Color*Layer • Material*Layer

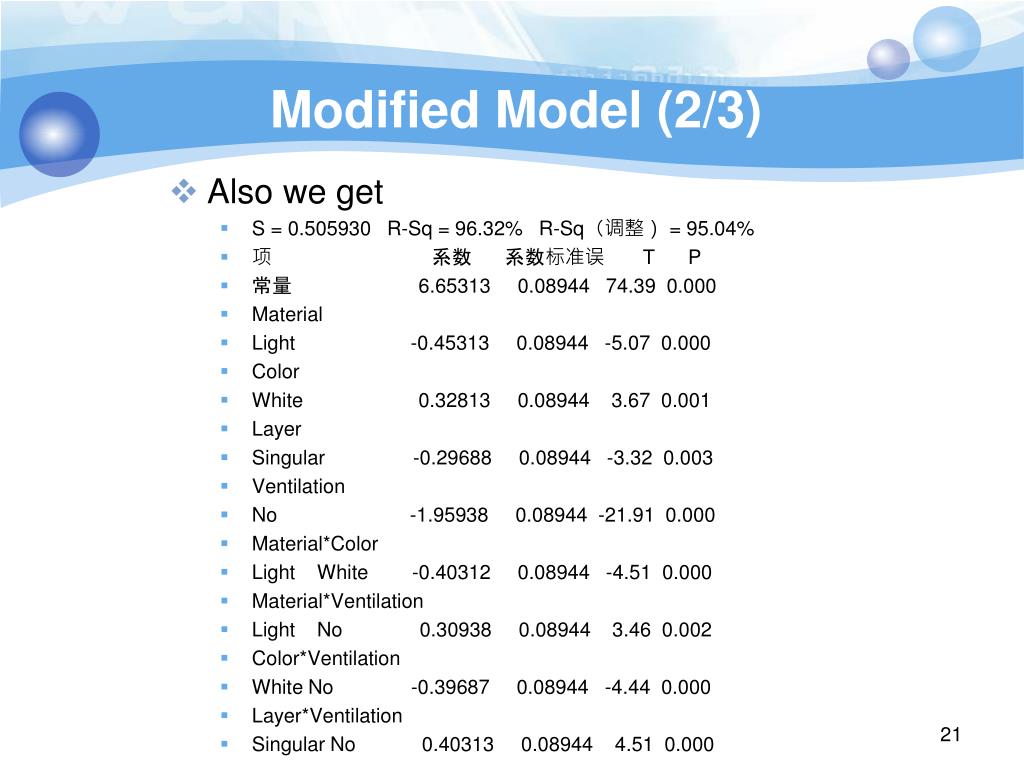

  21. Modified Model (2/3) • Also we get • S = 0.505930 R-Sq = 96.32% R-Sq（调整） = 95.04%  • 项系数系数标准误 T P • 常量 6.65313 0.08944 74.39 0.000 • Material • Light -0.45313 0.08944 -5.07 0.000 • Color • White 0.32813 0.08944 3.67 0.001 • Layer • Singular -0.29688 0.08944 -3.32 0.003 • Ventilation • No -1.95938 0.08944 -21.91 0.000 • Material*Color • Light White -0.40312 0.08944 -4.51 0.000 • Material*Ventilation • Light No 0.30938 0.08944 3.46 0.002 • Color*Ventilation • White No -0.39687 0.08944 -4.44 0.000 • Layer*Ventilation • Singular No 0.40313 0.08944 4.51 0.000

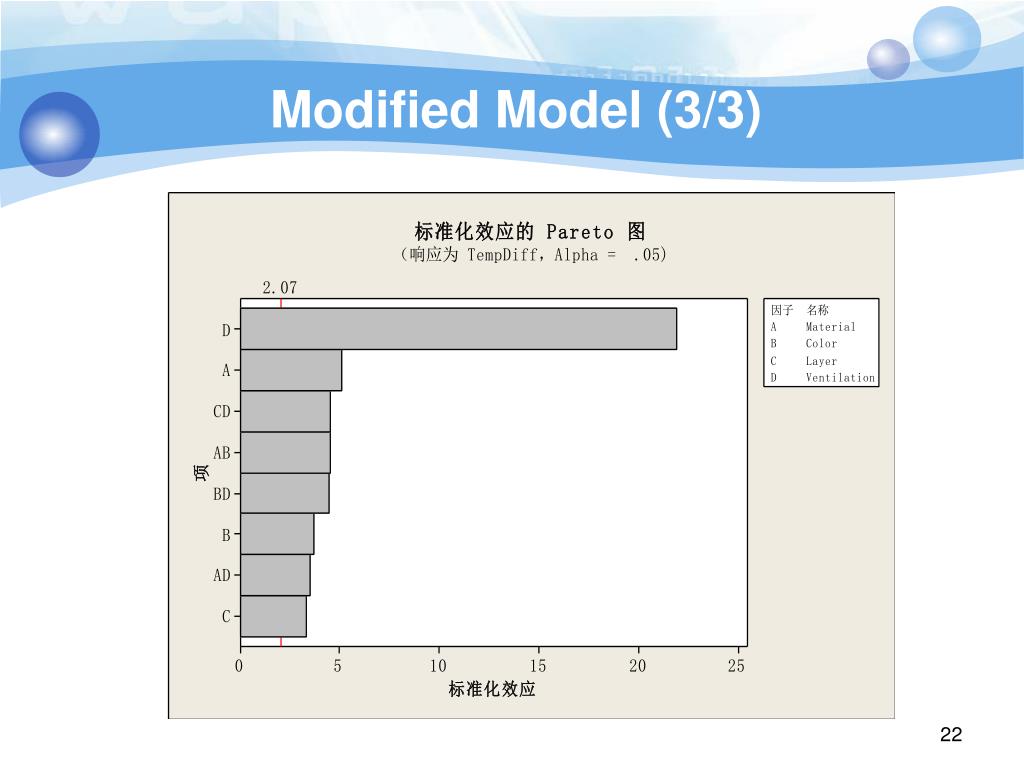

  22. Modified Model (3/3)

  23. Modified Model (3/3)

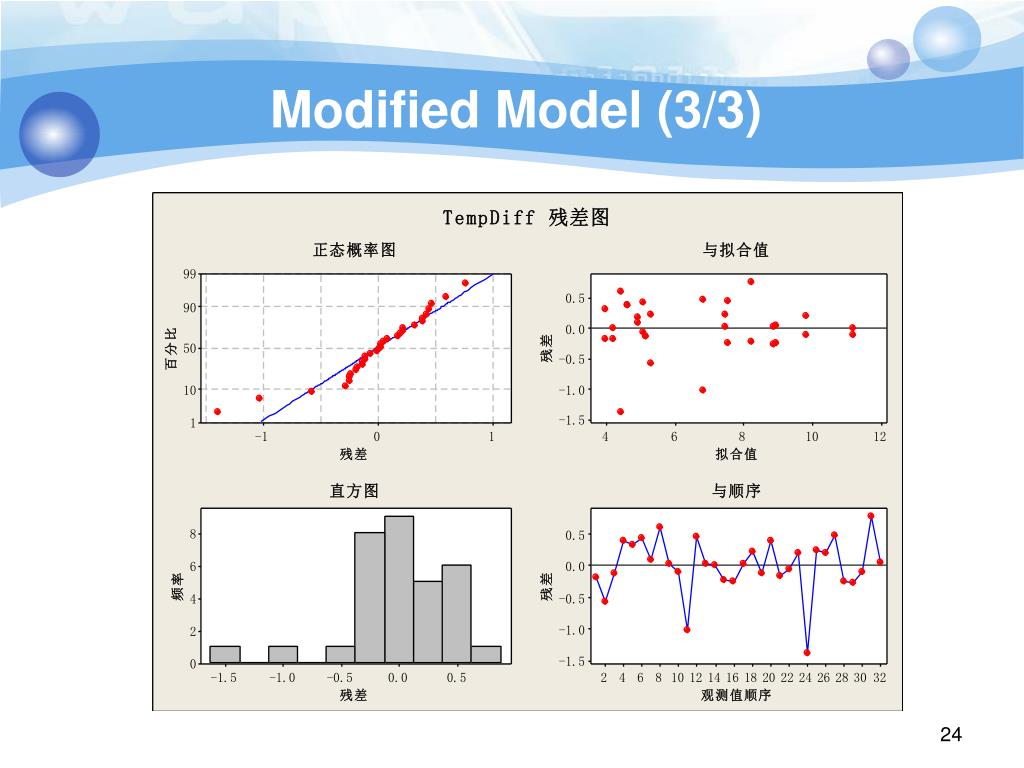

  24. Modified Model (3/3)

  25. Modified Model (3/3)

  26. 拟合因子: TempDiff与 Material, Color, Layer, Ventilation • TempDiff的效应和系数的估计（已编码单位） • 项效应系数系数标准误 T P • 常量6.7542 0.05487 123.08 0.000 • Material 0.9398 0.4699 0.05507 8.53 0.000 • Color -0.4542 -0.2271 0.05487 -4.14 0.000 • Layer 0.6273 0.3136 0.05507 5.70 0.000 • Ventilation 3.8852 1.9426 0.05507 35.28 0.000 • Material*Colo r -0.7727 -0.3864 0.05507 -7.02 0.000 • Material*Ventilation 0.4167 0.2083 0.05487 3.80 0.001 • Color*Ventilation -0.8273 -0.4136 0.05507 -7.51 0.000 • Layer*Ventilation 0.6042 0.3021 0.05487 5.50 0.000 • S = 0.298239 PRESS = 3.81306 • R-Sq = 98.71% R-Sq（预测） = 97.38% R-Sq（调整） = 98.23%

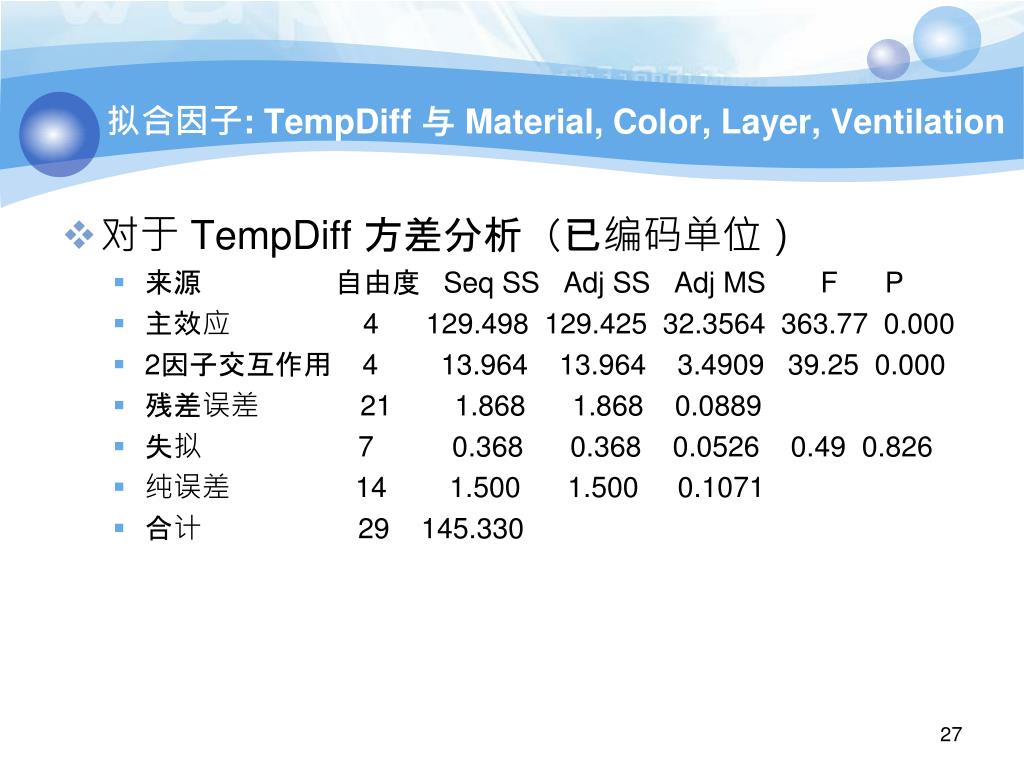

  27. 拟合因子: TempDiff与 Material, Color, Layer, Ventilation • 对于TempDiff方差分析（已编码单位） • 来源自由度Seq SS Adj SS Adj MS F P • 主效应 4 129.498 129.425 32.3564 363.77 0.000 • 2因子交互作用 4 13.964 13.964 3.4909 39.25 0.000 • 残差误差 21 1.868 1.868 0.0889 • 失拟 7 0.368 0.368 0.0526 0.49 0.826 • 纯误差 14 1.500 1.500 0.1071 • 合计 29 145.330

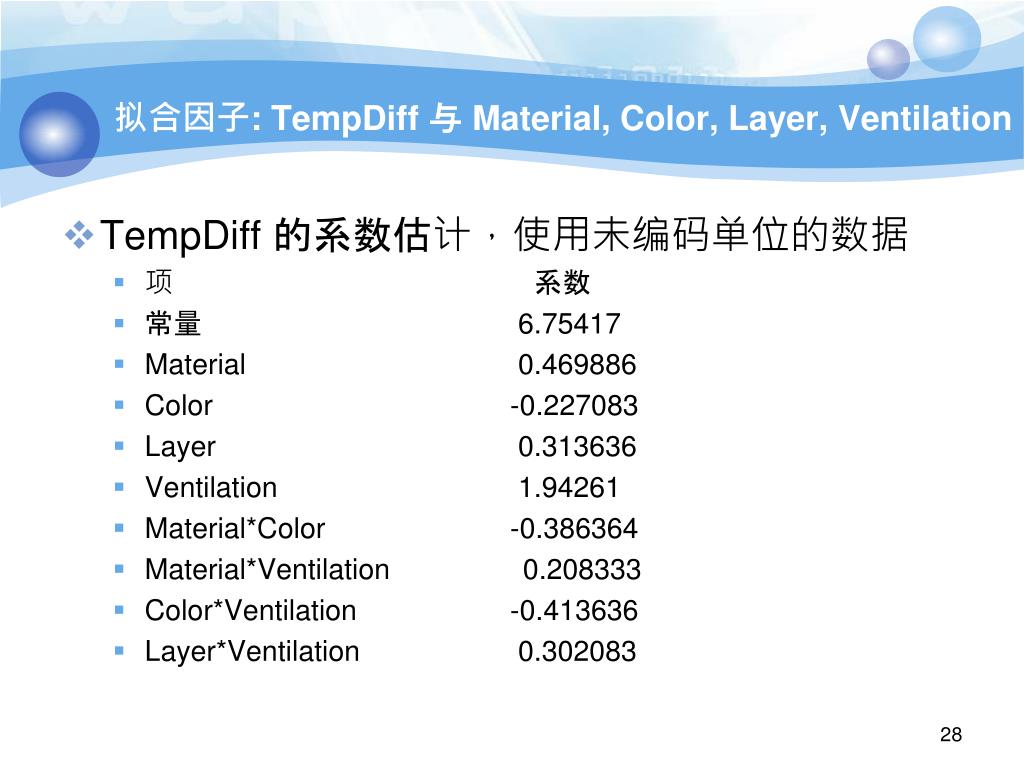

  28. 拟合因子: TempDiff与 Material, Color, Layer, Ventilation • TempDiff的系数估计，使用未编码单位的数据 • 项系数 • 常量 6.75417 • Material 0.469886 • Color -0.227083 • Layer 0.313636 • Ventilation 1.94261 • Material*Color -0.386364 • Material*Ventilation 0.208333 • Color*Ventilation -0.413636 • Layer*Ventilation 0.302083

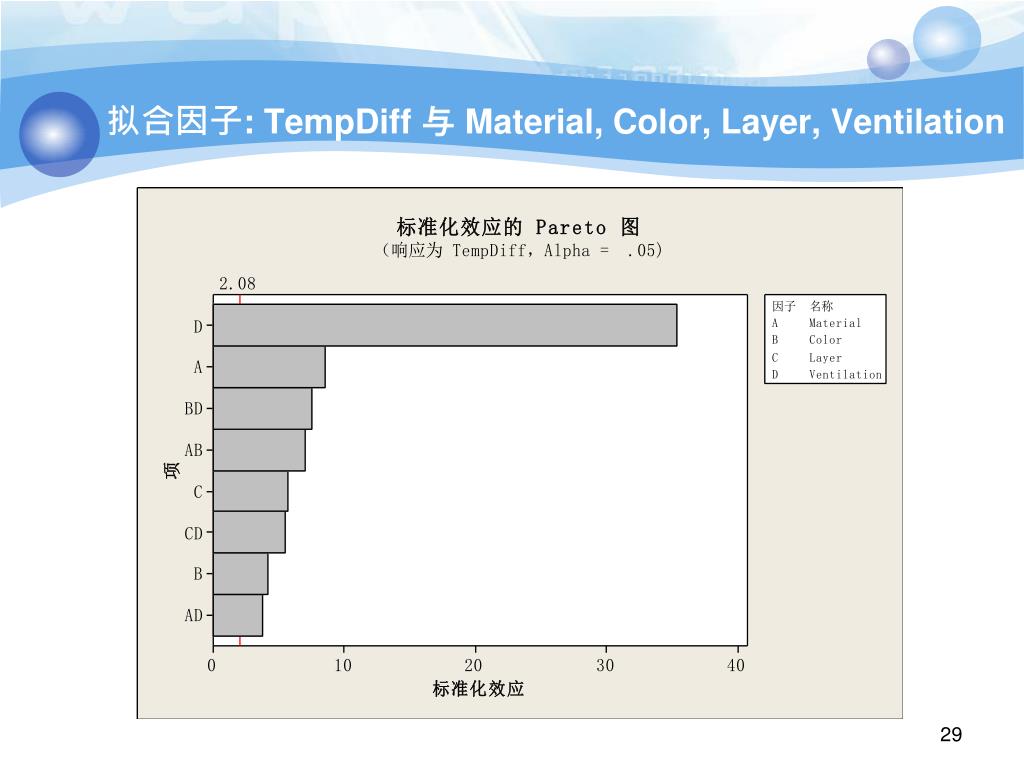

  29. 拟合因子: TempDiff与 Material, Color, Layer, Ventilation

  30. 拟合因子: TempDiff与 Material, Color, Layer, Ventilation

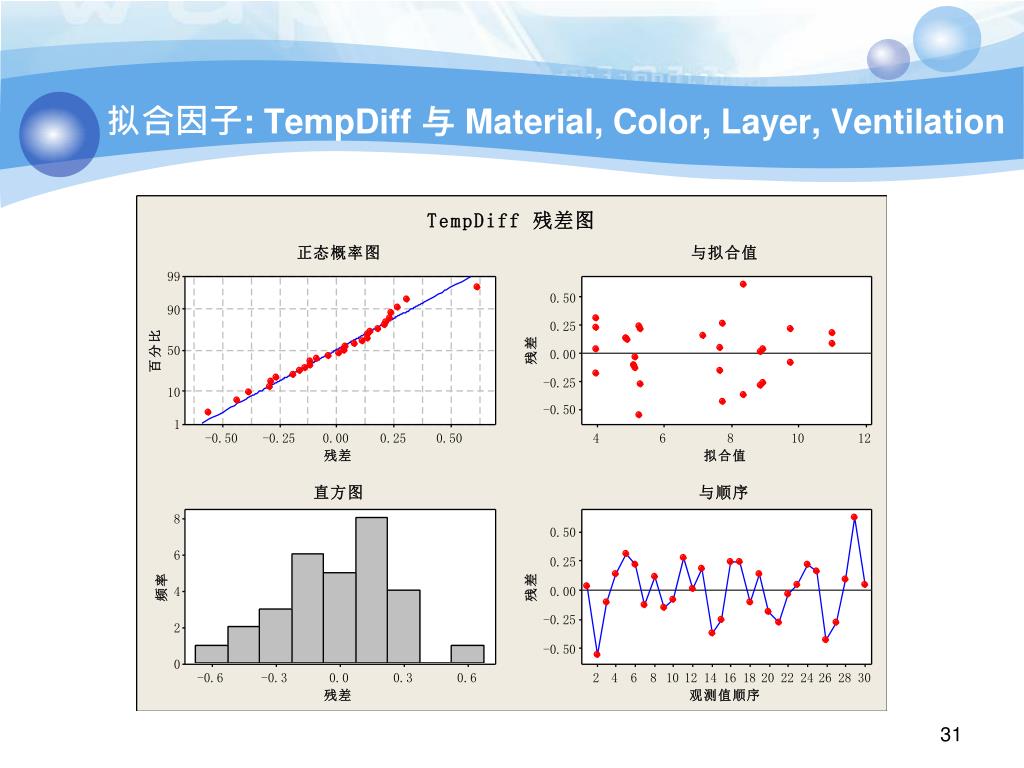

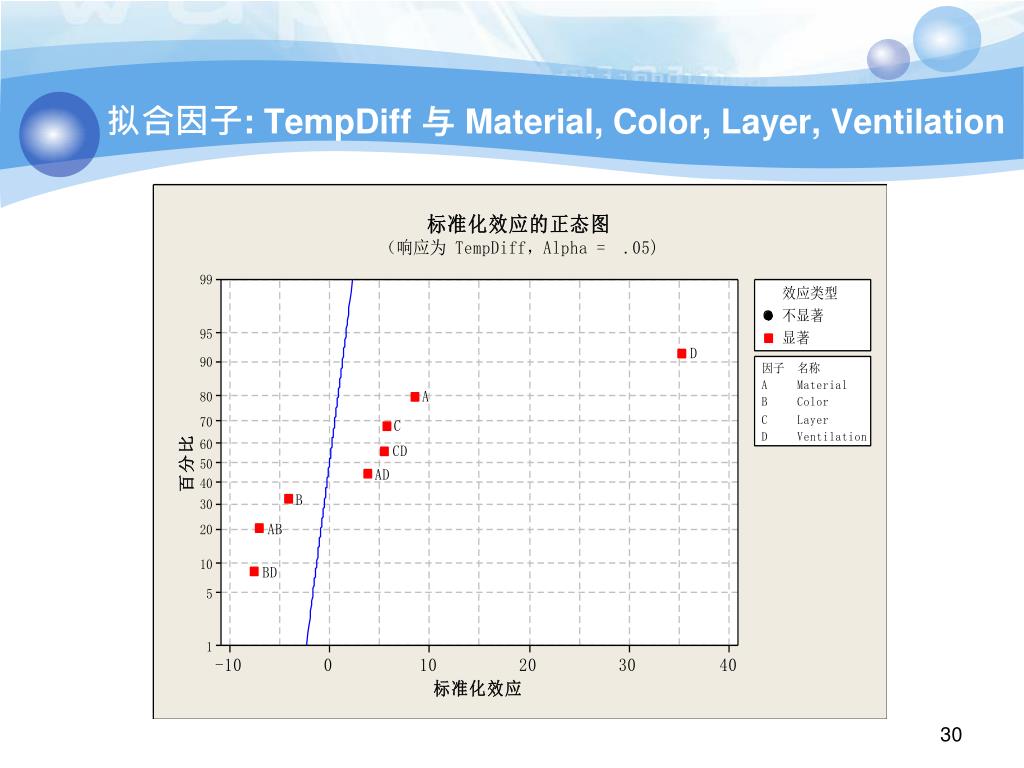

  31. 拟合因子: TempDiff与 Material, Color, Layer, Ventilation

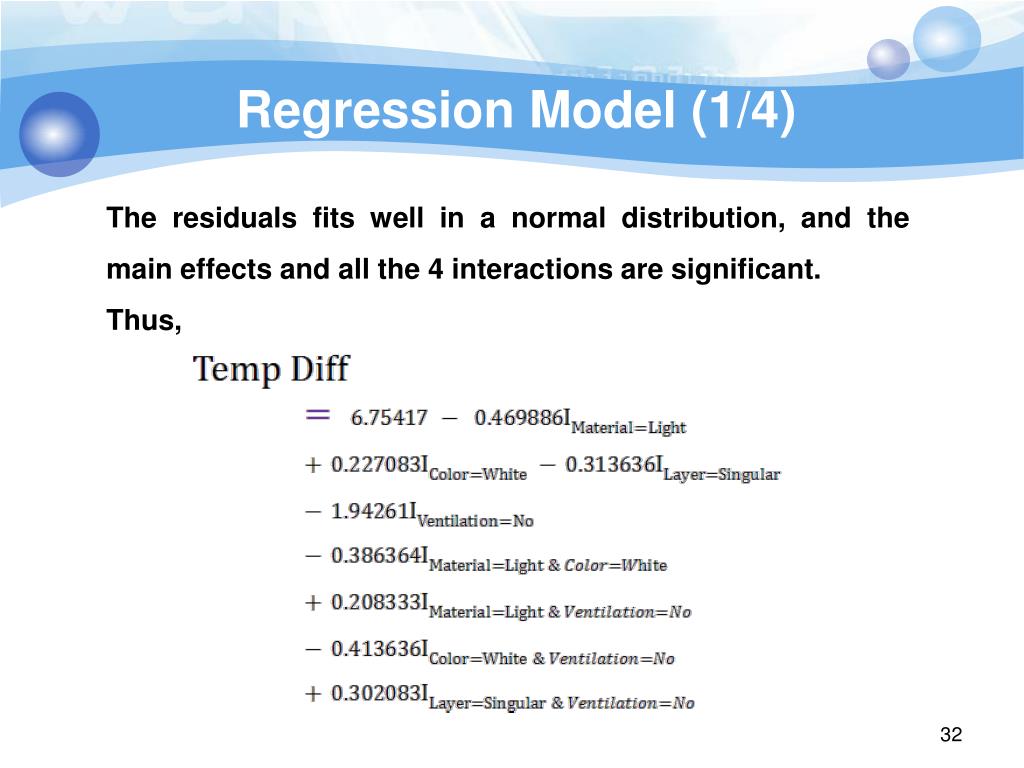

  32. Regression Model (1/4) The residuals fits well in a normal distribution, and the main effects and all the 4 interactions are significant. Thus,

  33. Regression Model (2/4)

  34. Regression Model (3/4)

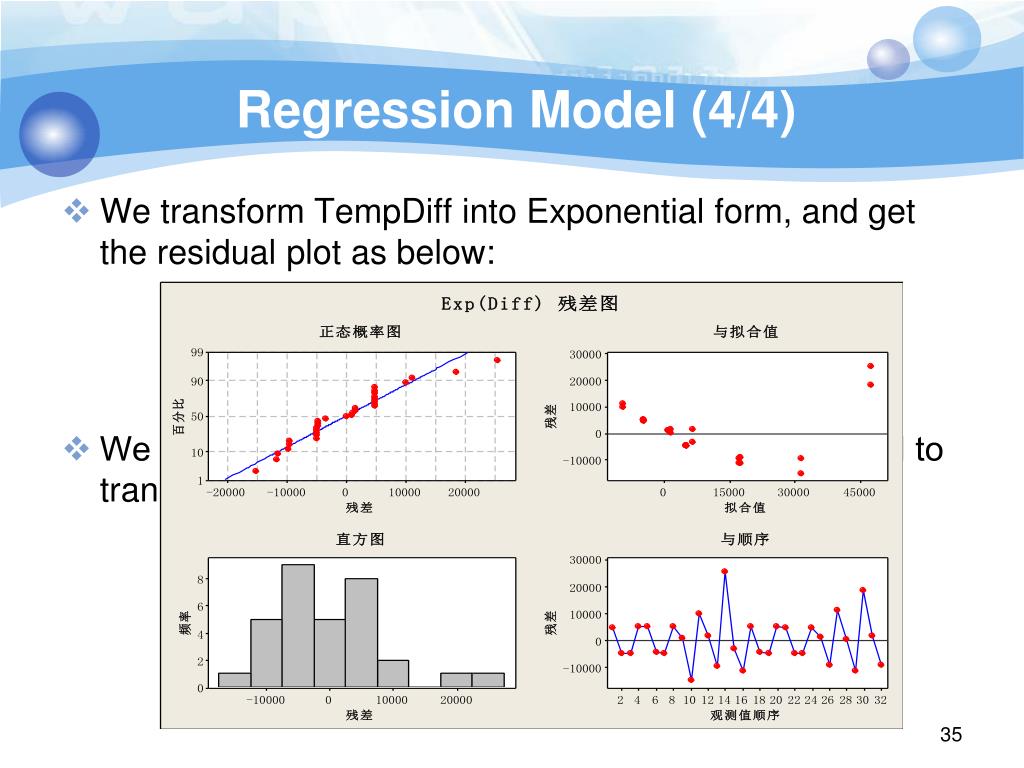

  35. Regression Model (4/4) • We transform TempDiff into Exponential form, and get the residual plot as below: • We see some obvious patterns, we don’t recommend to transform the data in this way.

  36. Results explanations • No ventilation can remarkably maintain the high level of heat preservation. • Materials have main effect of heat preservation as well. • Colors of material have main effect of heat preservation as well. • Thickness of material has less but also main effect of heat preservation as well. • Interaction explanation.

  37. Possible causes • Ventilation-absence condition has the best ability of maintaining heat may result in that heat is lost mostly from the top of the cup, more than from the wall of cup. • White color surprisingly has better ability of maintaining heat. • Heavy cloth has better heat maintaining ability, which corresponds to our intuition. However, layers have less effect.

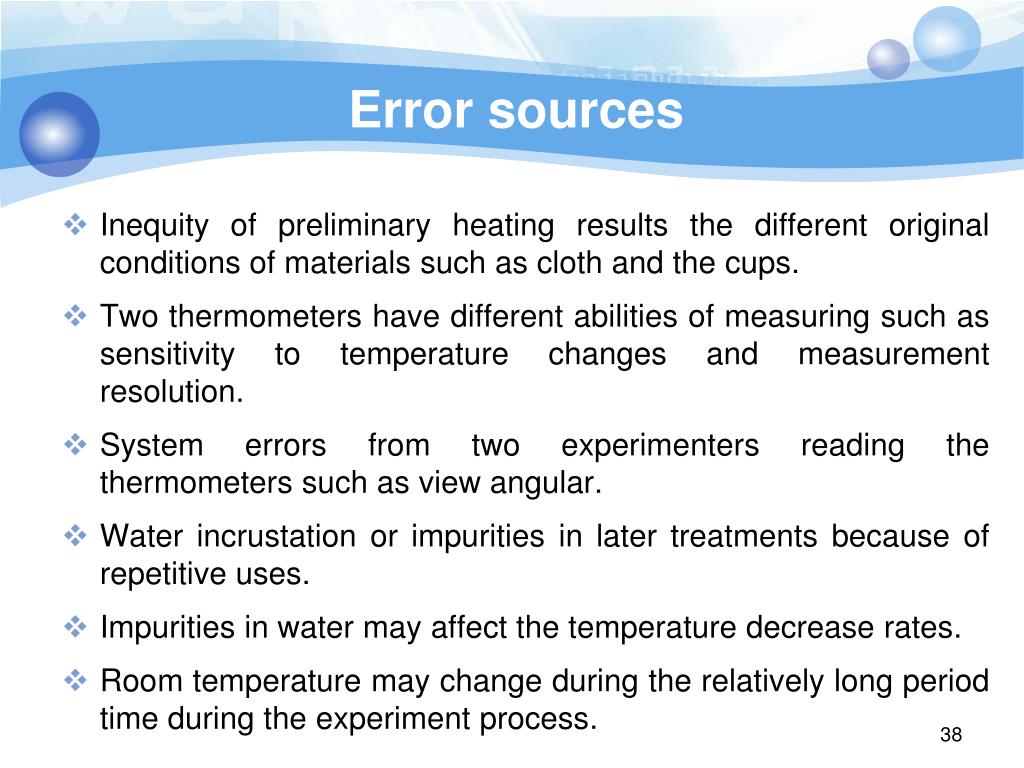

  38. Error sources • Inequity of preliminary heating results the different original conditions of materials such as cloth and the cups. • Two thermometers have different abilities of measuring such as sensitivity to temperature changes and measurement resolution. • System errors from two experimenters reading the thermometers such as view angular. • Water incrustation or impurities in later treatments because of repetitive uses. • Impurities in water may affect the temperature decrease rates. • Room temperature may change during the relatively long period time during the experiment process.

  39. Q & A

  40. Thanks !
