  1. Applied Cryptography in CyberTA Brent Waters Work with Dan Boneh and Amit Sahai

  2. Role of Applied Crypto • Introduce new capabilities • Address needs of Data + Traffic Privacy Crypto Tools Data Privacy Crypto CyberTA problems

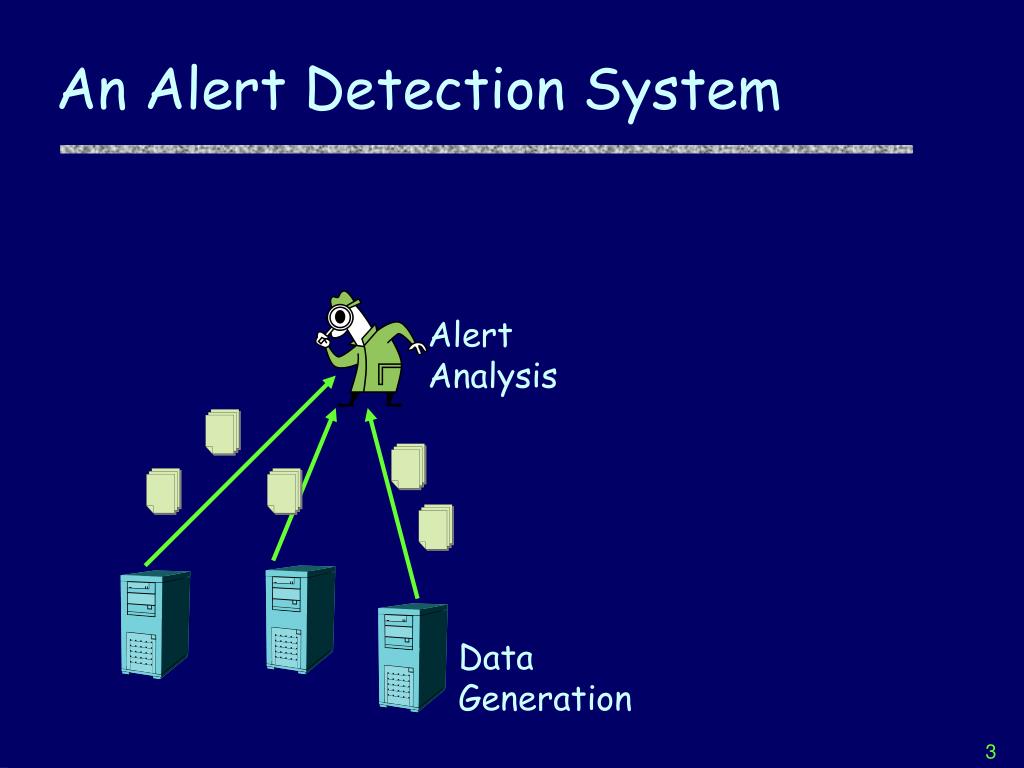

  3. An Alert Detection System Alert Analysis Data Generation

  4. Record TCP Flows Search for exfiltration,… Ignore non-alert entries NetFlow Logs SRC IP         SPORT   DST IP        DPORT   PACKETS BYTES   SECS --------------------------------------------------------------------------------- 131.252.120.0  33587   130.14.24.0     80      2     1002    1 130.39.136.0   4038    137.104.72.0   49662   479    127993   54 157.182.144.0  1138    65.54.128.0     80 3     88      1

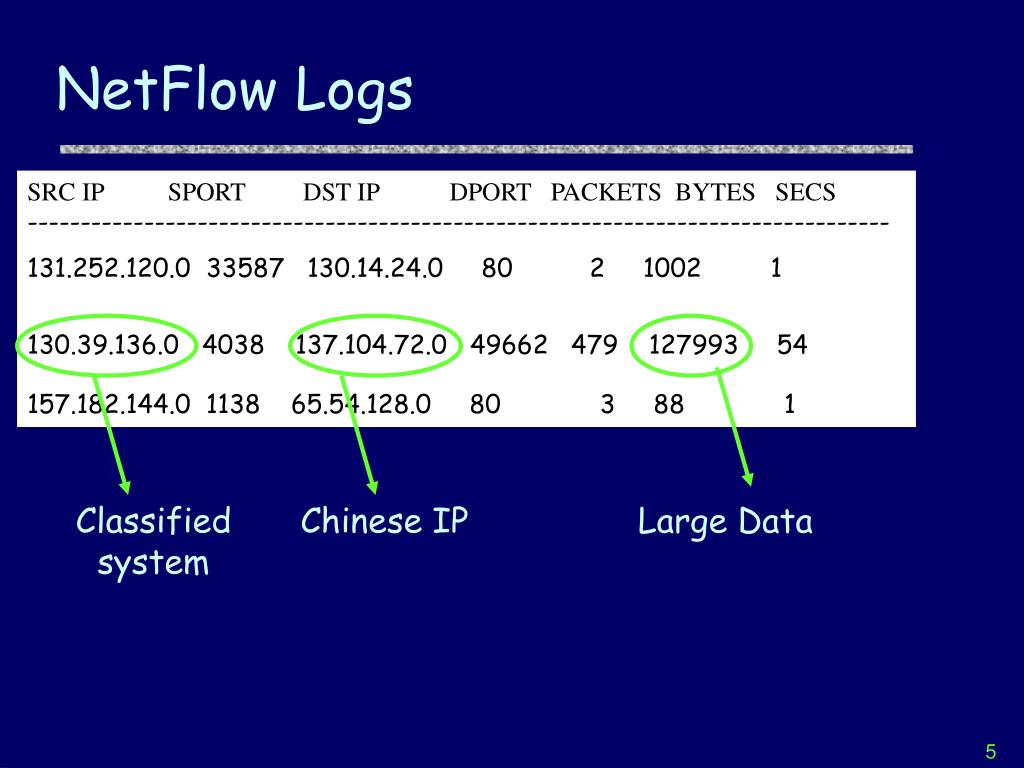

  5. NetFlow Logs SRC IP         SPORT   DST IP        DPORT   PACKETS BYTES   SECS --------------------------------------------------------------------------------- 131.252.120.0  33587   130.14.24.0     80      2     1002    1 130.39.136.0   4038    137.104.72.0   49662   479    127993   54 157.182.144.0  1138    65.54.128.0     80 3     88      1 Classified system Chinese IP Large Data

  6. System Goals • Analyze Abnormal Events • Minimal Disclosure • Simple Data Generation • Flexible Searching Rules

  7. Available Options • Completely Trust Data Collector • Violates Minimal Disclosure • Push Policy to Data Generators • Simplicity • Flexibility, Policy Changes • Conclusion => Need new Mechanism

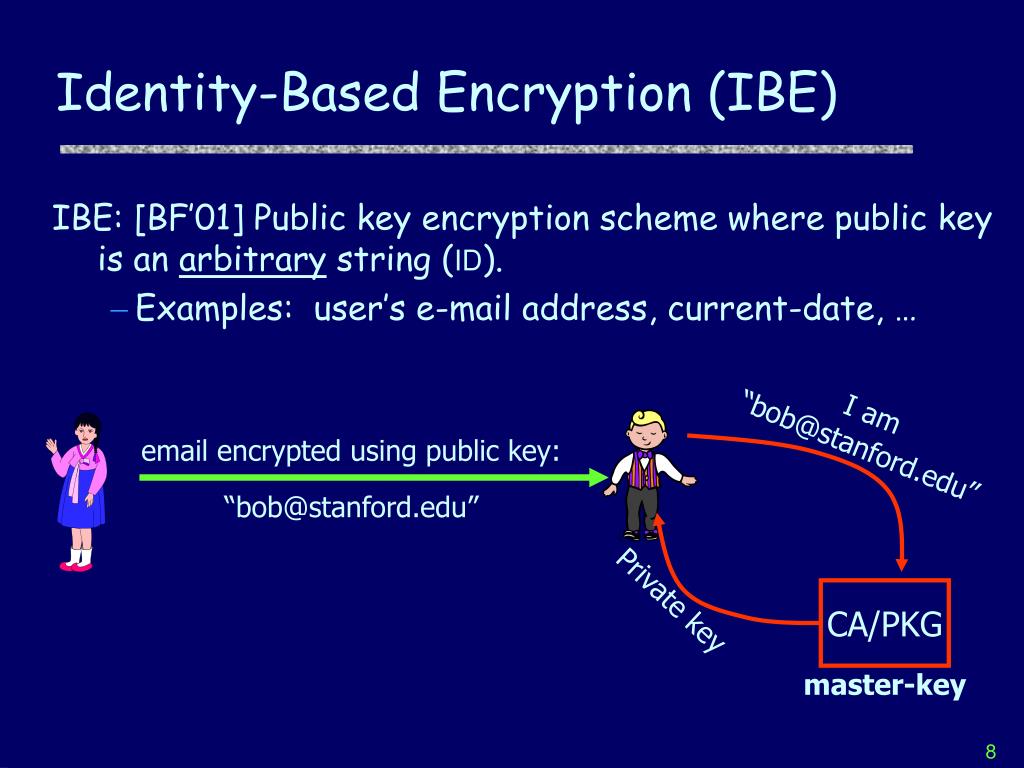

  8. I am“bob@stanford.edu” email encrypted using public key: “bob@stanford.edu” Private key Identity-Based Encryption (IBE) IBE: [BF’01] Public key encryption scheme where public key is an arbitrary string (ID). • Examples: user’s e-mail address, current-date, … CA/PKG master-key

  9. Limitations of IBE • Lack of Expressivity • Just a string • Require Encrypting with Structure • Reflects Application • Build Policy

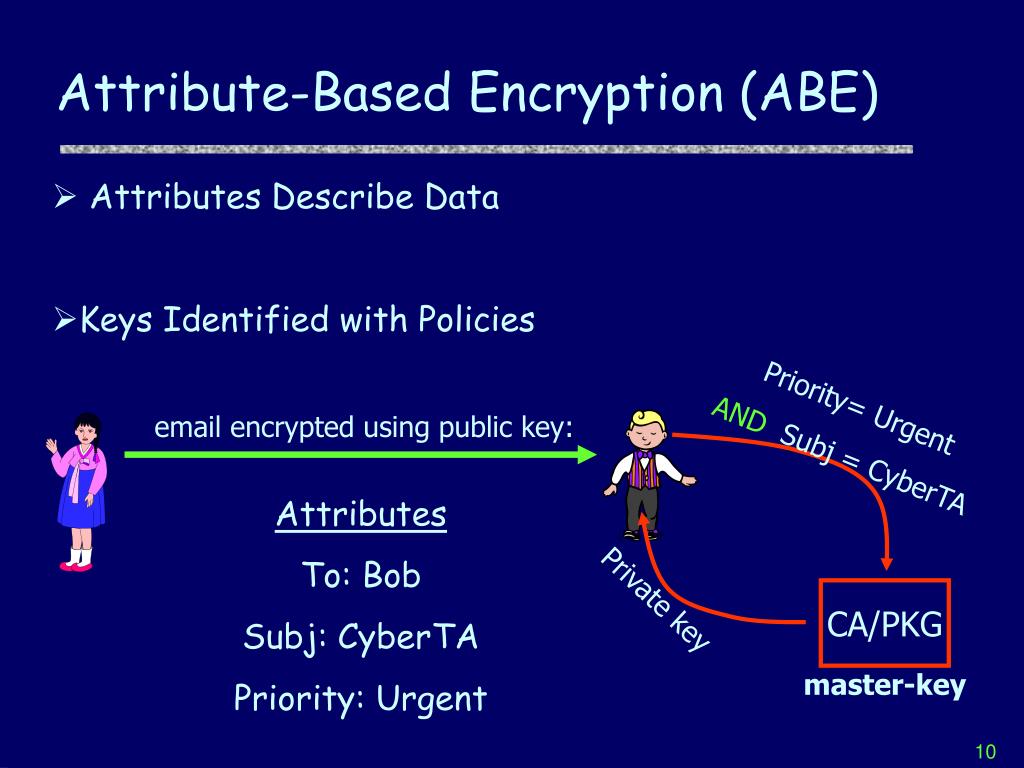

  10. Priority= Urgent AND Subj = CyberTA Private key Attribute-Based Encryption (ABE) • Attributes Describe Data • Keys Identified with Policies email encrypted using public key: Attributes To: Bob Subj: CyberTA Priority: Urgent CA/PKG master-key

  11. ABE Features • Encryption labels data w/ attributes • Simple • Application Aware • Authority gives policy keys • Expressive • Late-Binding

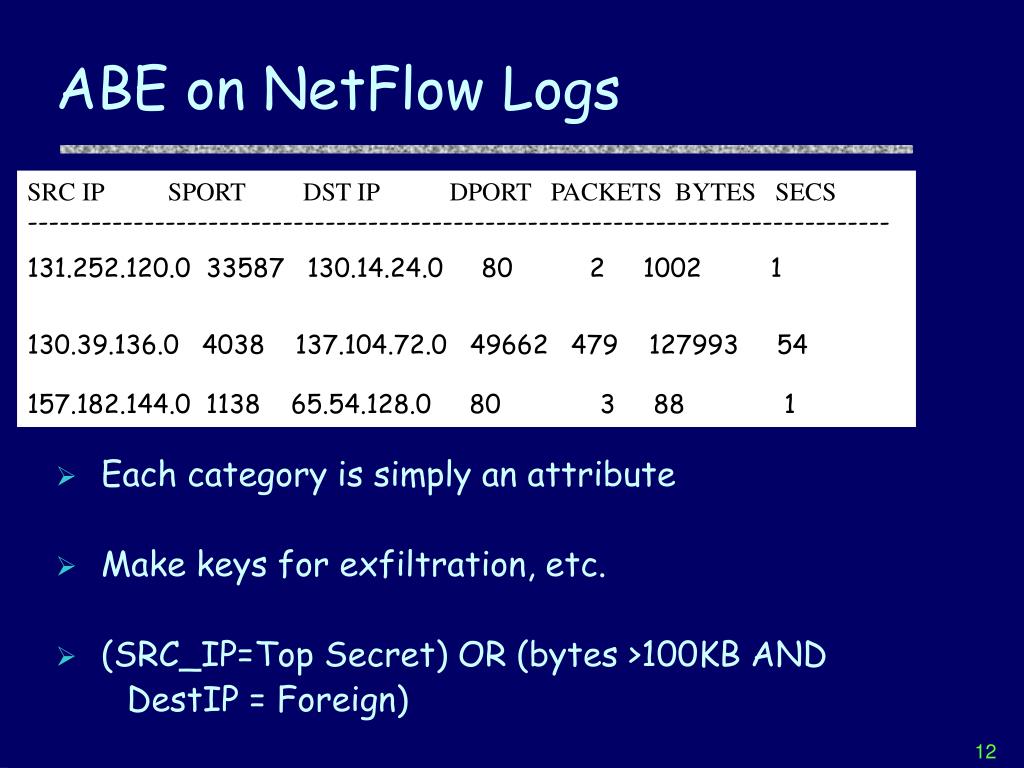

  12. Each category is simply an attribute Make keys for exfiltration, etc. (SRC_IP=Top Secret) OR (bytes >100KB AND DestIP = Foreign) ABE on NetFlow Logs SRC IP         SPORT   DST IP        DPORT   PACKETS BYTES   SECS --------------------------------------------------------------------------------- 131.252.120.0  33587   130.14.24.0     80      2     1002    1 130.39.136.0   4038    137.104.72.0   49662   479    127993   54 157.182.144.0  1138    65.54.128.0     80 3     88      1

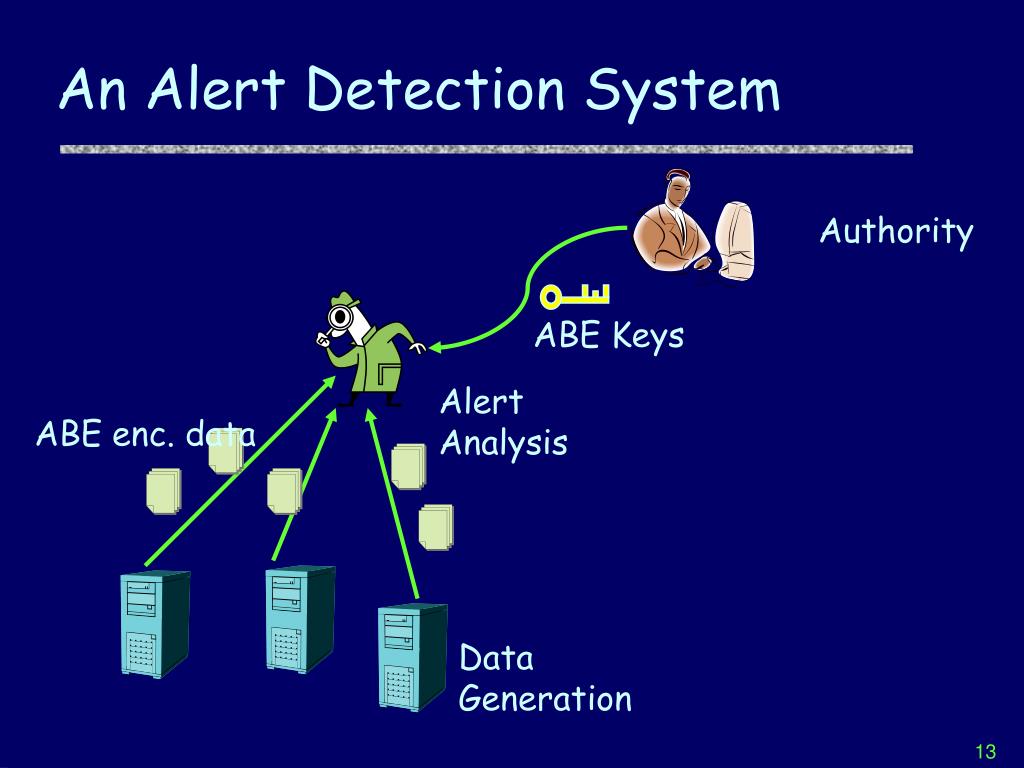

  13. An Alert Detection System Authority ABE Keys Alert Analysis ABE enc. data Data Generation

  14. Progress • Developed ABE Crypto System • Delegation • Efficiency Improvements

  15. Challenges Ahead • Build a “Blinded IDS” • Make an Intermediate Language • E.g. How to Express numbers as attributes • Combine App. Domain Knowledge and Crypto

  16. THE END
