MC 2 : Map Concurrency Characterization for MapReduce on the Cloud

1. MC2: Map Concurrency Characterization for MapReduce on the Cloud Mohammad Hammoud and MajdSakr

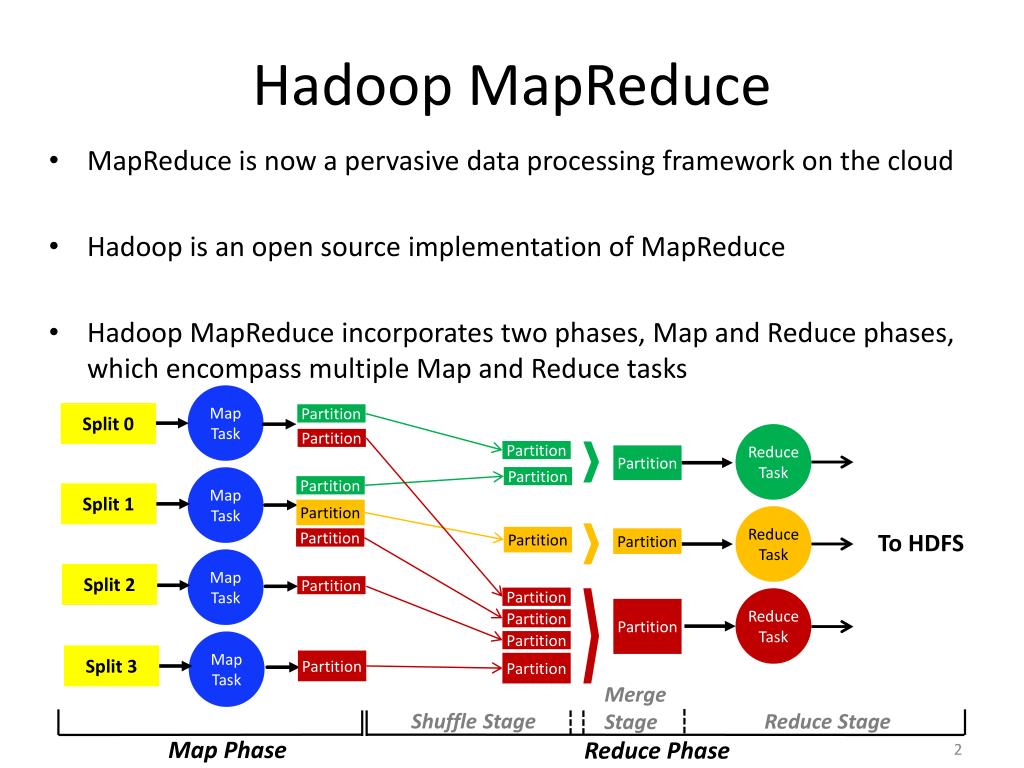

2. HadoopMapReduce • MapReduce is now a pervasive data processing framework on the cloud • Hadoop is an open source implementation of MapReduce • HadoopMapReduce incorporates two phases, Map and Reduce phases, which encompass multiple Map and Reduce tasks Map Task Split 0 HDFS BLK Partition Reduce Task Partition Partition Partition Partition Map Task Partition Split 1 HDFS BLK Dataset Partition Reduce Task To HDFS Partition Partition Partition Map Task Split 2 HDFS BLK HDFS Partition Partition Reduce Task Partition Partition Partition Map Task Split 3 HDFS BLK Partition Partition Merge Stage Shuffle Stage Reduce Stage Map Phase Reduce Phase

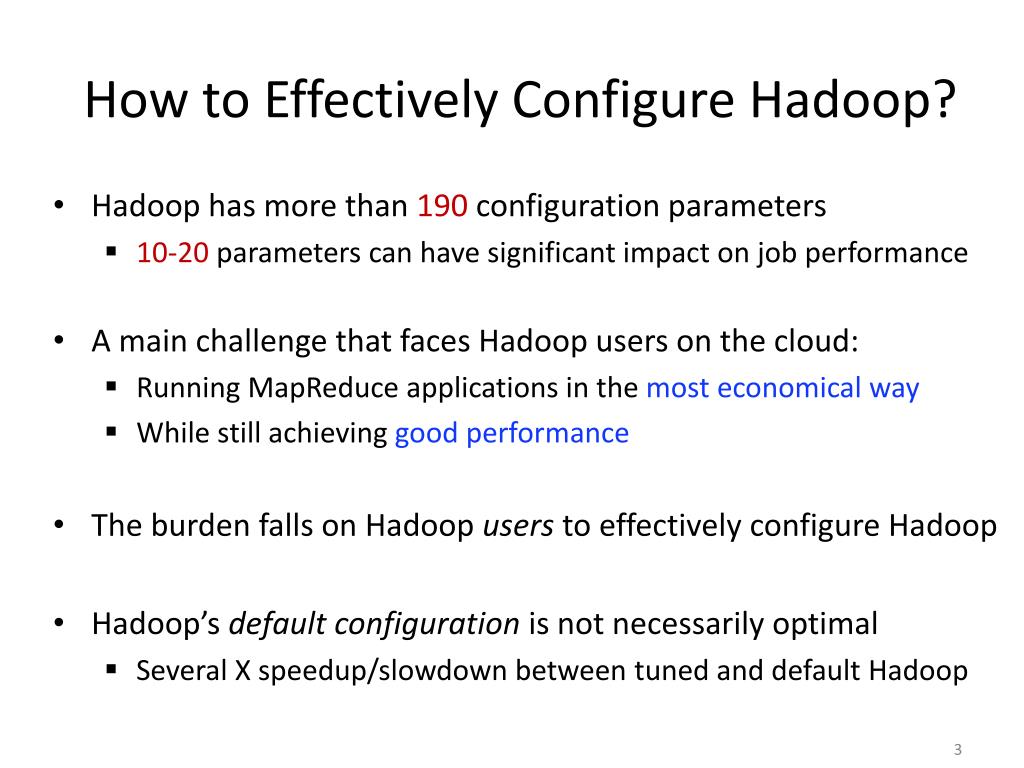

3. How to Effectively Configure Hadoop? • Hadoop has more than 190 configuration parameters • 10-20 parameters can have significant impact on job performance • A main challenge that faces Hadoop users on the cloud: • Running MapReduce applications in the most economical way • While still achieving good performance • The burden falls on Hadoop users to effectively configure Hadoop • Hadoop’sdefault configuration is not necessarily optimal • Several X speedup/slowdown between tuned and default Hadoop

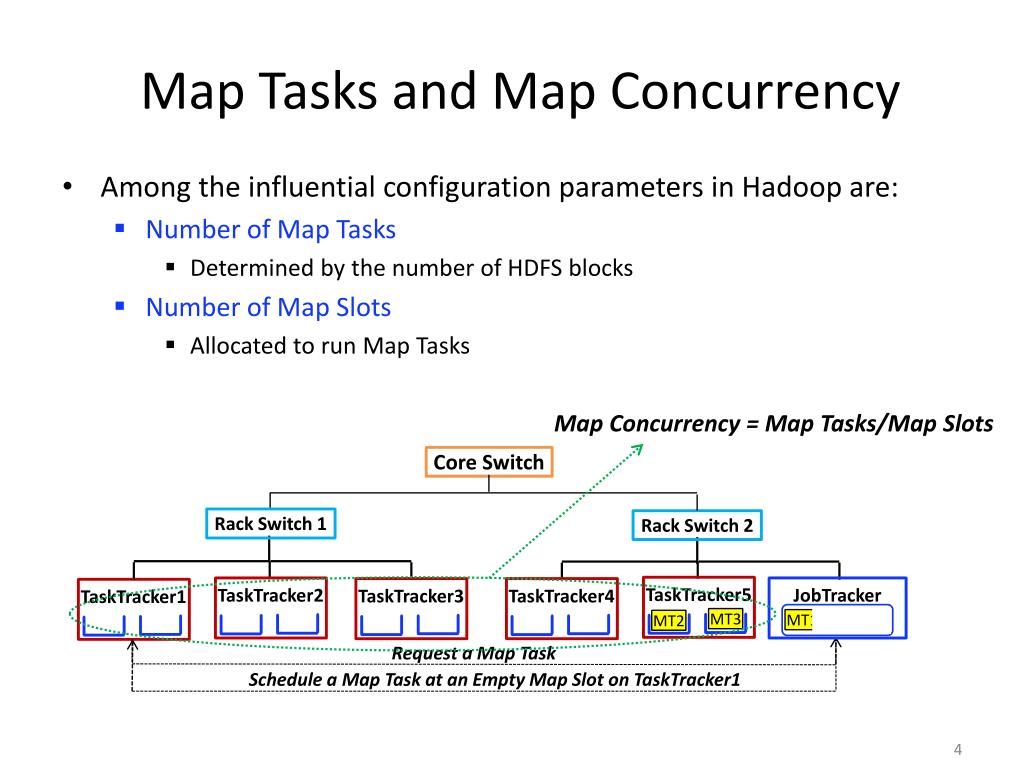

4. Map Tasks and Map Concurrency • Among the influential configuration parameters in Hadoop are: • Number of Map Tasks • Determined by the number of HDFS blocks • Number of Map Slots • Allocated to run Map Tasks Map Concurrency = Map Tasks/Map Slots Core Switch Rack Switch 1 Rack Switch 2 TaskTracker5 TaskTracker2 JobTracker TaskTracker3 TaskTracker4 TaskTracker1 MT3 MT3 MT1 MT2 MT2 Request a Map Task Schedule a Map Task at an Empty Map Slot on TaskTracker1

5. Impact of Map Concurrency Tuned Hadoop Default Hadoop • Observations: • Map concurrency has a strong impact on Hadoopperformance • Hadoop’s default Map concurrency settings are not optimal • For effective execution, Hadoop might require different Map concurrencies for different applications WordCount-CD Sobel K-Means Sort

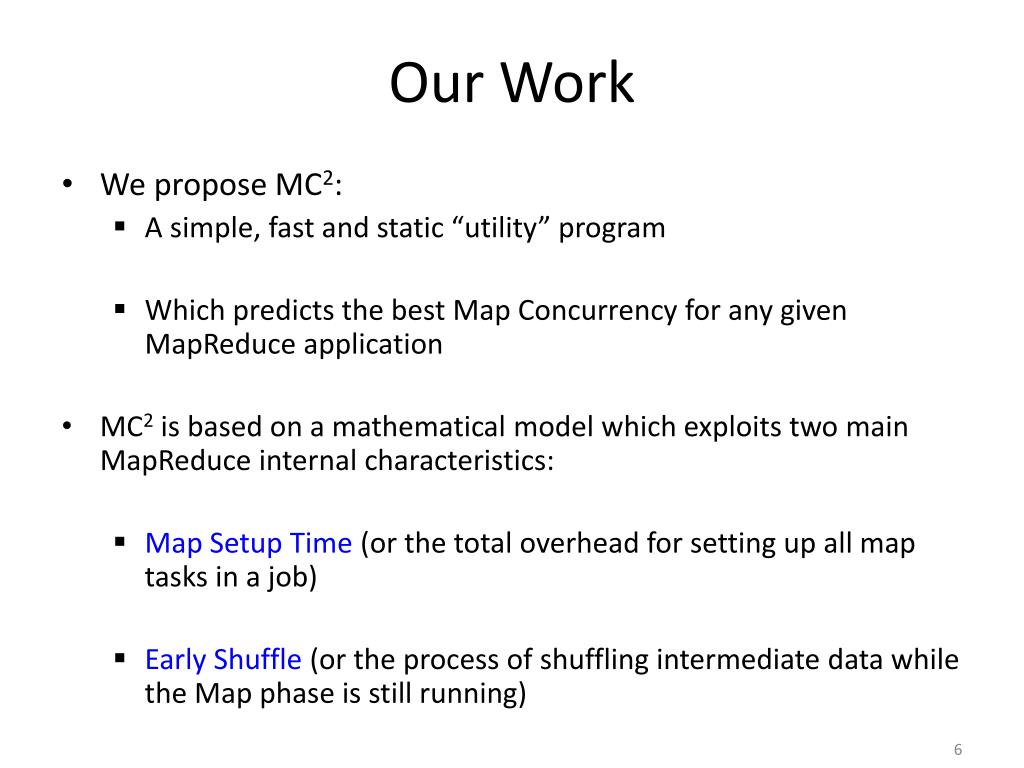

6. Our Work • We propose MC2: • A simple, fast and static “utility” program • Which predicts the best Map Concurrency for any given MapReduce application • MC2 is based on a mathematical model which exploits two main MapReduce internal characteristics: • Map Setup Time (or the total overhead for setting up all map tasks in a job) • Early Shuffle (or the process of shuffling intermediate data while the Map phase is still running)

7. Talk Roadmap • Characterizing Map Concurrency • Map Concurrency ≤ 1 • Map Concurrency > 1 • A Mathematical Model for Predicting Runtimes of MR jobs • The MC2 Predictor • Quantitative Evaluation • Concluding Remarks

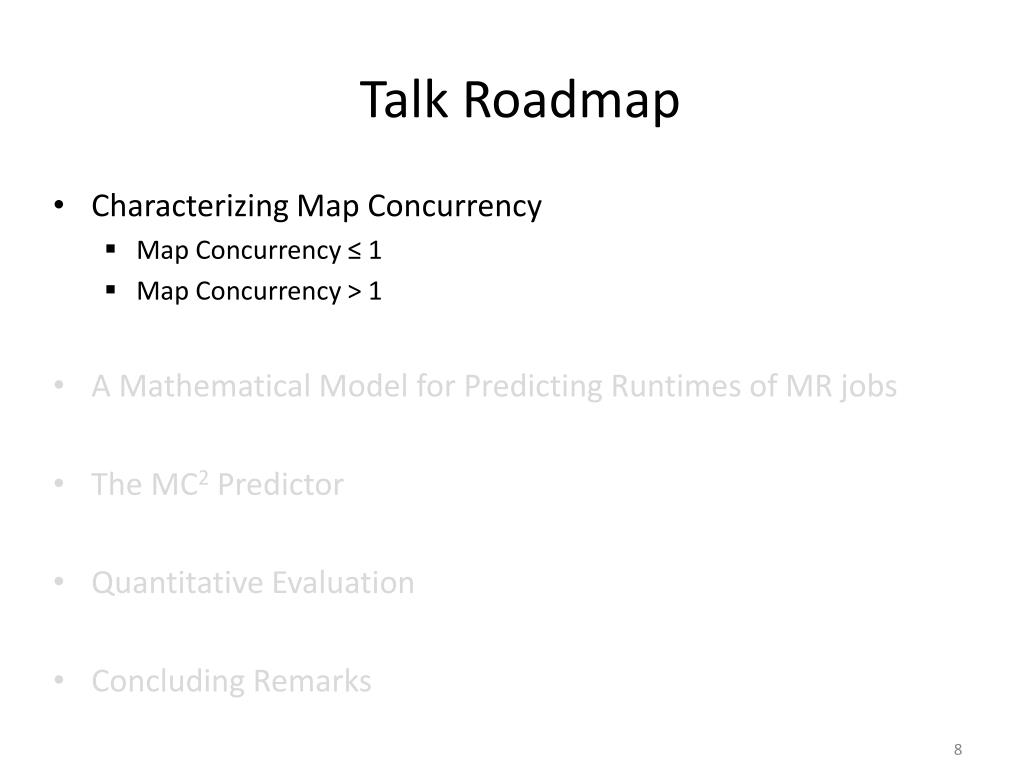

8. Talk Roadmap • Characterizing Map Concurrency • Map Concurrency ≤ 1 • Map Concurrency > 1 • A Mathematical Model for Predicting Runtimes of MR jobs • The MC2 Predictor • Quantitative Evaluation • Concluding Remarks

9. Concurrency with a Single Map Wave • The maximum number of concurrent Map tasks is bound by the total number of Map slots in a Hadoop cluster • We refer to the maximum concurrent Map tasks as Map Wave MST = Map Setup Time MST 2MST t/4 + t/4 = t/2 t/2 t MS1 MS1 MS1 MS2 MS2 MS2 MS3 MS3 MS3 MT4 MS4 MS4 MS4 MT3 MT1 MS5 MS5 MS5 MT1 MT2 MS6 MS6 MS6 MT2 Ends at time t/2 + 2MST Ends at time t + MST Ends at time t/2 + MST • Fill as much Map slots as possible within a Map wave • More Parallelism & Better Utilization

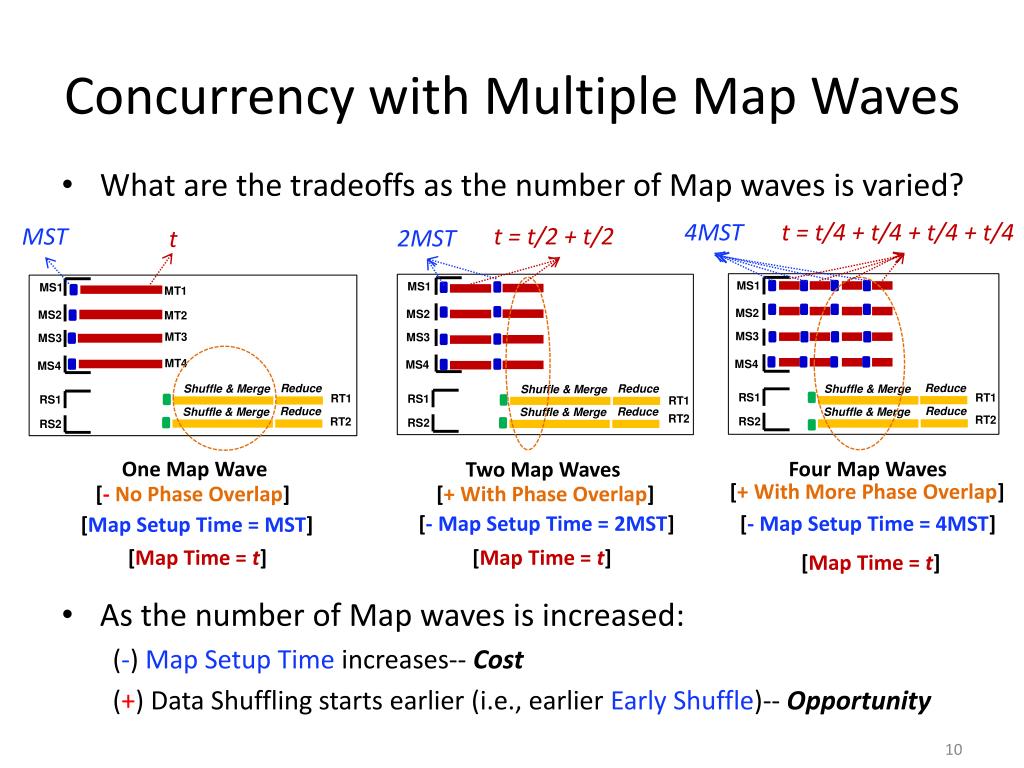

10. Concurrency with Multiple Map Waves • What are the tradeoffs as the number of Map waves is varied? 4MST t = t/4 + t/4 + t/4 + t/4 t = t/2 + t/2 MST 2MST t MS1 MS1 MS1 MT1 MS2 MS2 MS2 MT2 MS3 MT3 MS3 MS3 MT4 MS4 MS4 MS4 Reduce Reduce Reduce Shuffle & Merge Shuffle & Merge Shuffle & Merge RS1 RT1 RT1 RS1 RS1 RT1 Reduce Reduce Reduce Shuffle & Merge Shuffle & Merge Shuffle & Merge RT2 RT2 RS2 RT2 RS2 RS2 One Map Wave Four Map Waves Two Map Waves [+ With More Phase Overlap] [-No Phase Overlap] [+ With Phase Overlap] [- Map Setup Time = 2MST] [- Map Setup Time = 4MST] [Map Setup Time =MST] [Map Time = t] [Map Time = t] [Map Time = t] • As the number of Map waves is increased: (-) Map Setup Time increases--Cost (+) Data Shuffling starts earlier (i.e., earlierEarly Shuffle)-- Opportunity

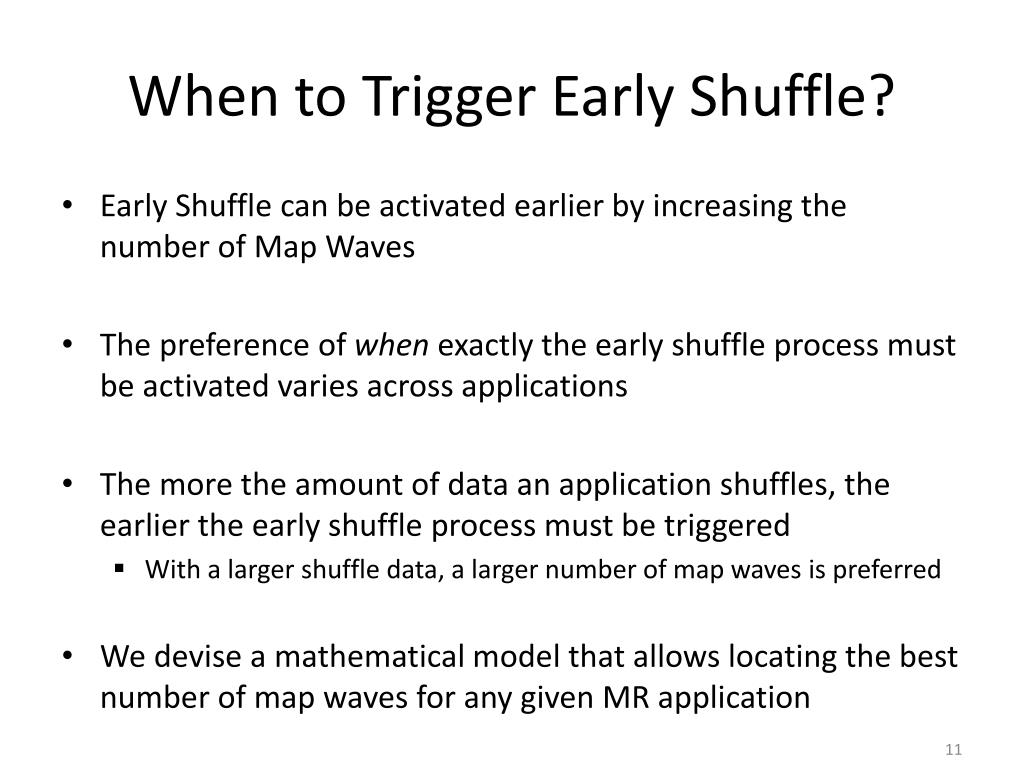

11. When to Trigger Early Shuffle? • Early Shuffle can be activated earlier by increasing the number of Map Waves • The preference of when exactly the early shuffle process must be activated varies across applications • The more the amount of data an application shuffles, the earlier the early shuffle process must be triggered • With a larger shuffle data, a larger number of map waves is preferred • We devise a mathematical model that allows locating the best number of map waves for any given MR application

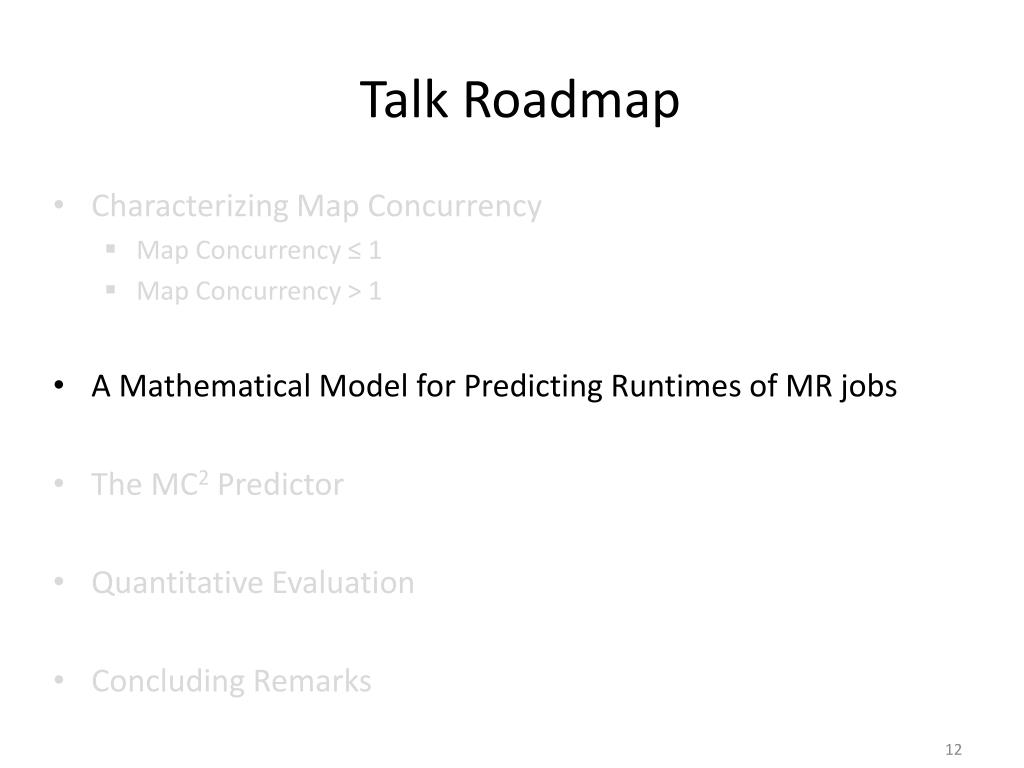

12. Talk Roadmap • Characterizing Map Concurrency • Map Concurrency ≤ 1 • Map Concurrency > 1 • A Mathematical Model for Predicting Runtimes of MR jobs • The MC2 Predictor • Quantitative Evaluation • Concluding Remarks

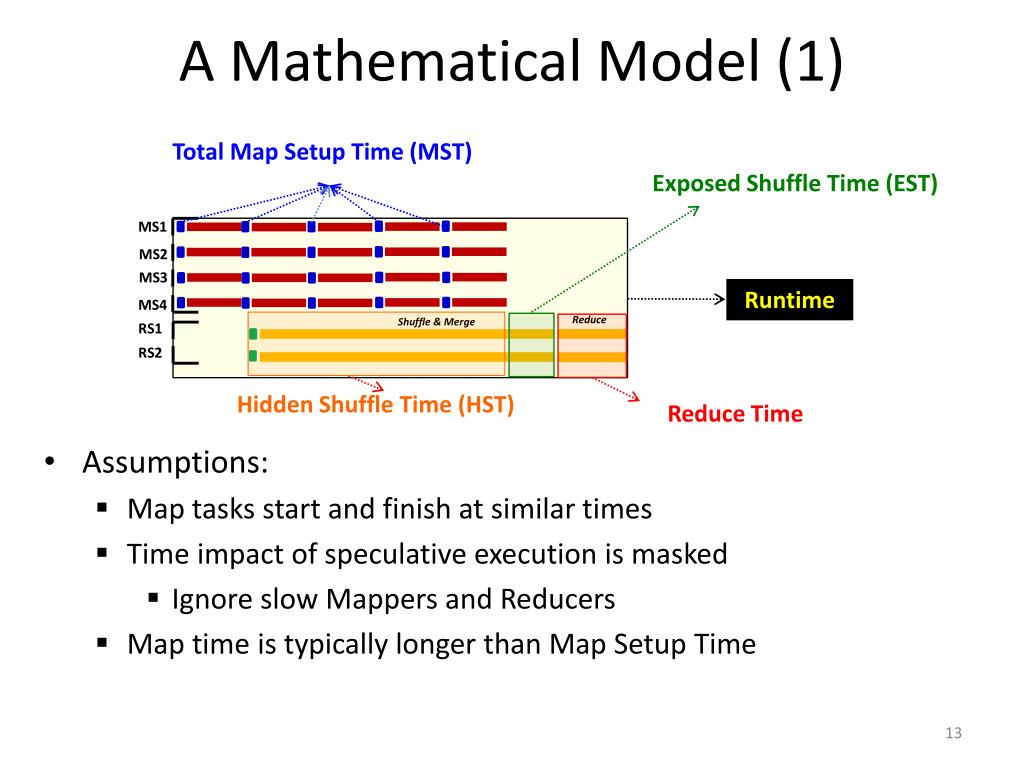

13. A Mathematical Model (1) Total Map Setup Time (MST) Exposed Shuffle Time (EST) MS1 MS2 MS3 Runtime MS4 Reduce Shuffle & Merge RS1 RS2 Hidden Shuffle Time (HST) Reduce Time • Assumptions: • Map tasks start and finish at similar times • Time impact of speculative execution is masked • Ignore slow Mappers and Reducers • Map time is typically longer than Map Setup Time

14. A Mathematical Model (2) Total Map Setup Time (MST) Exposed Shuffle Time (EST) MS1 MS2 MS3 Runtime MS4 Reduce Shuffle & Merge RS1 RS2 Hidden Shuffle Time (HST) Reduce Time (1) (2) (3) (4)

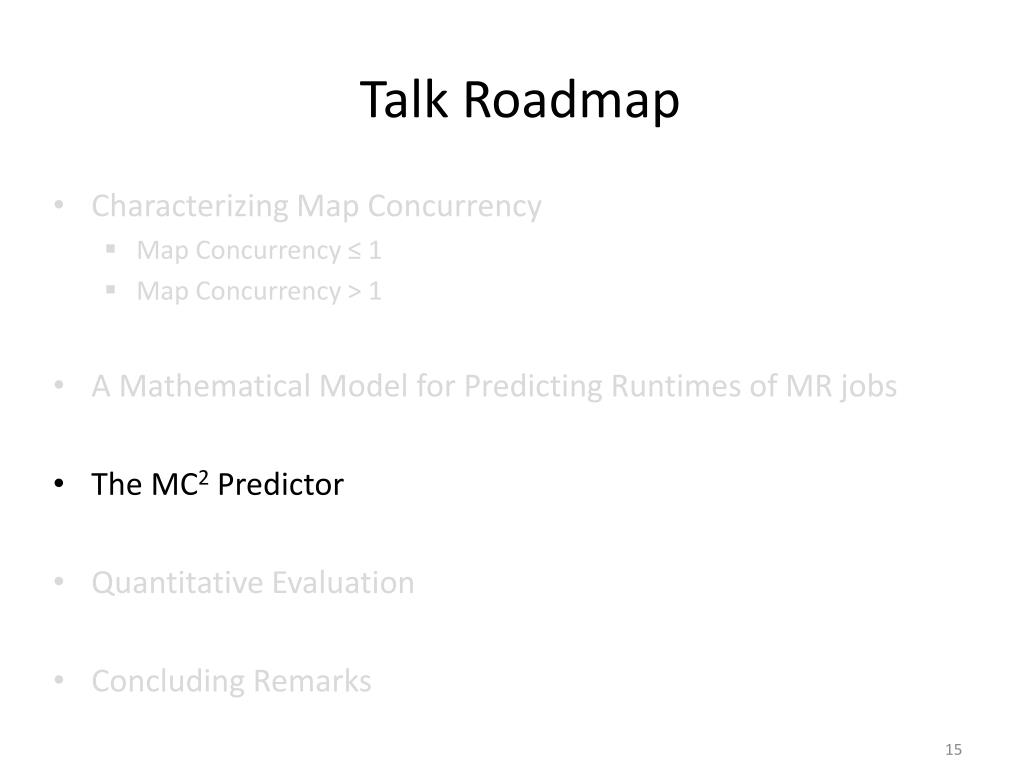

15. Talk Roadmap • Characterizing Map Concurrency • Map Concurrency ≤ 1 • Map Concurrency > 1 • A Mathematical Model for Predicting Runtimes of MR jobs • The MC2 Predictor • Quantitative Evaluation • Concluding Remarks

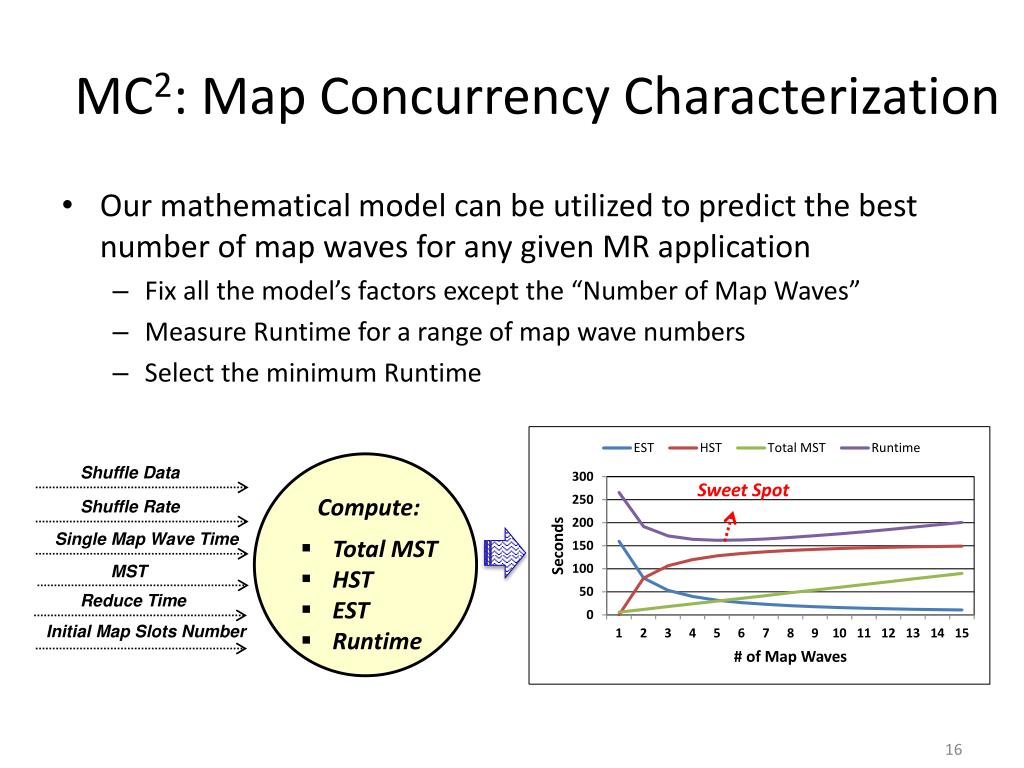

16. MC2: Map Concurrency Characterization • Our mathematical model can be utilized to predict the best number of map waves for any given MR application • Fix all the model’s factors except the “Number of Map Waves” • Measure Runtime for a range of map wave numbers • Select the minimum Runtime Shuffle Data Sweet Spot Compute: Shuffle Rate Single Map Wave Time • Total MST • HST • EST • Runtime MST Reduce Time Initial Map Slots Number

17. Talk Roadmap • Characterizing Map Concurrency • Map Concurrency ≤ 1 • Map Concurrency > 1 • A Mathematical Model for Predicting Runtimes of MR jobs • The MC2 Predictor • Quantitative Evaluation • Concluding Remarks

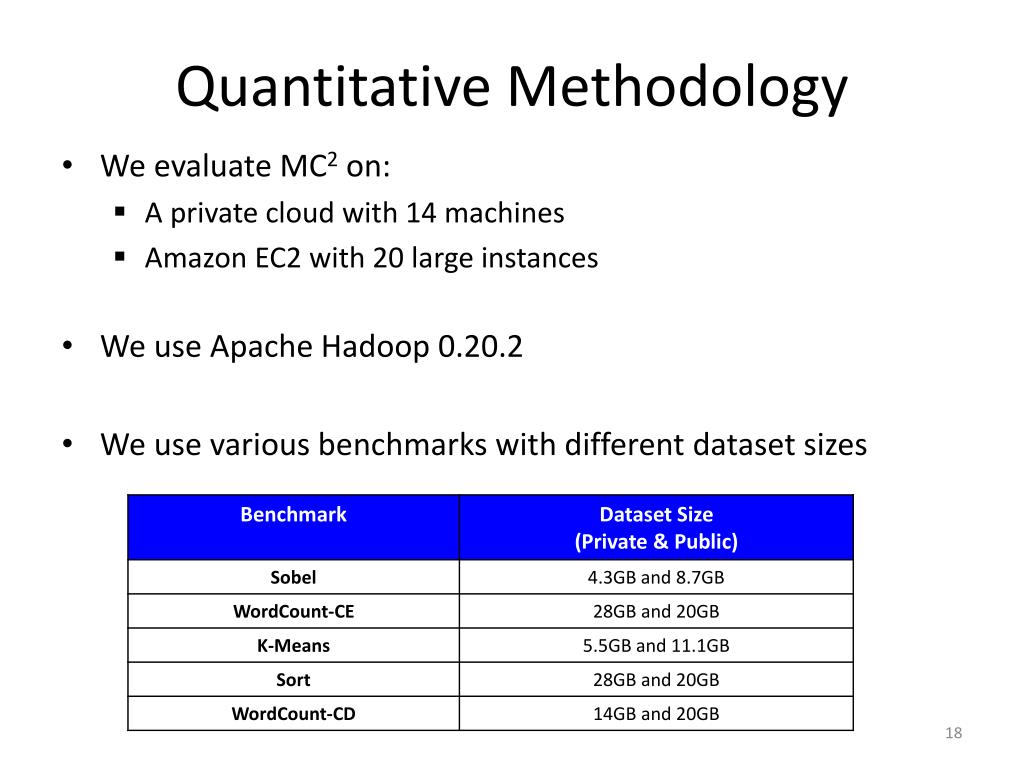

18. Quantitative Methodology • We evaluate MC2 on: • A private cloud with 14 machines • Amazon EC2 with 20 large instances • We use Apache Hadoop 0.20.2 • We use various benchmarks with different dataset sizes

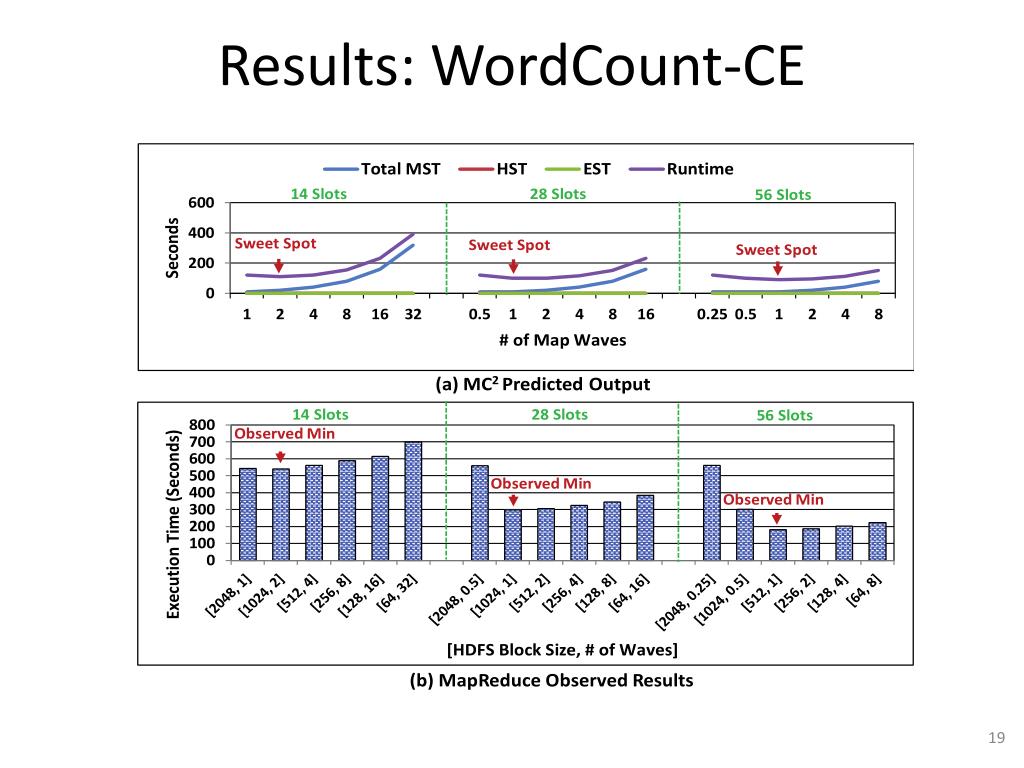

19. Results: WordCount-CE

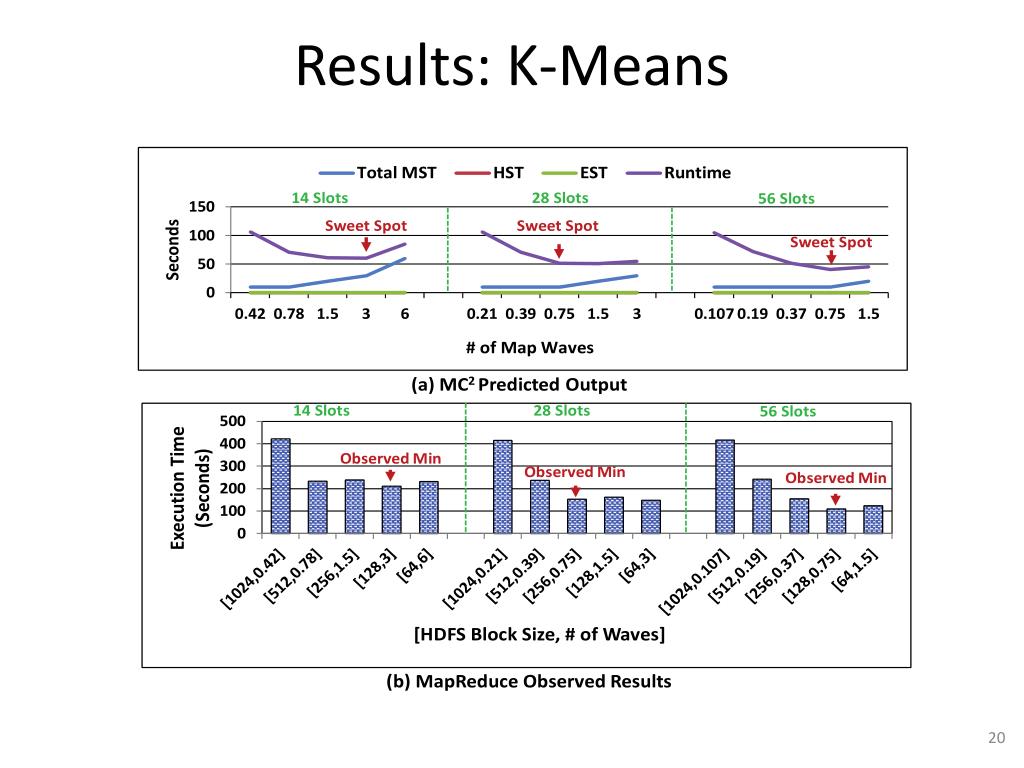

20. Results: K-Means

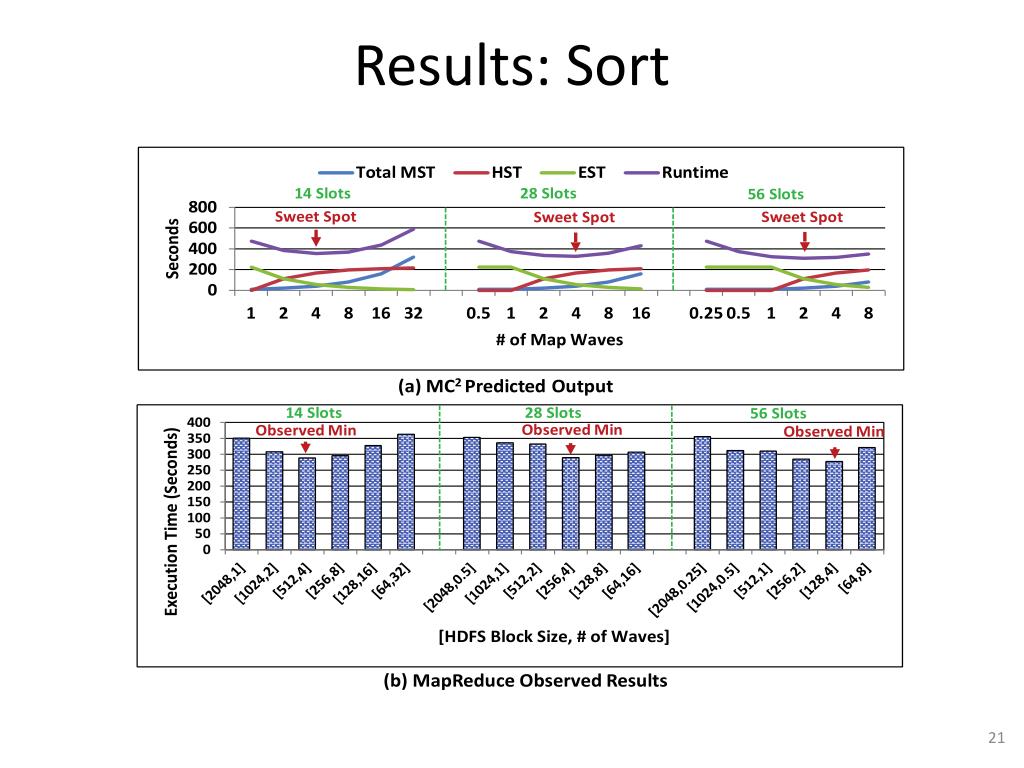

21. Results: Sort

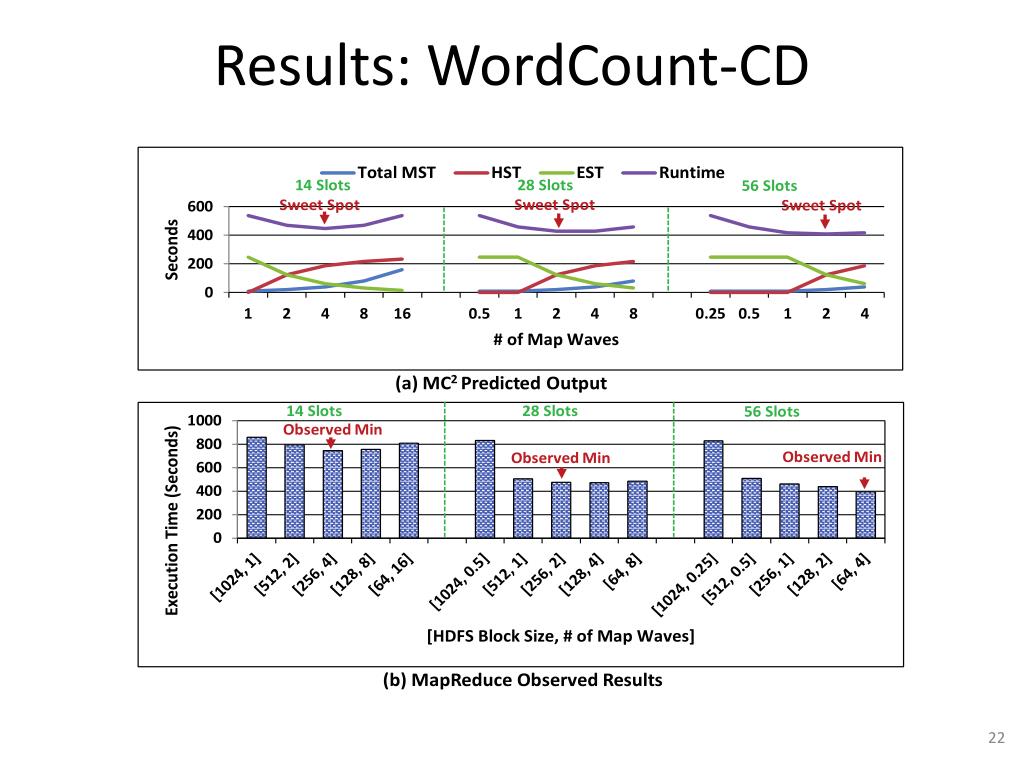

22. Results: WordCount-CD

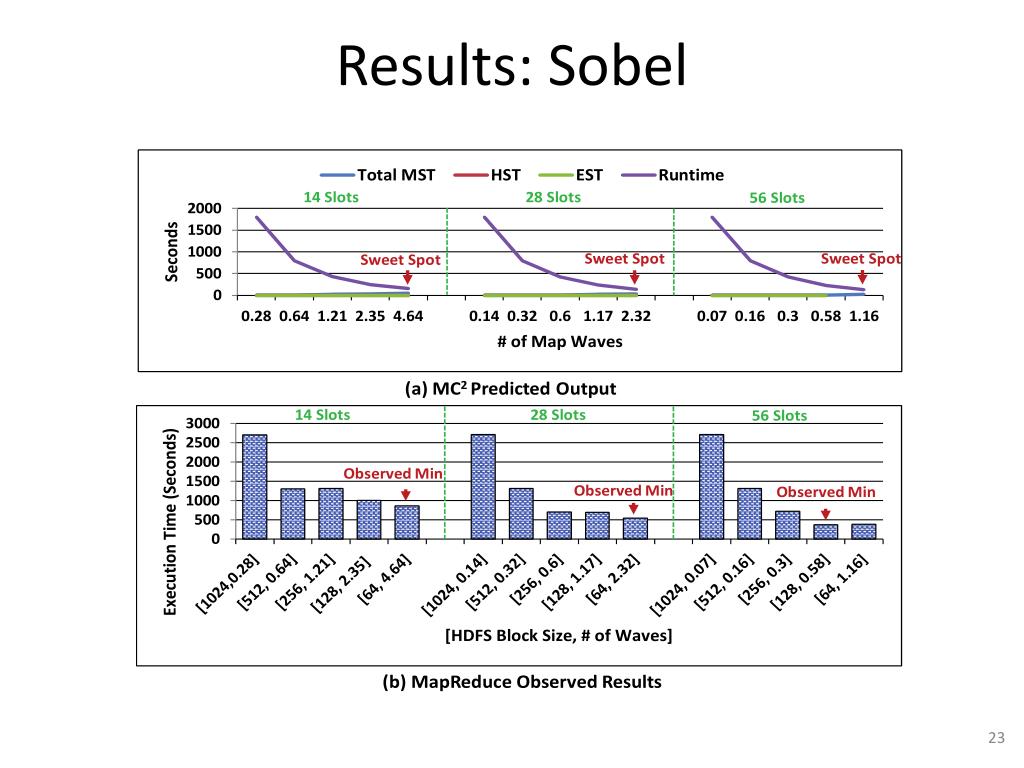

23. Results: Sobel

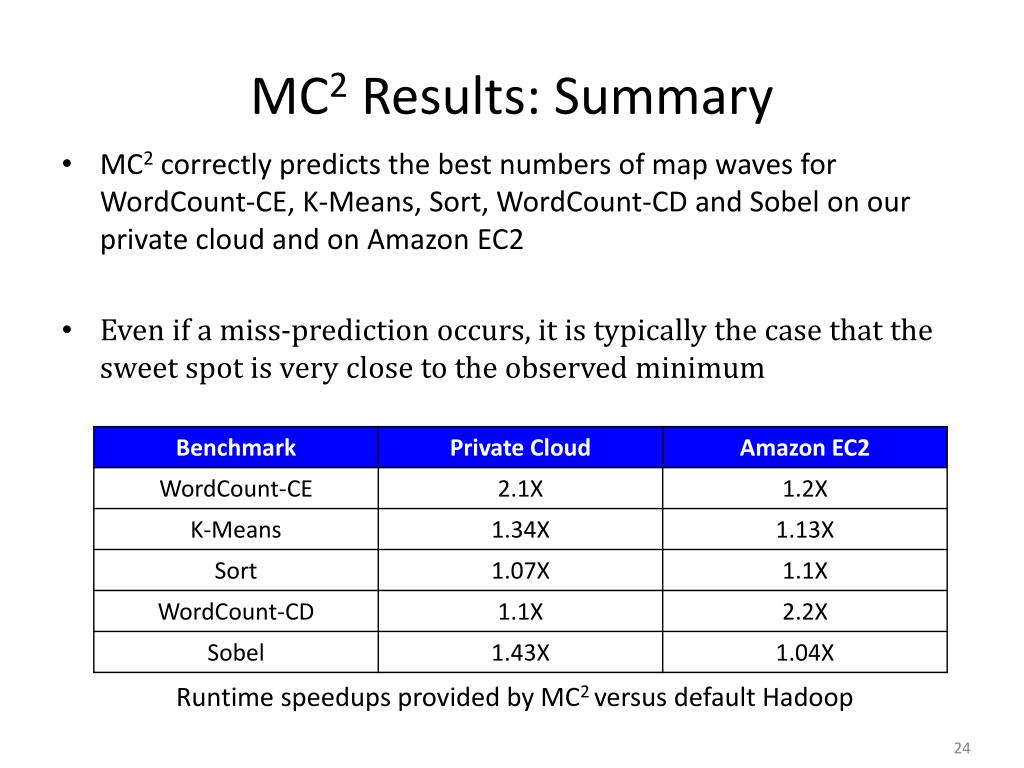

24. MC2 Results: Summary • MC2 correctly predicts the best numbers of map waves for WordCount-CE, K-Means, Sort, WordCount-CD and Sobel on our private cloud and on Amazon EC2 • Even if a miss-prediction occurs, it is typically the case that the sweet spot is very close to the observed minimum Runtime speedups provided by MC2 versus default Hadoop

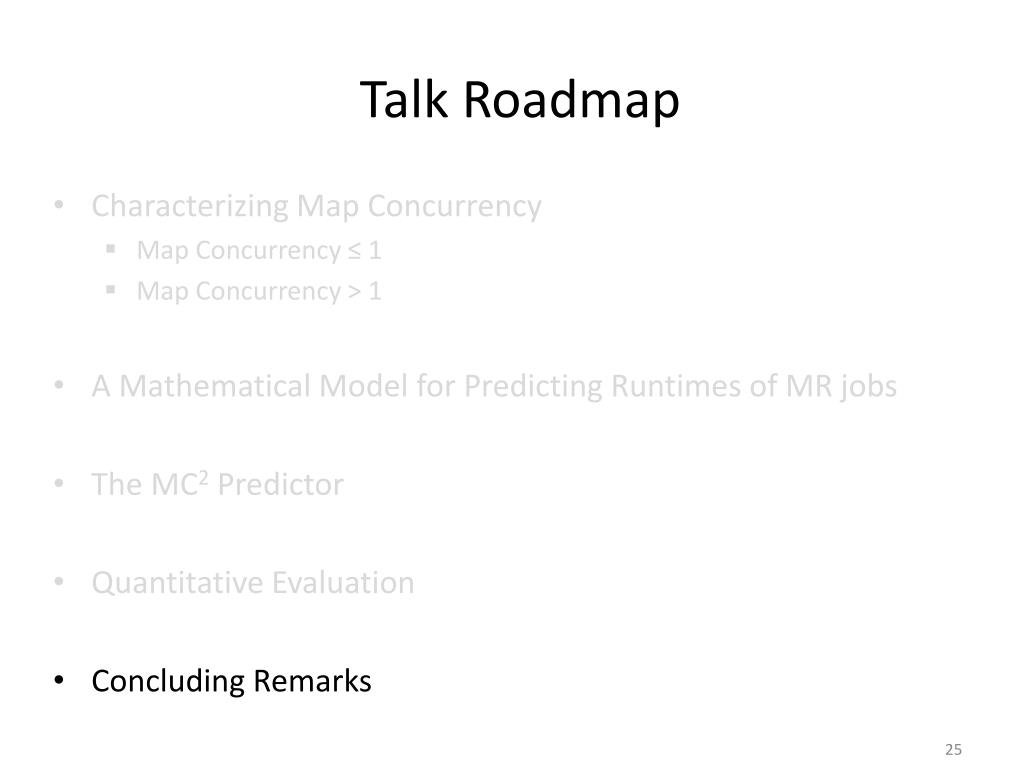

25. Talk Roadmap • Characterizing Map Concurrency • Map Concurrency ≤ 1 • Map Concurrency > 1 • A Mathematical Model for Predicting Runtimes of MR jobs • The MC2 Predictor • Quantitative Evaluation • Concluding Remarks

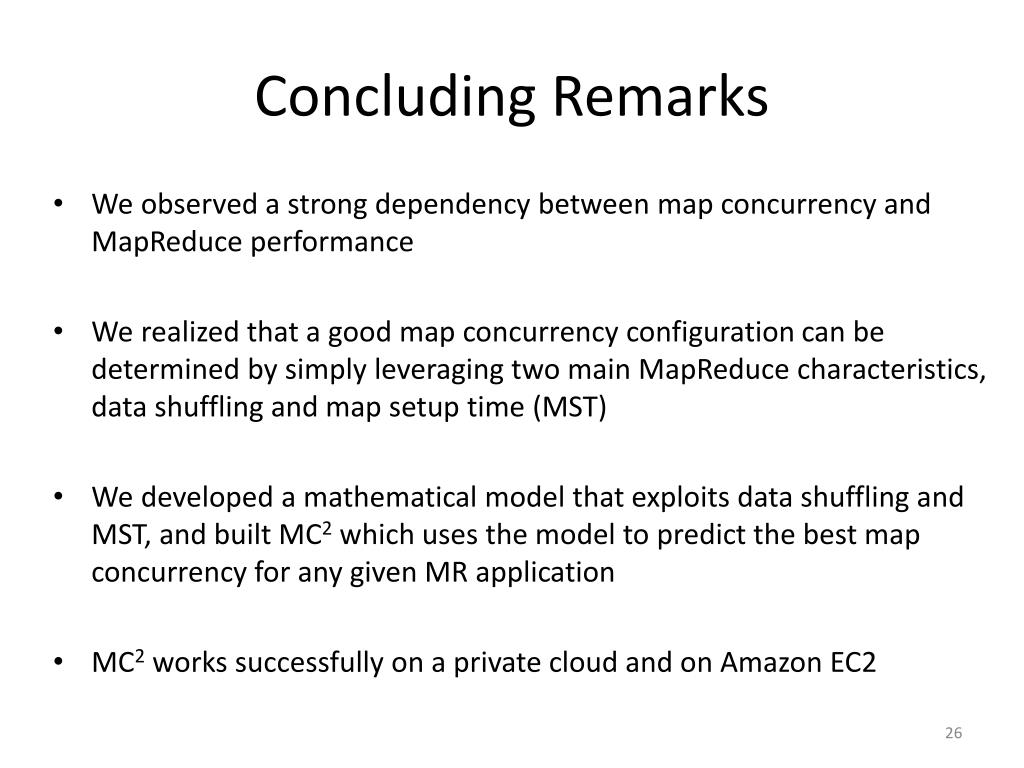

26. Concluding Remarks • We observed a strong dependency between map concurrency and MapReduce performance • We realized that a good map concurrency configuration can be determined by simply leveraging two main MapReduce characteristics, data shuffling and map setup time (MST) • We developed a mathematical model that exploits data shuffling and MST, and built MC2 which uses the model to predict the best map concurrency for any given MR application • MC2 works successfully on a private cloud and on Amazon EC2

27. Thank You! Questions?
