  1. SG Communications Overview Matt Gillmore 02/27/2012

  2. SG Boot Camp Agenda SG Communications structure within UCAiug Overview of this weeks meeting schedule Overview of SG-Network Walkthrough of SG-Networks work Requirements Architecture reference diagram System Requirements Specification overview

  3. Open SG Organization

  4. SG Communications Agenda

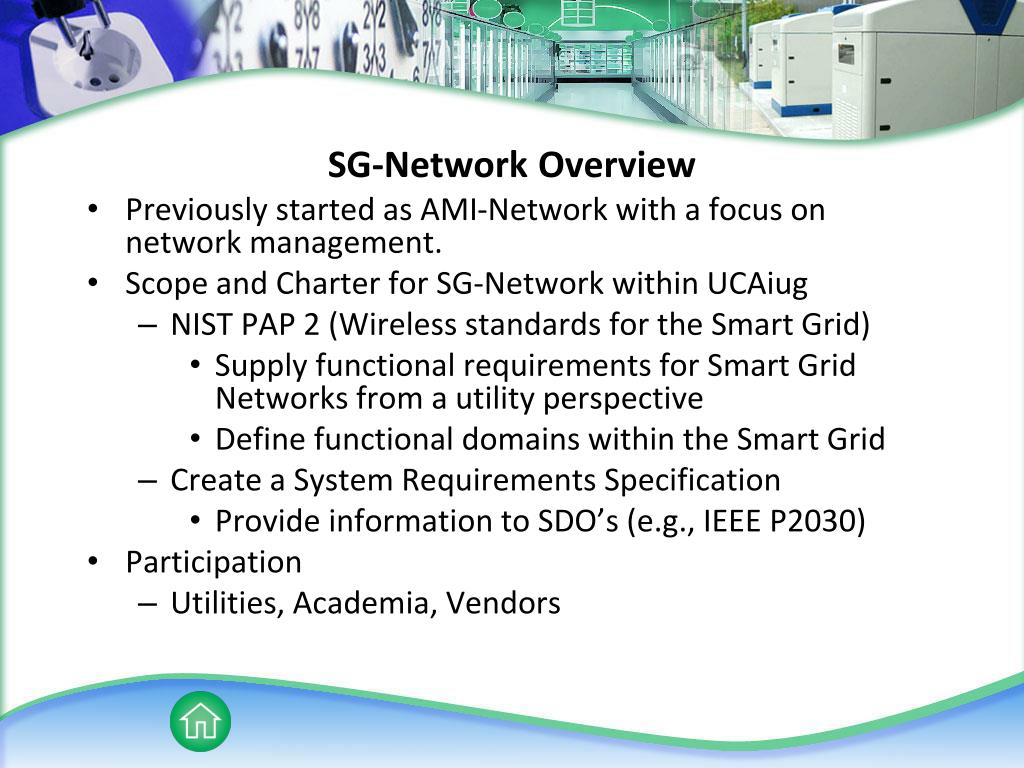

  5. SG-Network Overview Previously started as AMI-Network with a focus on network management. Scope and Charter for SG-Network within UCAiug NIST PAP 2 (Wireless standards for the Smart Grid) Supply functional requirements for Smart Grid Networks from a utility perspective Define functional domains within the Smart Grid Create a System Requirements Specification Provide information to SDO’s (e.g., IEEE P2030) Participation Utilities, Academia, Vendors

  6. SG-Network Overview Continued Deliverables Communications Requirements Latency, How Often, Payload size, etc Database for using the requirements System Requirements Specification Pulls all of the work together Reference Architecture Diagram

  7. SG-Network Output Progress to date: System Requirements Specification V5 complete Key stats: 19 payload-groupings (usecases) 204 payloads 500 payload-parent-sets 7877 requirement rows (including parents and 2 rows flagged for deletion) Database matches requirements capture from SRS V5

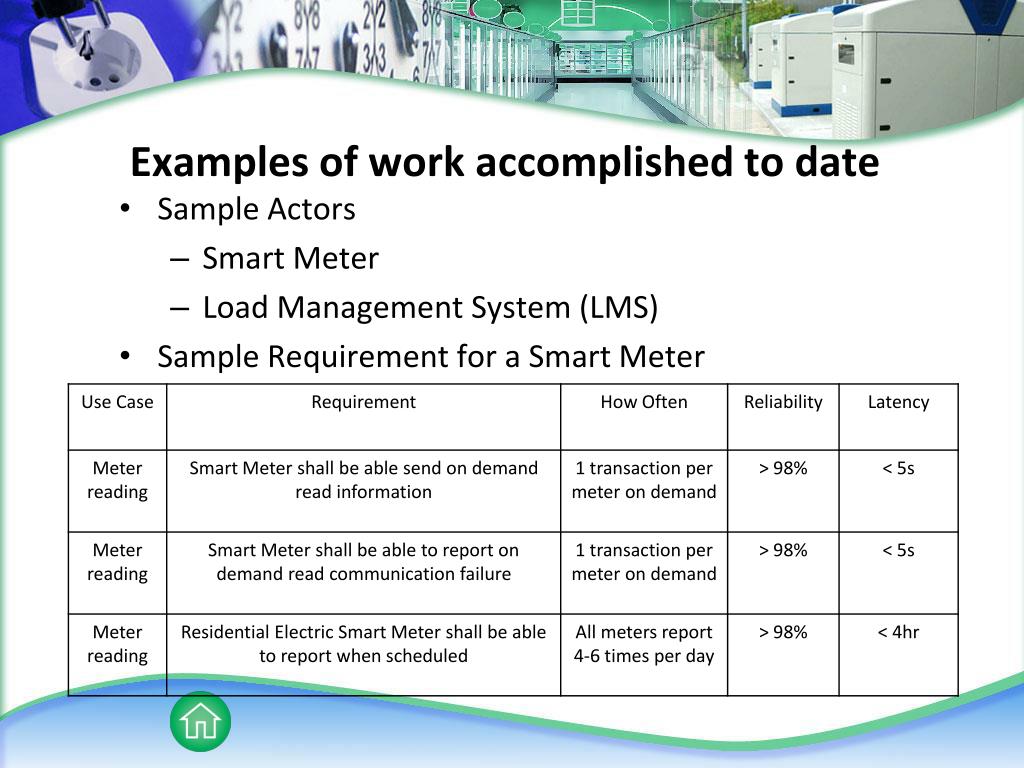

  8. Examples of work accomplished to date Sample Actors Smart Meter Load Management System (LMS) Sample Requirement for a Smart Meter

  9. NIST Conceptual Model

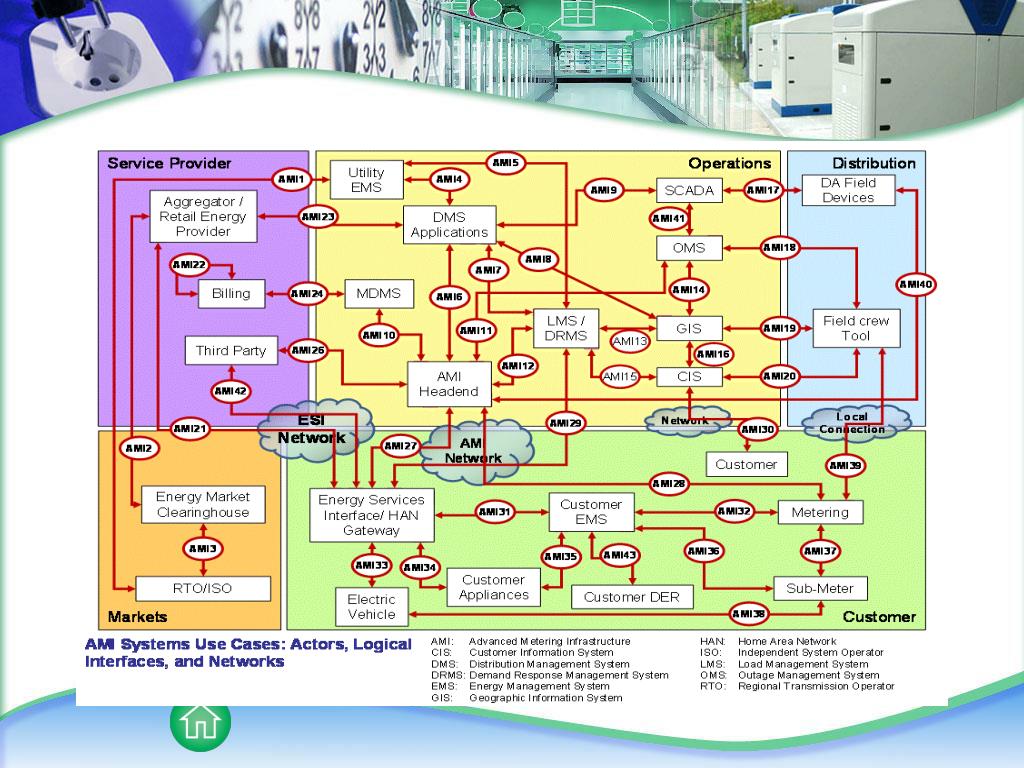

  10. Reference Architecture from NISTIR

  11. P2030 Smart Grid Comms Reference Architecture

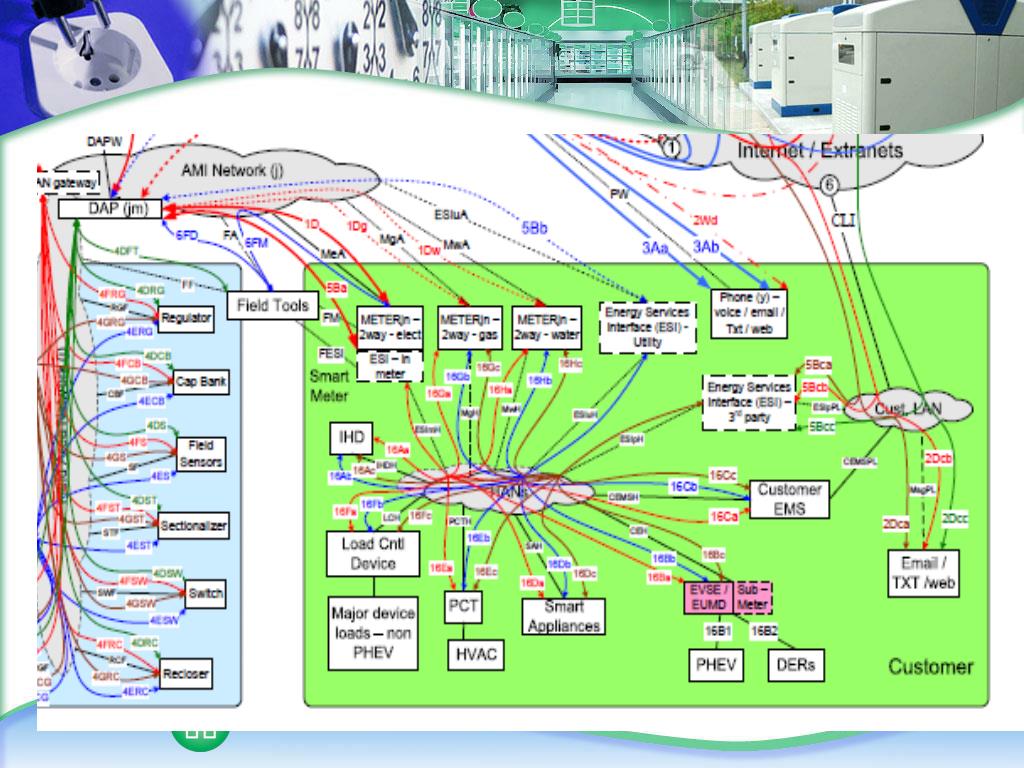

  12. SG-Networks Reference Architecture

  13. SG-Networks Reference Architecture

  14. Deliverables Interim Release 1.0 was published in December 2009 Requirements and some volumetric and latency requirements Interim Release 2.0 was published in February 2010 Requirements, volumetric, latency requirements, security, implications and more use cases Reference Architecture Diagram first published System requirements specification published Interim Release 3.0 was published in May 2010 Addition of the following use cases: Pre-Payment, Meter Events, DA and Outage Management System requirements specification updates Interim Release 4.0 was published in June 2010 Addition of the following use cases: DRLC, DA fault isolation and reconfiguration System requirements specification re-write Interim Release 5.0 was published in October 2011

  15. Work Plan for the week System requirements Specification working sessions Review Plan scope of the next interim release NIST SGIP Priority Action Plan2 joint meeting Thursday

  16. Questions?
