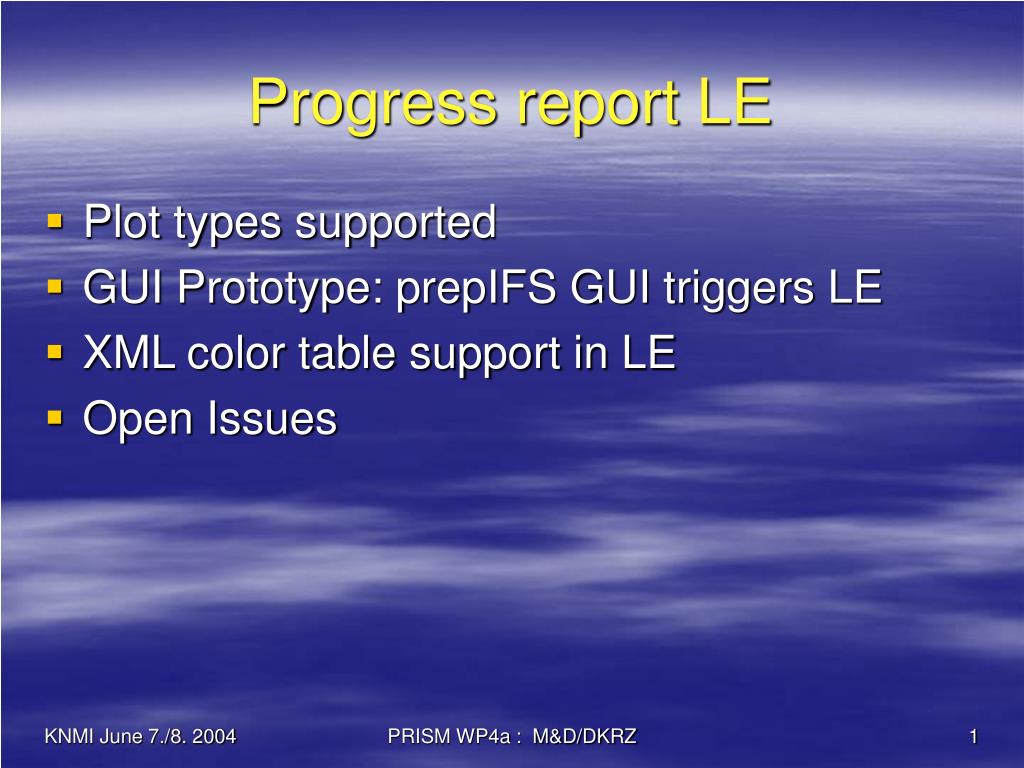

  1. Progress report LE • Plot types supported • GUI Prototype: prepIFS GUI triggers LE • XML color table support in LE • Open Issues PRISM WP4a : M&D/DKRZ

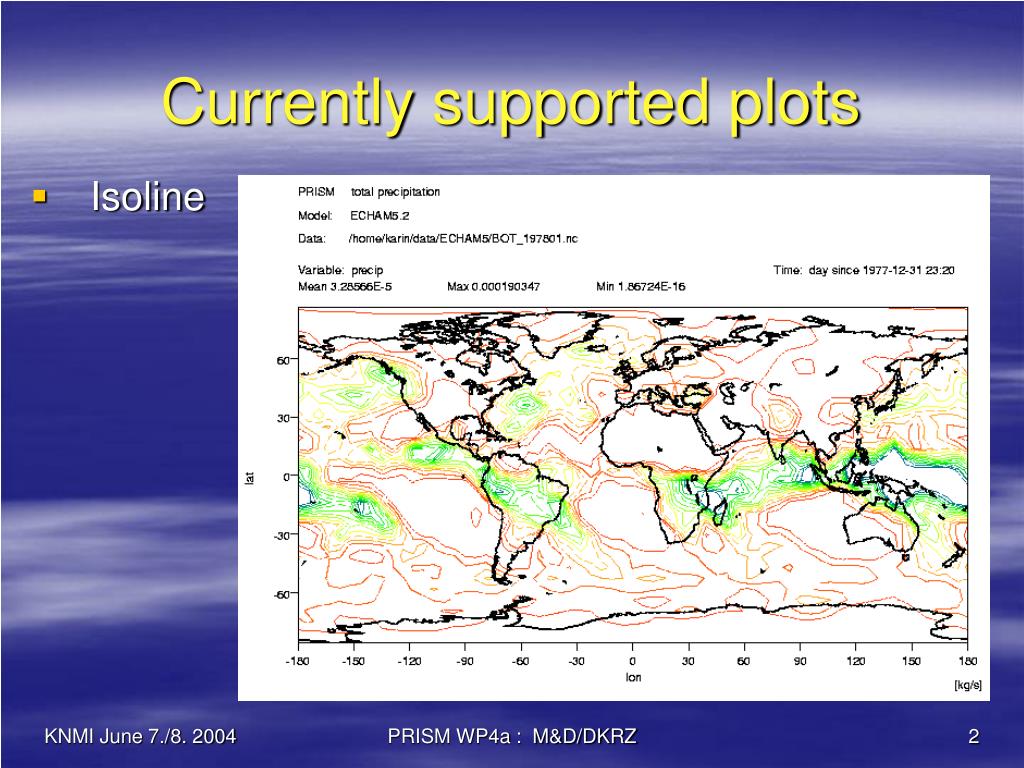

  2. Currently supported plots • Isoline PRISM WP4a : M&D/DKRZ

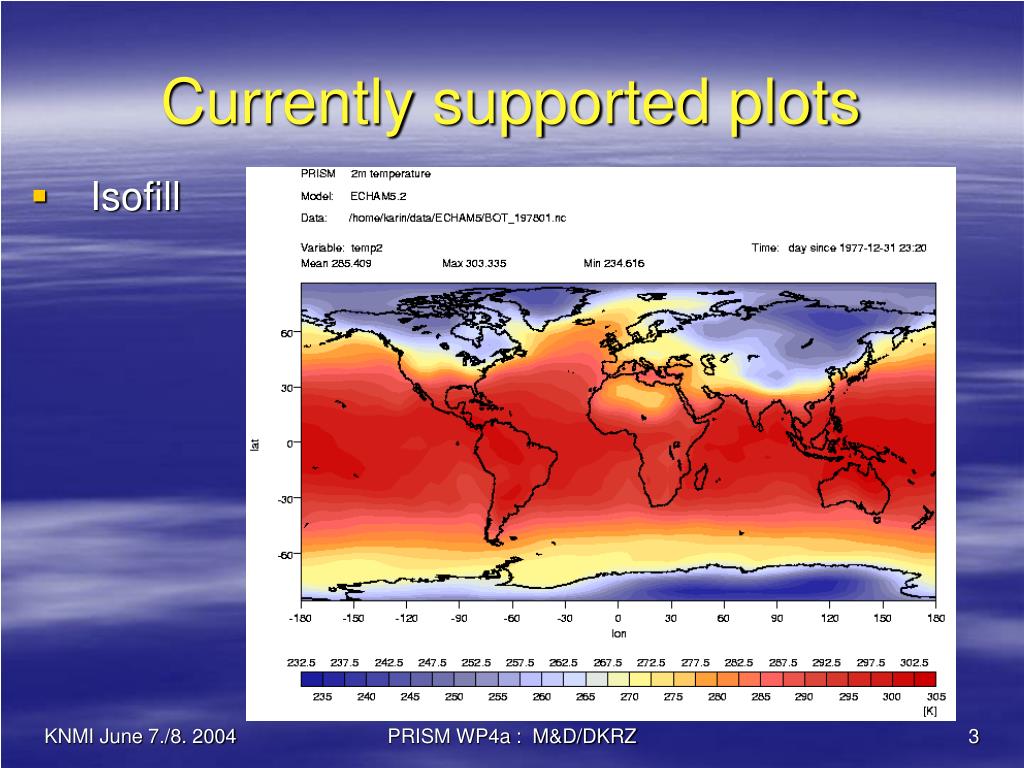

  3. Currently supported plots • Isofill PRISM WP4a : M&D/DKRZ

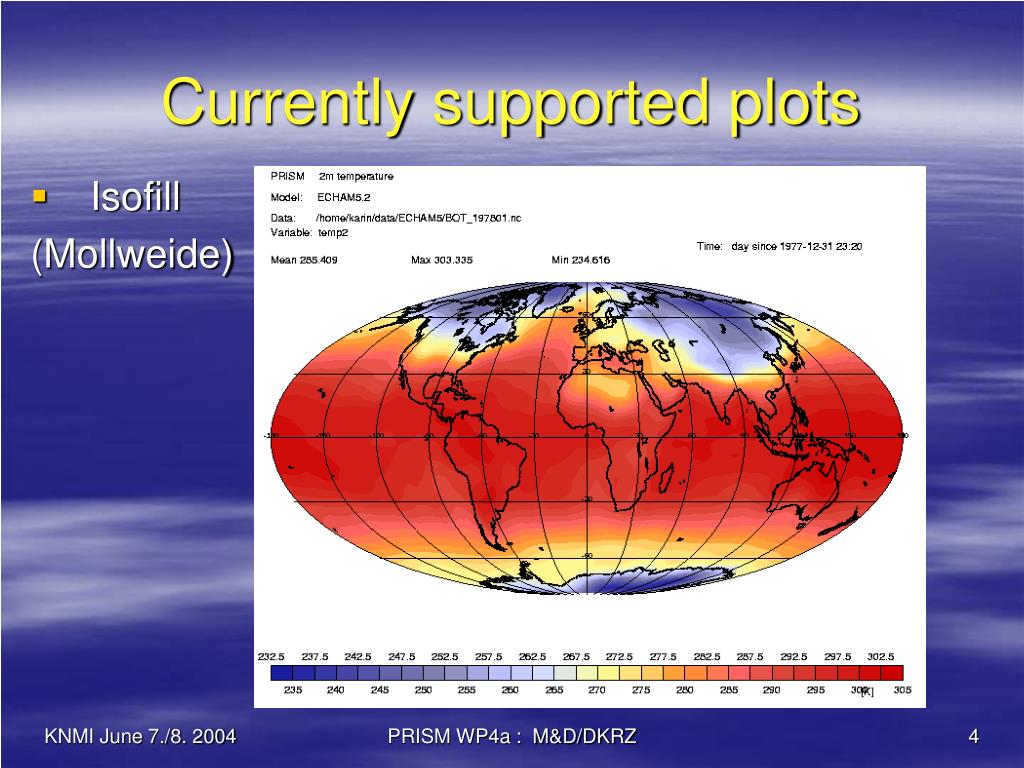

  4. Currently supported plots • Isofill (Mollweide) PRISM WP4a : M&D/DKRZ

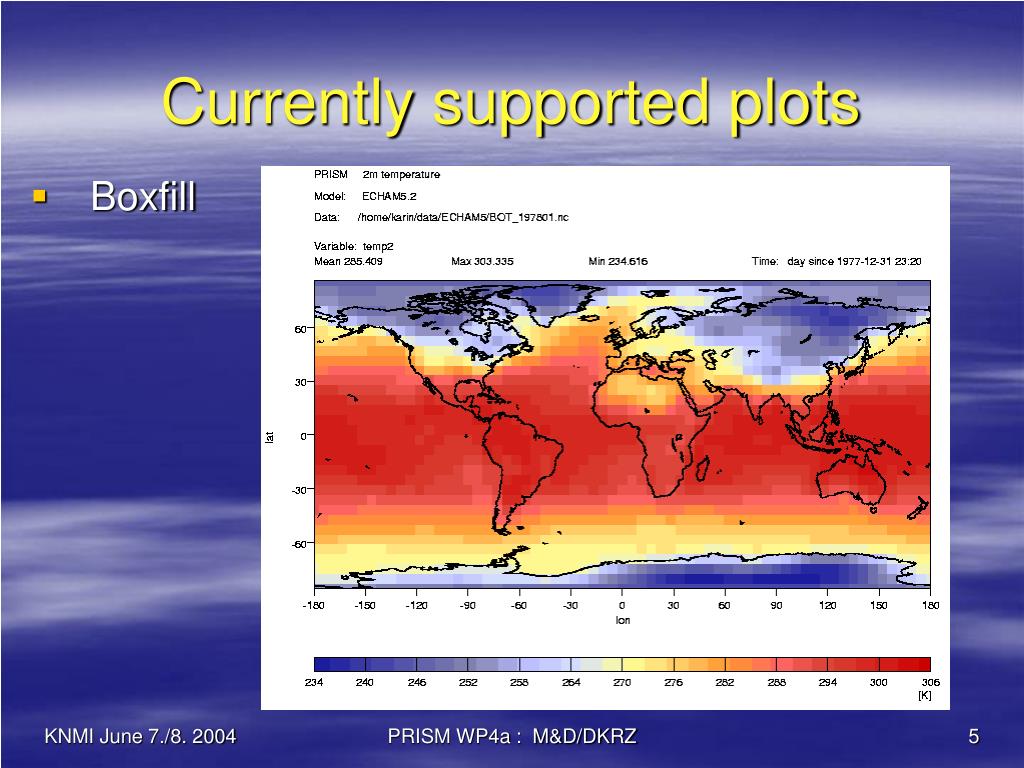

  5. Currently supported plots • Boxfill PRISM WP4a : M&D/DKRZ

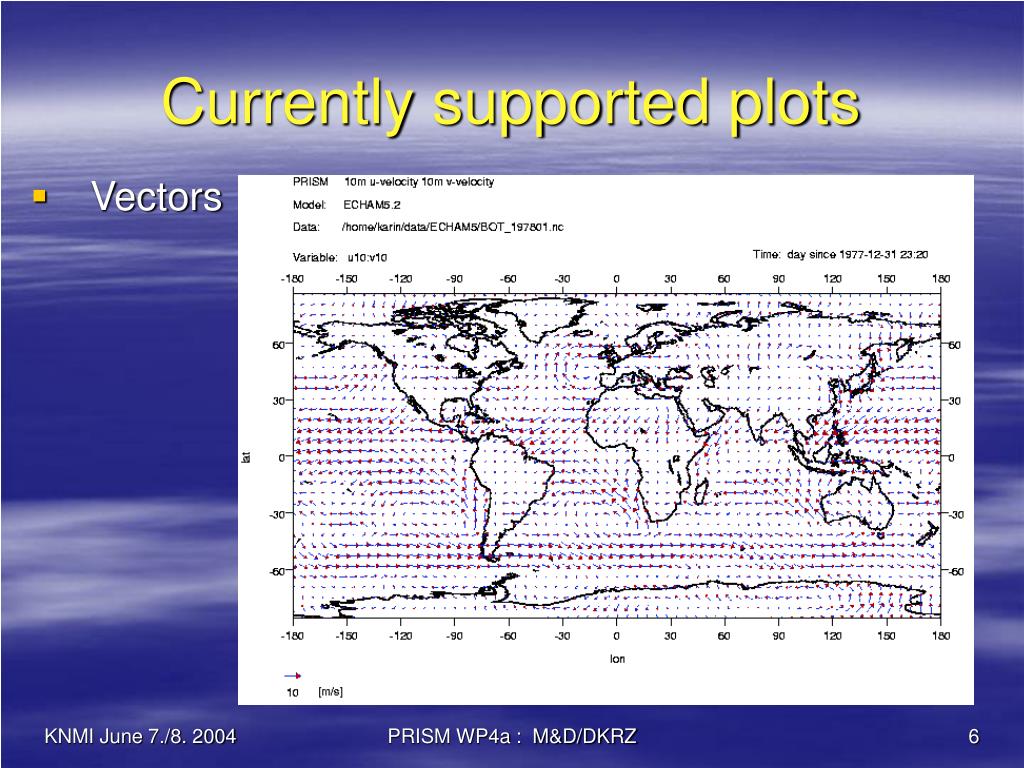

  6. Currently supported plots • Vectors PRISM WP4a : M&D/DKRZ

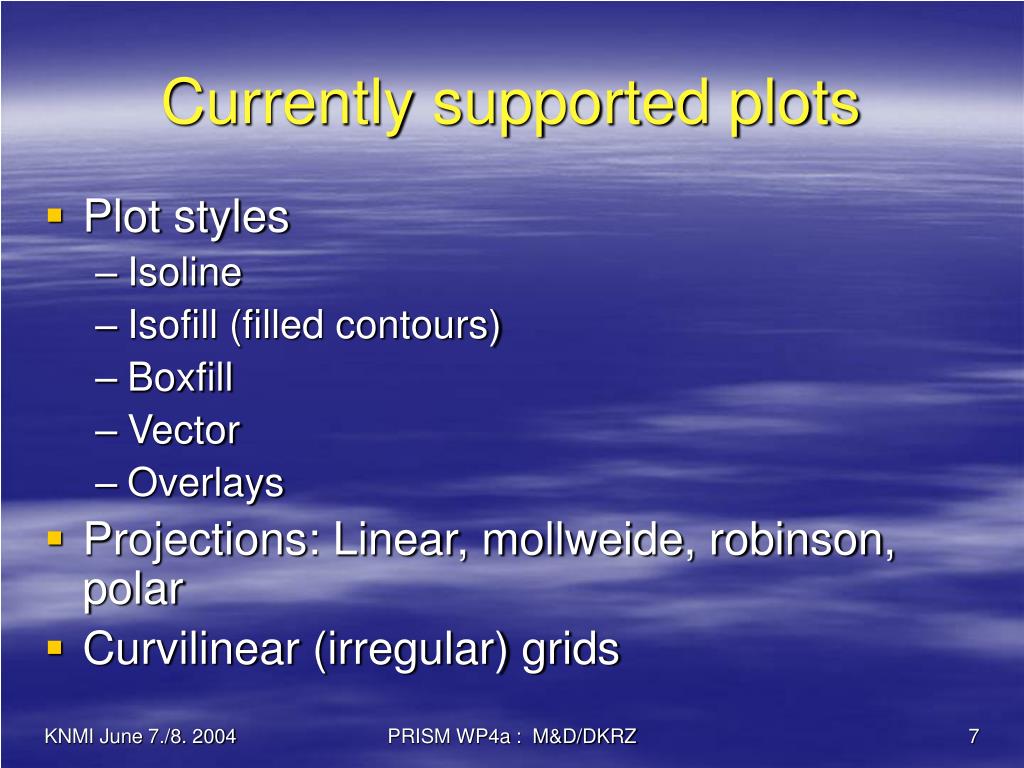

  7. Currently supported plots • Plot styles • Isoline • Isofill (filled contours) • Boxfill • Vector • Overlays • Projections: Linear, mollweide, robinson, polar • Curvilinear (irregular) grids PRISM WP4a : M&D/DKRZ

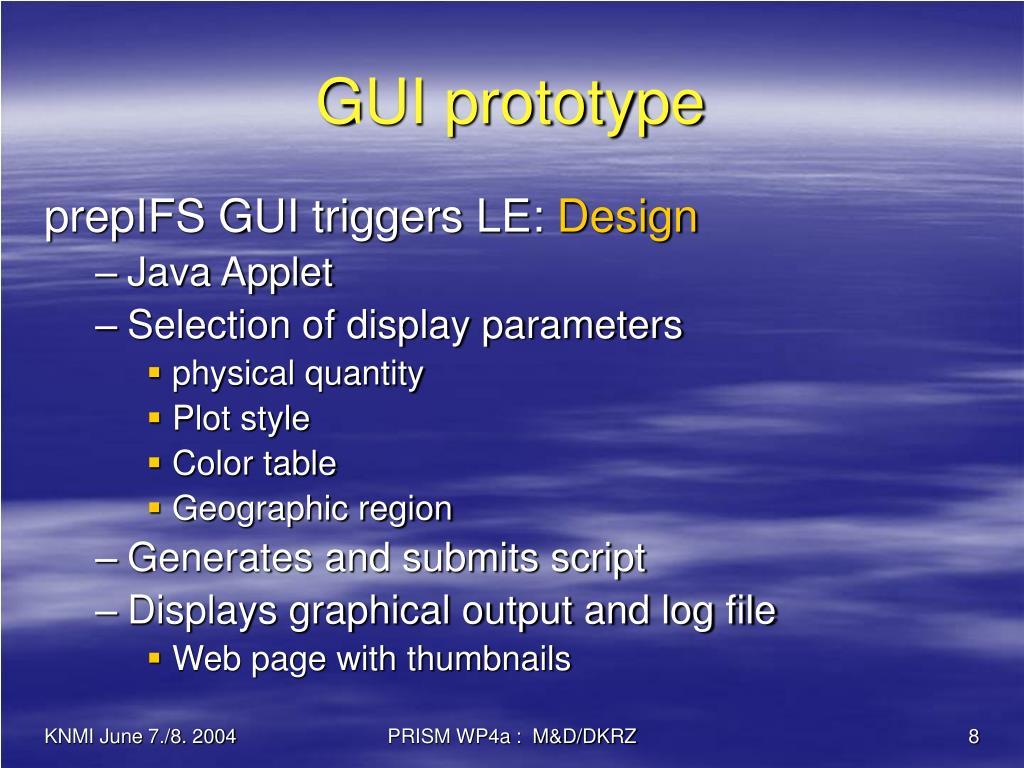

  8. GUI prototype prepIFS GUI triggers LE: Design • Java Applet • Selection of display parameters • physical quantity • Plot style • Color table • Geographic region • Generates and submits script • Displays graphical output and log file • Web page with thumbnails PRISM WP4a : M&D/DKRZ

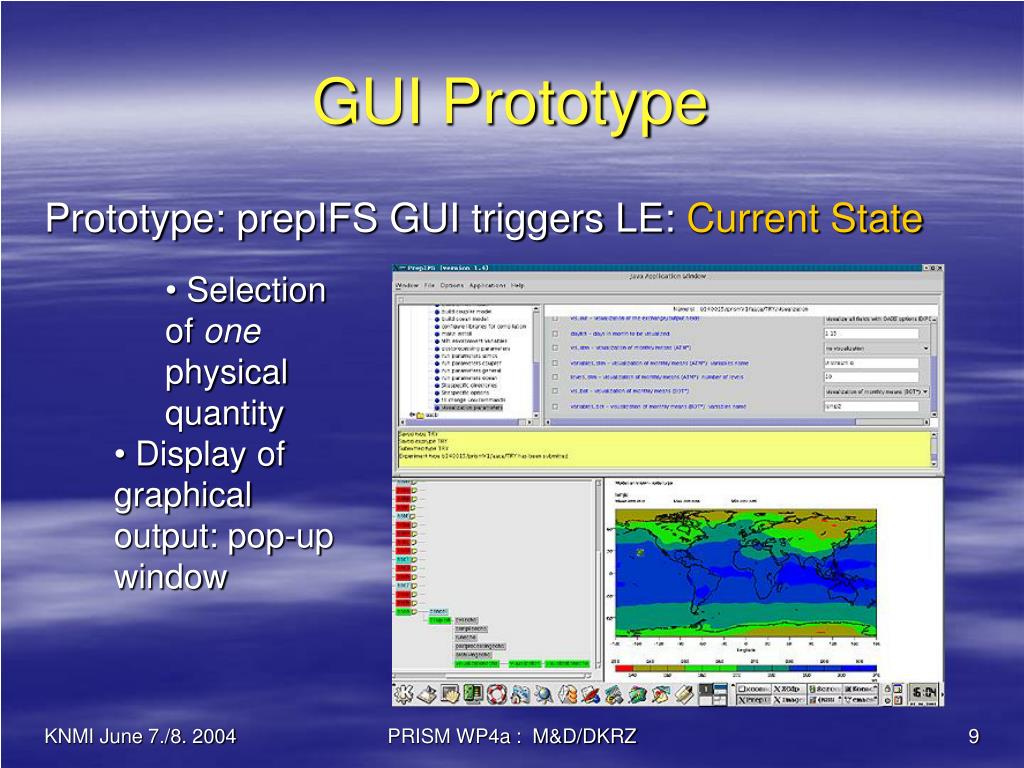

  9. GUI Prototype Prototype: prepIFS GUI triggers LE: Current State • Selection of one physical quantity • Display of graphical output: pop-up window PRISM WP4a : M&D/DKRZ

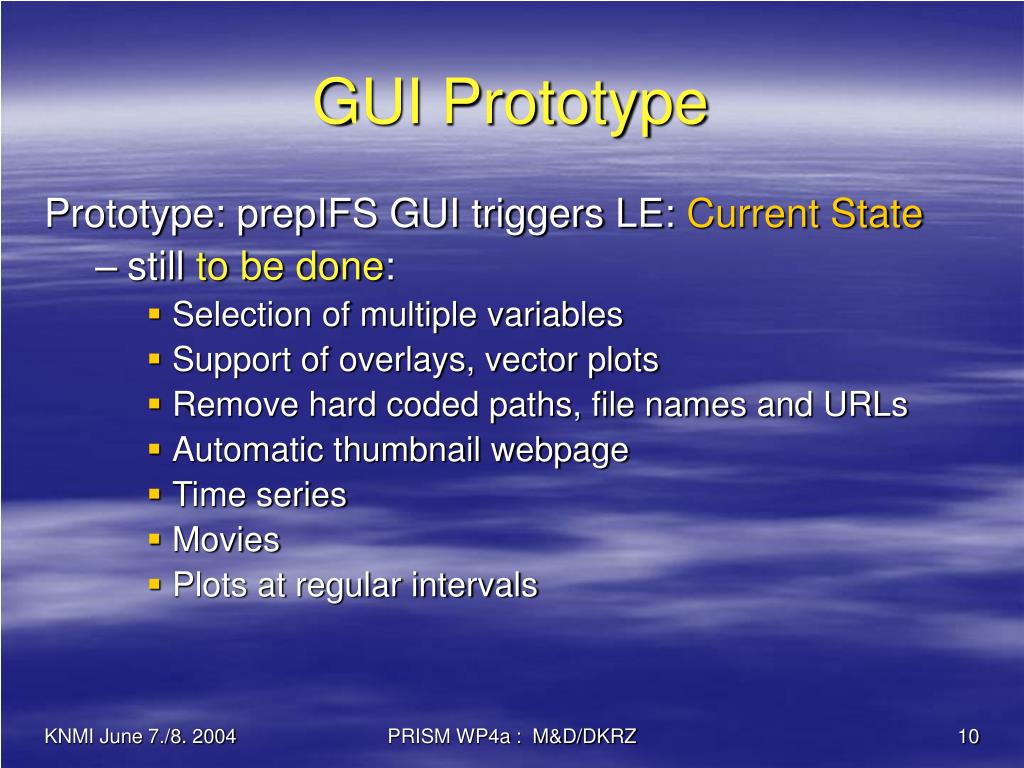

  10. GUI Prototype Prototype: prepIFS GUI triggers LE: Current State • still to be done: • Selection of multiple variables • Support of overlays, vector plots • Remove hard coded paths, file names and URLs • Automatic thumbnail webpage • Time series • Movies • Plots at regular intervals PRISM WP4a : M&D/DKRZ

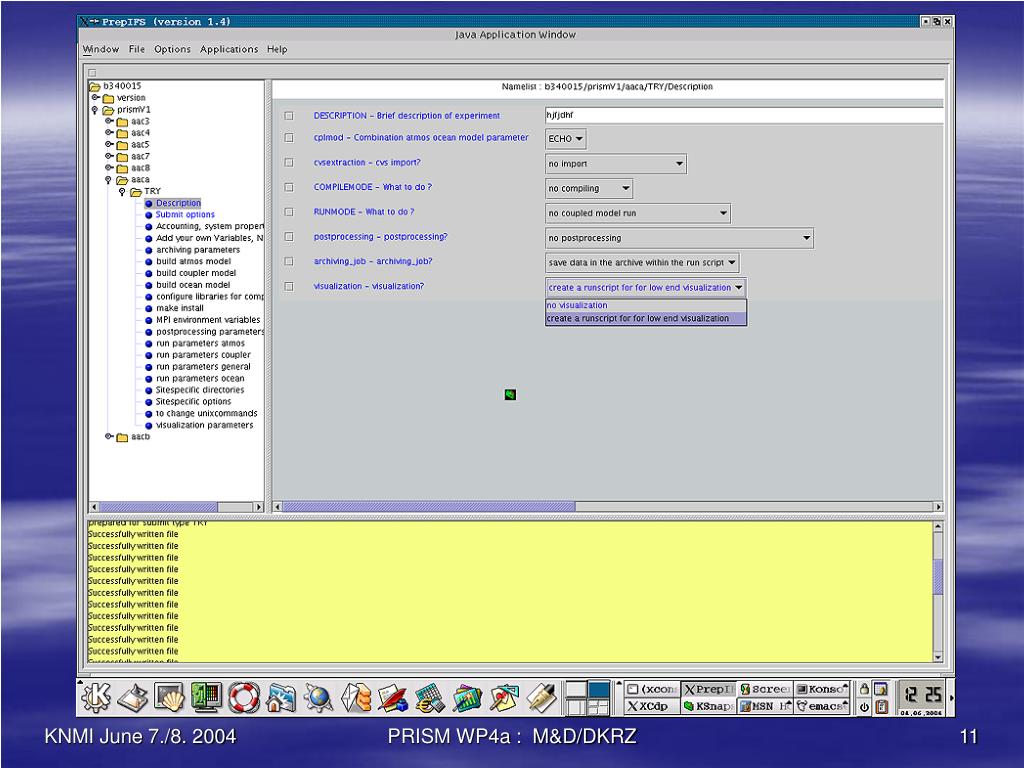

  11. PRISM WP4a : M&D/DKRZ

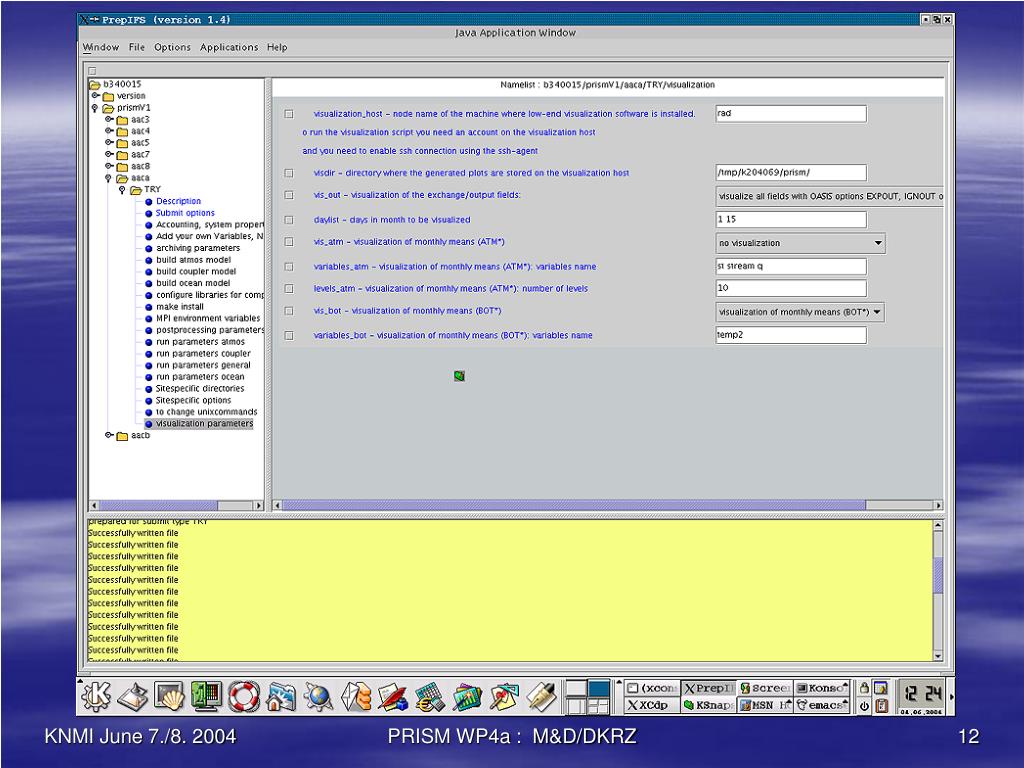

  12. PRISM WP4a : M&D/DKRZ

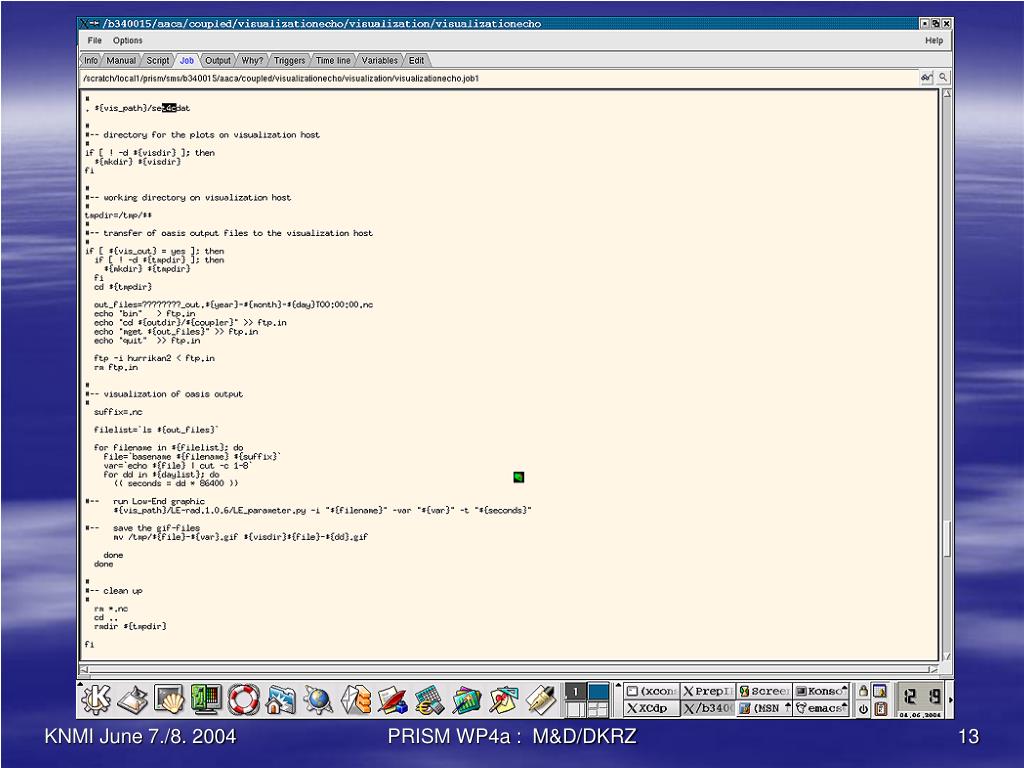

  13. PRISM WP4a : M&D/DKRZ

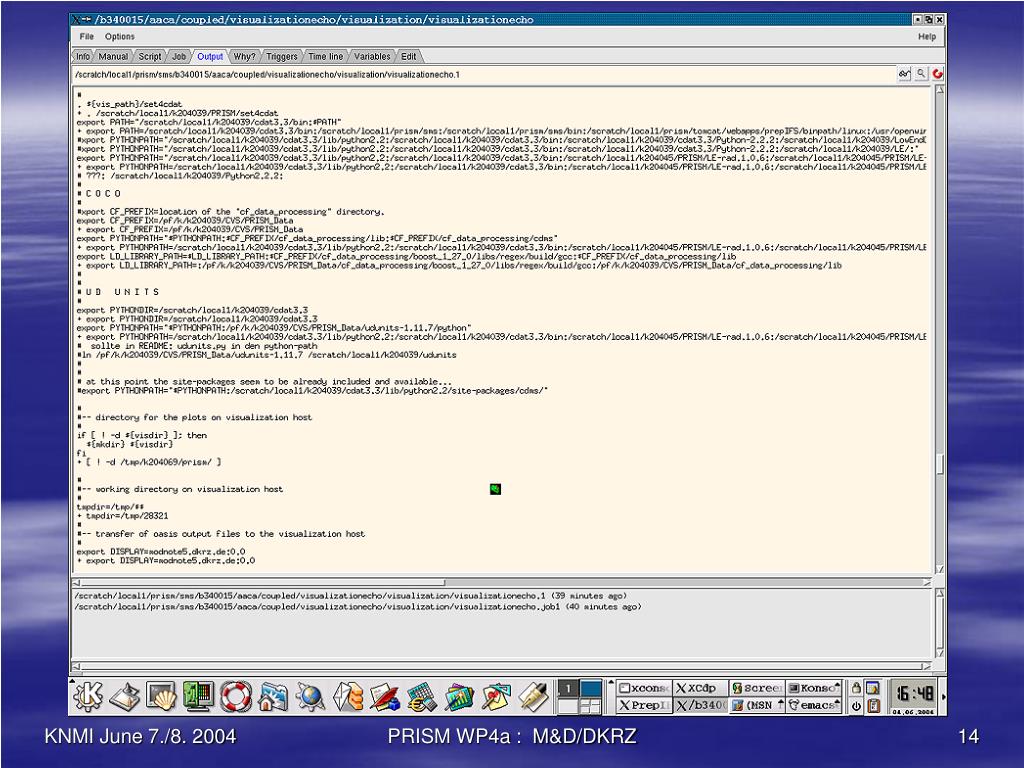

  14. PRISM WP4a : M&D/DKRZ

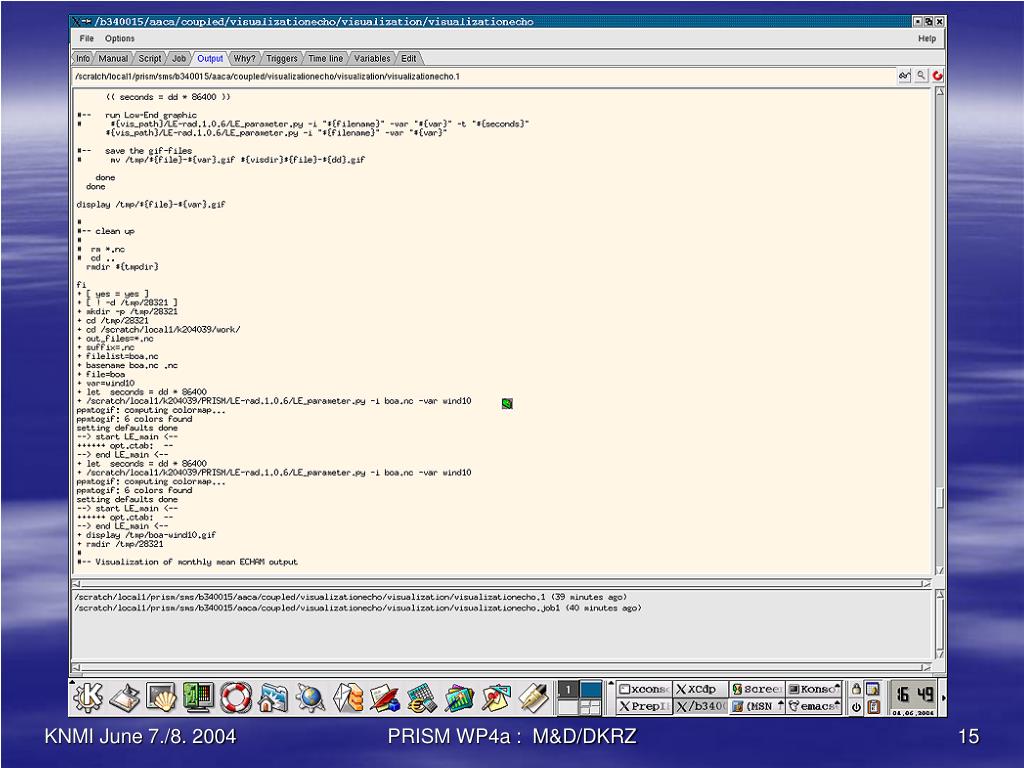

  15. PRISM WP4a : M&D/DKRZ

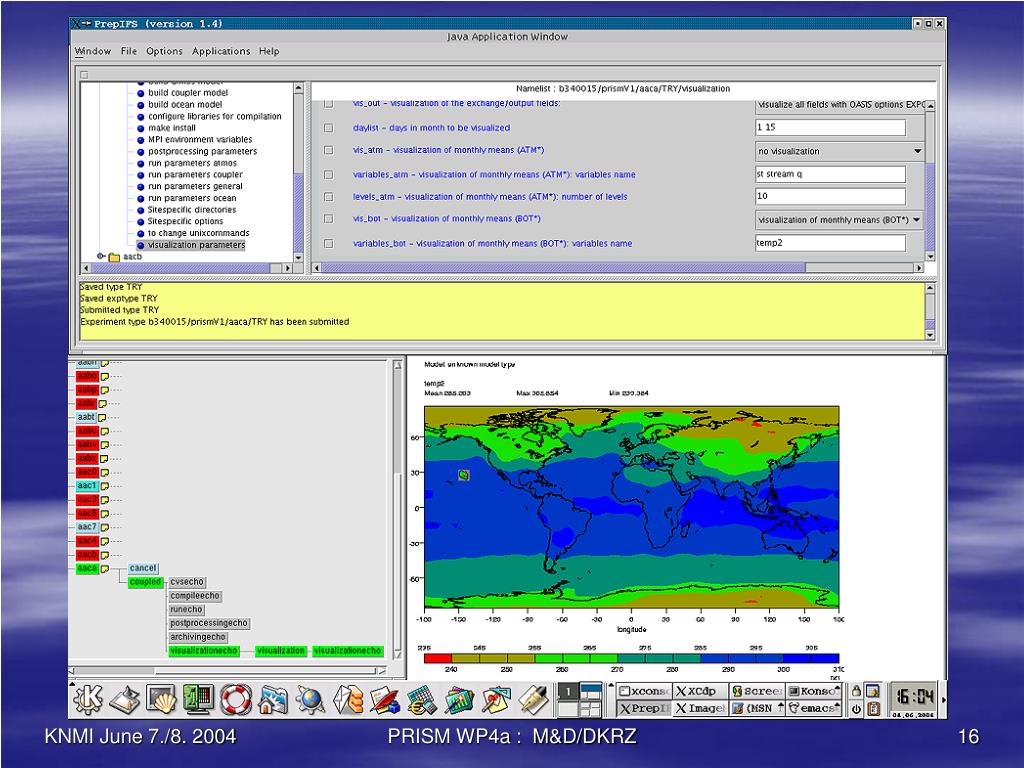

  16. PRISM WP4a : M&D/DKRZ

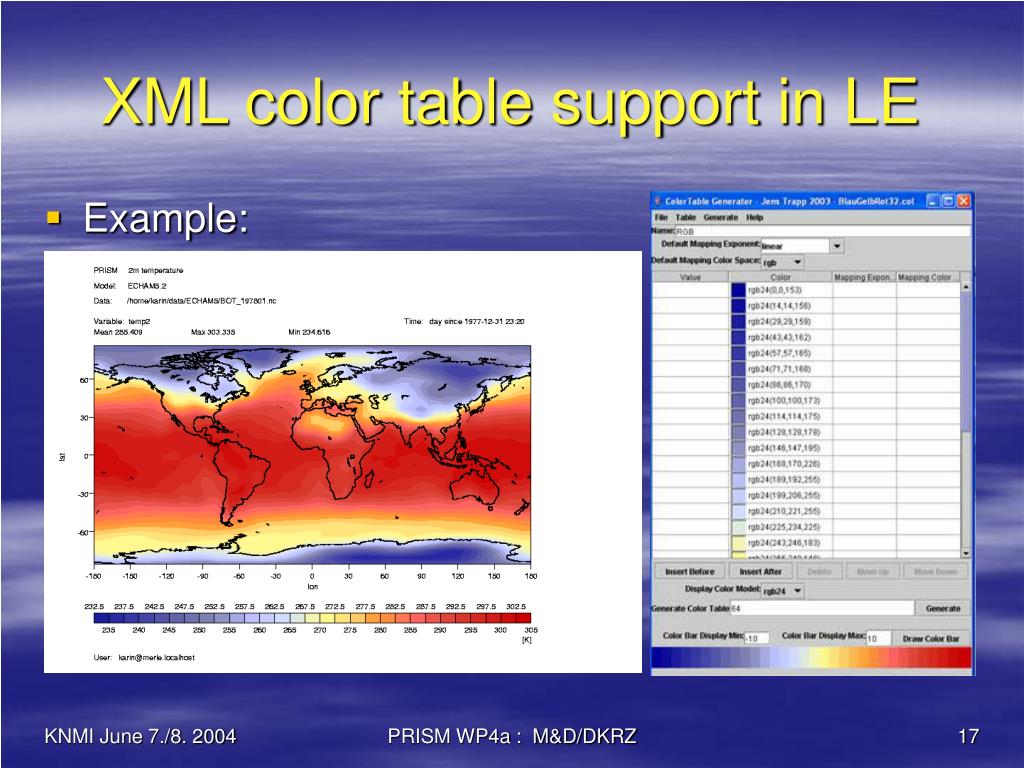

  17. XML color table support in LE • Example: PRISM WP4a : M&D/DKRZ

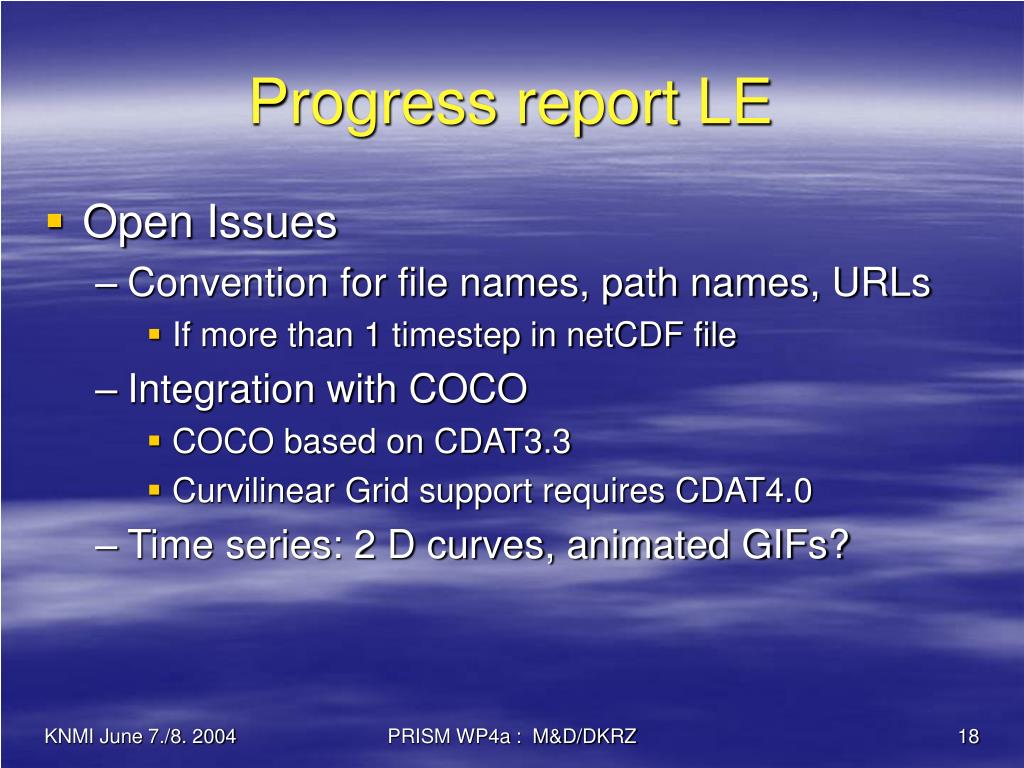

  18. Progress report LE • Open Issues • Convention for file names, path names, URLs • If more than 1 timestep in netCDF file • Integration with COCO • COCO based on CDAT3.3 • Curvilinear Grid support requires CDAT4.0 • Time series: 2 D curves, animated GIFs? PRISM WP4a : M&D/DKRZ
