  1. F5 ApplicationTrafficManagement Radovan GibalaSenior Solutions Architectr.gibala@f5.com+420 731 137 223 2009

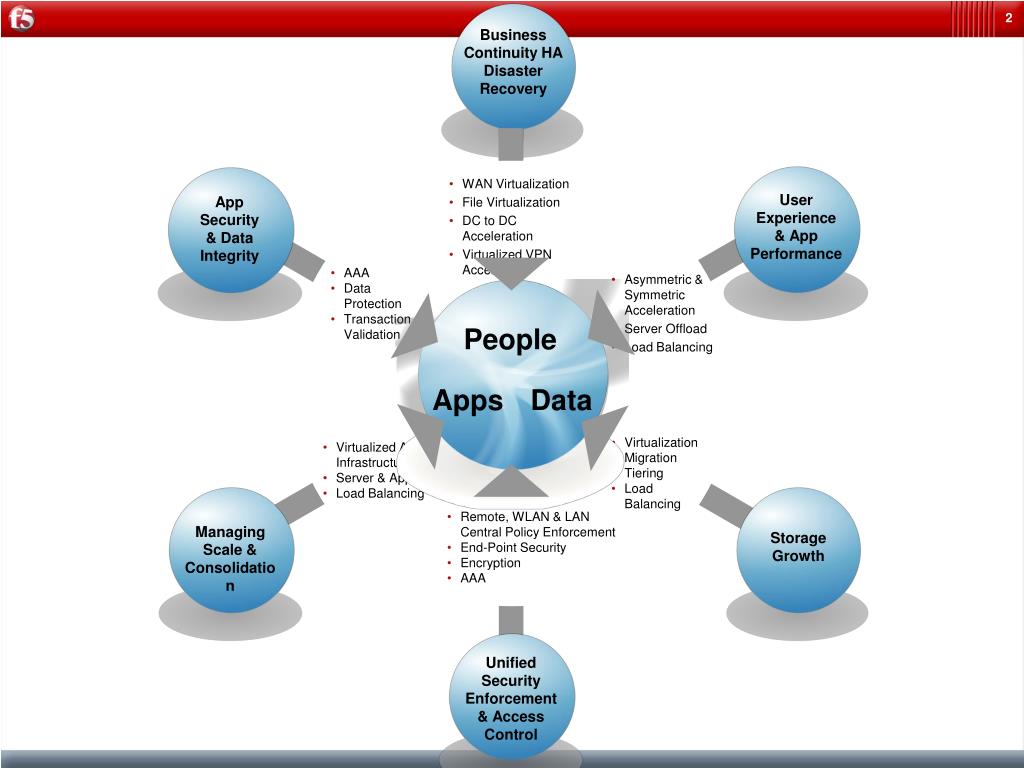

  2. Business Continuity HA Disaster Recovery • WAN Virtualization • File Virtualization • DC to DC Acceleration • Virtualized VPN Access User Experience & App Performance App Security & Data Integrity • AAA • Data Protection • Transaction Validation • Asymmetric & Symmetric Acceleration • Server Offload • Load Balancing People People Apps Apps Data Data • Virtualization • Migration • Tiering • Load Balancing • Virtualized App & Infrastructure • Server & App Offload • Load Balancing • Remote, WLAN & LAN Central Policy Enforcement • End-Point Security • Encryption • AAA Managing Scale & Consolidation Storage Growth Unified Security Enforcement & Access Control

  3. Business Continuity HA Disaster Recovery BIG-IP LTM • GTM • LC • WA FirePass • ARX • WJ Application Delivery Network • WAN Virtualization • File Virtualization • DC to DC Acceleration • Virtualized VPN Access User Experience & App Performance App Security & Data Integrity BIG-IP LTM • GTM • WA ARX • WJ BIG-IP LTM • ASM FirePass • AAA • Data Protection • Transaction Validation • Asymmetric & Symmetric Acceleration • Server Offload • Load Balancing People Apps Data • Virtualization • Migration • Tiering • Load Balancing • Virtualized App & Infrastructure • Server & App Offload • Load Balancing • Remote, WLAN & LAN Central Policy Enforcement • End-Point Security • Encryption • AAA Managing Scale & Consolidation Storage Growth ARX BIG-IP GTM BIG-IP LTM • GTM • LC • WA FirePass • ARX • WJ Unified Security Enforcement & Access Control FirePass BIG-IP LTM • GTM

  4. Application How To Achieve the Requirements ? Multiple Point Solutions More Bandwidth Network Administrator Application Developer Add More Infrastructure? Hire an Army of Developers?

  5. The Result: A Growing Network Problem Applications Users Network Point Solutions DoS Protection Mobile Phone SFA Rate Shaping SSL Acceleration CRM ERP CRM PDA Server Load Balancer ERP Laptop ERP CRM SFA ContentAcceleration ApplicationFirewall Desktop SFA Connection Optimisation TrafficCompression Customised Application Co-location

  6. F5’s Integrated Solution Applications Users The F5 Solution Application Delivery Network CRMDatabaseSiebelBEALegacy.NETSAPPeopleSoftIBMERPSFACustom Mobile Phone PDA Laptop Desktop TMOS Co-location

  7. Flow Based TM/OS React to a Real Time, Two-Way Conversation Translate Between Parties A New Level of Intelligence Legacy Approach Packet Based React to a Single Communication, One Direction

  8. Deliver Application Exactly as Intended Manage Entire Application Flows: • Independent Connection Control • Supporting All IP Applications • High Performance Framework • BI-Directional, Full Payload Inspection • Session Level Control Universal Inspection Engine (UIE) TM/OS Fast Application Proxy Client Side Server Side

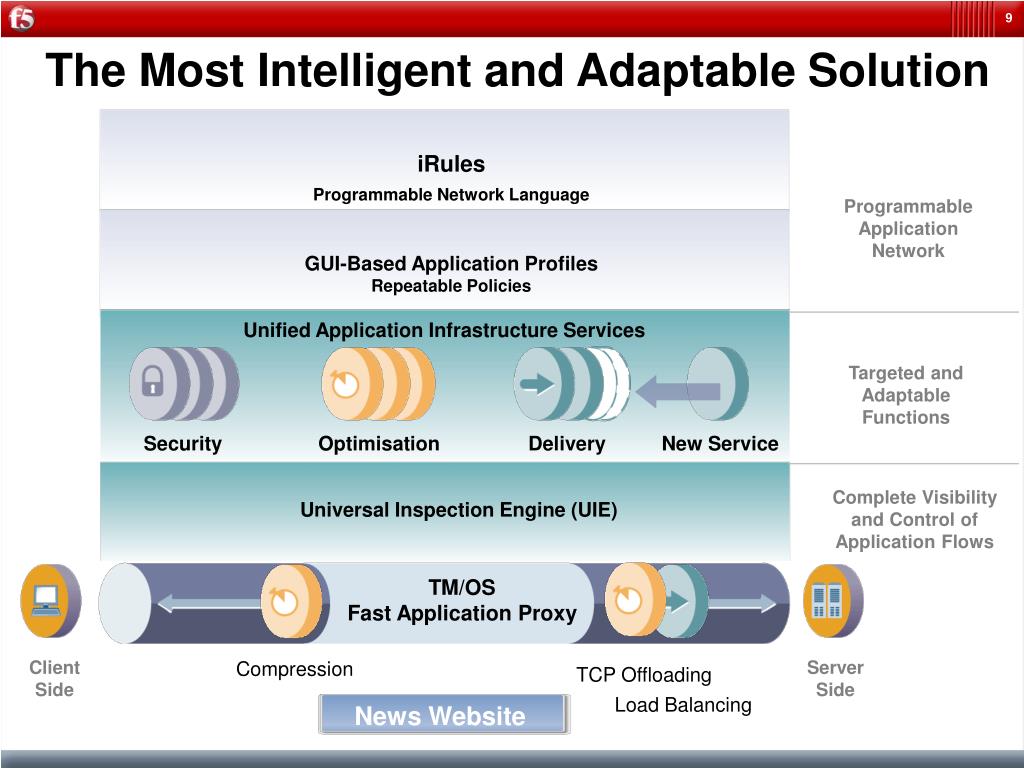

  9. GUI-Based Application Profiles Repeatable Policies iRules Programmable Network Language Security Optimisation Delivery New Service News Website The Most Intelligent and Adaptable Solution Programmable Application Network Unified Application Infrastructure Services Targeted and Adaptable Functions Complete Visibility and Control of Application Flows Universal Inspection Engine (UIE) TM/OS Fast Application Proxy Client Side Server Side Compression TCP Offloading Load Balancing

  10. Traffic Management Operating System iRules Rate Shaping / Rate Limiting Resource Cloaking Transaction Assurance Universal Persistence Caching Compression Selective Content Encryption Advanced Client Authentication Application Health Monitors Application Switching Shared Application Services TMOS Operating System Shared Network Services TCP Express Protocol Sanitization High Performance SSL DoS and DDoS Protection VLAN Segmentation Line Rate L2 Switching (Mirroring, Trunking, STP, LACP) IP Packet Filtering IPv6 Dynamic Routing Secure Network Address Translation Port Mapping Common Management Framework

  11. Unique TMOS Architecture TrafficShield Web Accel 3rd Party Microkernel TCP Proxy Rate Shaping TCP Express SSL Caching XML Compression OneConnect TCP Express Client Side Server Side Client Server iRules High Performance HW iControl API • TMOS Traffic Plug-ins • High-Performance Networking Microkernel • Powerful Application Protocol Support • iControl – External Monitoring and Control • iRules – Network Programming Language

  12. BIG-IP

  13. First Unified Application Infrastructure Services Delivering • Resource Cloaking • Advanced Client Authentication • Firewall - Packet Filtering • Selective Content Encryption • Cookie Encryption • Content Protection • Protocol Sanitization • DoS and DDos protection • Brute Force Attacks protection • DoS and SYN Flood Protection • Network Address/Port Translation • Application Attack Filtering • Certificate Management • Secure and Accelerated DC to DC data flow • Comprehensive Load Balancing • Advanced Application Switching • Customized Health Monitoring • Intelligent Network Address • Translation • Advanced Routing • Port Mirroring • SSL Acceleration • Quality of Service • Connection Pooling • Intelligent Compression • L7 Rate Shaping • Content Spooling/Buffering • TCP Optimization • Content Transformation • Caching • TCP Express • IPv6 Gateway • Universal Persistence • Response Error Handling • Session / Flow Switching • Network Virtualization • System resource Control • Application Templates • Dashboard

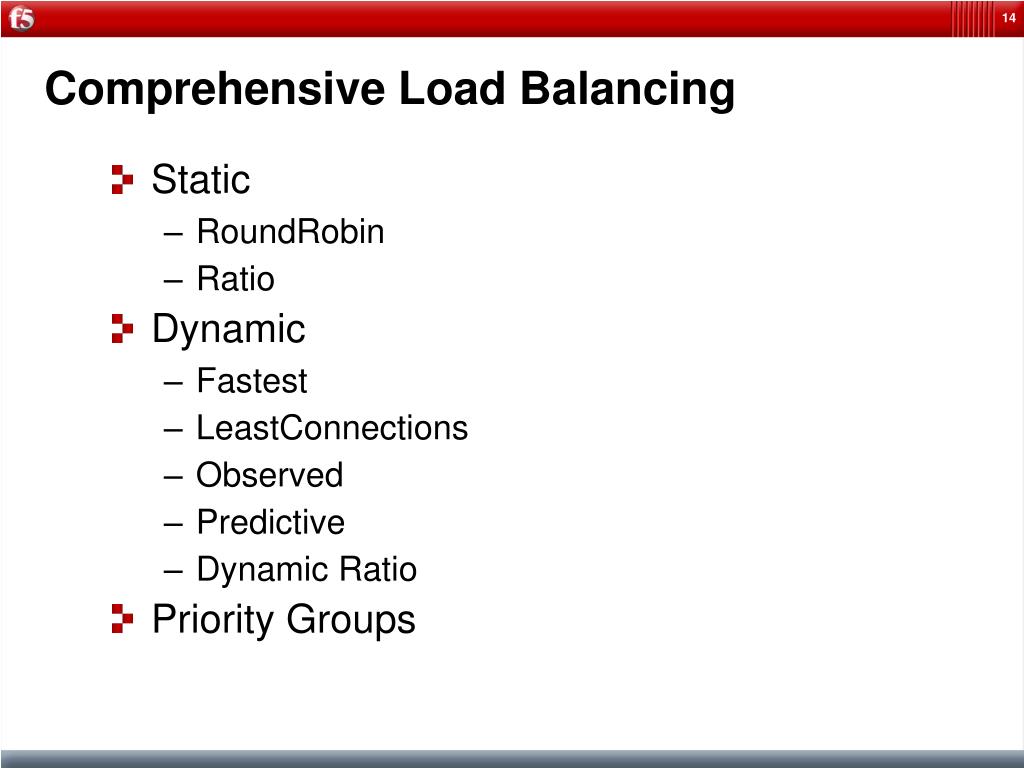

  14. Comprehensive Load Balancing • Static • RoundRobin • Ratio • Dynamic • Fastest • LeastConnections • Observed • Predictive • Dynamic Ratio • Priority Groups

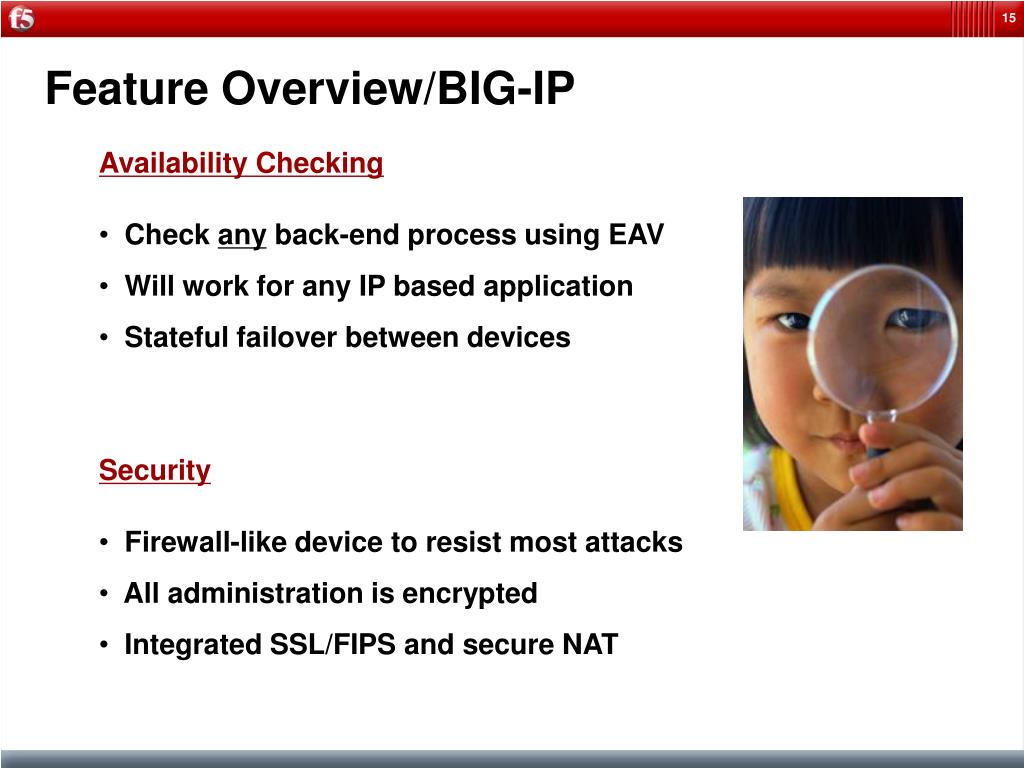

  15. Feature Overview/BIG-IP • Availability Checking • Check any back-end process using EAV • Will work for any IP based application • Stateful failover between devices • Security • Firewall-like device to resist most attacks • All administration is encrypted • Integrated SSL/FIPS and secure NAT

  16. Feature Overview/BIG-IP • SSL and E-Commerce • Only product with integrated SSL • Single certificate simplifies administration • Lowers certificate costs • Client certificate checking (Authentication) • Layer 7 Functionality • Can utilize all HTTP header/content or TCP content in traffic decisions • Can persist on anything • HTTP 1.1 keep-alives dramatically improve performance

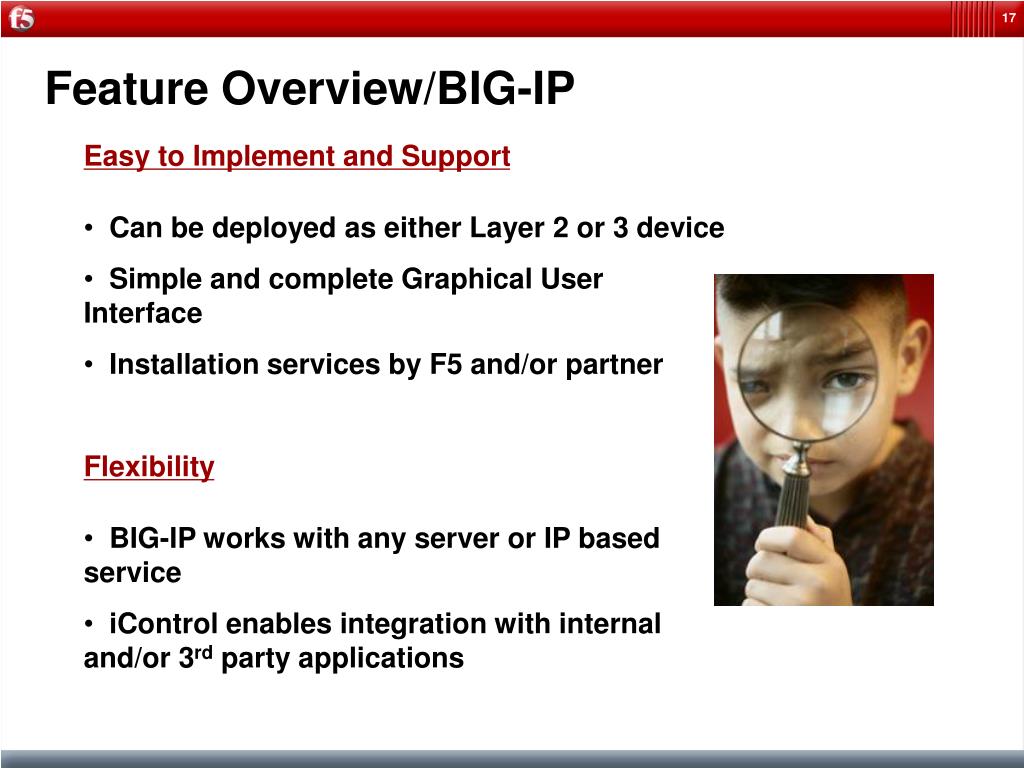

  17. Feature Overview/BIG-IP • Easy to Implement and Support • Can be deployed as either Layer 2 or 3 device • Simple and complete Graphical User Interface • Installation services by F5 and/or partner • Flexibility • BIG-IP works with any server or IP based service • iControl enables integration with internal and/or 3rd party applications

  18. Powerful and Simplified Management “We have to deal with multiple products. The new user interface makes every other solution in this space look absolutely immature. F5’s solutions are 10 times easier to manage than Cisco.” - Major US Hosting Provider

  19. Deliver Optimize Secure Profile Based Management • Profile Based Traffic Management • Improved vision of all resources and traffic

  20. Ensure Higher Availability - Superior System Design • Processes Reporting and Control – Granular status, logging and configurable actions for component-level failures. Capable of warm restarts and upgrades. • 3-way HA Design – Robust Internal system checking and pass-through design.

  21. Extensibility - IPv6 Gateway

  22. Network VirtualizationRoute Domains Consolidation with control Host multiple groups on one BIG-IP without conflicts Granular control to provide separate routing domains and overlapping IPs

  23. System Resource ControlModule Provisioning Consolidation with control Allocate CPU, memory, and disk per module Customize allocation to meet your needs

  24. Simple Application Roll-outsApplication Templates 1 2 3 SharePoint 2007 VMware VDI Exchange Web Access 2007 IIS 7.0 HTTP BEA WebLogic 5.1, 8.1 Oracle Application Server 10g SAP ERP 6.0 and ERP 2006 Citrix Presentation Server DNS IP Forwarding LDAP RADIUS “The Application Templates allowed us to deploy Microsoft IIS in seconds instead of hours” - System Engineer, Fortune 500 Co.

  25. Simplified ManagementDashboard

  26. Secure and Accelerate DC to DCiSessions Secure and accelerate between data centers Integrated and free with BIG-IP LTM v10 • Symmetric Compression • Adaptive • Deflate • LZO • SSL Encryption Note: Not available on the 1500 and 3400

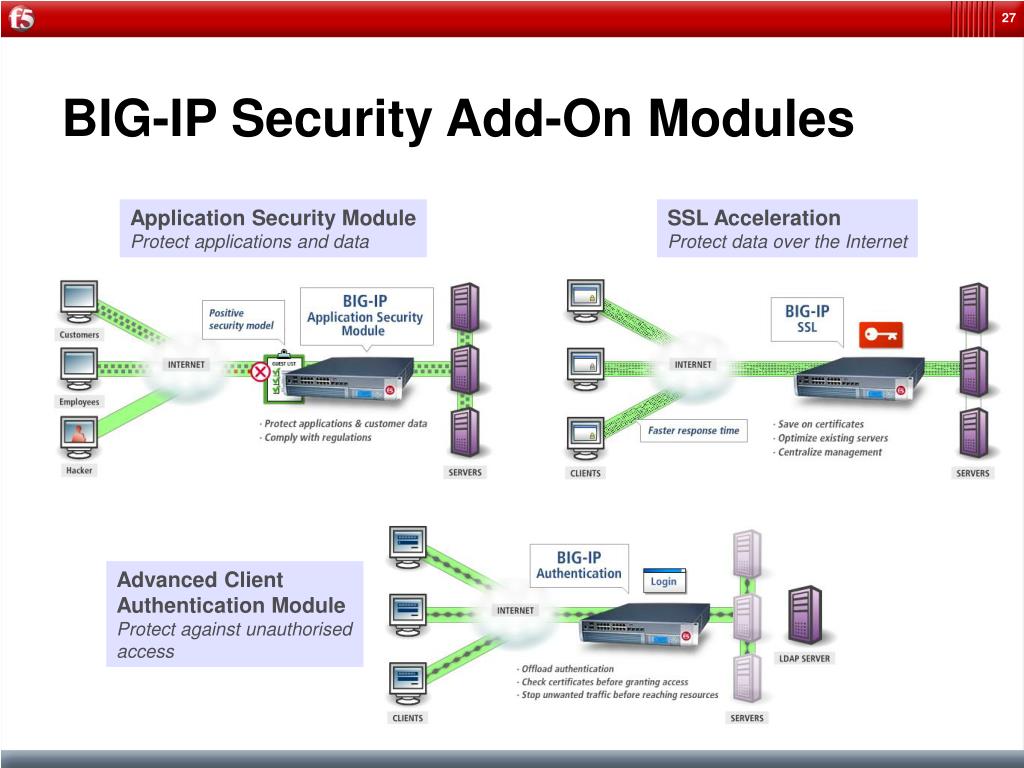

  27. Application Security Module Protect applications and data SSL Acceleration Protect data over the Internet Advanced Client Authentication Module Protect against unauthorised access BIG-IP Security Add-On Modules

  28. Compression Module Increase performance Webaccelerator - Fast Cache Module Offload servers Rate Shaping Module Reserve bandwidth BIG-IP Software Add-On ModulesQuickly Adapt to Changing Application & Business Challenges

  29. Intelligent HTTP Compression Most Intelligent and flexible solution to target HTTP compression where it matters most • URI/content filters – allow/disallow lists • Compress only specified file types • Based on URI or MIME type • Client-aware compression (patent pending) • Based on TCP latency – observe client RTT • Based on low bandwidth client connections • Granular L7 based compression • Tunable resource allocation • Devote more memory and CPU cycles for high priority compression jobs • Adaptable Compression • Scale back compression based on CPU load

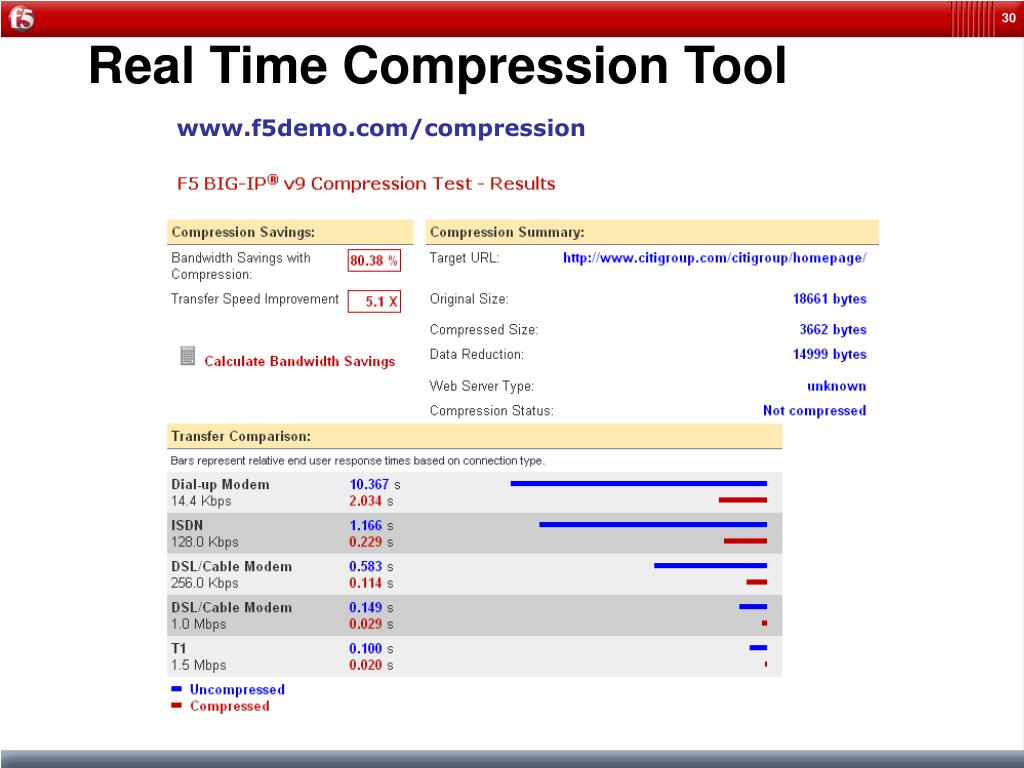

  30. Real Time Compression Tool www.f5demo.com/compression

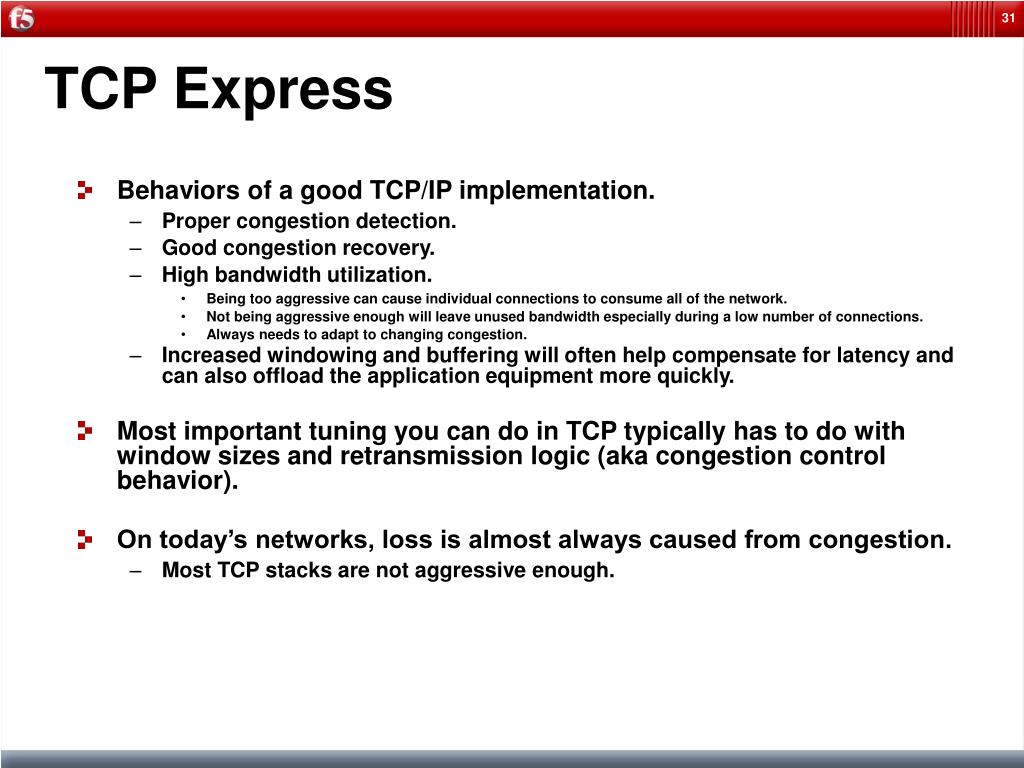

  31. TCP Express • Behaviors of a good TCP/IP implementation. • Proper congestion detection. • Good congestion recovery. • High bandwidth utilization. • Being too aggressive can cause individual connections to consume all of the network. • Not being aggressive enough will leave unused bandwidth especially during a low number of connections. • Always needs to adapt to changing congestion. • Increased windowing and buffering will often help compensate for latency and can also offload the application equipment more quickly. • Most important tuning you can do in TCP typically has to do with window sizes and retransmission logic (aka congestion control behavior). • On today’s networks, loss is almost always caused from congestion. • Most TCP stacks are not aggressive enough.

  32. F5’s TCP Congestion Control Algorithms • Reno Congestion Control • Original TCP fast recover algorithm based on BSD Reno. • Initially grows congestion window exponentially during the slow-start period. • After slow-start, increases CWND by 1MSS for each CWND acked (this is linear growth). • When loss or a recovery episode is detected, the CWND is cut in half. • New Reno modifications (this is currently the default mode) • Improves on the Reno behaviour. • When entering a recovery episode, implements a fast retransmit: • Each ACK less than the recovery threshold triggers a one-time resend of the data started by the ACK. • Results in more aggressively sending the missing data and exiting the recovery period. • Scalable TCP (added in 9.4) • Improves on the NewReno behaviour. • Upon loss, the CWND is reduced by only 1/8. • Once out of slow start, CWND increases by 1% of an MSS for each CWND ACK’d. • HighSpeed (F5's proprietary congestion control added in 9.4) • Similarly improves on the NewReno behaviour in combination with Scalable TCP. • Progressively switches from NewReno to Scalable TCP based on the size of the CWND. • Upon loss, the CWND is reduced by somewhere between ½ and 1/8. • CWND grows somewhere between 1% and 100% of an MSS for each CWND ACK’d.

  33. OneConnect ™ – Connection Pooling • Increase server capacity by 30% • Aggregates massive number of client requests into fewer server side connections • Transformations form HTTP 1.0 to 1.1 for Server Connection Consolidation • Maintains Intelligent load balancing to dedicated content servers Good Sources: http://tech.f5.com/home/bigip/solutions/traffic/sol1548.html http://www.f5.com/solutions/archives/whitepapers/httpbigip.html

  34. HTML server pool GIF server pool ASP server pool b.gif sales.htm c.asp e.gif a.gif d.gif index.htm f.asp OneConnect ™ New and Improved HTTP Request Pooling • Streamlines single client request to BIG-IP • Enabled by HTTP 1.1 • Avg. Reduction is 20 to 1 per Web Page 20 b.gif c.asp a.gif index.htm 1 b.gif c.asp a.gif index.htm 1) OneConnect ™ Content Switching • Intelligent load balancing to dedicated content servers • Maintain Server Logging index.htm b.gif a.gif b.gif c.asp a.gif index.htm c.asp 2) OneConnect ™ HTTP transformations New • Transformation form HTTP 1.0 to 1.1 for Server Connection Consolidation One b.gif c.asp a.gif index.htm Many b.gif c.asp a.gif index.htm 3) OneConnect ™ Connection Pooling • Aggregates massive number of client requests into fewer server side connections b.gif c.asp a.gif index.htm Server sales.htm e.gif d.gif f.asp

  35. Content Spooling Problem: TCP Overhead on Servers • There is overhead for breaking apart…”chunking” content • Client and Server negotiate TCP segmentation • Client forces more segmentation that is good for the server • The Servers is burdened with breaking content up into small pieces for good client consumption Solution Slurp up server response Spoon feed clients Benefit: Increases server capacity up to 15%

  36. L7 Rate Shaping Integrated and Fine Grained Bandwidth Control Rate Class • Sophisticated Bandwidth Control • Flexible bandwidth limits • Full support for bandwidth borrowing • Traffic queuing (stochastic fair queue, FIFO ToS priority queue) • Granular Traffic Classification L2 through L7 • iRules support can initiate a rate class on any traffic flow variable • Only Multi Direction Control • Control throughput in any direction Ceiling Rate Burst Base WAN Network Segments Pool of Servers

  37. Hardware

  38. VIPRION Actual BIG-IP Platforms Price BIG-IP 8900 BIG-IP 6900 2 x Quad core CPU 16 10/100/1000 + 8x 1GB SFP 2x 320 GB HD (S/W RAID) + 8GB CF 16 GB memory SSL @ 58K TPS / 9.6Gb bulk 6 Gbps max hardware compression 12 Gbps Traffic Multiple Product Modules BIG-IP 3600 2 x Dual core CPU 16 10/100/1000 + 8x 1GB SFP 2x 320 GB HD (S/W RAID) + 8GB CF 8 GB memory SSL @ 25K TPS / 4 Gb bulk 5 Gbps max hardware compression 6 Gbps Traffic Multiple Product Modules BIG-IP 1600 Dual core CPU 8 10/100/1000 + 2x 1GB SFP 1x 160 GB HD + 8GB CF 4 GB memory SSL @ 10K TPS / 2 Gb bulk 1 Gbps max software compression 2 Gbps Traffic 1 Advanced Product Module Dual core CPU 4 10/100/1000 + 2x 1GB SFP 1x 160GB HD 4 GB memorySSL @ 5K TPS / 1 Gb Bulk 1 Gbps max software compression 1 Gbps Traffic 1 Basic Product Module Function / Performance

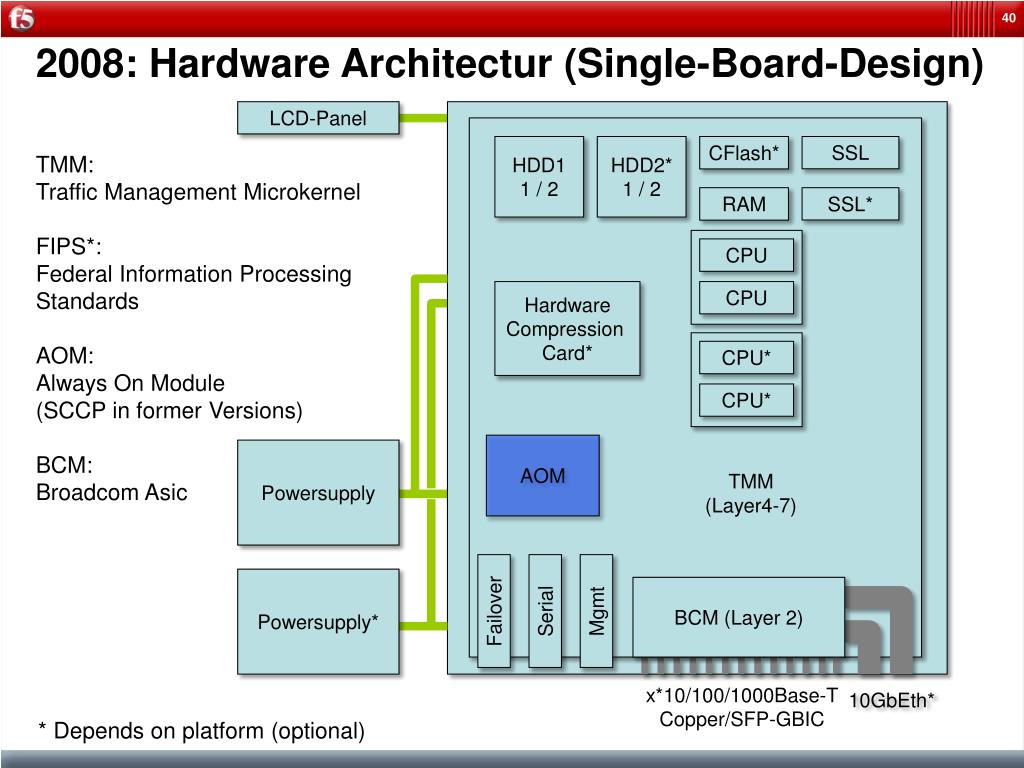

  39. 2008: Hardware Architectur (Single-Board-Design) LCD-Panel HDD1 1 / 2 HDD2* 1 / 2 CFlash* SSL TMM: Traffic Management Microkernel FIPS*: Federal Information Processing Standards AOM: Always On Module (SCCP in former Versions) BCM: Broadcom Asic RAM SSL* CPU Hardware Compression Card* CPU CPU* CPU* AOM Powersupply TMM (Layer4-7) Powersupply* BCM (Layer 2) Failover Serial Mgmt x*10/100/1000Base-T Copper/SFP-GBIC 10GbEth* * Depends on platform (optional)

  40. High-Performance Application Switches BIG-IP 8900 • Consolidate with Purpose-built Hardware • Designed specifically for application delivery • Integrated platform for security, acceleration, availability • Offload Application Servers • High performance hardware SSL and compression offload • Advanced connection management • Reduce Operating Costs • Simplified management with USB, front panel management, remote boot, and more • Increased uptime with hot swappable and redundant components BIG-IP 6900 BIG-IP 1600 - 3600

  41. BIG-IP 1600High performance meets high value High Performance Dual-core CPU provides 1 Gb/s of L7 throughput Reliable and Adaptable Options for dual power and DC power Front-to-back cooling Basic security and acceleration options Protocol Security Module 1 Gb/s compression and SSL throughput

  42. BIG-IP 3600Integrated ADC in a 1U platform Advanced security and acceleration options WebAccelerator option Application Security Module option High Performance Dual-core CPU provides 2 Gb/s of L7 throughput Reliable and Adaptable Options for dual power and DC power Front-to-back cooling

  43. BIG-IP 6900Consolidation and Integration High Performance for Consolidation Dual CPU, Dual Core for 6 Gb/s of L7 throughput Hardware SSL and Compression offload Multi-module Integration Run multiple modules and unify application delivery functions onto a single device Reliable and Adaptable Dual power supplies and dual hard drives standard Front-to-back cooling

  44. BIG-IP 8900The Foundation of a Unified ADN High Performance for Consolidation Dual CPU, Quad Core for 12 Gb/s of L7 throughput Hardware SSL and compression offload 10G Ports for Next-gen Data Centers Two 10G SFP ports in addition to 1G copper and fiber connections Reliable and Adaptable Dual power supplies and dual hard drives standard Front-to-back cooling

  45. Platform Performance

  46. Network switch switch TMM0 TMM1 TMM2 TMM3 CMP Super-VIP Servers Multitasking means screwing up several tasks at the same time.

  47. The World’s Only On Demand ADC

  48. VIPRION – On Demand ADC Add application intelligence without adding management cost Market-leading performance Ultimate redundancy TMOS inside

  49. Viprion Overview Unmatched Performance Massive scalability Processing architecture common with 8800 Intelligent clustering SuperVIP (Virtuals can seamlessly span blades) N+M redundancy for all features in cluster High Availability Automatic failover within cluster Chassis-to-chassis redundancy Full Modular Chassis 4 blade slots w/1 blade type 1 blade type Any blade can be chassis master Common central management console Single point of Management Same user interface as BIG-IP appliances

  50. On Demand – Zero Reconfiguration Automatic addition of power No need to overprovision Fixed and predictable OpEx Virtual Machines Virtual Machines Servers Servers Servers Physical Server Physical Server
