  1. Windows 7 Group Policy Clyde G. Johnson

  2. Agenda • Test Environment • Tools of the trade • Demo • Central Store • Show • Group Policy Spreadsheets • Demo • Planning and Deployment

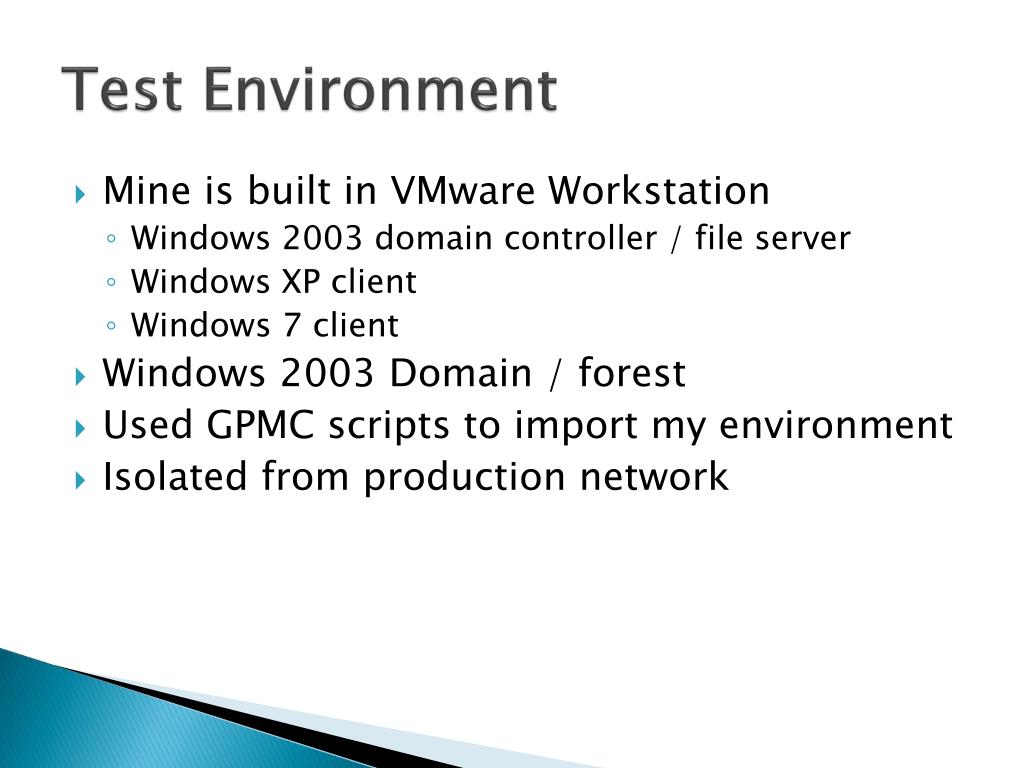

  3. Test Environment • Mine is built in VMware Workstation • Windows 2003 domain controller / file server • Windows XP client • Windows 7 client • Windows 2003 Domain / forest • Used GPMC scripts to import my environment • Isolated from production network

  4. Tools of the Trade • RSAT • Installs WS2008R2 administration tools on Windows 7 computers for remote management • Enables GUI-based remote management for full server and server core installations • Download • GPMC • Part of Windows 7 and 2008 R2 • Security Compliance Manager

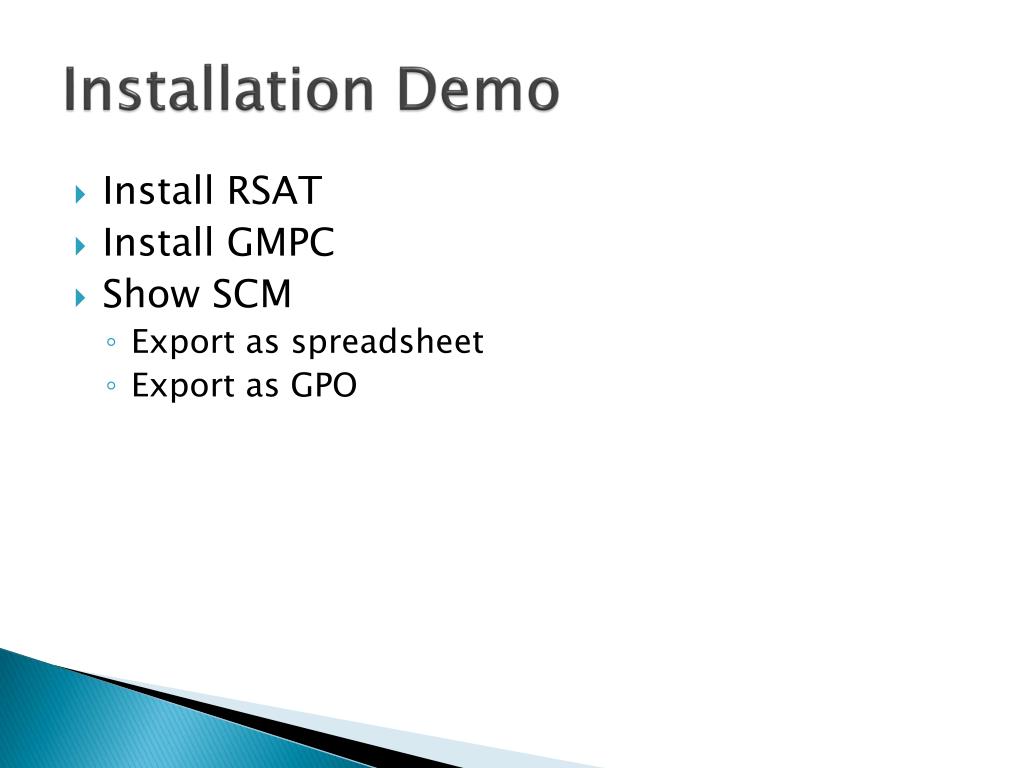

  5. Installation Demo • Install RSAT • Install GMPC • Show SCM • Export as spreadsheet • Export as GPO

  6. Central Store • Centralized Repository for ADMX Files • One-time creation and population of central store per domain • Replicated to all domain controllers • Helps prevent “GPO bloat” • Contains all ADMX templates including Office 2010 and IE 8.0 • Located in Sysvol (case sensitive) • [sysvol]\<domain>\policies\PolicyDefinitions

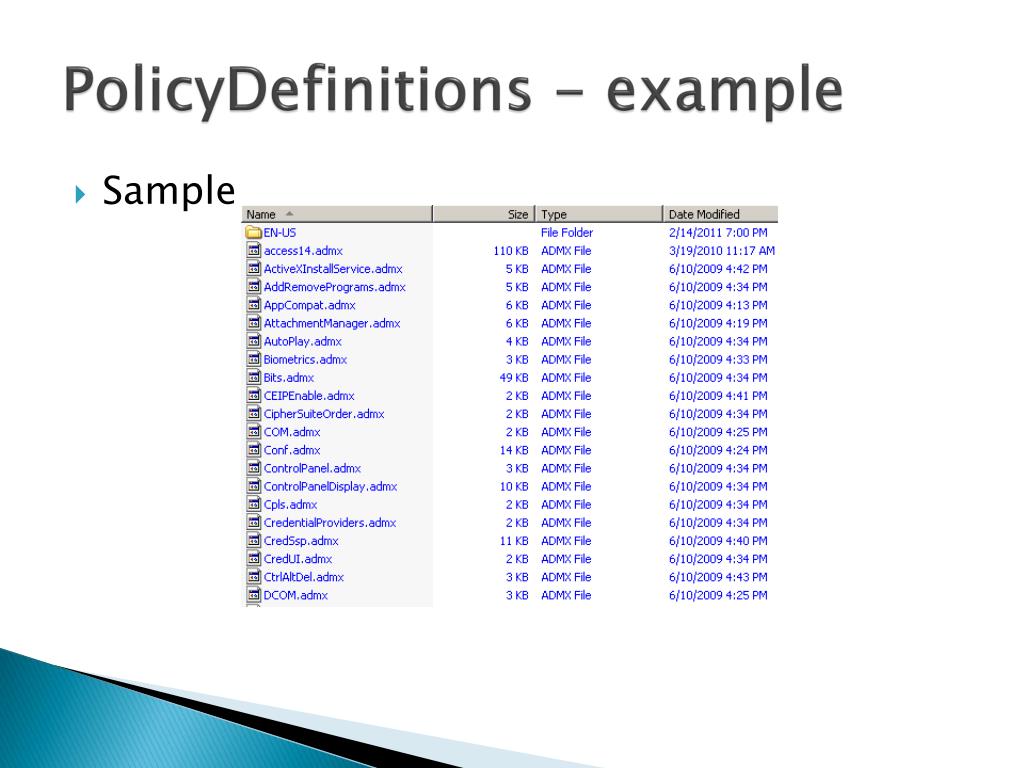

  7. PolicyDefinitions - example • Sample

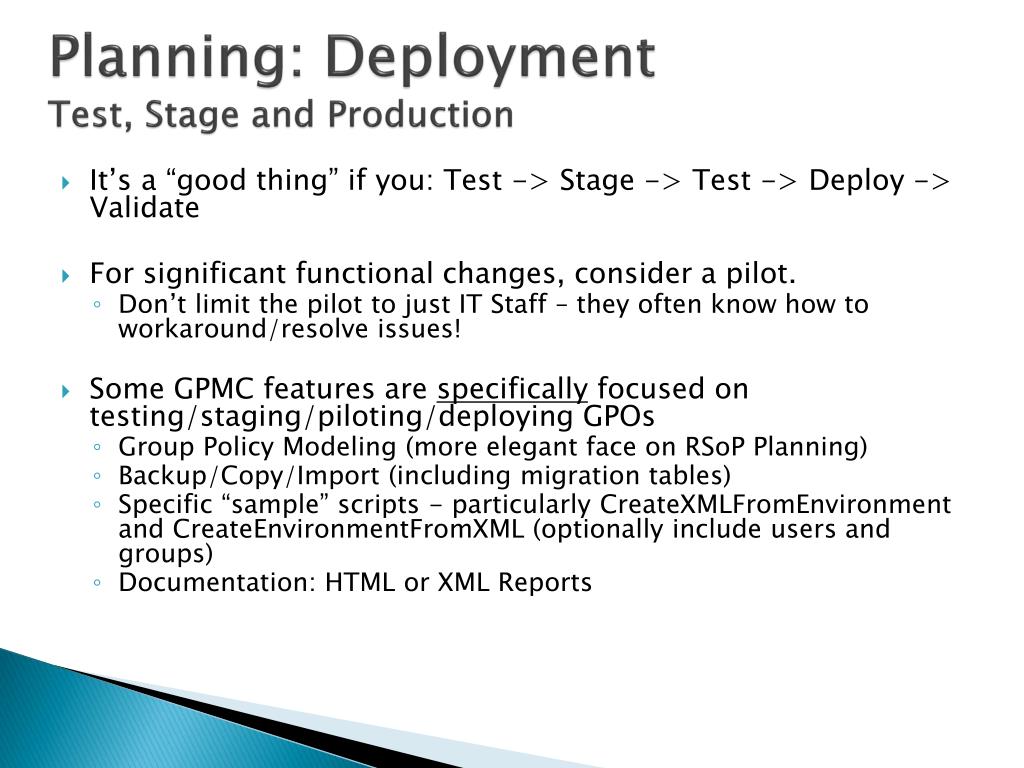

  8. Planning: DeploymentTest, Stage and Production • It’s a “good thing” if you: Test -> Stage -> Test -> Deploy -> Validate • For significant functional changes, consider a pilot. • Don’t limit the pilot to just IT Staff – they often know how to workaround/resolve issues! • Some GPMC features are specifically focused on testing/staging/piloting/deploying GPOs • Group Policy Modeling (more elegant face on RSoP Planning) • Backup/Copy/Import (including migration tables) • Specific “sample” scripts - particularly CreateXMLFromEnvironment and CreateEnvironmentFromXML (optionally include users and groups) • Documentation: HTML or XML Reports

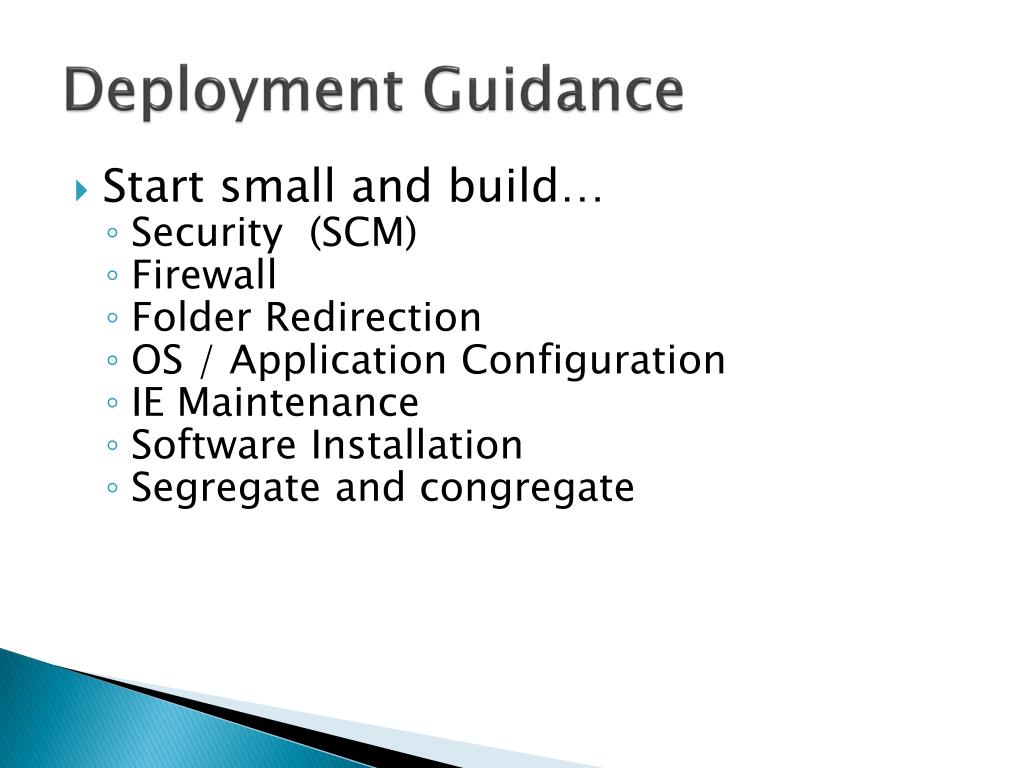

  9. Deployment Guidance • Start small and build… • Security (SCM) • Firewall • Folder Redirection • OS / Application Configuration • IE Maintenance • Software Installation • Segregate and congregate

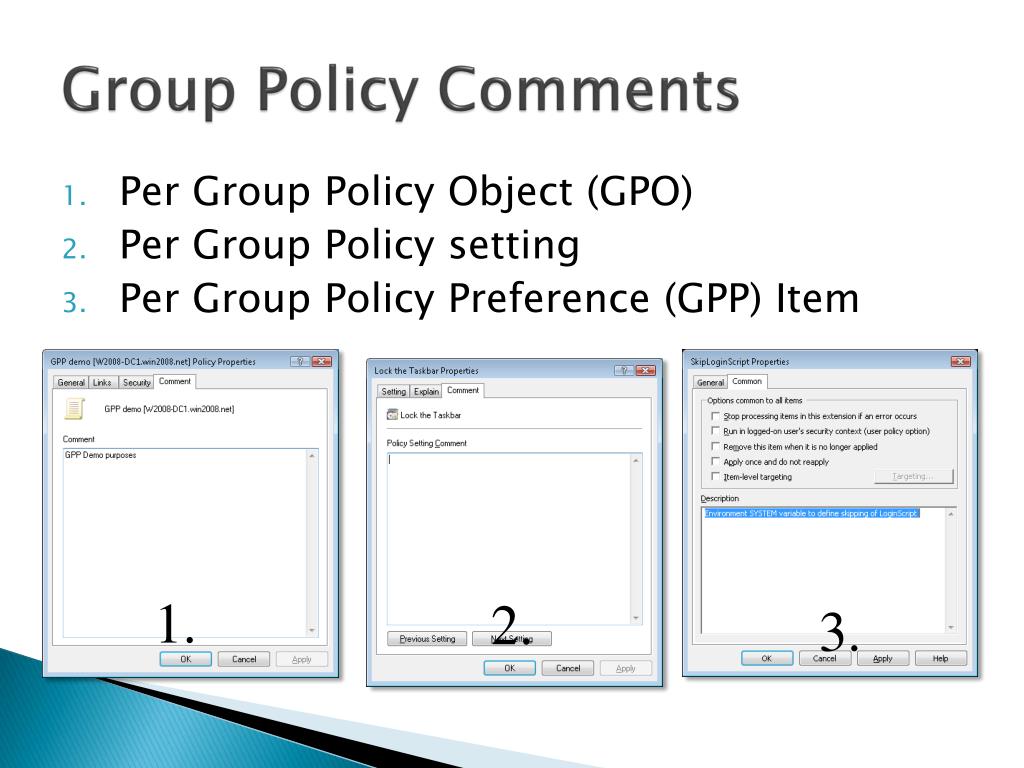

  10. Group Policy Comments • Per Group Policy Object (GPO) • Per Group Policy setting • Per Group Policy Preference (GPP) Item 1. 2. 3.

  11. Group Policy Logging • Administrative Log • Applications and services log • XML Based event logs • New Tools - GPOLogView

  12. For you Home Admins • Multple local GPO’s LGPO’s LGPO Local Computer Policy Admin Admin/Non-Admin Group Policy User User Specified Group Policy

  13. My Favorites • Folder Redirection • Offline Files (encrypted) – Mobile only

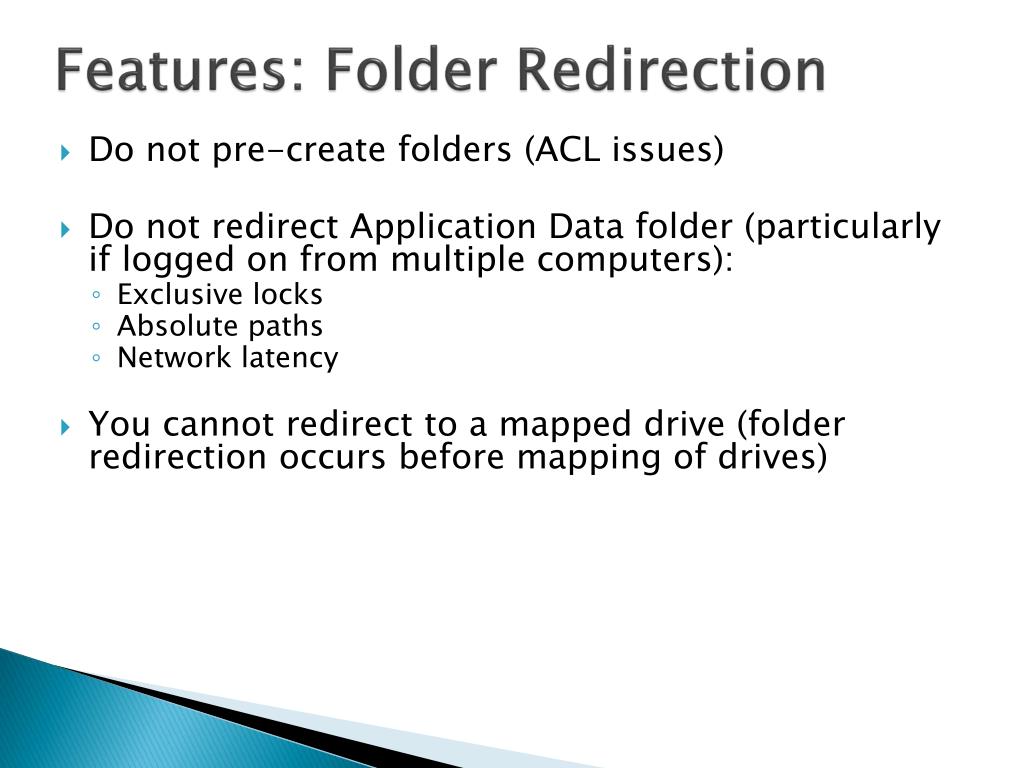

  14. Features: Folder Redirection • Do not pre-create folders (ACL issues) • Do not redirect Application Data folder (particularly if logged on from multiple computers): • Exclusive locks • Absolute paths • Network latency • You cannot redirect to a mapped drive (folder redirection occurs before mapping of drives)

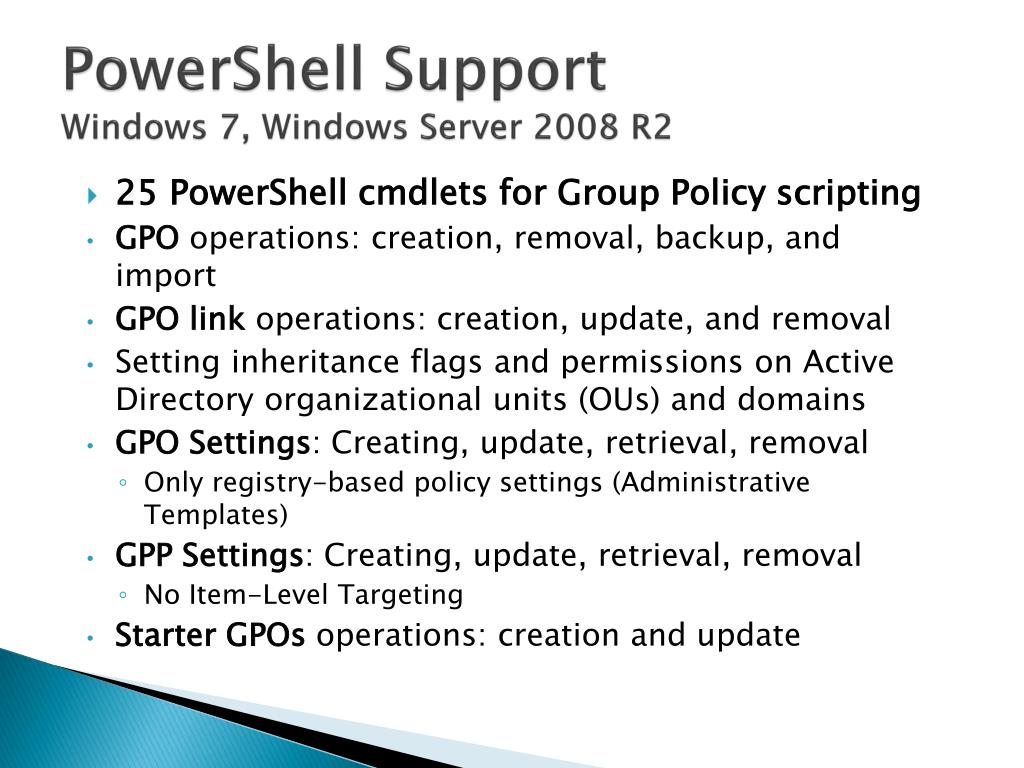

  15. PowerShell SupportWindows 7, Windows Server 2008 R2 • 25 PowerShell cmdlets for Group Policy scripting • GPO operations: creation, removal, backup, and import • GPO link operations: creation, update, and removal • Setting inheritance flags and permissions on Active Directory organizational units (OUs) and domains • GPO Settings: Creating, update, retrieval, removal • Only registry-based policy settings (Administrative Templates) • GPP Settings: Creating, update, retrieval, removal • No Item-Level Targeting • Starter GPOs operations: creation and update

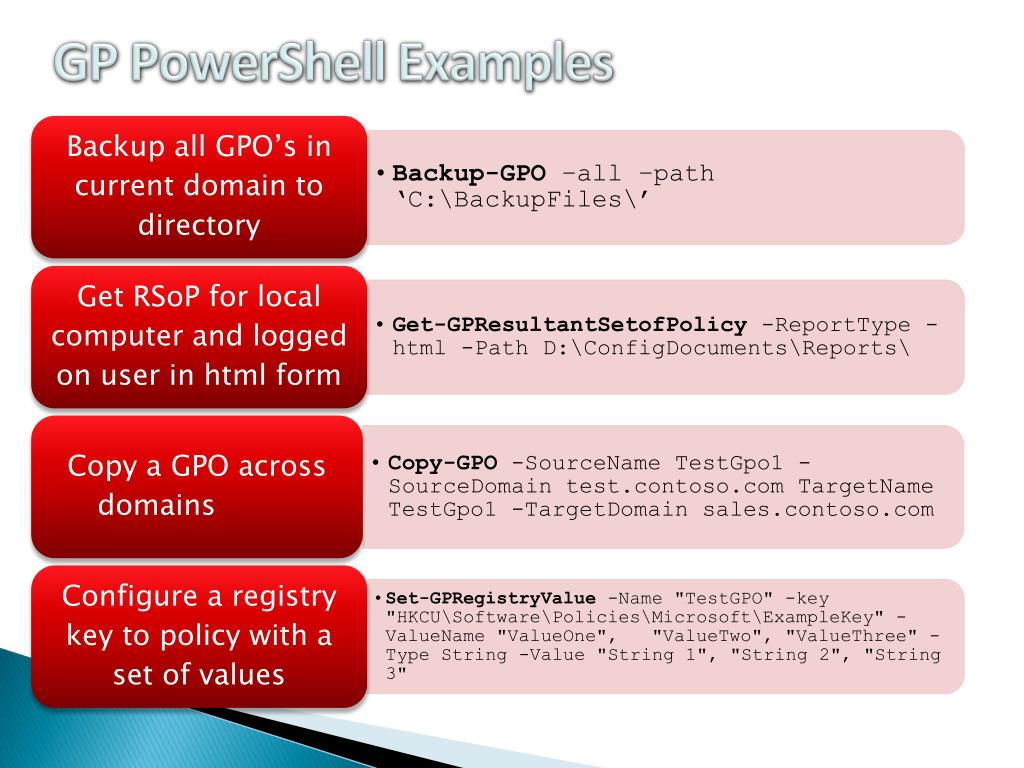

  16. GP PowerShell Examples

  17. PowerShell & GPO Scripts Windows 7, Windows Server 2008 R2 • PowerShell Scripts supported in GPO Startup/Shutdown & Logon/Logoff scripts • By default, Windows PowerShell scripts run after non-Windows PowerShell scripts

  18. References • Group Policy TechNet page http://www.microsoft.com/technet/grouppolicy • Group Policy Wiki http://grouppolicy.editme.com • Group Policy Team Blog http://blogs.technet.com/grouppolicy • Group Policy Settings Reference http://go.microsoft.com/fwlink/?LinkID=131389 • Remote Server Administration Tools (RSAT) http://www.microsoft.com/downloads/en/details.aspx?FamilyID=7d2f6ad7-656b-4313-a005-4e344e43997d

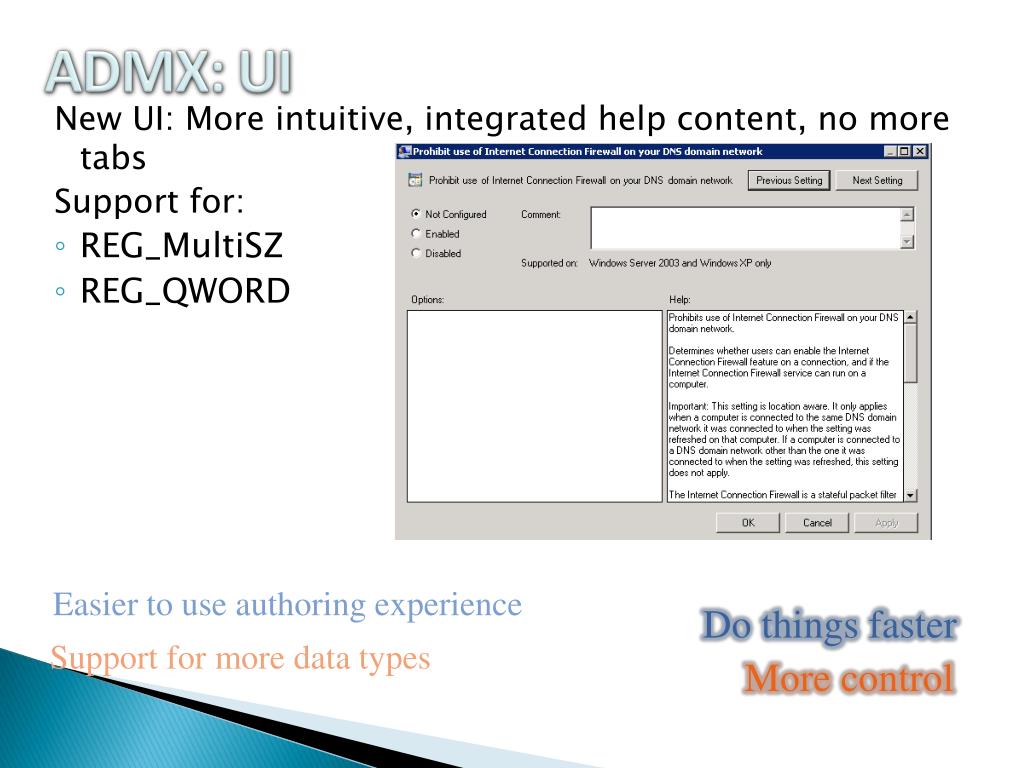

  19. ADMX: UI New UI: More intuitive, integrated help content, no more tabs Support for: • REG_MultiSZ • REG_QWORD • Easier to use authoring experience • Do things faster • Support for more data types • More control

  20. Resources • www.microsoft.com/teched • Sessions On-Demand & Community • www.microsoft.com/learning • Microsoft Certification & Training Resources • http://microsoft.com/technet • Resources for IT Professionals • http://microsoft.com/msdn • Resources for Developers
