  1. Circuit Emulation Service (CES) ATM Switch

  2. Objectives • Explain Circuit Emulation Service (CES) • Define the role of the Circuit Emulation (CEM) netmods and port card • Describe the features of the CEM netmods and port card • Compare and contrast CAS and CCS signalling • Explain structured and unstructured CES • Explain DS3 and OC-3 channelization • Create an unstructured CES instance • Create a structured CES instance

  3. What is Circuit Emulation Service (CES)? Video PBX SE-400 SE-400 Video Network ES-3810 ASX-1000 PBX VideoMonitor PBX DataMux

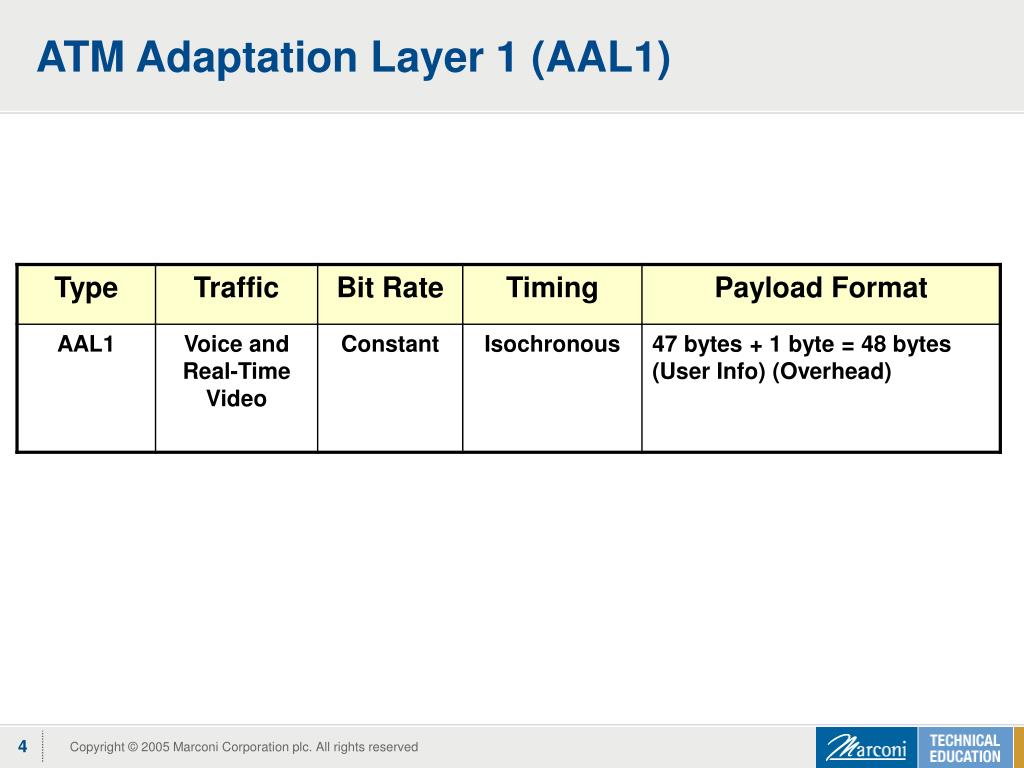

  4. ATM Adaptation Layer 1 (AAL1)

  5. + Full ATM AAL1 Cell Fill (47 bytes) Sequence Number CRC / Parity 10110101 = 6 milliseconds (overhead = 11%) 1 x DS0 (64 Kbps) Cell Header Partial ATM AAL1 Cell Fill (12 bytes) Sequence Number CRC / Parity Payload Pad 10110101 12 byte payload 1 x DS0 (64 Kbps) = 1.1 milliseconds (overhead = 77%) Cell Header Variable Payload 12 to 47 bytes Cell Fill 47 byte payload

  6. CES CES Channelization Channelization PBX TDM Network SONET Network CES Hardware TNX-210 TNX-1100 6 or 8 ports UTP ASX–4000/M CES Customer Premise 4 ports OC-3 3 ports DS3 1 port OC-3

  7. Signalling • Channel Associated Signalling (CAS) • In-band signalling that is required for structured service • Common Channel Signalling (CCS) • Out-of-band signalling wherein one channel of a DS1 is used for the signalling

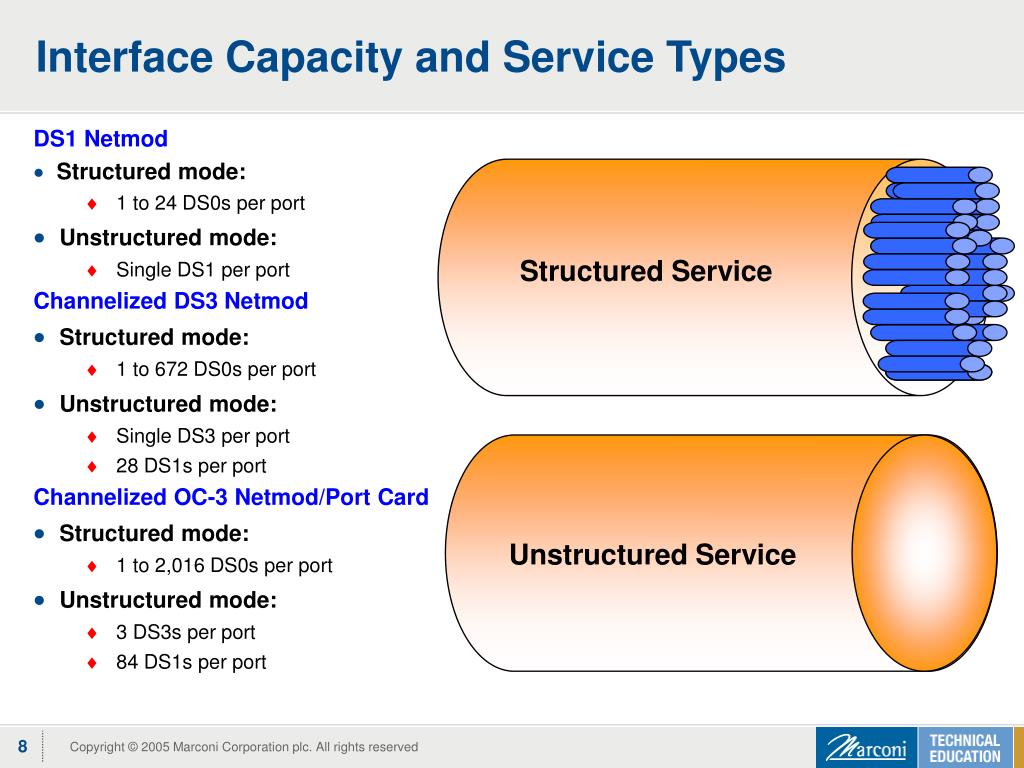

  8. Structured Service Interface Capacity and Service Types DS1 Netmod • Structured mode: • 1 to 24 DS0s per port • Unstructured mode: • Single DS1 per port Channelized DS3 Netmod • Structured mode: • 1 to 672 DS0s per port • Unstructured mode: • Single DS3 per port • 28 DS1s per port Channelized OC-3 Netmod/Port Card • Structured mode: • 1 to 2,016 DS0s per port • Unstructured mode: • 3 DS3s per port • 84 DS1s per port Unstructured Service

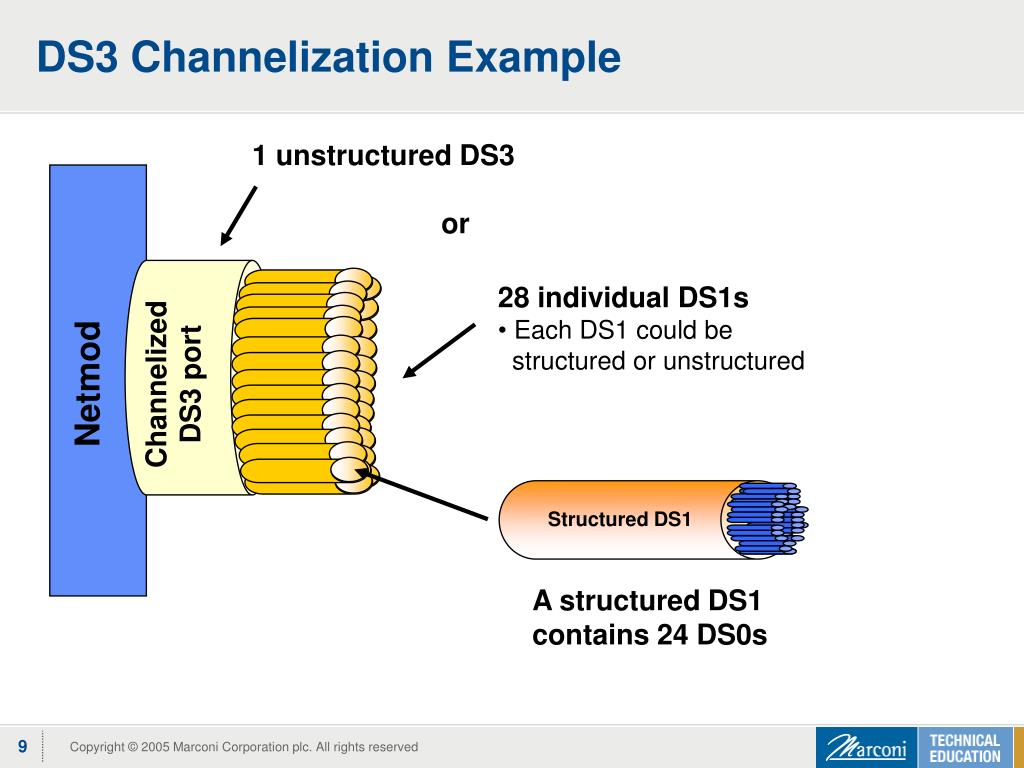

  9. Structured DS1 DS3 Channelization Example 1 unstructured DS3 or • 28 individual DS1s • Each DS1 could be structured or unstructured ChannelizedDS3 port Netmod A structured DS1 contains 24 DS0s

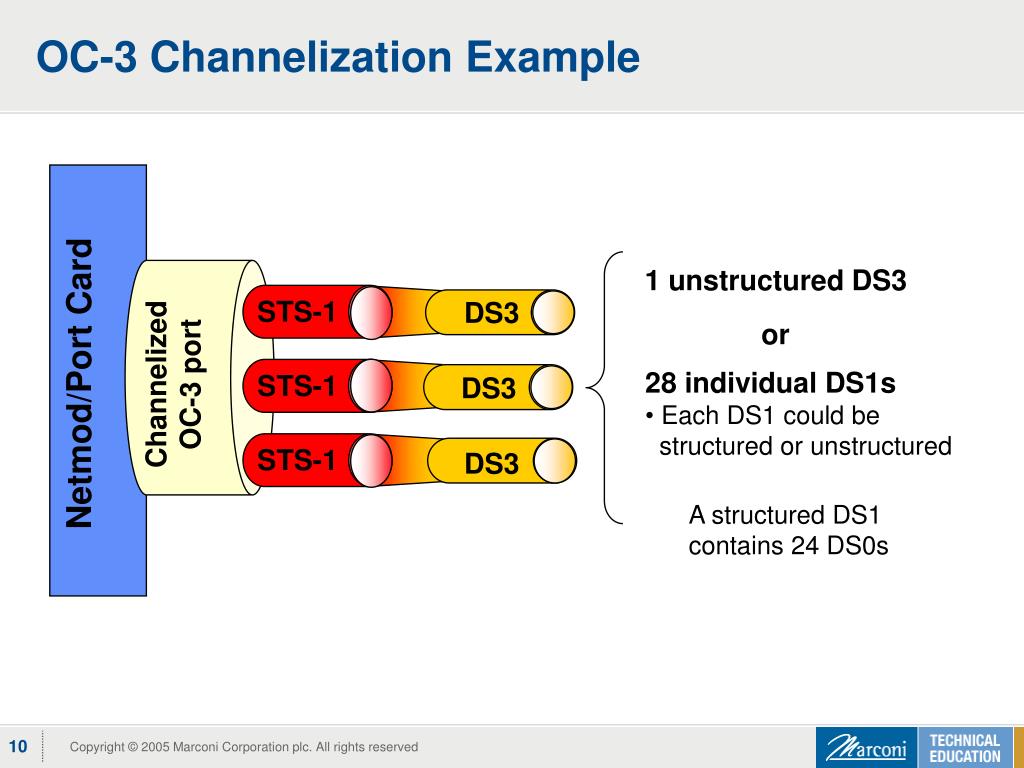

  10. OC-3 Channelization Example 1 unstructured DS3 STS-1 DS3 or ChannelizedOC-3 port Netmod/Port Card • 28 individual DS1s • Each DS1 could be structured or unstructured STS-1 DS3 STS-1 DS3 A structured DS1 contains 24 DS0s

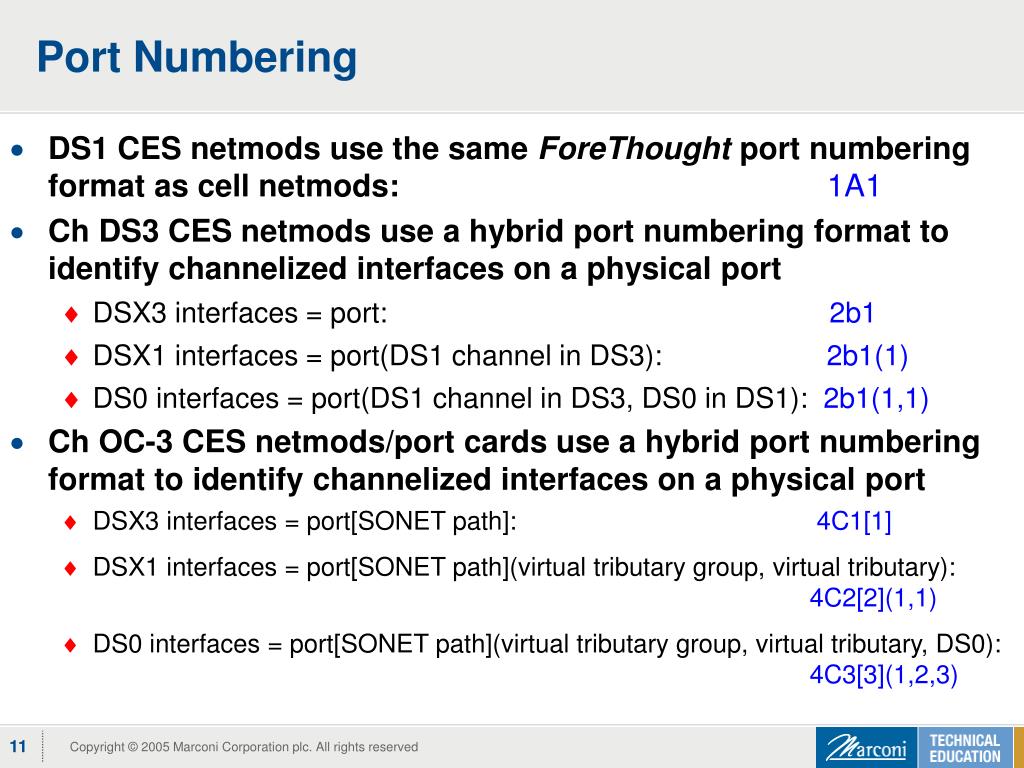

  11. Port Numbering • DS1 CES netmods use the same ForeThought port numbering format as cell netmods: 1A1 • Ch DS3 CES netmods use a hybrid port numbering format to identify channelized interfaces on a physical port • DSX3 interfaces = port: 2b1 • DSX1 interfaces = port(DS1 channel in DS3): 2b1(1) • DS0 interfaces = port(DS1 channel in DS3, DS0 in DS1): 2b1(1,1) • Ch OC-3 CES netmods/port cards use a hybrid port numbering format to identify channelized interfaces on a physical port • DSX3 interfaces = port[SONET path]: 4C1[1] • DSX1 interfaces = port[SONET path](virtual tributary group, virtual tributary): 4C2[2](1,1) • DS0 interfaces = port[SONET path](virtual tributary group, virtual tributary, DS0): 4C3[3](1,2,3)

  12. Unstructured CES DS1 Netmod Configuration -1 ATM SWITCH:-> services ces ATM SWITCH:services ces-> new ? [[-ifindex] <integer>] CES Service Index [-iatmif] <AtmIf> Input AtmIf [-its] <text> Input Timeslots [[-oatmif] <AtmIf>] Output AtmIf [[-ots] <text>] Output Timeslots [[-ovpi] <integer>] Output VPI [[-ovci] <integer>] Output VCI [[-srts] <cbrclockmode>] SRTS [[-fupc] <UPC Index>] Forward UPC [[-bupc] <UPC Index>] Backward UPC [[-cas] <cas>] CAS [[-partialfill] <integer>] Partial Fill [[-reassCDVT] <integer>] Reass CDVT (us) [[-bufsize] <integer>] Buf Size : ATM SWITCH:services ces->

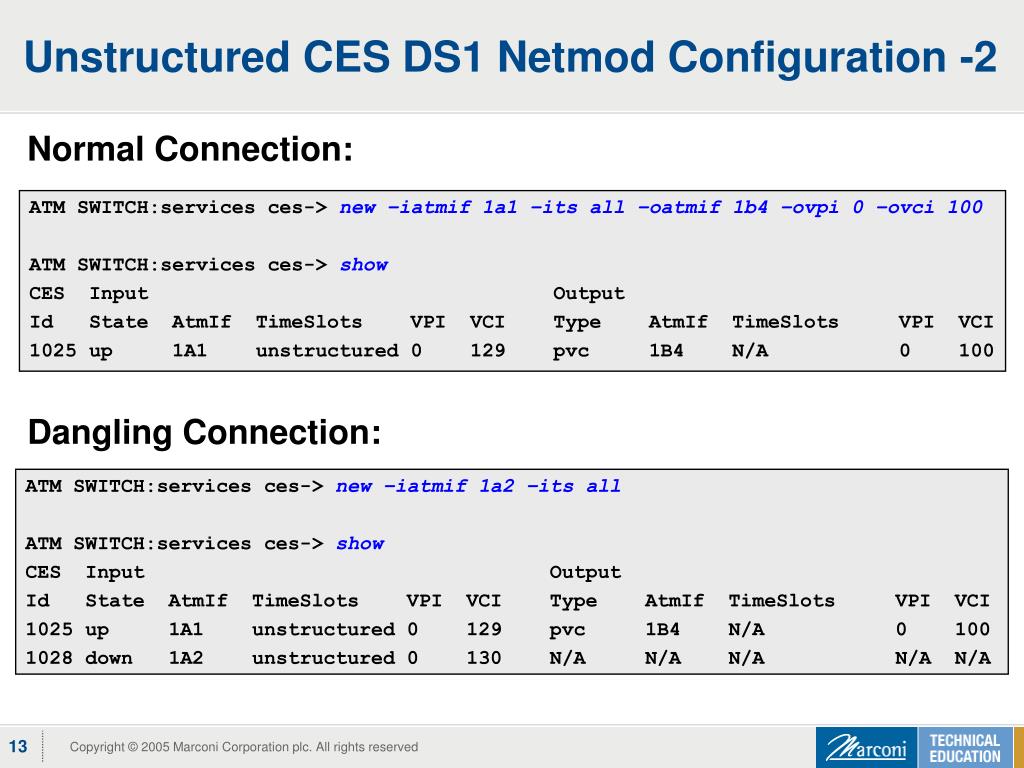

  13. Unstructured CES DS1 Netmod Configuration -2 Normal Connection: ATM SWITCH:services ces-> new –iatmif 1a1 –its all –oatmif 1b4 –ovpi 0 –ovci 100 ATM SWITCH:services ces-> show CES Input Output Id State AtmIf TimeSlots VPI VCI Type AtmIf TimeSlots VPI VCI 1025 up 1A1 unstructured 0 129 pvc 1B4 N/A 0 100 Dangling Connection: ATM SWITCH:services ces-> new –iatmif 1a2 –its all ATM SWITCH:services ces-> show CES Input Output Id State AtmIf TimeSlots VPI VCI Type AtmIf TimeSlots VPI VCI 1025 up 1A1 unstructured 0 129 pvc 1B4 N/A 0 100 1028 down 1A2 unstructured 0 130 N/A N/A N/A N/A N/A

  14. Unstructured CES DS1 Netmod Configuration -3 ATM SWITCH:-> connections upc show Service Police Index Category Scheme PCR SCR MBS MCR CDVT Name 0 UBR ubr1 default_ubr 1 CBR cbr1 4107 3000 ces_cbr4107 ATM SWITCH:-> services ces show -advanced CES Map Map Service Clock Partial Max Integ. Reass Index VPI VCI Type Mode Cas Fill Buf Period CDVT 1025 0 129 unstructured synch basic 47 6144 2500 2500 1028 0 130 unstructured synch basic 47 6144 2500 2500 ATM SWITCH:-> services ces statistics CES Reass Header Pointer Buffer Buffer CellLoss Id Cells Errors Reframes Lost Cells UnderFlows OverFlows Status 1025 0 0 0 0 0 0 noLoss 1028 0 0 0 0 0 0 noLoss

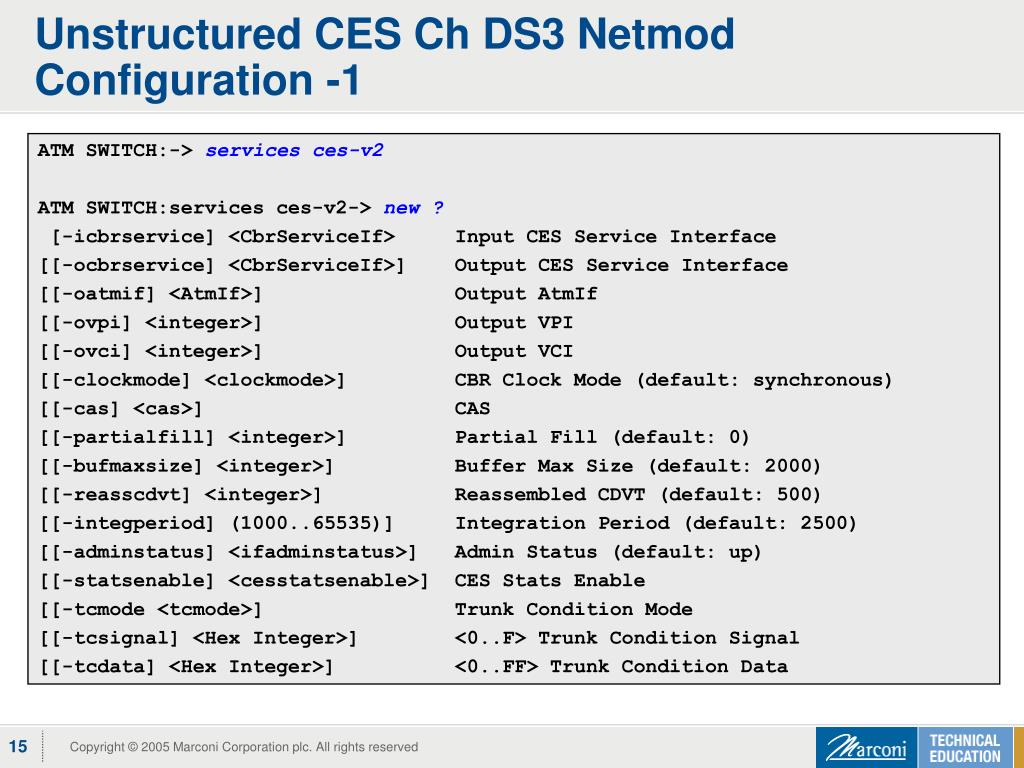

  15. Unstructured CES Ch DS3 Netmod Configuration -1 ATM SWITCH:-> services ces-v2 ATM SWITCH:services ces-v2-> new ? [-icbrservice] <CbrServiceIf> Input CES Service Interface [[-ocbrservice] <CbrServiceIf>] Output CES Service Interface [[-oatmif] <AtmIf>] Output AtmIf [[-ovpi] <integer>] Output VPI [[-ovci] <integer>] Output VCI [[-clockmode] <clockmode>] CBR Clock Mode (default: synchronous) [[-cas] <cas>] CAS [[-partialfill] <integer>] Partial Fill (default: 0) [[-bufmaxsize] <integer>] Buffer Max Size (default: 2000) [[-reasscdvt] <integer>] Reassembled CDVT (default: 500) [[-integperiod] (1000..65535)] Integration Period (default: 2500) [[-adminstatus] <ifadminstatus>] Admin Status (default: up) [[-statsenable] <cesstatsenable>] CES Stats Enable [[-tcmode <tcmode>] Trunk Condition Mode [[-tcsignal] <Hex Integer>] <0..F> Trunk Condition Signal [[-tcdata] <Hex Integer>] <0..FF> Trunk Condition Data

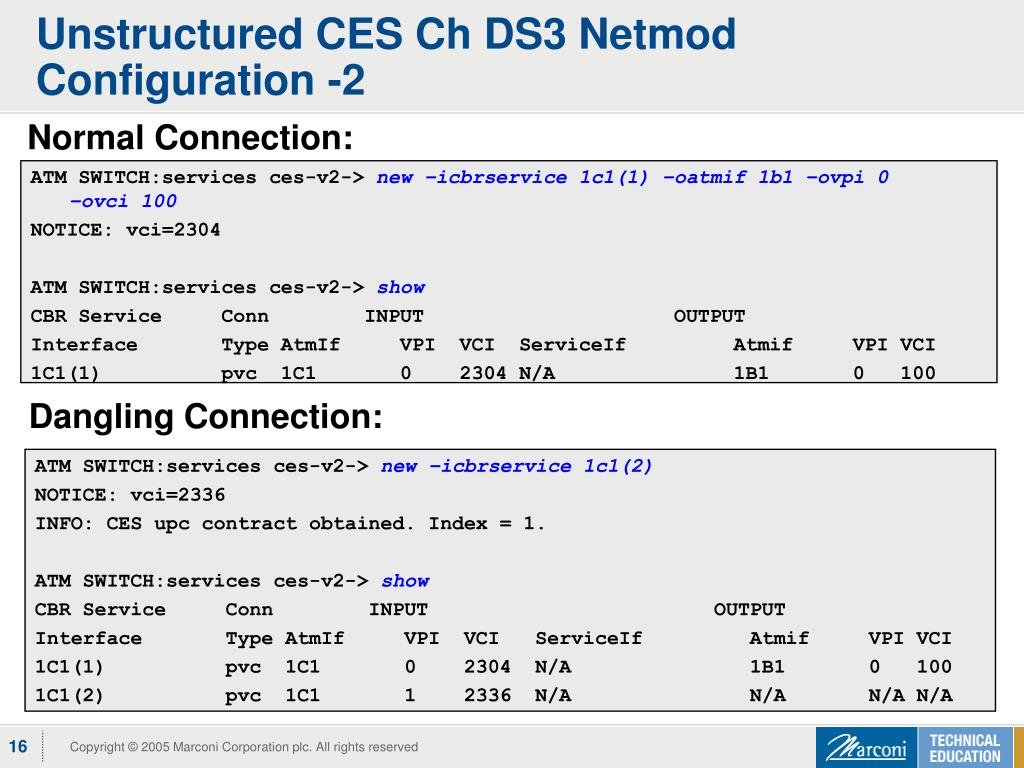

  16. Unstructured CES Ch DS3 Netmod Configuration -2 Normal Connection: ATM SWITCH:services ces-v2-> new –icbrservice 1c1(1) –oatmif 1b1 –ovpi 0 –ovci 100 NOTICE: vci=2304 ATM SWITCH:services ces-v2-> show CBR Service Conn INPUT OUTPUT Interface Type AtmIf VPI VCI ServiceIf Atmif VPI VCI 1C1(1) pvc 1C1 0 2304 N/A 1B1 0 100 Dangling Connection: ATM SWITCH:services ces-v2-> new –icbrservice 1c1(2) NOTICE: vci=2336 INFO: CES upc contract obtained. Index = 1. ATM SWITCH:services ces-v2-> show CBR Service Conn INPUT OUTPUT Interface Type AtmIf VPI VCI ServiceIf Atmif VPI VCI 1C1(1) pvc 1C1 0 2304 N/A 1B1 0 100 1C1(2) pvc 1C1 1 2336 N/A N/A N/A N/A

  17. Unstructured CES Ch DS3 Netmod Configuration -3 ATM SWITCH:-> connections upc show Service Police Index Category Scheme PCR SCR MBS MCR CDVT Name 0 UBR ubr1 default_ubr 1 CBR cbr1 4107 3000 ces_cbr4107 ATM SWITCH:-> services ces-v2 show -advanced CBR Service Service Clock Partial MaxBuff Rx Integ Interface Type CAS Mode Fill Size CDVT Period 1C1(1) unstructured N/A synchronous 0 2000 500 2500 1C1(2) unstructured N/A synchronous 0 2000 500 2500 ATM SWITCH:-> services ces-v2 statistics CBR Service Reass Lost Misinserted Buffer Buffer CellLoss Interface Cells Cells Cells UnderFlows OverFlows Status 1C1(1) 0 0 0 0 0 noLoss 1C1(2) 0 0 0 0 0 noLoss

  18. Unstructured CES Ch OC-3 Netmod/Port Card Configuration -1 ATM SWITCH:-> services ces-v2 ATM SWITCH:services ces-v2-> new ? [-icbrservice] <CbrServiceIf> Input CES Service Interface [[-ocbrservice] <CbrServiceIf>] Output CES Service Interface [[-oatmif] <AtmIf>] Output AtmIf [[-ovpi] <integer>] Output VPI [[-ovci] <integer>] Output VCI [[-clockmode] <clockmode>] CBR Clock Mode (default: synchronous) [[-cas] <cas>] CAS [[-partialfill] <integer>] Partial Fill (default: 0) [[-bufmaxsize] <integer>] Buffer Max Size (default: 2000) [[-reasscdvt] <integer>] Reassembled CDVT (default: 500) [[-integperiod] (1000..65535)] Integration Period (default: 2500) [[-adminstatus] <ifadminstatus>] Admin Status (default: up) [[-statsenable] <cesstatsenable>] CES Stats Enable [[-tcmode <tcmode>] Trunk Condition Mode [[-tcsignal] <Hex Integer>] <0..F> Trunk Condition Signal [[-tcdata] <Hex Integer>] <0..FF> Trunk Condition Data

  19. Unstructured CES Ch OC-3 Netmod/Port Card Configuration -2 Normal Connection: ATM SWITCH:services ces-v2-> new –icbrservice 1a1[1](1,1) –oatmif 2b1 –ovpi 0 –ovci 100 NOTICE: vci=2304 ATM SWITCH:services ces-v2-> show CBR Service Conn INPUT OUTPUT Interface Type AtmIf VPI VCI ServiceIf Atmif VPI VCI 1A1[1](1,1) pvc 1A1[1] 0 2304 N/A 2B1 0 100 Dangling Connection: ATM SWITCH:services ces-v2-> new –icbrservice 1a1[2](1,1) NOTICE: vci=2304 INFO: CES upc contract obtained. Index = 1. ATM SWITCH:services ces-v2-> show CBR Service Conn INPUT OUTPUT Interface Type AtmIf VPI VCI ServiceIf Atmif VPI VCI 1A1[1](1,1) pvc 1A1[1] 0 2304 N/A 2B1 0 100 1A2[2](1,1) pvc 1A1[2] 0 2304 N/A N/A N/A N/A

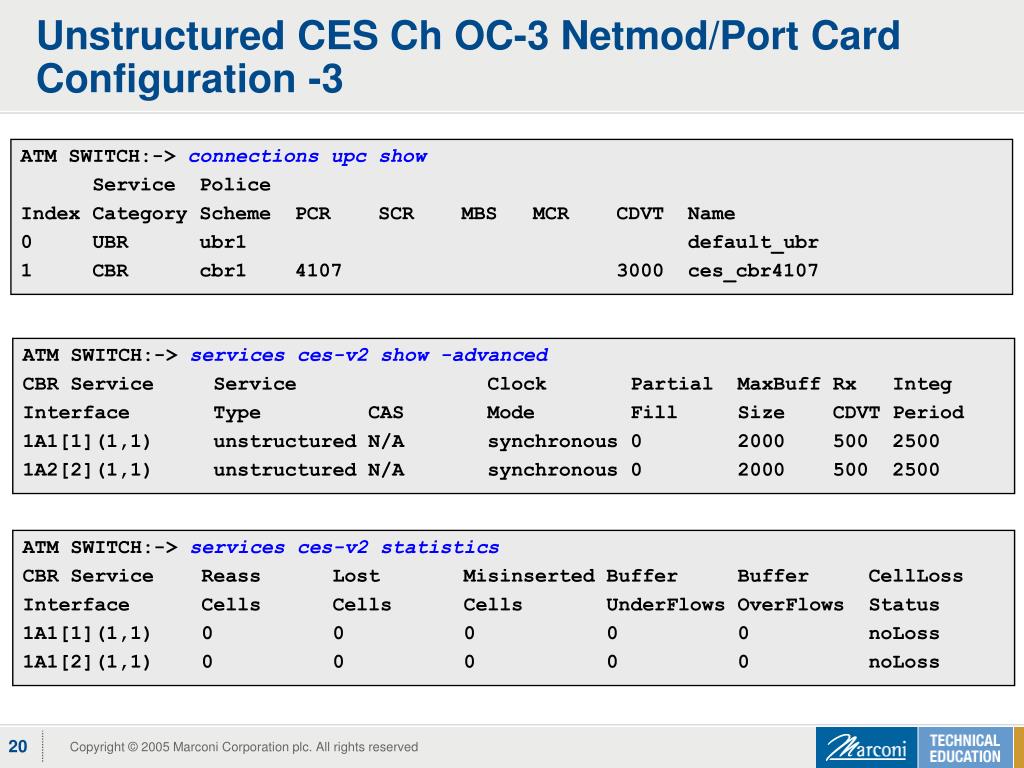

  20. Unstructured CES Ch OC-3 Netmod/Port Card Configuration -3 ATM SWITCH:-> connections upc show Service Police Index Category Scheme PCR SCR MBS MCR CDVT Name 0 UBR ubr1 default_ubr 1 CBR cbr1 4107 3000 ces_cbr4107 ATM SWITCH:-> services ces-v2 show -advanced CBR Service Service Clock Partial MaxBuff Rx Integ Interface Type CAS Mode Fill Size CDVT Period 1A1[1](1,1) unstructured N/A synchronous 0 2000 500 2500 1A2[2](1,1) unstructured N/A synchronous 0 2000 500 2500 ATM SWITCH:-> services ces-v2 statistics CBR Service Reass Lost Misinserted Buffer Buffer CellLoss Interface Cells Cells Cells UnderFlows OverFlows Status 1A1[1](1,1) 0 0 0 0 0 noLoss 1A1[2](1,1) 0 0 0 0 0 noLoss

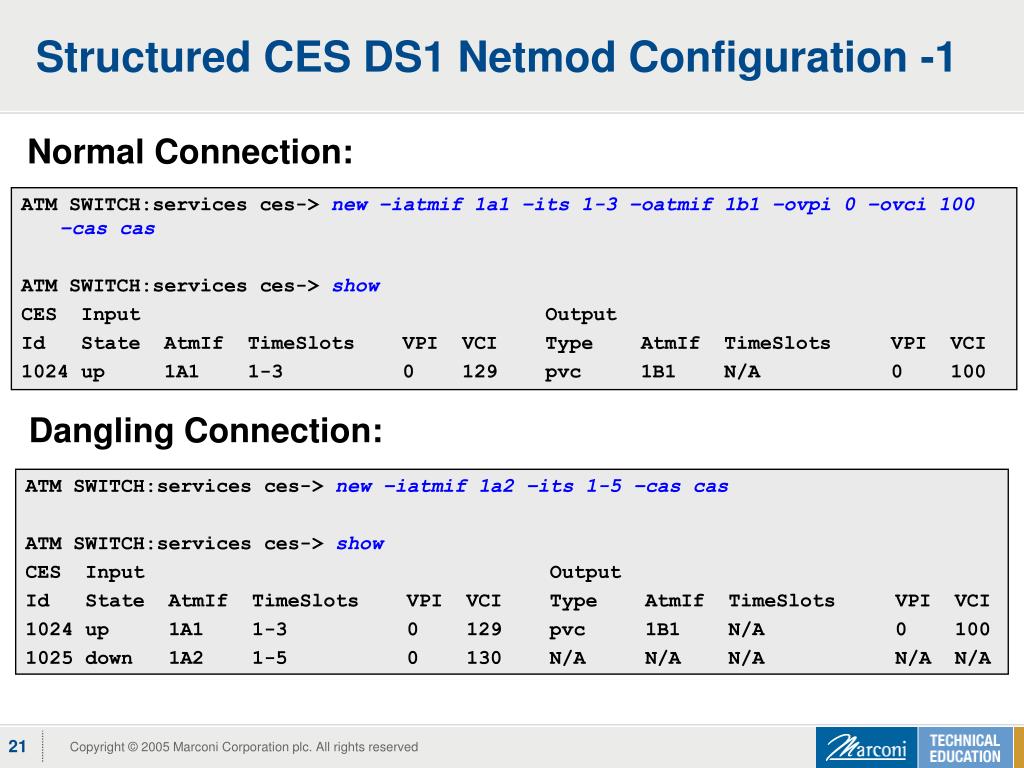

  21. Structured CES DS1 Netmod Configuration -1 Normal Connection: ATM SWITCH:services ces-> new –iatmif 1a1 –its 1-3 –oatmif 1b1 –ovpi 0 –ovci 100 –cas cas ATM SWITCH:services ces-> show CES Input Output Id State AtmIf TimeSlots VPI VCI Type AtmIf TimeSlots VPI VCI 1024 up 1A1 1-3 0 129 pvc 1B1 N/A 0 100 Dangling Connection: ATM SWITCH:services ces-> new –iatmif 1a2 –its 1-5 –cas cas ATM SWITCH:services ces-> show CES Input Output Id State AtmIf TimeSlots VPI VCI Type AtmIf TimeSlots VPI VCI 1024 up 1A1 1-3 0 129 pvc 1B1 N/A 0 100 1025 down 1A2 1-5 0 130 N/A N/A N/A N/A N/A

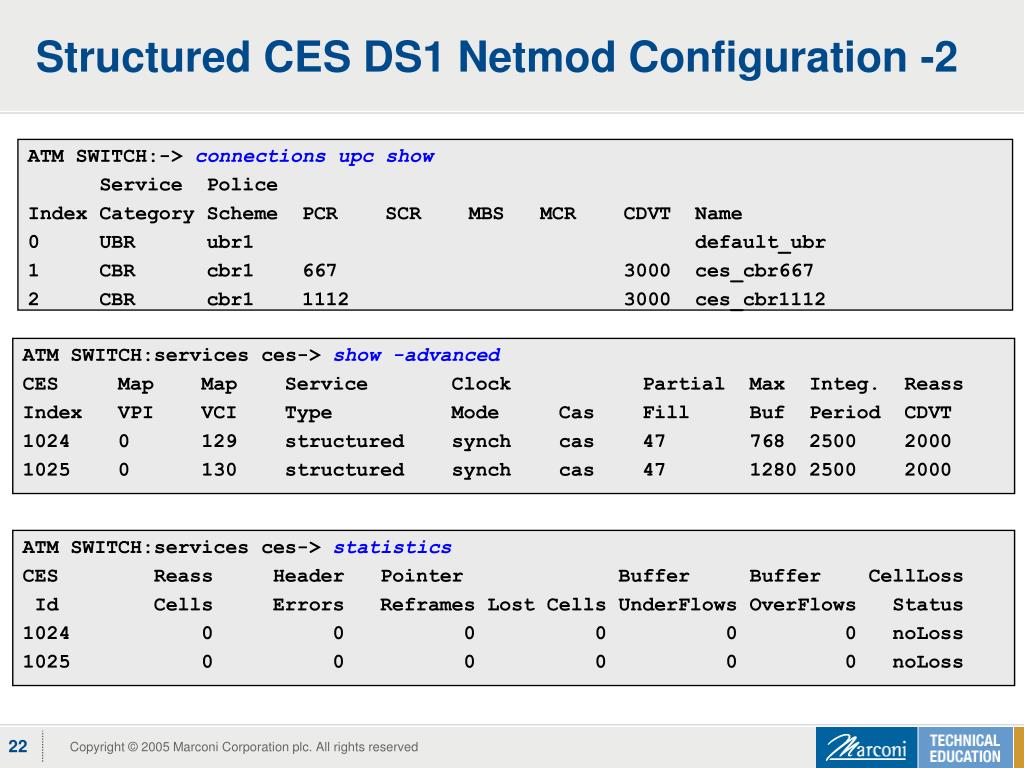

  22. Structured CES DS1 Netmod Configuration -2 ATM SWITCH:-> connections upc show Service Police Index Category Scheme PCR SCR MBS MCR CDVT Name 0 UBR ubr1 default_ubr 1 CBR cbr1 667 3000 ces_cbr667 2 CBR cbr1 1112 3000 ces_cbr1112 ATM SWITCH:services ces-> show -advanced CES Map Map Service Clock Partial Max Integ. Reass Index VPI VCI Type Mode Cas Fill Buf Period CDVT 1024 0 129 structured synch cas 47 768 2500 2000 1025 0 130 structured synch cas 47 1280 2500 2000 ATM SWITCH:services ces-> statistics CES Reass Header Pointer Buffer Buffer CellLoss Id Cells Errors Reframes Lost Cells UnderFlows OverFlows Status 1024 0 0 0 0 0 0 noLoss 1025 0 0 0 0 0 0 noLoss

  23. Structured CES Ch DS3 Netmod Configuration -1 Enable DSX1 Interfaces: ATM SWITCH:-> interfaces dsx1 ATM SWITCH:interfaces dsx1-> show -advanced DSX1 Port Line Upstream Channel Interface Timing Length AIS Model Mode 1A1 localTiming Lt40 disabled CESDS1 N/A 1A2 localTiming Lt40 disabled CESDS1 N/A 1A3 localTiming Lt40 disabled CESDS1 N/A 1A4 localTiming Lt40 disabled CESDS1 N/A 1A5 localTiming Lt40 disabled CESDS1 N/A 1A6 localTiming Lt40 disabled CESDS1 N/A 1C1(1) N/A N/A disabled CESCDS3 dsx1disabled 1C1(2) N/A N/A disabled CESCDS3 dsx1disabled 1C1(3) N/A N/A disabled CESCDS3 dsx1disabled 1C1(4) N/A N/A disabled CESCDS3 dsx1disabled 1C1(5) N/A N/A disabled CESCDS3 dsx1disabled 1C1(6) N/A N/A disabled CESCDS3 dsx1disabled ATM SWITCH: interfaces dsx1-> mod –lineindex 1c1(1) –channelization dsx1enabledDs0 WARNING: The port is currently active. If you proceed, any connections will be interrupted Do you wish to continue (y or n): y

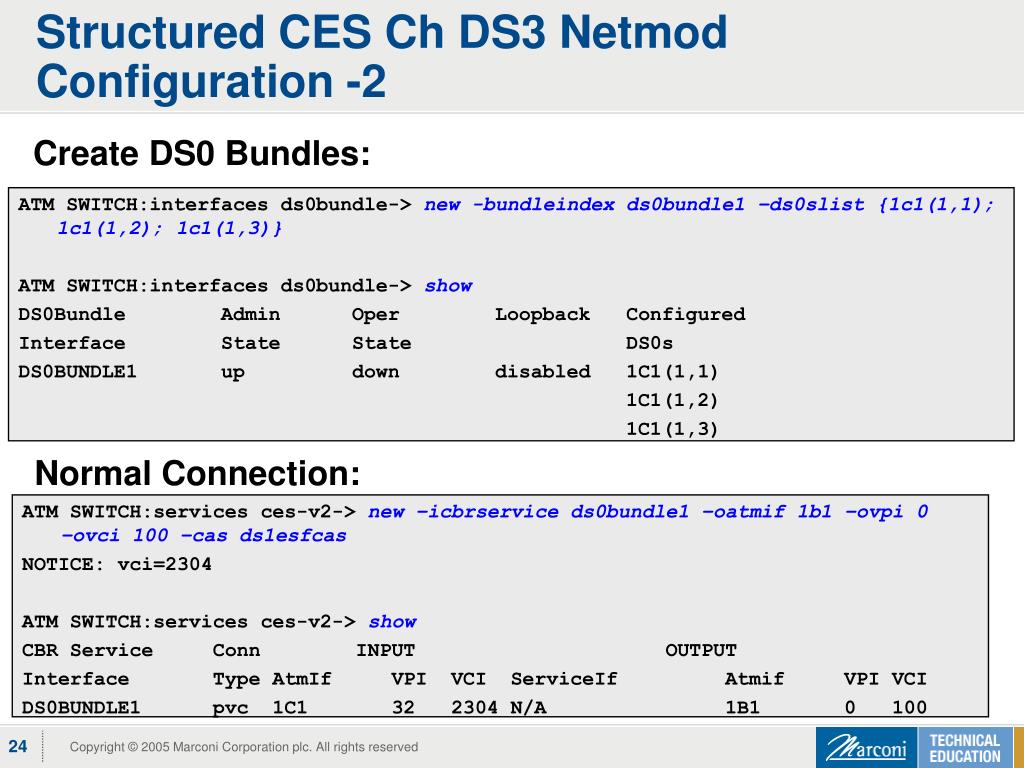

  24. Structured CES Ch DS3 Netmod Configuration -2 Create DS0 Bundles: ATM SWITCH:interfaces ds0bundle-> new -bundleindex ds0bundle1 –ds0slist {1c1(1,1); 1c1(1,2); 1c1(1,3)} ATM SWITCH:interfaces ds0bundle-> show DS0Bundle Admin Oper Loopback Configured Interface State State DS0s DS0BUNDLE1 up down disabled 1C1(1,1) 1C1(1,2) 1C1(1,3) Normal Connection: ATM SWITCH:services ces-v2-> new –icbrservice ds0bundle1 –oatmif 1b1 –ovpi 0 –ovci 100 –cas ds1esfcas NOTICE: vci=2304 ATM SWITCH:services ces-v2->show CBR Service Conn INPUT OUTPUT Interface Type AtmIf VPI VCI ServiceIf Atmif VPI VCI DS0BUNDLE1 pvc 1C1 32 2304 N/A 1B1 0 100

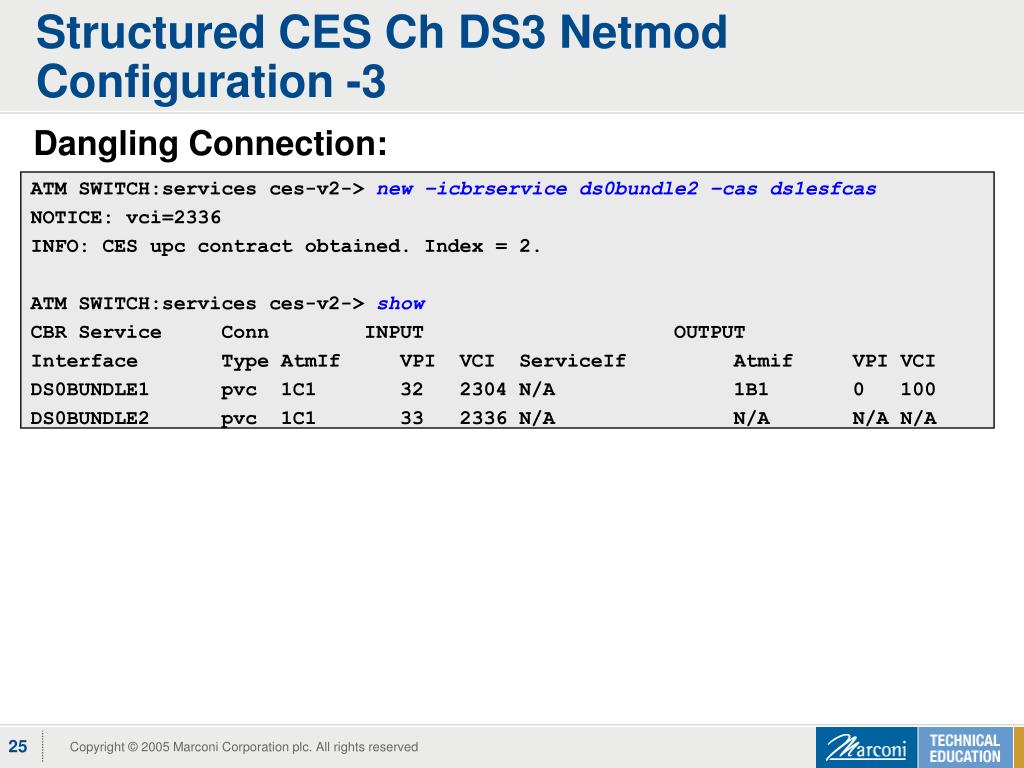

  25. Structured CES Ch DS3 Netmod Configuration -3 Dangling Connection: ATM SWITCH:services ces-v2-> new –icbrservice ds0bundle2 –cas ds1esfcas NOTICE: vci=2336 INFO: CES upc contract obtained. Index = 2. ATM SWITCH:services ces-v2-> show CBR Service Conn INPUT OUTPUT Interface Type AtmIf VPI VCI ServiceIf Atmif VPI VCI DS0BUNDLE1 pvc 1C1 32 2304 N/A 1B1 0 100 DS0BUNDLE2 pvc 1C1 33 2336 N/A N/A N/A N/A

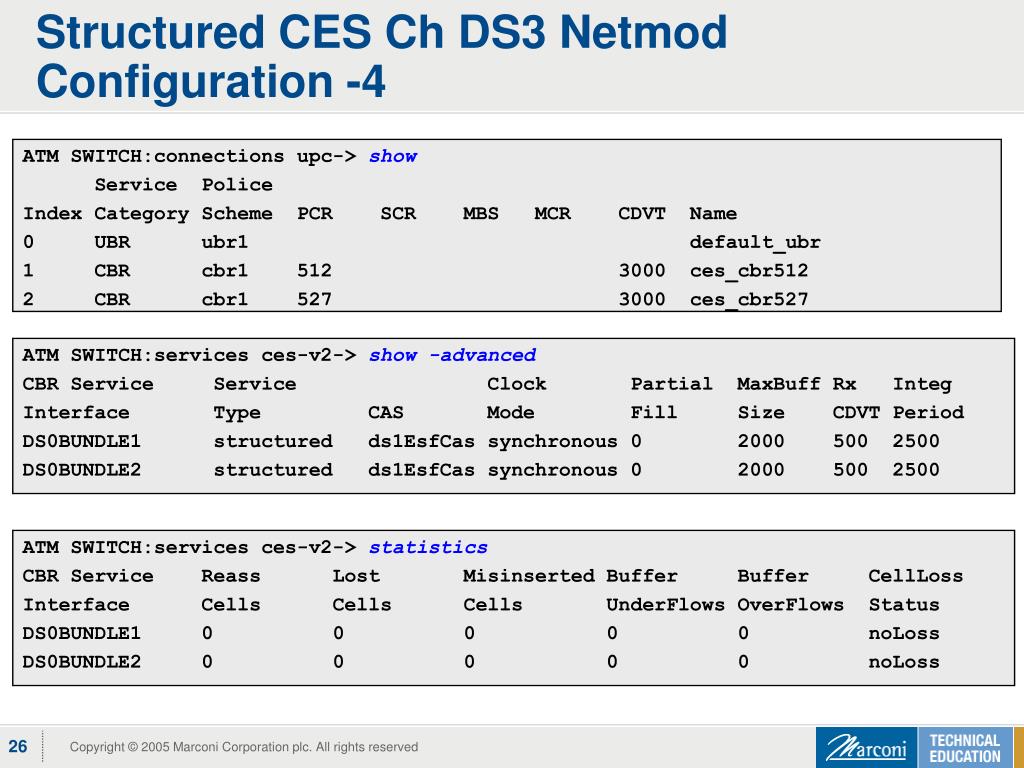

  26. Structured CES Ch DS3 Netmod Configuration -4 ATM SWITCH:connections upc-> show Service Police Index Category Scheme PCR SCR MBS MCR CDVT Name 0 UBR ubr1 default_ubr 1 CBR cbr1 512 3000 ces_cbr512 2 CBR cbr1 527 3000 ces_cbr527 ATM SWITCH:services ces-v2-> show -advanced CBR Service Service Clock Partial MaxBuff Rx Integ Interface Type CAS Mode Fill Size CDVT Period DS0BUNDLE1 structured ds1EsfCas synchronous 0 2000 500 2500 DS0BUNDLE2 structured ds1EsfCas synchronous 0 2000 500 2500 ATM SWITCH:services ces-v2-> statistics CBR Service Reass Lost Misinserted Buffer Buffer CellLoss Interface Cells Cells Cells UnderFlows OverFlows Status DS0BUNDLE1 0 0 0 0 0 noLoss DS0BUNDLE2 0 0 0 0 0 noLoss

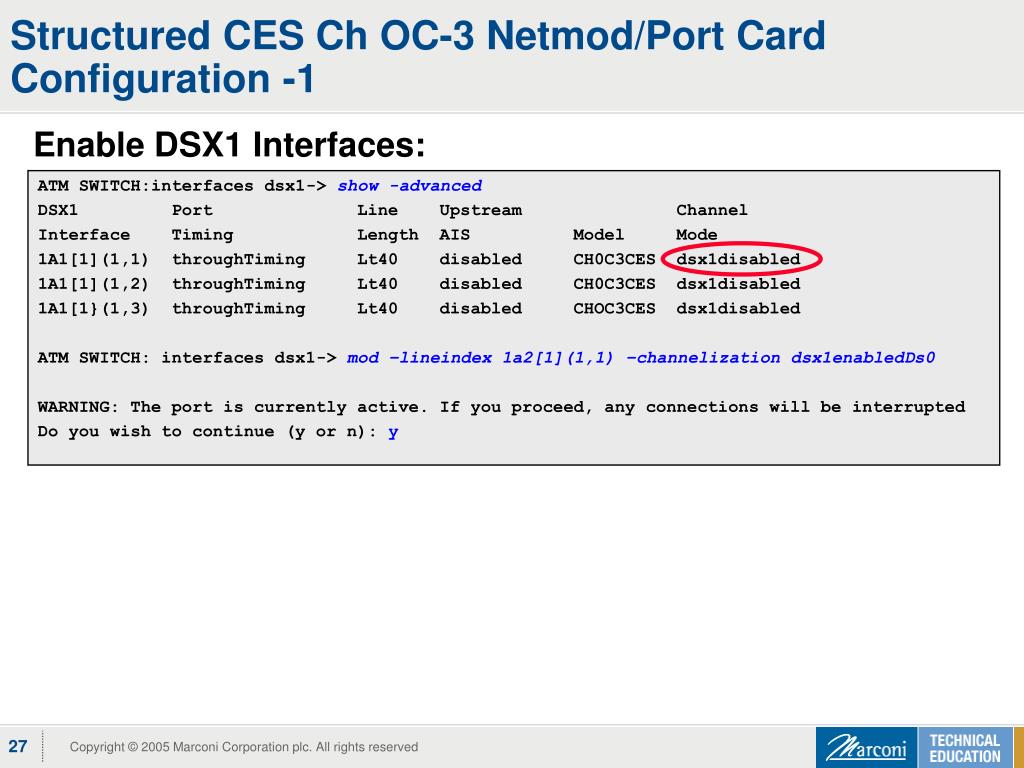

  27. Structured CES Ch OC-3 Netmod/Port Card Configuration -1 Enable DSX1 Interfaces: ATM SWITCH:interfaces dsx1-> show -advanced DSX1 Port Line Upstream Channel Interface Timing Length AIS Model Mode 1A1[1](1,1) throughTiming Lt40 disabled CH0C3CES dsx1disabled 1A1[1](1,2) throughTiming Lt40 disabled CH0C3CES dsx1disabled 1A1[1}(1,3) throughTiming Lt40 disabled CHOC3CES dsx1disabled ATM SWITCH: interfaces dsx1-> mod –lineindex 1a2[1](1,1) –channelization dsx1enabledDs0 WARNING: The port is currently active. If you proceed, any connections will be interrupted Do you wish to continue (y or n): y

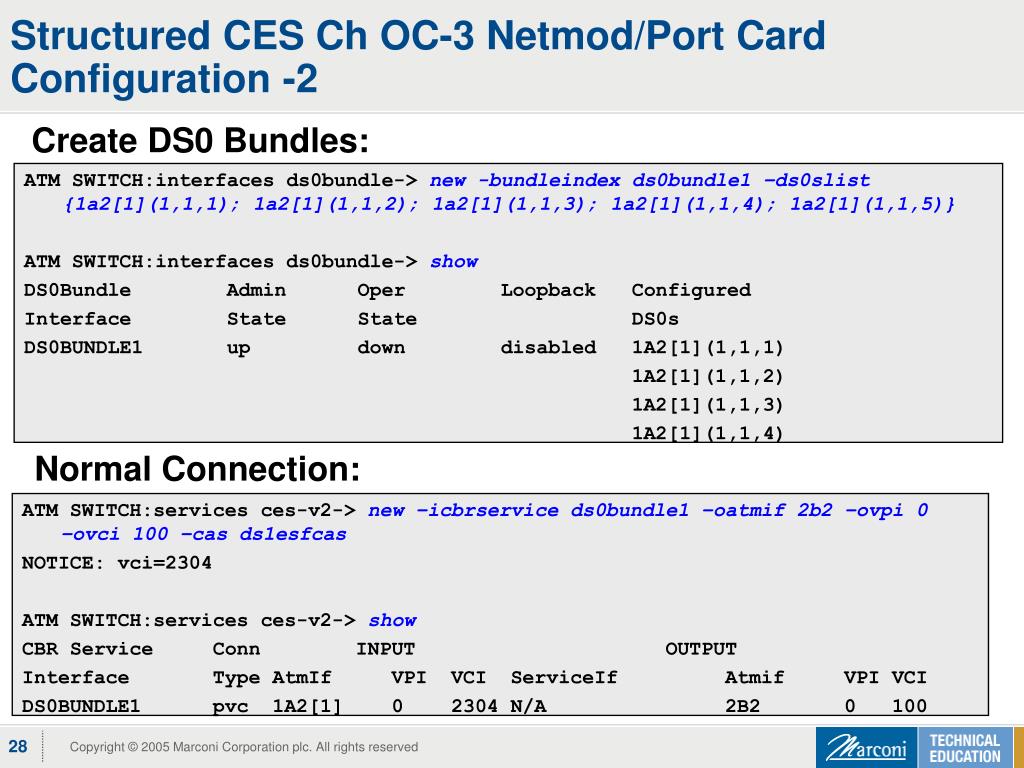

  28. Structured CES Ch OC-3 Netmod/Port Card Configuration -2 Create DS0 Bundles: ATM SWITCH:interfaces ds0bundle-> new -bundleindex ds0bundle1 –ds0slist {1a2[1](1,1,1); 1a2[1](1,1,2); 1a2[1](1,1,3); 1a2[1](1,1,4); 1a2[1](1,1,5)} ATM SWITCH:interfaces ds0bundle-> show DS0Bundle Admin Oper Loopback Configured Interface State State DS0s DS0BUNDLE1 up down disabled 1A2[1](1,1,1) 1A2[1](1,1,2) 1A2[1](1,1,3) 1A2[1](1,1,4) Normal Connection: ATM SWITCH:services ces-v2-> new –icbrservice ds0bundle1 –oatmif 2b2 –ovpi 0 –ovci 100 –cas ds1esfcas NOTICE: vci=2304 ATM SWITCH:services ces-v2-> show CBR Service Conn INPUT OUTPUT Interface Type AtmIf VPI VCI ServiceIf Atmif VPI VCI DS0BUNDLE1 pvc 1A2[1] 0 2304 N/A 2B2 0 100

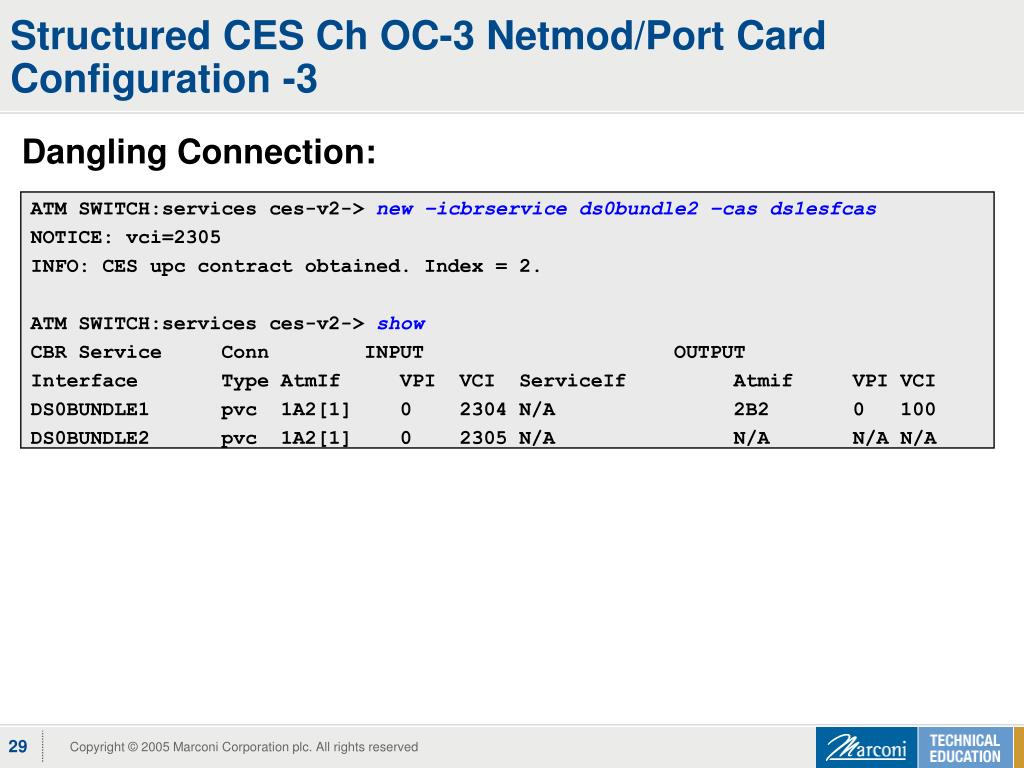

  29. Structured CES Ch OC-3 Netmod/Port Card Configuration -3 Dangling Connection: ATM SWITCH:services ces-v2-> new –icbrservice ds0bundle2 –cas ds1esfcas NOTICE: vci=2305 INFO: CES upc contract obtained. Index = 2. ATM SWITCH:services ces-v2-> show CBR Service Conn INPUT OUTPUT Interface Type AtmIf VPI VCI ServiceIf Atmif VPI VCI DS0BUNDLE1 pvc 1A2[1] 0 2304 N/A 2B2 0 100 DS0BUNDLE2 pvc 1A2[1] 0 2305 N/A N/A N/A N/A

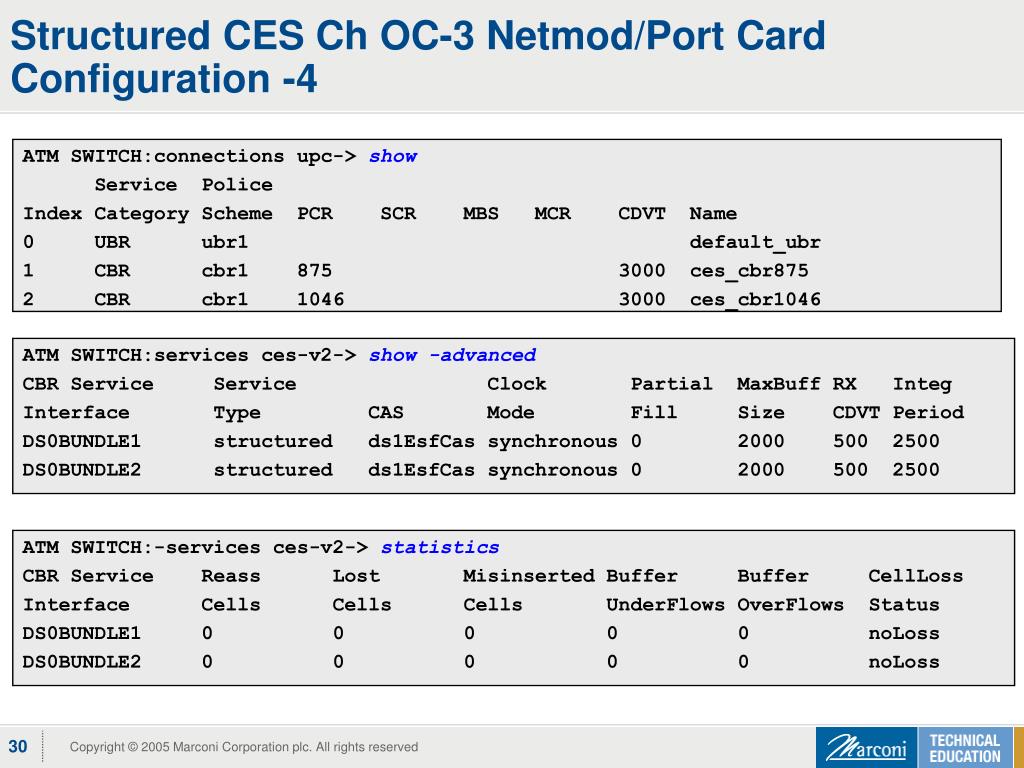

  30. Structured CES Ch OC-3 Netmod/Port Card Configuration -4 ATM SWITCH:connections upc-> show Service Police Index Category Scheme PCR SCR MBS MCR CDVT Name 0 UBR ubr1 default_ubr 1 CBR cbr1 875 3000 ces_cbr875 2 CBR cbr1 1046 3000 ces_cbr1046 ATM SWITCH:services ces-v2-> show -advanced CBR Service Service Clock Partial MaxBuff RX Integ Interface Type CAS Mode Fill Size CDVT Period DS0BUNDLE1 structured ds1EsfCas synchronous 0 2000 500 2500 DS0BUNDLE2 structured ds1EsfCas synchronous 0 2000 500 2500 ATM SWITCH:-services ces-v2-> statistics CBR Service Reass Lost Misinserted Buffer Buffer CellLoss Interface Cells Cells Cells UnderFlows OverFlows Status DS0BUNDLE1 0 0 0 0 0 noLoss DS0BUNDLE2 0 0 0 0 0 noLoss

  31. Summary • Explain Circuit Emulation Service (CES) • Define the role of the Circuit Emulation (CEM) netmods and port card • Describe the features of the CEM netmods and port card • Compare and contrast CAS and CCS signalling • Explain structured and unstructured CES • Explain DS3 and OC-3 channelization • Create an unstructured CES instance • Create a structured CES instance
