  1. Networking Implementations (part 1) CPS210 Spring 2006

  2. Papers • The Click Modular Router • Robert Morris • Lightweight Remote Procedure Call • Brian Bershad

  3. Procedure Calls Stack main: argc, argv foo: 0xf33c, 0xfa3964 foo (char *p) { p[0] = ‘\0’; } Heap 0xfa3964 main (int, char**) { char *p = malloc (64); foo (p); } Code + Data 0x54320 0xf324

  4. RPC basics • Want network code to look local • Leverage language support • 3 components on each side • User program (client or server) • Stub procedures • RPC runtime support

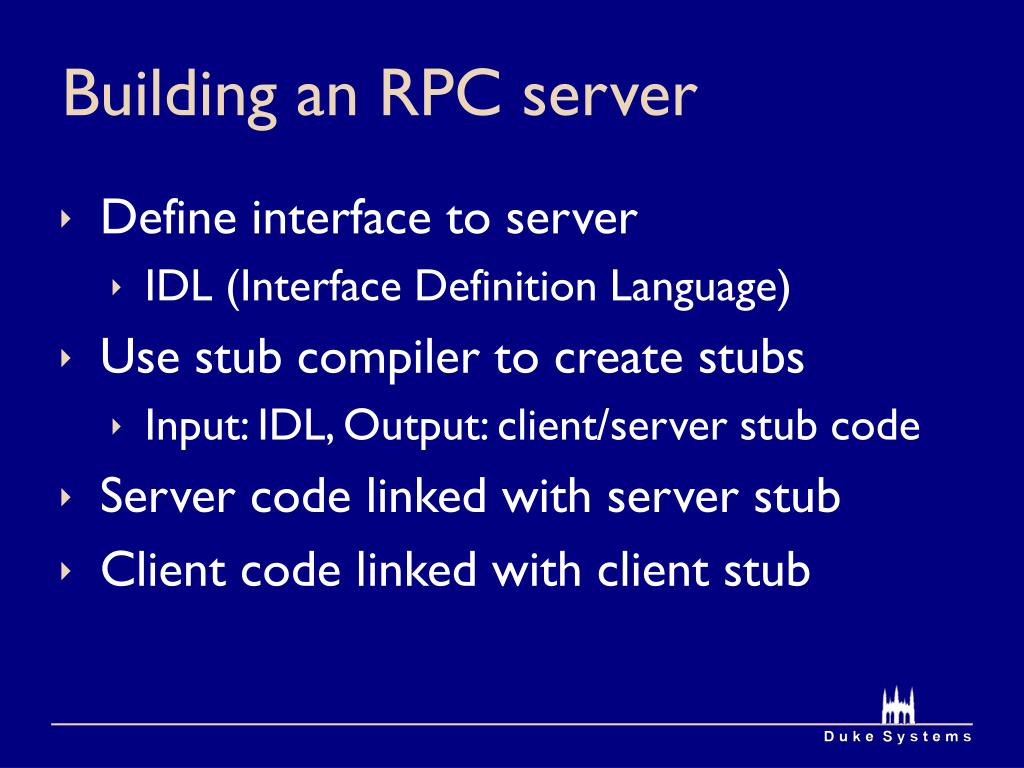

  5. Building an RPC server • Define interface to server • IDL (Interface Definition Language) • Use stub compiler to create stubs • Input: IDL, Output: client/server stub code • Server code linked with server stub • Client code linked with client stub

  6. RPC Binding • Binding connects clients to servers • Two phases: server export, client import • In Java RMI • rmic compiles IDL into ServerObj_{Skel,Stub} • Export looks like this • Naming.bind (“Service”, new ServerObj()); • ServerObj_Skel dispatches requests to input ServerObj • Import looks like this • Naming.lookup("rmi://host/Service"); • Returns a ServerObj_Stub (subtype of ServerObj)

  7. Remote Procedure Calls (RPC) Stack Stack // client stub foo (char *p) { // bind to server socket s (“remote”); // invoke remote server s.send(FOO); s.send(marsh(p)); // copy reply memcpy(p,unmarsh(s.rcv())); // terminate s.close(); } // server foo (char *p) { p[0] = ‘\0’; } main: argc, argv RPC_dispatch: socket foo: 0xf33c, 0xfa3964 stub: 0xd23c, &s foo: 0xd23c, 0xfb3268 foo_stub (s) { // alloc, unmarshall char *p2 = malloc(64); s.recv(p2, 64); // call server foo(p2); // return reply s.send(p2, 64); } Heap Heap main (int, char**) { char *p = malloc (64); foo (p); } Code + Data Code + Data RPC_dispatch (s) { int call; s.recv (&call); // do dispatch switch (call) { … case FOO: // call stub foo_stub(s); …} s.close (); } • Bind • Invoke and reply • Terminate

  8. RPC Questions • Does this abstraction make sense? • You always know when a call is remote • What is the advantage over raw sockets? • When are sockets more appropriate? • What about strongly typed languages? • Can type info be marshaled efficiently?

  9. LRPC Context • In 1990, micro-kernels were all the rage • Split OS functionality between “servers” • Each server runs in a separate addr space • Use RPC to communicate • Between apps and micro-kernel • Between micro-kernel and servers

  10. Micro-kernels argument • Easy to protect OS from applications • Run in separate protection modes • Use HW to enforce • Easy to protect apps from each other • Run in separate address spaces • Use naming to enforce • How do we protect OS from itself? • Why is this important?

  11. Mach architecture User process Network Memory server File server Pager Kernel Comm. Process sched.

  12. LRPC Motivation • Overwhelmingly, RPCs are intra-machine • RPC on a single machine is very expensive • Many context switches • Much data copying between domains • Result: monolithic kernels make a comeback • Run servers in kernel to minimize overhead • Sacrifices safety of isolation • How can we make intra-machine RPC fast? • (without chucking microkernels altogether)

  13. Baseline RPC cost • Null RPC call • void null () { return; } • Procedure call • Client to server: trap + context switch • Server to client: trap + context switch • Return to client

  14. Sources of extra overhead • Stub code • Marshaling and unmarshaling arguments • User1 Kernel, KernelUser2, back again • Access control (binding validation) • Message enquing and dequeuing • Thread scheduling • Client and server have separate thread pools • Context switches • Change virtual memory mappings • Server dispatch

  15. LRPC Approach • Optimize for the common case: • Intra-machine communication • Idea: decouple threads from address spaces • For LRPC call, client provides server • Argument stack (A-frame) • Concrete thread (one of its own) • Kernel regulates transitions between domains

  16. 0x761c2 0x74a28 1) Binding // server code char name[8]; set_name(char *newname) { int i, valid=0; for (i=0;i<8;i++) { if(newname[i]==‘\0’){ valid=1; break; } } if (valid) return strcpy(name, newname); return –EINVAL; } C S Stack Stack main: argc, argv Heap Heap BindObj LRPC runtime LRPC runtime A-stack (12 bytes) A-stack (12 bytes) C import req. Clerk Code + Data Code + Data 0x54320 BindObj Kernel import “S” PDL(S) set_name{addr:0x54320, conc:1, A_stack_sz:12} 0x74a28LR{}

  17. 0x761c2 “foo”, 0 “foo” 0x74a28 ”foo” ”foo”, 0 2) Calling // server code char name[8]; set_name(char *newname) { int i, valid=0; for (i=0;i<8;i++) { if(newname[i]==‘\0’){ valid=1; break; } } if (valid) return strcpy(name, newname); return –EINVAL; } C S Stack Stack main: argc, argv server_stub: set_name: “foo” set_name: 0x761c2 Heap Heap BindObj LRPC runtime LRPC runtime A-stack (12 bytes) A-stack (12 bytes) Clerk Code + Data Code + Data 0x54320 &BindObj,0x7428,set_name Kernel PDL(S) set_name{addr:0x54320, conc:1, A_stack_sz:12} 0x74a28LR{} 0x74a28LR{Csp,Cra}

  18. Data copying

  19. Questions • Is fast IPC still important? • Are the ideas here useful for VMs? • Just how safe are servers from clients?
