  1. NETWORKING

  2. Loading . . .

  3. Contents • Part 1: The definitions of networking -Network -Standalone -LAN -WAN -Clients -Server -Clients/Server Networks -Peer to Peer Networks • Part 2: LAN (going in depth) -Advantages and disadvantages of LAN -The types of cabled LAN -The most essential piece of hardware for lan… The Ethernet cable -The difference between Ethernet and cross-over cables -LAN Topologies • Part 3: Continuation…-Advantages of some topologies-Wireless LAN (WLAN)-WAN-Data transmission

  4. PART 1: The definitions of networking

  5. Network A networkis a collection of hardware components and computers connected by communication channels that allow sharing of resources and information.

  6. Standalone A computer software that can work offline and does not need a computer connection.An example of a standalone device can be a TomTom(GPS)

  7. Lan Local area network usually known as LAN, is a computer network that connects computers in a limited area such as a home, school, computer laboratory or office building using network media

  8. wan A Wide Area Network (WAN) is a telecommunication network that covers a broad area. Business and government entities utilize WANs to relay data among employees, clients, buyers, and suppliers from various geographical locations. In essence this mode of telecommunication allows a business to effectively carry out its daily function regardless of location.

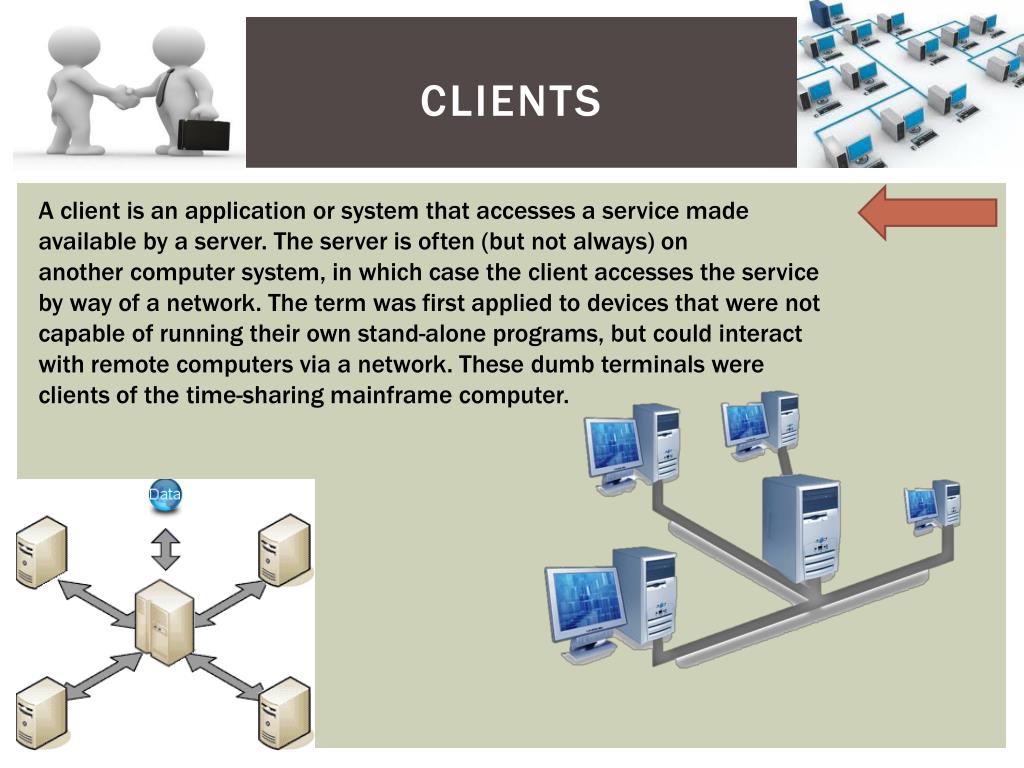

  9. Clients A client is an application or system that accesses a service made available by a server. The server is often (but not always) on another computer system, in which case the client accesses the service by way of a network. The term was first applied to devices that were not capable of running their own stand-alone programs, but could interact with remote computers via a network. These dumb terminals were clients of the time-sharing mainframe computer.

  10. Server In the context of client-server architecture, a server is a computer program running to serve the requests of other programs, the clients. Thus, the "server" performs some computational task on behalf of "clients". The clients either run on the same computer or connect through the network.

  11. Client/Server Networks A computer network in which one centralized, powerful computer (called the server) is a hub to which many less powerful personal computers or workstations (called clients) are connected. The clients run programs and access data that are stored on the server.

  12. Peer to peer networking Peer-to-peer also known as P2P, it refers to a computer network in which each computer in the network can act as a client or server for the other computers in the network, It allows the sharing of files with a main or client server. P2P networks can be set up Fo a home business and the internet.

  13. PART2: LAN (Going in depth)

  14. Advantages and disadvantages of LAN

  15. The 3 types of Cabled LAN The 3 types of LAN Cables are Coaxial cable, Optical fibre cable and twisted pair, where as Optical fibre is is the fastest by using the reflection of light to transfer data. OOOOO!SHINY!

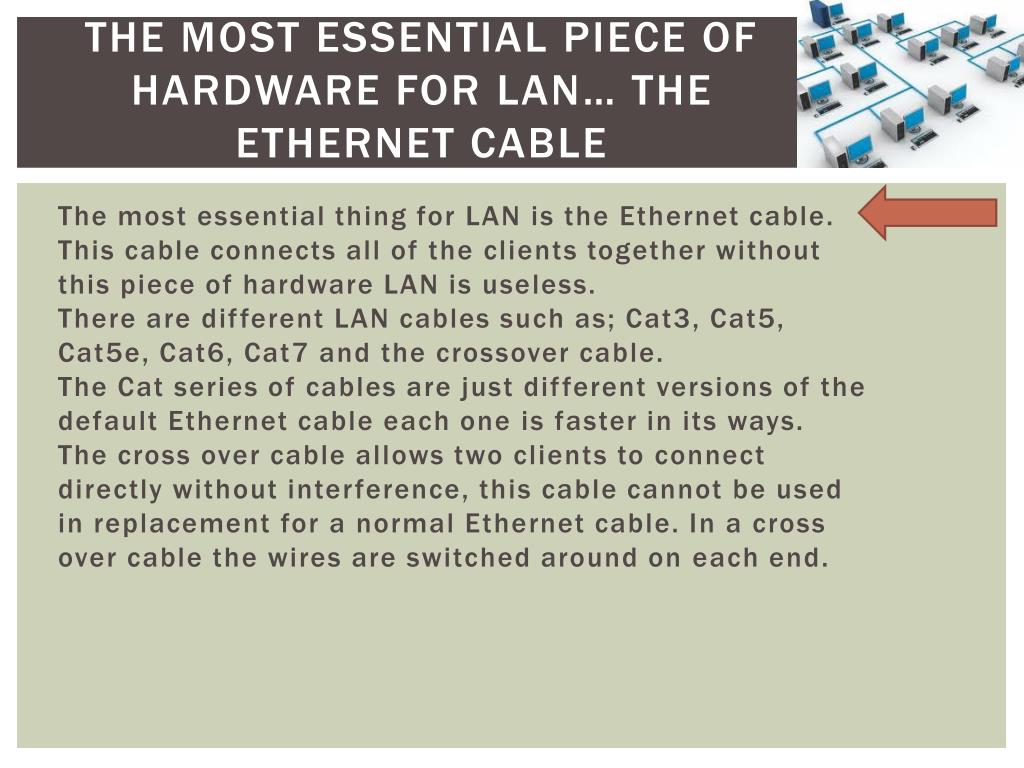

  16. The most essential piece of hardware for lan… The Ethernet cable The most essential thing for LAN is the Ethernet cable. This cable connects all of the clients together without this piece of hardware LAN is useless. There are different LAN cables such as; Cat3, Cat5, Cat5e, Cat6, Cat7 and the crossover cable.The Cat series of cables are just different versions of the default Ethernet cable each one is faster in its ways. The cross over cable allows two clients to connect directly without interference, this cable cannot be used in replacement for a normal Ethernet cable. In a cross over cable the wires are switched around on each end.

  17. The difference between Ethernet and cross-over cable Cross-over Cable Ethernet Cable

  18. LAN Topologies LAN has different Topologies like-Bus(Logical Ethernet)-Hub and Spoke (Star)-Hybrid (Bus and Star)-Point to Point (Serial)-Point to multipoint (Frame Relay)-Ring (FDDI, Token ring)Those are the different types of LAN topologies all following a different method.

  19. PART3: Continuation…

  20. Advantages of some topologies Two advantages for Bus topologies are -It is easy to handle and implement. -It is best suited for small networks.Some advantages and disadvantages of star topologies areAdvantagesDue to its centralized nature, the topology offers simplicity of operation. It also achieves an isolation of each device in the network.DisadvantageThe network operation depends on the functioning of the central hub. Hence, the failure of the central hub leads to the failure of the entire network.

  21. Wireless lan(WLAN) Links two or more devices to a wirelessly transmitted HUB where the devices will connect to the internet through the HUB.

  22. WAN WAN is mostly used in Businesses allows The relaying of Data among the clients, buyers and employees. This mode of telecommunication allows for a wide broad of efficiency to be carried out.

  23. Data transmission Data transmission is the physical transfer of data (a digital bit stream) over a point-to-point or point-to-multipoint communication channel. Examples of such channels are copper wires, optical fibres, wireless communication channels, and storage media. The data are represented as an electromagnetic signal, such as an electrical voltage, radio wave, microwave, or infrared signal.
