ECG Project. By Lambda Team Anthony Shelton Jonathan Killen Quintelle Griggs Chan Hauw Ki. ECG Heart Monitor. Use for high-risk heart attack patients Have electrodes on patients Have patients wear device. Differential Amplifiers. A/D Converter. Microprocessor.

talia
Télécharger la présentation

ECG Project

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

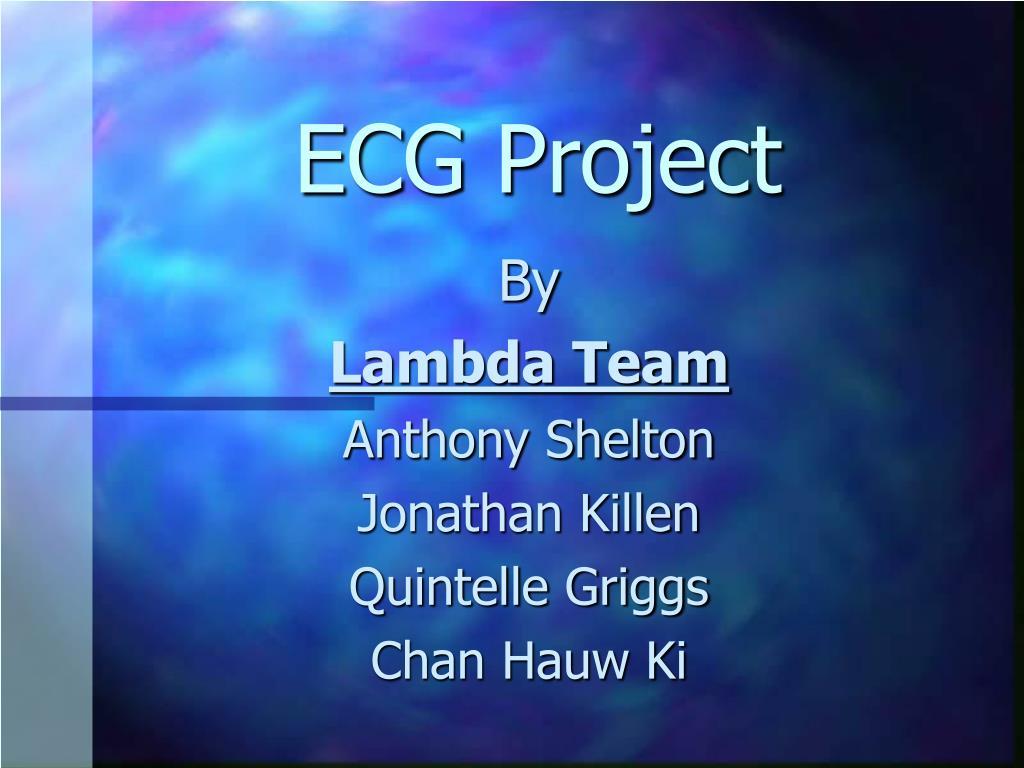

  1. ECG Project By Lambda Team Anthony Shelton Jonathan Killen Quintelle Griggs Chan Hauw Ki

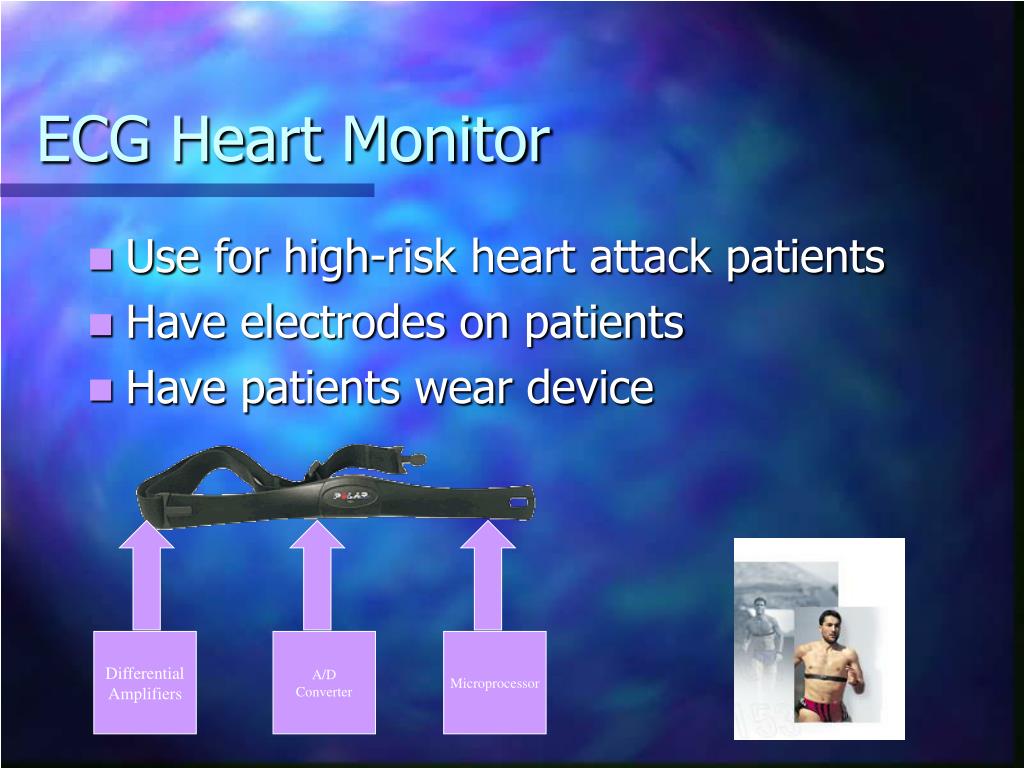

  2. ECG Heart Monitor • Use for high-risk heart attack patients • Have electrodes on patients • Have patients wear device Differential Amplifiers A/D Converter Microprocessor

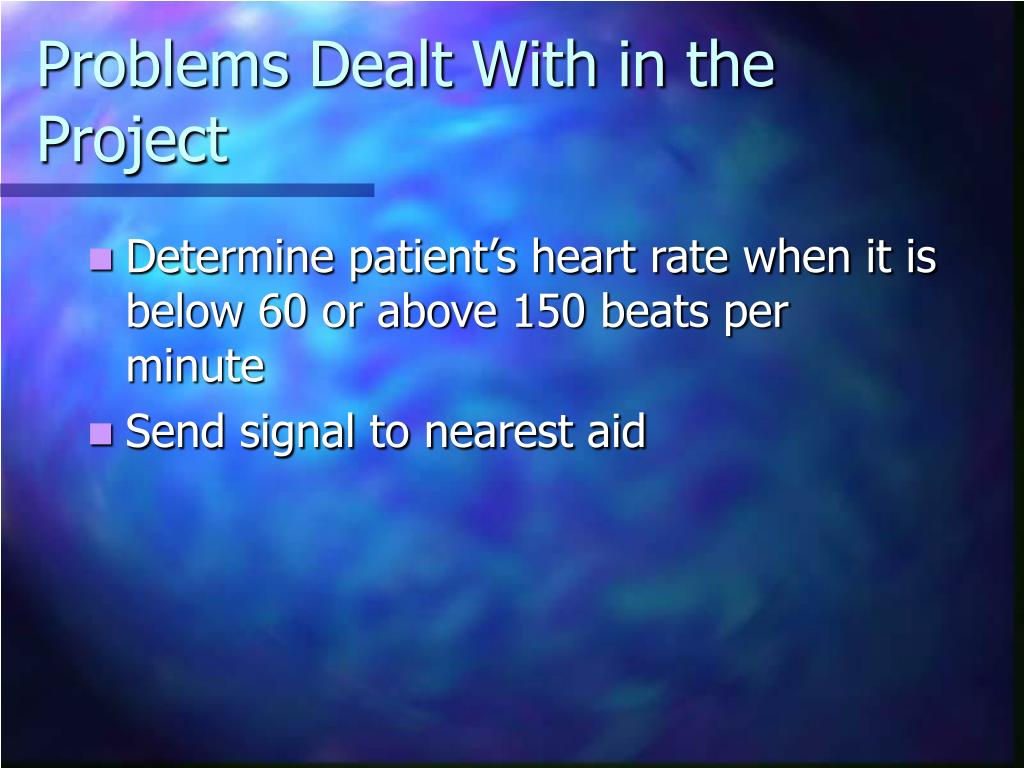

  3. Problems Dealt With in the Project • Determine patient’s heart rate when it is below 60 or above 150 beats per minute • Send signal to nearest aid

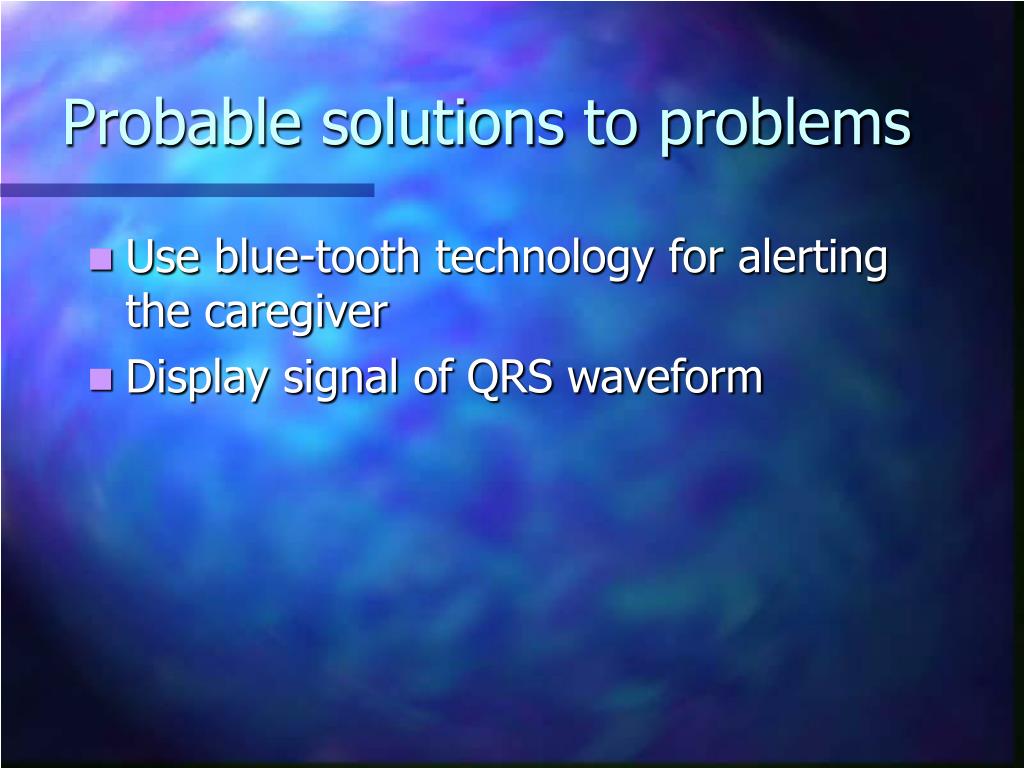

  4. Probable solutions to problems • Use blue-tooth technology for alerting the caregiver • Display signal of QRS waveform

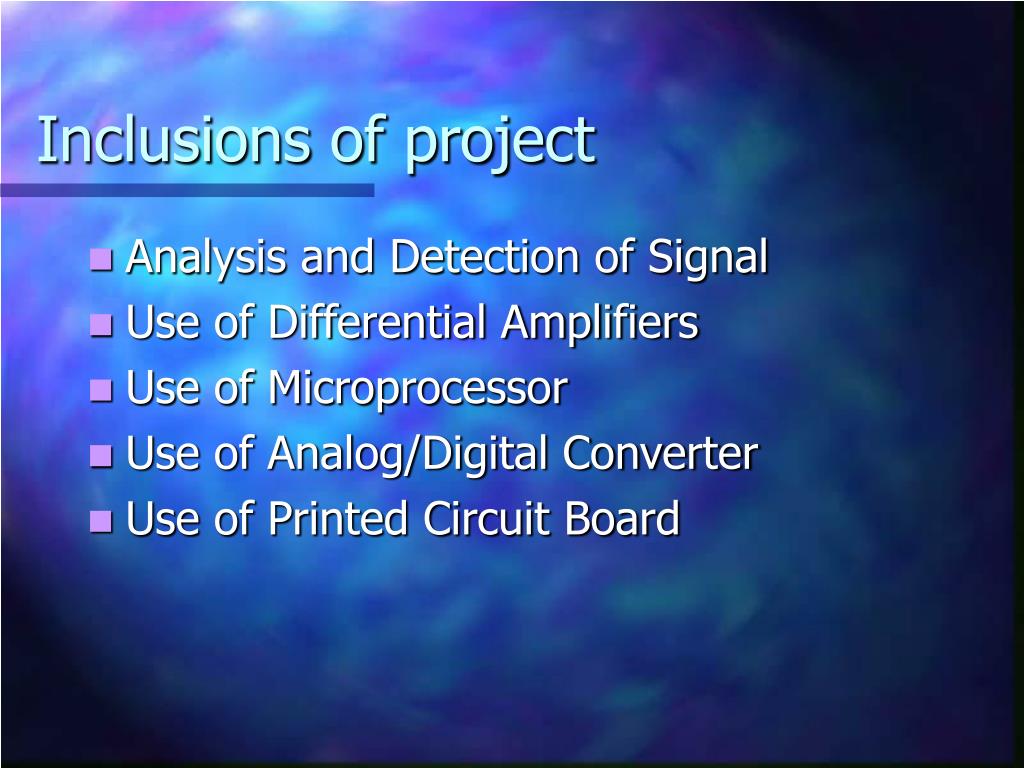

  5. Inclusions of project • Analysis and Detection of Signal • Use of Differential Amplifiers • Use of Microprocessor • Use of Analog/Digital Converter • Use of Printed Circuit Board

  6. MAX 1240 A/D CONVERTER • Low Power (+2.7V to 3.6V) • Internal 2.5V Reference • Shutdown mode (2microAmps)

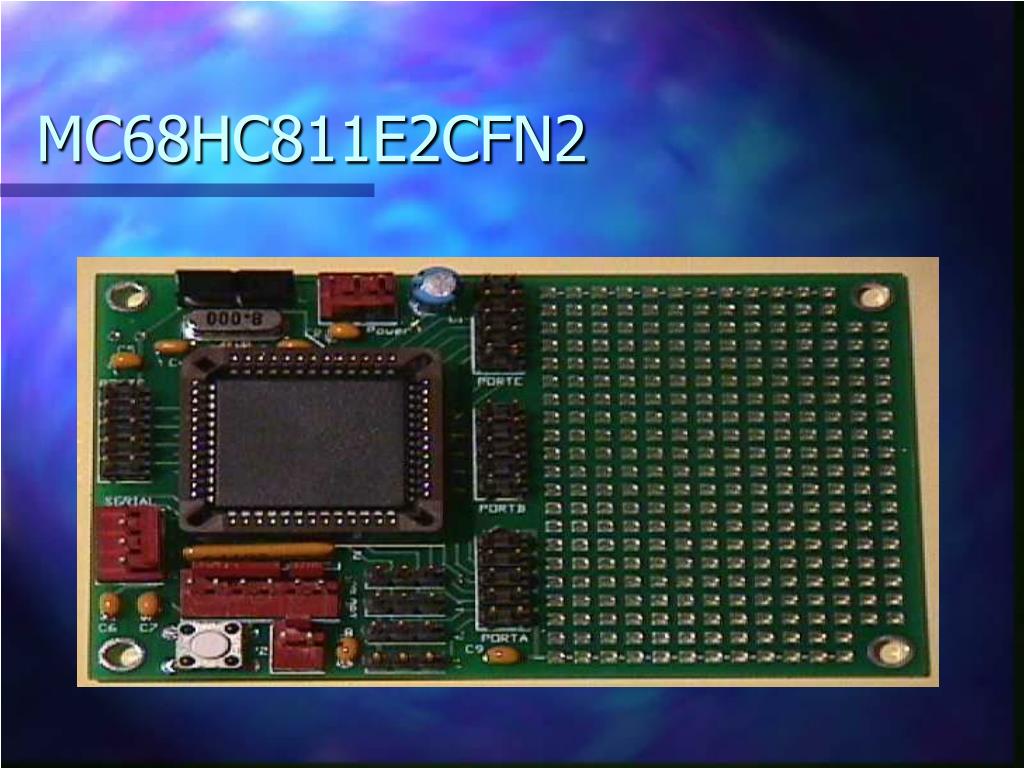

  7. MC68HC811E2CFN2

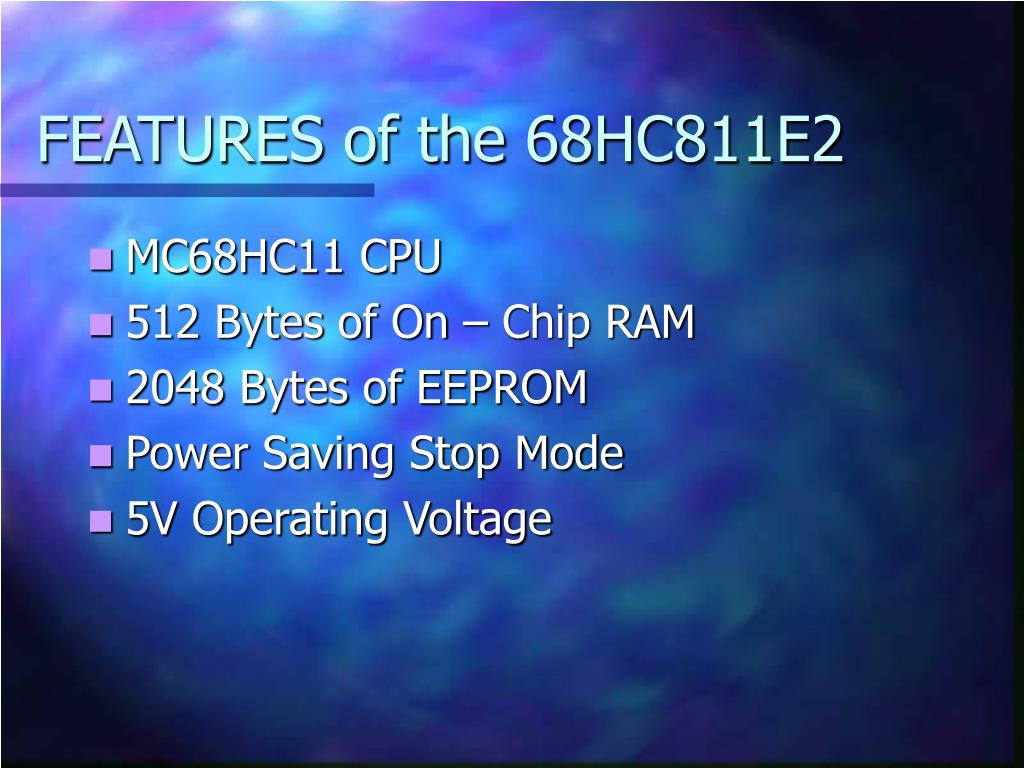

  8. FEATURES of the 68HC811E2 • MC68HC11 CPU • 512 Bytes of On – Chip RAM • 2048 Bytes of EEPROM • Power Saving Stop Mode • 5V Operating Voltage

  9. ELECTRICAL ACTIVITY OF THE HEART PROVIDES: • Heart Rate • Previous heartattacks • Increased thickness of the heart muscle • Signs of decreased oxygen delivery to heart

  10. 2 HEARTBEATS

  11. HEART RATE RATE = 60/(R-R interval)

  12. Determine when new data is available Recognize R-wave of the QRS complex Count the time between the occurrence of 2 R-waves Compute heart rate Determine if heart rate is > or < a specified value Sound an alert depending on heart rate SUMMARY OF CODE TO ANALYZE DATA

  13. Instrumentation Amplifier Stage Instrumentation Amplifier A/D Converter Microprocessor

  14. What we have: EKG signal (5 mV range) What we need for the A/D converter: Signal range of 2.5V Frequency range from 0.18 Hz - 160 Hz Common-mode signals rejected Where to start?

  15. Complete Design • Instrumentation Amplifier

  16. Common-mode rejection of 115dB Isolates EKG differential signal that we want Prevents interference from radiated AC (such as the lighting in a room) Gain of 10 MAX 4194 Instrumentation Amplifier

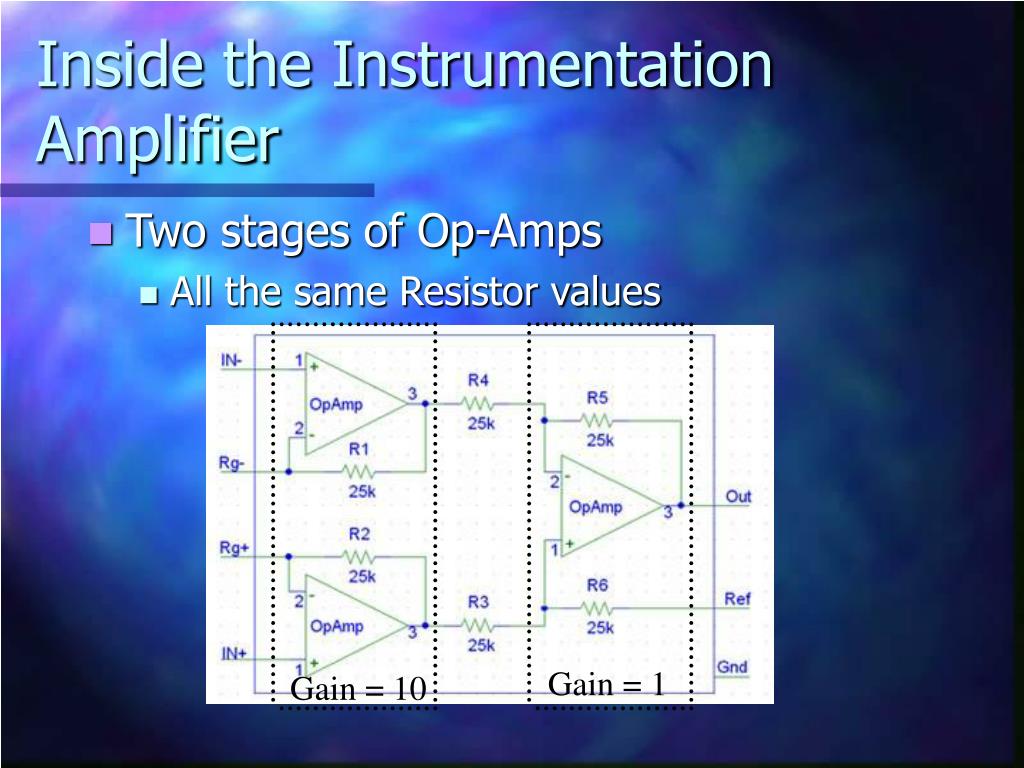

  17. Inside the Instrumentation Amplifier • Two stages of Op-Amps • All the same Resistor values Gain = 1 Gain = 10

  18. Complete Design • Patient Reference

  19. Patient Reference • It is helpful to reference the signal with respect to the patient’s potential (less variation) • Used values recommended for feedback Creates stability Forces the signal to centered around patient’s potential Reference point between voltage sources

  20. Complete Design • Filters

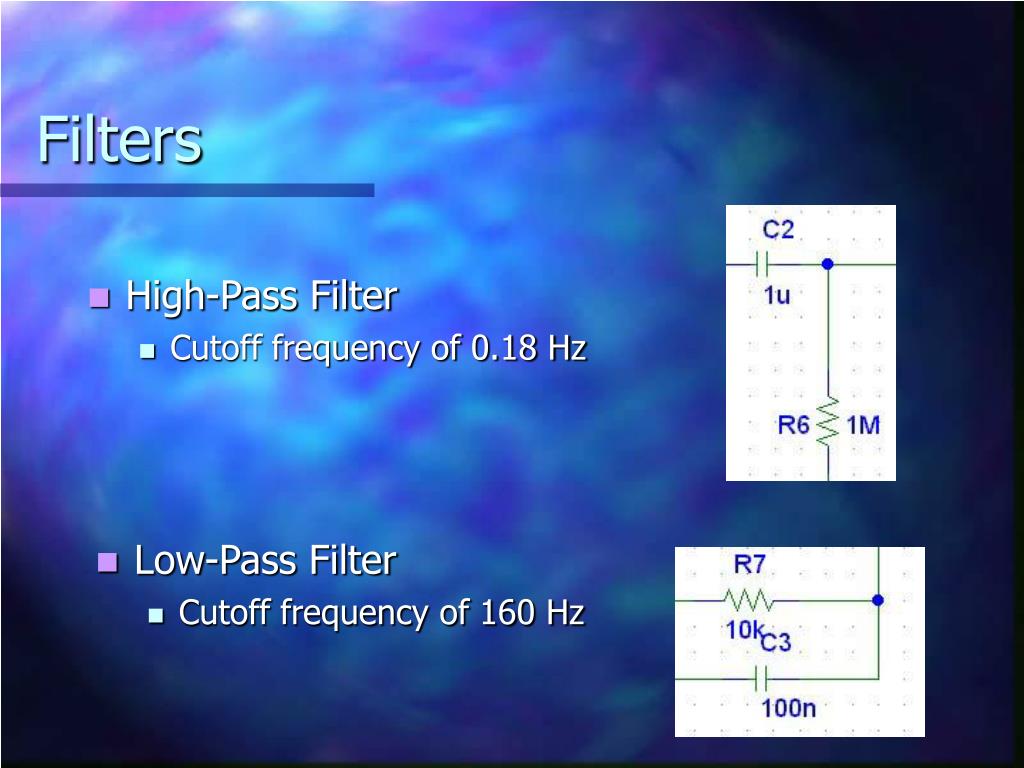

  21. High-Pass Filter Cutoff frequency of 0.18 Hz Low-Pass Filter Cutoff frequency of 160 Hz Filters

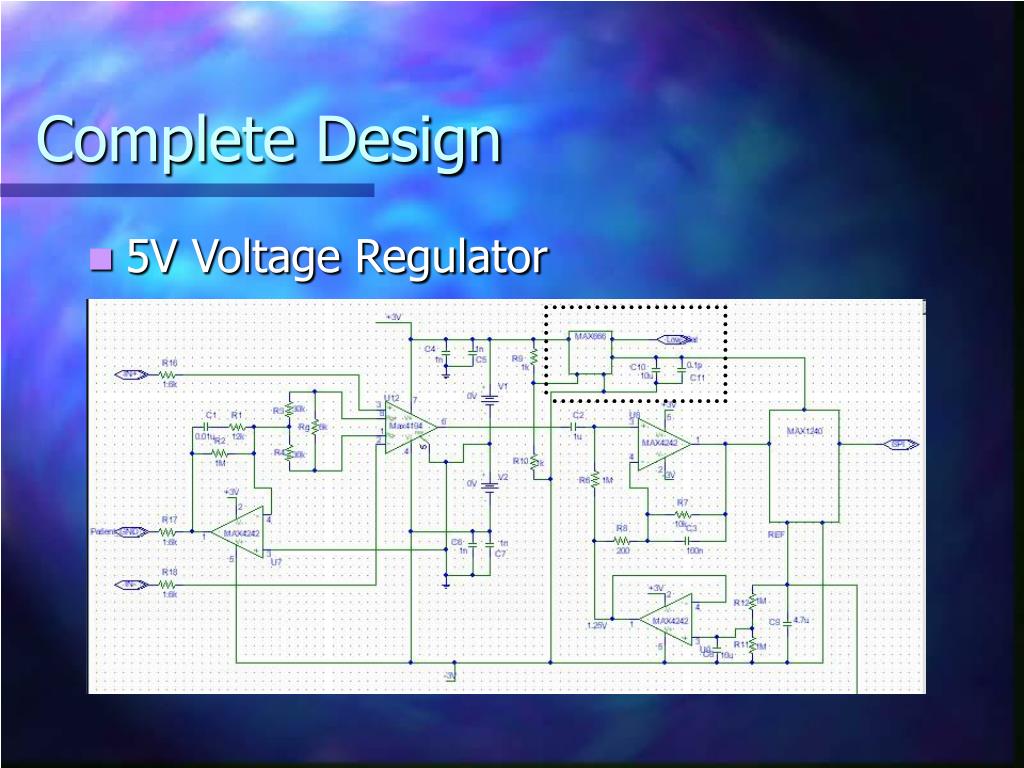

  22. Complete Design • 5V Voltage Regulator

  23. Regulate the voltage needed for the A/D Converter and the Microprocessor to operate Also, includes a Low Battery Indicator MAX 666 5V Voltage Regulator

  24. Complete Design • Second Amplification Stage

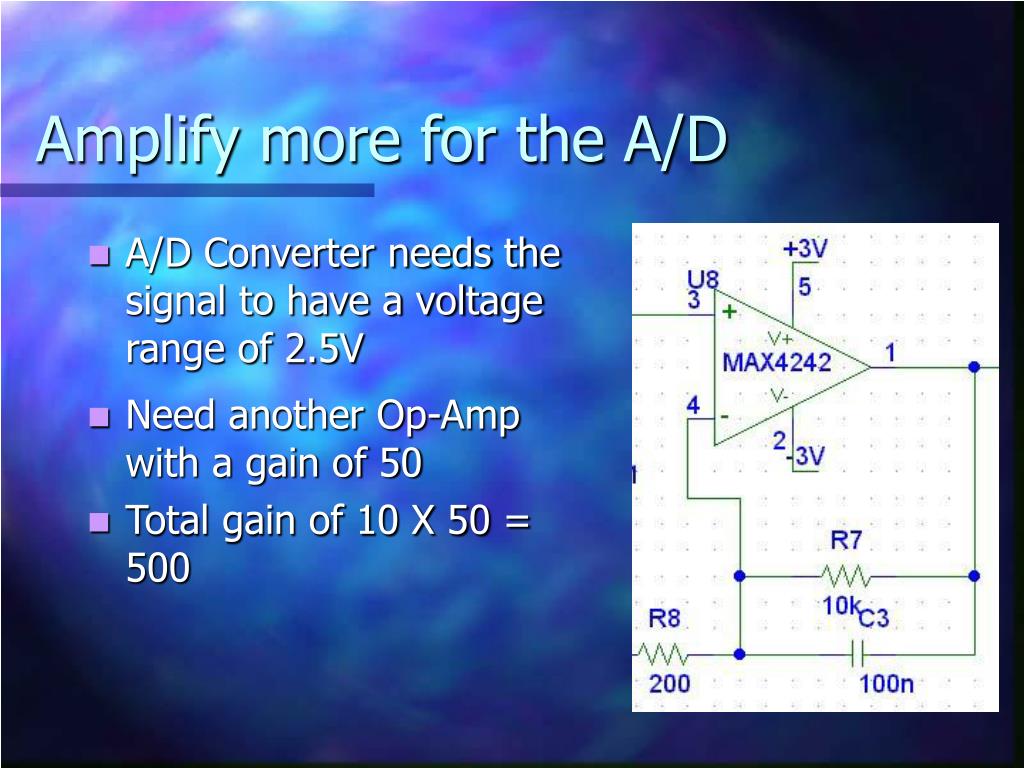

  25. A/D Converter needs the signal to have a voltage range of 2.5V Need another Op-Amp with a gain of 50 Total gain of 10 X 50 = 500 Amplify more for the A/D

  26. Complete Design • Stop Interrupt

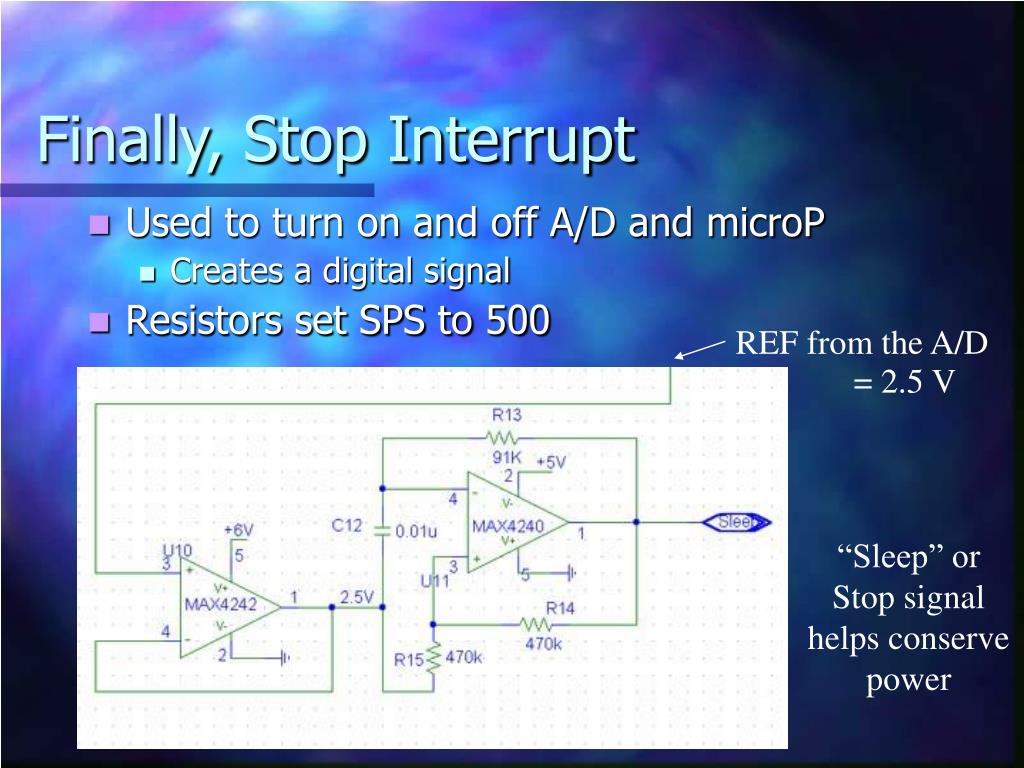

  27. Finally, Stop Interrupt • Used to turn on and off A/D and microP • Creates a digital signal • Resistors set SPS to 500 REF from the A/D = 2.5 V “Sleep” or Stop signal helps conserve power

  28. 5 V 3.75 V 2.5 V … … 1.25 V 0 V Voltage over the Capacitor • Voltage across the capacitor tries to push all the way to 5V and down to GND, but gets flipped. Discharging Charging • This creates the digital signal at the output to turn the A/D and the microP on and off

  29. Power Budget microP : 15mA 100uA A/D: 4mA 10uA 4 Op-Amps: 40uA Inst. Amp: 93uA Voltage Reg.: 12uA Average Load = about 2.2mA @ 10% duty cycle Speaking of power Min Load = about 250uA Max Load = about 20mA

  30. Small & little weight (9grams) Best battery found would last 300 hr (12 ½ days) Is that long enough? What is the best battery to use? Wafer Lithium • Very small & light weight (5grams) • Can not handle our load for more than 5 hr • Not enough time. ½ AA Lithium/Thionyl • Is this the best battery for us?

  31. Big Picture!

  32. Printed Circuit Board

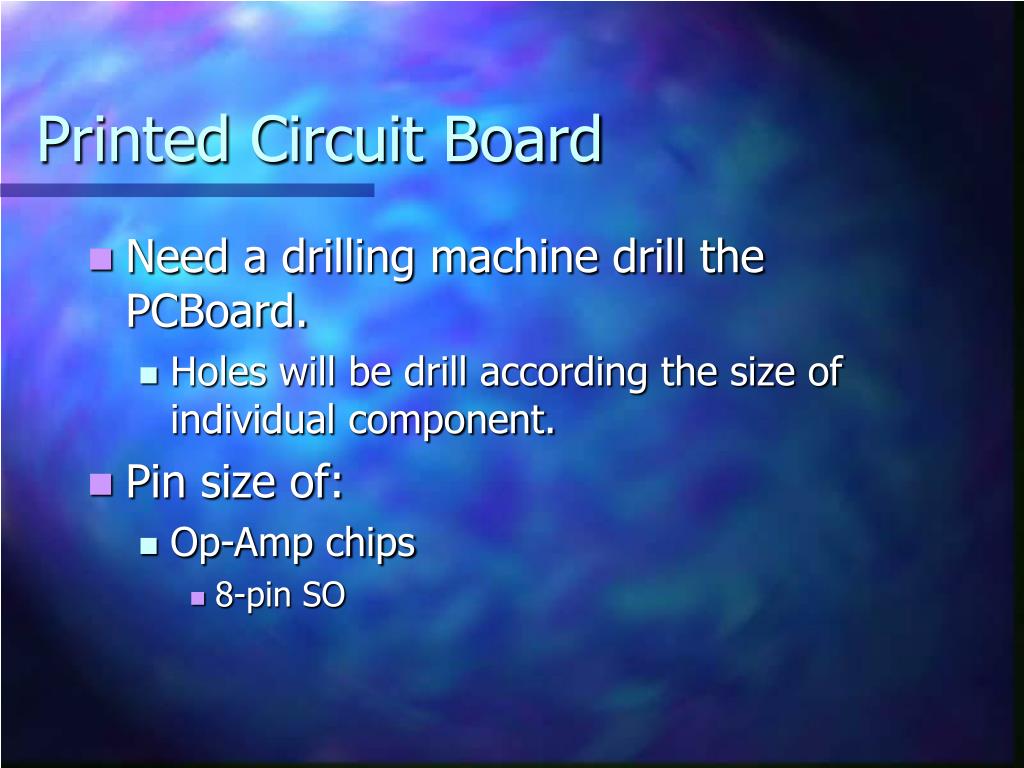

  33. Printed Circuit Board • Need a drilling machine drill the PCBoard. • Holes will be drill according the size of individual component. • Pin size of: • Op-Amp chips • 8-pin SO

  34. Printed Circuit Board Cont. • Pins size continue: • A/D Converter • 8-pin DIP and SO • Microprocessor • 38 General-Purpose I/O pins • 16 Bi-directional I/O Pins • 11 Input-Only Pins • 11 Output-Only Pins

  35. Printed Circuit Board Cont. • Pin size continue: • Microprocessor • 48-Pin Plastic Dual In-Line Package (DIP) • 52-Pin Plastic Leaded Chip Carrier (PLCC)

  36. PSPICE Program • MICROSIM PCBoard program • ISO PRO program • QUICKCAM program

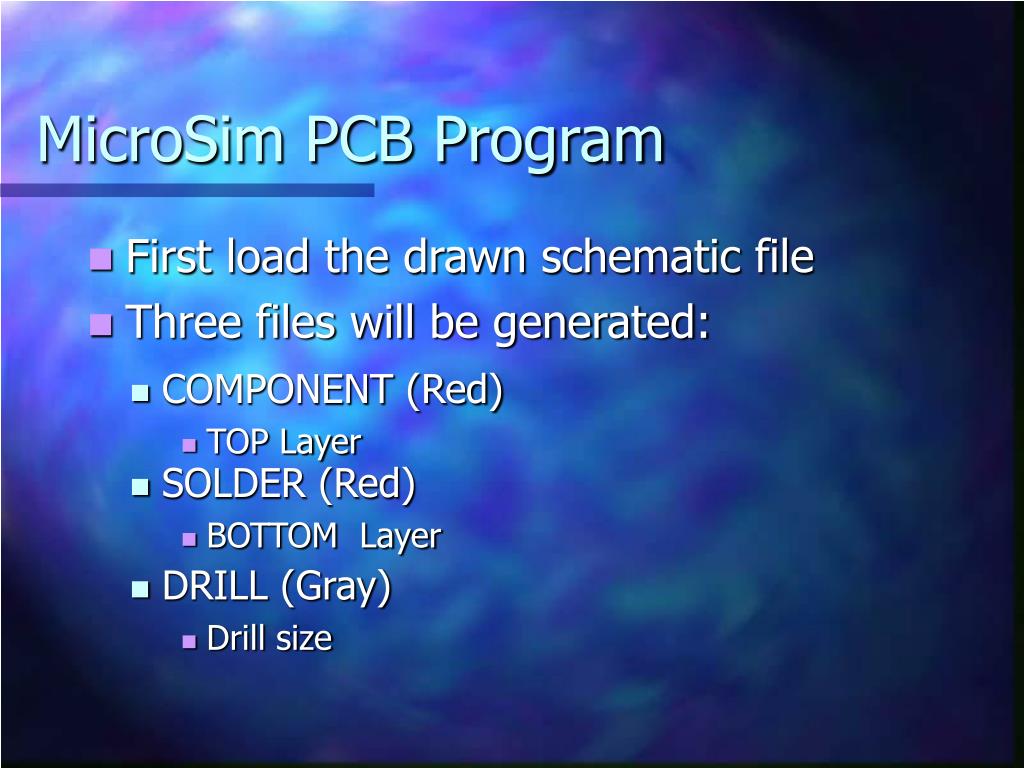

  37. MicroSim PCB Program • First load the drawn schematic file • Three files will be generated: • COMPONENT (Red) • TOP Layer • SOLDER (Red) • BOTTOM Layer • DRILL (Gray) • Drill size

  38. MicroSim PCB Program • Why need three file for drilling: • Double-sided PCB • Next step ISO PRO!

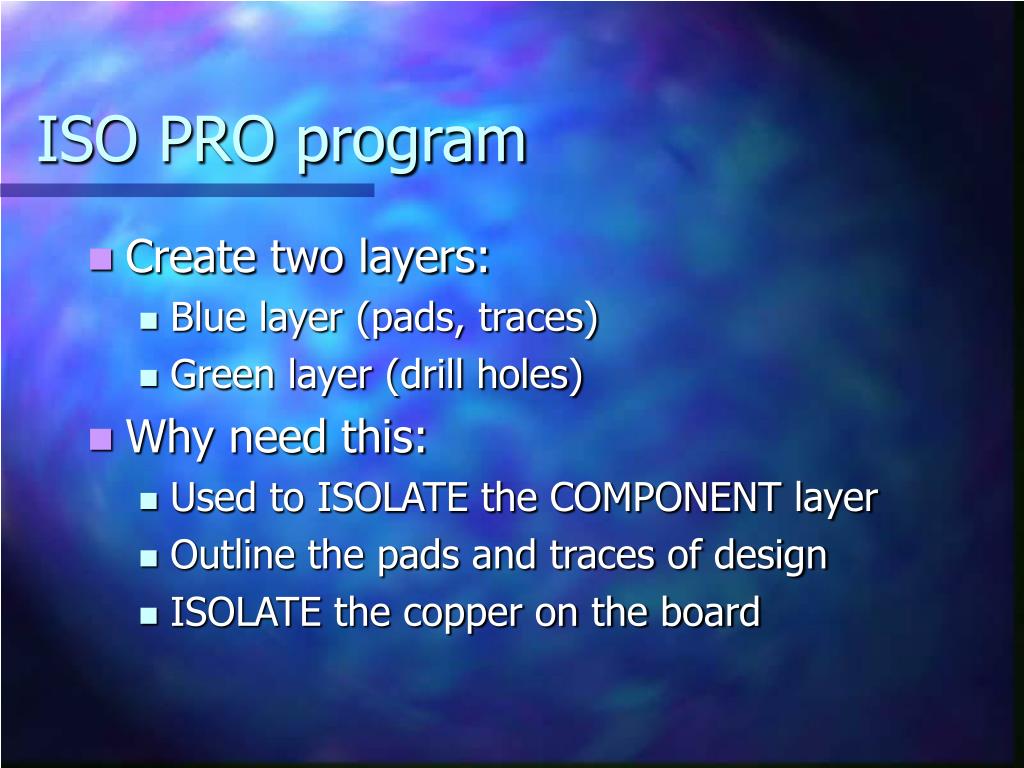

  39. ISO PRO program • Create two layers: • Blue layer (pads, traces) • Green layer (drill holes) • Why need this: • Used to ISOLATE the COMPONENT layer • Outline the pads and traces of design • ISOLATE the copper on the board

  40. QUICKCAM Program • We need: • MIRROR the layer • REGISTER the layer • ISOLATE the layer • EXPORT the layer to the QUICKCAM • Final files the machines reads to mil a circuit board

  41. Summary • Issues on product: • Power • Battery found so far: • Wafer Lithium 5hrs • Lithium/Thionyl 300hrs • Trade off: • Wafer Lithium is smaller but (<1 day) • Lithium/Thionyl bigger but (12 ½ day)

  42. Summary Continue • Serial port interface, from the Bot-Board to the PC Board • Since we haven’t receive the A/D converter • A/D converter to the Microprocessor • Spice model that we haven’t found. (Microprocessor model, A/D Converter Model)

  43. Summary continue • Issues concerns: • Realistic Constraints • Milling machine; OS for the processor assembler is only in Win 95/NT; Limited battery life • Economics • Inexpensive for hospitals to buy

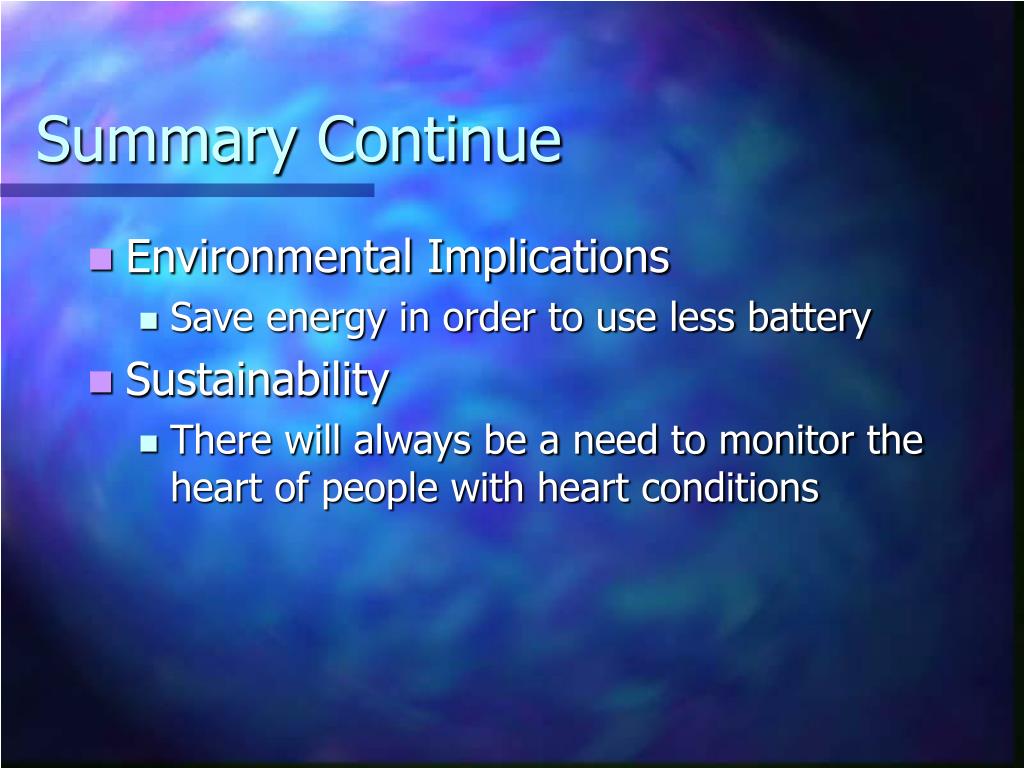

  44. Summary Continue • Environmental Implications • Save energy in order to use less battery • Sustainability • There will always be a need to monitor the heart of people with heart conditions

  45. Summary Continue • Ethical Concerns • IEEE Ethical Standards • Health and Safety • Product does not shock patient; product is comfortable to wear

  46. Summary Continue • Social Concerns • Allows patient more freedom; product is small enough to be discretely worn • Political • There are no political concerns for our device.

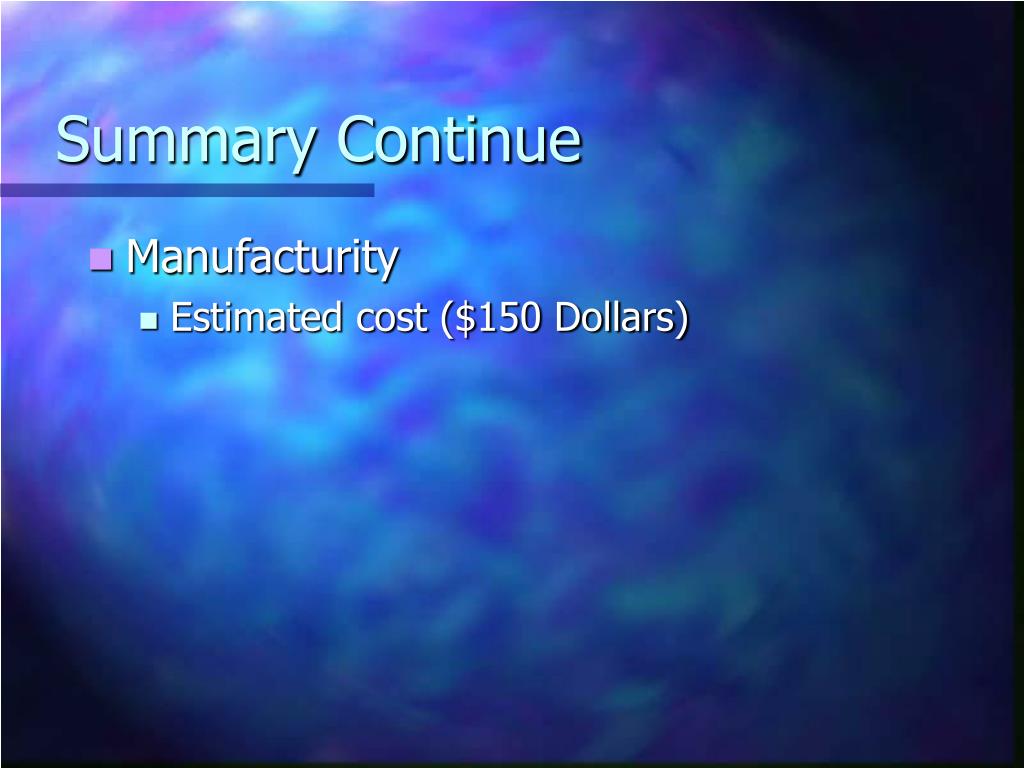

  47. Summary Continue • Manufacturity • Estimated cost ($150 Dollars)

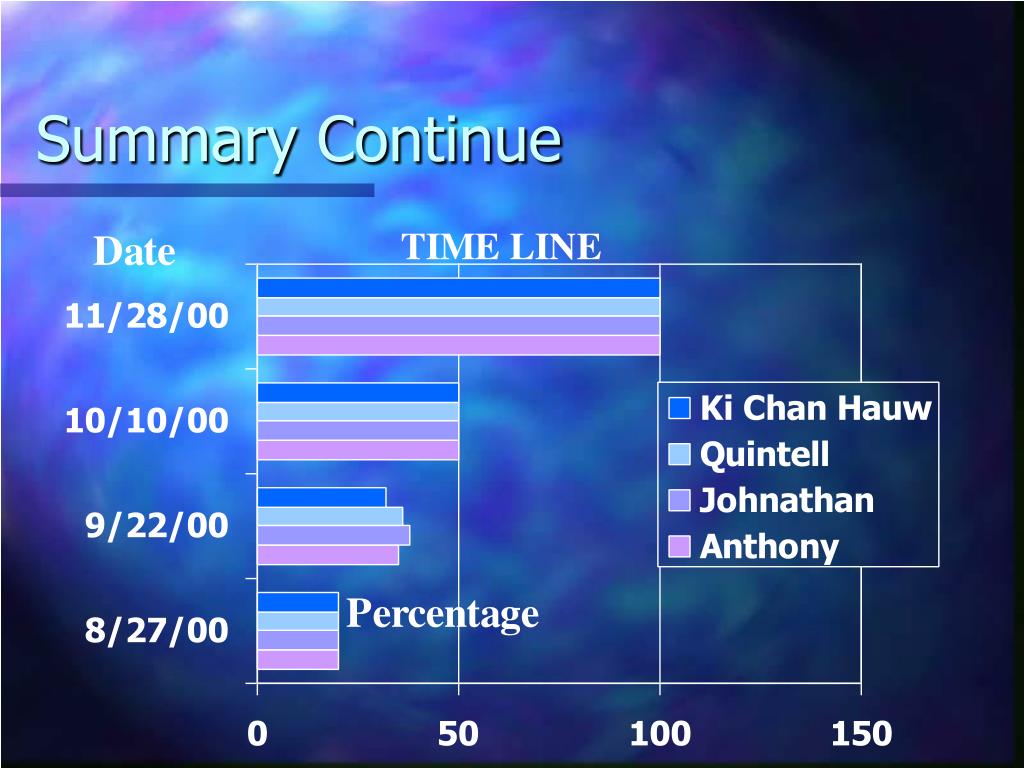

  48. Summary Continue

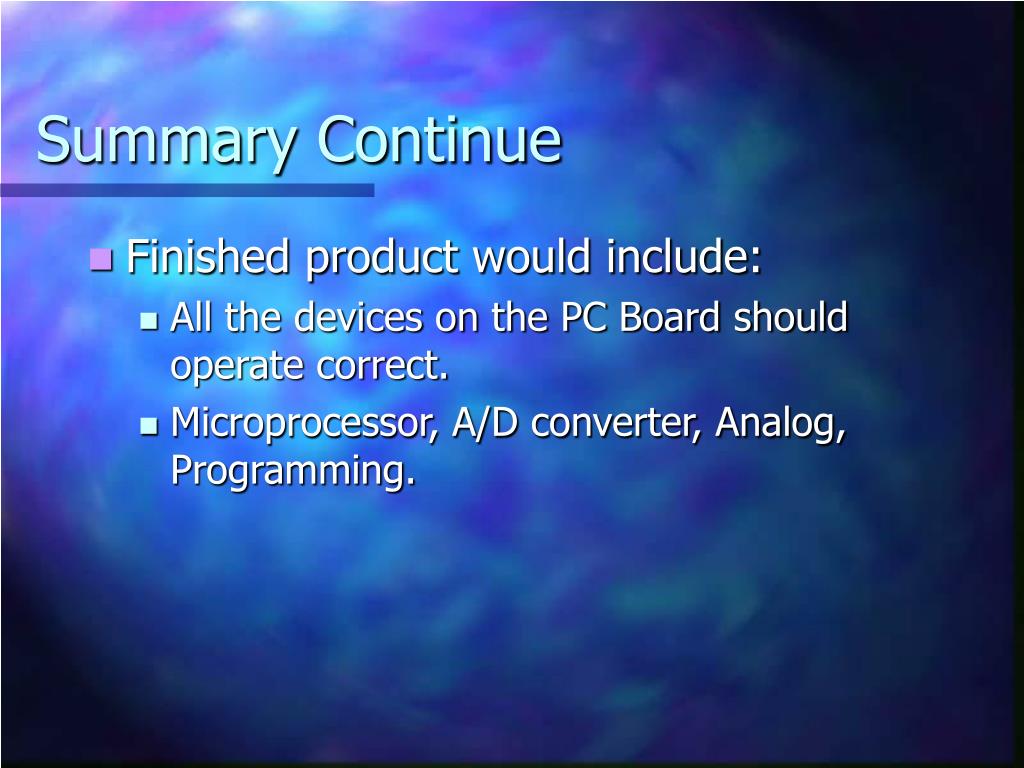

  49. Summary Continue • Finished product would include: • All the devices on the PC Board should operate correct. • Microprocessor, A/D converter, Analog, Programming.
