  1. Low Power Hardware Synthesis from Concurrent Action Oriented Specifications (CAOS) Sandeep K. Shukla Gaurav Singh FERMAT Lab, Virginia Tech.

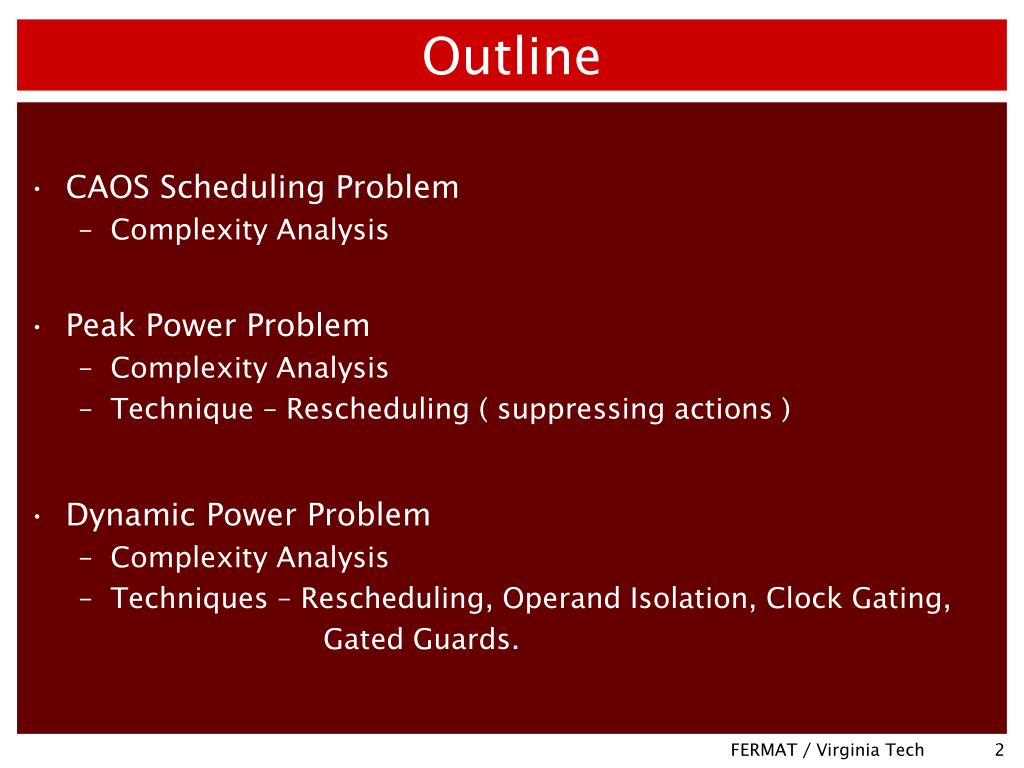

  2. Outline • CAOS Scheduling Problem • Complexity Analysis • Peak Power Problem • Complexity Analysis • Technique – Rescheduling ( suppressing actions ) • Dynamic Power Problem • Complexity Analysis • Techniques – Rescheduling, Operand Isolation, Clock Gating, Gated Guards. FERMAT / Virginia Tech

  3. CAOS Scheduling Problem ( Complexity Analysis ) FERMAT / Virginia Tech

  4. SCHEDULING PROBLEMS WITHOUT A PEAK POWERCONSTRAINT • Maximum Non-conflicting Subset of actions (MNS) • Choosing actions which can execute in a clock cycle. • Minimum Length Schedule Construction (MLS) • Distributing actions over multiple clock cycles. FERMAT / Virginia Tech

  5. MAXIMUM NON-CONFLICTING SUBSET OF ACTIONS (MNS) Instance - Set A = {a1,a2, …, an}of enabled actions; a collection C of pairs of actions, where {ai, aj}Є C means that actions aiand ajconflict; an integer K ≤ n. Question - Is there subset A’ C A such that |A’| > K and no pair of actions in A’ conflict? • MNS problem is NP-Complete. • Corresponds to Maximum Independent Set (MIS) Problem. FERMAT / Virginia Tech

  6. MAXIMUM NON-CONFLICTING SUBSET OF ACTIONS (MNS) NOTE - For any ρ ≥ 1, a ρ-approximation algorithm for a combinatorial optimization problem is a heuristic that produces a solution which is within a factor ρof the optimal solution value. • It is known that for any Є > 0, there is no O(n1- Є) - approximation algorithm for the MIS problem, unless P = NP. • Same holds for MNS Problem. FERMAT / Virginia Tech

  7. MAXIMUM NON-CONFLICTING SUBSET OF ACTIONS (MNS) SOLUTION - Heuristics with good performance guarantees can be devised by exploiting the relationship between MNS and MIS problems. • SPECIAL CASES – • Each action conflicts with at most Δ other actions for some constant Δ- • Approximation algorithm exists that provides a performance guarantee of Δ+1. • Planar graphs, near-planar graphs and unit disk graphs- • Efficient approximation algorithms are known for such classes of graphs. FERMAT / Virginia Tech

  8. MINIMUM LENGTH SCHEDULE CONSTRUCTION (MLS) Instance - Set A = {a1, a2,…,an}of actions; a collection C of pairs of actions, where {ai, aj}Є C means that actions ai and aj conflict, an integer t ≤ n. Question - Is there a partition of A into r subsets A1, A2,...,Ar for some r ≤ t such that for each i, 1 ≤ i ≤ r, the actions in Ai are pair-wise non-conflicting? • MLS problem is NP-Complete. • Corresponds to Minimum K-coloring (MINCOLOR) Problem. FERMAT / Virginia Tech

  9. MINIMUM LENGTH SCHEDULE CONSTRUCTION (MLS) • It is known that for any Є > 0, there is no O(n1- Є) - approximation algorithm for MINCOLOR problem, unless P = NP. • Same holds for MLS Problem. FERMAT / Virginia Tech

  10. MINIMUM LENGTH SCHEDULE CONSTRUCTION (MLS) SOLUTION – Heuristics for graph coloring can be used in constructing schedules of near-minimum length. • SPECIAL CASES – • Upper bound on the length of schedule is two - • Corresponds to the problem of determining whether a graph is 2-colorable. • Efficient algorithms are known. • Each action conflicts with at most Δ other actions – • For such instances, a schedule of length at most Δ + 1 can be constructed in polynomial time. FERMAT / Virginia Tech

  11. PEAK POWER PROBLEM ( Complexity Analysis ) FERMAT / Virginia Tech

  12. SCHEDULING PROBLEMS INVOLVING A POWERCONSTRAINT Single Clock Cycle – • Maximum Number of Actions in a Time Slot Subject to Peak Power Constraint (MNA-PP). • Maximizing Utility Subject to Peak Power Constraint (MU-PP). FERMAT / Virginia Tech

  13. Maximum Number of Actions in a Time Slot Subject to Peak Power Constraint (MNA-PP). Instance – • set A = {a1, a2,…, an}of non-conflicting actions, • for each action ai, the power pineeded to execute that action, • a positive number P representing the peak power constraint. Requirement -Find a subset A’ C A such that - • total power needed to execute actions in A’ is at most P and • |A’| is a maximum over all subsets of A that satisfy peak power constraint. Optimal Solution - • Sort actions in A into non-decreasing order by the amount of power. • Keep adding actions in order as long as the peak power constraint is satisfied. FERMAT / Virginia Tech

  14. Maximizing Utility Subject to Peak Power Constraint (MU-PP) Instance – • set A = {a1, a2,…,an}of non-conflicting actions, • for each action ai, its power piconsumed and its utility ui, • a positive number P representing the peak power, • a positive number Γ representing the required utility. Question - Is there a subset A’ C A such that the total power needed to execute all the actions in A’ is at most P and the utility of A’ is at least Γ ? • MU-PP problem is NP-Complete. • Corresponds to KNAPSACK Problem. FERMAT / Virginia Tech

  15. Maximizing Utility Subject to Peak Power Constraint (MU-PP) • Any approximation algorithm for the KNAPSACK problem can be used as an approximation algorithm with the same performance guarantee for the optimization version of MU-PP • When the weights and profits are integers, there is a polynomial time approximation scheme (PTAS) for the KNAPSACK problem. FERMAT / Virginia Tech

  16. SCHEDULING PROBLEMS INVOLVING A POWERCONSTRAINT Multiple Clock Cycles – • Minimizing Makespan Subject to Peak Power Constraint (MM-PP). • Minimizing Peak Power Subject to Makespan Constraint (MPP-M). • Minimizing Makespan and Peak Power – Decision Version (MPP-DECISION) FERMAT / Virginia Tech

  17. Minimizing Makespan Subject to Peak Power Constraint (MM-PP) Instance – • set A = {a1, a2,…,an}of non-conflicting actions, • for each action ai, the power pineeded to execute that action, • a positive number P representing the peak power Requirement – Find a schedule of minimum length for the actions in A such that the total power needed to execute the actions in each time slot is at most P. FERMAT / Virginia Tech

  18. Minimizing Peak Power Subject to a Makespan Constraint (MPP-M) Instance – • set A = {a1, a2,…,an}of non-conflicting actions, • for each action ai, the power pi needed to execute that action, • a positive number L representing the makespan (number of slot used by a schedule). Requirement – Find a schedule of length at most L for the actions in A such that the maximum total power used in any time slot is a minimum over all schedules of length at most L. NOTE -MPP-M is dual of MM-PP. FERMAT / Virginia Tech

  19. Minimizing Makespan and Peak Power (MPP-DECISION)– Decision Version of MM-PP and MPP-M. Instance – • set A = {a1, a2,…,an}of non-conflicting actions, • for each action ai, the power pineeded to execute that action, • a positive number P representing the peak power, • a positive number L representing the makespan. Question – Is there a schedule of length at most L for the actions in A such that the total power used in any time slot is at most P ? • MPP-DECISION problem is Strongly NP-Complete. • Corresponds to 3-PARTITION problem. • No pseudo-polynomial algorithm for the MPP-DECISION problem, unless P = NP. FERMAT / Virginia Tech

  20. Approximation Algorithms for MM-PP • Efficient approximation algorithms possible by reducing the problem to the well known BIN PACKING problem. • Example - Simple algorithm called First Fit Decreasing (FFD) provides a performance guarantee of 11/9. • Sort items in non-increasing order of their sizes and then assign each item to the first bin in which it will fit. • Sophisticated implementation reduces the running time to O(n log n). FERMAT / Virginia Tech

  21. Approximation Algorithms for MPP-M • Efficient approximation algorithms possible by reducing the problem to classical multiprocessor scheduling problem. • Example – • 4/3 approximation algorithm - • Sort the actions in non-increasing order of their power requirements. • Assign each action to a time slot for which the total power used is the smallest at that time. • Can be implemented to run in O(n log n) time. FERMAT / Virginia Tech

  22. LOW PEAK POWER TECHNIQUE Re-scheduling –Suppress some actions in each cycle to reduce peak power of the design. Possible Ways – • Conflict - based • Add extra conflicts for peak power sake. • Memory - based • Use memory to select how many actions to execute in each cycle. FERMAT / Virginia Tech

  23. MEMORY-BASED LOW PEAK POWER TECHNIQUE ALGORITHM - • Arrange actions based on their TRS ordering. • Find possible combinations of non-conflicting actions which can violate the peak power constraint when executed concurrently. • For each violating combination - • find a satisfying combination by suppressing some actions. • give priority to actions which come earlier in TRS-ordering. • store the satisfying combinations in a memory. • In hardware, memory is used to execute appropriate actions in each clock cycle in order to satisfy the peak power constraint. FERMAT / Virginia Tech

  24. MEMORY-BASED LOW PEAK POWER TECHNIQUE Implemented in Bluespec Compiler – • Around 10% peak-power savings achieved for small designs like Vending Machine. • Larger power savings may be possible for larger designs • Experiments Ongoing. FERMAT / Virginia Tech

  25. MEMORY-BASED LOW PEAK POWER TECHNIQUE LIMITATIONS - • Some designs written under the assumption that maximum number of actions will execute in each clock cycle might not be able to use this technique. • Increases latency so applicable mostly to latency-insensitive designs. • Designs with large number of actions may result in a big memory. FERMAT / Virginia Tech

  26. DYNAMIC POWER PROBLEM ( Complexity Analysis ) FERMAT / Virginia Tech

  27. DYNAMIC POWER PROBLEM (DPP) Instance – - set A = {a1, a2,…,an}of actions. - a positive integer P representing dynamic power consumed. Requirement - Select the ordering of execution of actions in A such that P is minimized. • DPPisNP-Complete. • Corresponds to Traveling Salesman Problem - sub-problem to DPP. FERMAT / Virginia Tech

  28. LOW DYNAMIC POWER TECHNIQUES • Re-scheduling. • Operand Isolation. • Clock Gating. • Gated Guards. FERMAT / Virginia Tech

  29. RE-SCHEDULING • Actions can be re-scheduled such that switching at the inputs of the functional units is minimized. • Resource sharing - Conflicts can be created such that same functional units can be shared among actions consisting of same operations on same operands. FERMAT / Virginia Tech

  30. OPERAND ISOLATION • Operand Isolation – • Computation corresponding to the body of an action is allowed only when its output is used in the present clock cycle. • Involves - • Insertion of gates at the appropriate points without affecting guards. • Selection of activation signal. • Guards of actions used as gating signals. • Implemented algorithm in Bluespec Compiler saved upto 25% dynamic power. FERMAT / Virginia Tech

  31. OPERAND ISOLATION – SINGLE ACTION action foo (… cond … (x < y) …); x <= x + z … endrule Computations stay quiescent except when action executes, i.e. guard is True x x’ action foo y y’ next-state values Φ2 z z’ next state Q D body logic current state EN cond logic enablesignals FERMAT / Virginia Tech

  32. D Q Enable OPERAND ISOLATION – MULTIPLE ACTIONS Isolating multiple actions of a design. Rule1 Rule Control State DataSelect RuleN Φ2 Action1 ΦN ActionN Cond1 Scheduler CondN FERMAT / Virginia Tech

  33. REGISTER CLOCK GATING • Register Clock-gating - • Registers having a common ENABLE signal can be provided the same gated clock. • CAOS - Registers being updated by same set of actions can be passed the same gated clock. • Implemented algorithm in Bluespec Compiler saved upto 45% dynamic power. FERMAT / Virginia Tech

  34. REGISTER CLOCK GATING In CAOS, guards of the actions provide the control for gating the clocks of the registers. CLK Register DIN EN QOUT GATED_CLK GATED_CLK EN CLK FERMAT / Virginia Tech

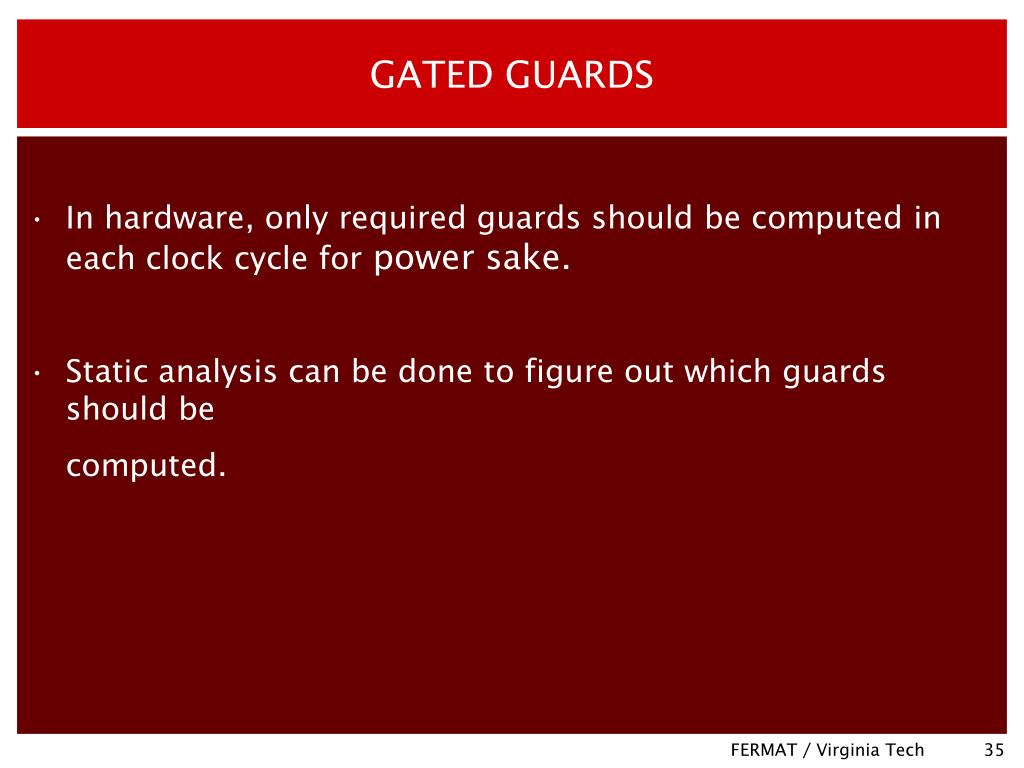

  35. GATED GUARDS • In hardware, only required guards should be computed in each clock cycle for power sake. • Static analysis can be done to figure out which guards should be computed. FERMAT / Virginia Tech

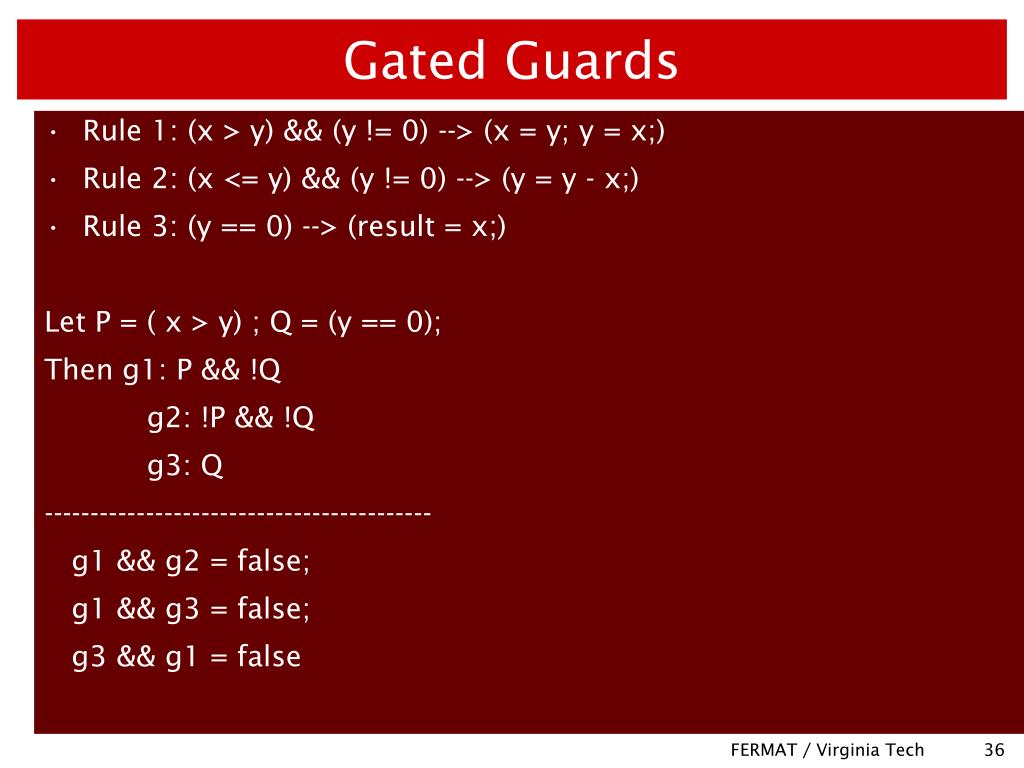

  36. Gated Guards • Rule 1: (x > y) && (y != 0) --> (x = y; y = x;) • Rule 2: (x <= y) && (y != 0) --> (y = y - x;) • Rule 3: (y == 0) --> (result = x;) Let P = ( x > y) ; Q = (y == 0); Then g1: P && !Q g2: !P && !Q g3: Q ------------------------------------------ g1 && g2 = false; g1 && g3 = false; g3 && g1 = false FERMAT / Virginia Tech

  37. Gated Guards What else can we infer? (x > y), (y != 0), (x’ == y), (y’ == x) ------------------------------------------------------ (x’ <= y’) && (y’ != 0) OR (y == 0) So after Rule 1 execution, we know for sure, G1 cannot be true, but G2 or G3 may be true, and hence G1 need not be evaluated. Also prioritize G3. FERMAT / Virginia Tech

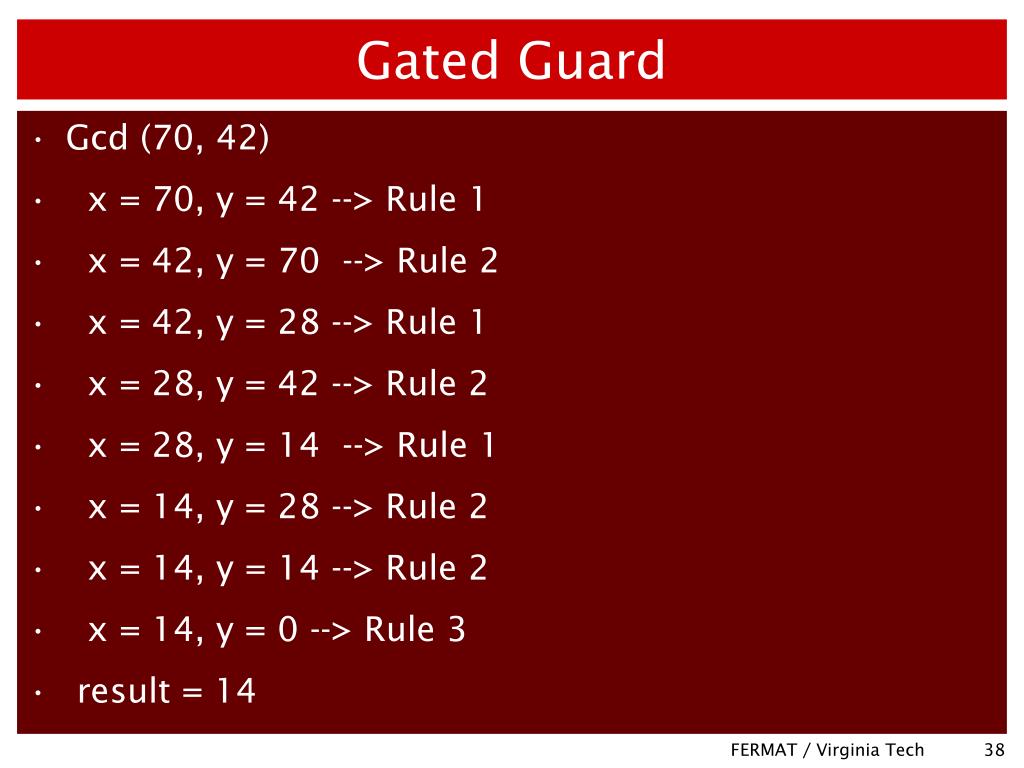

  38. Gated Guard • Gcd (70, 42) • x = 70, y = 42 --> Rule 1 • x = 42, y = 70 --> Rule 2 • x = 42, y = 28 --> Rule 1 • x = 28, y = 42 --> Rule 2 • x = 28, y = 14 --> Rule 1 • x = 14, y = 28 --> Rule 2 • x = 14, y = 14 --> Rule 2 • x = 14, y = 0 --> Rule 3 • result = 14 FERMAT / Virginia Tech

  39. Gated Guard • Use a F/F that gets value 1, when Rule 1 is fired, and becomes 0, when other rules are fired. • If this F/F holds a value 1, evaluate only G3 and then G2. • Unless Rule 1 is fired, this F/F stays at 0, and hence can be clock gated most of the time. • This example may not be very useful, as the guards are simple to evaluate, but guard calculus on complex guards can lead to savings. FERMAT / Virginia Tech

  40. GATED GUARDS • Theorem proving techniques can be used for deductions. • Such analysis can be done for more complicated designs. • A memory in hardware can be used to store the information about which guards need not be computed in the present clock cycle. FERMAT / Virginia Tech

  41. Thank You !! ? FERMAT / Virginia Tech
