  1. A Proposal of Green Wireless LAN SystemBased on Dynamic Power Supply Control Ryo Nakamura Graduate school of Information Science and Electrical Engineering, Kyushu University. Mari Suenaga Faculty of Literature, ChikushiJogakuenUniversity. MahoHirasaka Faculty of Literature, ChikushiJogakuenUniversity. Koji Okamura Research Institute for Information Technology, Kyushu University. MotoyukiOhmori Faculty of Literature, ChikushiJogakuenUniversity.

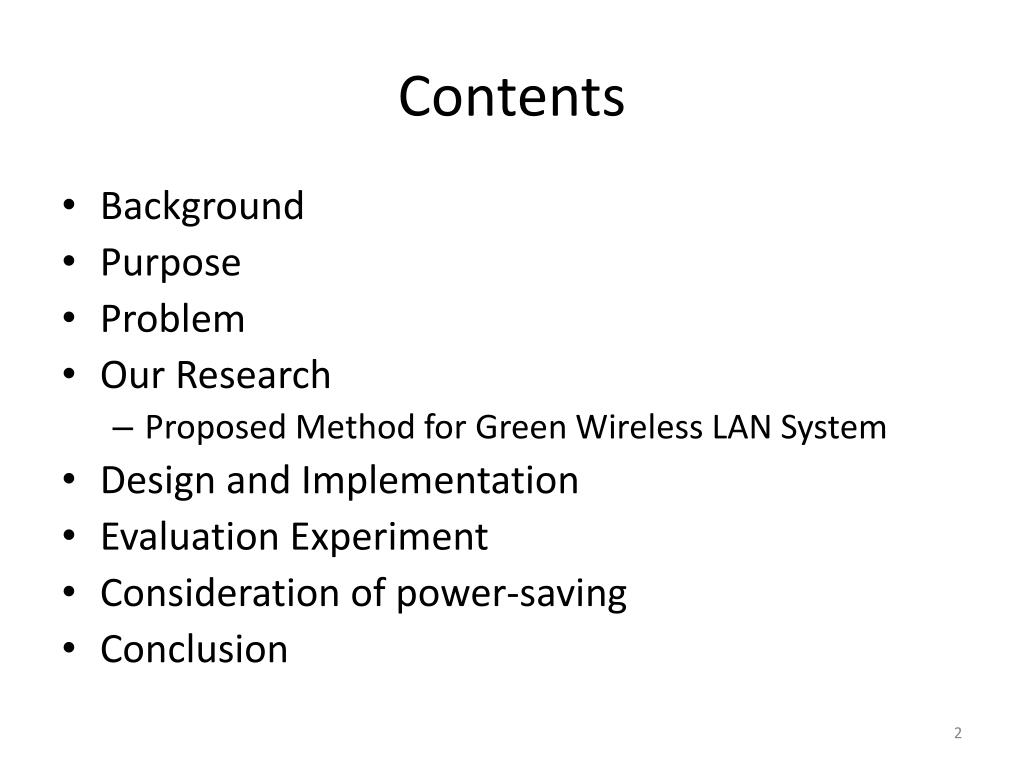

  2. Contents • Background • Purpose • Problem • Our Research • Proposed Method for Green Wireless LAN System • Design and Implementation • Evaluation Experiment • Consideration of power-saving • Conclusion

  3. Background-Wireless LAN • Wireless LAN has been used in many companies, factories and universities. • It needs an AP (Access Point) that relays the communication between STA(STAtion)s. • The AP needs to keep working because the AP must respond to a STA if the STA requests for connecting to the wireless LAN. AP STA2 STA1 Some electric power is wasted when there is no STA

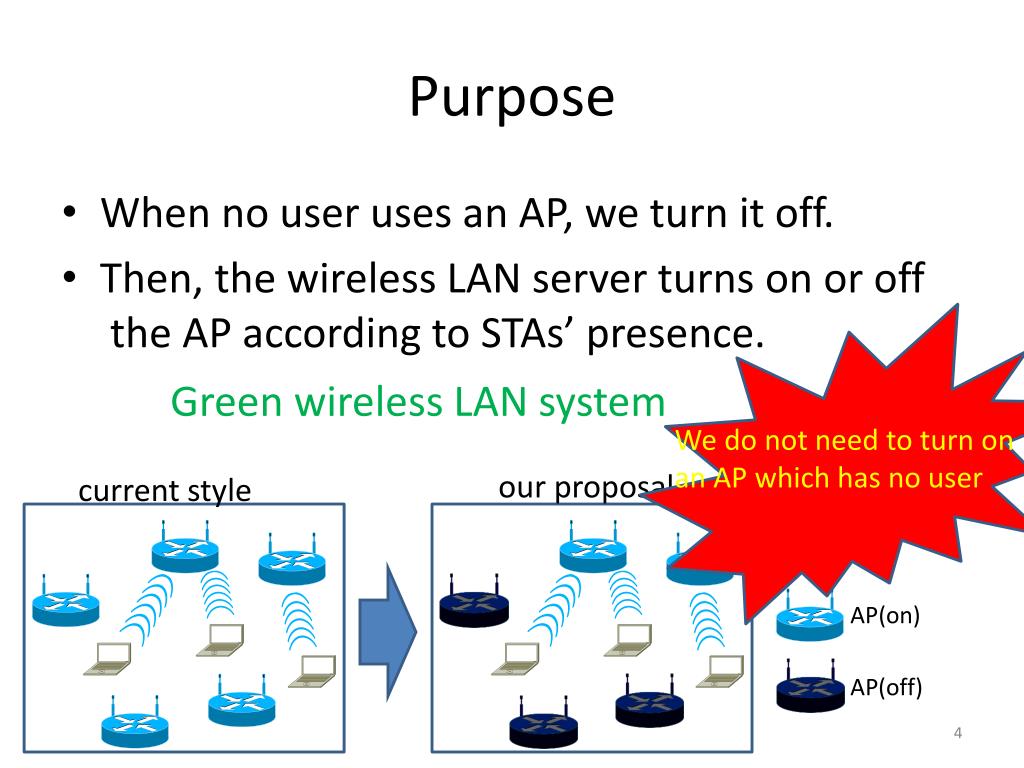

  4. Purpose • When nouseruses an AP, we turn it off. • Then, the wireless LAN server turns on or off the AP according to STAs’ presence. Green wireless LAN system We do not need to turn on an AP which has no user our proposal current style AP(on) AP(off)

  5. Problem • While all APs turned off,how does a STA connect to an AP? • We need two functions. • Receiving a STA request instead of an AP. • Turning on the best AP according to the STA. • We introduce a sensor BQ(Base Quacker) and C3 (Collection, Calculation and Control server) for archiving these functions.

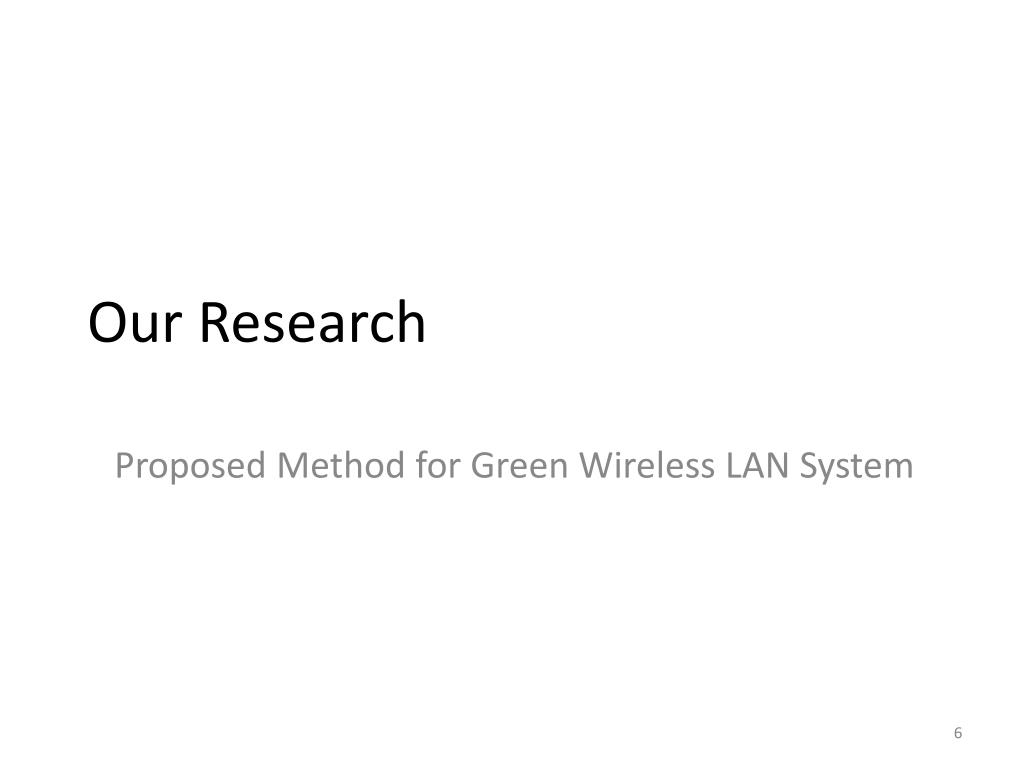

  6. Our Research Proposed Method for Green Wireless LAN System

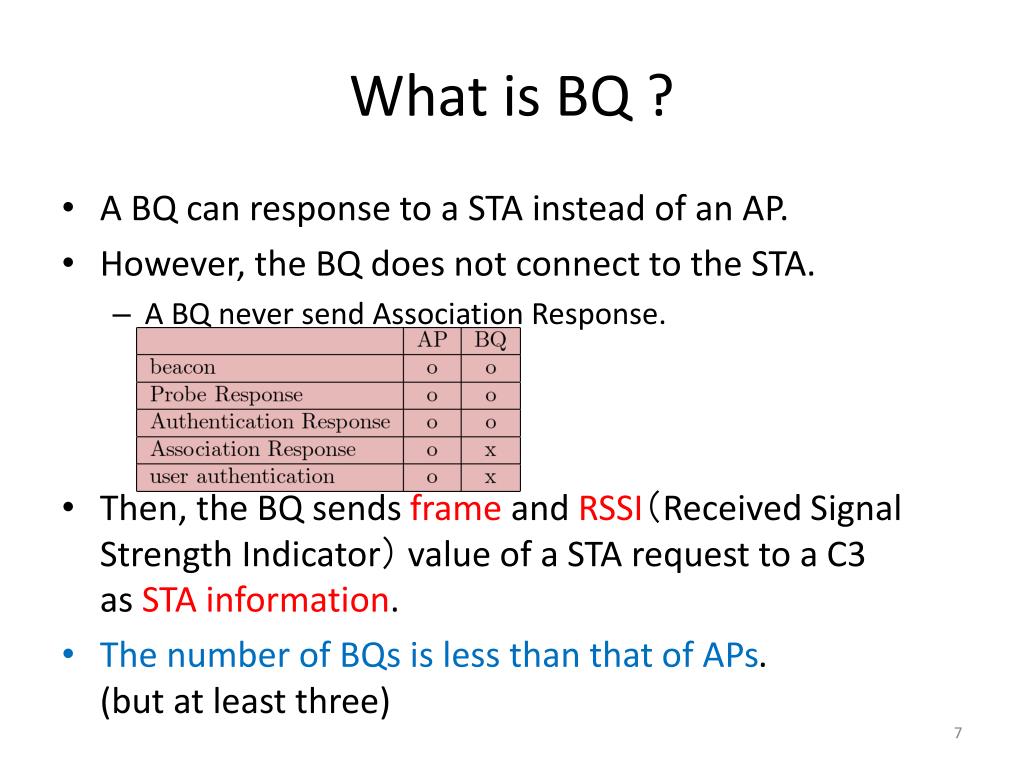

  7. What is BQ ? • A BQ can response to a STA instead of an AP. • However, the BQ does not connect to the STA. • A BQ never send Association Response. • Then, the BQ sends frame and RSSI（Received Signal Strength Indicator） valueof a STA request to a C3 as STA information. • The number of BQs is less than that of APs.(but at least three)

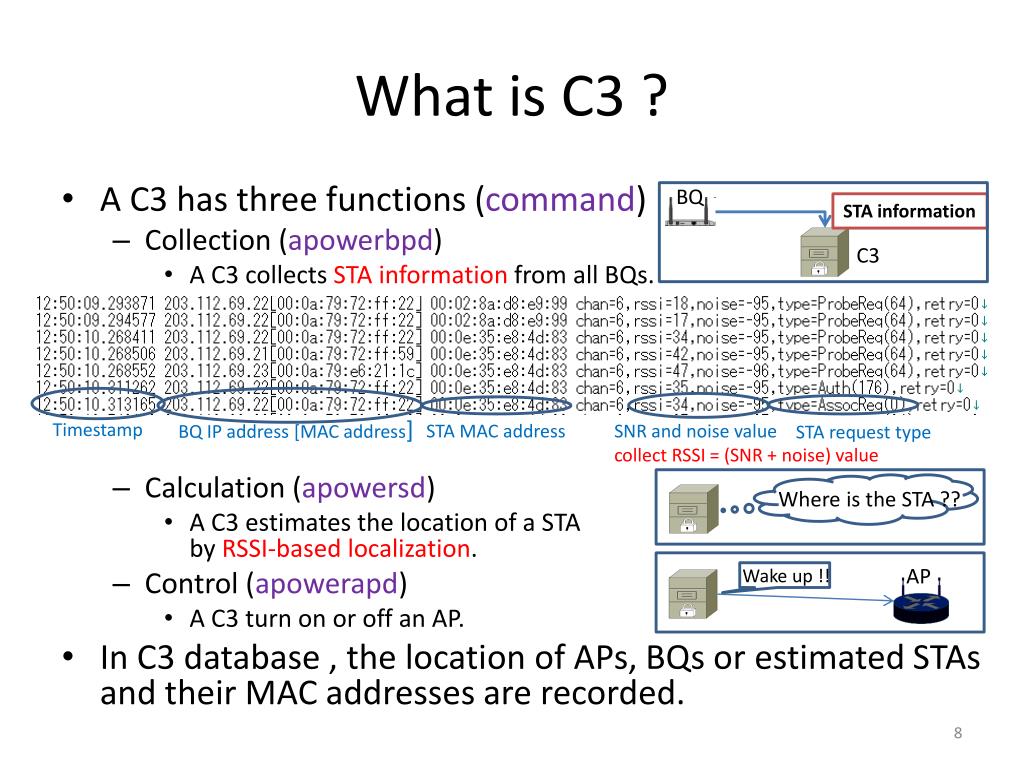

  8. What is C3 ? BQ • A C3 has three functions (command) • Collection (apowerbpd) • A C3 collects STA information from all BQs. • Calculation (apowersd) • A C3 estimates the location of a STAby RSSI-based localization. • Control (apowerapd) • A C3 turn on or off an AP. • In C3 database , the location of APs, BQs or estimated STAsand their MAC addresses are recorded. STA information C3 BQ IP address [MAC address] Timestamp STA MAC address SNR and noise valuecollect RSSI = (SNR + noise) value STA request type Where is the STA ?? AP Wake up !!

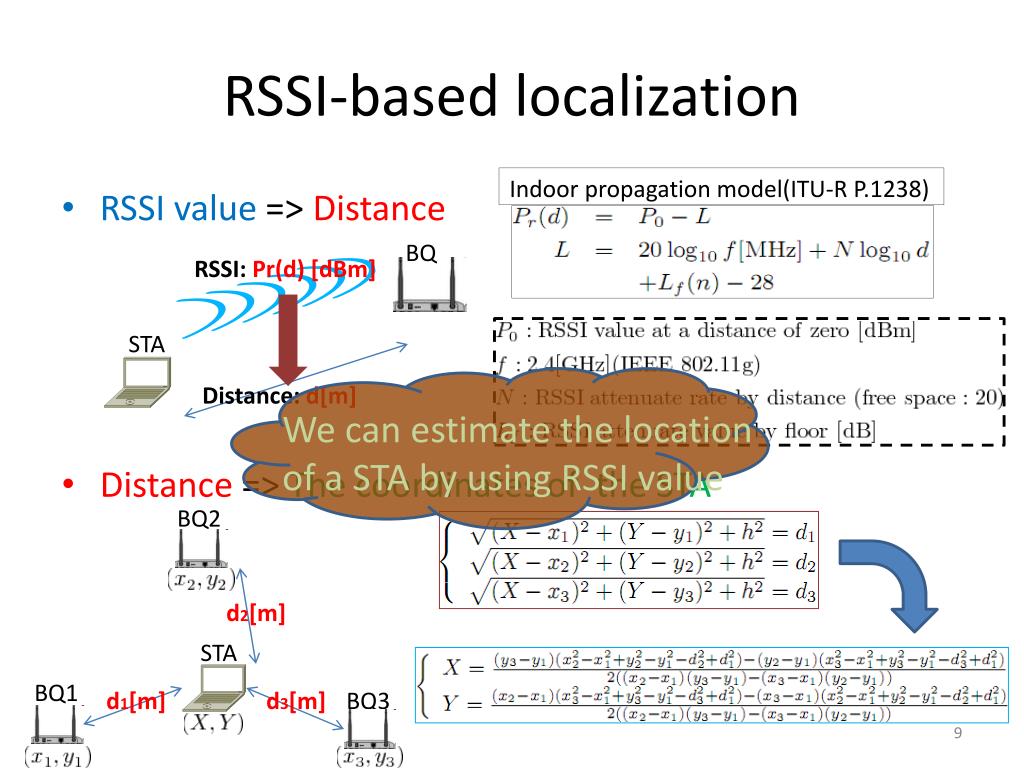

  9. RSSI-based localization • RSSI value => Distance • Distance => The coordinates of the STA BQ RSSI: Pr(d) [dBm] STA Distance: d[m] We can estimate the location of a STA by using RSSI value BQ2 Indoor propagation model(ITU-R P.1238) d2[m] STA BQ1 d1[m] d3[m] BQ3

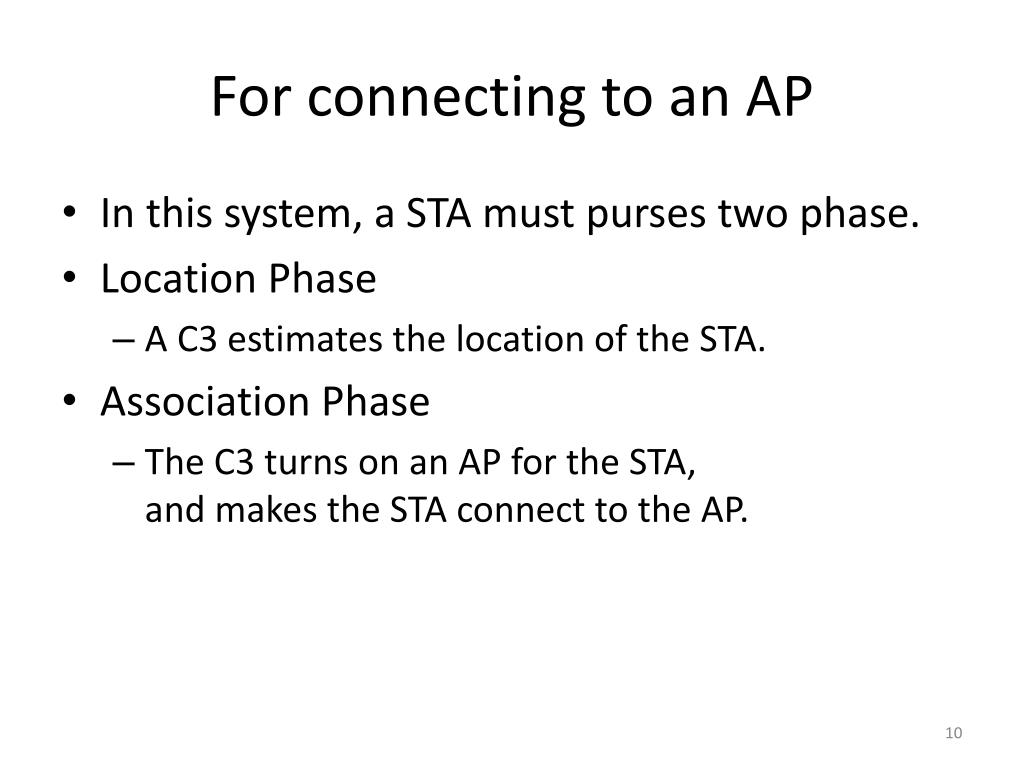

  10. For connecting to an AP • In this system, a STA must purses two phase. • Location Phase • A C3 estimates the location of the STA. • Association Phase • The C3 turns on an AP for the STA, and makes the STA connect to the AP.

  11. Research Overview Where is the STA ?? Location Phase Association Phase BQ2 C3 BQ3 BQ1 RSSI ? RSSI ? RSSI ? 1.Start connection 2.A STA requests for connecting 3.BQs measure RSSI value 4.The BQs send it to a C3 as STA information(apowerbqd) 5.The C3 estimates the locationof the STA(apowersd) 6.The C3 starts the best AP for the STA (apowerapd) 7.After the AP sends beacon 8.The STA establishes connection 9.When the STA stops connection 10.The C3 turns off the AP(apowerapd)

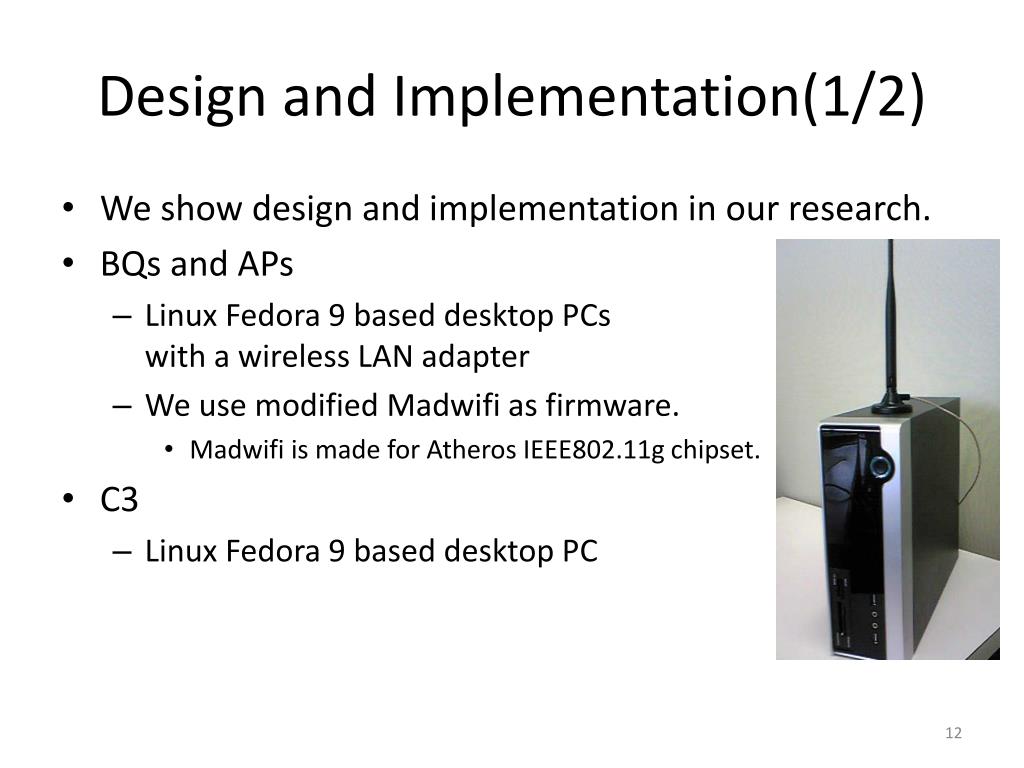

  12. Design and Implementation(1/2) • We show design and implementation in our research. • BQs and APs • Linux Fedora 9 based desktop PCs with a wireless LAN adapter • We use modified Madwifi as firmware. • Madwifi is made for Atheros IEEE802.11g chipset. • C3 • Linux Fedora 9 based desktop PC

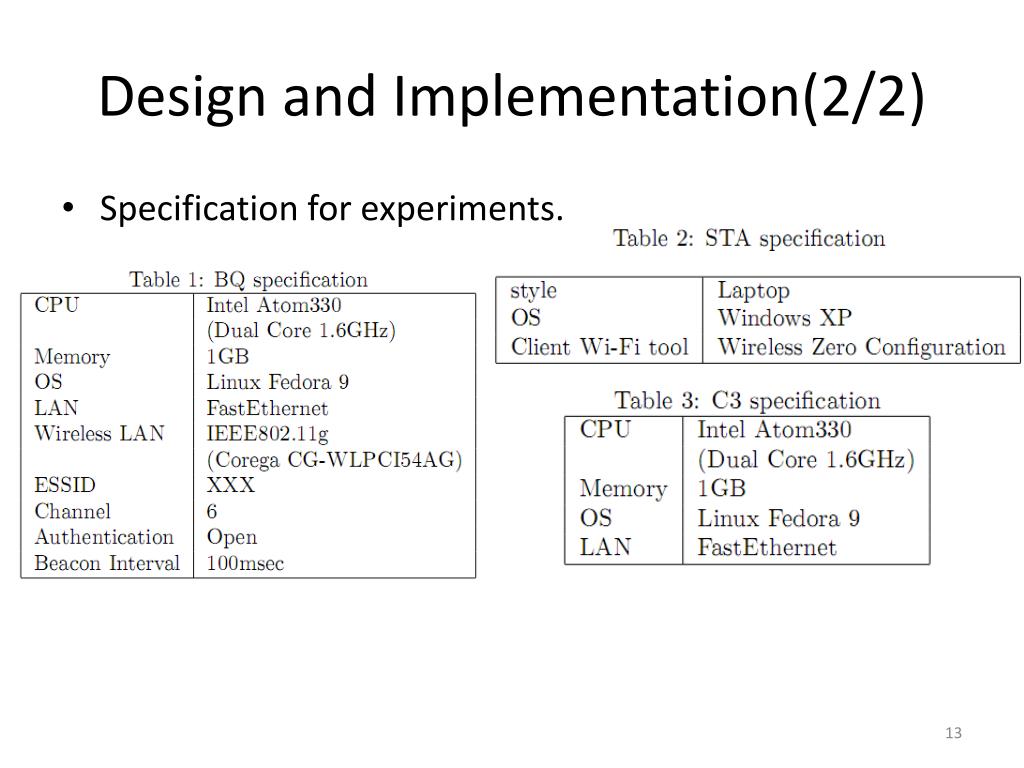

  13. Design and Implementation(2/2) • Specification for experiments.

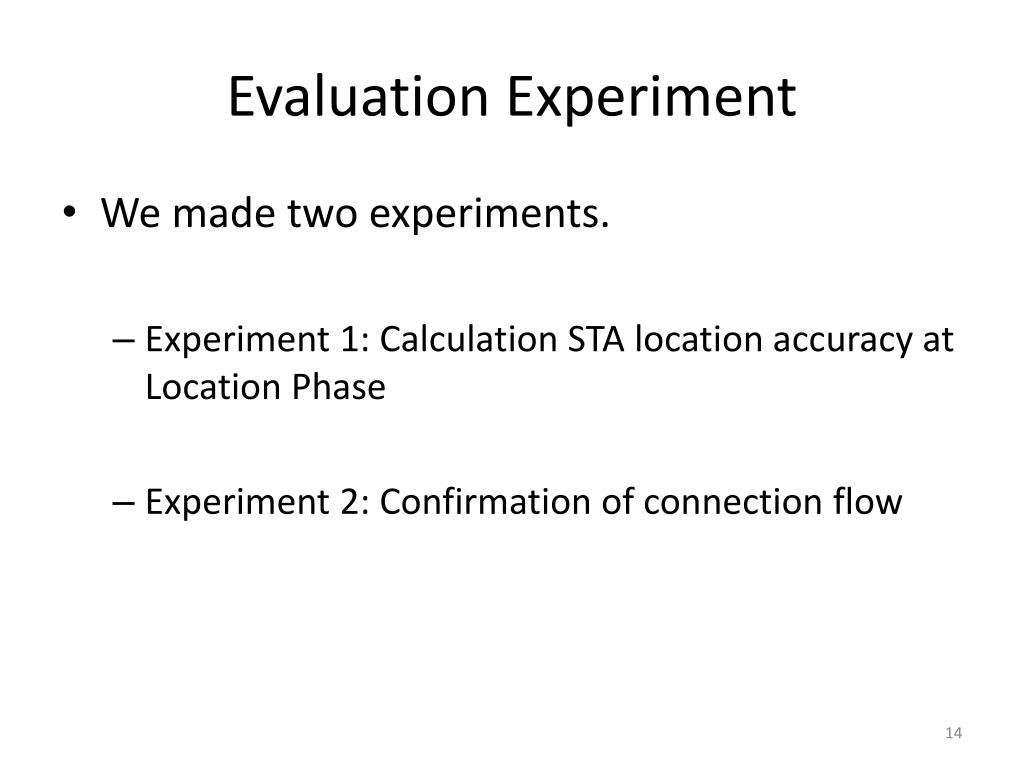

  14. Evaluation Experiment • We made two experiments. • Experiment 1: Calculation STA location accuracy at Location Phase • Experiment 2: Confirmation of connection flow

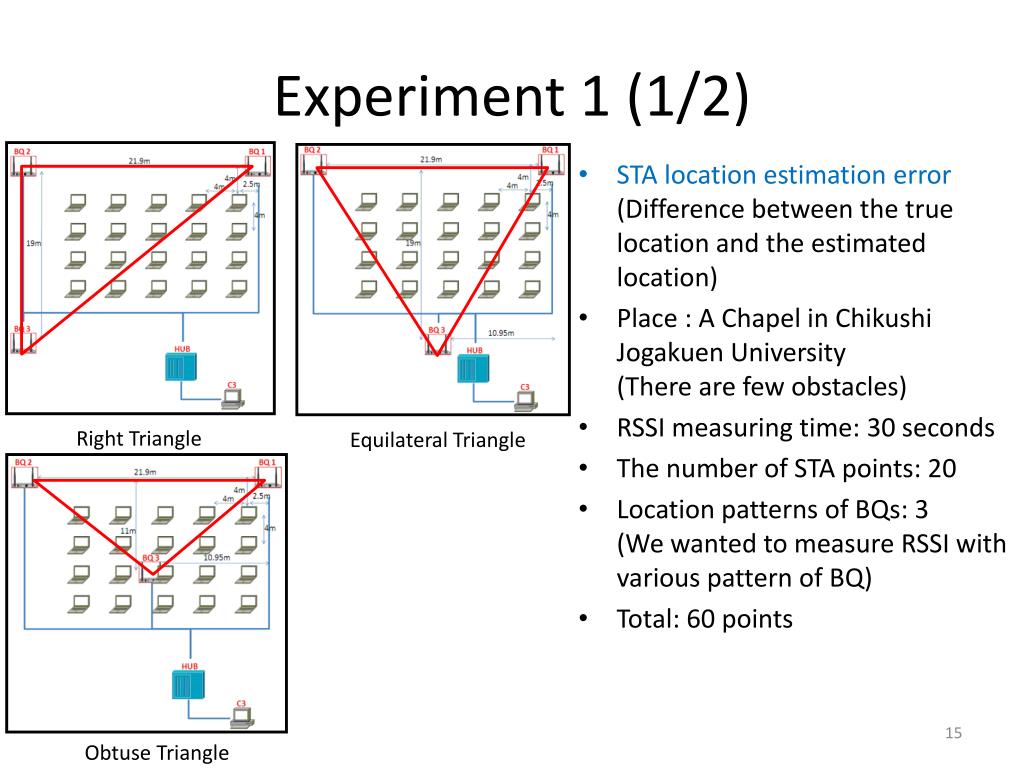

  15. Experiment 1 (1/2) • STA location estimation error(Difference between the true location and the estimated location) • Place : A Chapel in ChikushiJogakuen University(There are few obstacles) • RSSI measuring time: 30 seconds • The number of STA points: 20 • Location patterns of BQs: 3(We wanted to measure RSSI with various pattern of BQ) • Total: 60 points Right Triangle Equilateral Triangle Obtuse Triangle

  16. Experiment 1 (2/2) • In RSSI-based localization, we select two RSSI values; maximum RSSI value (Max RSSI) and average RSSI value (Ave RSSI) • Therefore, we use two radio propagation model for conversion RSSI value to distance. • Max RSSI : P(0)=15.04[dBm], N=28.94 • Ave RSSI : P(0)=-4.20[dBm], N=15.56 ・ P(0) and N are calculated beforehand by using least-square method.・ Lf = 0 because we do not consider affection of floor.

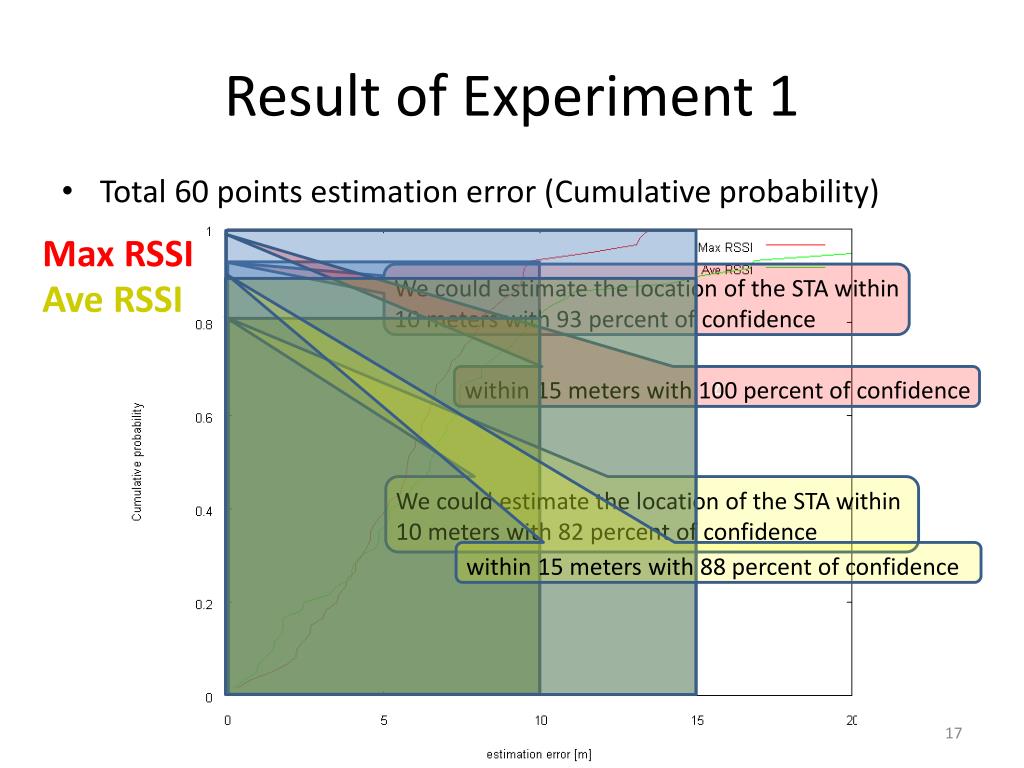

  17. Result of Experiment 1 • Total 60 points estimation error (Cumulative probability) Max RSSI Ave RSSI We could estimate the location of the STA within 10 meters with 93 percent of confidence z We could estimate the location of the STA within 10 meters with 82 percent of confidence within 15 meters with 88 percent of confidence within 15 meters with 100 percent of confidence

  18. Experiment 2 • We confirm whether a STA can connect to the best AP according to the following connection flow. • As a result,a STA could connect to the AP near the STA. STA BQ AP C3 beacon Probe Request Probe Response Authentication Request Location Phase Authentication Response Association Request Transmission STA information A C3 receives STA information for five seconds after the first BQ sends STA information to the C3. Starting AP beacon Probe Request Probe Response Authentication Request Association Phase Authentication Response Association Request Confirmation of the STA Approval Association Response

  19. Consideration of power-saving(1/3) • In this section, we present a simple simulation about the power consumption of wireless interfaces. • Assumption: • APs have two mode. • An AP with users is in the Active Mode. • An AP turned on but not used is in the Standby Mode. • A BQ is equal to be in the Standby Mode. • Active Mode consumes more power than Standby Mode.

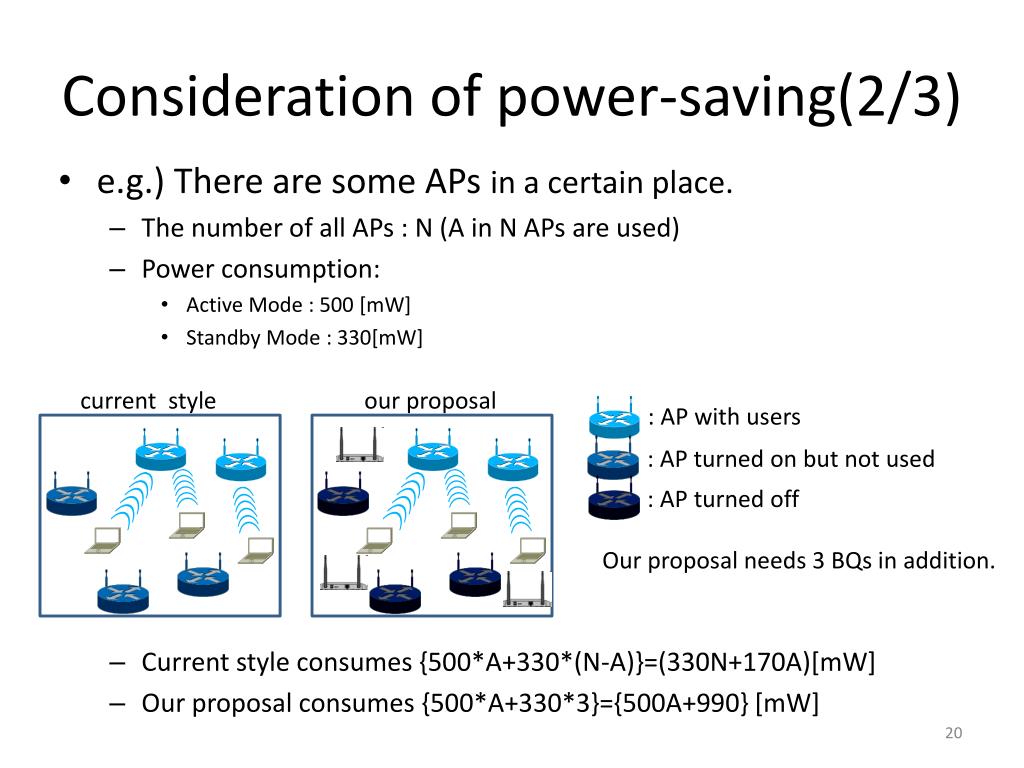

  20. Consideration of power-saving(2/3) • e.g.) There are some APs in a certain place. • The number of all APs : N (A in N APs are used) • Power consumption: • Active Mode : 500 [mW] • Standby Mode : 330[mW] • Current style consumes {500*A+330*(N-A)}=(330N+170A)[mW] • Our proposal consumes {500*A+330*3}={500A+990} [mW] our proposal : AP with users : AP turned on but not used current style : AP turned off Our proposal needs 3 BQs in addition.

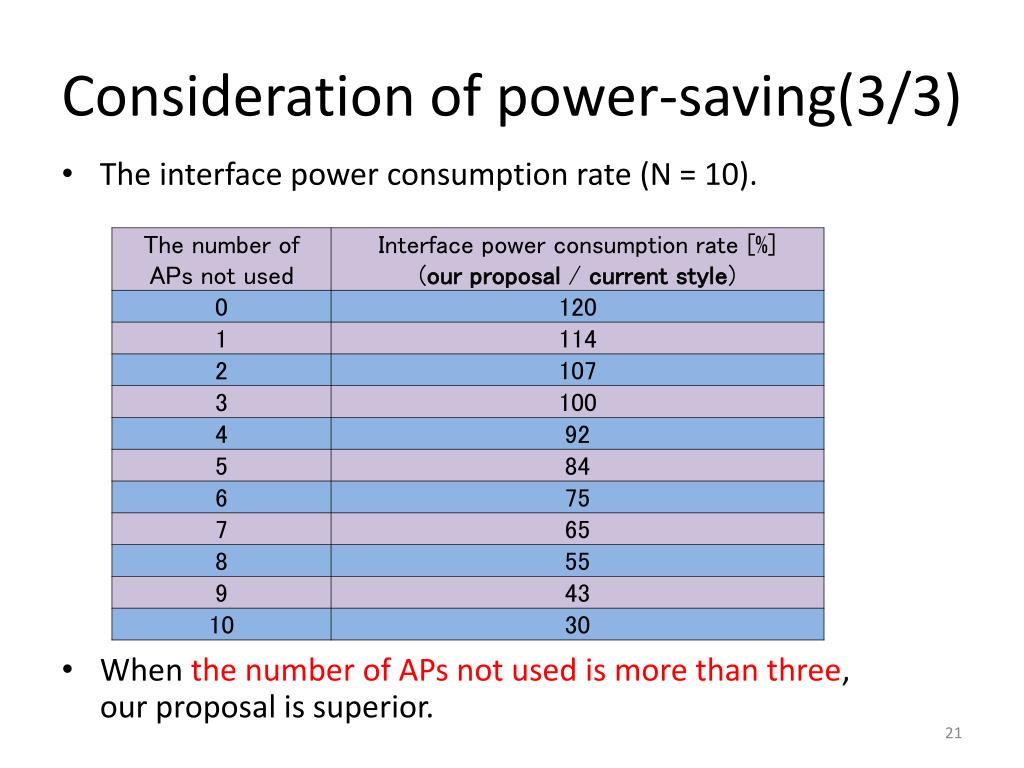

  21. Consideration of power-saving(3/3) • The interface power consumption rate (N = 10). • When the number of APs not used is more than three, our proposal is superior.

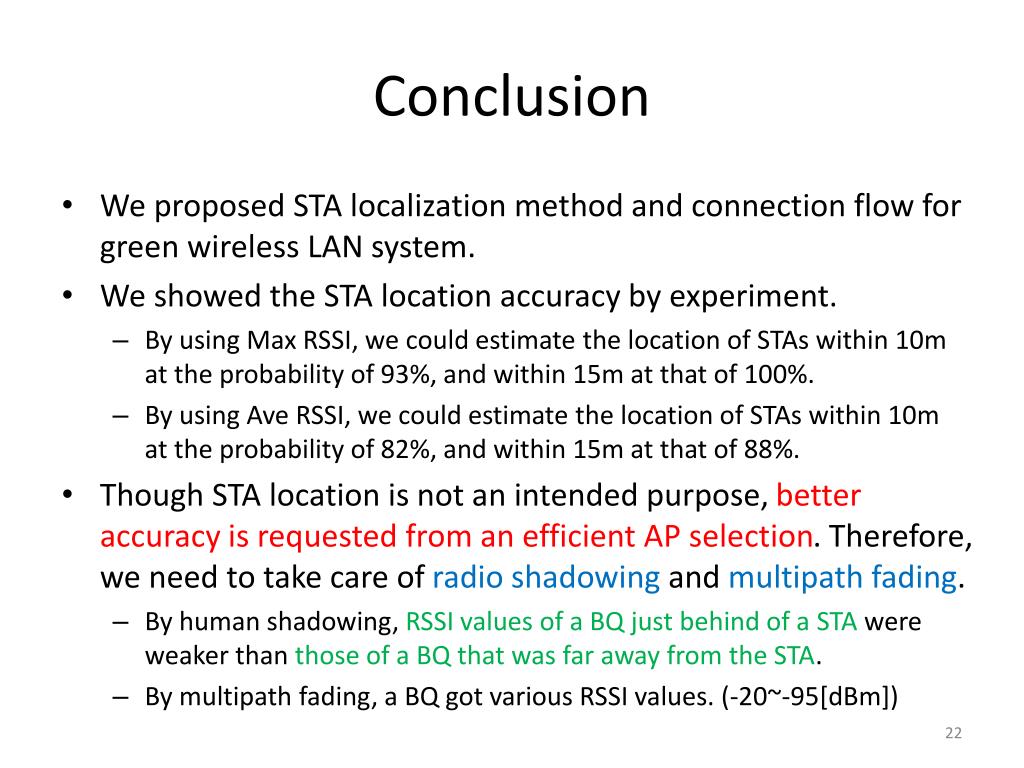

  22. Conclusion • We proposed STA localization method and connection flow for green wireless LAN system. • We showed the STA location accuracy by experiment. • By using Max RSSI, we could estimate the location of STAs within 10m at the probability of 93%, and within 15m at that of 100%. • By using Ave RSSI, we could estimate the location of STAs within 10m at the probability of 82%, and within 15m at that of 88%. • Though STA location is not an intended purpose, better accuracy is requested from an efficient AP selection. Therefore, we need to take care of radio shadowing and multipath fading. • By human shadowing, RSSI values of a BQ just behind of a STA were weaker than those of a BQ that was far away from the STA. • By multipath fading, a BQ got various RSSI values. (-20~-95[dBm])

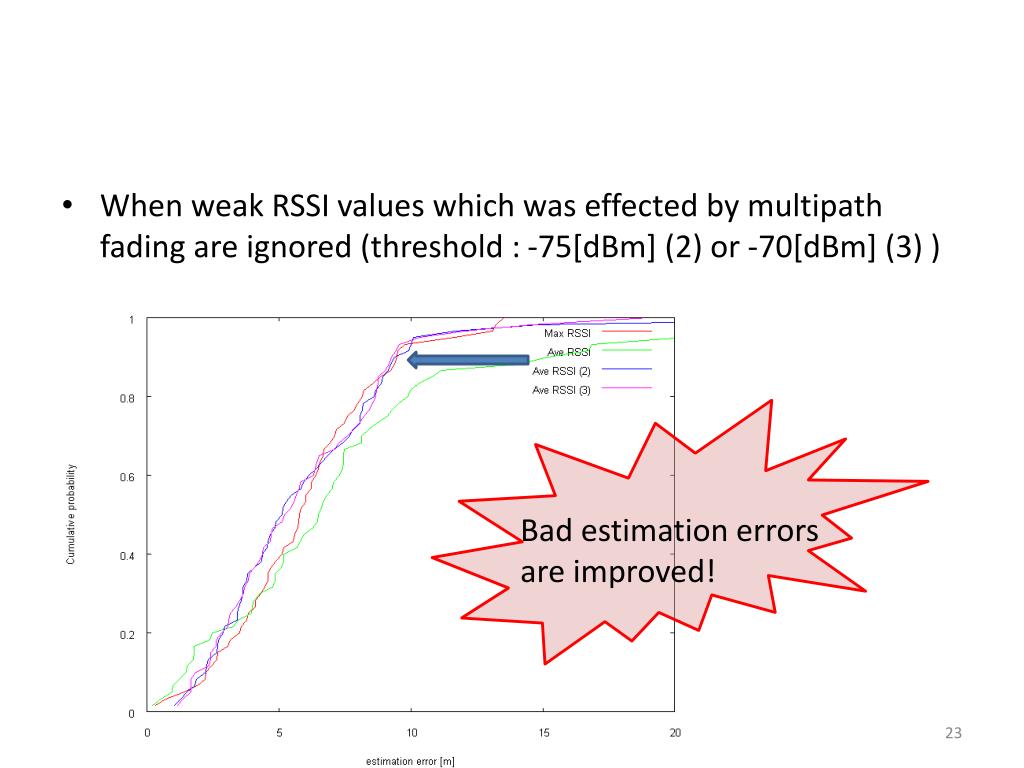

  23. When weak RSSI values which was effected by multipath fading are ignored (threshold : -75[dBm] (2) or -70[dBm] (3) ) Bad estimation errors are improved!

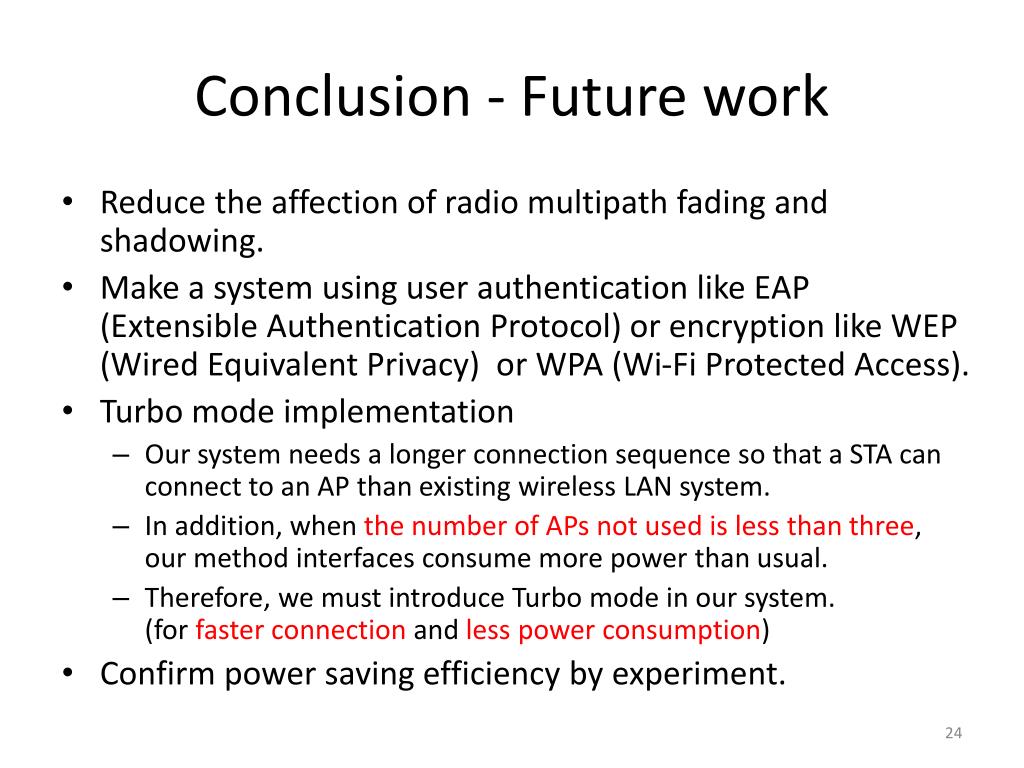

  24. Conclusion - Future work • Reduce the affection of radio multipath fading and shadowing. • Make a system using user authentication like EAP (Extensible Authentication Protocol) or encryption like WEP (Wired Equivalent Privacy) or WPA (Wi-Fi Protected Access). • Turbo mode implementation • Our system needs a longer connection sequence so that a STA can connect to an AP than existing wireless LAN system. • In addition, when the number of APs not used is less than three,our method interfaces consume more power than usual. • Therefore, we must introduce Turbo mode in our system.(for faster connection and less power consumption) • Confirm power saving efficiency by experiment.

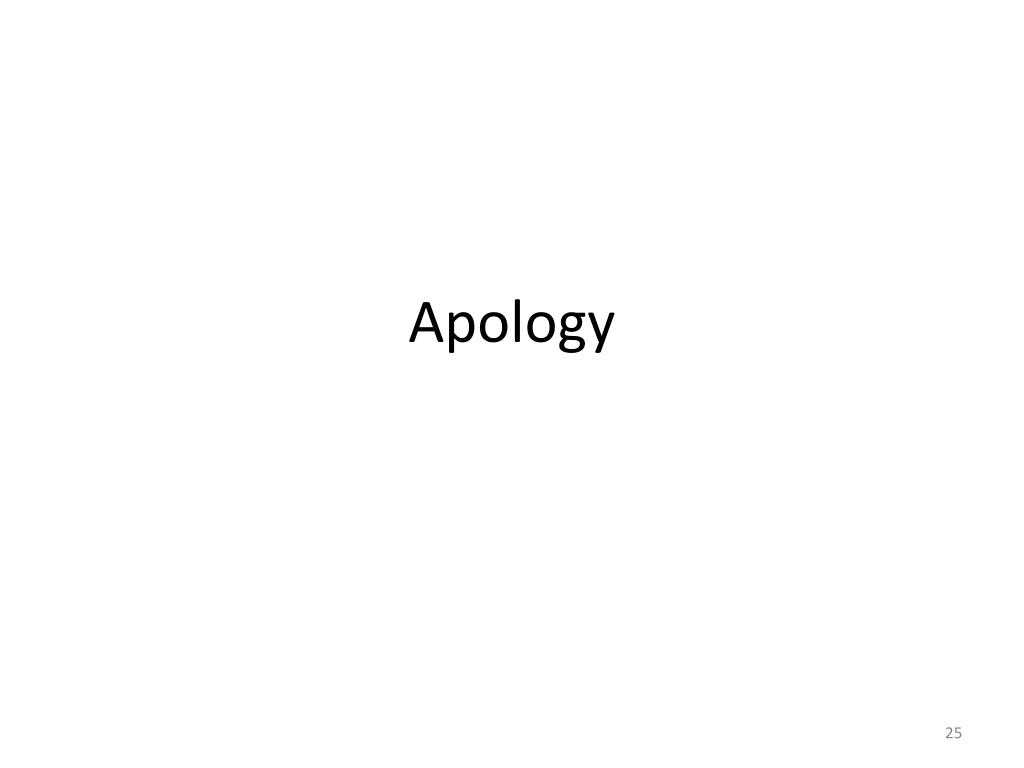

  25. Apology

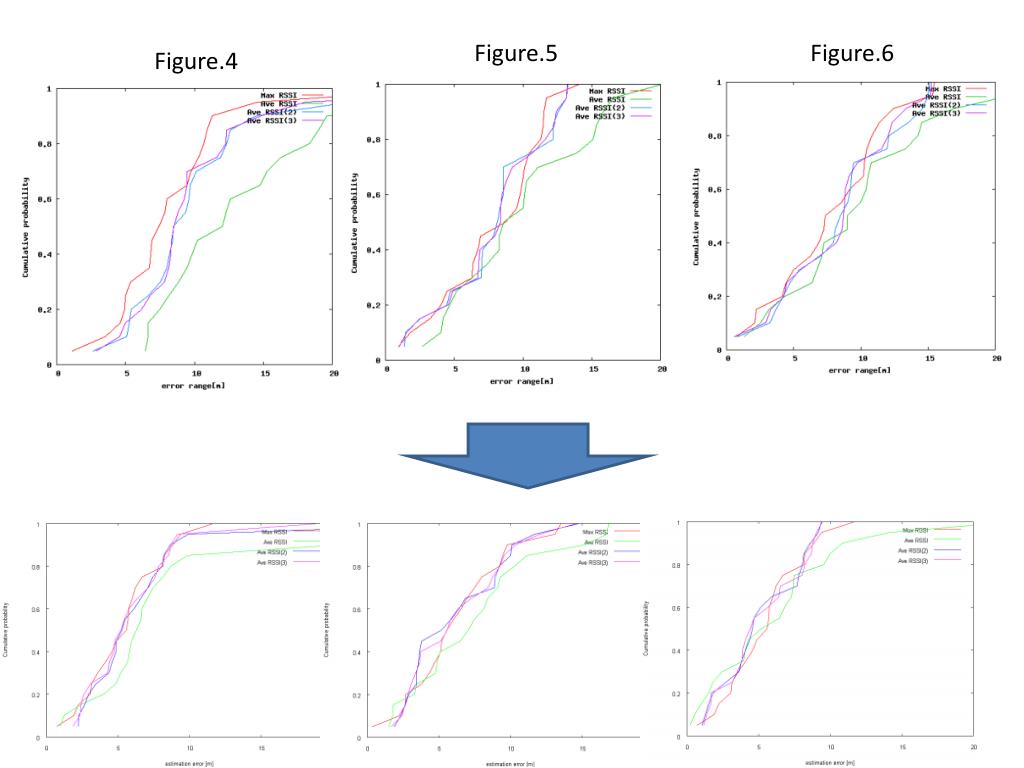

  26. Figure.5 Figure.6 Figure.4

  27. Thank you
