  1. Chapter 6:The Tools of the Astronomer

  2. Telescopes come in two general types Refractors use lenses to bend the light to a focus Reflectors use mirrors to reflect the light to a focus

  3. The most important property of any telescope is to gather large amounts of light and concentrate it to a focus.

  4. Refraction is the bending of light when it goes from one medium to another “n” is the index of refraction.

  5. The refracting telescope uses two lenses Since the eye already has a lens, the eyepiece is needed to bring the light rays back to parallel for the eye to see

  6. Large refractors can be very long and bulky

  7. The Largest Lens is 40”

  8. Lenses and refractors suffer from Chromatic Aberration This applies to camera lenses, your eye, telescopes and anything else that uses a lens to focus light

  9. Correcting for Chromatic aberration can be expensive The compound lens takes two lenses of different materials and combines them to correct for color distortion

  10. Color separation is useful in a prism so that we can obtain a spectrum of light Since it is meant to be separated we don’t call it an aberration. Instead, it is called dispersion

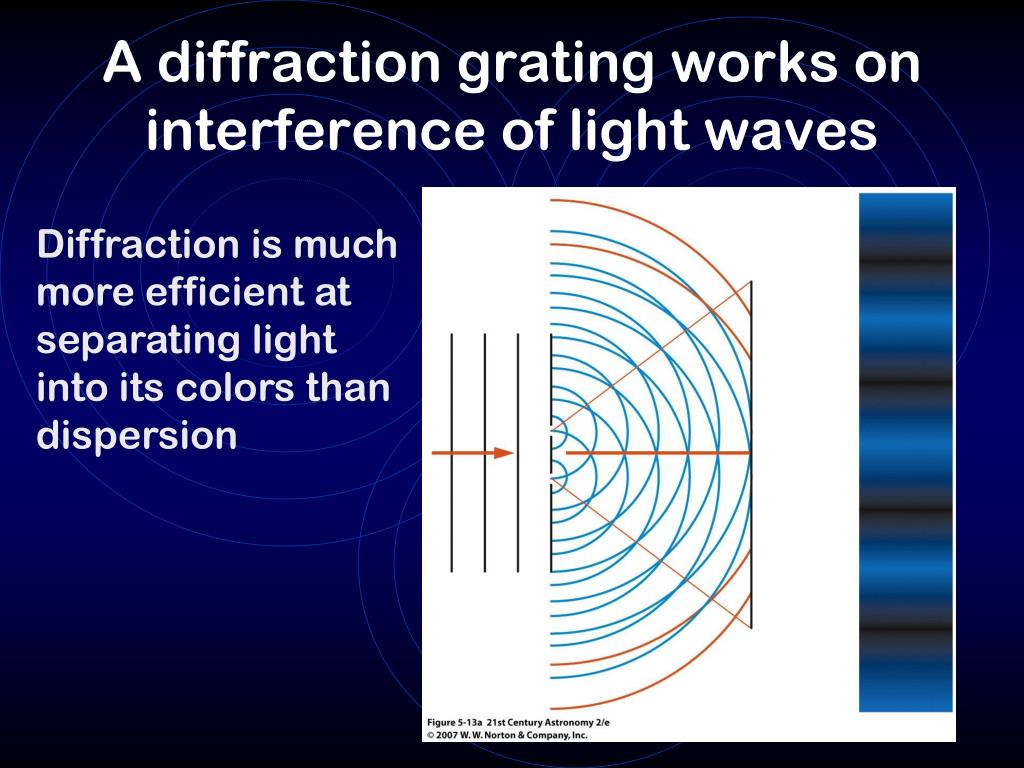

  11. A diffraction grating works on interference of light waves Diffraction is much more efficient at separating light into its colors than dispersion

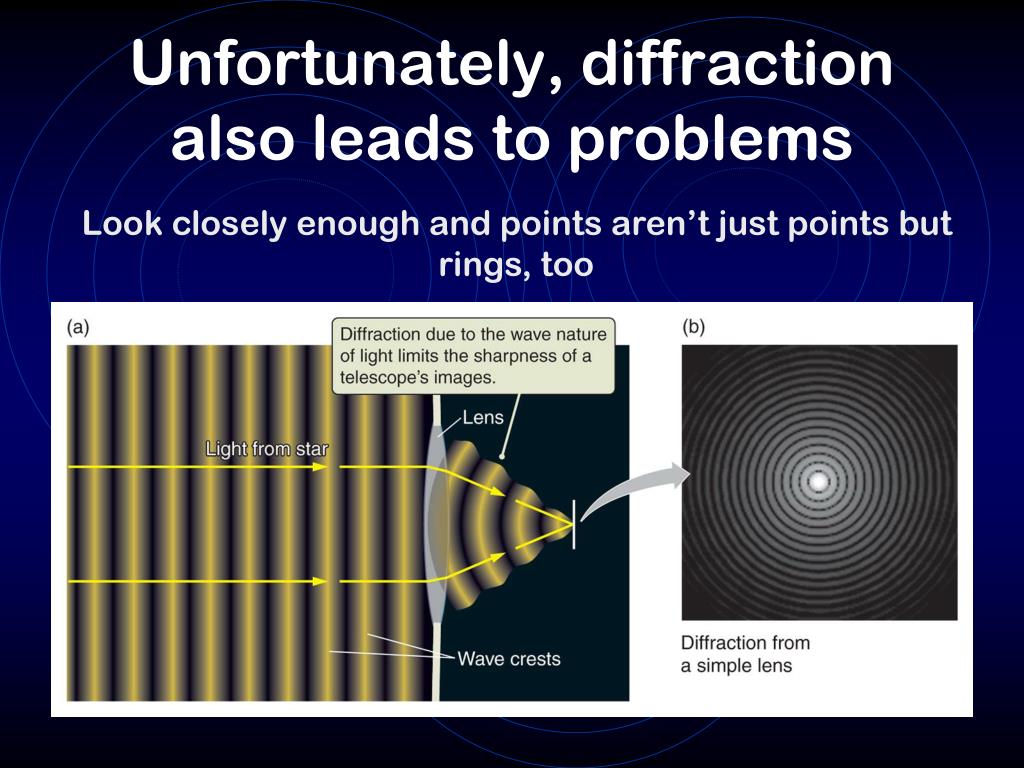

  12. Unfortunately, diffraction also leads to problems Look closely enough and points aren’t just points but rings, too

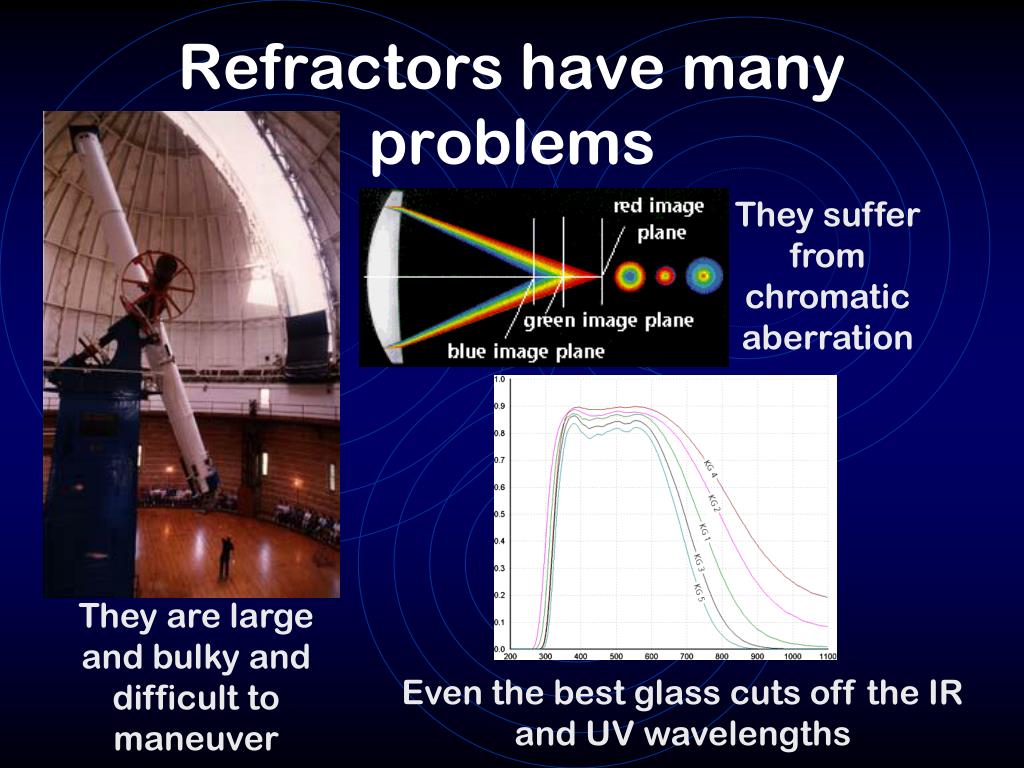

  13. Refractors have many problems They suffer from chromatic aberration They are large and bulky and difficult to maneuver Even the best glass cuts off the IR and UV wavelengths

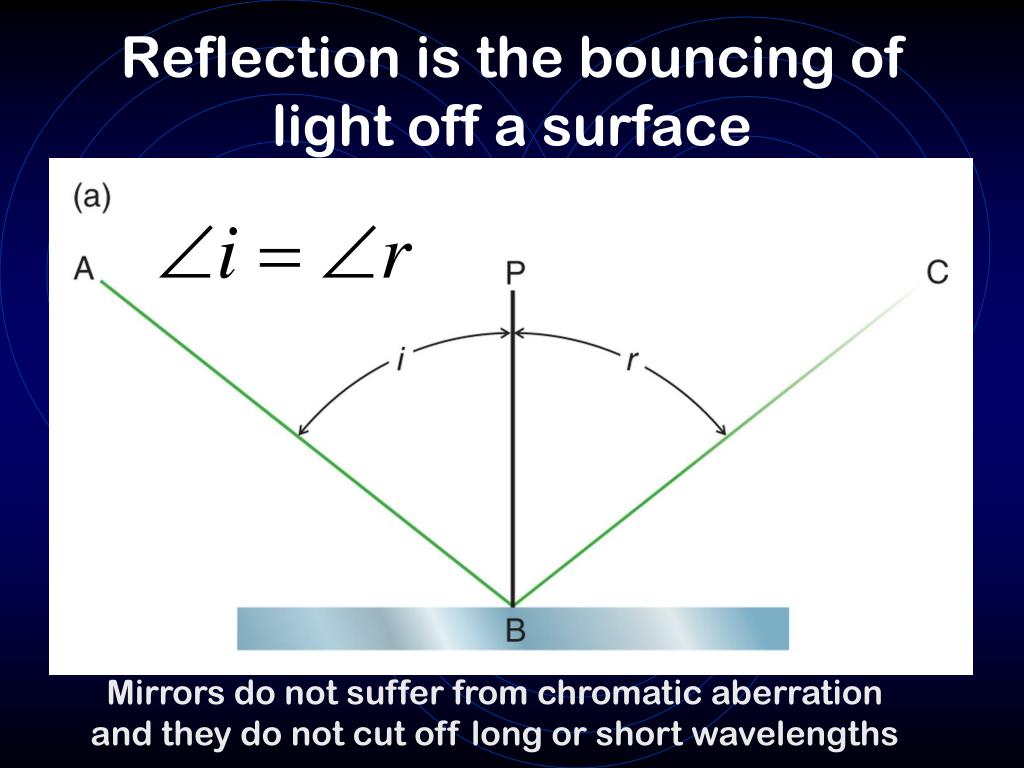

  14. Reflection is the bouncing of light off a surface Mirrors do not suffer from chromatic aberration and they do not cut off long or short wavelengths

  15. A concave mirror focuses light to a focal point Telescope mirrors are made so that the focus is a plane instead of a point

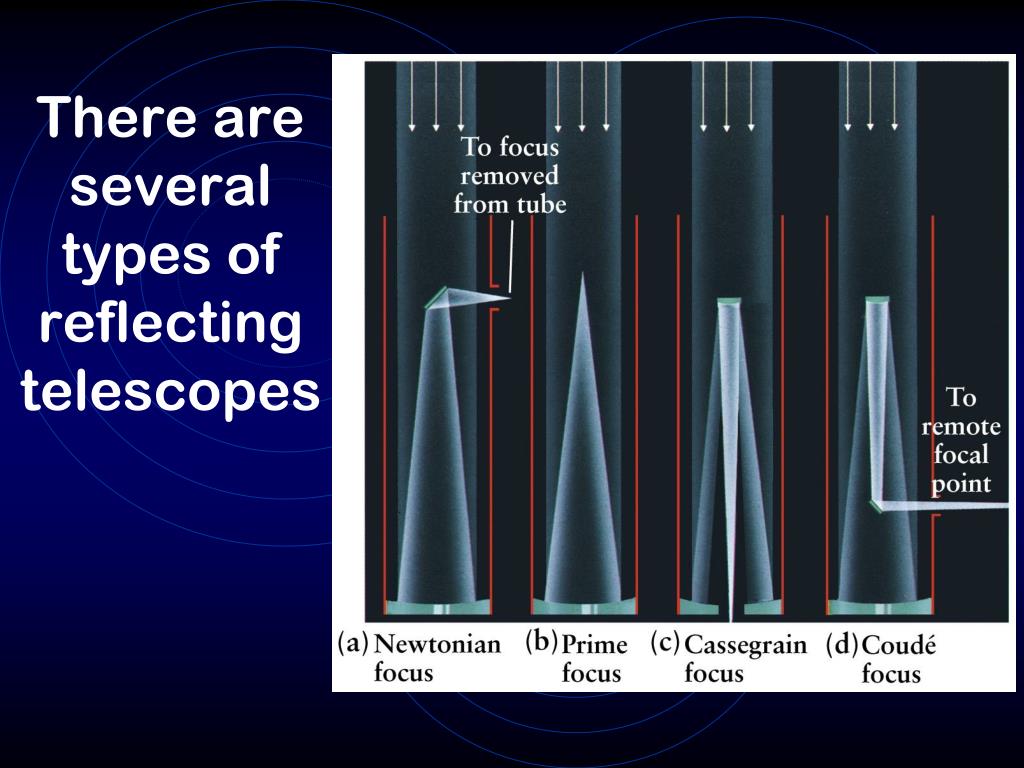

  16. There are several types of reflecting telescopes

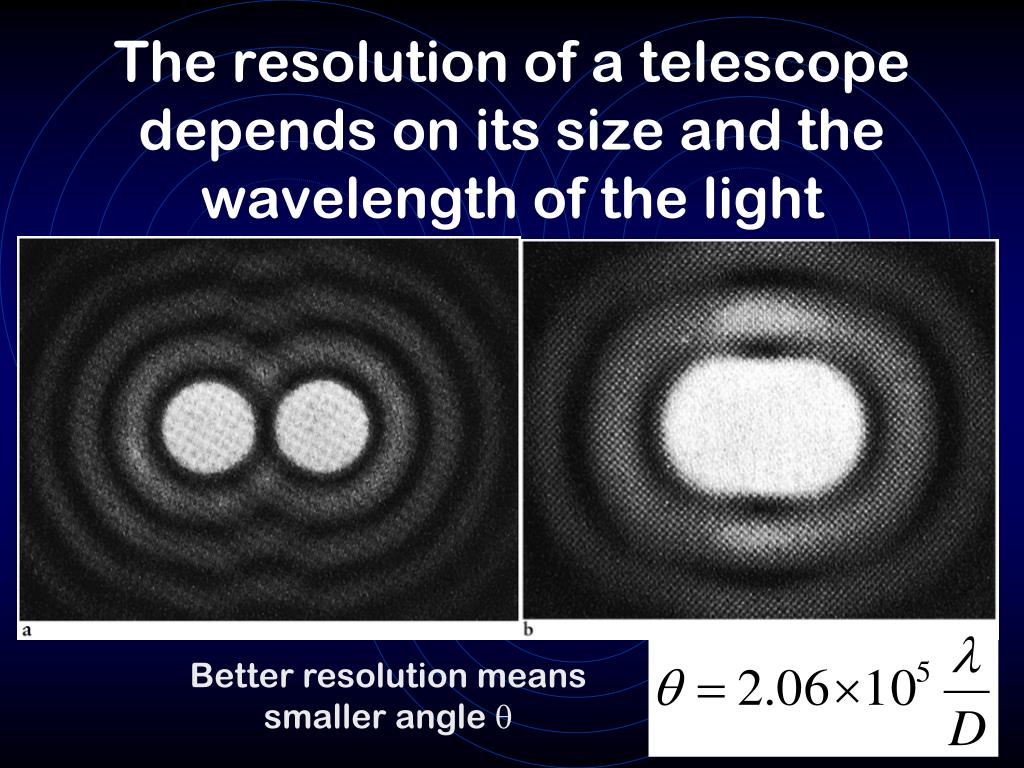

  17. The resolution of a telescope depends on its size and the wavelength of the light Better resolution means smaller angle q

  18. The atmosphere limits the resolving power of a ground-based telescope Adaptive Optics can clear up most of the distortions caused by the atmosphere

  19. The distortions are caused by differences in the air above the telescope

  20. Once a sight with good “seeing” is found everyone wants to use it Kitt Peak Arizona

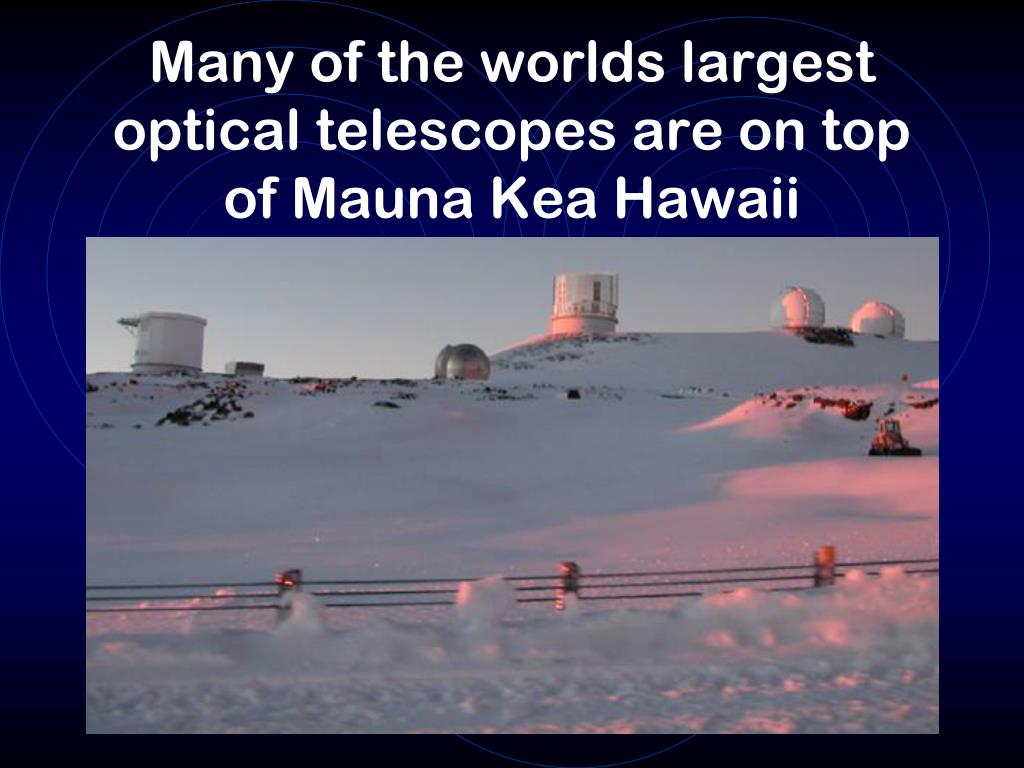

  21. Many of the worlds largest optical telescopes are on top of Mauna Kea Hawaii

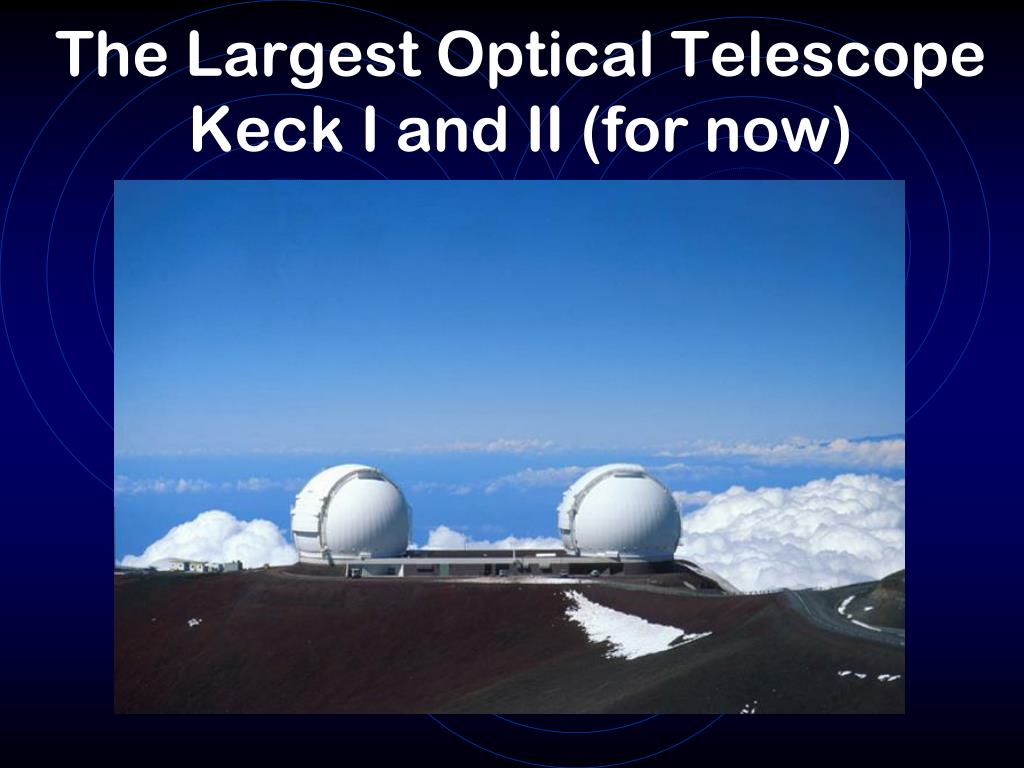

  22. The Largest Optical TelescopeKeck I and II (for now)

  23. The 10 meter Keck Mirror

  24. How do we use telescopes? An early 19th century sketch of the head of a comet Early telescopic observations were done by eye using the “view and sketch” system

  25. By the early 1900’s photographic plates were the dominant scientific way to observe An early image of the Great Nebula in Orion One of the earliest images of the Moon

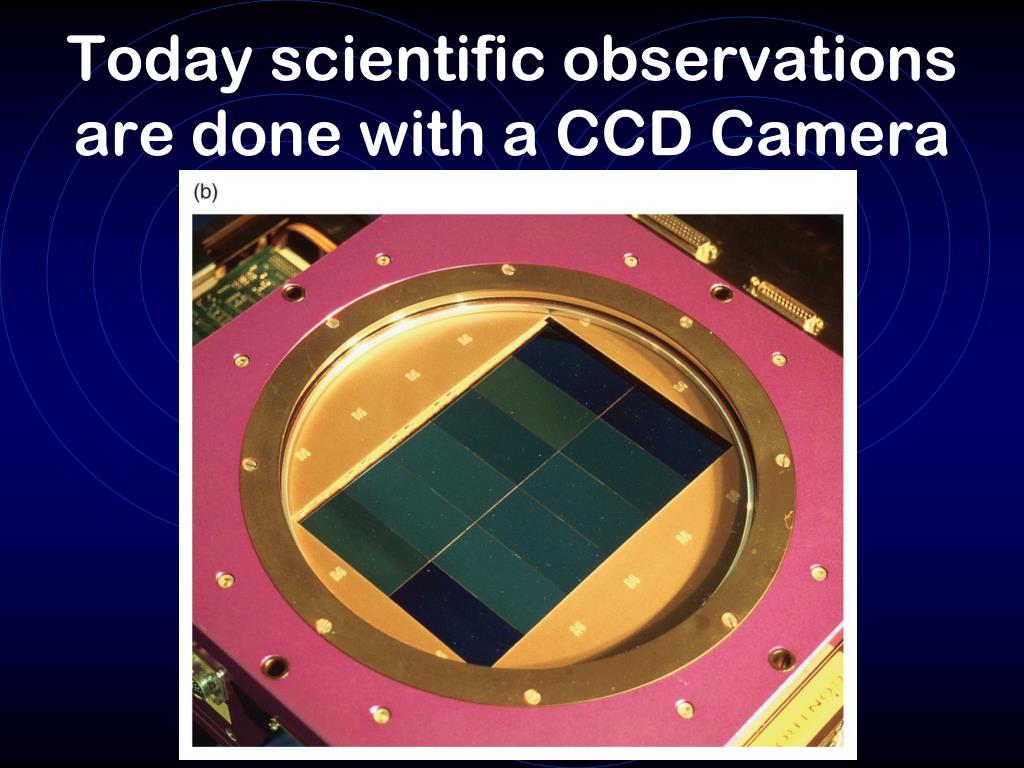

  26. Today scientific observations are done with a CCD Camera

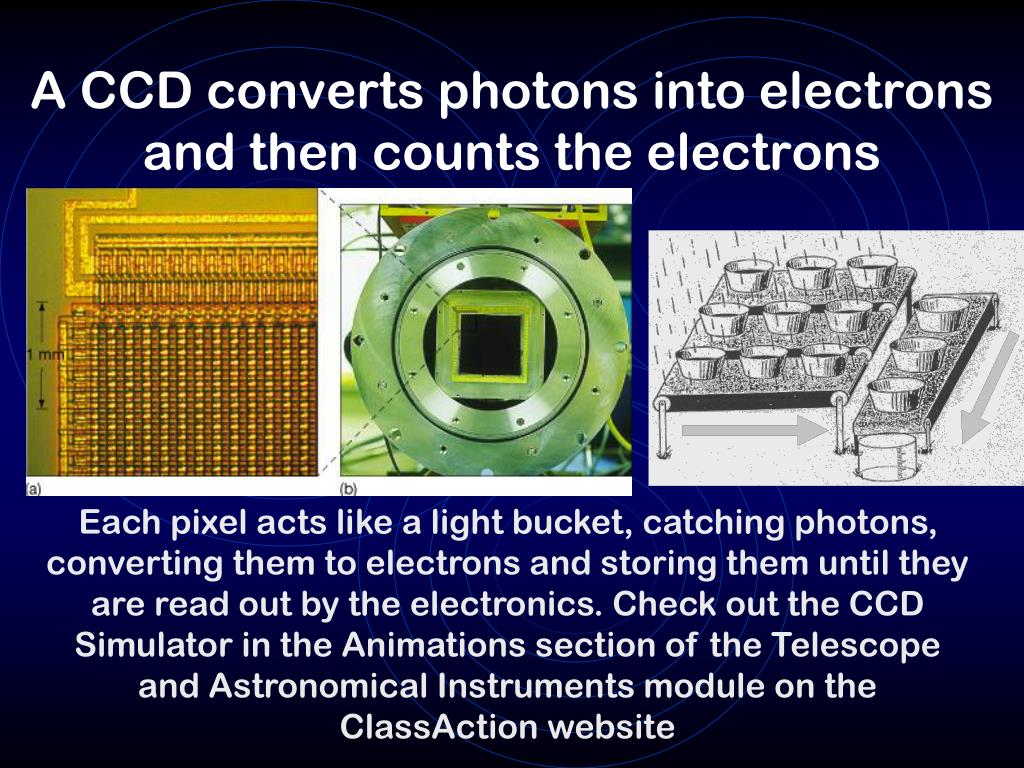

  27. A CCD converts photons into electrons and then counts the electrons Each pixel acts like a light bucket, catching photons, converting them to electrons and storing them until they are read out by the electronics. Check out the CCD Simulator in the Animations section of the Telescope and Astronomical Instruments module on the ClassAction website

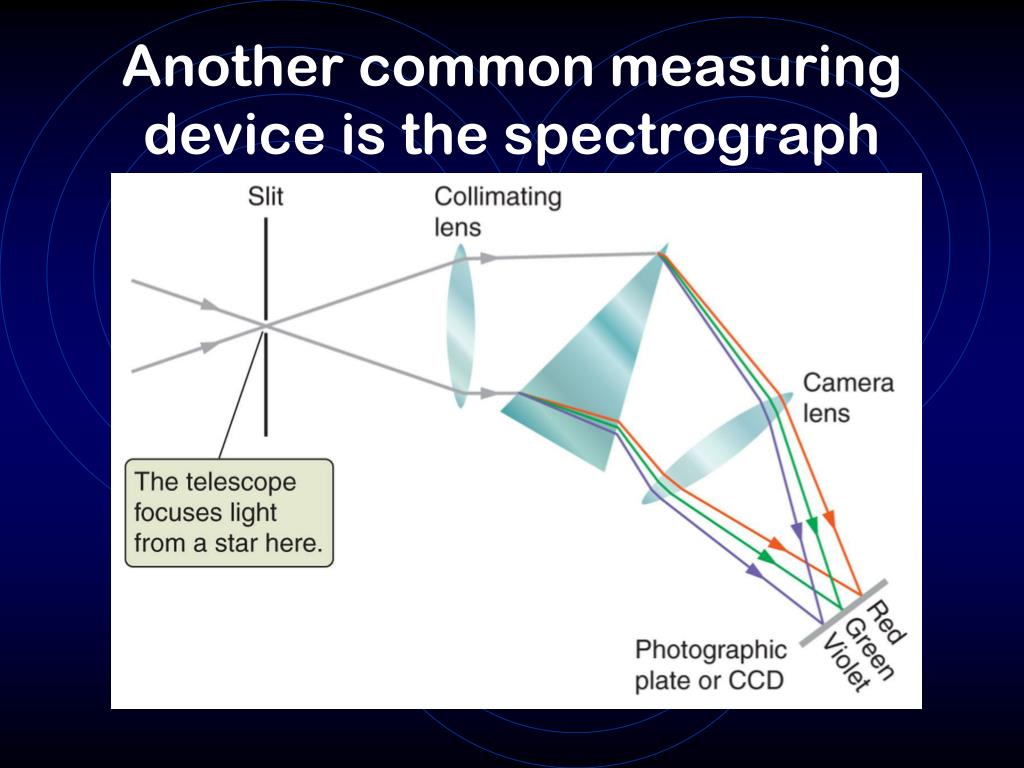

  28. Another common measuring device is the spectrograph Early spectrographs used prisms to separate the light into the colors

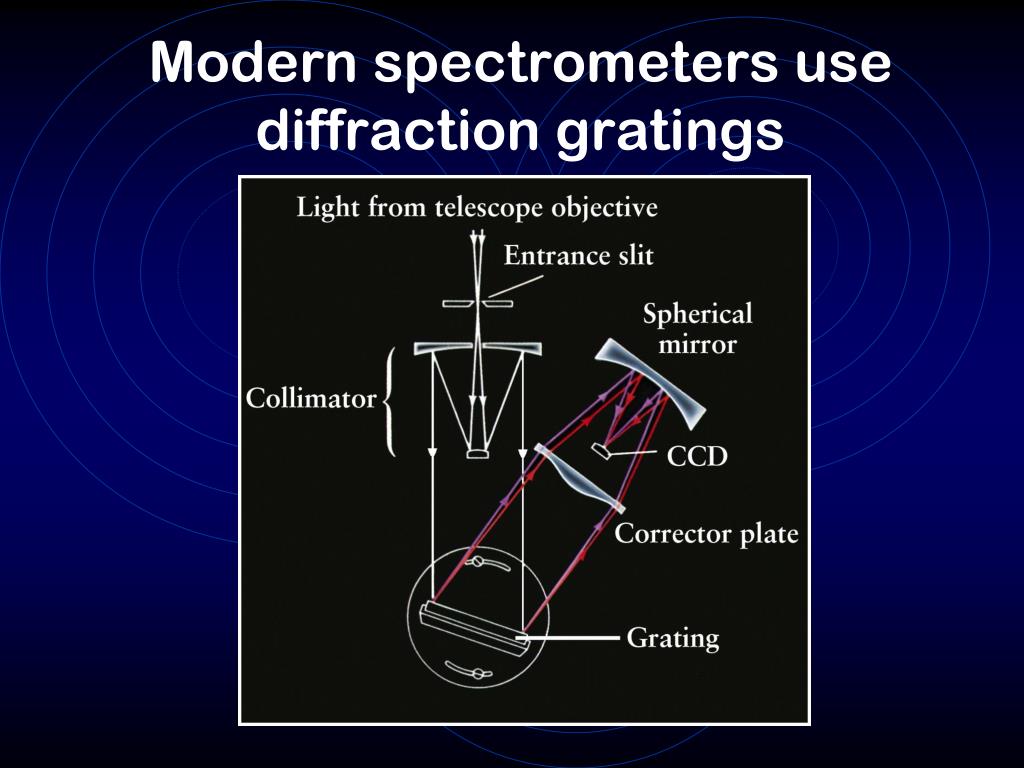

  29. Modern spectrometers use diffraction gratings

  30. The CCD takes a black & white picture of a spectrum

  31. Spectra can be displayed as a graph or rainbow of color

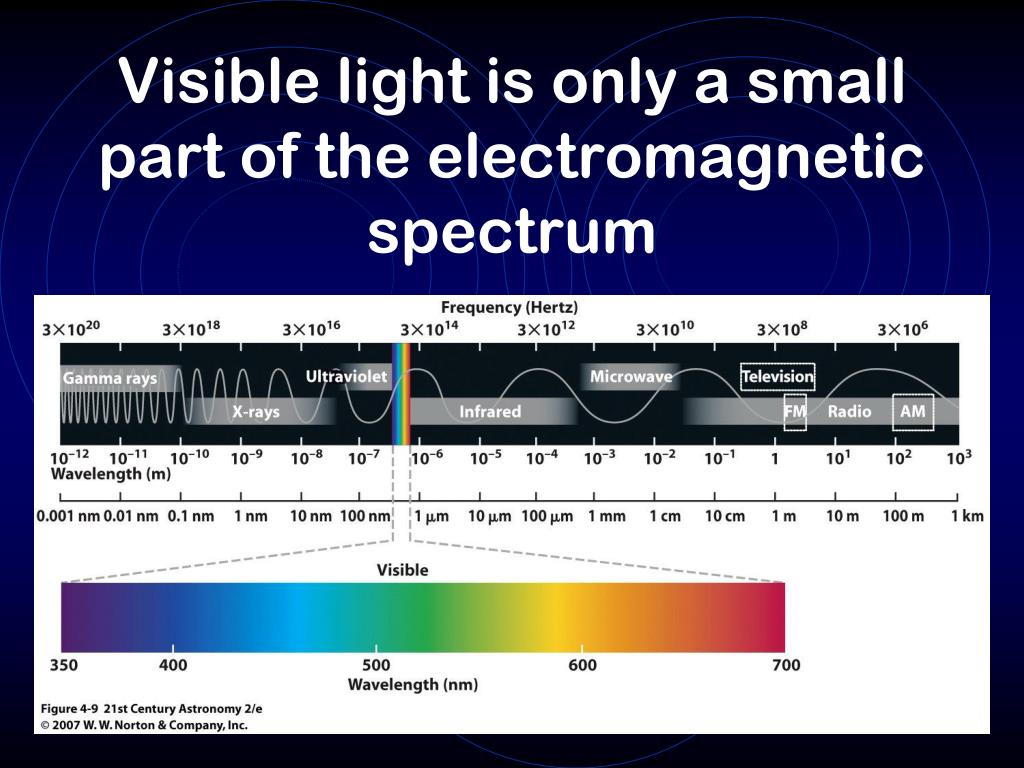

  32. Visible light is only a small part of the electromagnetic spectrum

  33. Observing In Radio Waves Radio waves have long wavelengths so they have poor resolution To compensate for the long l of radio waves, radio telescopes have very large diameters

  34. Under the dish at Arecibo

  35. The Very Large Array (VLA) The VLA can tie many radio dishes together in an interferometer which gives much higher resolution

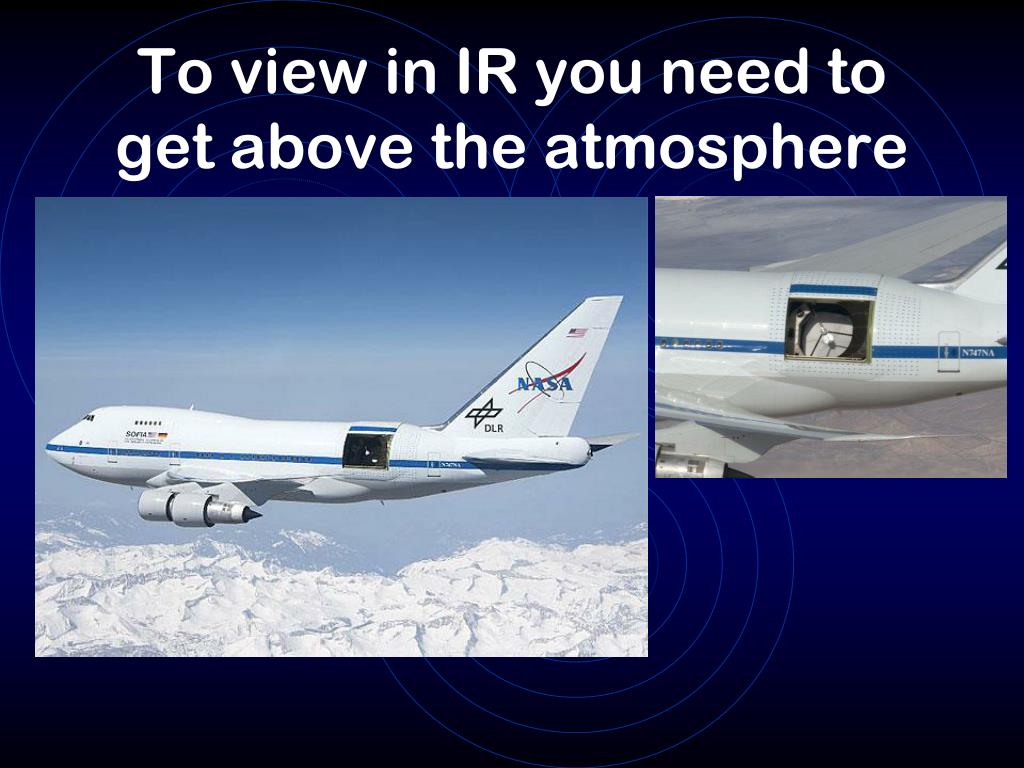

  36. To view in IR you need to get above the atmosphere

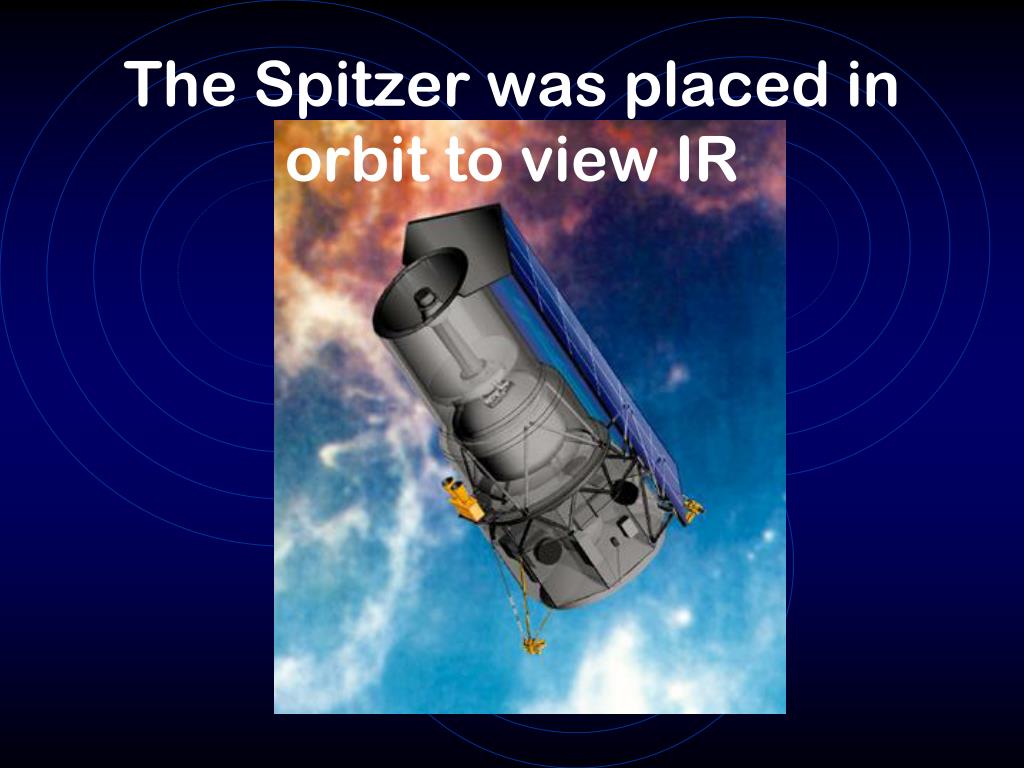

  37. The Spitzer was placed in orbit to view IR

  38. Observing Neutrino’s opens up a new window on the universe Neutrino’s are very hard to detect since they don’t interact with normal matter very much

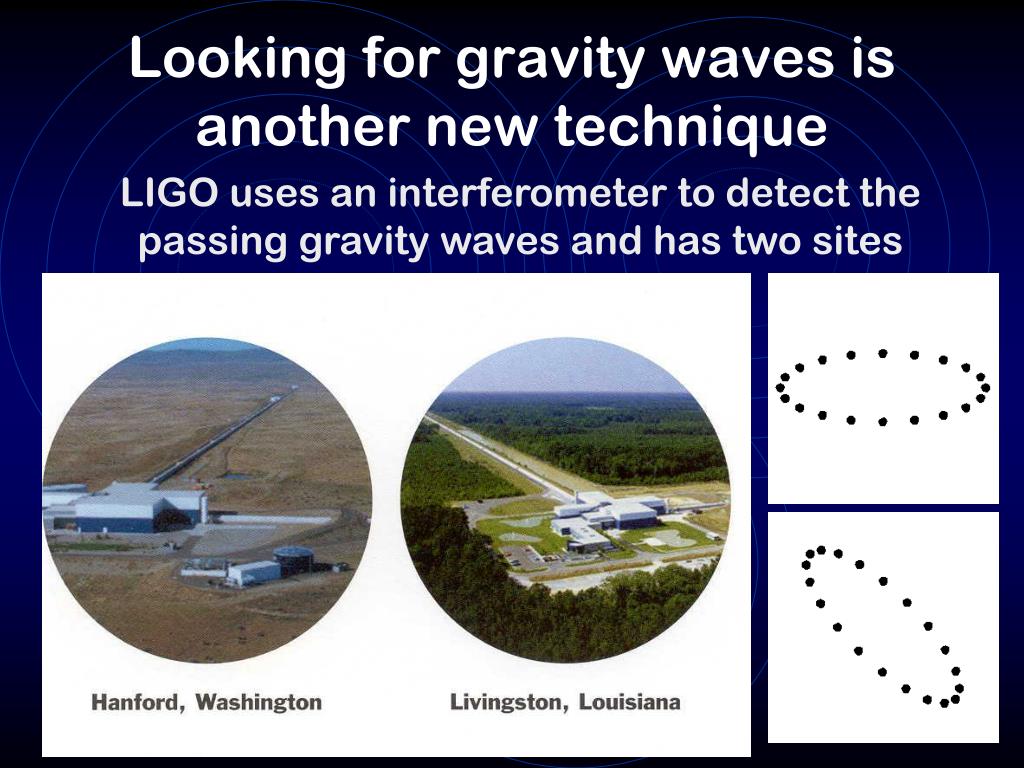

  39. Looking for gravity waves is another new technique LIGO uses an interferometer to detect the passing gravity waves and has two sites

  40. Some wavelengths require observing in space WMAP looks in the microwave The Chandra Observatory sees in x-rays The GALEX mission observes the sky in ultraviolet

  41. The sky looks different in each wavelength we observe

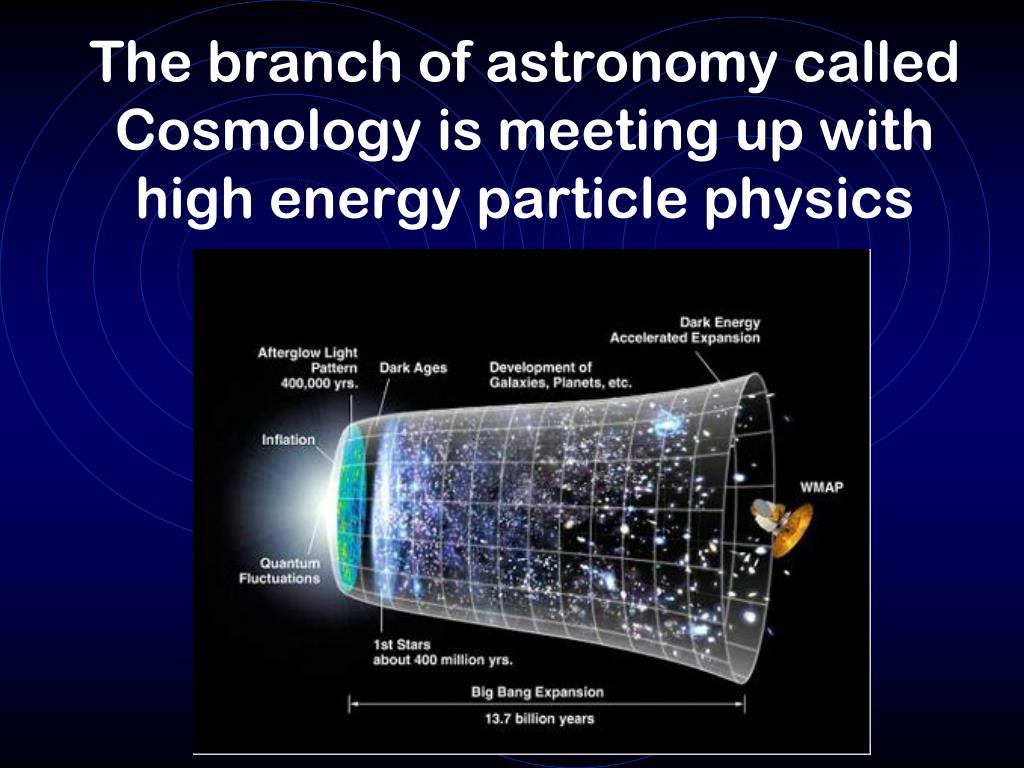

  42. The branch of astronomy called Cosmology is meeting up with high energy particle physics

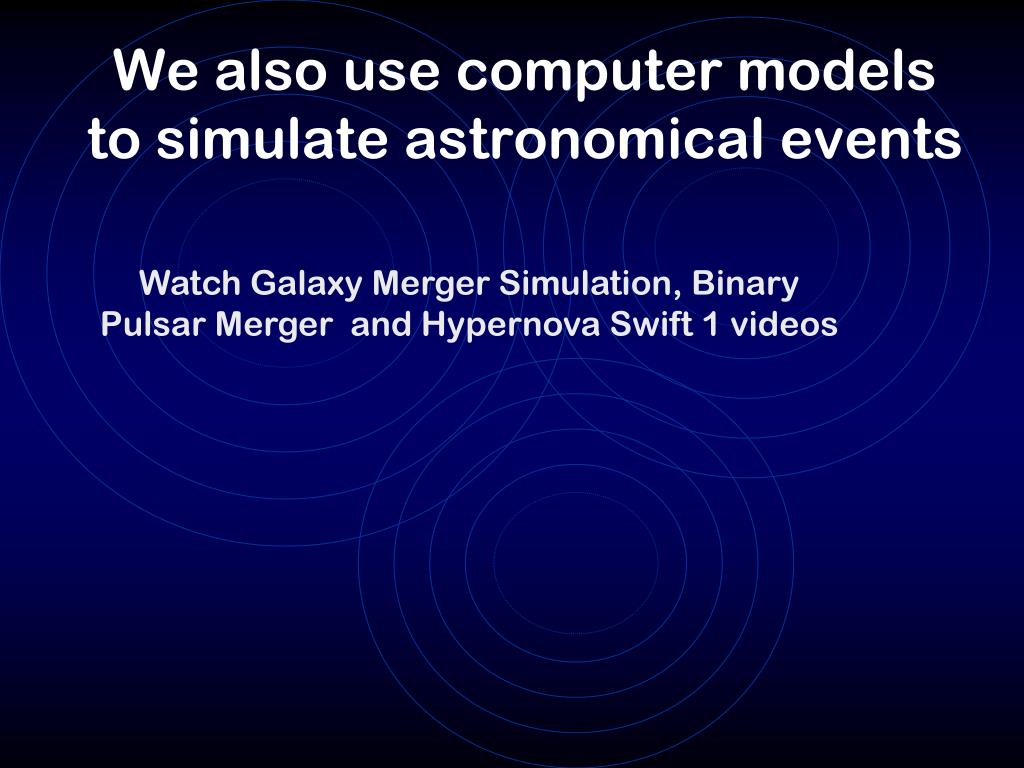

  43. We also use computer models to simulate astronomical events Watch Galaxy Merger Simulation, Binary Pulsar Merger and Hypernova Swift 1 videos
