  1. Multifunction Pull-box Accessories Box with a Pulley BY :TARA 5C

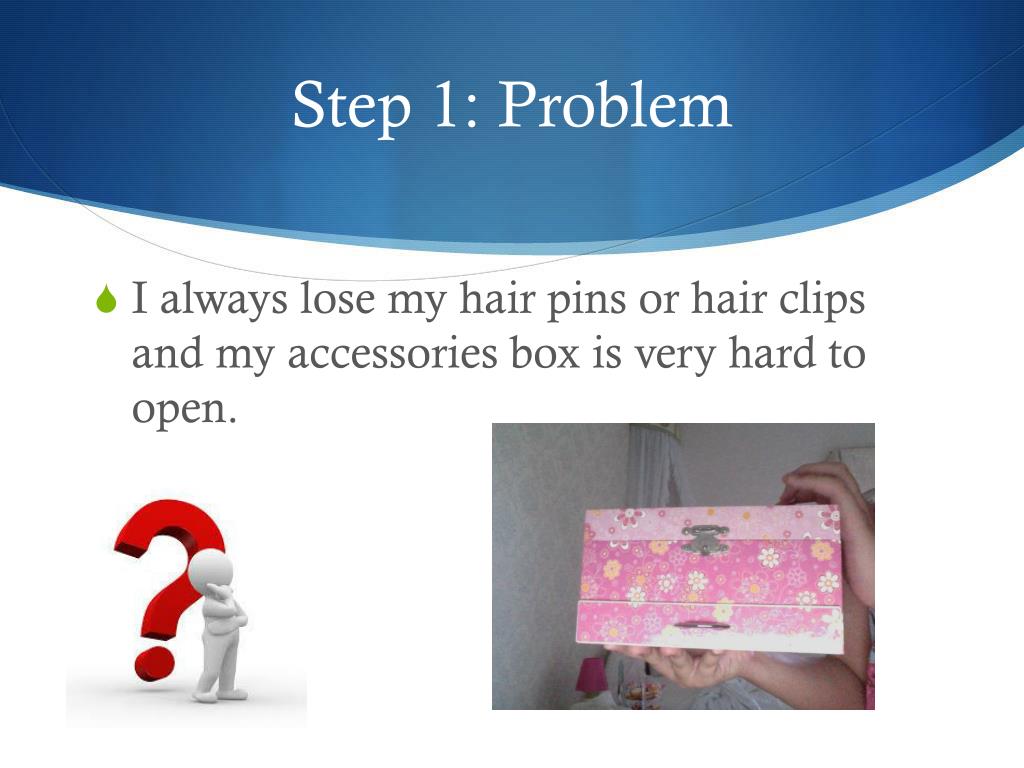

  2. Step 1: Problem • I always lose my hair pins or hair clips and my accessories box is very hard to open.

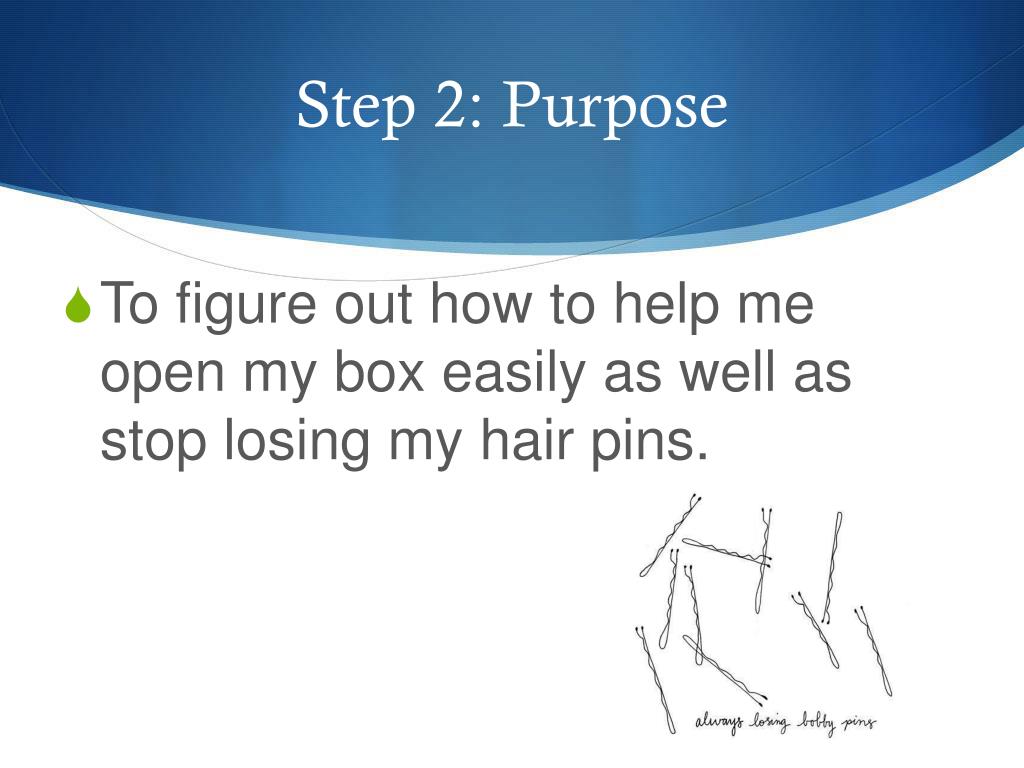

  3. Step 2: Purpose • To figure out how to help me open my box easily as well as stop losing my hair pins.

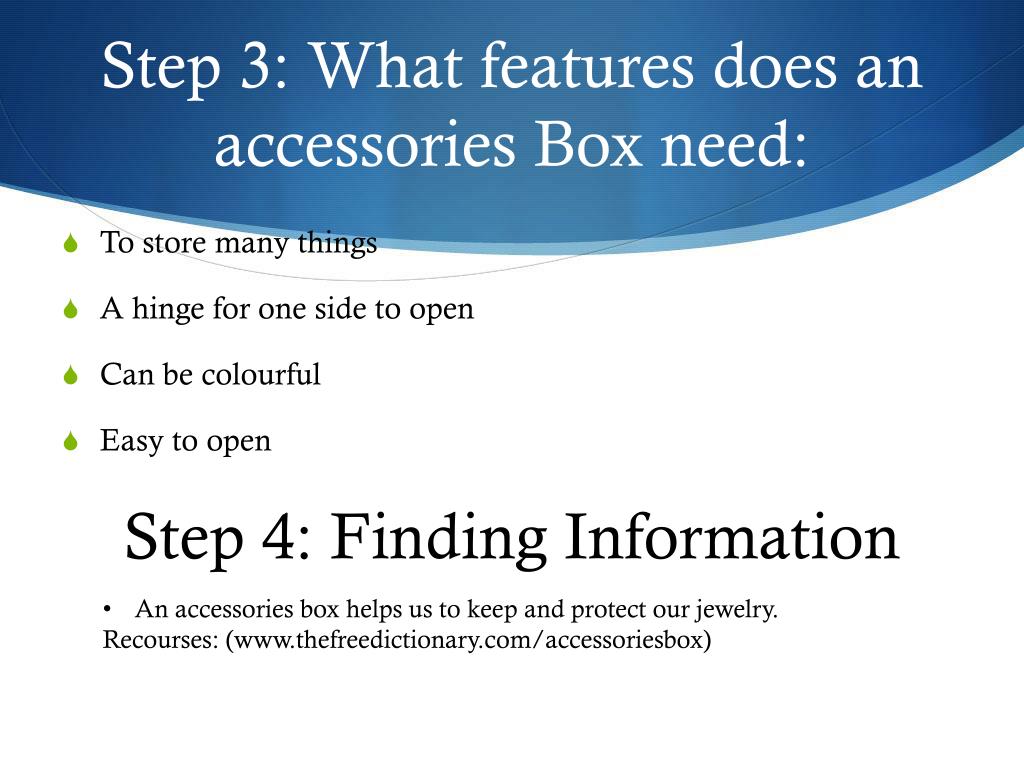

  4. Step 3: What features does an accessories Box need: • To store many things • A hinge for one side to open • Can be colourful • Easy to open Step 4: Finding Information • An accessories box helps us to keep and protect our jewelry. • Recourses: (www.thefreedictionary.com/accessoriesbox)

  5. Step 5: Friends’ Survey Results

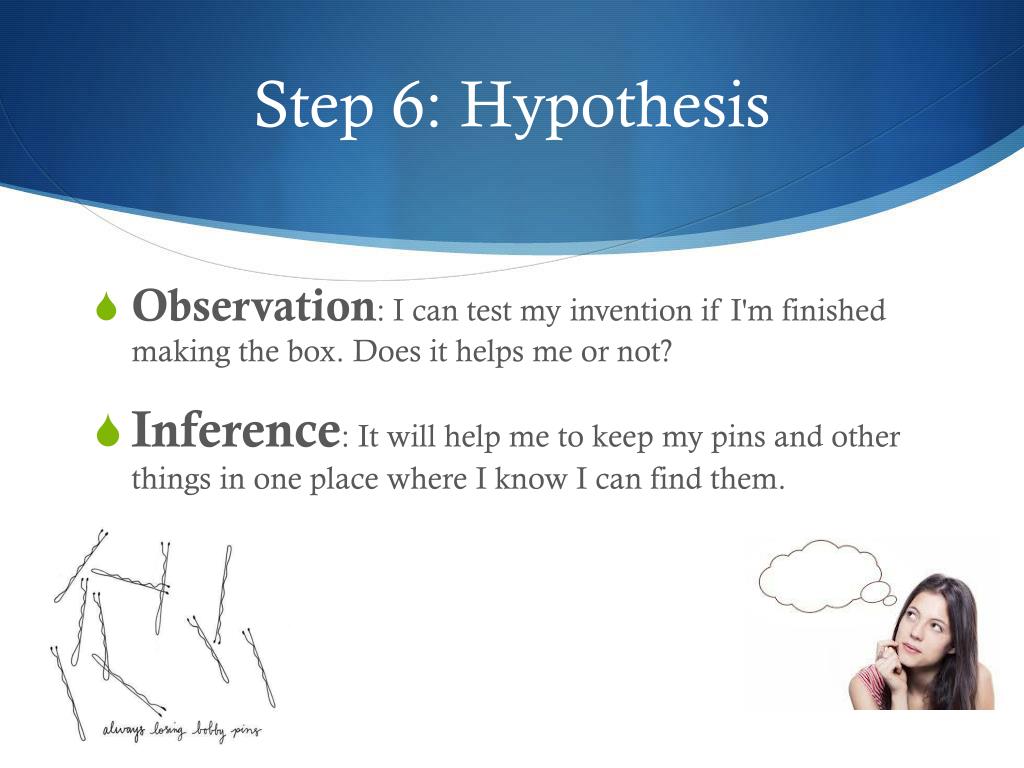

  6. Step 6: Hypothesis • Observation: I can test my invention if I'm finished making the box. Does it helps me or not? • Inference: It will help me to keep my pins and other things in one place where I know I can find them.

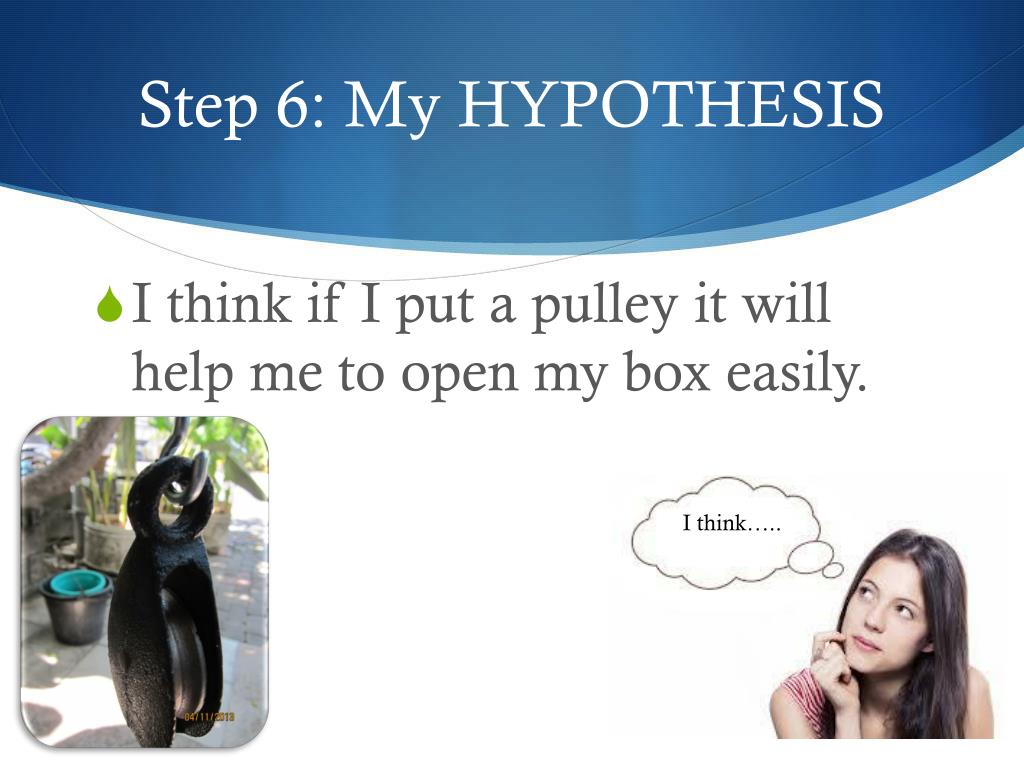

  7. Step 6: My HYPOTHESIS • I think if I put a pulley it will help me to open my box easily. I think…..

  8. Step 7: Sketch BAR KEY • Box stick with tape • Pulley hang with string • Rope holder stick with glue • BAR KEY • I add cardboard to the box to hold the pulley • I replace my hands to open with a pulley.

  9. Step 8: MATERIALS AND EQUIPMENT NEEDED: Materials and Equipment: • ‘L’ shaped Wood/Wood • 1 pulley • 1 hook • screws • String • Accessories box/ regular box. • Cardboard • decorations

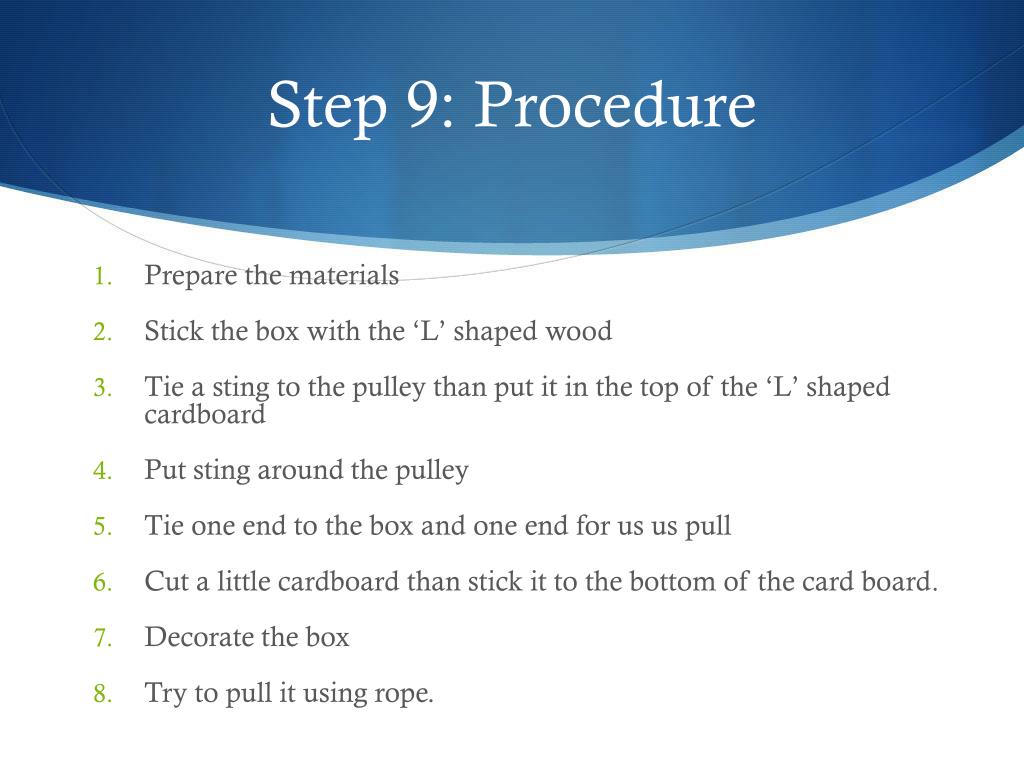

  10. Step 9: Procedure • Prepare the materials • Stick the box with the ‘L’ shaped wood • Tie a sting to the pulley than put it in the top of the ‘L’ shaped cardboard • Put sting around the pulley • Tie one end to the box and one end for us us pull • Cut a little cardboard than stick it to the bottom of the card board. • Decorate the box • Try to pull it using rope.

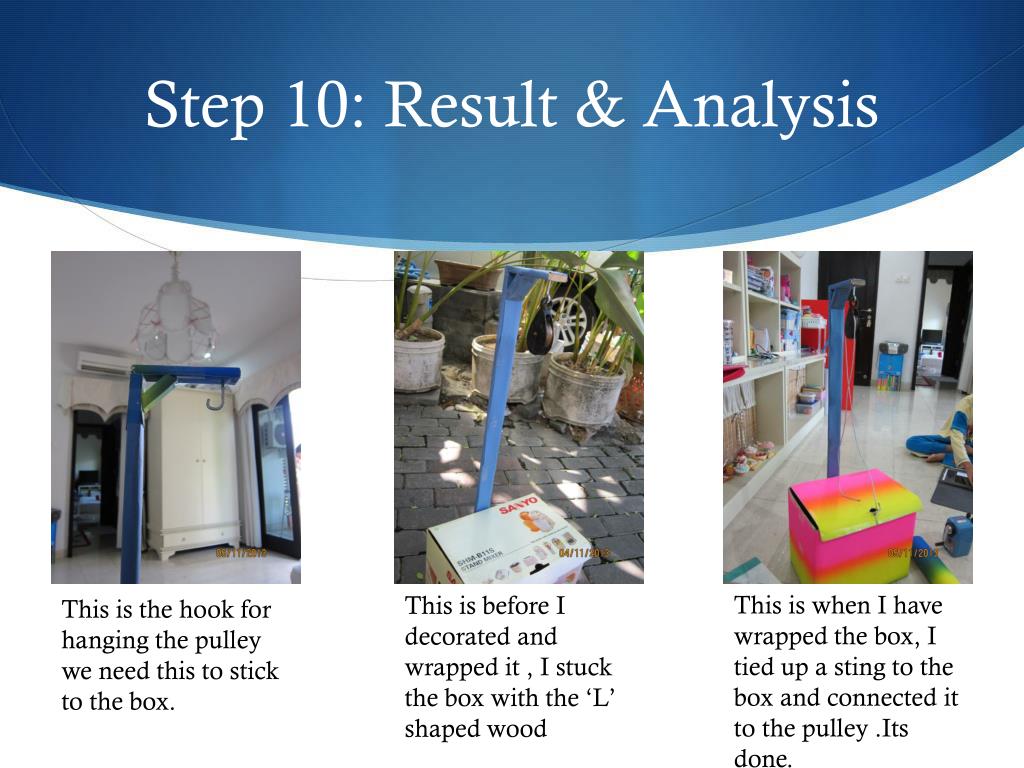

  11. Step 10: Result & Analysis This is when I have wrapped the box, I tied up a sting to the box and connected it to the pulley .Its done. This is before I decorated and wrapped it , I stuck the box with the ‘L’ shaped wood This is the hook for hanging the pulley we need this to stick to the box.

  12. Step 11: My Conclusion • When I added a pulley to the box it worked and it helped me to open my box easily. Therefore my hypothesis is correct.
