Terminal Learning Objective

Terminal Learning Objective. Upon completion of this lesson, you will understand the procedures to detect chemical agents using M8 or M9 detector paper. 031-503-1037 VG . 1. Learning Objective A. This topic will address how to use M8 detector paper to identify chemical agents.

tamal
Télécharger la présentation

Terminal Learning Objective

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Terminal Learning Objective • Upon completion of this lesson, you will understand the procedures to detect chemical agents using M8 or M9 detector paper. 031-503-1037 VG 1

  2. Learning Objective A • This topic will address how to use M8 detector paper to identify chemical agents. 031-503-1037 VG 2

  3. M8 Detector Paper • In plastic bag inside chemical agent detector kits (M256/M256A1) • There are 25 sheets per booklet • Detects liquid nerve and blister agents 031-503-1037 VG 3

  4. Color Changes • Yellow-gold indicates G (nerve) agent • Red-pink indicates H (blister) agent • Dark green indicates V (nerve) agent • If any other color or no color change, liquid cannot be identified 031-503-1037 VG 4

  5. False Negatives • WARNING—When conducting agent tests at night, remove any colored lens because it may provide a false negative response. 031-503-1037 VG 5

  6. False Positives • WARNING—Some decontaminants give false positive readings. The M8 paper may indicate positive results if used in an area where decontaminants have been used. 031-503-1037 VG 6

  7. When to Use M8 Paper • See a liquid that might be a chemical agent • Observe any color change on M9 detector paper • Notice chemical agent symptoms in soldiers 031-503-1037 VG 7

  8. Procedures to Use M8 Paper • Immediately assume MOPP4 • Locate liquid contamination • Remove the M8 detector paper from mask carrier • Prepare M8 detector paper 031-503-1037 VG 8

  9. Procedures to Use M8 Paper • Blot (DO NOT RUB) M8 paper on suspected liquid agent • Observe paper for a color change • Compare color on paper to color chart in booklet 031-503-1037 VG 9

  10. Procedures to Use M8 Paper • Close/store booklet of M8 detector paper • Remain in MOPP4 • Use other chemical agent detectors to verify test results • Report test results to supervisor 031-503-1037 VG 10

  11. Learning Objective B • This objective will address how to detect chemical agents using M9 detector paper. 031-503-1037 VG 11

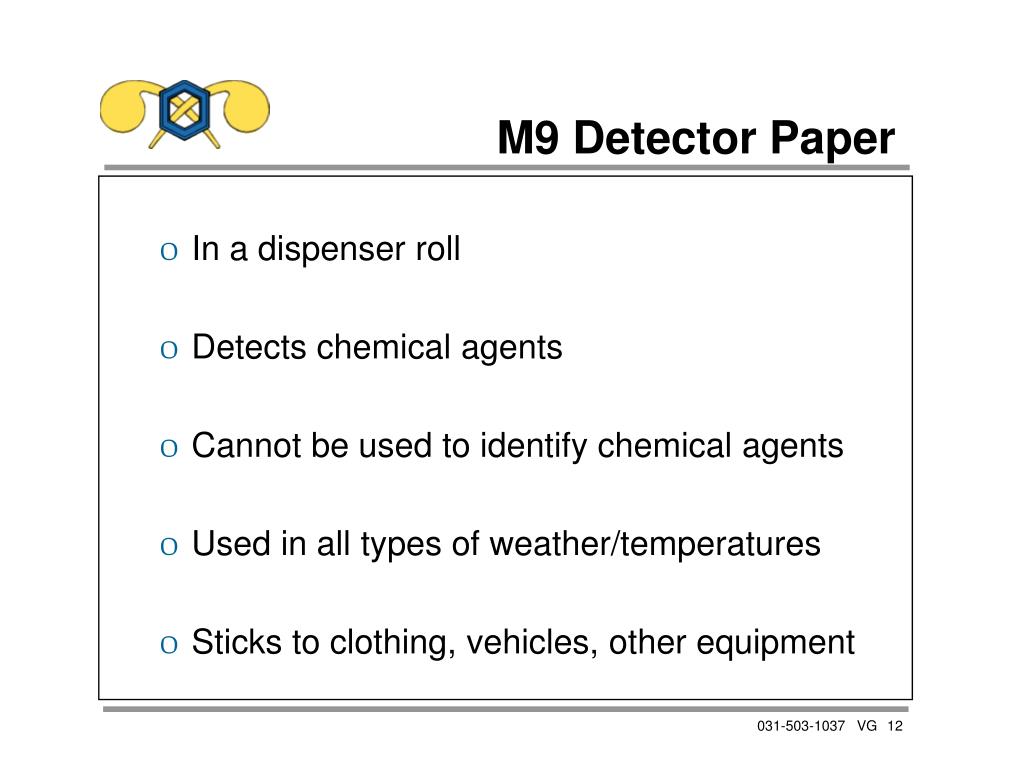

  12. M9 Detector Paper • In a dispenser roll • Detects chemical agents • Cannot be used to identify chemical agents • Used in all types of weather/temperatures • Sticks to clothing, vehicles, other equipment 031-503-1037 VG 12

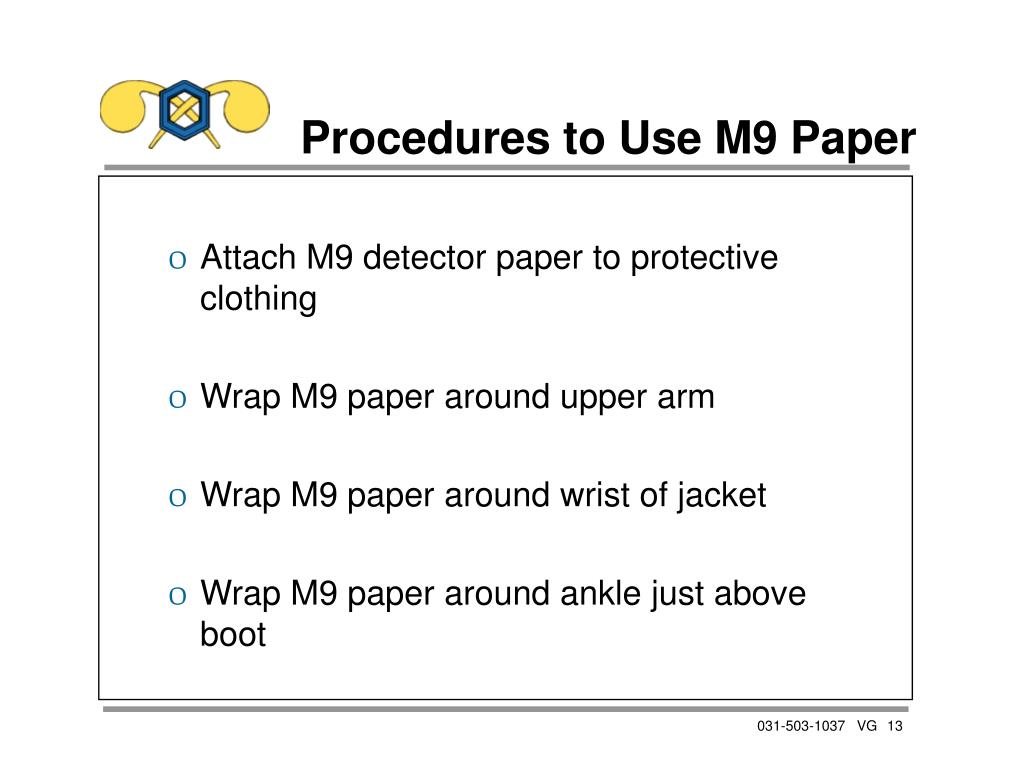

  13. Procedures to Use M9 Paper • Attach M9 detector paper to protective clothing • Wrap M9 paper around upper arm • Wrap M9 paper around wrist of jacket • Wrap M9 paper around ankle just above boot 031-503-1037 VG 13

  14. Overlap of M9 Paper • CAUTION: Leave at least one inch of overlap when placing paper on MOPP gear to minimize the difficulties experienced while conducting MOPP gear exchange. 031-503-1037 VG 14

  15. Procedures to Use M9 Paper • Attach M9 paper to surfaces most likely to encounter chemical agents • Note any color changes on M9 paper • Constantly monitor M9 paper for any color change • If color changes: mask, give the alarm, decon (as necessary), assume MOPP4 031-503-1037 VG 15
