  1. iMapReduce: A Distributed Computing Framework for Iterative Computation Yanfeng Zhang, Northeastern University, China QixinGao, Northeastern University, China LixinGao, UMass Amherst Cuirong Wang, Northeastern University, China

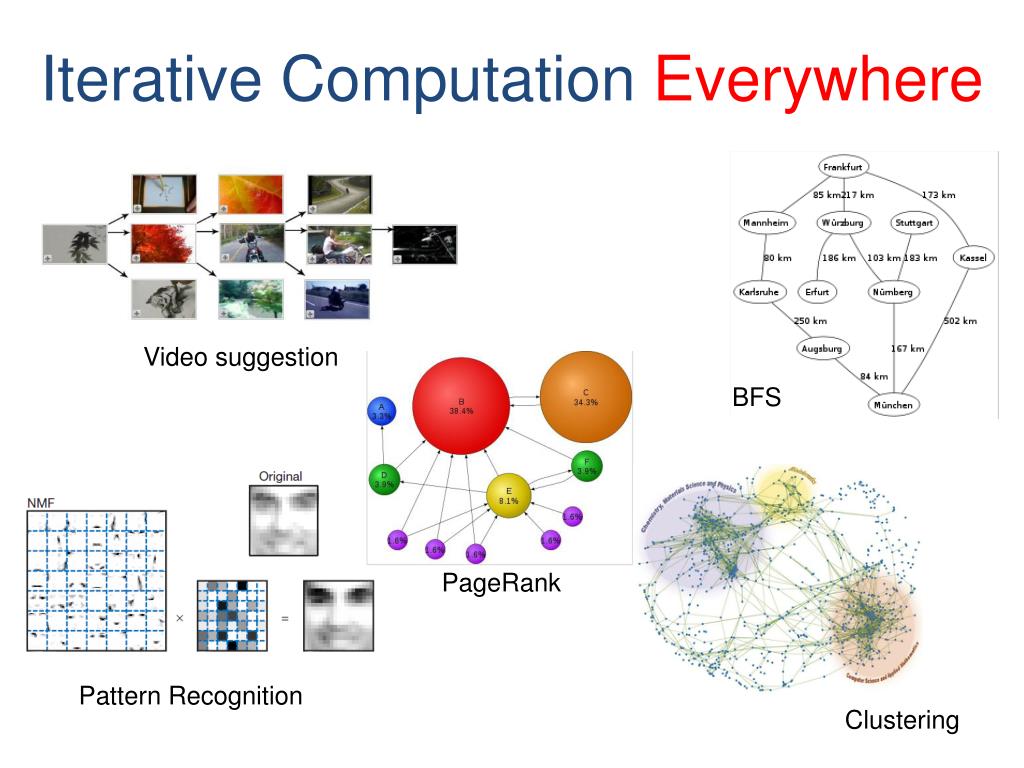

  2. Iterative Computation Everywhere Video suggestion BFS PageRank Pattern Recognition Clustering

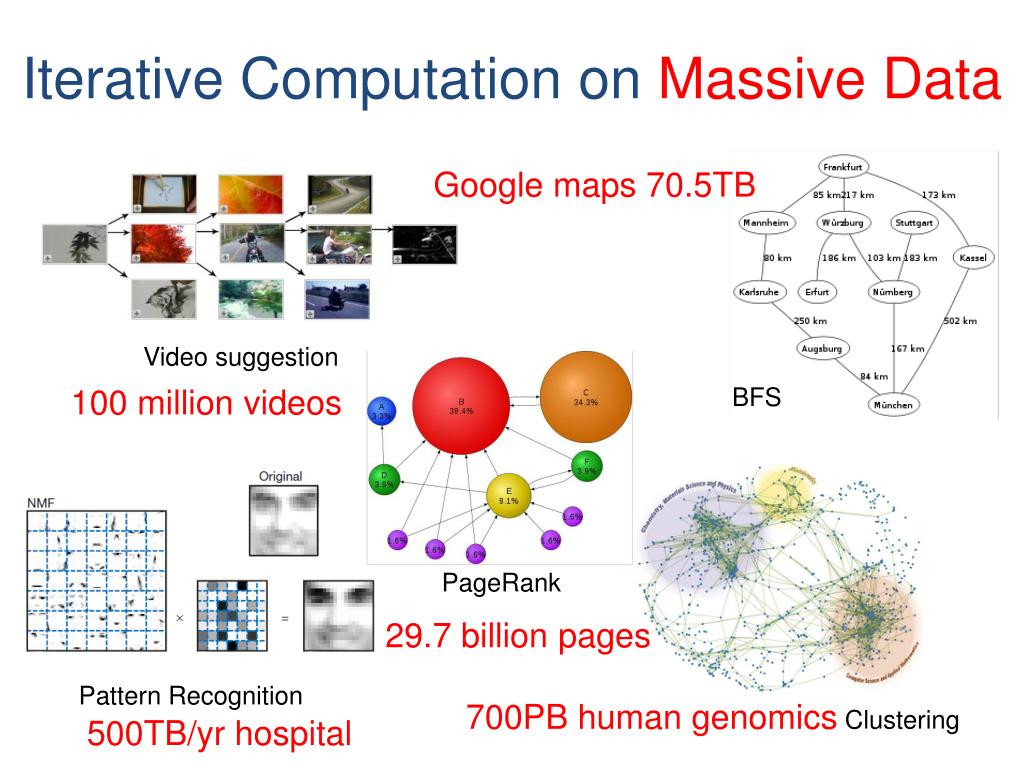

  3. Iterative Computation on Massive Data Google maps 70.5TB Video suggestion 100 million videos BFS PageRank 29.7 billion pages Pattern Recognition 700PB human genomics Clustering 500TB/yr hospital

  4. Large-Scale Solution MapReduce • Programming model • Map: distribute computation workload • Reduce: aggregate the partial results • But, no support of iterative processing • Batched processing • Must design a series of jobs, do the same thing many times • Task reassignment, data loading, data dumping

  5. Outline • Introduction • Example: PageRank in MapReduce • System Design: iMapReduce • Evaluation • Conclusions

  6. PageRank • Each node associated with a ranking score R • Evenly to its neighbors with portion d • Retain portion (1-d)

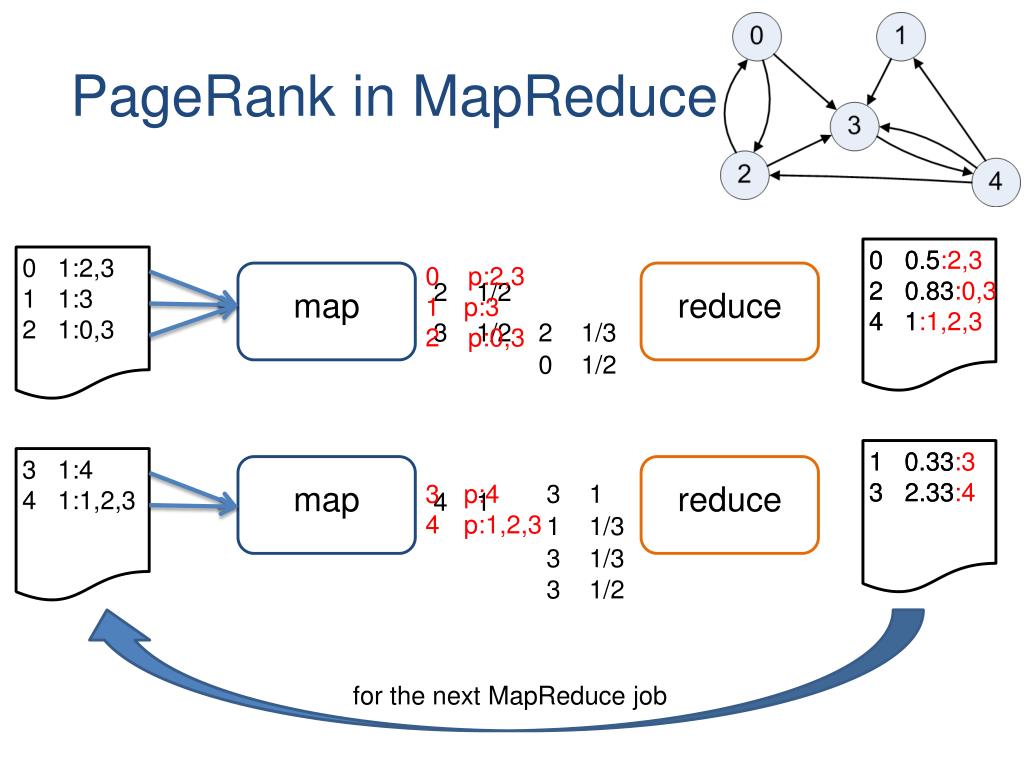

  7. PageRank in MapReduce 0 0.5:2,3 2 0.83:0,3 4 1:1,2,3 0 0.5 2 0.83 4 1 0 1:2,3 1 1:3 2 1:0,3 0 p:2,3 p:3 2 p:0,3 2 1/2 reduce reduce map map 3 1/2 2 1/3 0 1/2 1 0.33:3 3 2.33:4 1 0.33 3 2.33 3 1:4 4 1:1,2,3 p:4 p:1,2,3 3 1 4 1 1 1/3 3 1/3 3 1/2 for the next MapReduce job

  8. Problems of Iterative Implementation • 1. Multiple times job/task initializations • 2. Re-shuffling the static data • 3. Synchronization barrier between jobs

  9. Outline • Introduction • Example: PageRank • System Design: iMapReduce • Evaluation • Conclusions

  10. iMapReduce Solutions • 1. Multiple job/task initializations • Iterative processing • 2. Re-shuffling the static data • Maintain static data locally • 3. Synchronization barrier between jobs • Asynchronous map execution

  11. Iterative Processing • Reduce  Map • Load/dump once • Persistent map/reduce task • Each reduce task has a correspondent map task • Locally connected

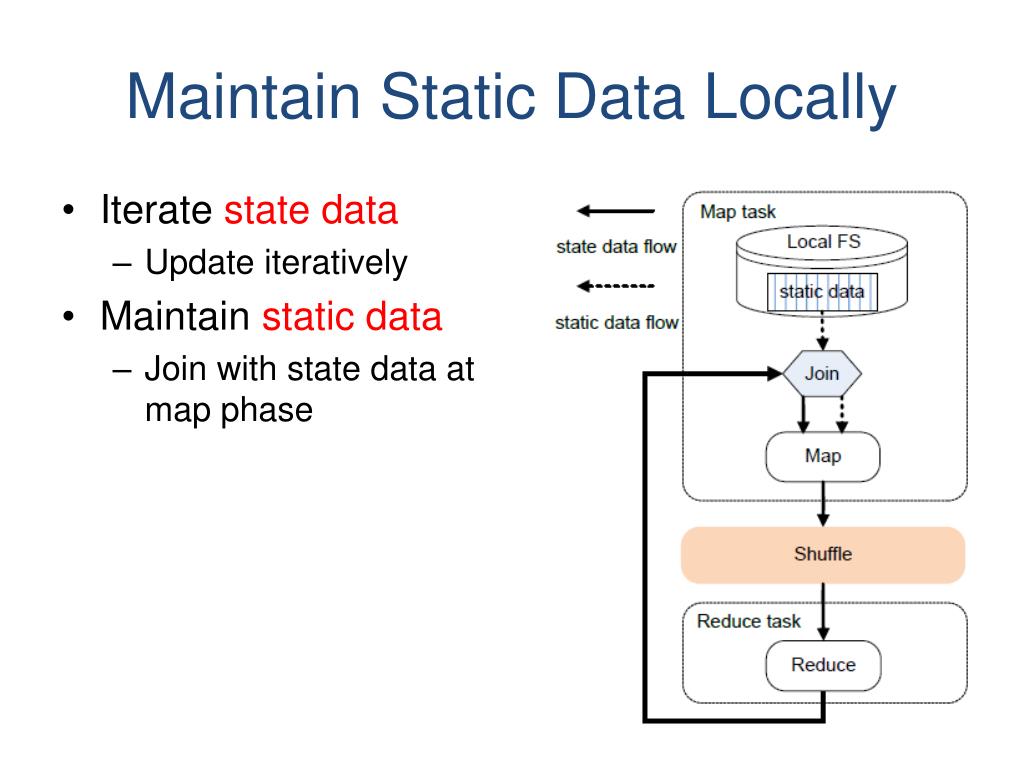

  12. Maintain Static Data Locally • Iterate state data • Update iteratively • Maintain static data • Join with state data at map phase

  13. State Data Static Data 0 2,3 2 0,3 4 1,2,3 0 0.5 2 0.83 4 1 0 1 2 1 4 1 2 1/2 reduce 0 reduce 1 map 0 map 1 3 1/2 2 1/3 0 1/2 1 0.33 3 2.33 1 1 3 1 3 1 4 1 1 1/3 3 1/3 1 3 3 4 3 1/2 for the next iteration

  14. Asynchronous Map Execution • Persistent socket reduce -> map • Reduce completion directly trigger map • Map tasks no need to wait time MapReduce iMapReduce

  15. Outline • Introduction • Example: PageRank • System Design: iMapReduce • Evaluation • Conclusions

  16. Experiment Setup • Cluster • Local cluster: 4 nodes • Amazon EC2 cluster: 80 small instances • Implemented algorithms • Shortest path, PageRank, K-Means • Data sets SSSP PageRank

  17. Results on Local Cluster Hadoop Hadoop ex. initialization Sync. iMapReduce iMapReduce PageRank: googlewebgraph

  18. Results cont. SSSP: Facebook dataset SSSP: DBLP dataset PageRank: googlewebgraph PageRank: Berk-Stan webgraph

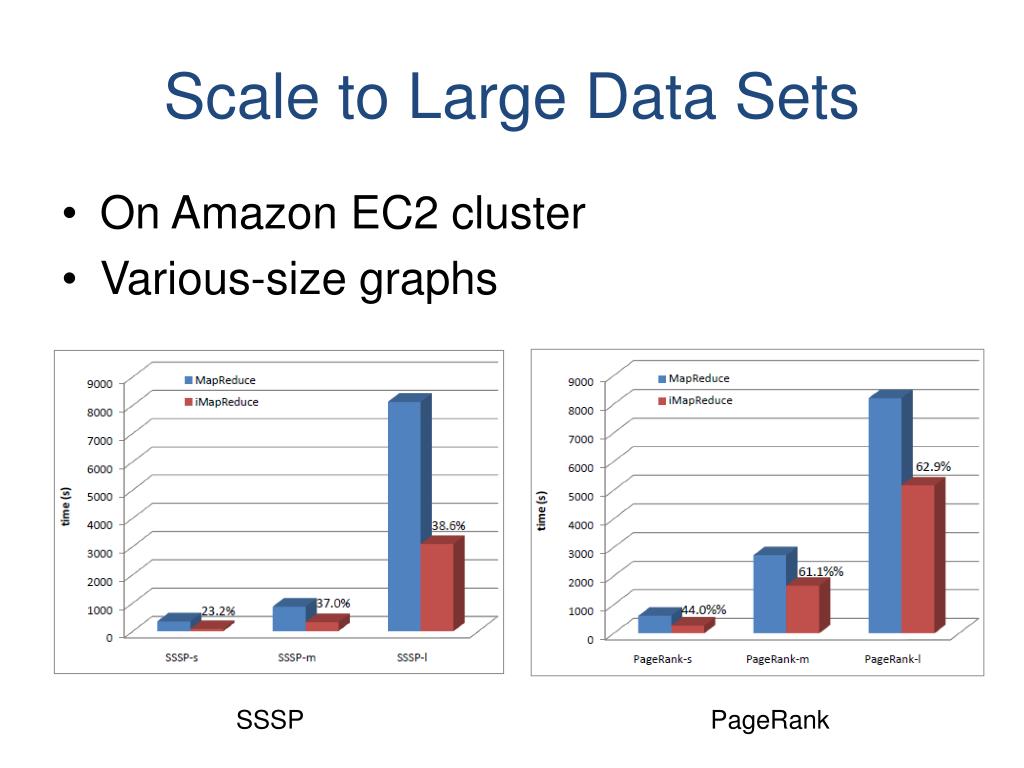

  19. Scale to Large Data Sets • On Amazon EC2 cluster • Various-size graphs SSSP PageRank

  20. Different Factors on Running Time Reduction Shuffling Init time Sync. maps Hadoop iMapReduce

  21. Conclusion • iMapReduce reduces running time by • Reducing the overhead of job/task initialization • Eliminating the shuffling of static data • Allowing asynchronous map execution • Achieve a factor of 1.2x to 5x speedup • Suitable for most iterative computations

  22. Q & A • Thank you!
