Secure Computation Over Encrypted Data

1. Secure Computation Over Encrypted Data Liangliang Xiao

2. Introduction • Cloud • Customers outsource their data & computing needs to cloud • Hardware technology hits its limit • Systems become harder to maintain • Security issues in cloud • Adversaries attacks • Human error • Mistakenly sending disks with bank files to eBay [Ham03] • Reorganization or buyout [Nan04] Salary SELECT SUM(salary) x1 … x1+…+ xn xn

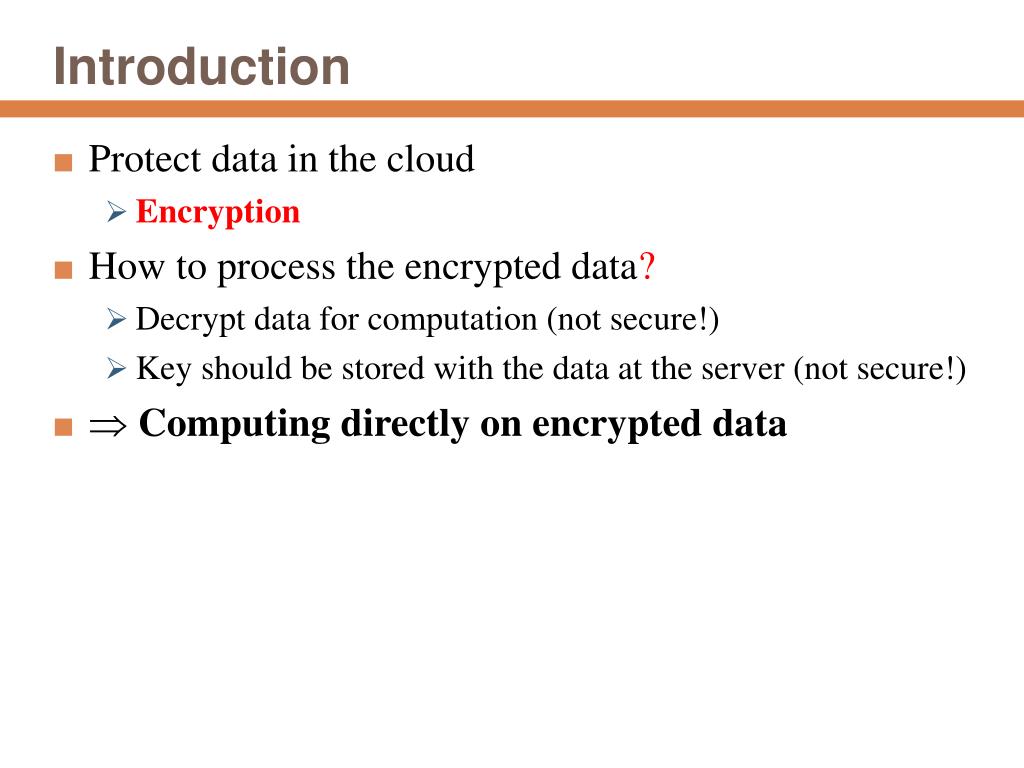

3. Introduction • Protect data in the cloud • Encryption • How to process the encrypted data? • Decrypt data for computation (not secure!) • Key should be stored with the data at the server(not secure!) •  Computing directly on encrypted data

4. Existing Works • Homomorphic Encryption (HE) • Order-preserving Encryption (OPE) • Prefix-preserving Encryption (PPE)

5. HE • Encryption function has homomorphic properties E(x +y) = E(x) +E(y) E(x *y) = E(x) *E(y)

6. HE • Encryption function has homomorphic properties • HE supports computations on ciphertexts E(x +y) = E(x) +E(y) E(x *y) = E(x) *E(y) Salary E(x1) … E(xn)

7. HE • Encryption function has homomorphic properties • HE supports computations on ciphertexts E(x +y) = E(x) +E(y) E(x *y) = E(x) *E(y) SELECT SUM(salary) Salary E(x1) … E(xn)

8. HE • Encryption function has homomorphic properties • HE supports computations on ciphertexts E(x +y) = E(x) +E(y) E(x *y) = E(x) *E(y) SELECT SUM(salary) Salary E(x1) E(x1+…+ xn) … E(xn) DB computes E(x1+…+ xn) = E(x1) +…+ E(xn)

9. HE • Encryption function has homomorphic properties • HE supports computations on ciphertexts E(x +y) = E(x) +E(y) E(x *y) = E(x) *E(y) SELECT SUM(salary) Salary E(x1) E(x1+…+ xn) … E(xn) DB computes E(x1+…+ xn) = E(x1) +…+ E(xn) Alice decrypts to get x1+…+ xn

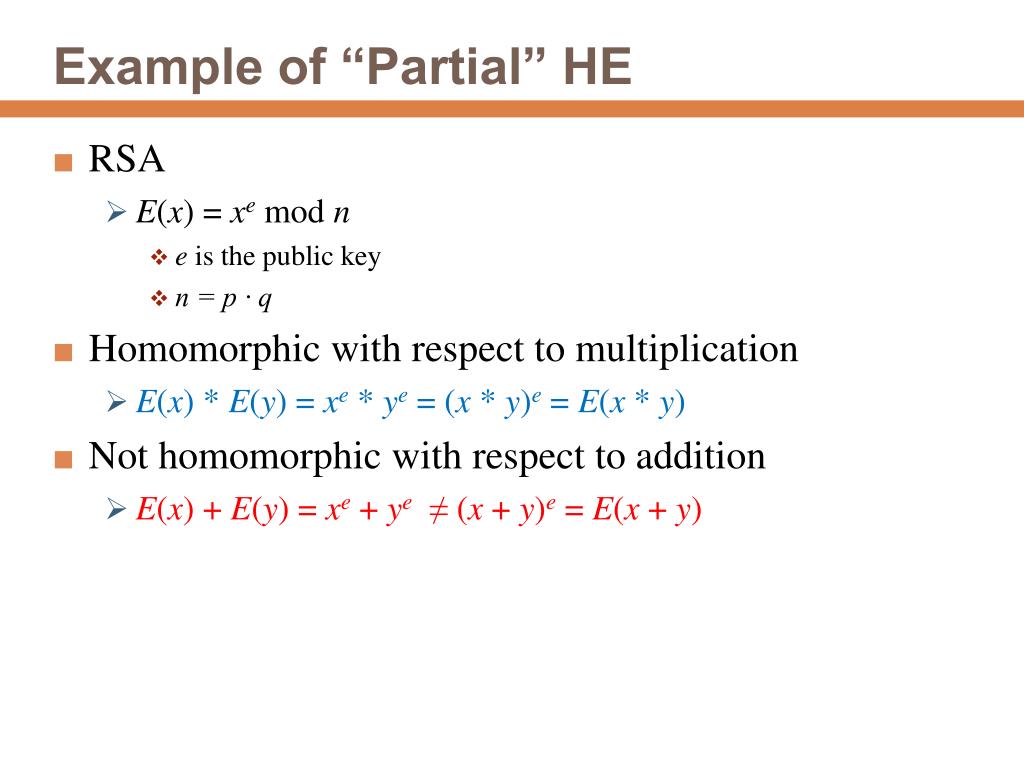

10. Example of “Partial” HE • RSA • E(x) = xemod n • e is the public key • n = p ∙ q • Homomorphic with respect to multiplication • E(x) * E(y) = xe* ye = (x * y)e = E(x * y) • Not homomorphic with respect to addition • E(x) + E(y) = xe+ ye≠ (x + y)e = E(x + y)

11. Existing HEs • Boolean circuit based HE • Plaintexts {0,1} • Gentry’s construction [Gen09] • High security level but expensive computation • Ring based HE • Plaintexts ZN • Efficient than Boolean circuit based HE • Polly Cracker encryption scheme [Fel94] • Lack conclusive security evidence

12. OPE • Encryption preserves order x<yE(x) <E(y)

13. OPE • Encryption preserves order • OPE supports range searches on ciphertexts x<yE(x) <E(y) Name Salary E(N1) OPE(x1) … … E(Nn) OPE(xn)

14. OPE • Encryption preserves order • OPE supports range searches on ciphertexts x<yE(x) <E(y) SELECT Name Where Salary > OPE(a) Name Salary E(N1) OPE(x1) … … E(Nn) OPE(xn)

15. OPE • Encryption preserves order • OPE supports range searches on ciphertexts x<yE(x) <E(y) SELECT Name Where Salary > OPE(a) Name Salary E(N1) OPE(x1) E(Ni) … … E(Nn) OPE(xn) DB returns E(Ni) if OPE(xi) > OPE(a)

16. OPE • Encryption preserves order • OPE supports range searches on ciphertexts x<yE(x) <E(y) SELECT Name Where Salary > OPE(a) Name Salary E(N1) OPE(x1) E(Ni) … … E(Nn) OPE(xn) DB returns E(Ni) if OPE(xi) > OPE(a) Alice decrypts E(Ni) to get Ni

17. Existing OPEs • RN • Randomly generate r1, …, rx, …, ry, … • Poly • Randomly generate a strict increasing polynomial f E(x) = r1 + … + rx x E(y) = r1 + … + rx + … + ry y f E(y) E(x) x y

18. PPE • Encryption preserves prefix Ciphertexts Plaintexts 101000 → 001010 101110 → 001111

19. PPE • Encryption preserves prefix • Range searches can be transformed to prefix-matching search • [32, 111]  [00100000, 01101111]  {001*, 010*, 0110*} Ciphertexts Plaintexts 101000 → 001010 101110 → 001111

20. PPE • PPE supports range searches on ciphertexts Name Salary E(N1) PPE(x1) … … E(Nn) PPE(xn)

21. PPE • PPE supports range searches on ciphertexts SELECT Name Where Salary = PPE(aj), 1 ≤ j ≤ m Name Salary E(N1) PPE(x1) … … E(Nn) PPE(xn)

22. PPE • PPE supports range searches on ciphertexts SELECT Name Where Salary = PPE(aj), 1 ≤ j ≤ m Name Salary E(N1) PPE(x1) … … E(Ni) E(Nn) PPE(xn) DB returns PPE(xi) if PPE(aj) is its prefix

23. PPE • PPE supports range searches on ciphertexts SELECT Name Where Salary = PPE(aj), 1 ≤ j ≤ m Name Salary E(N1) PPE(x1) … … E(Ni) E(Nn) PPE(xn) DB returns PPE(xi) if PPE(aj) is its prefix Alice decrypts E(Ni) to get Ni

24. Main problem of the Existing Works • HE/OPE/PPE only consider one encryption key • One encryption key • DB colludes with any user  compromise all data • Different users use different keys •  Computation cannot be performed collude …

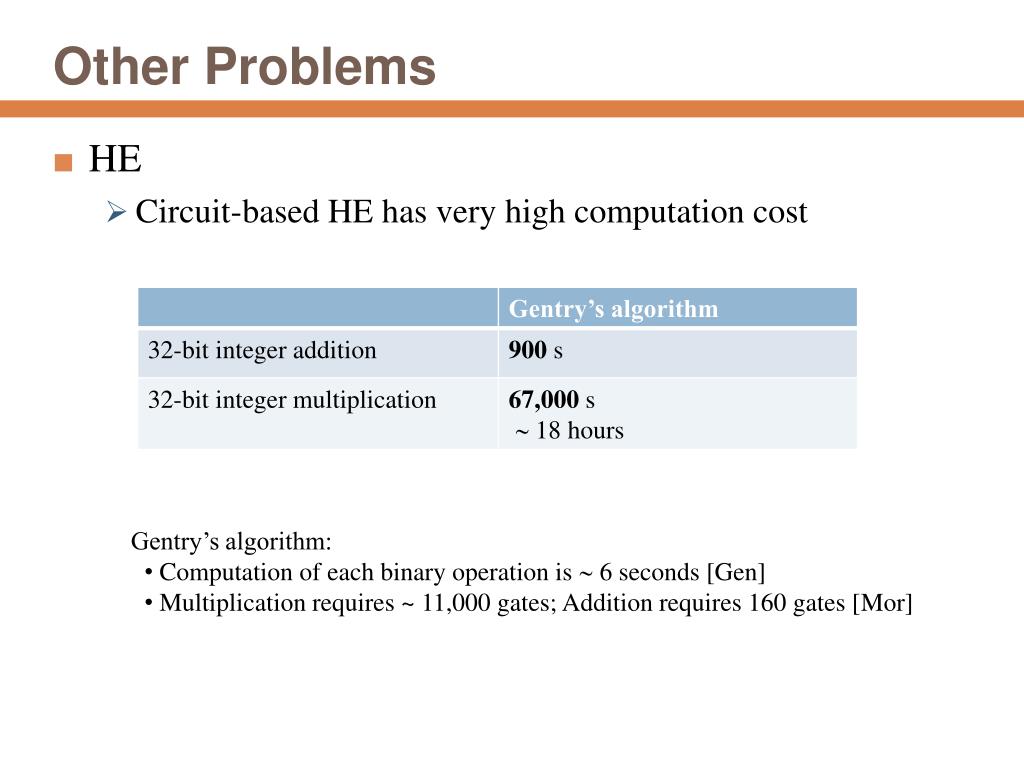

25. Other Problems • HE • Circuit-based HE has very high computation cost • Gentry’s algorithm: • Computation of each binary operation is  6 seconds [Gen] • Multiplication requires ~ 11,000 gates; Addition requires 160 gates [Mor]

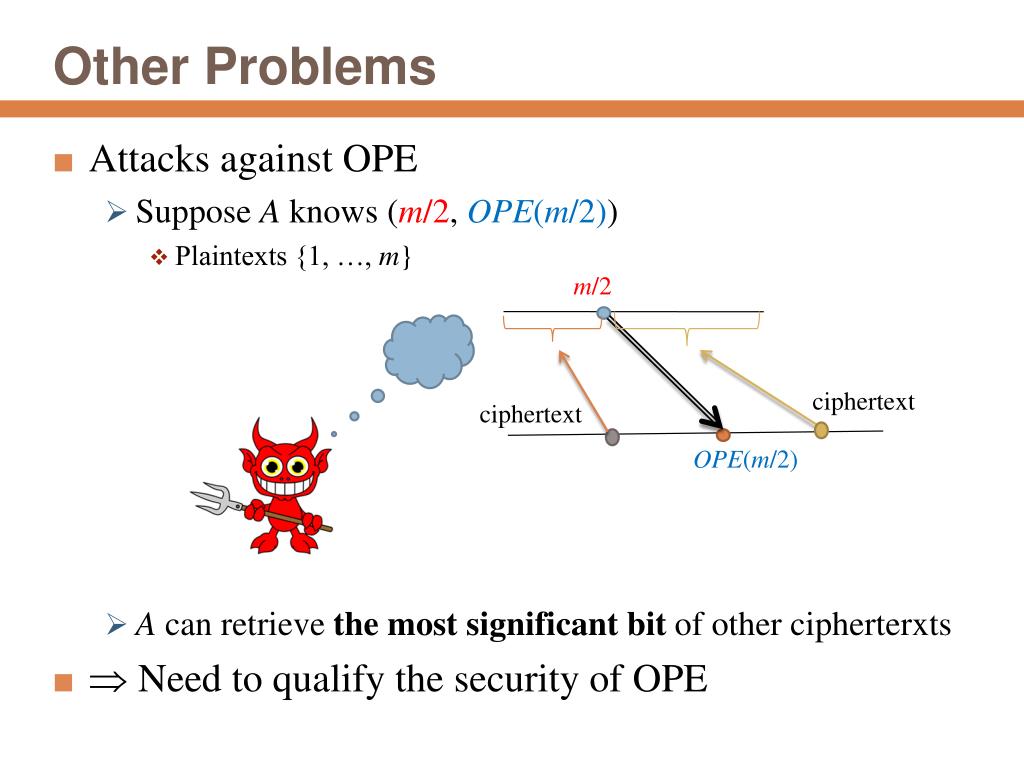

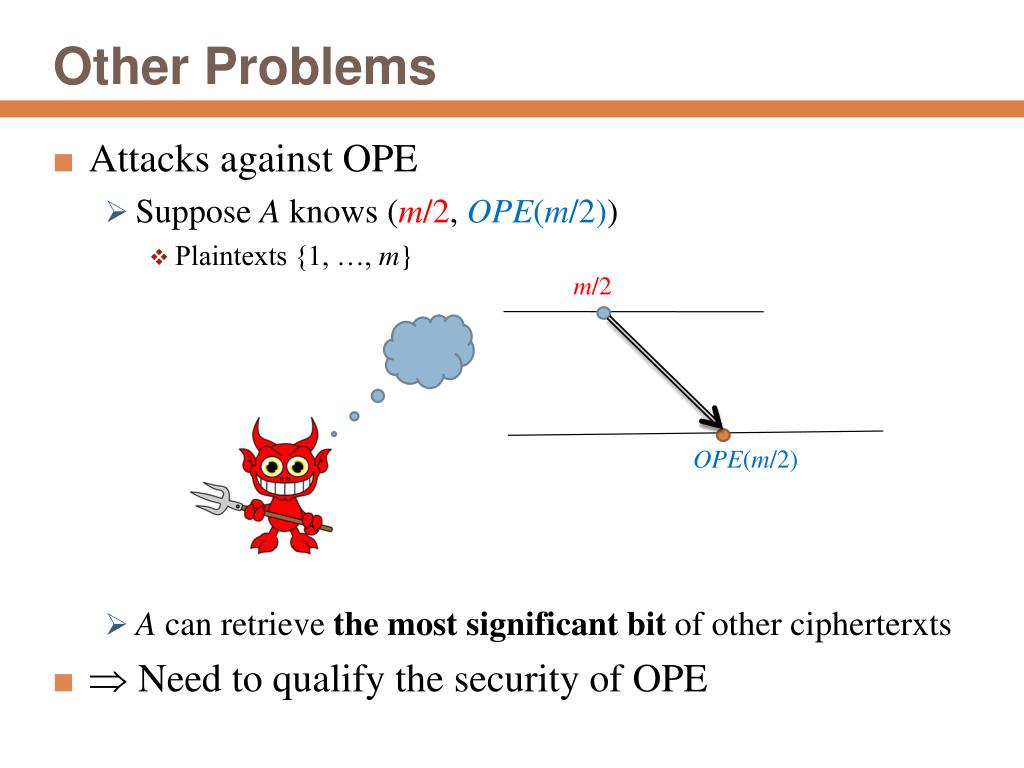

26. Other Problems • Attacks against OPE • Suppose A knows (m/2, OPE(m/2)) • Plaintexts {1, …, m} • A can retrieve the most significant bit of other cipherterxts •  Need to qualify the security of OPE m/2 OPE(m/2)

27. Other Problems • Attacks against OPE • Suppose A knows (m/2, OPE(m/2)) • Plaintexts {1, …, m} • A can retrieve the most significant bit of other cipherterxts •  Need to qualify the security of OPE m/2 ciphertext ciphertext OPE(m/2)

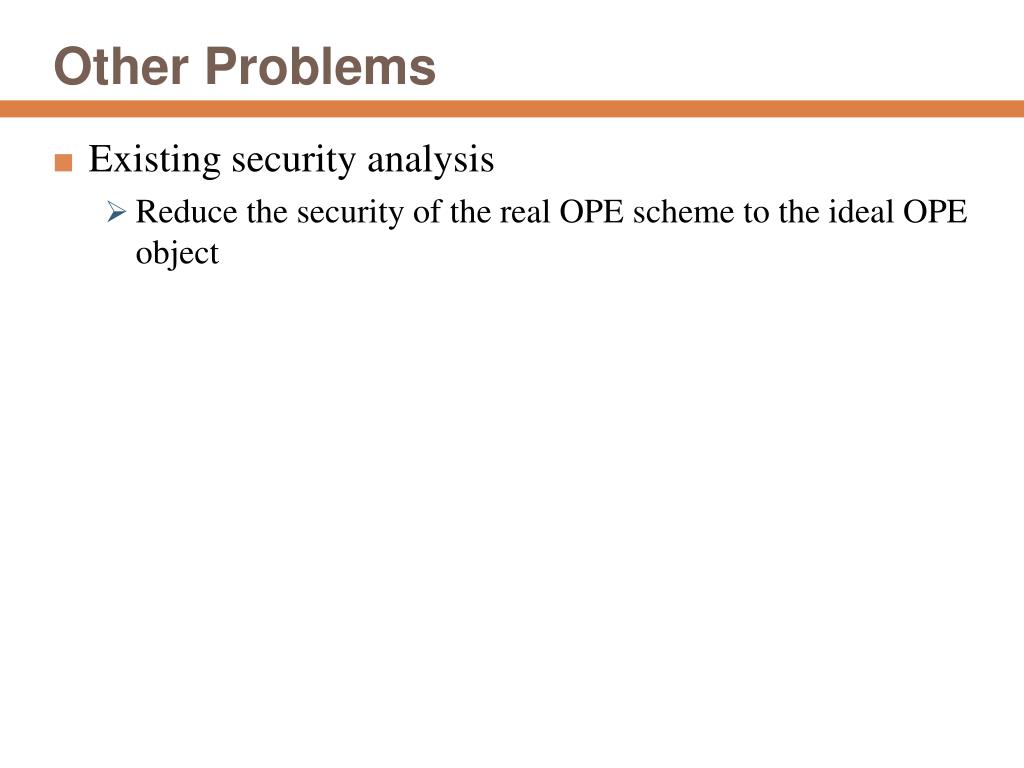

28. Other Problems • Existing security analysis • Reduce the security of the real OPE scheme to the ideal OPE object

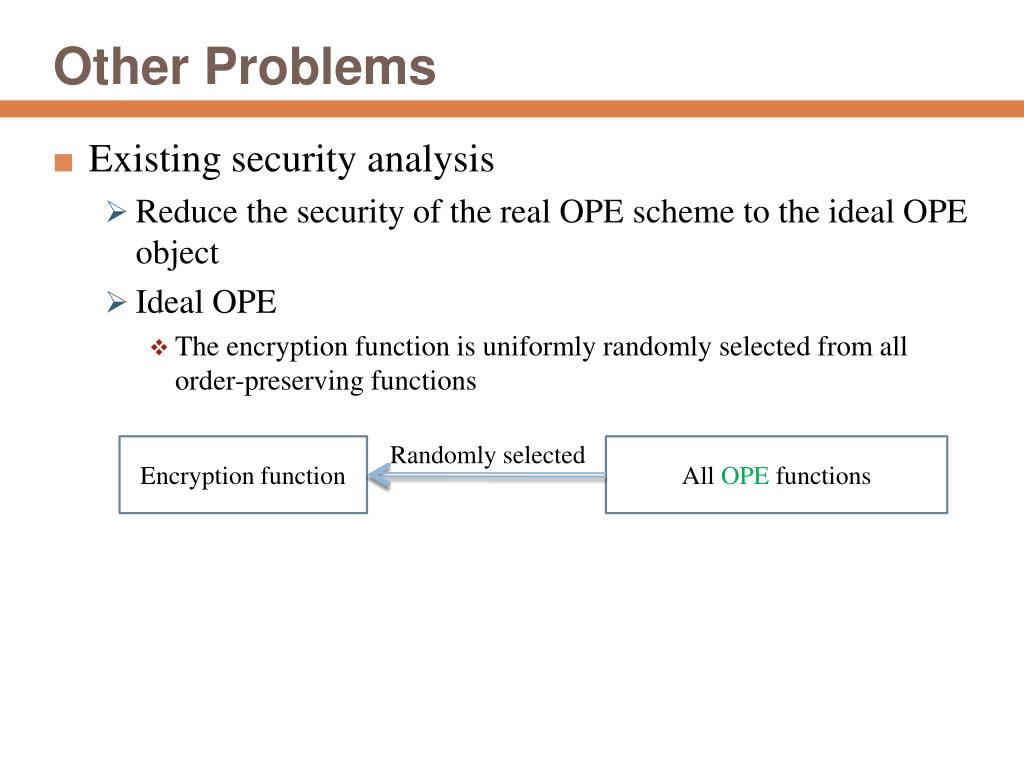

29. Other Problems • Existing security analysis • Reduce the security of the real OPE scheme to the ideal OPE object • Ideal OPE • The encryption function is uniformly randomly selected from all order-preserving functions Randomly selected Encryption function All OPE functions

30. Other Problems • Existing security analysis • Reduce the security of the real OPE scheme to the ideal OPE object • Ideal OPE • The encryption function is uniformly randomly selected from all order-preserving functions • No security analysis of the ideal OPE object Randomly selected Encryption function All OPE functions

31. Objective of My Research • Bridge the gaps • HE • Design a more efficient HE algorithm • Enhance it for multi-user systems • OPE • Prove the security of the ideal OPE object • Develop a multi-user OPE protocol • PPE • Prove the security of the ideal PPE object • Design a multi-user PPE protocol based on an existing PPE

32. Objective of My Research • Bridge the gaps • HE • Design a more efficient HE algorithm • Enhance it for multi-user systems • OPE • Prove the security of the ideal OPE object • Develop a multi-user OPE protocol • PPE • Prove the security of the ideal PPE object • Design a multi-user PPE protocol based on an existing PPE

33. Our HE Construction • Basic construction (ring based) • E(x,k) = M • M is a matrix with the eigenvaluexw.r.t. the eigenvector k • Over ring ZNwhere N = p ∙ q • Homomorphic in addition and multiplication • x ∙ k = M ∙ k and y ∙ k = M’ ∙ k (x + y) ∙ k = (M + M’) ∙ k  (x ∙y) ∙ k = (M ∙ M’) ∙ k [ ] [ ] [ ] x ∙ k = M ∙ k ZN

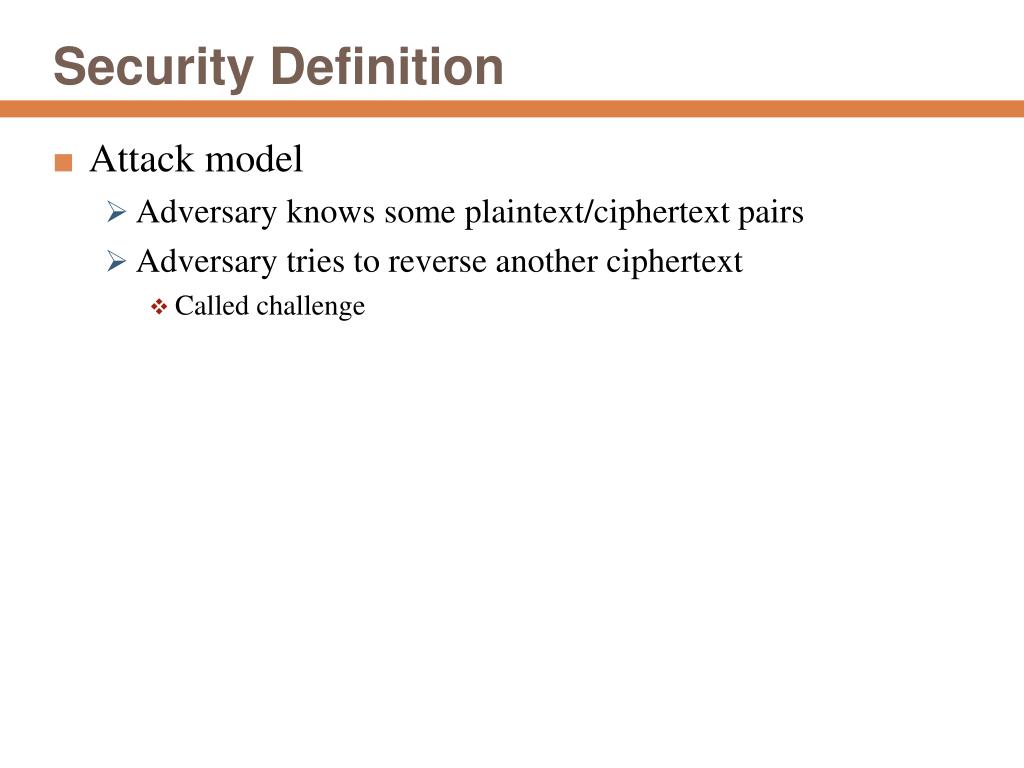

34. Security Definition • Attack model • Adversary knows some plaintext/ciphertext pairs • Adversary tries to reverse another ciphertext • Called challenge

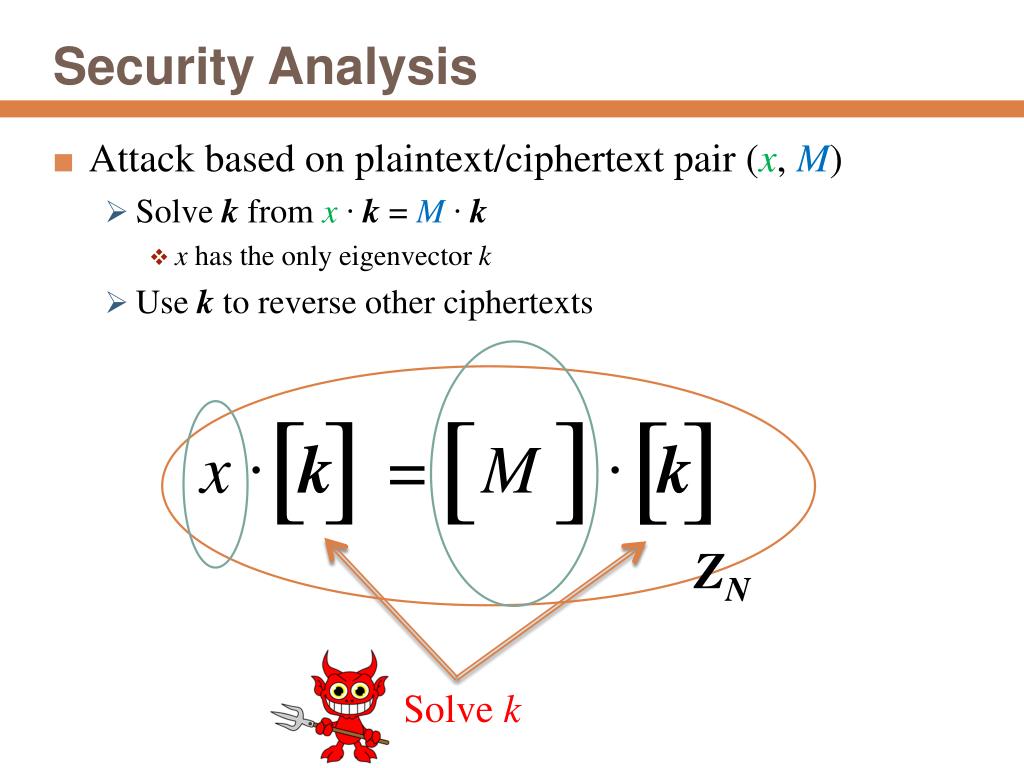

35. Security Analysis • Attack based on plaintext/ciphertext pair (x, M) • Solve k from x ∙ k = M ∙ k • x has the only eigenvector k • Use k to reverse other ciphertexts [ ] [ ] [ ] x ∙ k = M ∙ k ZN Solve k

36. Our HE Construction •  Need to improve the basic construction • One common eigenvector  homomorphic computation • Second distinct eigenvector  resist the attack • Improved Construction • Consider 44 matrix • k, u, v, ware randomly chosen eigenvectors

37. Our HE Construction • Improved Construction • Associate x with k and z • z = u, v, or w subject to a distribution D • Randomly select r • Associate r with two remaining eigenvectors M M M x r x r x r k u v w k v u w k w u v

38. Our HE Construction • Consider m rings Zf1 k1 p Zf2 k2 ZN p k . . . Zfm km p pm

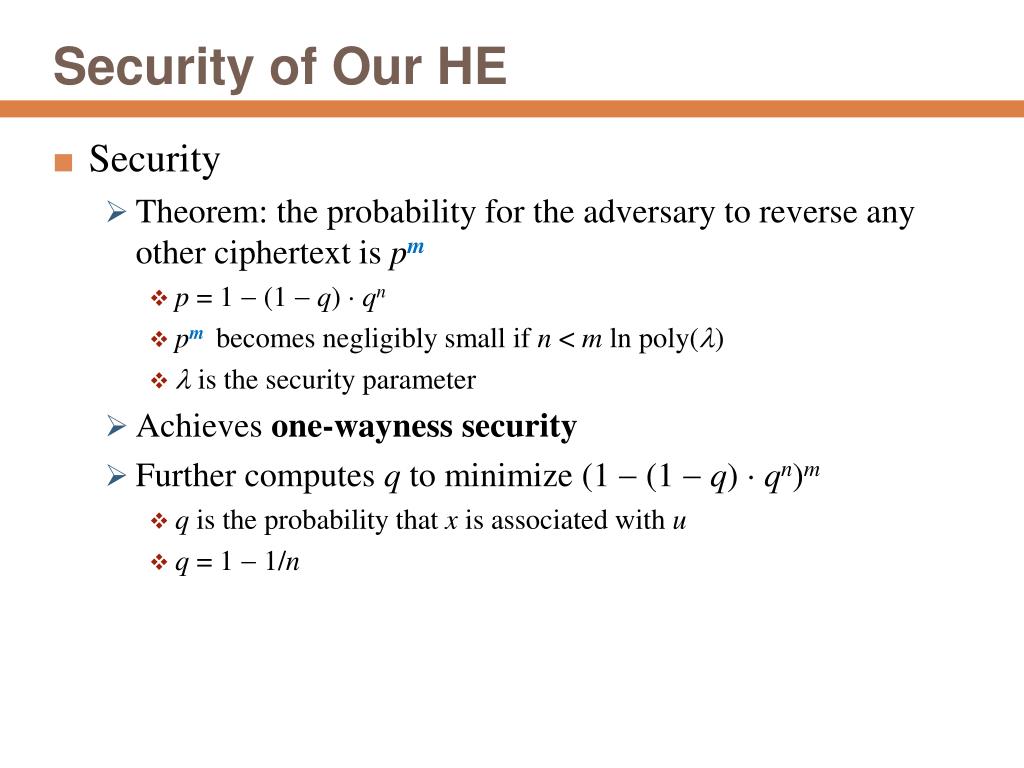

39. Security of Our HE • Security • Theorem: the probability for the adversary to reverse any other ciphertext is pm • p = 1  (1  q)  qn • pm becomes negligibly small if n < mln poly() •  is the security parameter • Achieves one-wayness security • Further computes q to minimize (1  (1  q)  qn)m • q is the probability that x is associated with u • q = 1  1/n

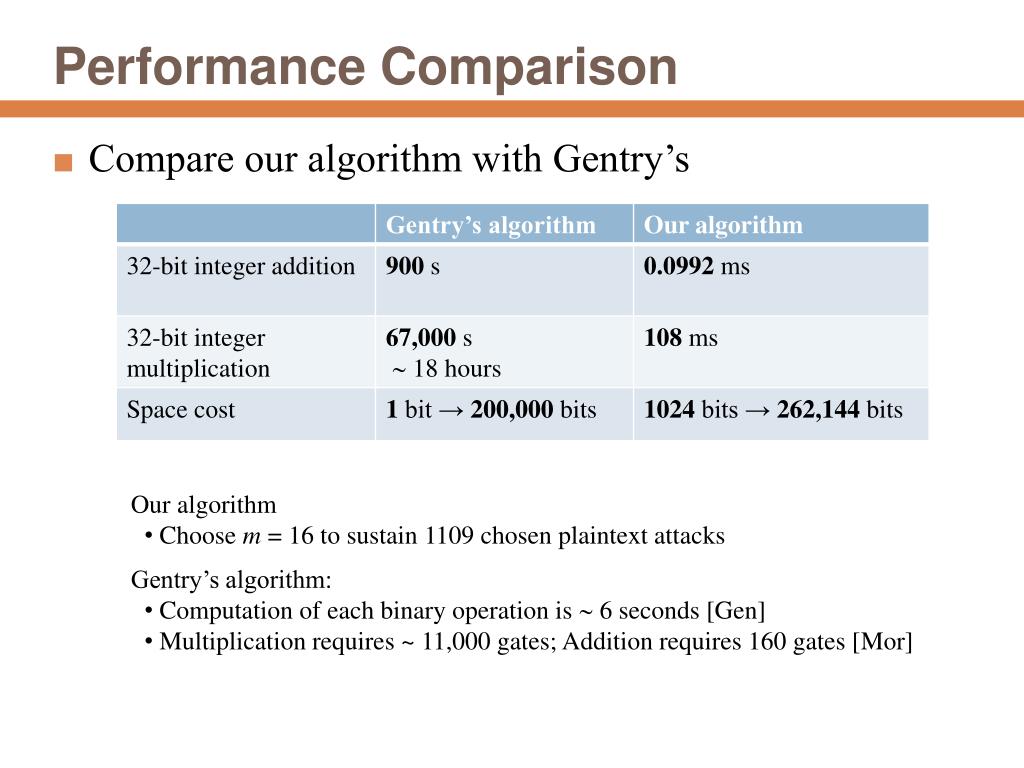

40. Performance Comparison • Compare our algorithm with Gentry’s • Our algorithm • Choose m = 16 to sustain 1109 chosen plaintext attacks • Gentry’s algorithm: • Computation of each binary operation is  6 seconds [Gen] • Multiplication requires ~ 11,000 gates; Addition requires 160 gates [Mor]

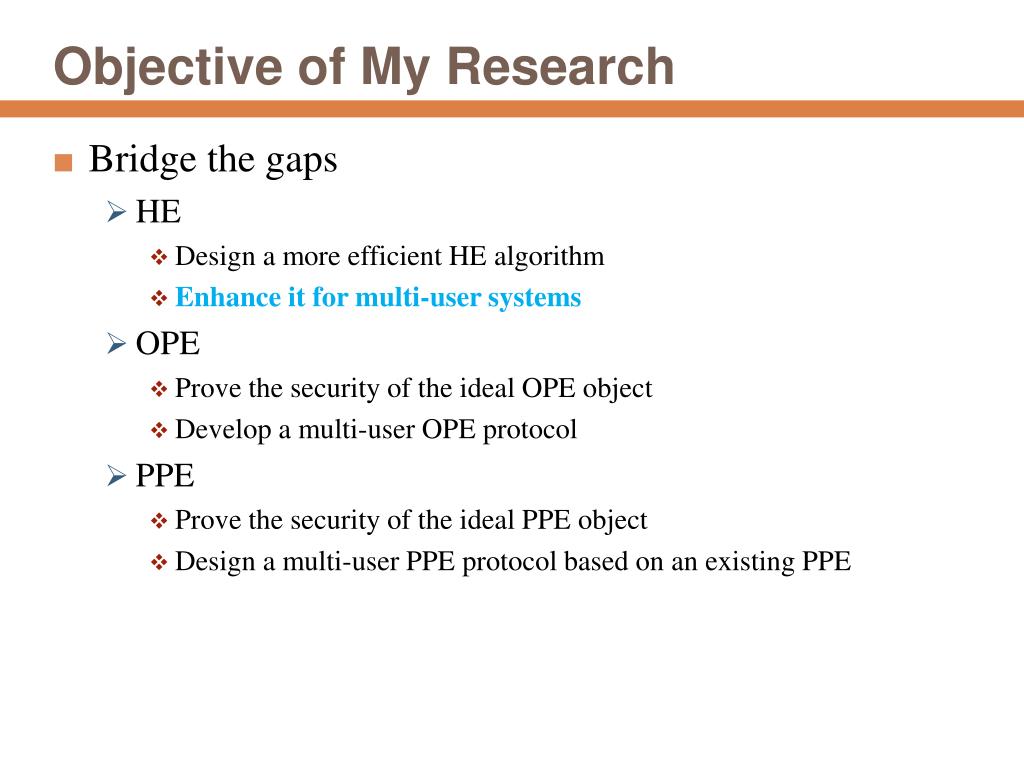

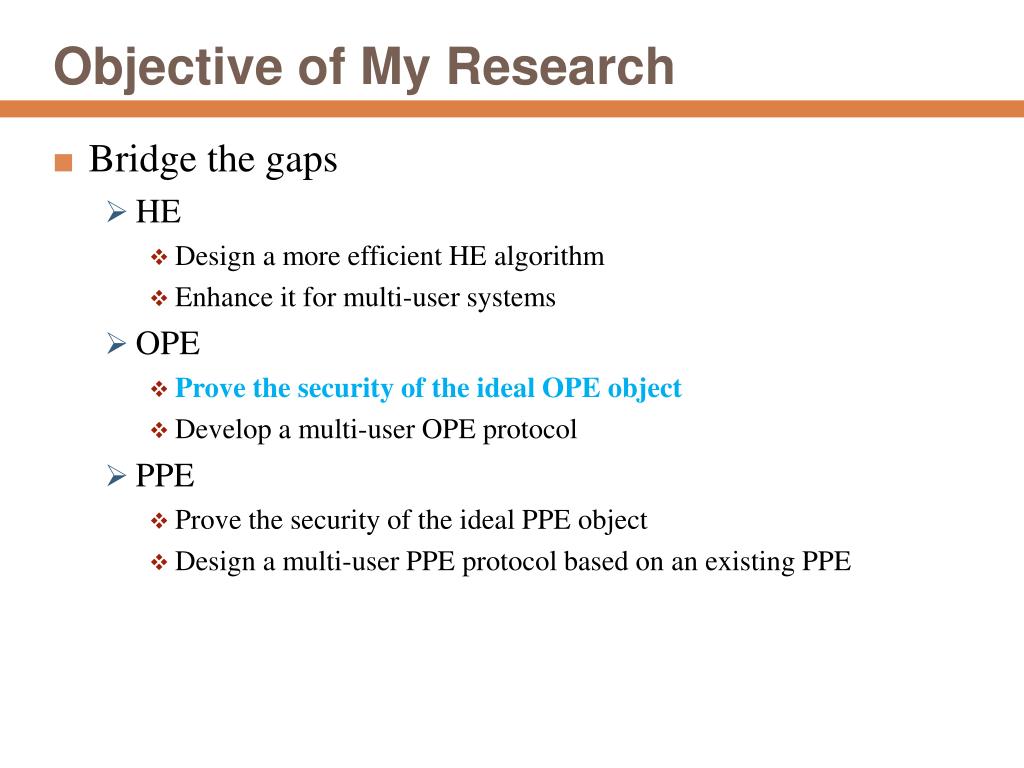

41. Objective of My Research • Bridge the gaps • HE • Design a more efficient HE algorithm • Enhance it for multi-user systems • OPE • Prove the security of the ideal OPE object • Develop a multi-user OPE protocol • PPE • Prove the security of the ideal PPE object • Design a multi-user PPE protocol based on an existing PPE

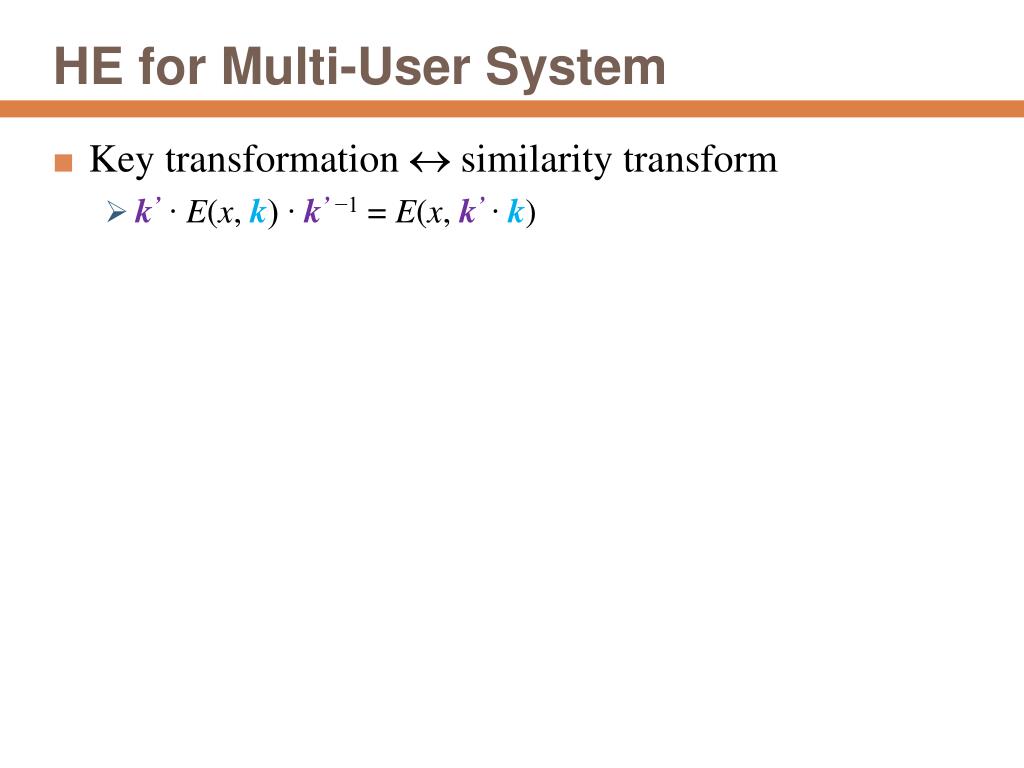

42. HE for Multi-User System • Key transformation  similarity transform • k’ ∙ E(x, k) ∙ k’ −1 = E(x, k’∙ k)

43. HE for Multi-User System • Key transformation  similarity transform • k’ ∙ E(x, k) ∙ k’ −1 = E(x, k’∙ k) • Request protocol • kj – user key • Different user holds different user key • kj’ and kj’’– matching key • mk – master key • Response protocol – reverse the request protocol E(x, kj) E(x, kj’ ∙ kj) User Uj Key agent DB E(x, mk) x Hold key kj Hold key kj’ Hold key kj’’ kj’’ kj’  kj= mk

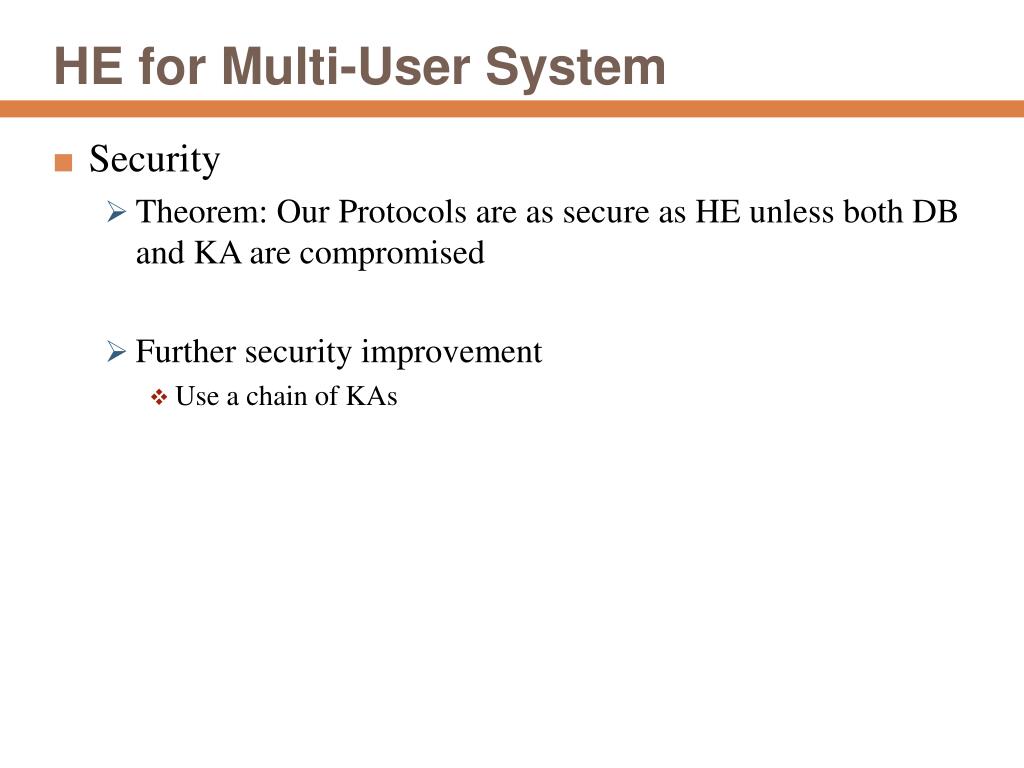

44. HE for Multi-User System • Security • Theorem: Our Protocols are as secure as HE unless both DB and KA are compromised • Further security improvement • Use a chain of KAs

45. Performance Study • Request/Response Protocols • User ; DB • Key agent

46. Performance Study • Results • λ – data length • NE = “No Encryption” • HE – Q = DB received the data encrypted by user • HE – P = User decrypts the data sent from DB

47. Objective of My Research • Bridge the gaps • HE • Design a more efficient HE algorithm • Enhance it for multi-user systems • OPE • Prove the security of the ideal OPE object • Develop a multi-user OPE protocol • PPE • Prove the security of the ideal PPE object • Design a multi-user PPE protocol based on an existing PPE

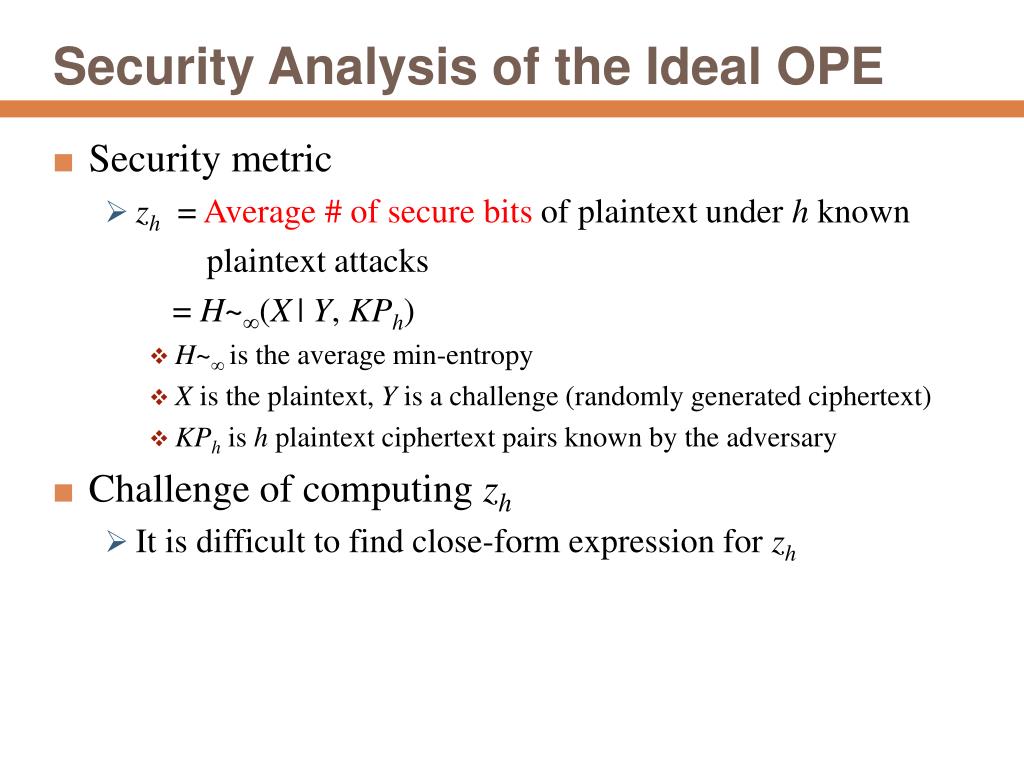

48. Security Analysis of the Ideal OPE • Security metric • zh = Average# of secure bits of plaintext under h known plaintext attacks = H~∞(X| Y, KPh) • H~∞ is the average min-entropy • X is the plaintext, Y is a challenge (randomly generated ciphertext) • KPh is h plaintext ciphertext pairs known by the adversary • Challenge of computing zh • It is difficult to find close-form expression for zh

49. Security Analysis of the Ideal OPE • Instead, estimate the upper and lower bounds on zh • Upper bound on zh • Choose KPh = { (xi, E*(xi)) | xi = i∙(m+1)/(h+1), 1≤i≤h } • xi is uniformly distributed • zh ≤ log2(m−h)/(h+1) • Lower bound on zh • Don’t know the strongest plaintext attack, how? … xh x1 x2 x3

50. Security Analysis of the Ideal OPE • Our approach to estimate the lower bound on zh • Observation • KPh divides the domain and range to h+1 subdomains and subranges • KPh = {(xi, yi)}1≤i≤h • No plaintext attack within each subdomains and subranges • Estimate the lower bound for the case of no plaintext attack • Defined as z0 • Apply z0 to each subdomain and subrange • (xi,yi) are variables • Accordingly, estimate zh ≥ clog2(m−h)/(h+1) • Optimize the h (xi,yi) pairs • 0 < c < 1 No plaintext attack xj xj+1 [m] yj yj+1 [n]
