  1. Oracle Semantics for Concurrent Separation Logic Aquinas Hobor Joint work with Andrew W. Appel & Francesco Zappa Nardelli

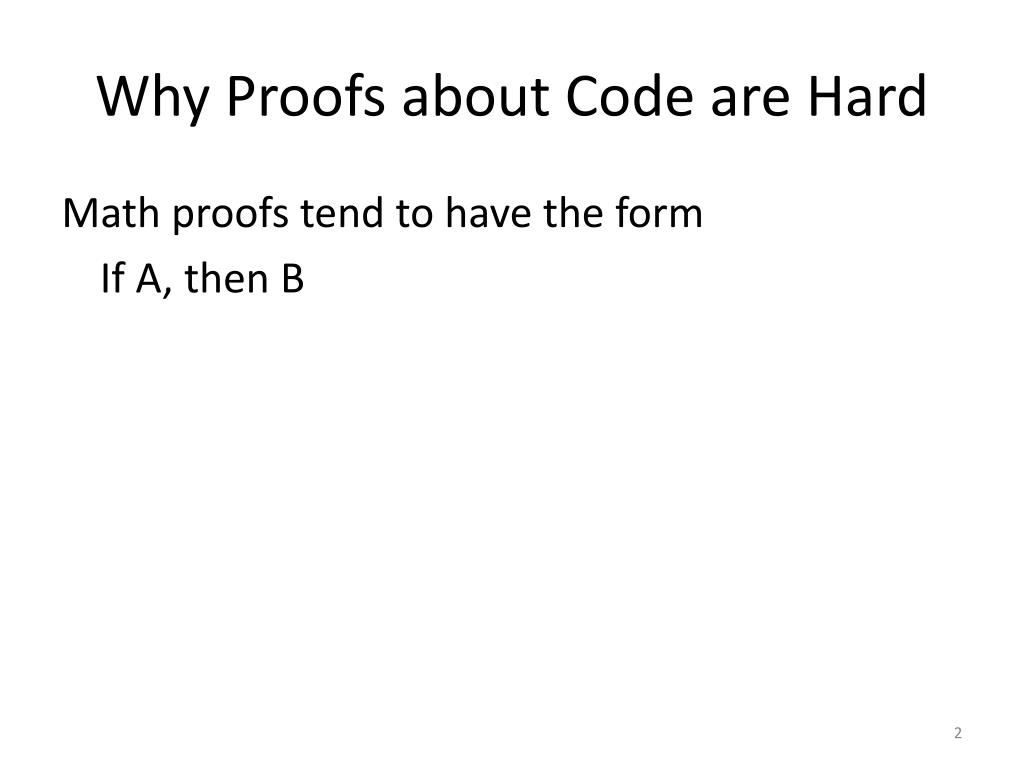

  2. Why Proofs about Code are Hard Math proofs tend to have the form If A, then B

  3. Why Proofs about Code are Hard Math proofs tend to have the form If A, then B Proofs about real programs have the form If A1 and A2 and A3 and A4 and A5…

  4. Why Proofs about Code are Hard Math proofs tend to have the form If A, then B Proofs about real programs have the form If A1 and A2 and A3 and A4 and A5, then B1 and B2 and B3

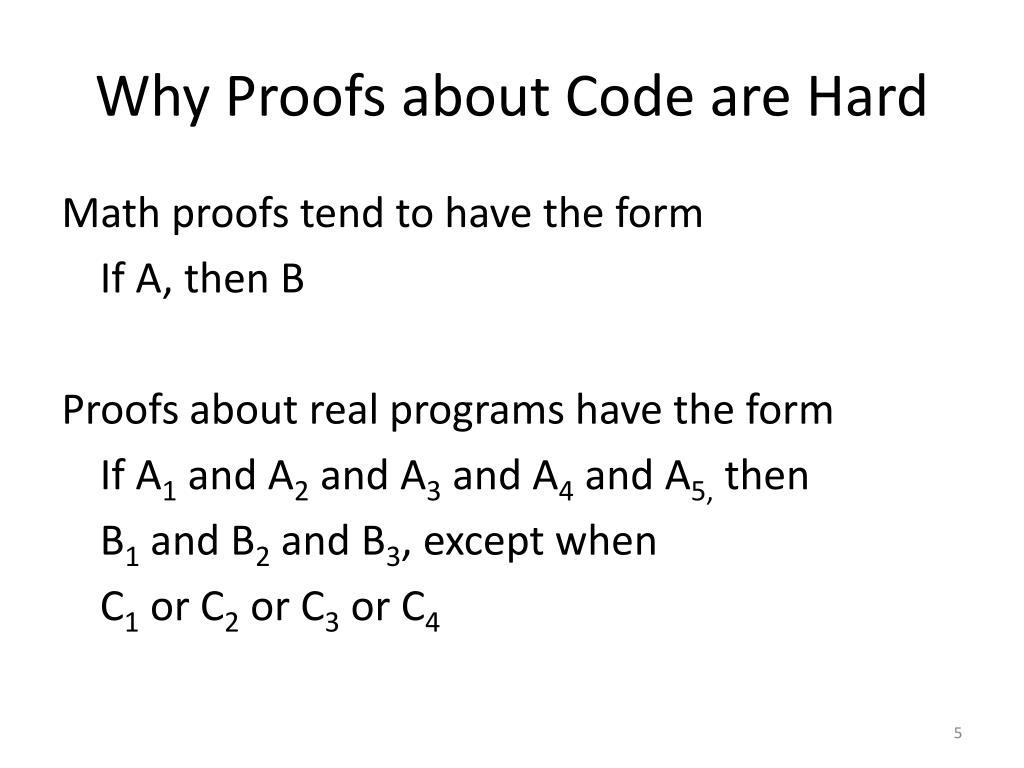

  5. Why Proofs about Code are Hard Math proofs tend to have the form If A, then B Proofs about real programs have the form If A1 and A2 and A3 and A4 and A5, then B1 and B2 and B3, except when C1 or C2 or C3 or C4

  6. Why Proofs about Code are Hard Math proofs tend to have the form If A, then B Proofs about real programs have the form If A1 and A2 and A3 and A4 and A5, then B1 and B2 and B3, except when C1 or C2 or C3 or C4, assuming D1 and (D2 or D3)

  7. Why Proofs about Code are Hard Two choices: A) Prove something on paper about a simplification of the core ideas / algorithm Problem: actual implementation will have bugs B) Prove something about the actual code Problem: too hard to do by hand

  8. Machine-Checked Proofs Solution: Use computer to check your proofs (we use Coq) Ideally the computer can help prove as well Issue: Machine-checked proofs are large and very time-consuming to write Proof engineering becomes a real issue

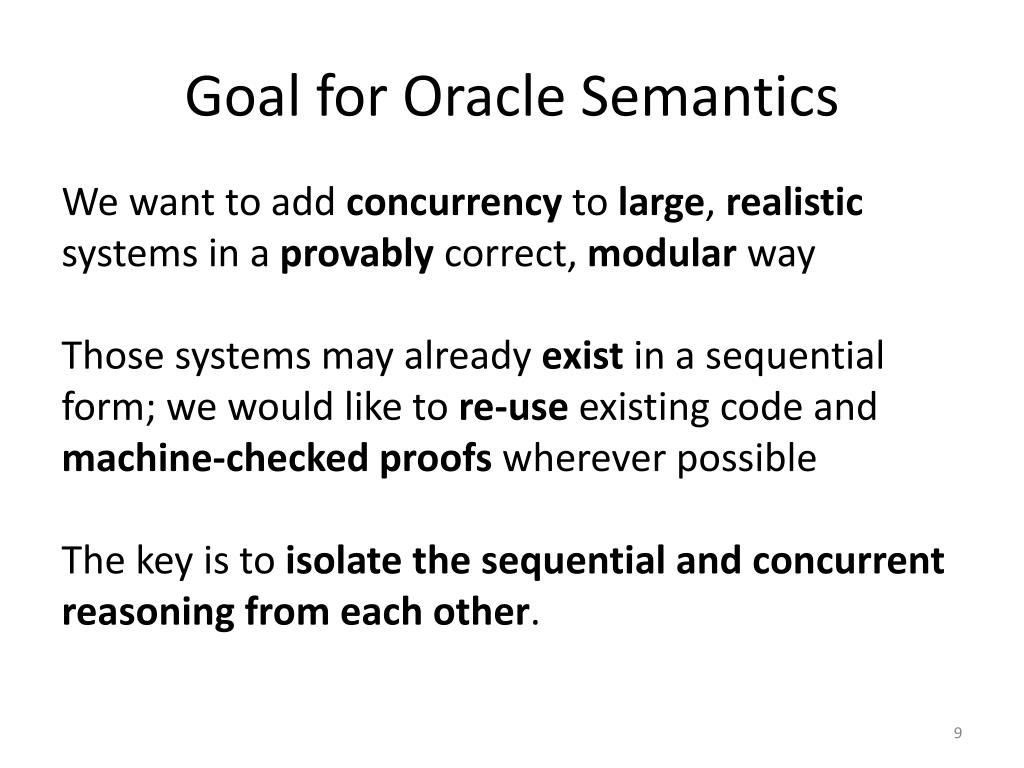

  9. Goal for Oracle Semantics We want to add concurrency to large, realistic systems in a provably correct, modular way Those systems may already exist in a sequential form; we would like to re-use existing code and machine-checked proofs wherever possible The key is to isolate the sequential and concurrent reasoning from each other.

  10. Leroy, 2006 CompCert Project Sequential Source Program (C minor) Sequential C minor Operational Semantics Compiler Correctness Proof CompCert Compiler Sequential PowerPC Operational Semantics Sequential Target Program (Power PC) Sequential Translation Correctness Guarantee User Leroy

  11. Leroy, 2006 CompCert Project Sequential Source Program (C minor) Sequential C minor Operational Semantics What is relationship here? Compiler Correctness Proof CompCert Compiler Sequential PowerPC Operational Semantics Sequential Target Program (Power PC) Sequential Translation Correctness Guarantee User Leroy

  12. Appel & Blazy, 2007 • Separation Logic for C minor Sequential Source Program (C minor) Axiomatic Semantics (Separation Logic) Sequential C minor Operational Semantics Program Verification Soundness Proof Compiler Correctness Proof CompCert Compiler Sequential PowerPC Operational Semantics Sequential Target Program (Power PC) Sequential Translation Correctness Guarantee User Leroy Appel & Blazy

  13. Changes Required for Concurrency Concurrent Source Program (C minor) Axiomatic Semantics (Concurrent Separation Logic) Concurrent C minor Operational Semantics Program Verification Soundness Proof Concurrency-Aware Compiler Correctness Proof Concurrency-Aware CompCert Compiler Concurrent PowerPC Operational Semantics Concurrent Target Program (Power PC) Concurrent Translation Correctness Guarantee User Future Work This work (Hobor, Appel, & Zappa Nardelli)

  14. What this would mean We would have machine-checked end-to-end correctness proofs of concurrent programs Since everything would be machine-checked, we would have very high assurance that the actual code running on the hardware had the correct, expected behavior.

  15. Changes Required for Concurrency Concurrent Source Program (C minor) Axiomatic Semantics (Concurrent Separation Logic) Concurrent C minor Operational Semantics Program Verification Soundness Proof Concurrency-Aware Compiler Correctness Proof Concurrency-Aware CompCert Compiler Concurrent PowerPC Operational Semantics Concurrent Target Program (Power PC) Concurrent Translation Correctness Guarantee User Future Work This work (Hobor, Appel, & Zappa Nardelli)

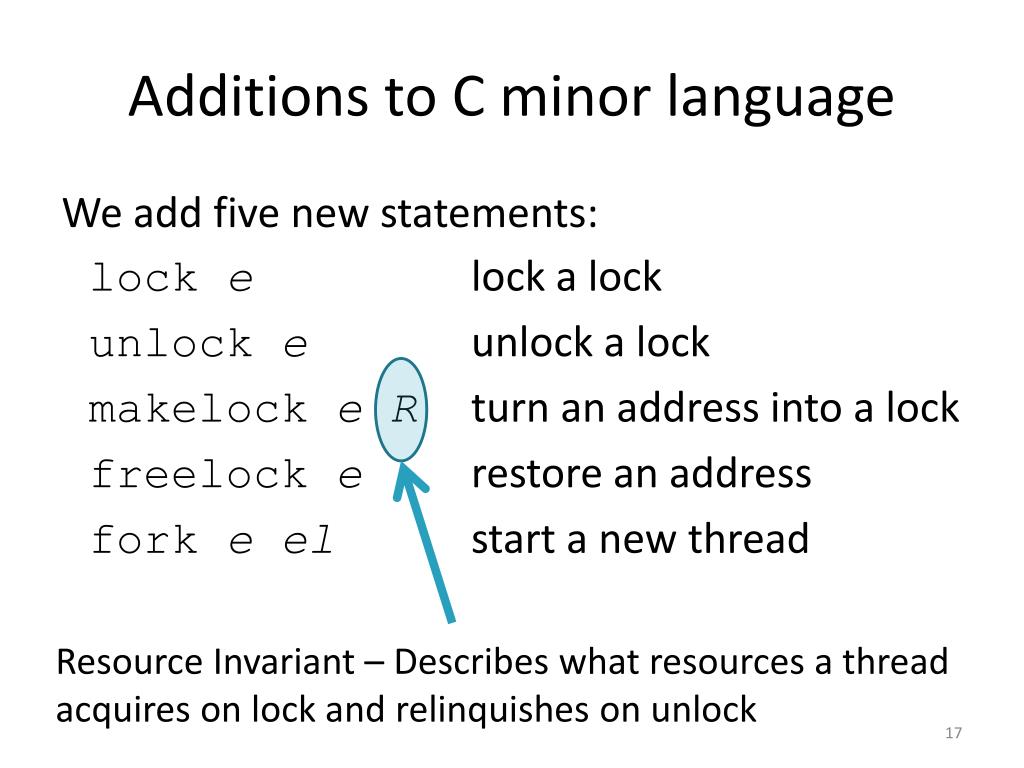

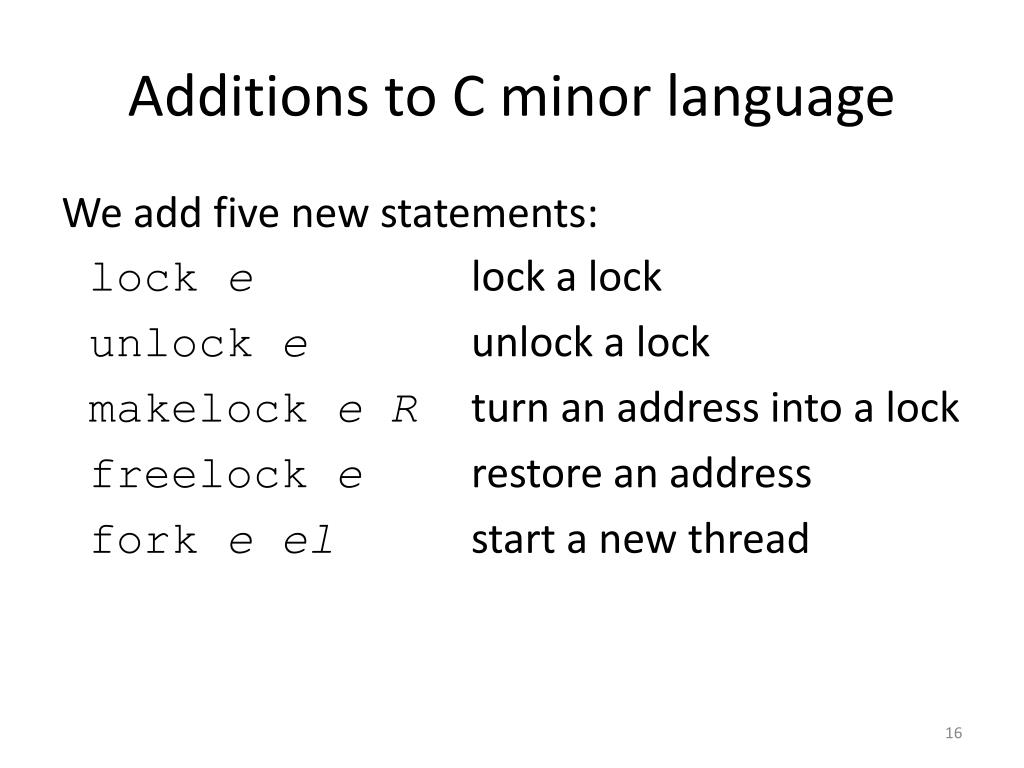

  16. Additions to C minor language We add five new statements: lock elock a lock unlock eunlock a lock makelocke Rturn an address into a lock freelockerestore an address fork e el start a new thread

  17. Additions to C minor language We add five new statements: lock elock a lock unlock eunlock a lock makelocke R turn an address into a lock freelockerestore an address fork e el start a new thread Resource Invariant – Describes what resources a thread acquires on lock and relinquishes on unlock

  18. Example Program [l] := 0; makelock l (∃y. x↦y+y); [x] := 0; unlock l; fork child(l); lock l; [x] := [x] + 1; [x] := [x] + 1; unlock l;

  19. Modularity Principle Sequential Features Concurrent Features s1 ; s2 if e then s1 else s2 while e do s break n (x1, …, xn) := e (e1, …, em) return (e1, …, en) x := e [e1] := e2 Skip … lock e unlock e fork e (e1, …, en) makelock e R freelock e …

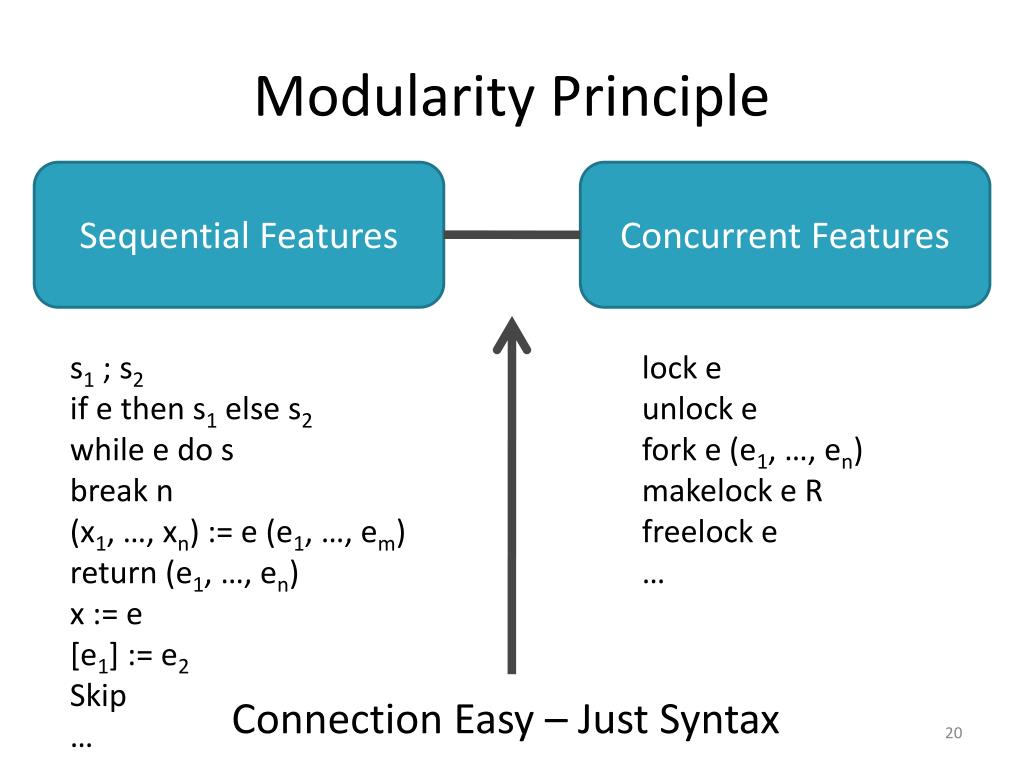

  20. Modularity Principle Sequential Features Concurrent Features s1 ; s2 if e then s1 else s2 while e do s break n (x1, …, xn) := e (e1, …, em) return (e1, …, en) x := e [e1] := e2 Skip … lock e unlock e fork e (e1, …, en) makelock e R freelock e … Connection Easy – Just Syntax

  21. Changes Required for Concurrency Concurrent Source Program (C minor) Axiomatic Semantics (Concurrent Separation Logic) Concurrent C minor Operational Semantics Program Verification Soundness Proof Concurrency-Aware Compiler Correctness Proof Concurrency-Aware CompCert Compiler Concurrent PowerPC Operational Semantics Concurrent Target Program (Power PC) Concurrent Translation Correctness Guarantee User Future Work This work (Hobor, Appel, & Zappa Nardelli)

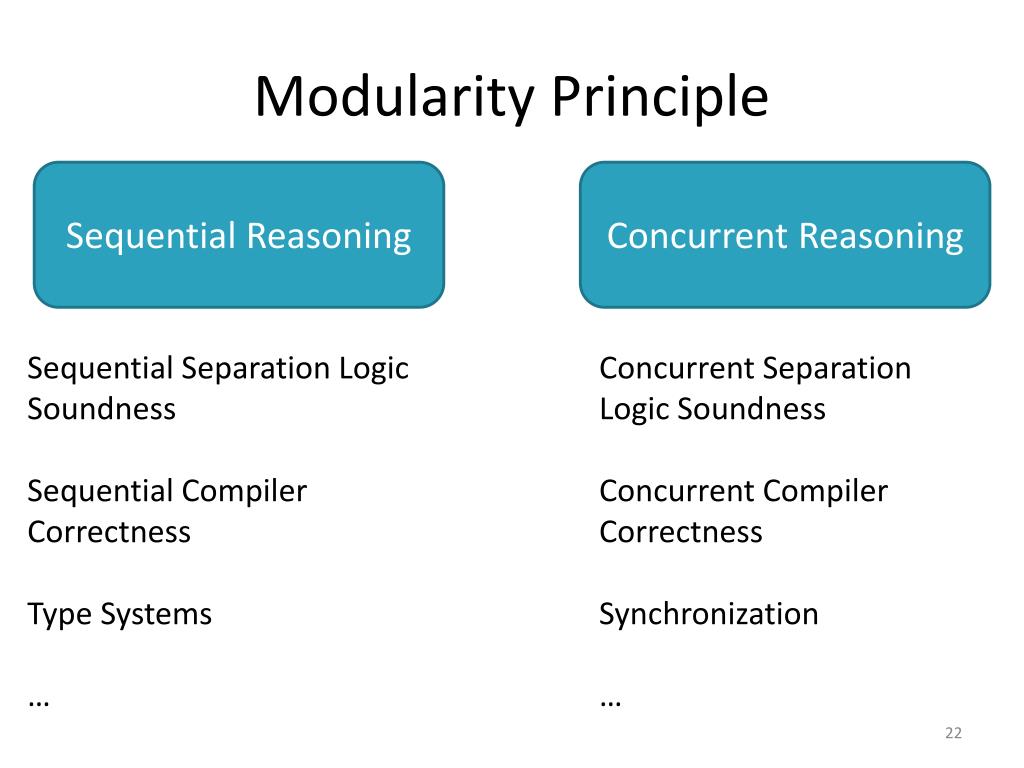

  22. Modularity Principle Sequential Reasoning Concurrent Reasoning Sequential Separation Logic Soundness Sequential Compiler Correctness Type Systems … Concurrent Separation Logic Soundness Concurrent Compiler Correctness Synchronization …

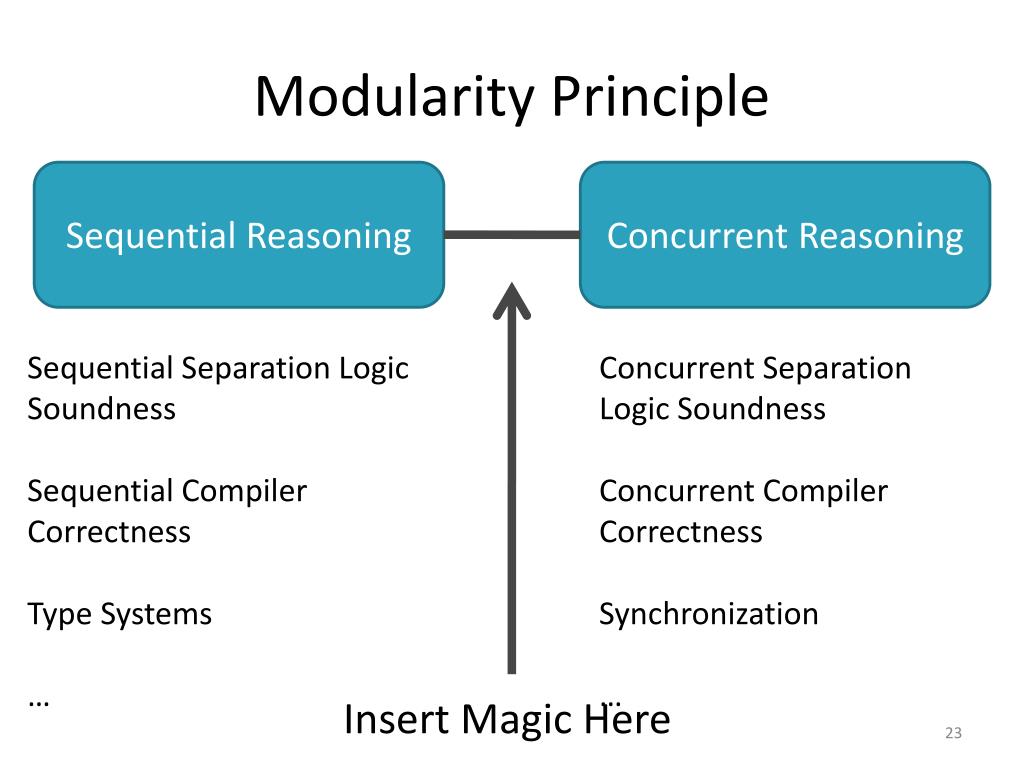

  23. Modularity Principle Sequential Reasoning Concurrent Reasoning Sequential Separation Logic Soundness Sequential Compiler Correctness Type Systems … Concurrent Separation Logic Soundness Concurrent Compiler Correctness Synchronization … Insert Magic Here

  24. How is it done? Key: only consider well-synchronized programs • Mutual exclusion via Dijkstra Semaphores • Data-race free Our operational semantics gets stuck on ill-synchronized programs

  25. Changes to Pure Sequential Semantics C minor small-step sequential semantics step relation: (1, 1) ↦ (2, 2)  = (ρ, m)  is a control stack World-aware C minor sequential semantics step relation: (1, 1) ↦ (2, 2)  = (ρ, w, m) w is a map from addresses to ownerships

  26. Ownerships Basic ownerships: | NONE | VAL (data) | LOCK of invariant (invariant comes from makelock) Get stuck if you use memory without ownership Thread worlds are disjoint – at any time, only one thread can access each address Sequential instructions and proofs ignore LOCK

  27. Concurrent Operational Semantics Concurrent C minor step relation (1, K1, m1, G1) ⇒ (2, K2, m2, G2)  is scheduler K is thread list (ρ1, w1, 1) :: (ρ2, w2, 2) :: … m is memory G is global world – owner of unlocked locks To execute a sequential instruction, use the world-aware sequential step relation

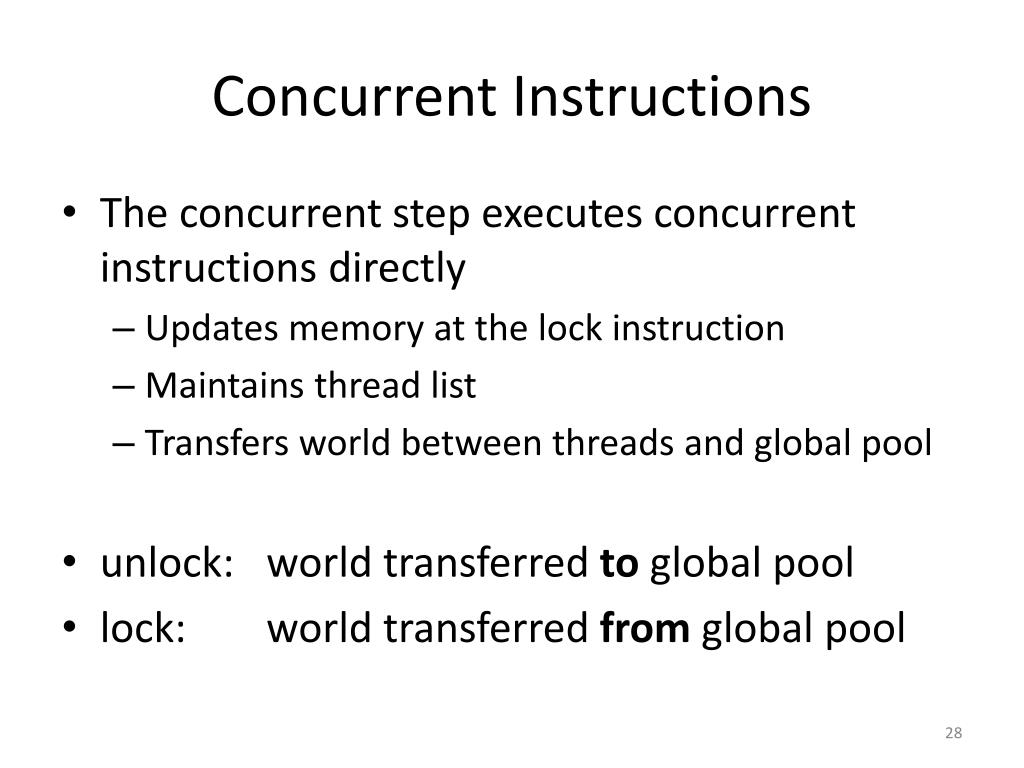

  28. Concurrent Instructions • The concurrent step executes concurrent instructions directly • Updates memory at the lock instruction • Maintains thread list • Transfers world between threads and global pool • unlock: world transferred to global pool • lock: world transferred from global pool

  29. Space Thread A Thread B Global World w1 w wR w2 w3 Time Memory unlock 𝓁 w2 w1 w wR w3 Memory lock 𝓁 w1 w wR w2 w3 Memory wR is the unique world that satisfies l’’s lock invariant

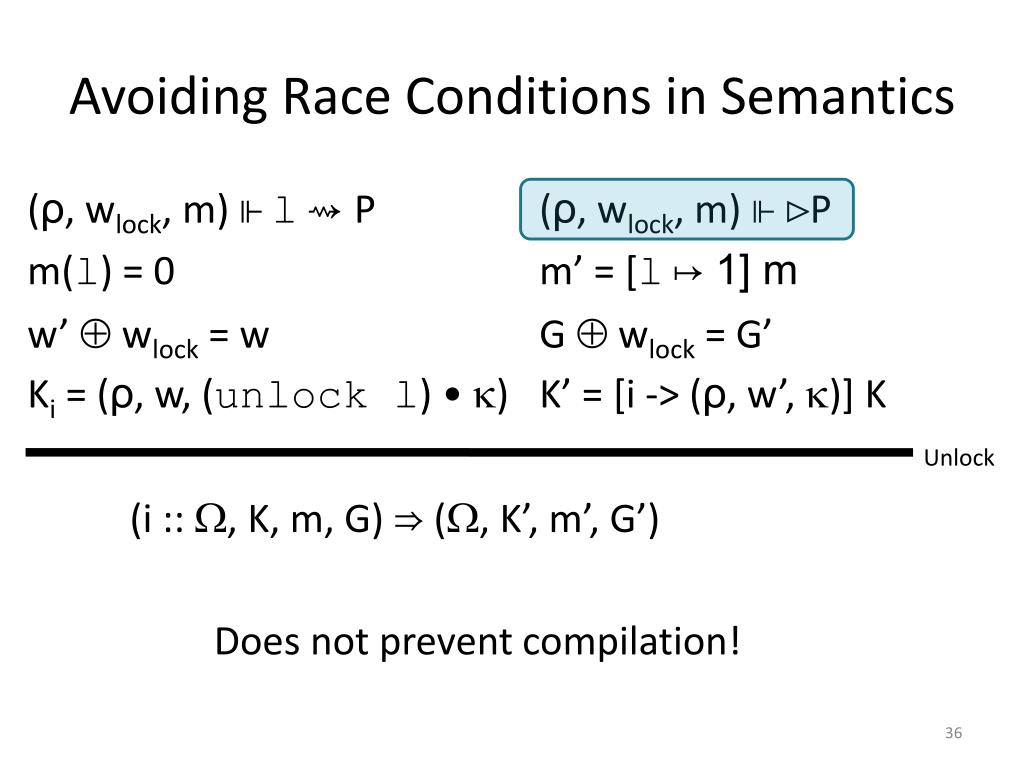

  30. Avoiding Race Conditions in Semantics (ρ, wlock, m) ⊩l⇝ P (ρ, wlock, m) ⊩ ⊳P m(l) = 0 m’ = [l↦ 1] m w’ wlock = w G wlock = G’ Ki = (ρ, w, (unlock l) • ) K’ = [i -> (ρ, w’, )] K (i :: , K, m, G) ⇒ (, K’, m’, G’) Does not prevent compilation! Unlock

  31. Avoiding Race Conditions in Semantics (ρ, wlock, m) ⊩l⇝ P (ρ, wlock, m) ⊩ ⊳P m(l) = 0 m’ = [l↦ 1] m w’ wlock = w G wlock = G’ Ki = (ρ, w, (unlock l) • ) K’ = [i -> (ρ, w’, )] K (i :: , K, m, G) ⇒ (, K’, m’, G’) Does not prevent compilation! Unlock

  32. Avoiding Race Conditions in Semantics (ρ, wlock, m) ⊩l⇝ P (ρ, wlock, m) ⊩ ⊳P m(l) = 0 m’ = [l↦ 1] m w’ wlock = w G wlock = G’ Ki = (ρ, w, (unlock l) • ) K’ = [i -> (ρ, w’, )] K (i :: , K, m, G) ⇒ (, K’, m’, G’) Does not prevent compilation! Unlock

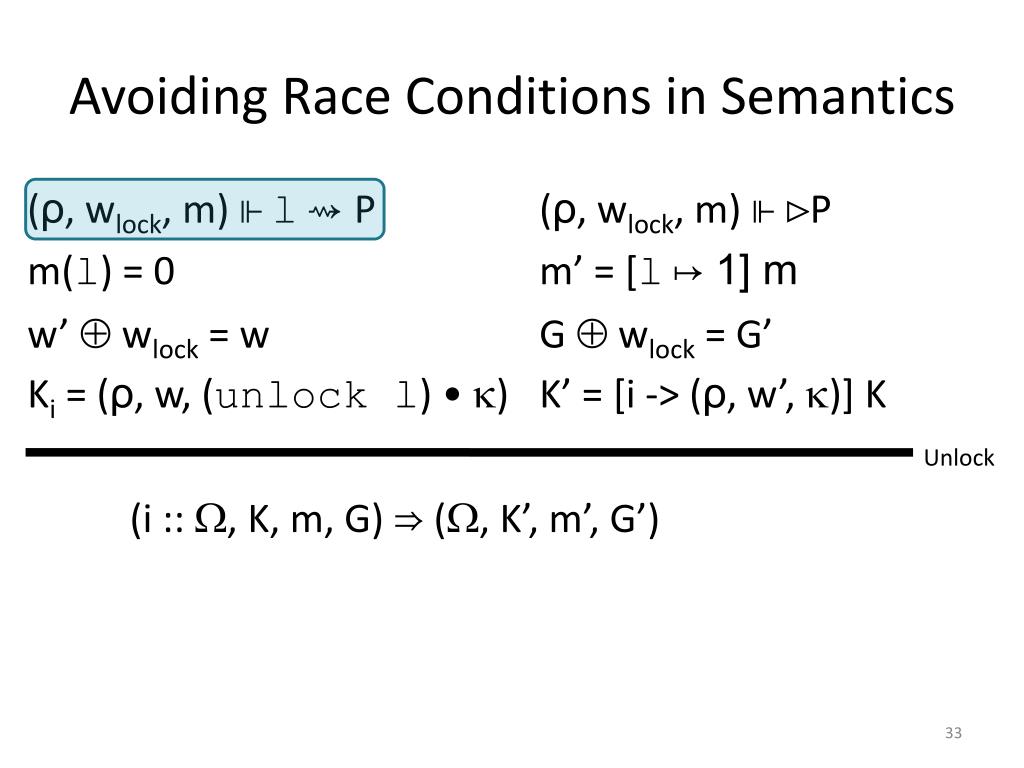

  33. Avoiding Race Conditions in Semantics (ρ, wlock, m) ⊩l⇝ P (ρ, wlock, m) ⊩ ⊳P m(l) = 0 m’ = [l↦ 1] m w’ wlock = w G wlock = G’ Ki = (ρ, w, (unlock l) • ) K’ = [i -> (ρ, w’, )] K (i :: , K, m, G) ⇒ (, K’, m’, G’) Does not prevent compilation! Unlock

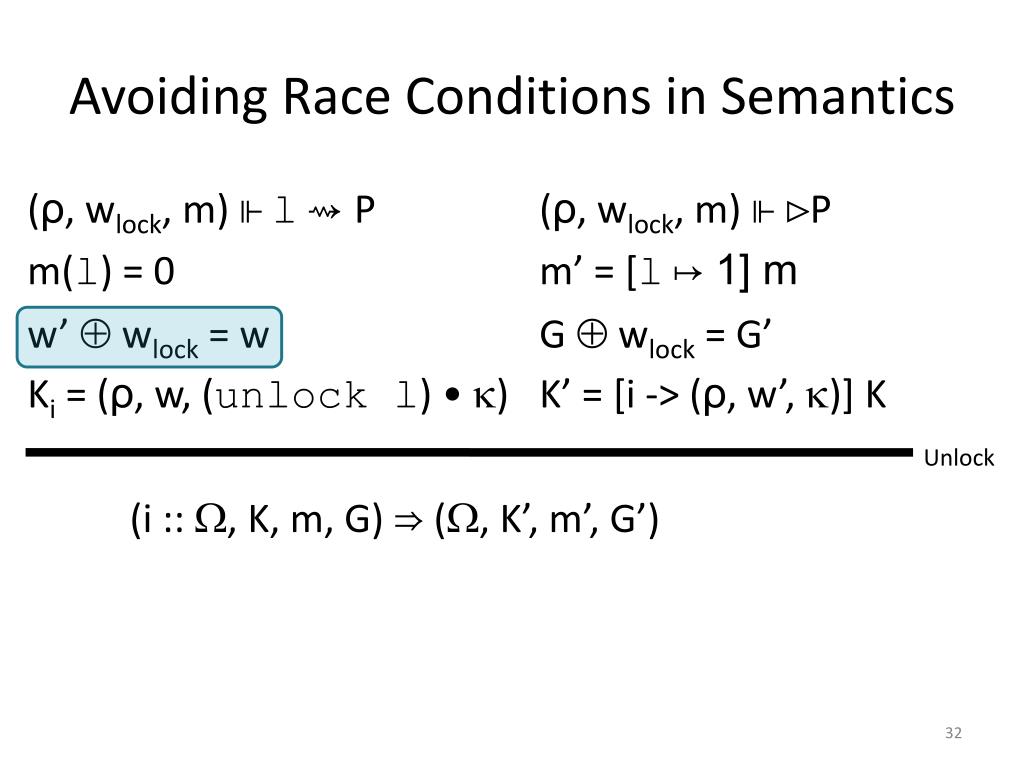

  34. Avoiding Race Conditions in Semantics (ρ, wlock, m) ⊩l⇝ P (ρ, wlock, m) ⊩ ⊳P m(l) = 0 m’ = [l↦ 1] m w’ wlock = w G wlock = G’ Ki = (ρ, w, (unlock l) • ) K’ = [i -> (ρ, w’, )] K (i :: , K, m, G) ⇒ (, K’, m’, G’) Operational semantics is nonconstructive! Unlock

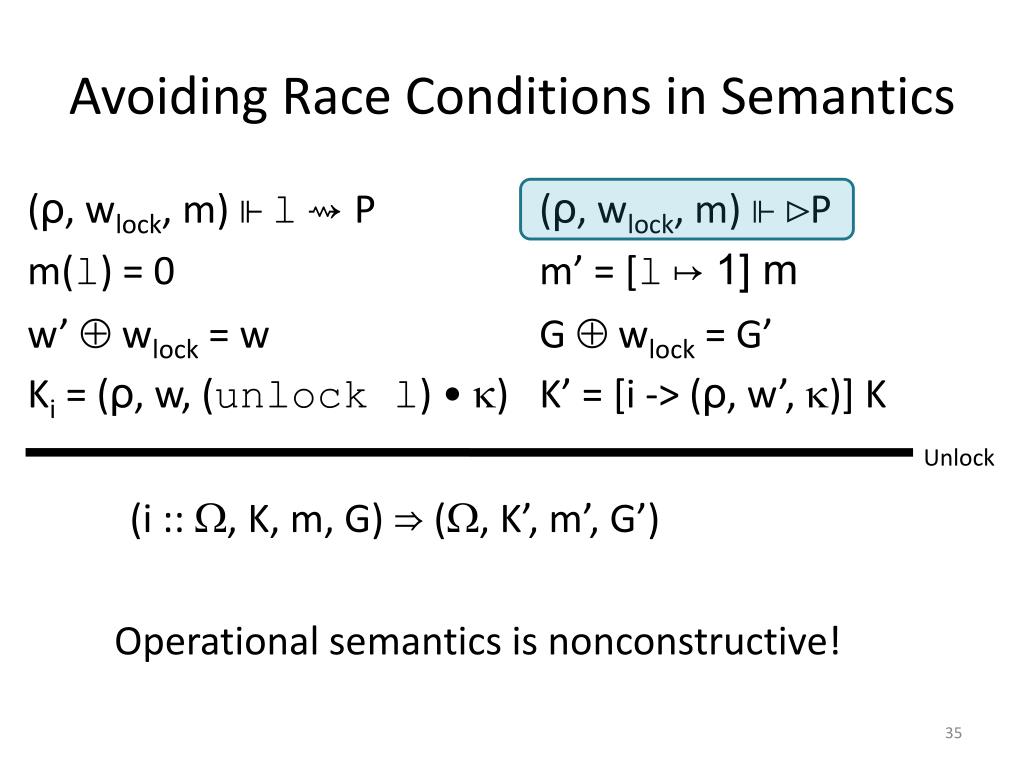

  35. Avoiding Race Conditions in Semantics (ρ, wlock, m) ⊩l⇝ P (ρ, wlock, m) ⊩ ⊳P m(l) = 0 m’ = [l↦ 1] m w’ wlock = w G wlock = G’ Ki = (ρ, w, (unlock l) • ) K’ = [i -> (ρ, w’, )] K (i :: , K, m, G) ⇒ (, K’, m’, G’) Operational semantics is nonconstructive! Unlock

  36. Avoiding Race Conditions in Semantics (ρ, wlock, m) ⊩l⇝ P (ρ, wlock, m) ⊩ ⊳P m(l) = 0 m’ = [l↦ 1] m w’ wlock = w G wlock = G’ Ki = (ρ, w, (unlock l) • ) K’ = [i -> (ρ, w’, )] K (i :: , K, m, G) ⇒ (, K’, m’, G’) Does not prevent compilation! Unlock

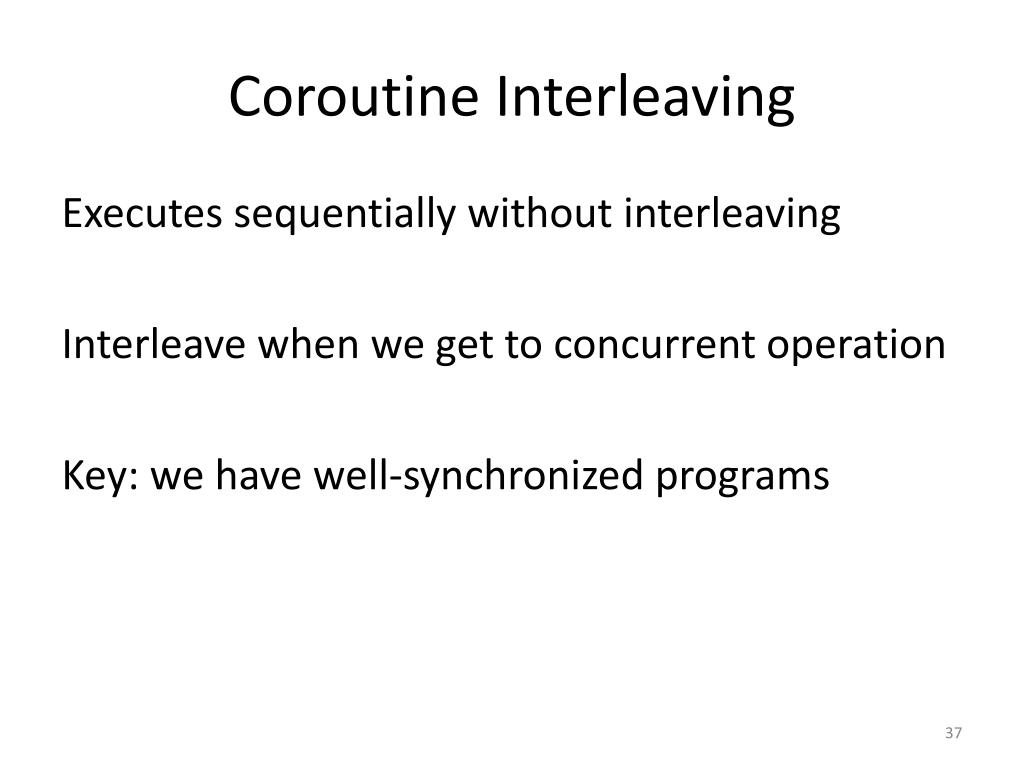

  37. Coroutine Interleaving Executes sequentially without interleaving Interleave when we get to concurrent operation Key: we have well-synchronized programs

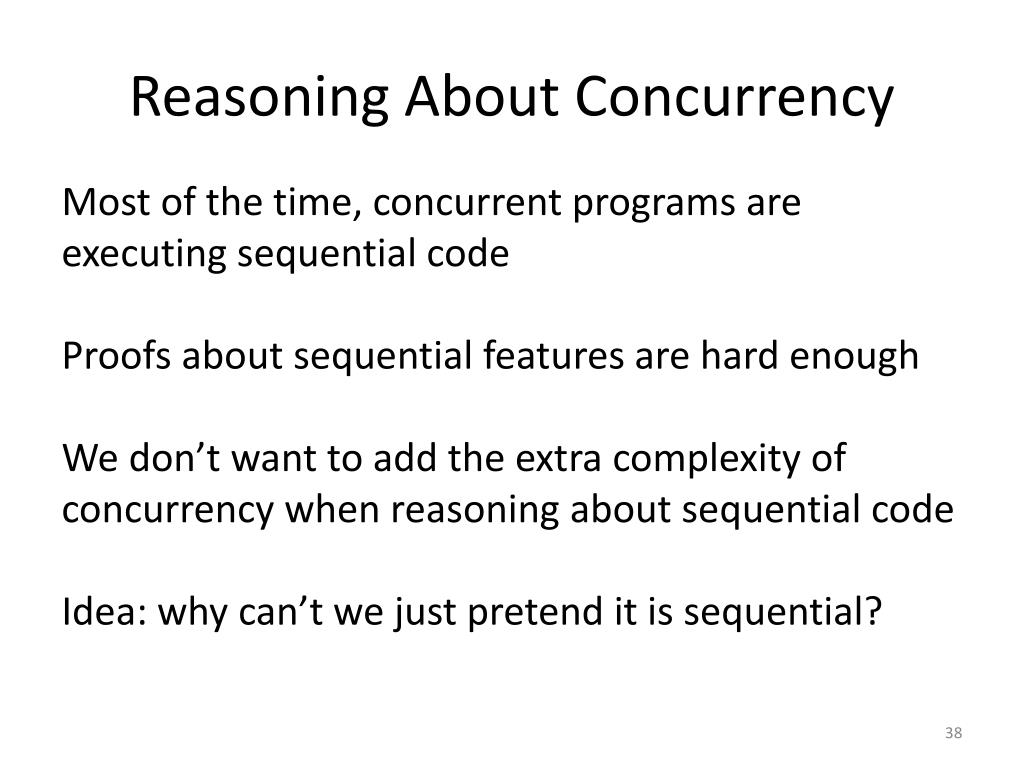

  38. Reasoning About Concurrency Most of the time, concurrent programs are executing sequential code Proofs about sequential features are hard enough We don’t want to add the extra complexity of concurrency when reasoning about sequential code Idea: why can’t we just pretend it is sequential?

  39. Sequential Reasoning x := x + 1 [y] := 2 lock l a := [x]

  40. Sequential Reasoning (1, 1) • (2, 2) • (3, 3) STUCK x := x + 1 [y] := 2 lock l a := [x] ↦ ↦

  41. Oracular Reasoning (1, 1) • (2, 2) • (3, 3) STUCK (o1, 1, 1) • (o1, 2, 2) • (o1, 3, 3) • (o2, 4, 4) • (o2, 5, 5) x := x + 1 [y] := 2 lock l a := [x] ↦ ↦ ↦ ↦ ↦ ↦

  42. Oracular Composition An oracle o is (, K, G)  is the scheduler K is the other threads G is the global world The oracle simulates running all of the other threads until the scheduler returns control to this thread

  43. Soundness of Oracular Reasoning Theorem (connection of oracle and concurrent semantics) If a thread executes in a certain way on the oracular machine, then it executes in the same way when executing in the concurrent machine

  44. Changes Required for Concurrency Concurrent Source Program (C minor) Axiomatic Semantics (Concurrent Separation Logic) Concurrent C minor Operational Semantics Program Verification Soundness Proof Concurrency-Aware Compiler Correctness Proof Concurrency-Aware CompCert Compiler Concurrent PowerPC Operational Semantics Concurrent Target Program (Power PC) Concurrent Translation Correctness Guarantee User Future Work This work (Hobor, Appel, & Zappa Nardelli)

  45. Floyd, Hoare Hoare Logic A Hoare triple is {precondition} command {postcondition} Example: {x = 2} x++ {x = 3} In our setting, the precondition and postcondition are predicates on state (locals, memory, world, …) In Coq: Definition predicate : Type := state -> Prop. A Hoare logic is a set of axioms for deriving valid triples Example: {P} c1 {Q} {Q} c2 {R} {P} c1;c2 {R}

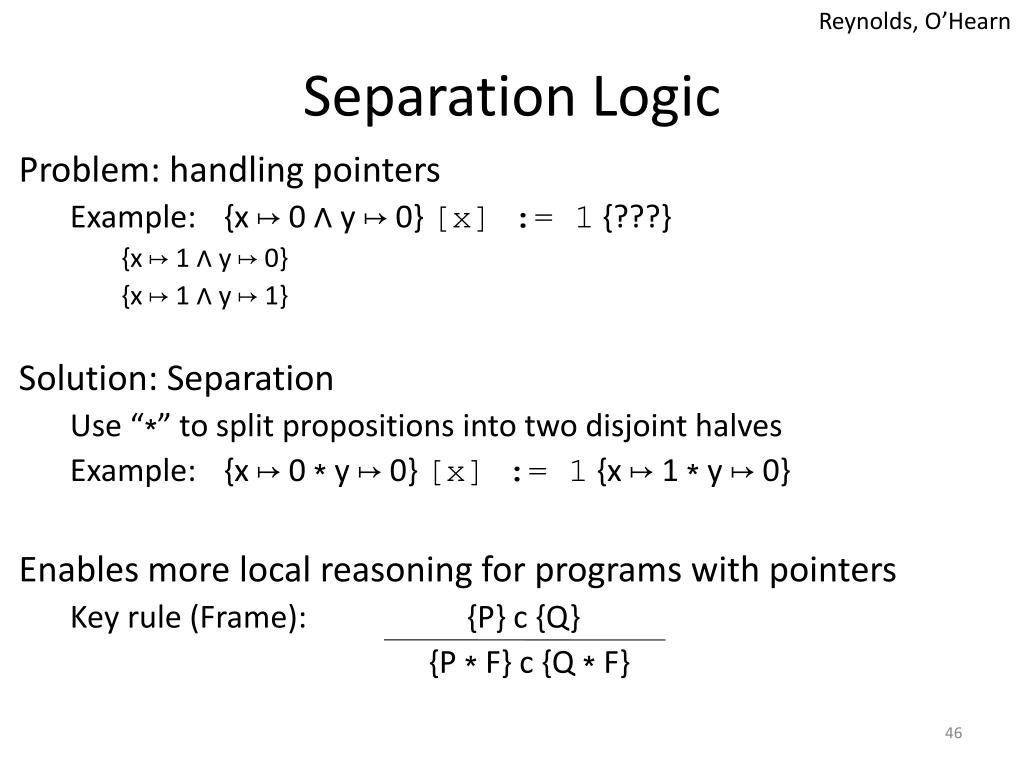

  46. Reynolds, O’Hearn Separation Logic Problem: handling pointers Example: {x ↦ 0 ⋀ y ↦ 0} [x] := 1 {???} {x ↦ 1 ⋀ y ↦ 0} {x ↦ 1 ⋀ y ↦ 1} Solution: Separation Use “∗” to split propositions into two disjoint halves Example: {x ↦ 0 ∗ y ↦ 0} [x] := 1 {x ↦ 1 ∗ y ↦ 0} Enables more local reasoning for programs with pointers Key rule (Frame): {P} c {Q} {P ∗ F} c {Q ∗ F}

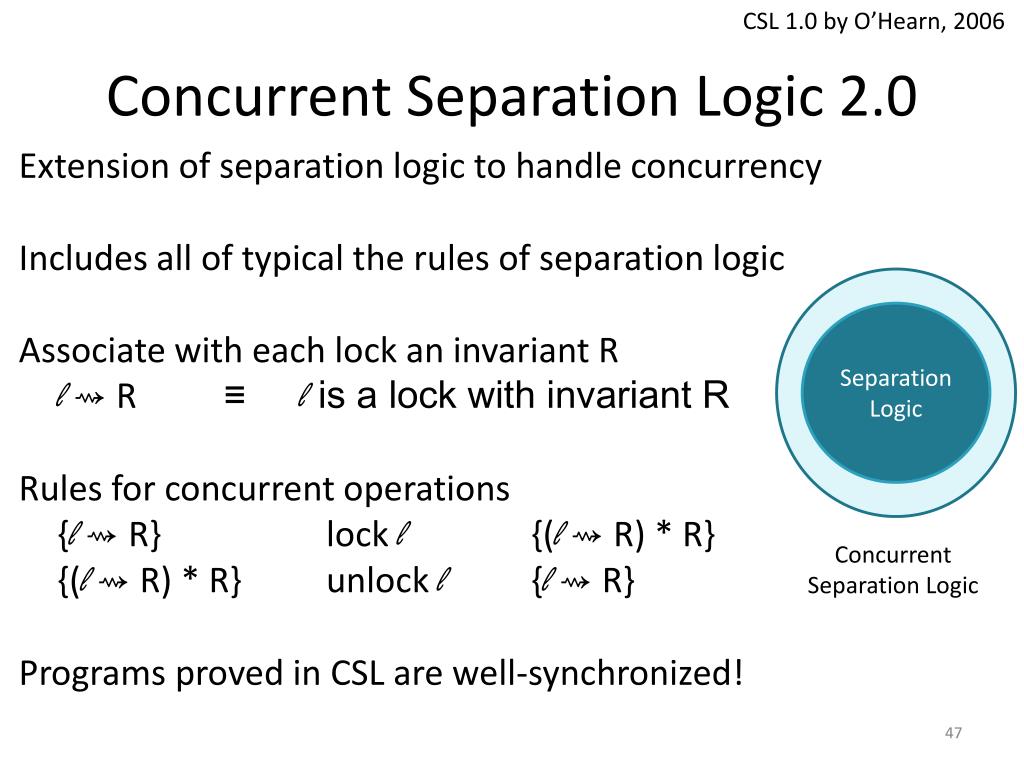

  47. CSL 1.0 by O’Hearn, 2006 Concurrent Separation Logic 2.0 Extension of separation logic to handle concurrency Includes all of typical the rules of separation logic Associate with each lock an invariant R l⇝ R ≡ l is a lock with invariant R Rules for concurrent operations {l⇝ R} lock l {(l⇝ R) * R} {(l⇝ R) * R} unlock l {l⇝ R} Programs proved in CSL are well-synchronized! Separation Logic Concurrent Separation Logic

  48. Space Thread A Thread B Thread C FB FA 𝓁⇝ R R Time w1 w wR w2 w3 Memory lock 𝓁 unlock 𝓁 FA 𝓁⇝ R R FB w1 w wR w2 w3 Memory {𝓁 ⇝ R} lock 𝓁 {(𝓁 ⇝ R) ∗ R} {FA∗ (𝓁 ⇝ R)} lock 𝓁 {FA∗ (𝓁 ⇝ R) ∗ R} (lock rule) (frame rule)

  49. Changes Required for Concurrency Concurrent Source Program (C minor) Axiomatic Semantics (Concurrent Separation Logic) Concurrent C minor Operational Semantics Program Verification Soundness Proof Concurrency-Aware Compiler Correctness Proof Concurrency-Aware CompCert Compiler Concurrent PowerPC Operational Semantics Concurrent Target Program (Power PC) Concurrent Translation Correctness Guarantee User Future Work This work (Hobor, Appel, & Zappa Nardelli)

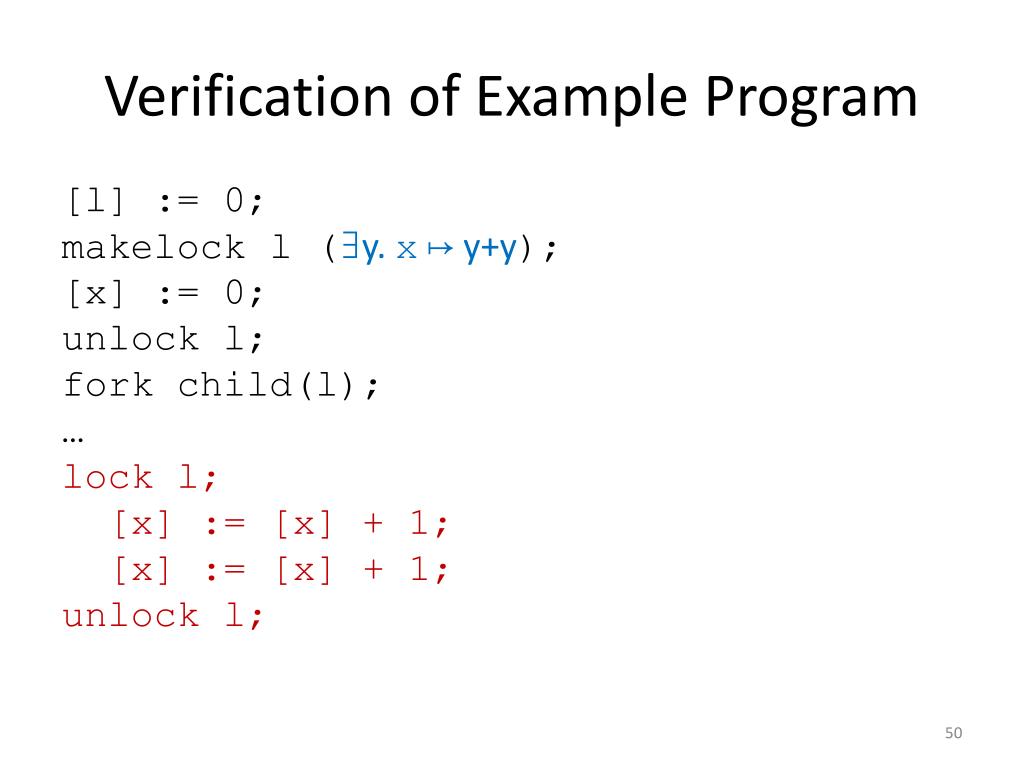

  50. Verification of Example Program [l] := 0; makelock l (∃y. x↦y+y); [x] := 0; unlock l; fork child(l); … lock l; [x] := [x] + 1; [x] := [x] + 1; unlock l;
