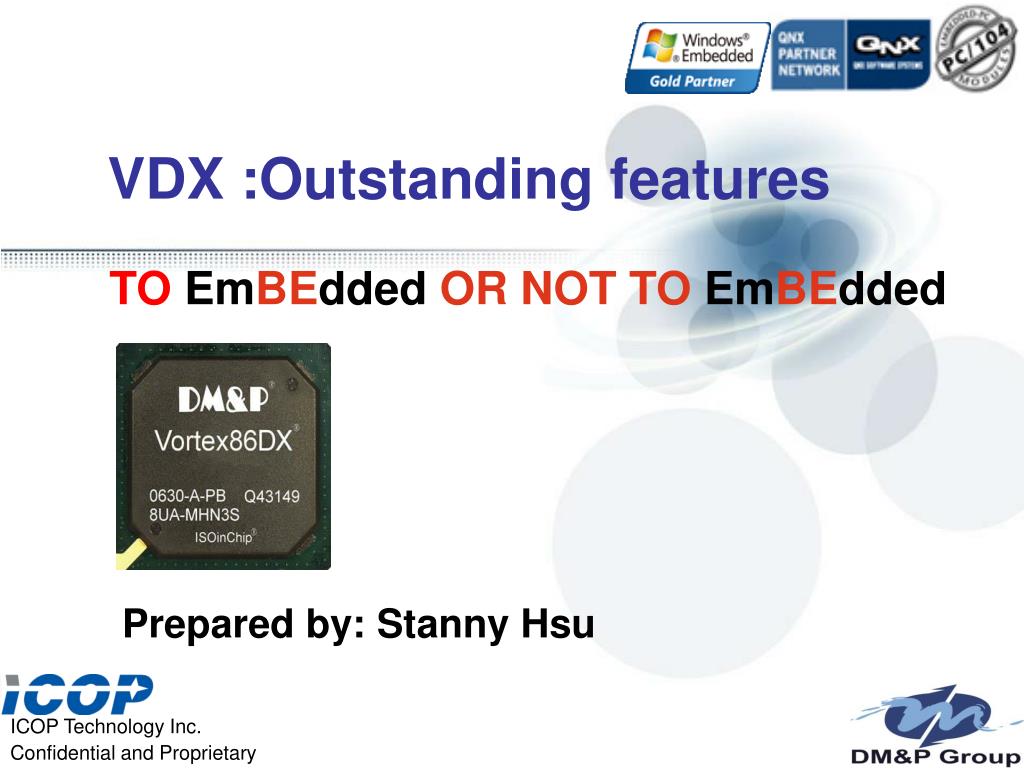

  1. VDX :Outstanding features TO EmBEdded ORNOTTO EmBEdded Prepared by: Stanny Hsu

  2. Contents Vortex86DX Sales points Sales points: VDX series with outstanding features New Product : VDX and VSX CPU board New Product New Business Model : We offer Special customized 3.5” CPU board New Business Model

  3. Design Concepts of ICOP product

  4. Sales points of VDX series TO EmBEdded ORNOTTO EmBEdded

  5. 1.0: Sales points of VDX • 10 years life-cycle support • Vortex86DX Launched 2008 • Vortex86SX Launched 2007

  6. VDX-DIP-ISA VDX-6316 VDX-6350E 1.1: Sales points of VDX • Low power consumption (+5V@320mA)----1.6W • Single voltage +5V Input (DC) • DC Power Input tolerance: +4.75V DC to +5.25V DC (±5%) +5V@400mA +5V@320mA +5V@360mA

  7. 1.2: Sales points of VDX • Cold boot at- 40 °C

  8. 1.3: Sales points of VDX • Wide Operating Temp. (-40 °C ~ +85 °C)

  9. 1.4: Sales points of VDX • Built-in PWM x 16~32 Channels (GP0/GP1/GP2/GP4) • Sample code available

  10. 1.5: Sales points of VDX • Built-inI²C Bus (Inter-Integrated Circuit) x 2: • Sample code available • User can use GPIO P34/P35/P36/P37 to implement I²C protocol • GPIO_P0 &GPIO_P1 with interrupt support (input/output) • Approved Devices • ADI ADXL345 (3-axis accelerometer) • MEMSIC MXC6202 (2-axis accelerometer) • Honeywell HMC5843 (3-Axis Digital Compass) • Devantech SRF08 (UltraSonic Ranger) • CPU board:VDX-6315/6316/6318/6300/VDX-DIP-PCI/VDX-DIP-ISA support I²C Bus Wii Joystick UltraSonic Ranger

  11. 1.6: Sales points of VDX Self-define ID for software protection ISO-in- Chip for production tracking

  12. 1.7: Sales points of VDX • Built-in SD card controller • IDE to Micro SD adapter (Support SDHC) 44pins IDE to Micro SD adapter

  13. 1.8: Sales points of VDX • Built-in MTBF Flag Counter (655xx Hours) for the life cycle of CPU. • It’s highly recommended to replace a new board when MTBF LED is flashing. MTBF LED

  14. 1.9: Sales points of VDX • Console Redirection Support: • BIOS setting • Hardware setting: Jumper setting with GPIO P3 bit7

  15. 1.9.1: Sales points of VDX • COM 2: RS-232/485/422 is selected by BIOS setting • COM 1: (GPIO 4 /TTL/PWM are Optional) • COM 3 & COM 4: (TTL Optional)

  16. 1.9.2: Sales points of VDX • Serial Port can select more IRQ (3,4,5,6,7,9,11,12,14,15) setting on BIOS

  17. 1.10: Sales points of VDX • Add IRQ trigger type setting on BIOS:Engineer can select Level or Edge triggered interrupt from BIOS setting

  18. 320x240 QVGA 640x480 VGA 800x480 7”LCD 800x600 SVGA TFT/LVDS 1024x600 8.9”/10.1”LCD 1024x768 XGA 1.11: Sales points of VDX • TFT(18bits~24bits) & LVDS (18bits)Flat Panel support • We also support Special Resolution: 480x640 3.5”~15” LCD Flat Panel

  19. 1.12: Sales points of VDX • SRAM support:512KB (Optional) • Target industry : Gaming and CNC industry • Sample code available • CPU board Support: VDX-6315/6316/VDX-6356/6357/ VDX-6351/VDX-6324/VDX-6326/6327/6328/6329 No Soldering Support SRAM

  20. 1.13: Sales points of VDX • Schematic available on ICOP website • Engineer can follow the Schematic to develop own baseboard VDX-DIP-PCI VDX-DIP-ISA VDX-6300 VDX-6319-F

  21. 2.0: Operating system support • Operating system Support: • Free DOS,DOS 6.22,DR-DOS,x-DOS,OS/2 • Win CE 5.0/ 6.0 • Win 98, Win XP Professional, Win 2000 (SP4). • Windows Embedded Standard (XPe) • Embedded Linux support: • XLinux • Debian 4.0/5.0 • Ubuntu 8.04 • Fedora 10 • CentOS 5.0 • Puppy 4.1.2 and 4.2 • Slackware 12.0 • Update driver source to www.Kernel.org (2.6.30) • We provide the Driver Package 2.6.30

  22. 2.1: Operating system support • QNX support: • QNX 6.3.2 Driver is available for testing • If you need other QNX Distributions, please contact us. • VxWorks support: • VxWorks 5.4 / 5.51 : already have successful project CPU board support: VSX-6156/VSX-6157/VDX-6356/VDX-6357 VDX-6358/VDX-6326/VDX-6329

  23. New Product :2010 TO EmBEdded ORNOTTO EmBEdded

  24. 2.1: VDX-6329 (Available Now) • Compatible with VX86-6049-L26S • 3.5” come with Realtek RTL8100B LAN Chip x2 • 256MB/6S/2USB/VGA/LCD/AUDIO/2LAN/CF/FDD

  25. 2.2: PC104-1918-USB (Available Now) • PC/104 with 7 USB HUB • USB 2.0 Standard

  26. 2.3: IDE-SATA26-H (Available now) • 2.5” IDE to SATA Module • Converts Standard SATA to IDE interface • Complies with ATA/ATAPI-6 specification • Support 16-bit Multiword DMA mode and Ultra DMA mode interface. • Complies with Serial ATA specification rev. 2.6.

  27. 2.4: VDX-6353 (Available Now) • PC/104 • 256MB/4S/2USB/VGA/LCD/LVDS/AUDIO/LAN/CF/GPIO/PWMx16 LVDS CF

  28. 2.5: VSX-6153-V2 (Available: Q3 2010) -PC/104 -128MB/4S/2USB/VGA/LCD/LVDS/AUDIO/LAN/GPIO/CF LVDS CF

  29. 2.6: VDX-6358 (Available: Q3 2010) -PC/104 come with Realtek RTL8100B LAN Chip x2 -256MB/4S/2USB/VGA/LCD/2LAN/GPIO/PWMx16 LAN2 LAN1 RTL8100B RTL8100B

  30. New business model: 3.5” TO EmBEdded ORNOTTO EmBEdded 800MHZ

  31. 3.0: 3.5” CPU board with Fully Features • 256 or 512MB/8S/3USB/VGA/LCD/LVDS/AUDIO/3LAN/GPIO/CF • /FDD/PWMx16 LAN2 LAN3 SRAM Audio

  32. 3.1: Current 3.5” CPU board • VDX-6326/6327/6328 use the same PCB VDX-6328 VDX-6326 VDX-6327

  33. 3.2.1: Customized 3.5” CPU board • First Project :CNC machine

  34. 3.2.2: Customized 3.5” CPU board • Second project :Electric discharge machines (EDM)

  35. 3.3: Why Customer choose customize 3.5”CPU board • Low cost • 10 years life-Cycle • Wide operating Temp • No NRE fee • Free LCD BIOS • Free customized BIOS • Self-define ID for software protection • Strong commitment to technical Support • Easy to replace LX800 and GX1 CPU board • MOQ: 100pcs only for 3.5”

  36. Thank You !
