  1. Pallavi Joshi* MayurNaik† KoushikSen* David Gay‡ *UC Berkeley †Intel Labs Berkeley ‡Google Inc An Effective Dynamic Analysis for Detecting Generalized Deadlocks

  2. Motivation • Today’s concurrent programs are rife with deadlocks • 6,500/198,000 (~ 3%) of bug reports in Sun’s bug database at http://bugs.sun.com are deadlocks • Deadlocks are difficult to detect • Usually triggered non-deterministically, on specific thread schedules • Fixing other concurrency bugs like races can introduce new deadlocks • Our past experience with reporting races: developers often ask for deadlock checker

  3. Motivation • Most of previous deadlock detection work has focused on resource deadlocks • Example // Thread 1 // Thread 2 sync(L1) { sync(L2) { sync(L2) { sync(L1) { …. …. } } } } L1 T1 T2 L2

  4. Motivation • Other kinds of deadlocks, e.g. communication deadlocks, are equally notorious • Example //Thread 1 // Thread 2 if(!b) { b = true; sync(L) { sync(L) { L.wait(); L.notify(); } } } T1 T2 if(!b) b = true notify L wait L b is initially false

  5. Goal • Build a dynamic analysis based tool that • detects communication deadlocks • scales to large programs • has low false positive rate

  6. Our Initial Effort • Take cue from existing dynamic analyses for other concurrency errors • Existing dynamic analyses check for the violation of an idiom • Races • every shared variable is consistently protected by a lock • Resource deadlocks • no cycle in lockgraph • Atomicity violations • atomic blocks should have the pattern (R+B)*N(L+B)*

  7. Our Initial Effort • Which idiom should we check for communication deadlocks?

  8. Our Initial Effort • Recommended usage of condition variables // F1 // F2 sync (L) { sync (L) { while (!b) b = true; L.wait (); L.notifyAll (); assert (b == true); } }

  9. Our Initial Effort • Recommended usage pattern (or idiom) based checking does not work • Example // Thread 1 // Thread 2 sync (L1) sync (L2) while (!b) L2.wait (); sync (L1) sync (L2) L2.notifyAll (); No violation of idiom, but still there is a deadlock!

  10. Revisiting existing analyses • Relax the dependencies between relevant events from different threads • verify all possible event orderings for errors • use data structures to check idioms (vector clocks, lock-graphs etc.) to implicitly verify all event orderings

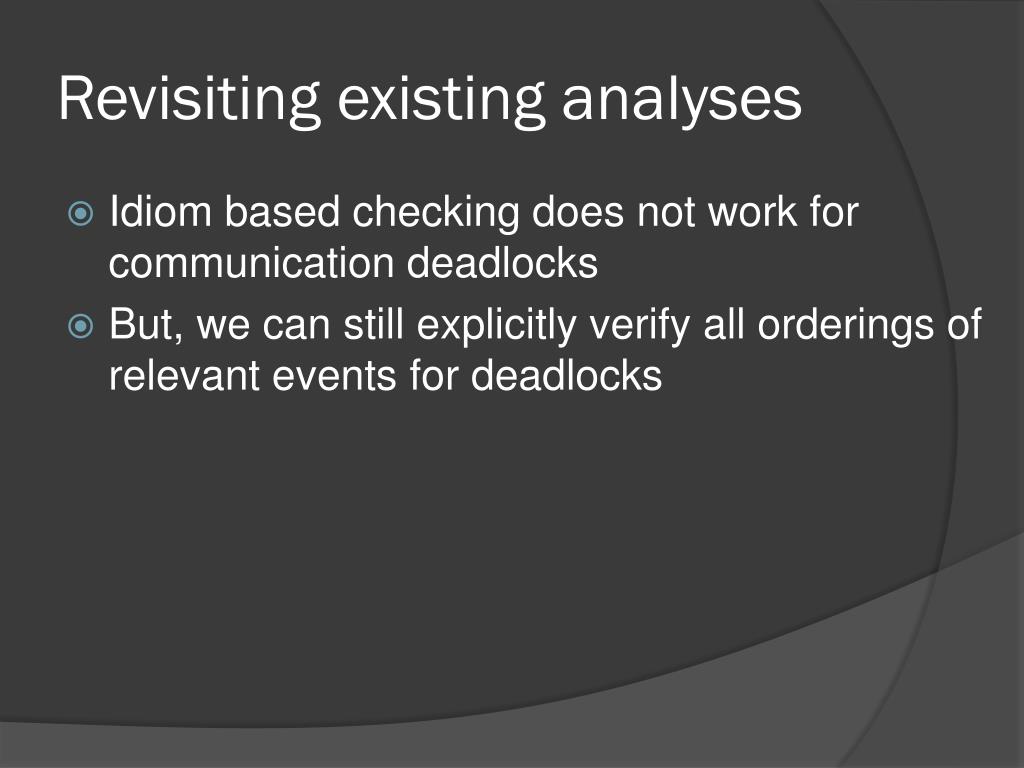

  11. Revisiting existing analyses • Idiom based checking does not work for communication deadlocks • But, we can still explicitly verify all orderings of relevant events for deadlocks

  12. Trace Program // Thread 1 // Thread 2 if (!b) { b = true; sync (L) { sync (L) { L.wait (); L.notify (); } } } b is initially false T2 T1 lock L wait L lock L notify L unlock L unlock L

  13. Trace Program T2 T1 • Thread t1 { • lock L; • wait L; • unlock L; • } lock L wait L • Thread t2 { • lock L; • notify L; • unlock L; • } lock L notify L unlock L unlock L

  14. Trace Program T2 T1 • Thread t1 { Thread t2 { • lock L; lock L; • wait L; || notify L; • unlock L; unlock L; • } } lock L wait L lock L notify L unlock L unlock L

  15. Trace Program • Built out of only a subset of events • usually much smaller than original program • Throws away a lot of dependencies between threads • could give false positives • but increases coverage

  16. Trace Program : Add Dependencies // Thread 1 // Thread 2 if (!b) { b = true; sync (L) { sync (L) { L.wait (); L.notify (); } } } b is initially false T2 T1 if (!b) lock L wait L unlock L b = true lock L notify L unlock L

  17. Trace Program : Add Dependencies T2 T1 if (!b) • Thread t1 { • if (!b) { • lock L; • wait L; • unlock L; • } • } lock L • Thread t2 { • b = true; • lock L; • notify L; • unlock L; • } wait L unlock L b = true lock L notify L unlock L

  18. Trace Program : Add Power • Use static analysis to add to the predictive power of the trace program • Thread t1 { • if (!b) { • lock L; • wait L; • unlock L; • } • } // Thread 1 // Thread 2 @ !b => L.wait() if (!b) { b = true; sync (L) { sync (L) { L.wait (); L.notify (); } } } b is initially false

  19. Trace Program : Other Errors • Effective for concurrency errors that cannot be detected using an idiom • communication deadlocks, deadlocks because of exceptions, … // Thread 1 // Thread 2 while (!b) { try{ sync (L) { foo(); L.wait (); b = true; } sync (L) { L.notify(); } } } catch (Exception e) {…} b is initially false • can throw an exception

  20. Implementation and Evaluation • Implemented for deadlock detection • both communication and resource deadlocks • Built a prototype tool for Java called CHECKMATE • Experimented with a number of Java libraries and applications • log4j, pool, felix, lucene, jgroups, jruby.... • Found both previously known and unknown deadlocks (17 in total)

  21. Conclusion • CHECKMATE is a novel dynamic analysis for finding deadlocks • both resource and communication deadlocks • Effective on a number of real-world Java benchmarks • Trace program based approach is generic • can be applied to other errors, e.g. deadlocks because of exceptions
