  1. ISA 562Information Systems Theory and Practice 10. Digital Certificates

  2. PUBLIC-KEY CERTIFICATES-1 • What is a certificate?: • A statement claiming some binding of attribute values • Why do we need them? • Identifying entities outside of domain • Distributed access control • What do they do? • Propagates claims: • Certifier makes a claim that can be checked for authenticity and accepted if the recipient believe the claimant to be truthful • Manages trust – distributed trust management

  3. X.509v1 CERTIFICATE VERSION SERIAL NUMBER SIGNATURE ALGORIT ISSUER VALIDITY SUBJECT SUBJECT PUB KEY INFO SIGNATURE 1 1234567891011121314 RSA+MD5, 512 C=US, S=VA, O=GMU, OU=ISE 9/9/99-1/1/1 C=US, S=VA, O=GMU, OU=ISE, CN=Alice RSA, 1024, xxxxxx SIGNATURE

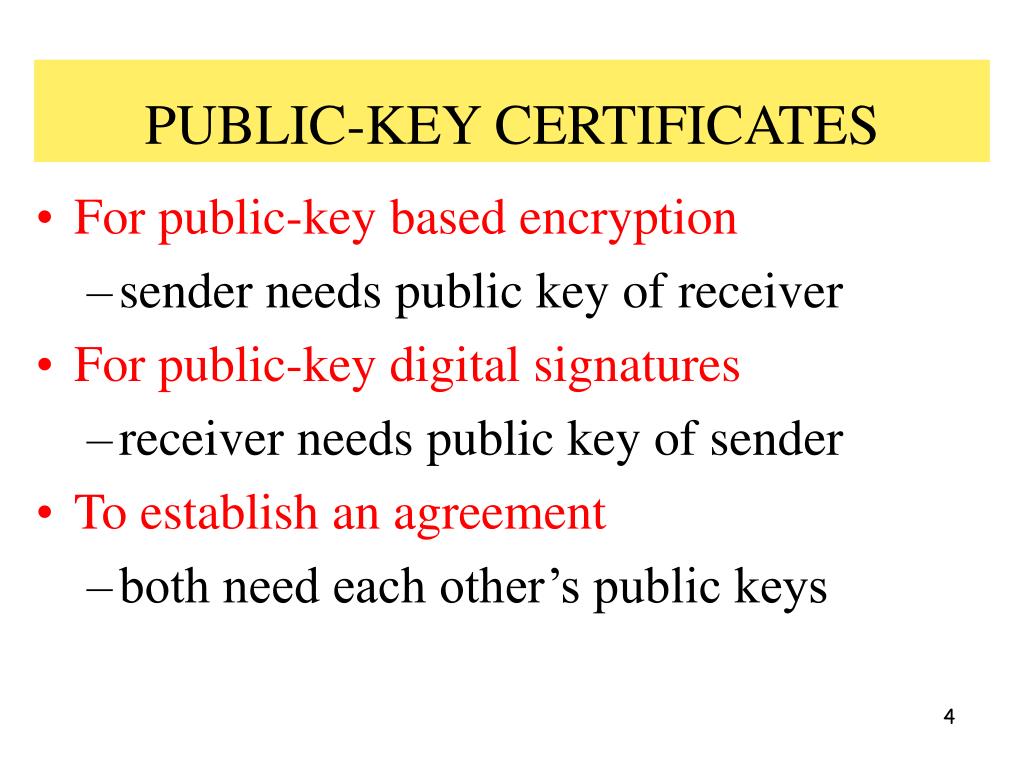

  4. PUBLIC-KEY CERTIFICATES • For public-key based encryption • sender needs public key of receiver • For public-key digital signatures • receiver needs public key of sender • To establish an agreement • both need each other’s public keys

  5. CERTIFICATE TRUST • Acquisition of public key of the issuer to verify the signature • Go to through a certificate chain • Whether or not to trust certificates signed by the issuer for this subject

  6. PEM CERTIFICATION GRAPH Internet Policy Registration Authority IPRA Policy Certification Authorities (PCAs) PERSONA RESIDENTIAL MID-LEVEL ASSURANCE HIGH ASSURANCE Anonymous MITRE GMU Virginia Certification Authorities (CAs) Abrams LEO Fairfax CS Subjects Grover Grover

  7. PUBLIC-KEY CERTIFICATES • What is a certificate?: • A statement claiming some binding of attribute values • Why do we need them? • Identifying entities outside of domain • Distributed access control • What do they do? • Propagate claims: • Certifier makes a claim that can be checked for authenticity and accepted if the recipient believe the claimant to be truthful • Manages trust – distributed trust management

  8. SECURE ELECTRONIC TRANSACTIONS (SET) CA HIERARCHY Root Brand Brand Brand Geo-Political Bank Acquirer Customer Merchant

  9. Certificate Revocation • Sometimes, the issuer need to recant certificate • The subject’s attributes have changed • The subject misused the certificate • There are forged certificates • Published in a certificate revocation list

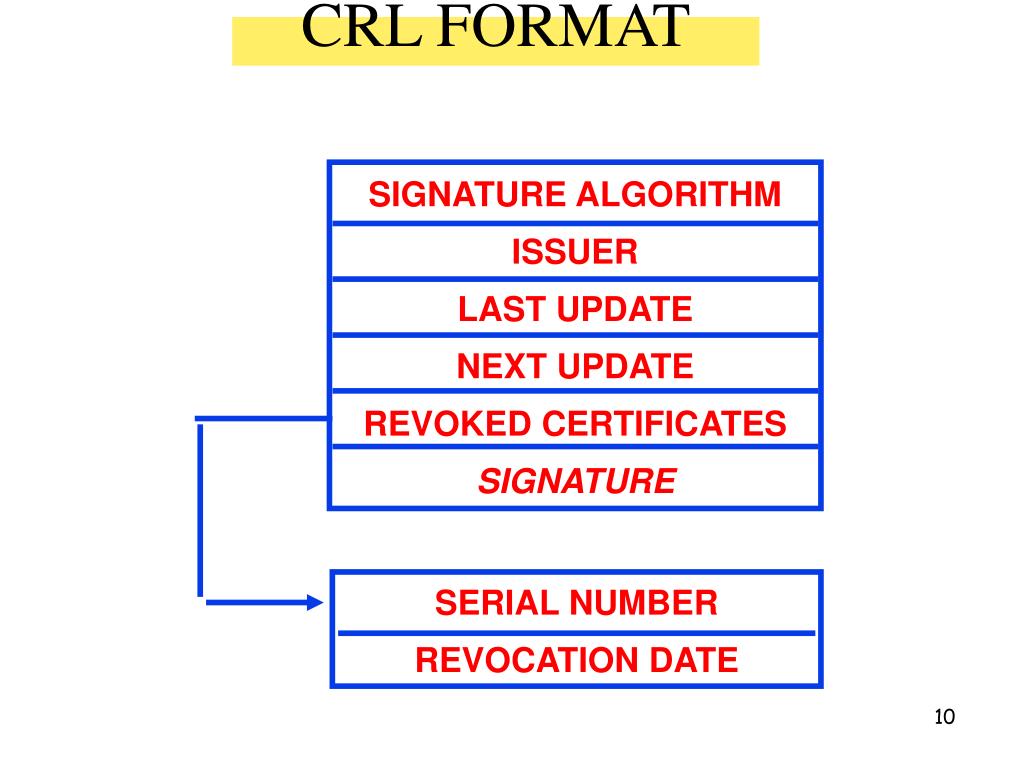

  10. CRL FORMAT SIGNATURE ALGORITHM ISSUER LAST UPDATE NEXT UPDATE REVOKED CERTIFICATES SIGNATURE SERIAL NUMBER REVOCATION DATE

  11. X.509 CERTIFICATES • X.509v1 • basic • X.509v2 • adds unique identifiers to prevent against reuse of X.500 names • X.509v3 • adds many extensions • can be further extended

  12. X.509v3 CERTIFICATE INNOVATIONS • distinguish various certificates • signature, encryption, key-agreement • identification info in addition to X.500 name • internet names: email addresses, host names, URLs • issuer can state policy and usage • good enough for casual email but not for signing checks • limits on use of signature keys for further certification • extensible • proprietary extensions can be defined and registered • attribute certificates • ongoing work

  13. X.509v2 CRL INNOVATIONS • CRL distribution points • indirect CRLs • delta CRLs • revocation reason • push CRLs

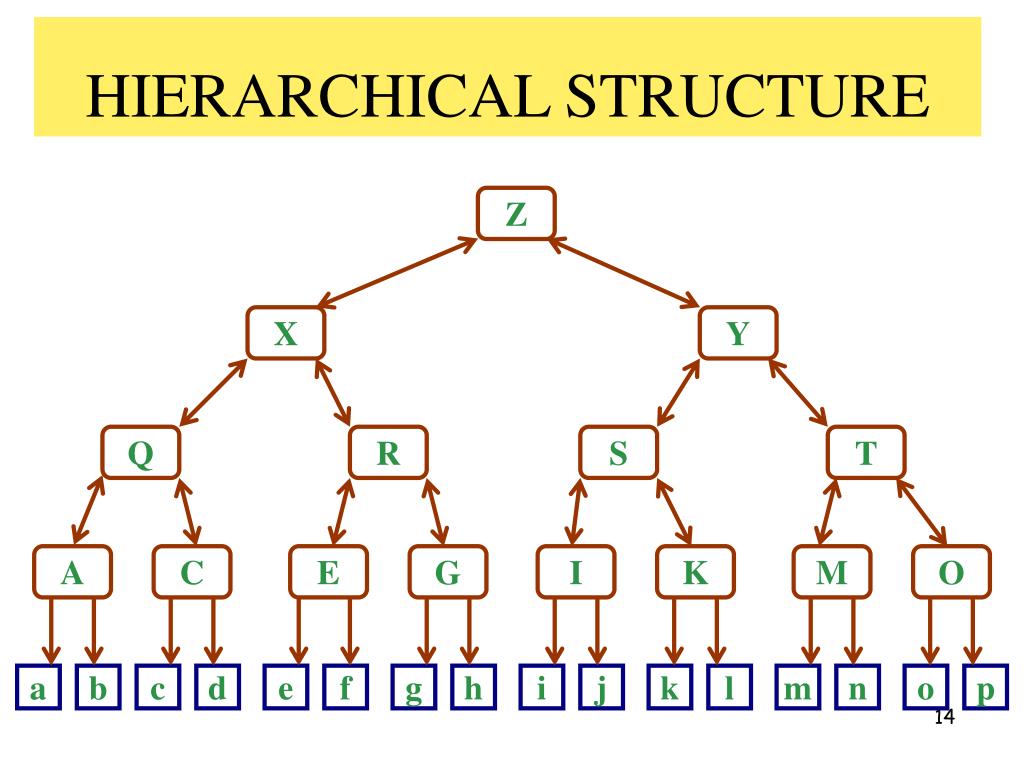

  14. HIERARCHICAL STRUCTURE Z X Y Q R S T A C E G I K M O a b c d e f g h i j k l m n o p

  15. HIERARCHICAL STRUCTURE WITH ADDED LINKS Z X Y Q R S T A C E G I K M O a b c d e f g h i j k l m n o p

  16. TOP-DOWN HIERARCHICAL STRUCTURE Z X Y Q R S T A C E G I K M O a b c d e f g h i j k l m n o p

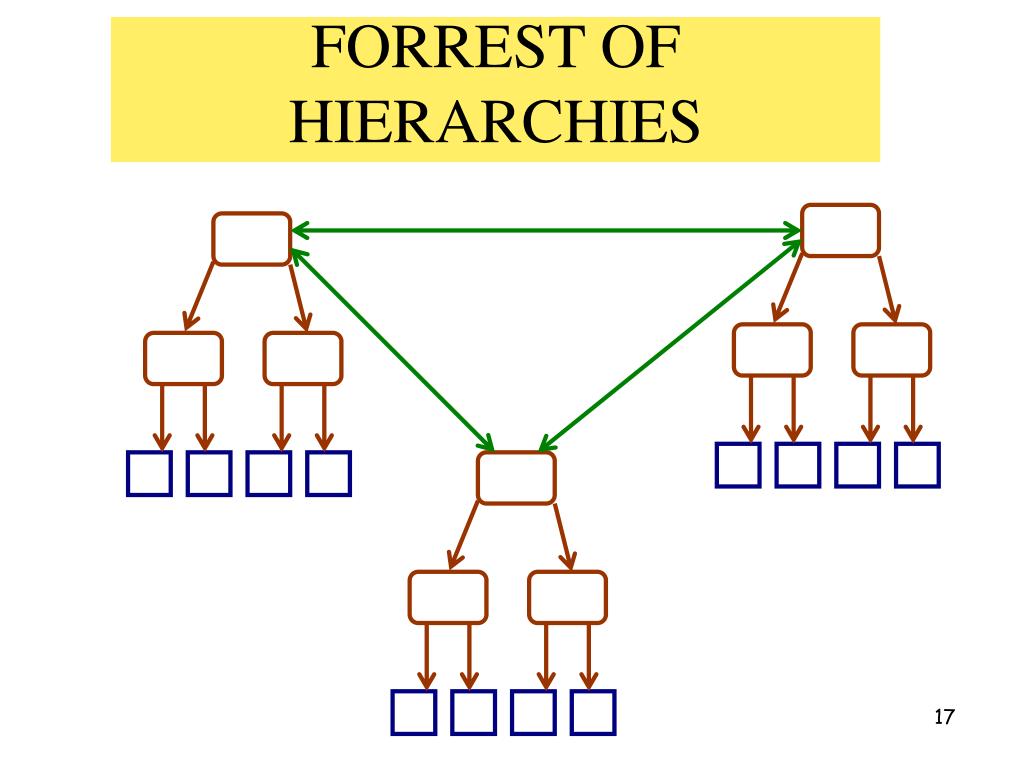

  17. FORREST OF HIERARCHIES

  18. MULTIPLE ROOT CA’s + INTERMEDIATE CA’s MODEL X S T Q R A C E G I K M O a b c d e f g h i j k l m n o p

  19. THE CERTIFICATE TRIANGLE user X.509 attribute certificate X.509 identity certificate attribute public-key SPKI certificate

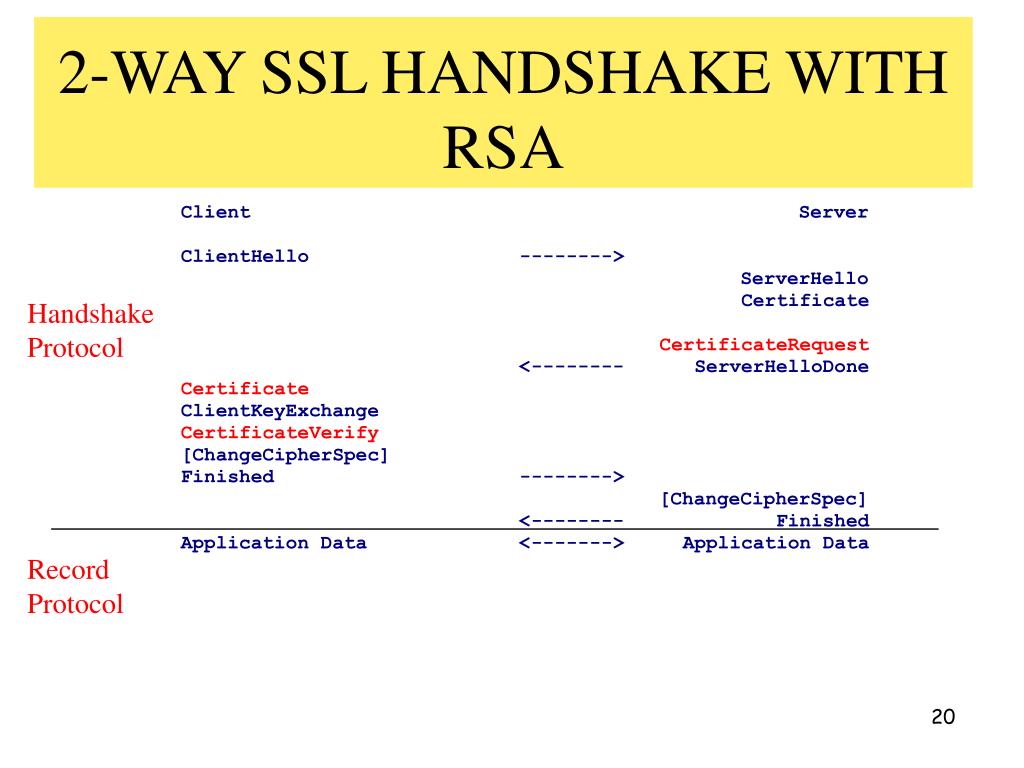

  20. 2-WAY SSL HANDSHAKE WITH RSA Handshake Protocol Record Protocol

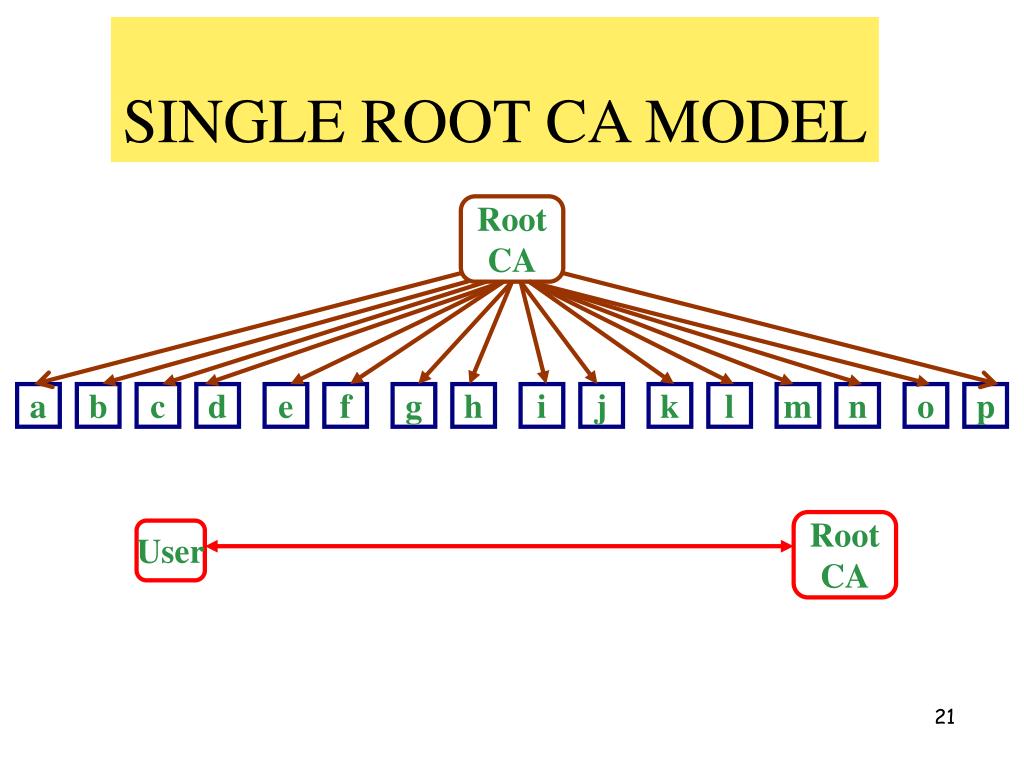

  21. SINGLE ROOT CA MODEL Root CA a b c d e f g h i j k l m n o p Root CA User

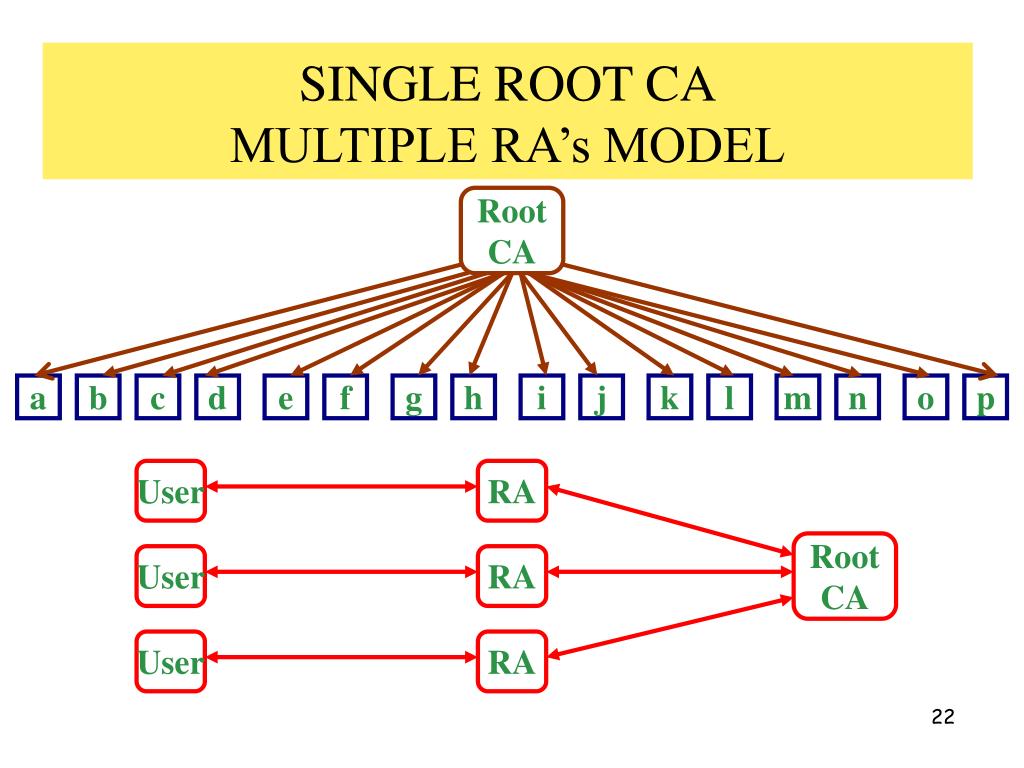

  22. User RA User RA User RA SINGLE ROOT CAMULTIPLE RA’s MODEL Root CA a b c d e f g h i j k l m n o p Root CA

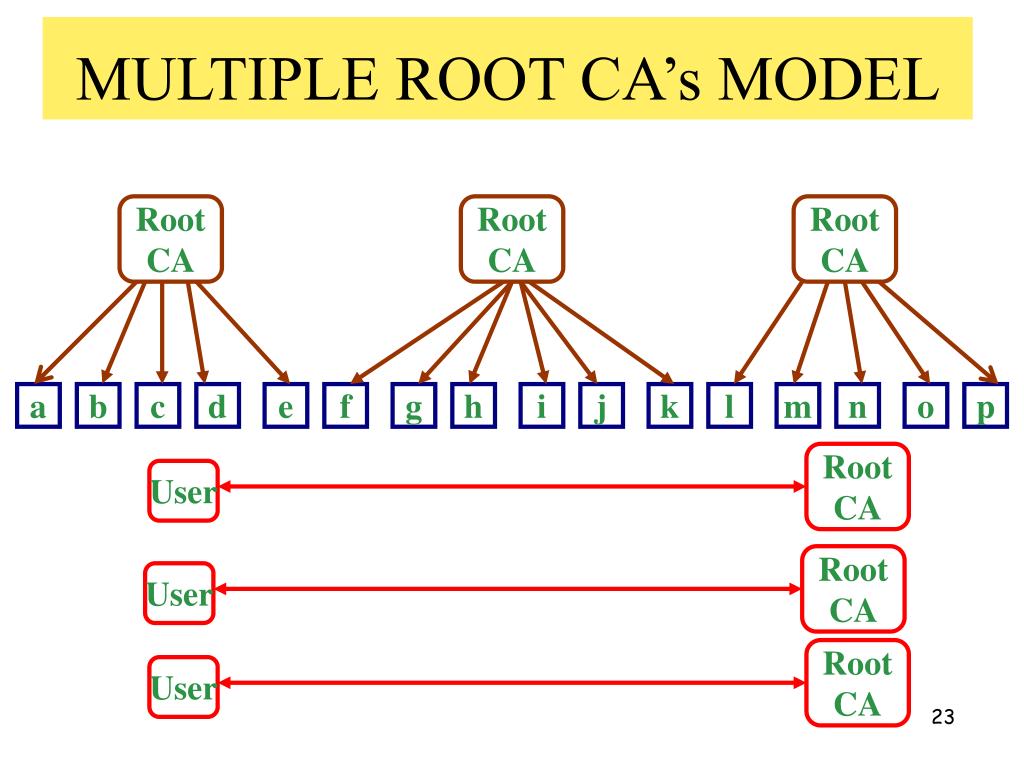

  23. MULTIPLE ROOT CA’s MODEL Root CA Root CA Root CA a b c d e f g h i j k l m n o p Root CA User Root CA User Root CA User

  24. ROOT CA + INTERMEDIATE CA’s MODEL Z X Y Q R S T A C E G I K M O a b c d e f g h i j k l m n o p

  25. MULTIPLE ROOT CA’s PLUS INTERMEDIATE CA’s MODEL X S T Q R A C E G I K M O a b c d e f g h i j k l m n o p

  26. MULTIPLE ROOT CA’s PLUS INTERMEDIATE CA’s MODEL X S T Q R A C E G I K M O a b c d e f g h i j k l m n o p

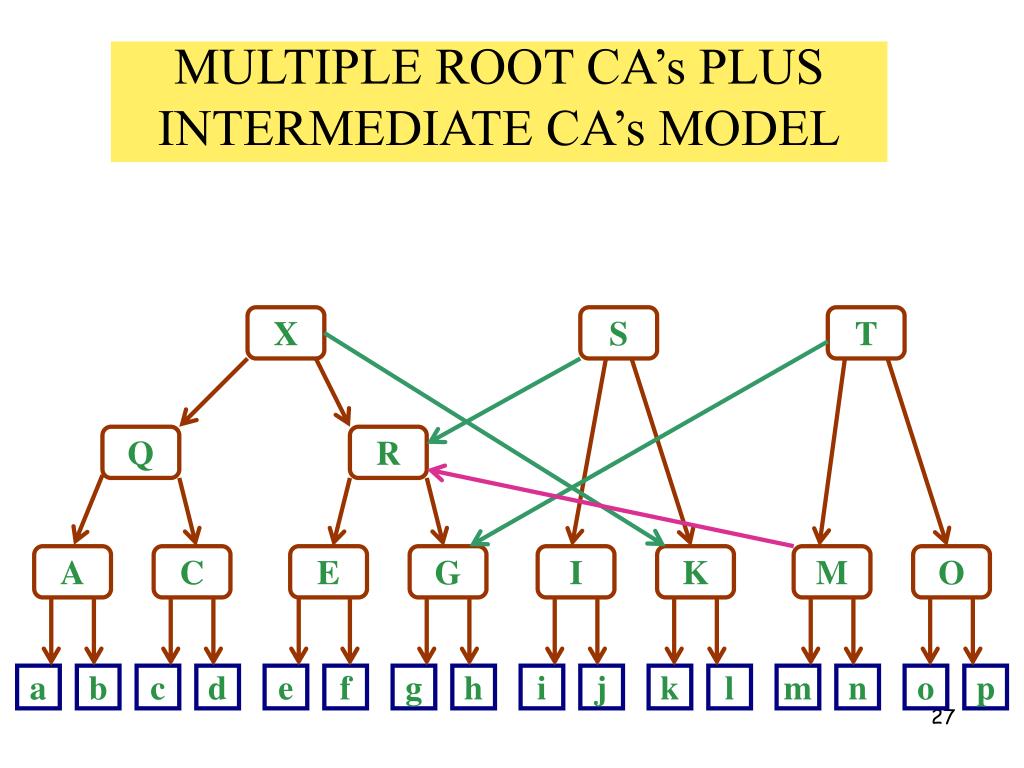

  27. MULTIPLE ROOT CA’s PLUS INTERMEDIATE CA’s MODEL X S T Q R A C E G I K M O a b c d e f g h i j k l m n o p

  28. MULTIPLE ROOT CA’s + INTERMEDIATE CA’s MODEL • Essentially the model on the web today • Deployed in server-side SSL mode • Client-side SSL mode yet to happen

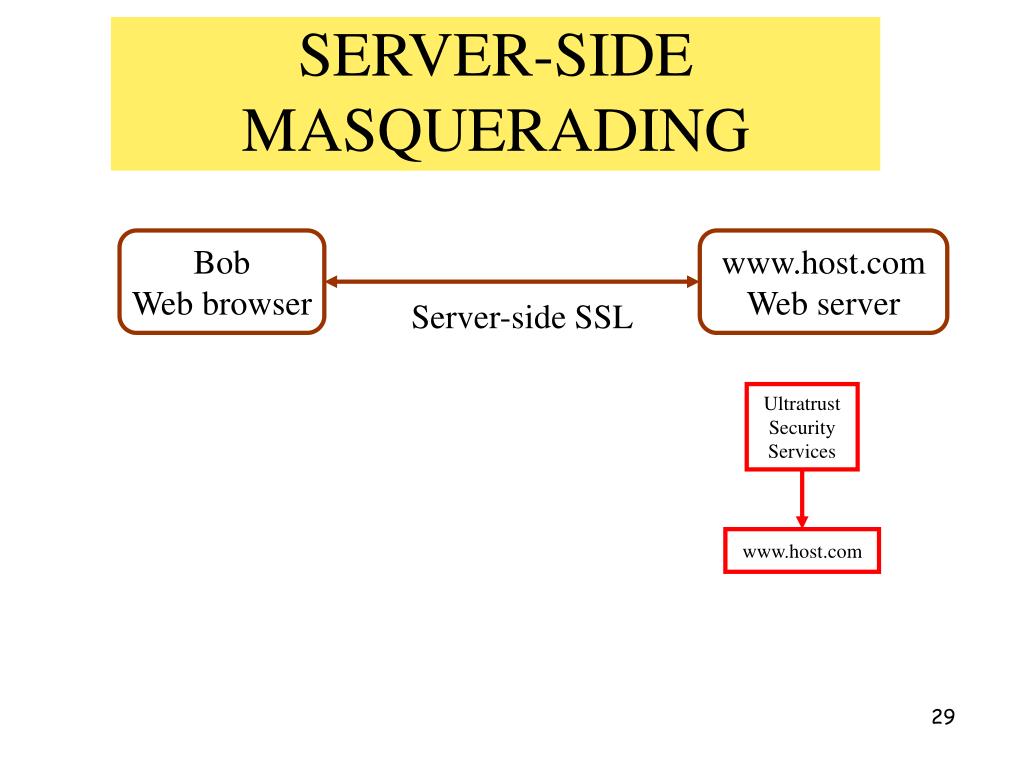

  29. SERVER-SIDE MASQUERADING Bob Web browser www.host.com Web server Server-side SSL Ultratrust Security Services www.host.com

  30. SERVER-SIDE MASQUERADING Bob Web browser www.host.com Web server Ultratrust Security Services Server-side SSL Server-side SSL Mallory’s Web server www.host.com BIMM Corporation www.host.com

  31. SERVER-SIDE MASQUERADING Bob Web browser www.host.com Web server Ultratrust Security Services Server-side SSL Server-side SSL BIMM Corporation Mallory’s Web server www.host.com Ultratrust Security Services www.host.com

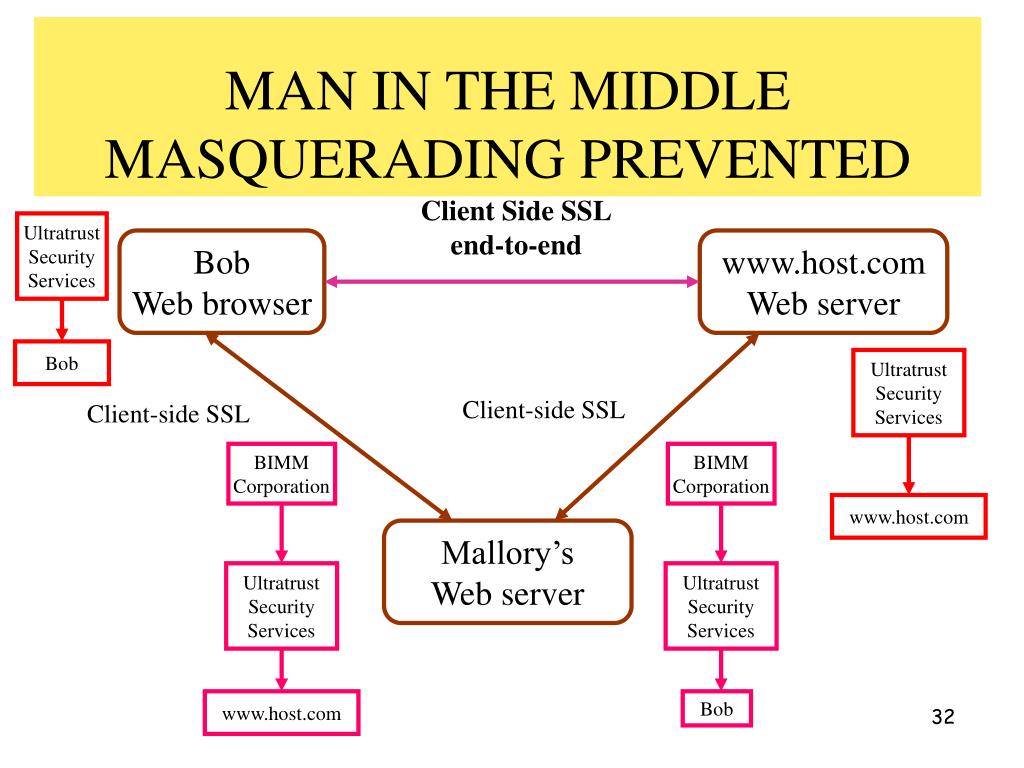

  32. MAN IN THE MIDDLEMASQUERADING PREVENTED Client Side SSL end-to-end Ultratrust Security Services Bob Web browser www.host.com Web server Bob Ultratrust Security Services Client-side SSL Client-side SSL BIMM Corporation BIMM Corporation www.host.com Mallory’s Web server Ultratrust Security Services Ultratrust Security Services www.host.com Bob

  33. ATTRIBUTE-BASED CLIENT SIDE MASQUERADING Joe@anywhere Web browser BIMM.com Web server Client-side SSL Ultratrust Security Services Ultratrust Security Services Joe@anywhere BIMM.com

  34. ATTRIBUTE-BASED CLIENT SIDE MASQUERADING Alice@SRPC Web browser BIMM.com Web server Client-side SSL SRPC Ultratrust Security Services Alice@SRPC BIMM.com

  35. ATTRIBUTE-BASED CLIENT SIDE MASQUERADING Bob@PPC Web browser BIMM.com Web server Client-side SSL PPC Ultratrust Security Services Bob@PPC BIMM.com

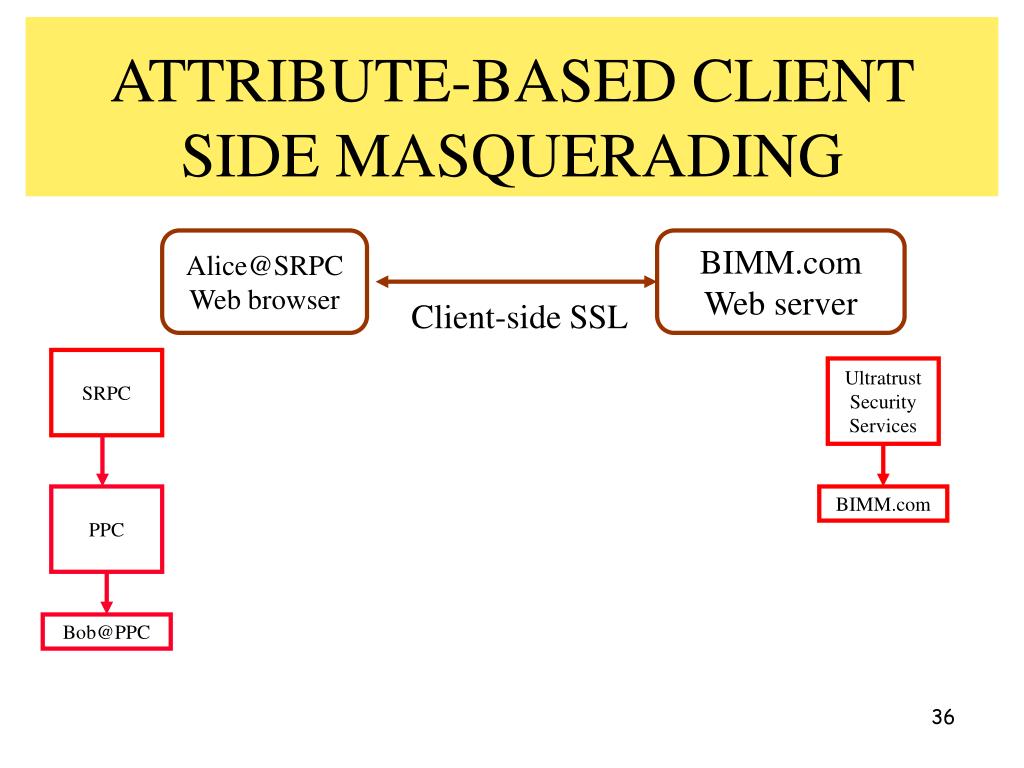

  36. ATTRIBUTE-BASED CLIENT SIDE MASQUERADING Alice@SRPC Web browser BIMM.com Web server Client-side SSL SRPC Ultratrust Security Services PPC BIMM.com Bob@PPC
