Retention, Stability & Support Rola M. Shadid, BDS, MSc
Retention Resistance to denture removal in a direction opposite that of its insertion.* Stability Resistance of denture movement under the effect of horizontal or rotational forces. Support Resistance of movement of denture toward the basal seat area.
Dislodging Forces • The act of chewing foods • Adhesive nature of certain foods • Gravity (for upper denture) * • Surrounding musculature • Prematurities in occlusion
Retention
Retention • Primary retention is from basal seat • Secondary retention by improving stability & minimizing dislodging forces
Primary Retention • Physical means • Mechanical means

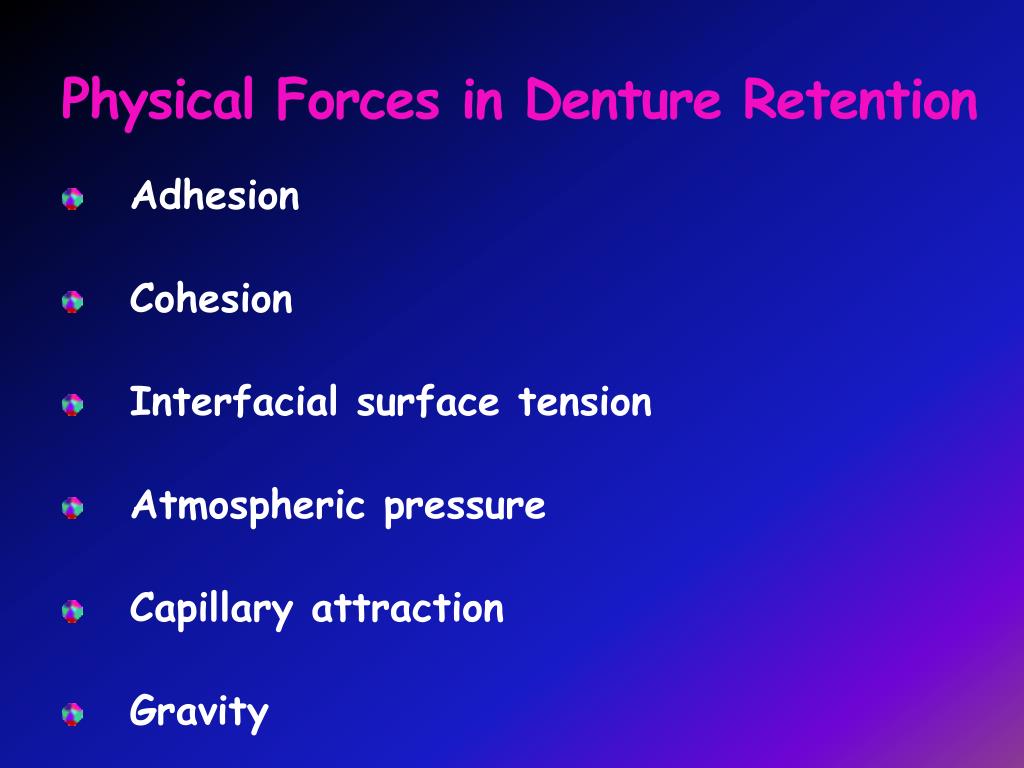

Physical Forces in Denture Retention • Adhesion • Cohesion • Interfacial surface tension • Atmospheric pressure • Capillary attraction • Gravity

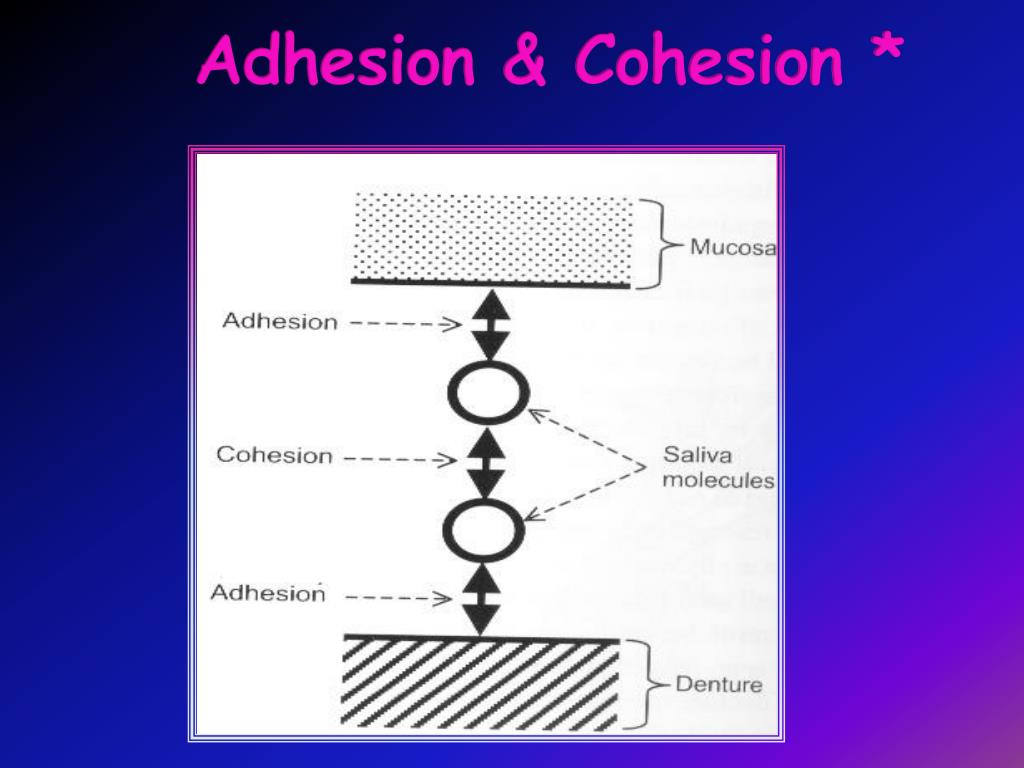

Adhesion & Cohesion *
Interfacial Surface Tension* Figure: retention due to pressure differential between saliva film & the air

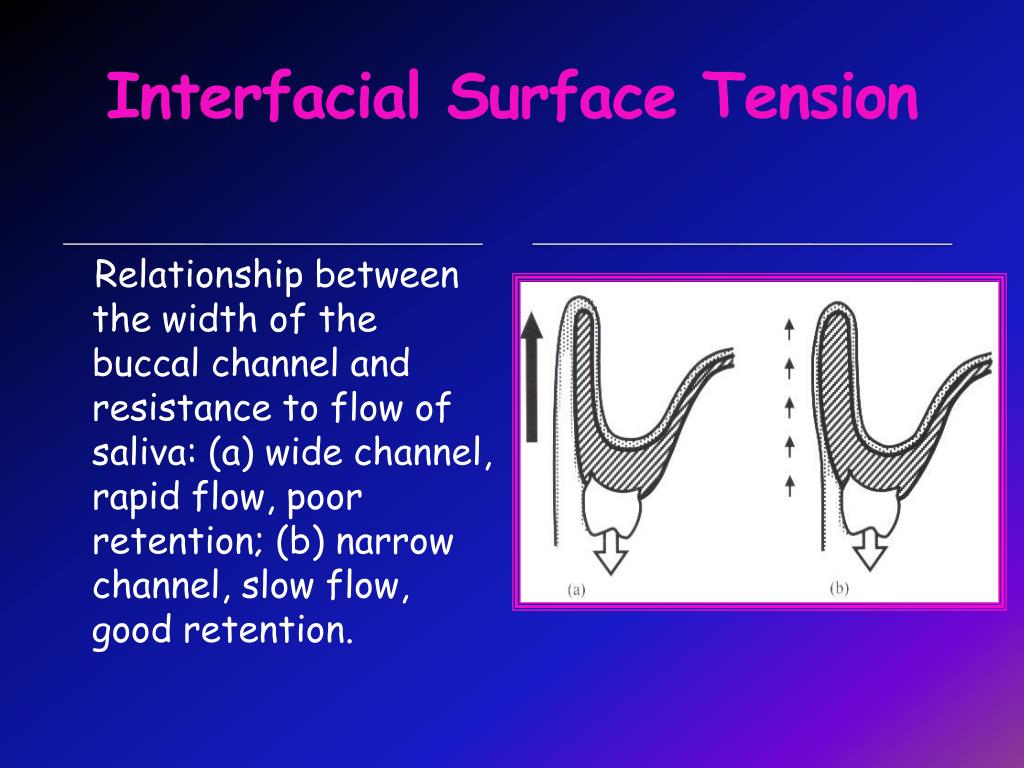

Interfacial Surface Tension Relationship between the width of the buccal channel and resistance to flow of saliva: (a) wide channel, rapid flow, poor retention; (b) narrow channel, slow flow, good retention.
Physical Forces in Retention • Atmospheric pressure * • Capillary attraction
Factors Affecting the Physical Forces • Saliva: quantity & quality * • Surface area: the larger the surface area, the greater the retention.# • Intimacy of contact: the closer the contact between the tissue and the impression surface of denture, the greater the retention. • Peripheral seal
Peripheral Seal • The denture border should be shaped so that the channel between it and the sulcus tissues is as small as possible. • It is not possible to maintain a close approximation between the border of a denture and the mucosal reflection in the sulcus at all times because the depth of the sulcus varies during function.

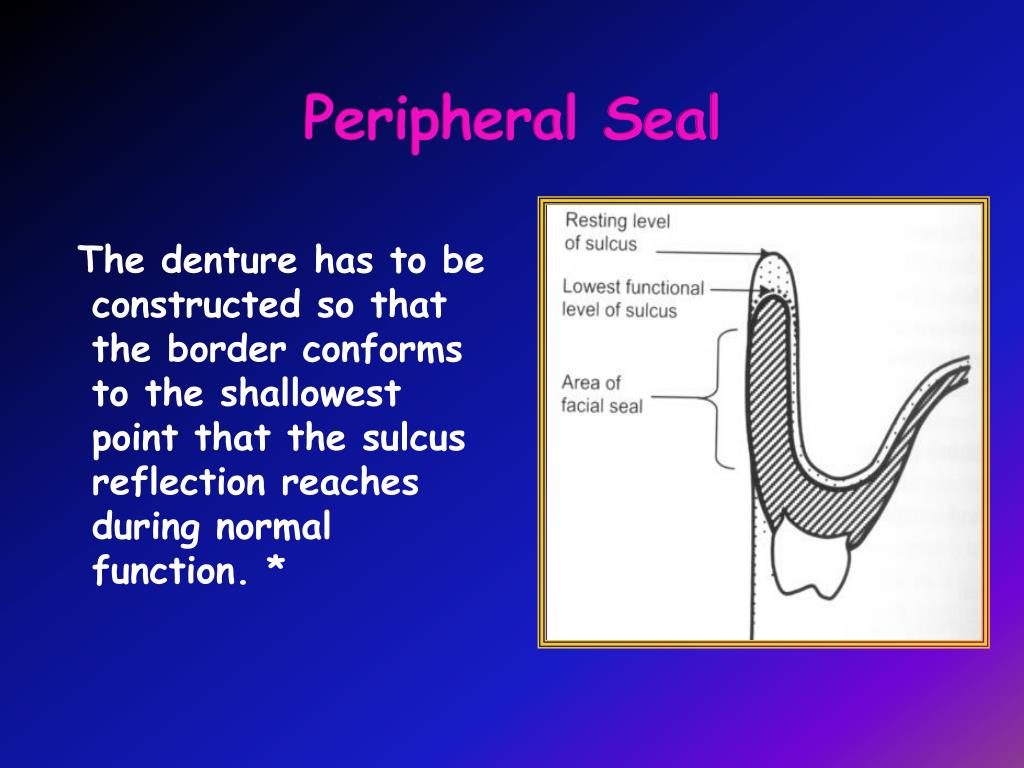

Peripheral Seal The denture has to be constructed so that the border conforms to the shallowest point that the sulcus reflection reaches during normal function. *

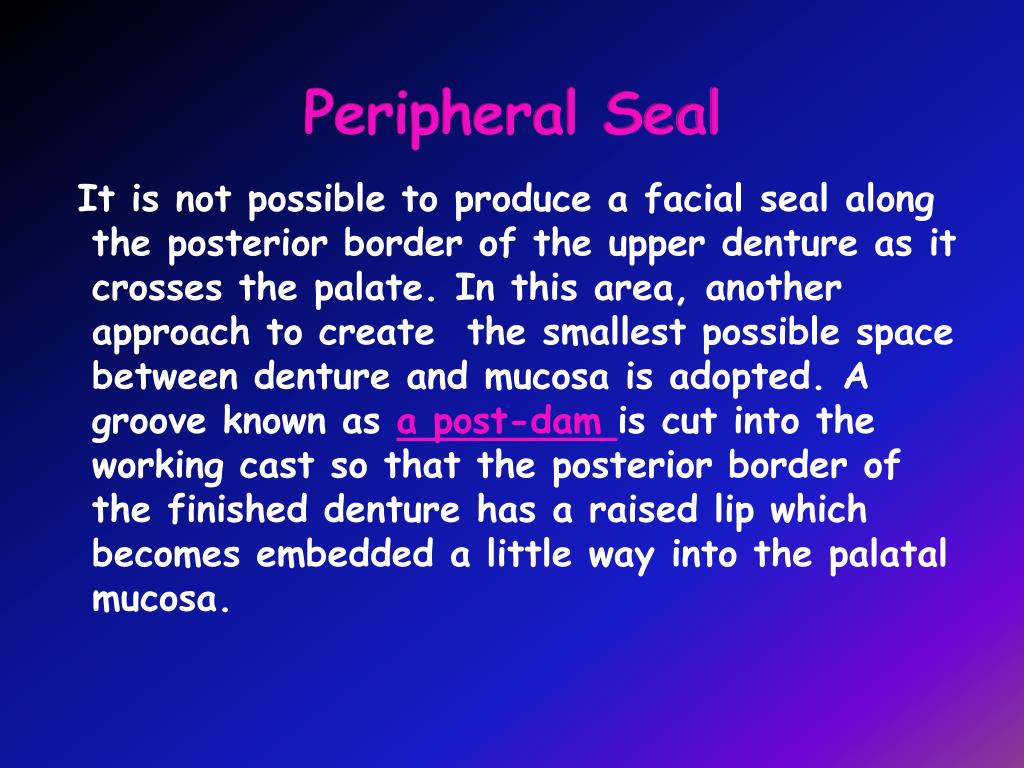

Peripheral Seal It is not possible to produce a facial seal along the posterior border of the upper denture as it crosses the palate. In this area, another approach to create the smallest possible space between denture and mucosa is adopted. A groove known as a post-dam is cut into the working cast so that the posterior border of the finished denture has a raised lip which becomes embedded a little way into the palatal mucosa.

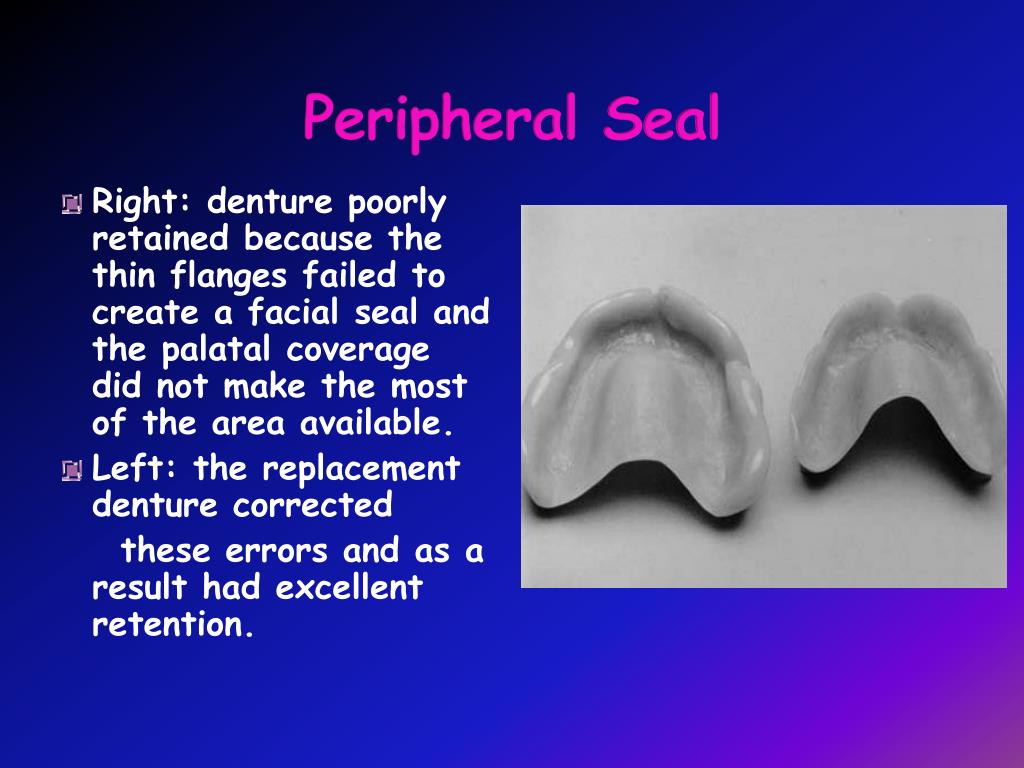

Peripheral Seal • Right: denture poorly retained because the thin flanges failed to create a facial seal and the palatal coverage did not make the most of the area available. • Left: the replacement denture corrected these errors and as a result had excellent retention.
Mechanical Aids in Retention • Undercuts • Overdentures attachments • Implants • Mucosal inserts • Rubber suction discs & suction chambers (No longer used) • Magnets
Undercuts Selection of path of insertion to improve retention by utilising undercuts: (a) single path of insertion to engage labial undercut; (b) dual path of insertion to engage unilateral undercut.

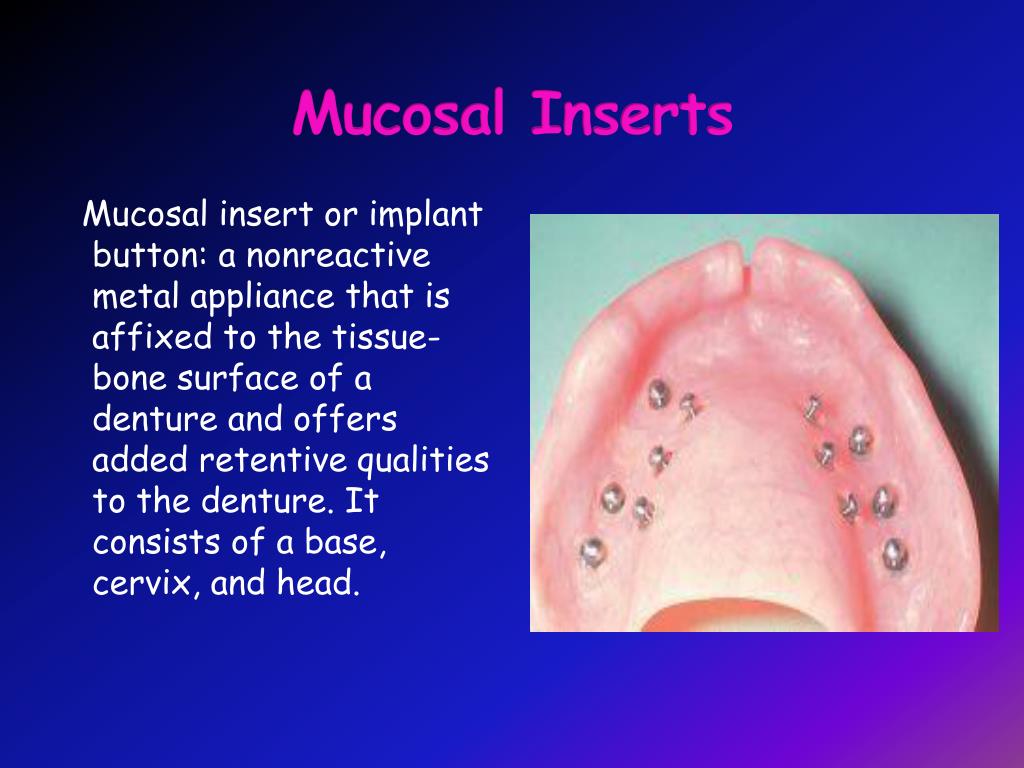

Mucosal Inserts Mucosal insert or implant button: a nonreactive metal appliance that is affixed to the tissue-bone surface of a denture and offers added retentive qualities to the denture. It consists of a base, cervix, and head.
Rubber suction disc & suction chamber No longer used because they cause damage of soft tissues
Secondary Retentive Features • The surrounding musculature • Occlusal schemes • Proper patient instructions • Psychological factor • Neuromuscular control • Denture fixative • Long-term soft liners
Surrounding Musculature* • Cheek muscles • Lips • Modiolus can cause unseating of denture in premolar region • Tongue • Floor of the mouth • Soft palate
Surrounding Musculature • Masseter (affects the distobuccal region of mandibular denture) • Neutral zone (zone of minimal conflict)
Neutral Zone *
Proper Patient Instructions • Explaining the central role of the tongue, lips and cheeks in controlling the denture and giving specific advice – such as supporting the posterior border of the upper denture with the tongue when incising. • Offering advice, for example, cutting food into smaller pieces before inserting them into the mouth. • Chewing on both sides of the dental arch simultaneously • Starting with softer ‘easier’ foods before progressing to more challenging morsels.
Neuromuscular Control As the patient incises, the upper denture is controlled by the tongue pressing against the posterior border.

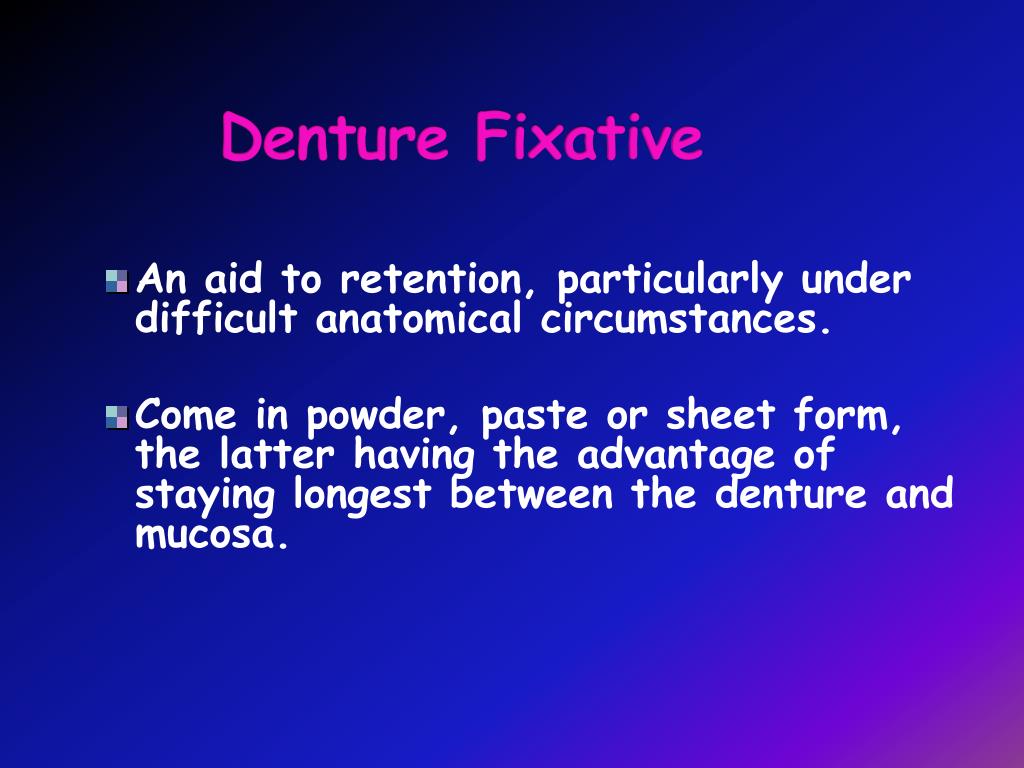

Denture Fixative • An aid to retention, particularly under difficult anatomical circumstances. • Come in powder, paste or sheet form, the latter having the advantage of staying longest between the denture and mucosa.
Long-Term Soft Liners • enable free, flexible margins to extend into the anatomical defect and engage tissue undercuts. • can be constructed as an integral part of the denture base or as a separate obturator section retained on the denture base by rare earth magnets.
Stability
Factors Affecting Stability • Intimate contact (accuracy of fit) • Residual ridge size & contour • Residual ridge quality • Palatal vault • Neutral zone & surrounding musculature *
Factors Affecting Stability/continue • Flange shape & contour: correct contouring the external surface of the denture base can enhance the stabilizing potential of surrounding musculature • Occlusal factors • Abnormal ridge relationships * • Direct bone anchorage #
Factors Affecting Stability/continue Pressure from the bolus on the posterior part of the lower occlusal table, which overlies a sloping part of the ridge, causes the lower denture to slide forwards.*
Support
Requirements of Tissues Capable of Support * • Firm resilient tissue covered by keratinized tissue & firmly attached to underlying bone • Tissue of uniform thickness • The bone be resistant to resorption • The support areas should be at right angles to the occlusal surfaces
Supporting Areas of Denture Foundation • All areas of denture bearing area should contribute to support except relief area • Primary stress bearing areas
Supporting Areas of Denture Foundation • Greater area of coverage puts less force per unit area (snow shoe principle) • The larger surface area of maxillary denture(22.96cm2) allows a wider stress distribution compared with mandible(12.25cm2).
Factors Affecting Support • Surface area • Nature of supporting mucosa • Impression procedure • Accuracy of fit • Direct bone anchorage *
Retentive forces > displacing forces Adequate support Stability
References: • Complete Denture Prosthodontics, 1st Edition, 2006 by John Joy Manappallil, Chapter 2 • Basker’s Prosthetic treatment of the edentulous patient. Fourth edition. Chapter 4.
