  1. Multiple Linear Regression (MLR) Testing the additional contribution made by adding an independent variable.

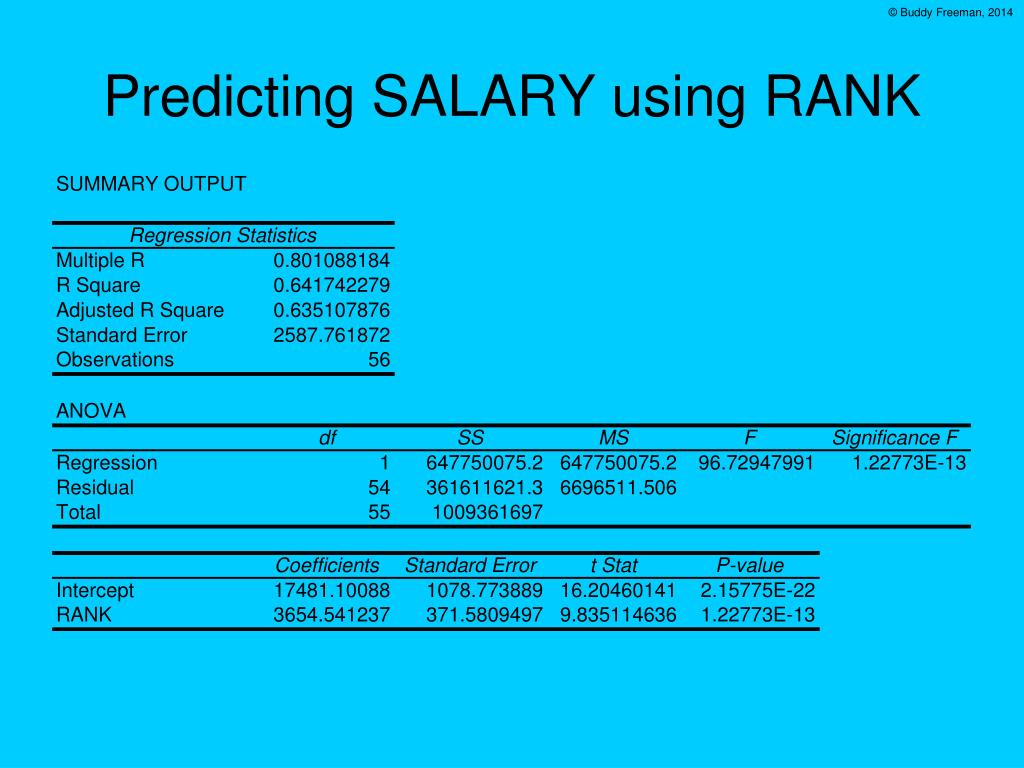

  2. Predicting SALARY using RANK

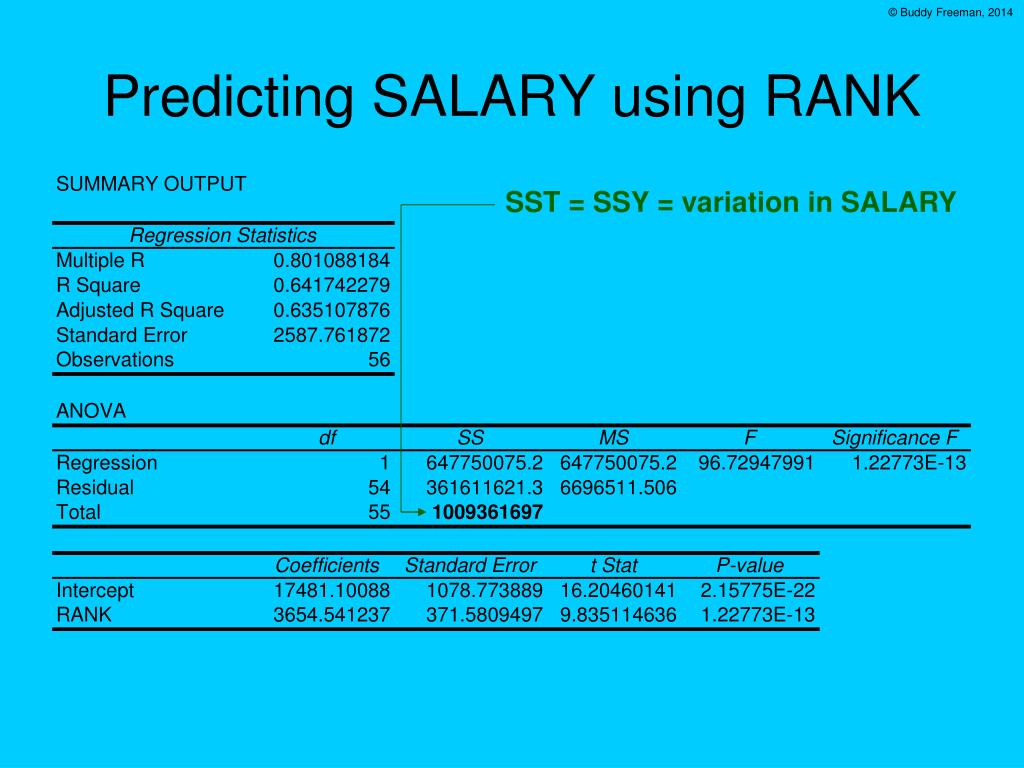

  3. Predicting SALARY using RANK SST = SSY = variation in SALARY

  4. Predicting SALARY using RANK SST = SSY = variation in SALARY

  5. Predicting SALARY using RANK SST = SSY = variation in SALARY variation in SALARY= 1,009,361,697

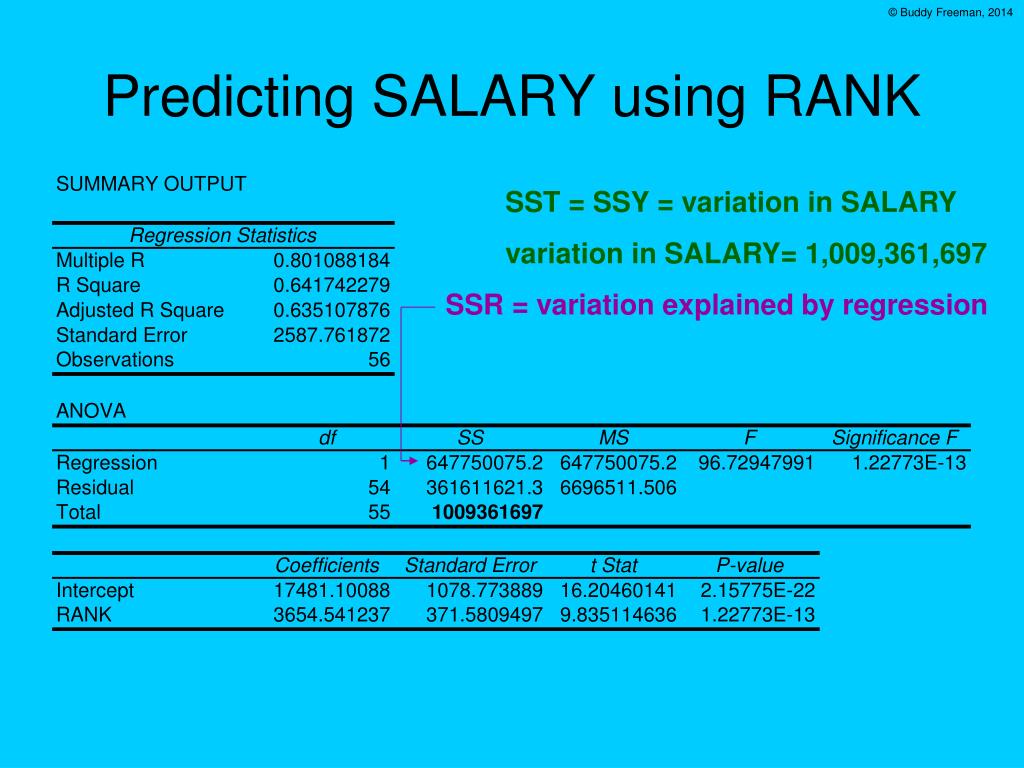

  6. Predicting SALARY using RANK SST = SSY = variation in SALARY variation in SALARY= 1,009,361,697 SSR = variation explained by regression

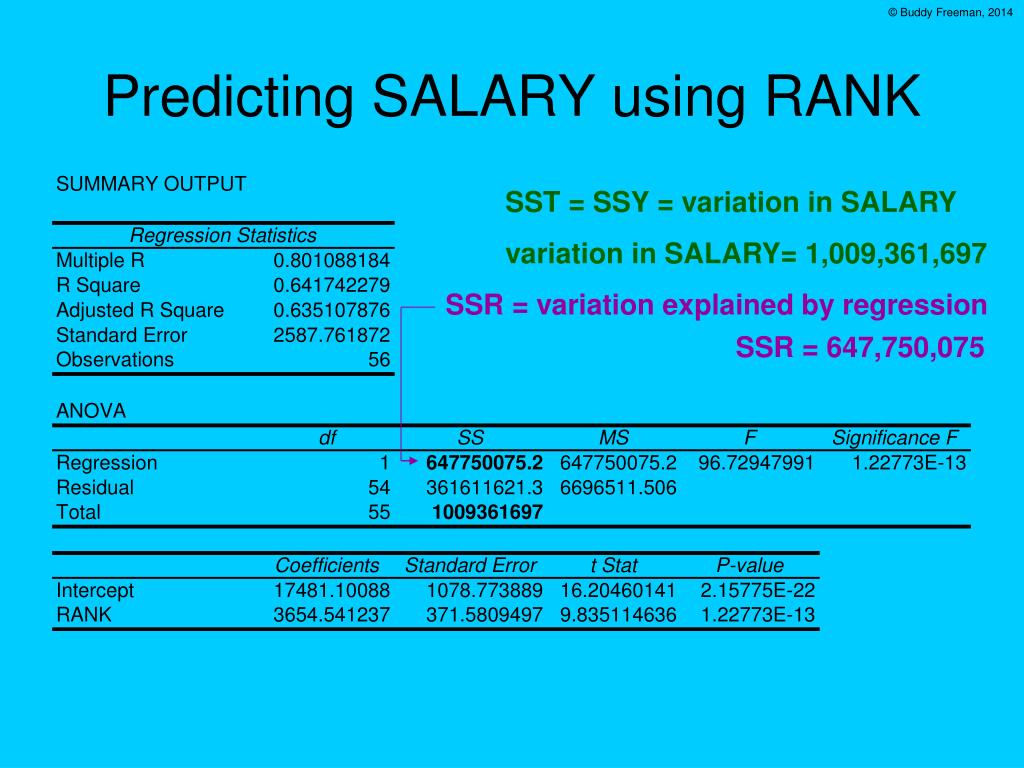

  7. Predicting SALARY using RANK SST = SSY = variation in SALARY variation in SALARY= 1,009,361,697 SSR = variation explained by regression SSR = 647,750,075

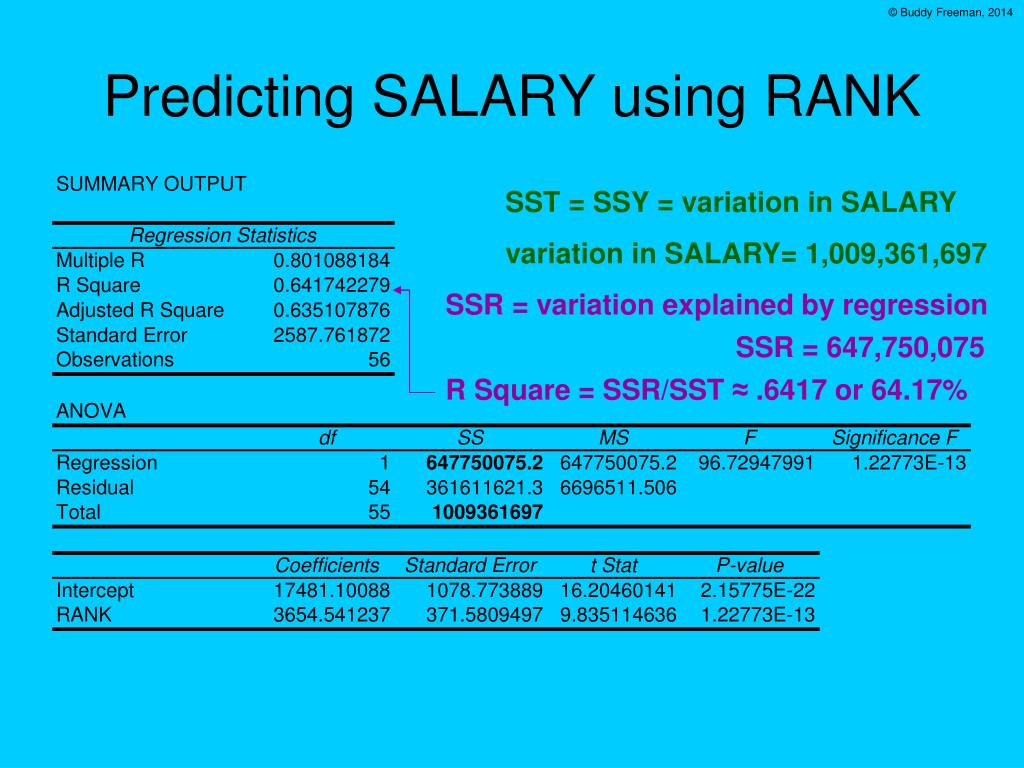

  8. Predicting SALARY using RANK SST = SSY = variation in SALARY variation in SALARY= 1,009,361,697 SSR = variation explained by regression SSR = 647,750,075 R Square = SSR/SST ≈ .6417 or 64.17%

  9. Predicting SALARY using RANK SST = SSY = variation in SALARY variation in SALARY= 1,009,361,697 SSR = variation explained by regression SSR = 647,750,075 R Square = SSR/SST ≈ .6417 or 64.17%

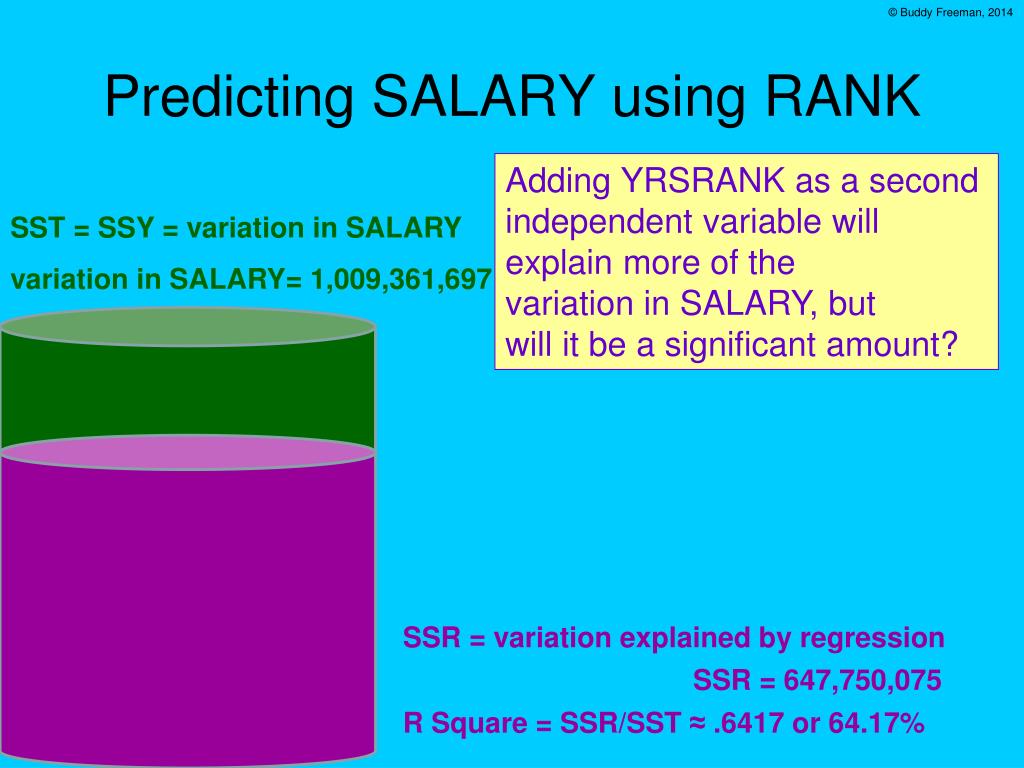

  10. Predicting SALARY using RANK Adding YRSRANK as a second independent variable will explain more of the variation in SALARY, but will it be a significant amount? SST = SSY = variation in SALARY variation in SALARY= 1,009,361,697 SSR = variation explained by regression SSR = 647,750,075 R Square = SSR/SST ≈ .6417 or 64.17%

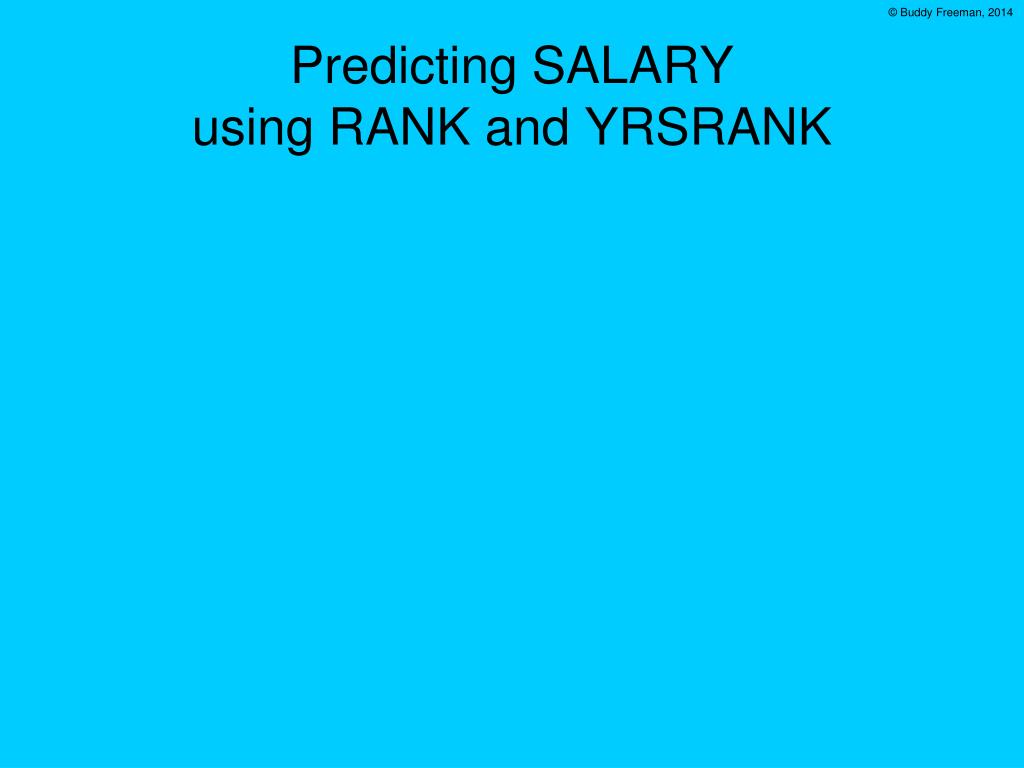

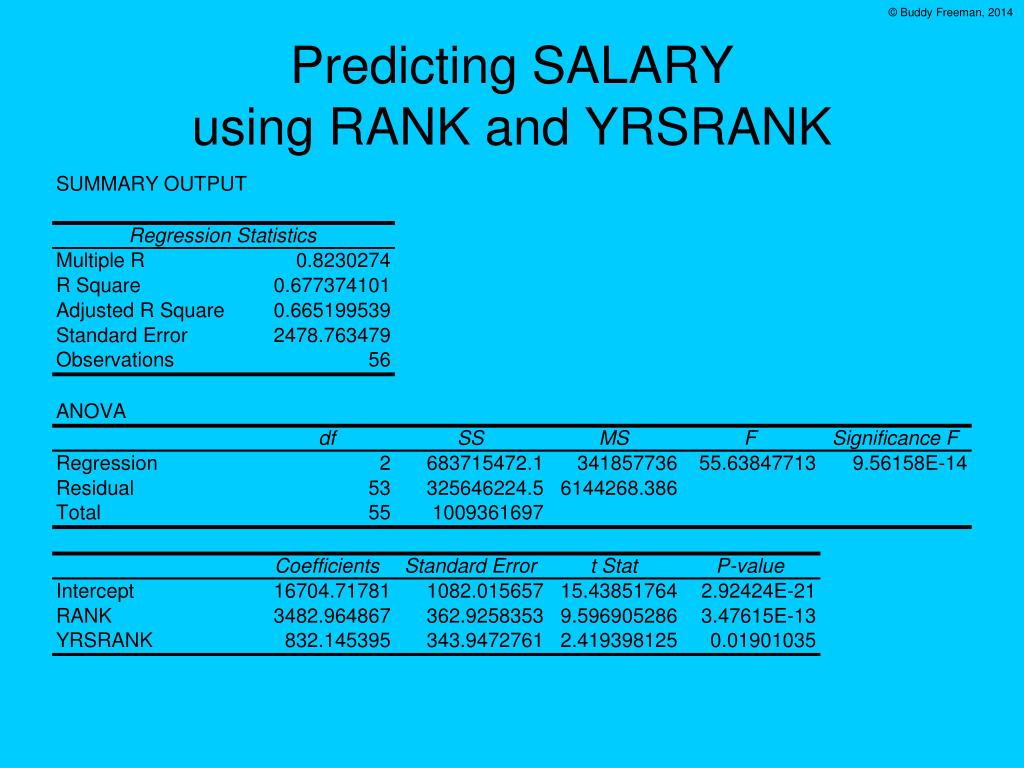

  11. Predicting SALARY using RANK and YRSRANK

  12. Predicting SALARY using RANK and YRSRANK

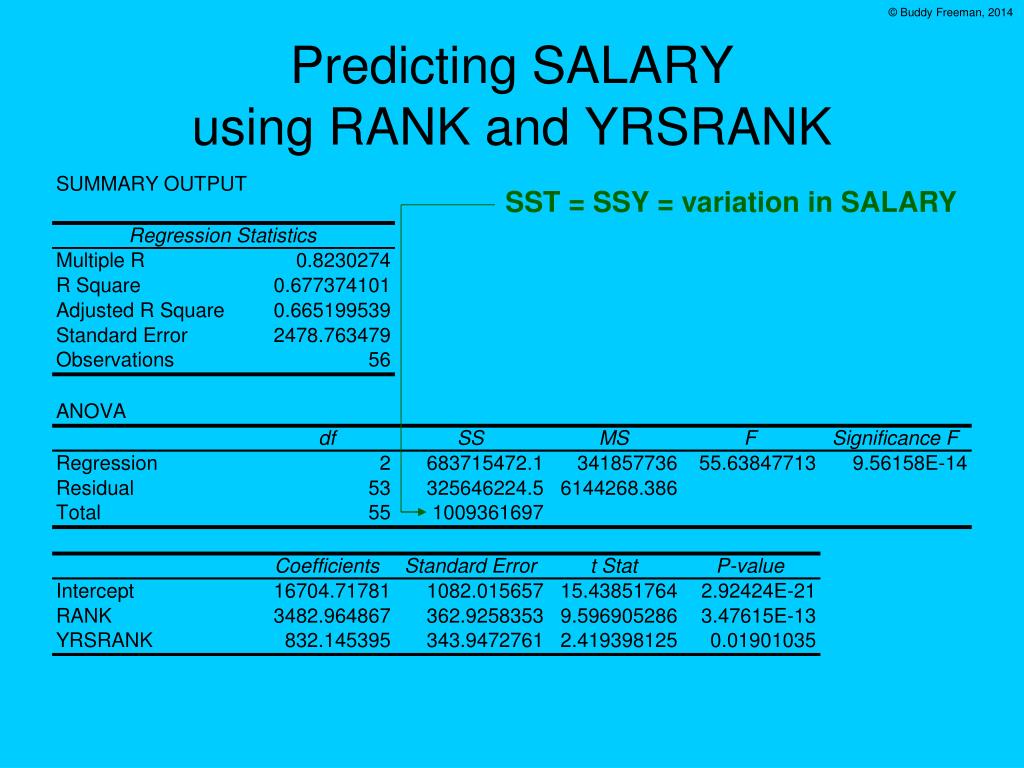

  13. Predicting SALARY using RANK and YRSRANK SST = SSY = variation in SALARY

  14. Predicting SALARY using RANK and YRSRANK SST = SSY = variation in SALARY

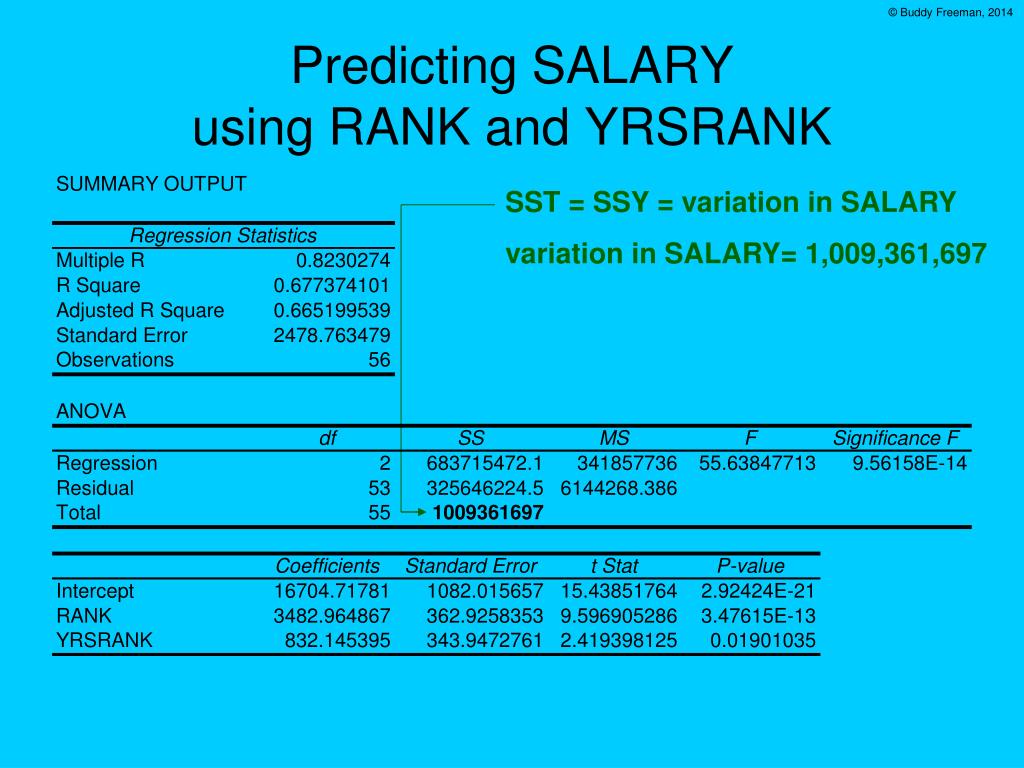

  15. Predicting SALARY using RANK and YRSRANK SST = SSY = variation in SALARY variation in SALARY= 1,009,361,697

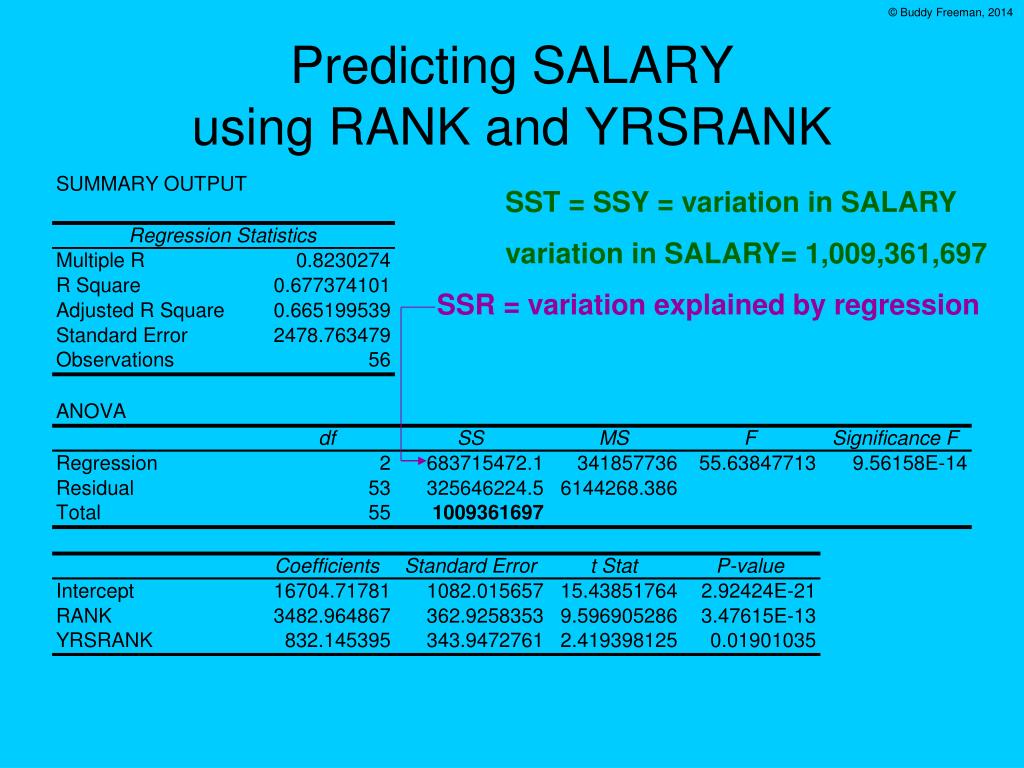

  16. Predicting SALARY using RANK and YRSRANK SST = SSY = variation in SALARY variation in SALARY= 1,009,361,697 SSR = variation explained by regression

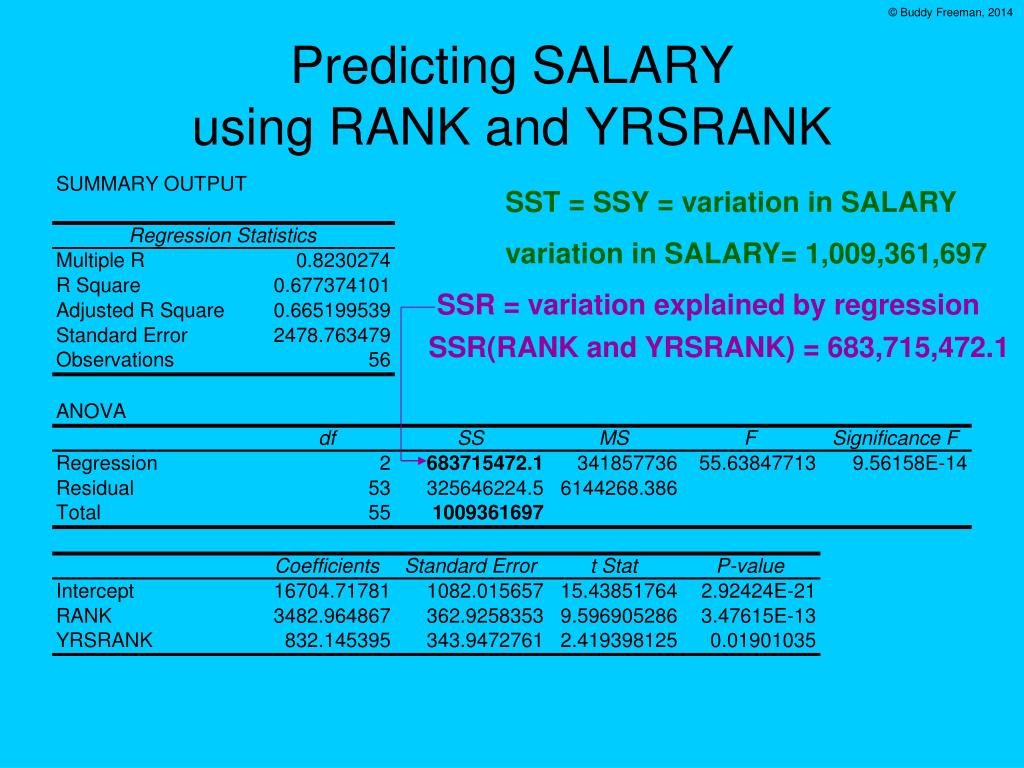

  17. Predicting SALARY using RANK and YRSRANK SST = SSY = variation in SALARY variation in SALARY= 1,009,361,697 SSR = variation explained by regression SSR(RANK and YRSRANK) = 683,715,472.1

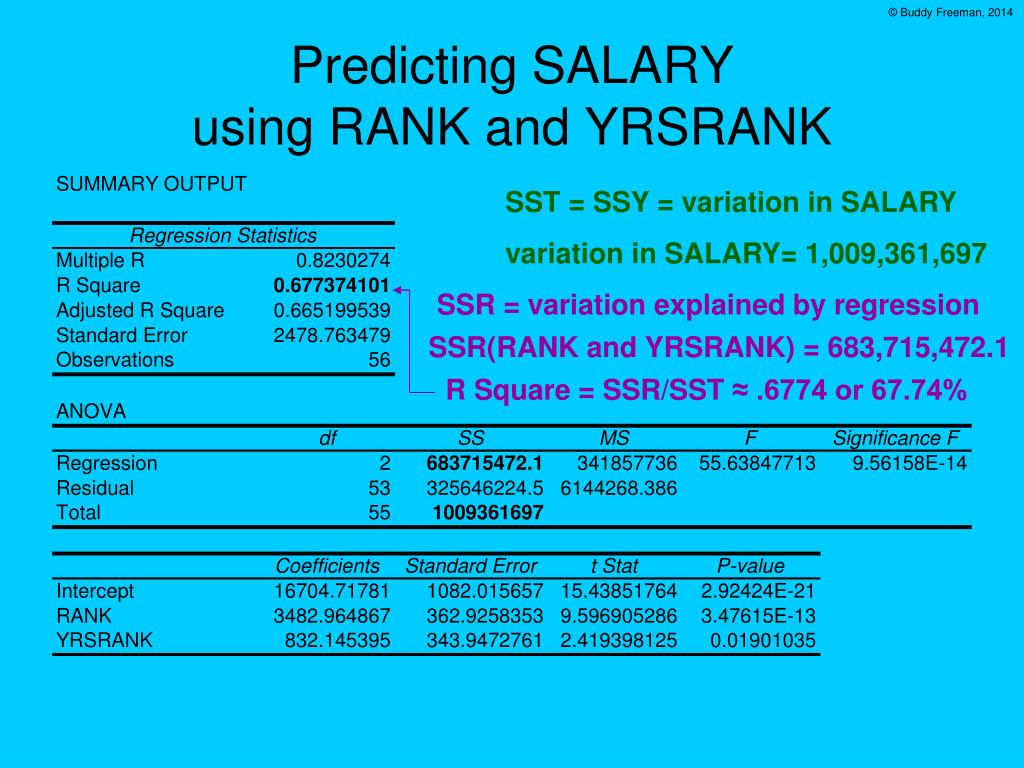

  18. Predicting SALARY using RANK and YRSRANK SST = SSY = variation in SALARY variation in SALARY= 1,009,361,697 SSR = variation explained by regression SSR(RANK and YRSRANK) = 683,715,472.1 R Square = SSR/SST ≈ .6774 or 67.74%

  19. Predicting SALARY using RANK and YRSRANK SST = SSY = variation in SALARY variation in SALARY= 1,009,361,697 SSR = variation explained by regression SSR(RANK and YRSRANK) = 683,715,472.1 R Square = SSR/SST ≈ .6774 or 67.74%

  20. Predicting SALARY using RANK Adding YRSRANK as a second independent variable will explain more of the variation in SALARY, but will it be a significant amount? SST = SSY = variation in SALARY variation in SALARY= 1,009,361,697 SSR = variation explained by regression SSR = 647,750,075 R Square = SSR/SST ≈ .6417 or 64.17%

  21. Predicting SALARY using RANK and YRSRANK Adding YRSRANK as a second independent variable will explain more of the variation in SALARY, but will it be a significant amount? SST = SSY = variation in SALARY variation in SALARY= 1,009,361,697 SSR = variation explained by regression SSR(RANK and YRSRANK) = 683,715,472.1 R Square = SSR/SST ≈ .6774 or 67.74% SSR = variation explained by regression SSR = 647,750,075 R Square = SSR/SST ≈ .6417 or 64.17%

  22. Predicting SALARY using RANK and YRSRANK SST = SSY = variation in SALARY variation in SALARY= 1,009,361,697 We may determine if this additional contribution is significant by performing a partial F-test. Additionalcontribution made by adding YRSRANK = SSR(YRSRANK | RANK) = 683,715,472.1 - 647,750,075 = 35,965,397.1 SSR = variation explained by regression SSR = 647,750,075 R Square = SSR/SST ≈ .6417 or 64.17%

  23. Partial F-test (α = .05) Additionalcontribution made by adding YRSRANK = SSR(YRSRANK | RANK) = 683,715,472.1 - 647,750,075 = 35,965,397.1, the numerator.

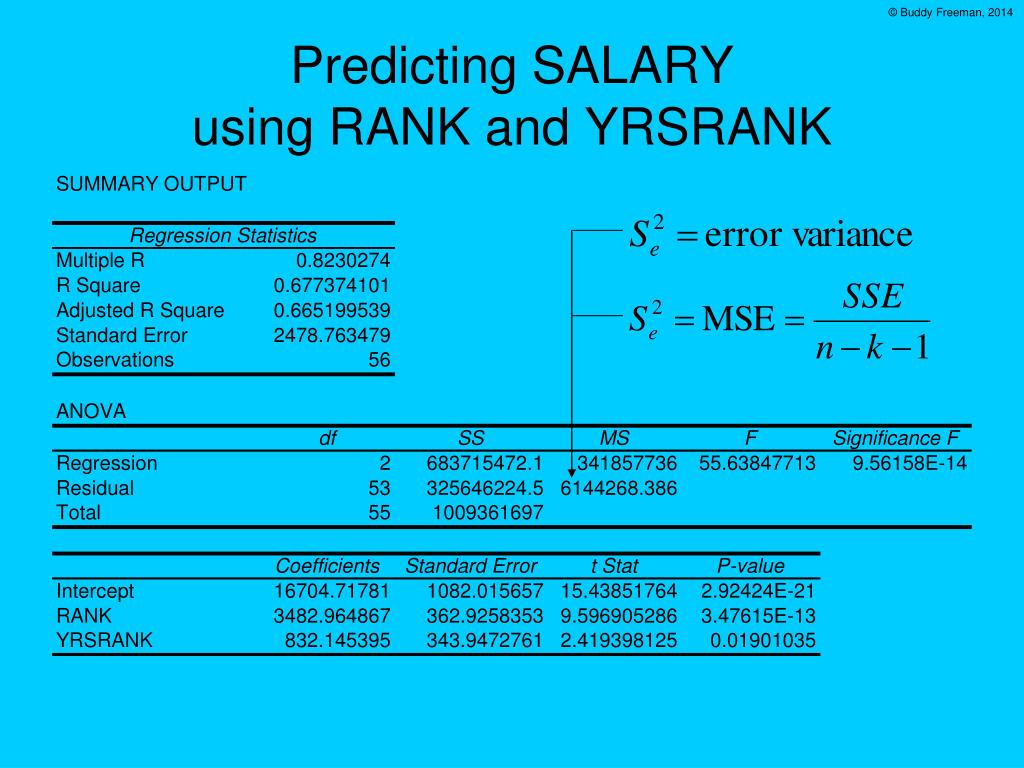

  24. Predicting SALARY using RANK and YRSRANK

  25. Predicting SALARY using RANK and YRSRANK

  26. Partial F-test (α = .05) In Simple Linear Regression, what was the relationship between the F-test and the t-test? The square root of the F ≈ 2.419398, the t value for YRSRANK.

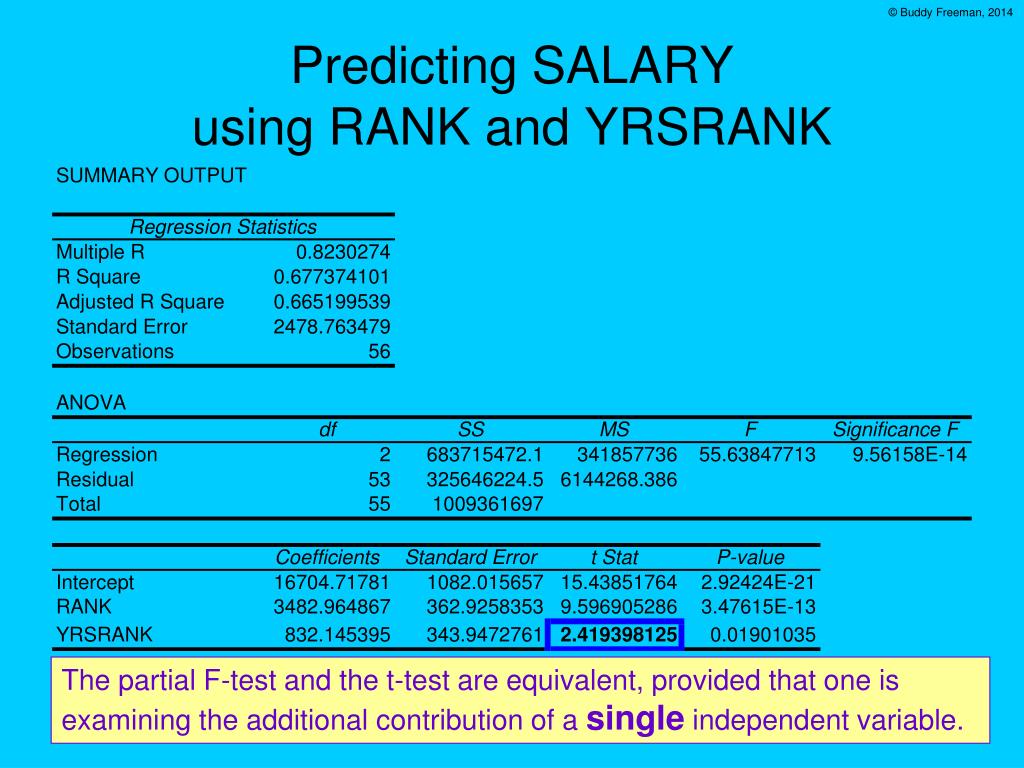

  27. Predicting SALARY using RANK and YRSRANK The partial F-test and the t-test are equivalent, provided that one is examining the additional contribution of a single independent variable.
