Graph Algorithms

B Smith: Fa05: rate: 1.5. Time: 65 minutes Graph Algorithms Math 140

0 6 2 1 7 3 4 5 Adjacency Matrix

0 6 2 5 6 4 4 3 1 3 0 5 2 1 7 3 4 5 Graph Representation: Adjacency List 0 7 1 0 2 0 3 5 4 6 5 4 6 0 7 0

Graph Terminology

Some Graph Problems Path. Is there a path between s to t? Shortest path.What is the shortest path between two vertices? Longest path. What is the longest path between two vertices? Cycle. Is there a cycle in the graph? Euler tour. Is there a cyclic path that uses each edge exactly once? Hamilton tour. Is there a cycle that uses each vertex exactly once? Connectivity. Is there a way to connect all of the vertices? MST. What is the best way to connect all of the vertices? Biconnectivity. Is there a vertex whose removal disconnects graph? Planarity. Can you draw the graph in the plane with no crossing edges? Isomorphism. Do two adjacency matrices represent the same graph?

Graph Representation • Vertex representation • This lecture: use integers between 0 and v-1 • Real world: dictionaries to go from strings to integers

Graph API public class Graph // ADT interface { Graph(int V) //create an empty graph with V vertices Graph(int V, int E) //create a random graph with V vertices, E edges void addEdge void addEdge(int v, int w) add an edge v-w Iterable<Integer> adj(int v) return an iterator over the neighbors of v int V() return number of vertices String toString() return a string representation } Client that iterates through all edges Graph G = new Graph(V, E); StdOut.println(G); for (int v = 0; v < G.V(); v++) for (int w : G.adj(v)) // process edge v-w

Set of edges representation • Store a list of the edges (linked list or array)

Adjacency Matrix representation • Maintain a two-dimensional V x V boolean array • For each edge v-w in graph: adj[v][w] = adj[v][w] = true.

Adjacency-matrix graph representation: Java implementation public class Graph { private int V; private boolean[][] adj; public Graph(int V) { this.V = V; adj = new boolean[V][V]; } public void addEdge(int v, int w) { adj[v][w] = true; adj[w][v] = true; } public Iterable<Integer> adj(int v) { return new AdjIterator(v); } }c

Adjacency-matrix: iterator for vertex neighbors private class AdjIterator implements Iterator<Integer>, Iterable<Integer> { int v, w = 0; AdjIterator(int v) { this.v = v; } public boolean hasNext() { while (w < V) { if (adj[v][w]) return true; w++ } return false; } public int next() { if (hasNext()) return w++ ; else throw new NoSuchElementException(); } public Iterator<Integer> iterator() { return this; } }

Graph ADT • A typical client program will. . . typedef struct { int v; int w; } Edge; Edge EDGE(int, int); typedef struct graph* Graph; Graph GRAPHinit(int); // Conjure up nodes Graph GRAPHrand(int V, int E); // Randomly generate void GRAPHinsertE(Graph, Edge); // Insert an edge void GRAPHremoveE(Graph, Edge); // Remove an edge int GRAPHcc(Graph G); // Return # connected

Graph Client: class DriverExample { public static void main(String[] args) { int V = Integer.parseInt(args[0]); Graph G = new Graph(V, false); GraphIO.scanEZ(G); if (V < 20) GraphIO.show(G); Out.print(G.E() + " edges "); GraphCC Gcc = new GraphCC(G); Out.println(Gcc.count() + " components"); } }

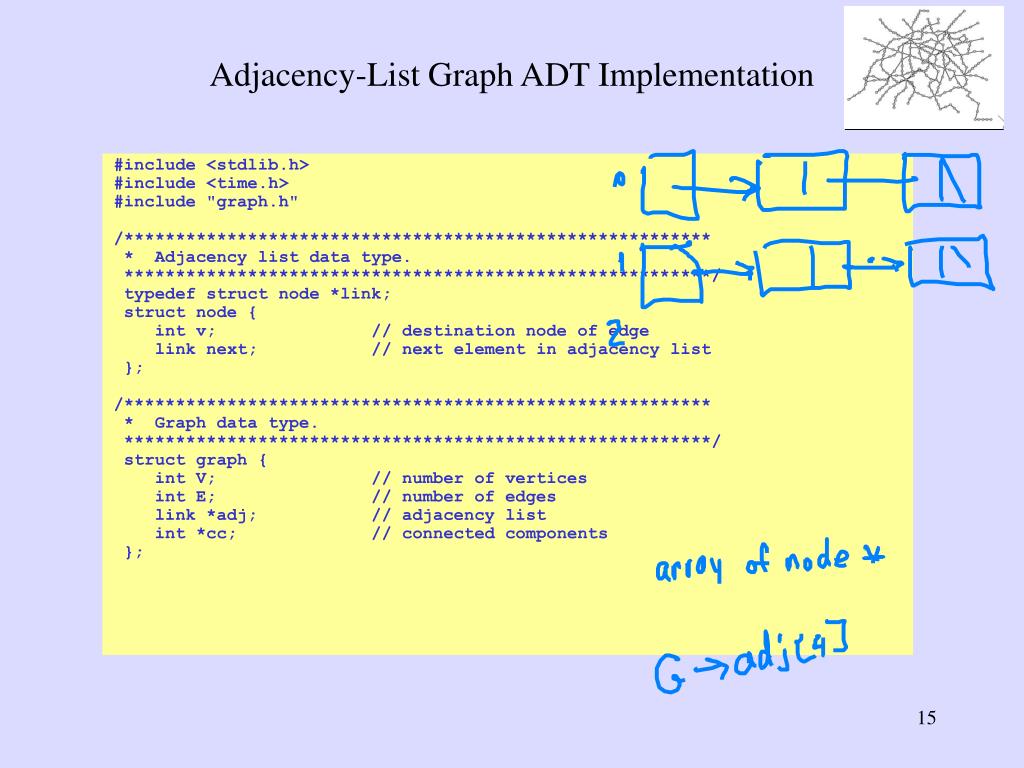

Adjacency-List Graph ADT Implementation #include <stdlib.h> #include <time.h> #include "graph.h" /********************************************************* * Adjacency list data type. *********************************************************/ typedef struct node *link; struct node { int v; // destination node of edge link next; // next element in adjacency list }; /********************************************************* * Graph data type. *********************************************************/ struct graph { int V; // number of vertices int E; // number of edges link *adj; // adjacency list int *cc; // connected components };

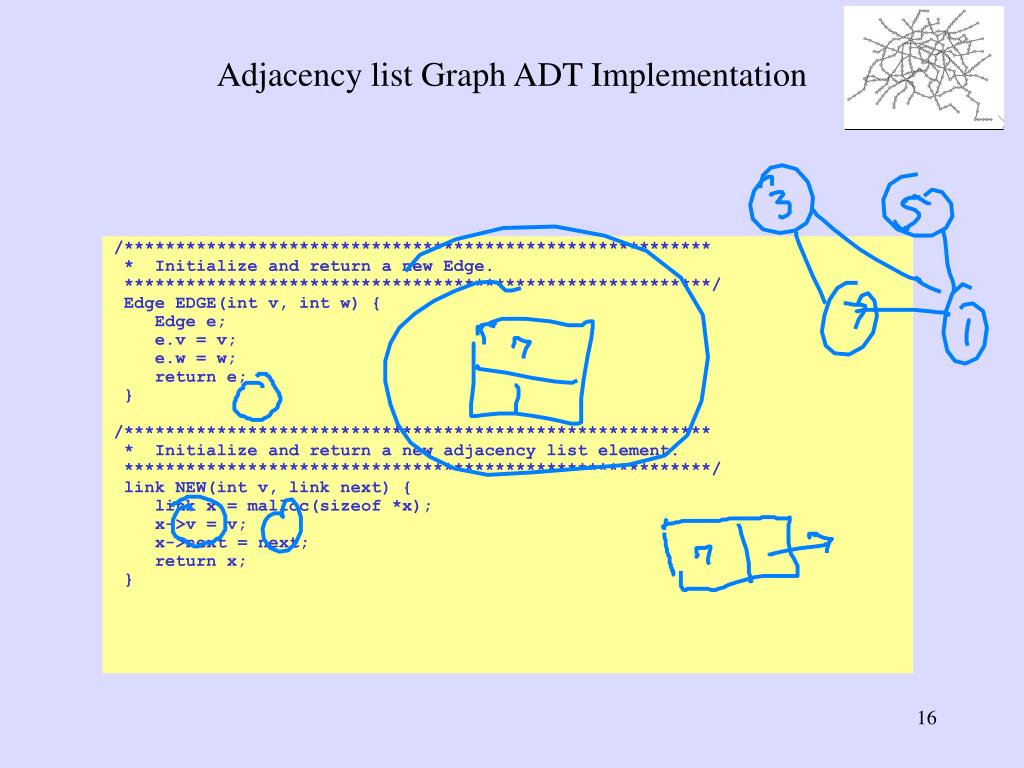

Adjacency list Graph ADT Implementation /********************************************************* * Initialize and return a new Edge. *********************************************************/ Edge EDGE(int v, int w) { Edge e; e.v = v; e.w = w; return e; } /********************************************************* * Initialize and return a new adjacency list element. *********************************************************/ link NEW(int v, link next) { link x = malloc(sizeof *x); x->v = v; x->next = next; return x; }

Adjacency list Graph ADT Implementation /********************************************************* * Initialize and return a new graph with V vertices * and no edges. *********************************************************/ Graph GRAPHinit(int V) { int v; Graph G = malloc(sizeof *G); G->V = V; G->E = 0; G->cc = malloc(V * sizeof(int)); G->adj = malloc(V * sizeof(link)); for (v = 0; v < V; v++) G->adj[v] = NULL; return G; }

Adjacency list Graph ADT Implementation /********************************************************* * Insert Edge e into Graph g. *********************************************************/ void GRAPHinsertE(Graph G, Edge e) { int v = e.v, w = e.w; G->adj[v] = NEW(w, G->adj[v]); G->adj[w] = NEW(v, G->adj[w]); G->E++; }

B Smith: not discussed Fa05, but use Sp06 /********************************************************* * Compute connected components using DFS. *********************************************************/ void dfsRcc(Graph G, int v, int id) { link t; // t is node pointer G->cc[v] = id; for (t = G->adj[v]; t != NULL; t = t->next) { if (G->cc[t->v] == -1) dfsRcc(G, t->v, id); } } int GRAPHcc(Graph G) { int v, id = 0; for (v = 0; v < G->V; v++) // mark nodes unexplored G->cc[v] = -1; // -1 means not explored for (v = 0; v < G->V; v++) // if (G->cc[v] == -1) dfsRcc(G, v, id++); return id; }

A Few Graph Problems • Path. Is there a path from vertex s to vertex t? • Shortest path. What’s the shortest path b/t two vertices? • Longest path. What is the longest path between two vertices? • Cycle. Is there a cycle in the graph? • Euler tour. Is there a cyclic path that uses each edge exactly once? • Hamilton tour. is there a cycle that uses each vertex exactly once? • Connectivity. Is there a way to connect all of the vertices? • MST. What is the best way to connect all of the vertices? • Bi-connectivity. Is there a vertex whose removal disconnects the graph? • Planarity. Can you draw the graph in the plane with no crossing edges? • Isomorphism. Do tow matrices represent the same graph?

Graph Search Goal. Visit every node and edge in Graph A solution. Depth-first search • To visit a node v: • mark it as visited • recursively visit all unmarked nodes w adjacent to v • To traverse a Graph G: • initialize all nodes as unmarked • visit each unmarked node • Enables direct solution of simple graph problems • Connected components • Cycles

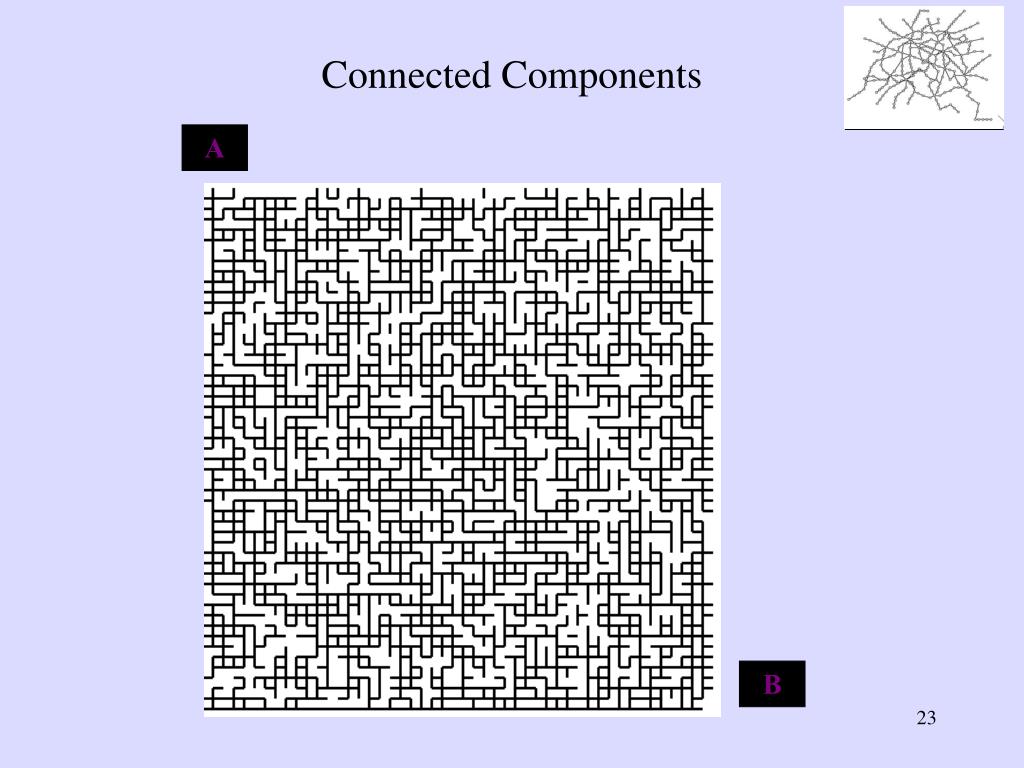

A B Connected Components

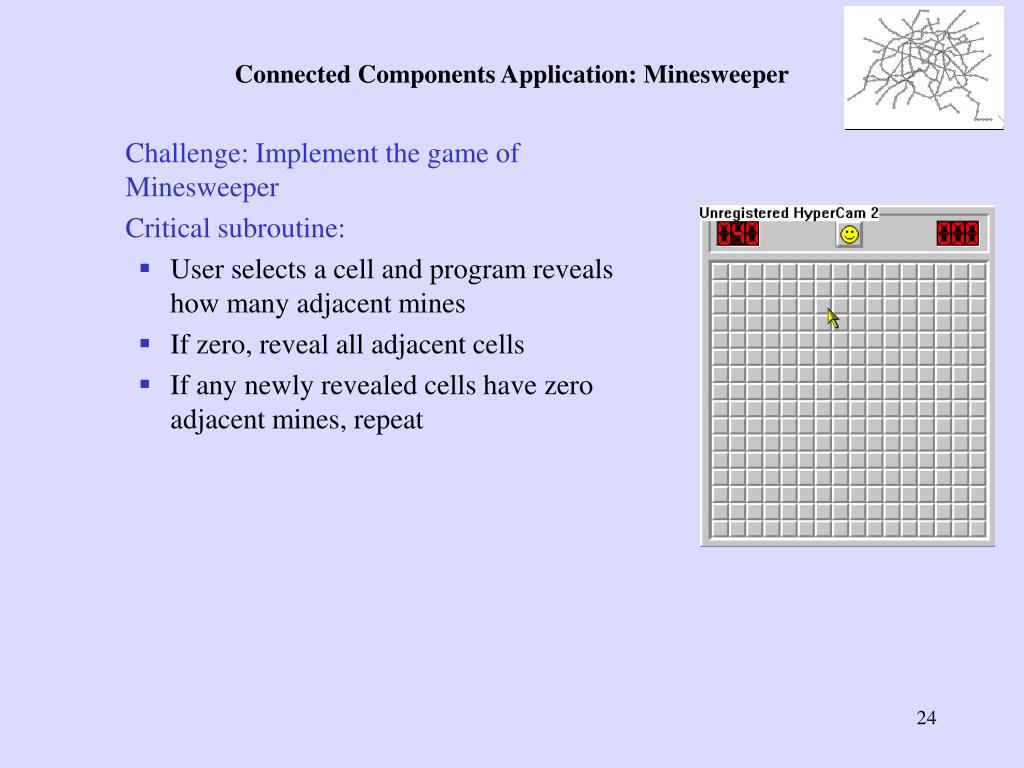

Connected Components Application: Minesweeper • Challenge: Implement the game of Minesweeper • Critical subroutine: • User selects a cell and program reveals how many adjacent mines • If zero, reveal all adjacent cells • If any newly revealed cells have zero adjacent mines, repeat

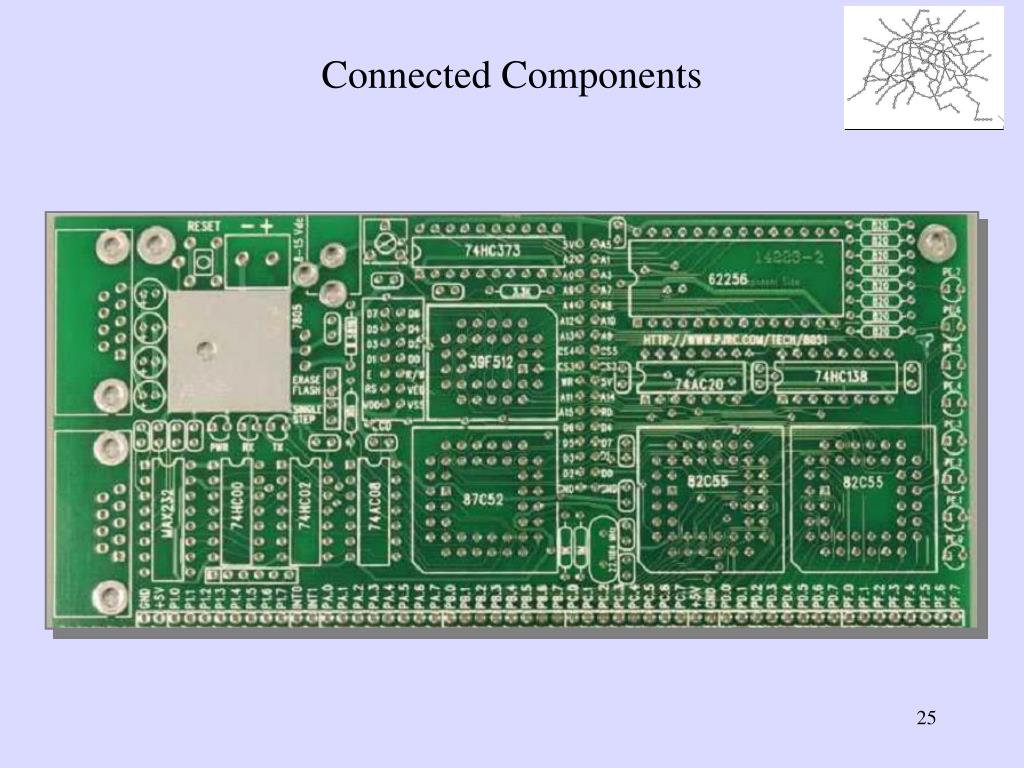

Connected Components

High School Dating

TB or SARS Contagions

HS Friendships

The internet

Graphs and Mazes

Breadth-First Search • Graph search. Visit all nodes and edges of graph • Depth-first search. Put unvisited nodes on a STACK • Breadth-first search. Put unvisited nodes on a QUEUE • Shortest path: what is the fewest number of edges to get from s to t? • Solution = BFS • Initialize dist[v] = ¥, dist[s] = 0. • When considering edge v-w: • if w is marked, then ignore • else, set dist[w] = dist[v] + 1, pred[w] = v, and add w to the queue

Breadth-First Search visit(Graph G, int k) { link t; QUEUEput(k); while (!QUEUEempty()) { k = QUEUEget(); mark[k] = ++id; for (t = G->adj[k]; t != z; t = t->next) if (mark[t->v] == 0) { QUEUEput(t->v); mark[t->v] = -1; } } } Put unvisited nodes on a QUEUE, not a stack
