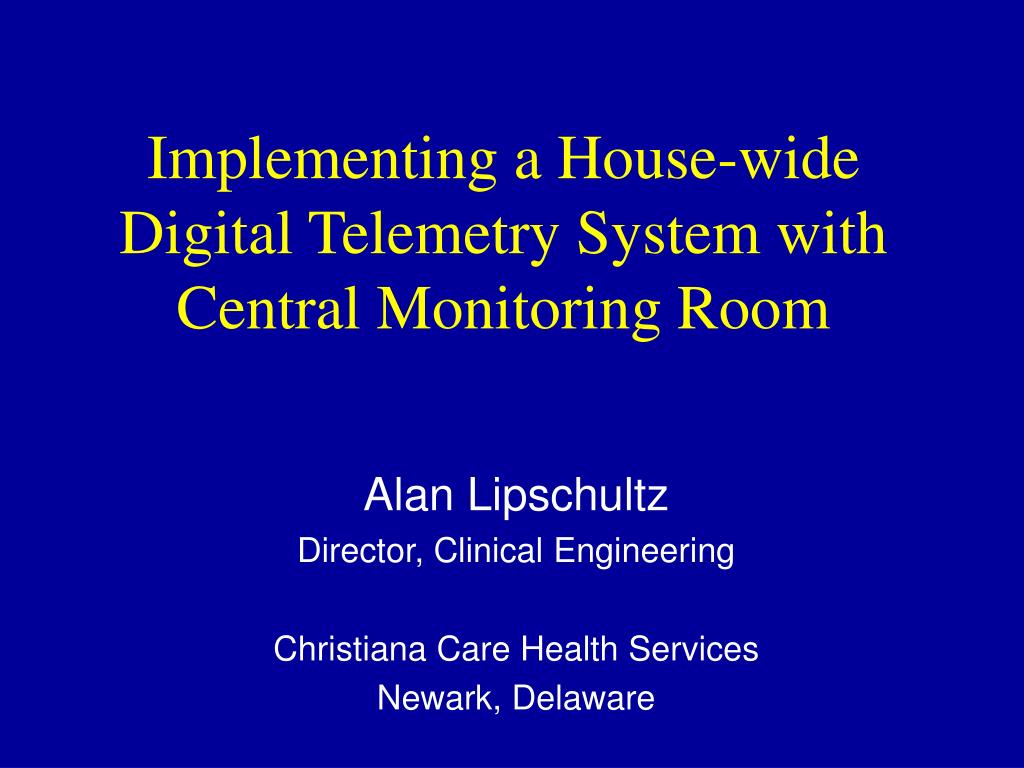

  1. Implementing a House-wide Digital Telemetry System with Central Monitoring Room Alan Lipschultz Director, Clinical Engineering Christiana Care Health Services Newark, Delaware

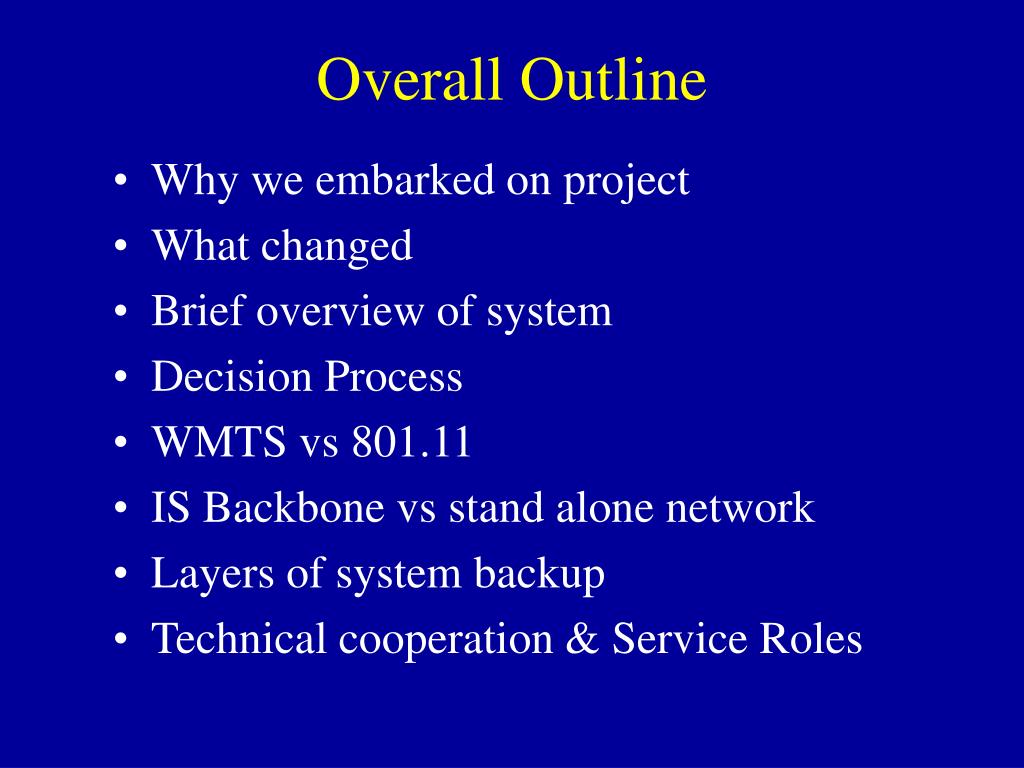

  2. Overall Outline • Why we embarked on project • What changed • Brief overview of system • Decision Process • WMTS vs 801.11 • IS Backbone vs stand alone network • Layers of system backup • Technical cooperation & Service Roles

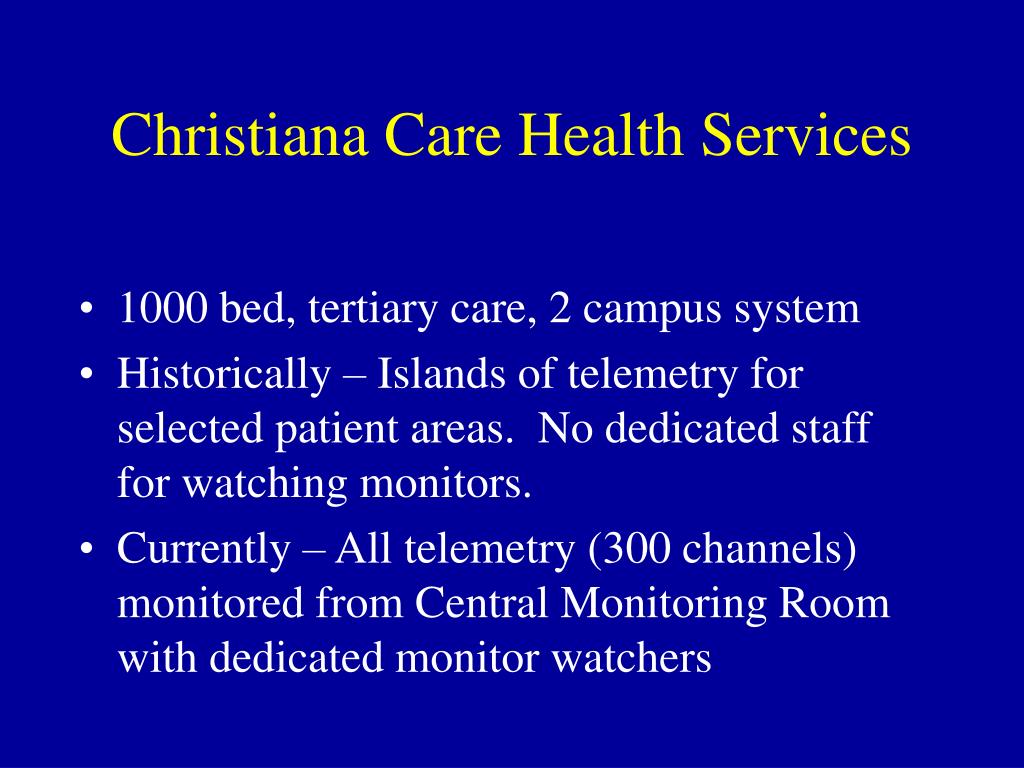

  3. Christiana Care Health Services • 1000 bed, tertiary care, 2 campus system • Historically – Islands of telemetry for selected patient areas. No dedicated staff for watching monitors. • Currently – All telemetry (300 channels) monitored from Central Monitoring Room with dedicated monitor watchers

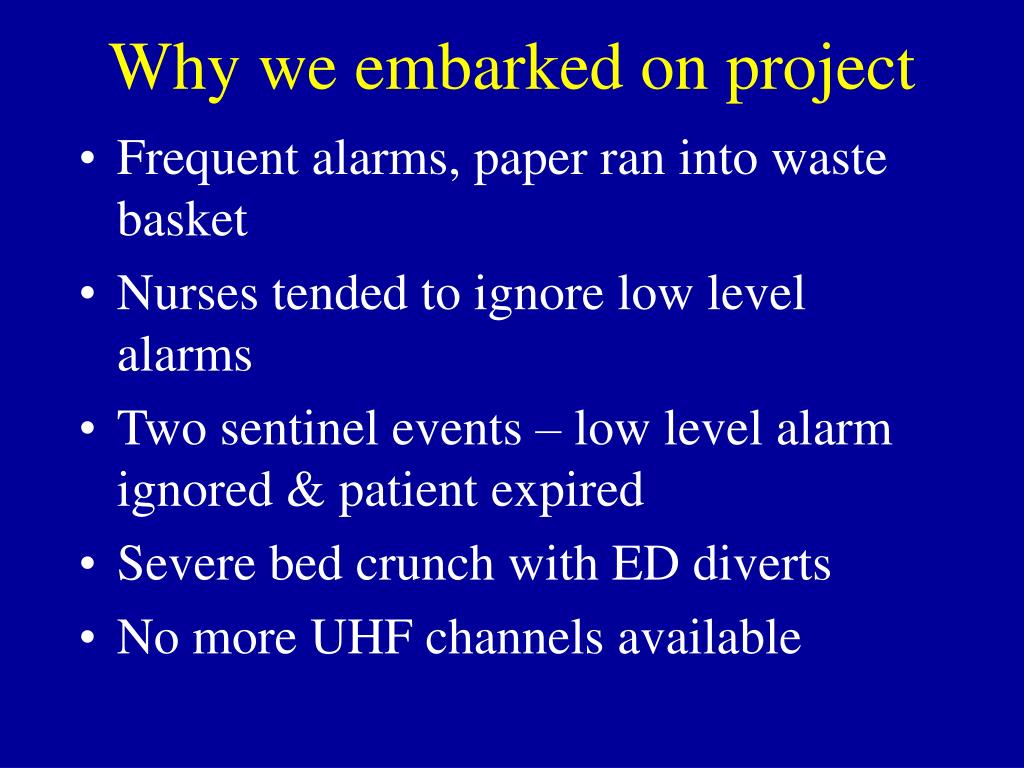

  4. Why we embarked on project • Frequent alarms, paper ran into waste basket • Nurses tended to ignore low level alarms • Two sentinel events – low level alarm ignored & patient expired • Severe bed crunch with ED diverts • No more UHF channels available

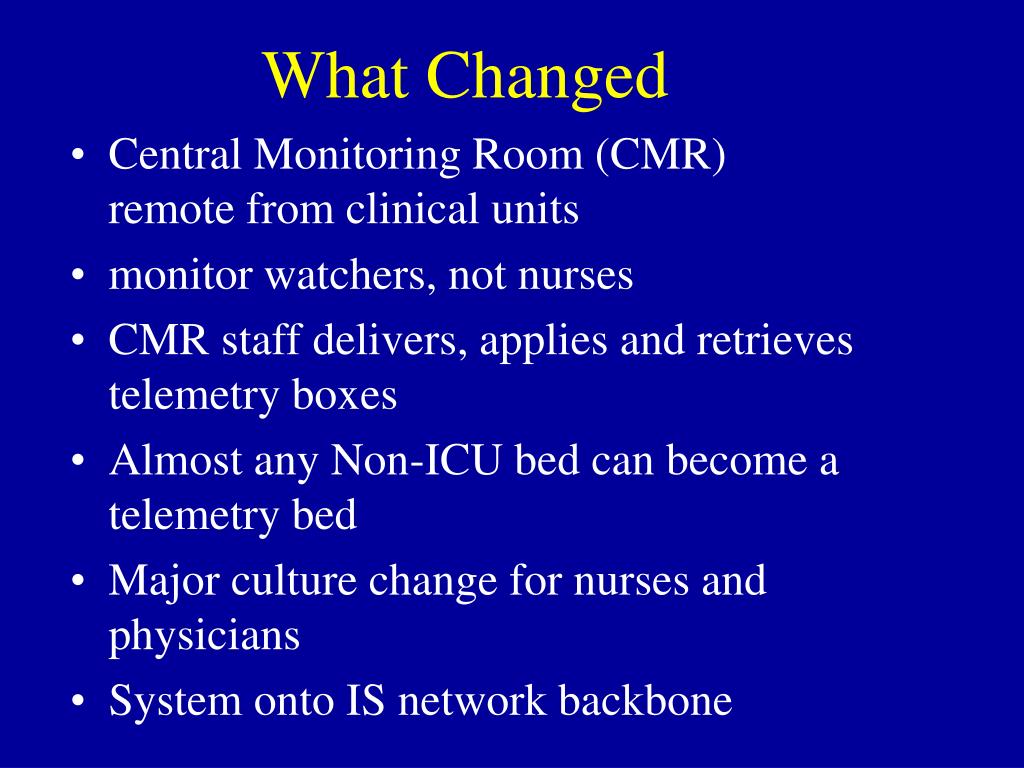

  5. What Changed • Central Monitoring Room (CMR) remote from clinical units • monitor watchers, not nurses • CMR staff delivers, applies and retrieves telemetry boxes • Almost any Non-ICU bed can become a telemetry bed • Major culture change for nurses and physicians • System onto IS network backbone

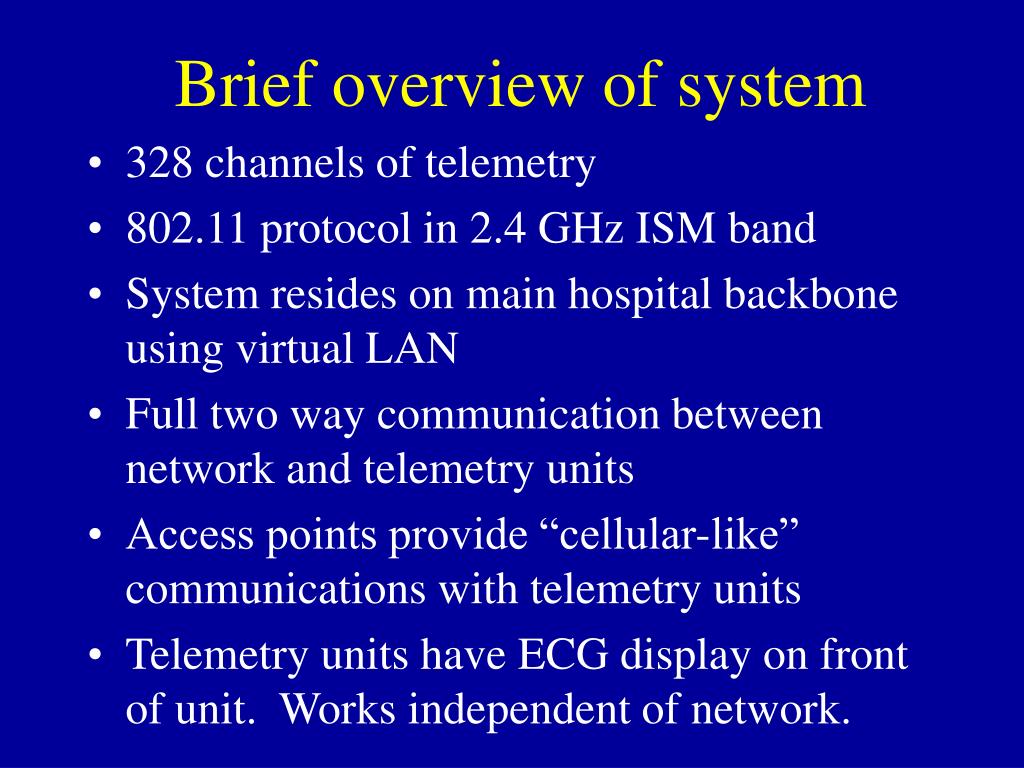

  6. Brief overview of system • 328 channels of telemetry • 802.11 protocol in 2.4 GHz ISM band • System resides on main hospital backbone using virtual LAN • Full two way communication between network and telemetry units • Access points provide “cellular-like” communications with telemetry units • Telemetry units have ECG display on front of unit. Works independent of network.

  7. Overall Process • Clinical/political decision to implement centralized system • Search for best vendor to meet goals of clinicians • Decision to put system on IS network backbone • Implementation

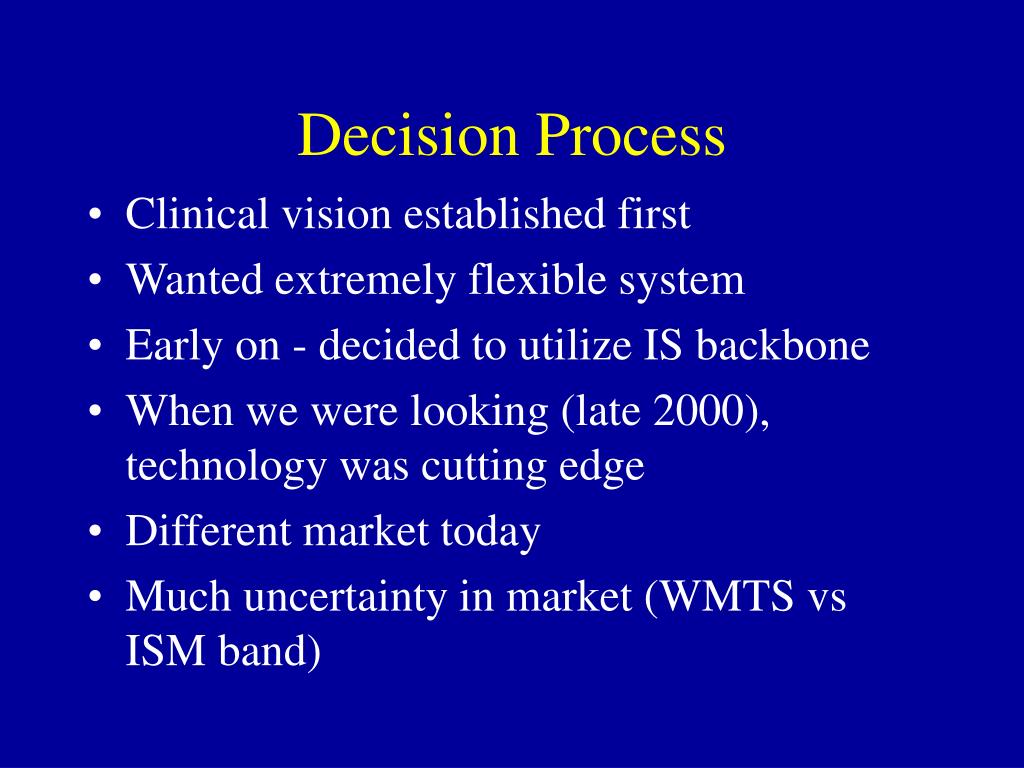

  8. Decision Process • Clinical vision established first • Wanted extremely flexible system • Early on - decided to utilize IS backbone • When we were looking (late 2000), technology was cutting edge • Different market today • Much uncertainty in market (WMTS vs ISM band)

  9. WMTS vs ISM 802.11 system • Did not feel WMTS was good option • Bandwidth too limiting • Proprietary, no standards • one way communications • at the time we were making decision, most systems were identical to conventional telemetry system we were replacing.

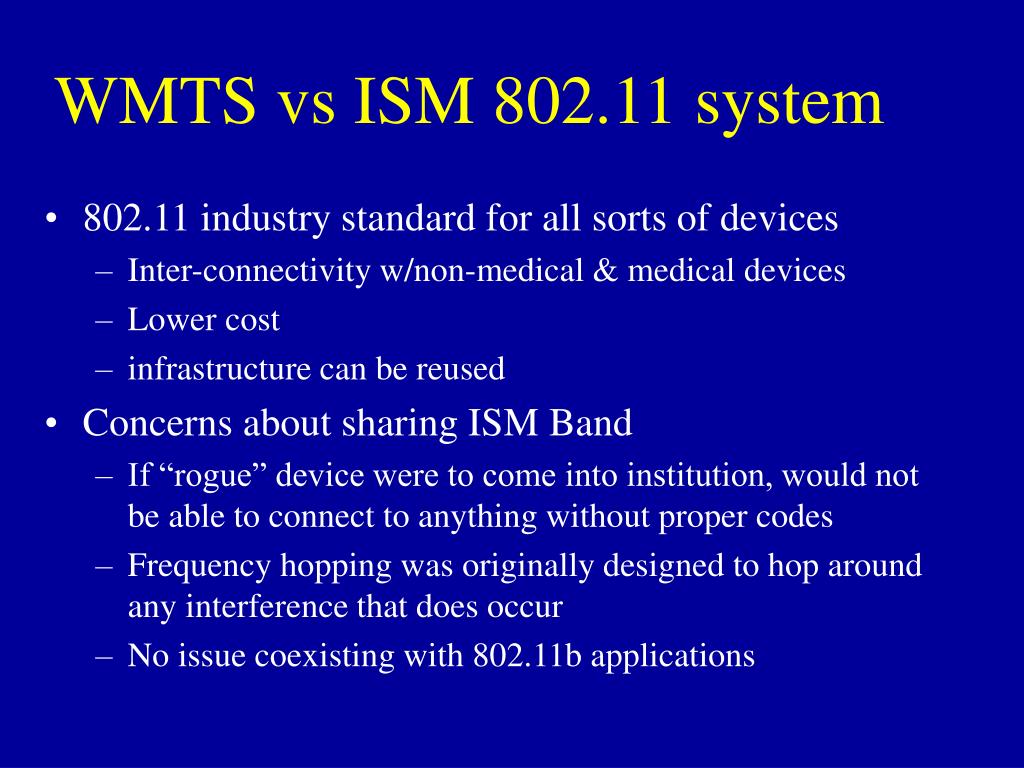

  10. WMTS vs ISM 802.11 system • 802.11 industry standard for all sorts of devices • Inter-connectivity w/non-medical & medical devices • Lower cost • infrastructure can be reused • Concerns about sharing ISM Band • If “rogue” device were to come into institution, would not be able to connect to anything without proper codes • Frequency hopping was originally designed to hop around any interference that does occur • No issue coexisting with 802.11b applications

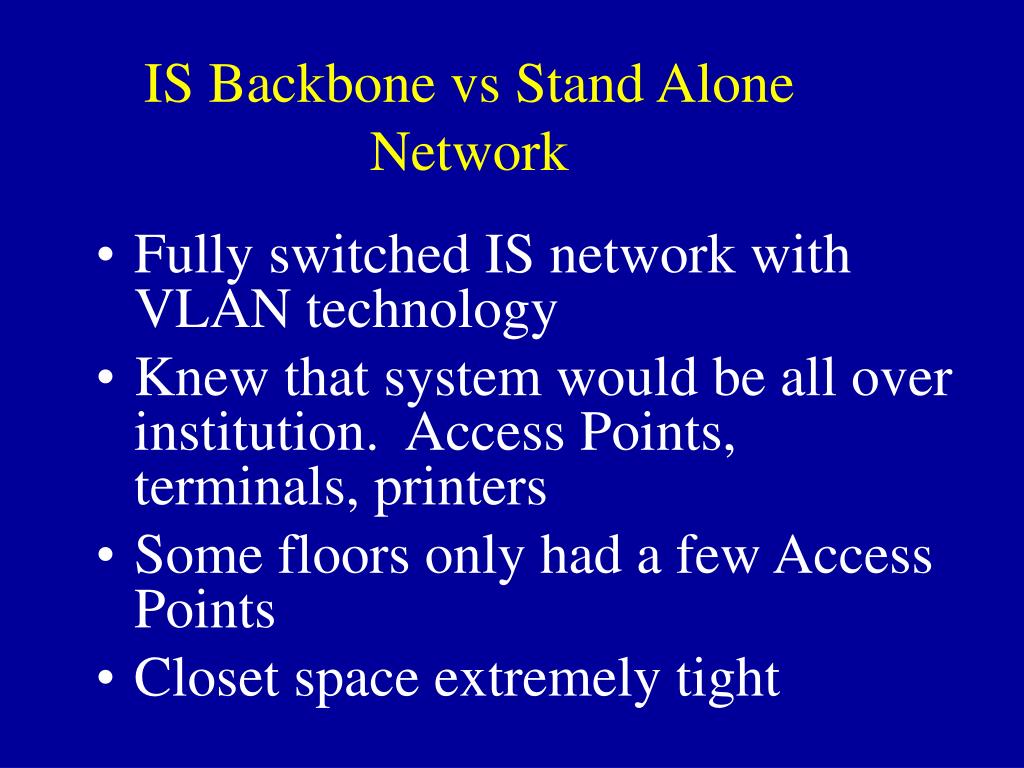

  11. IS Backbone vs Stand Alone Network • Fully switched IS network with VLAN technology • Knew that system would be all over institution. Access Points, terminals, printers • Some floors only had a few Access Points • Closet space extremely tight

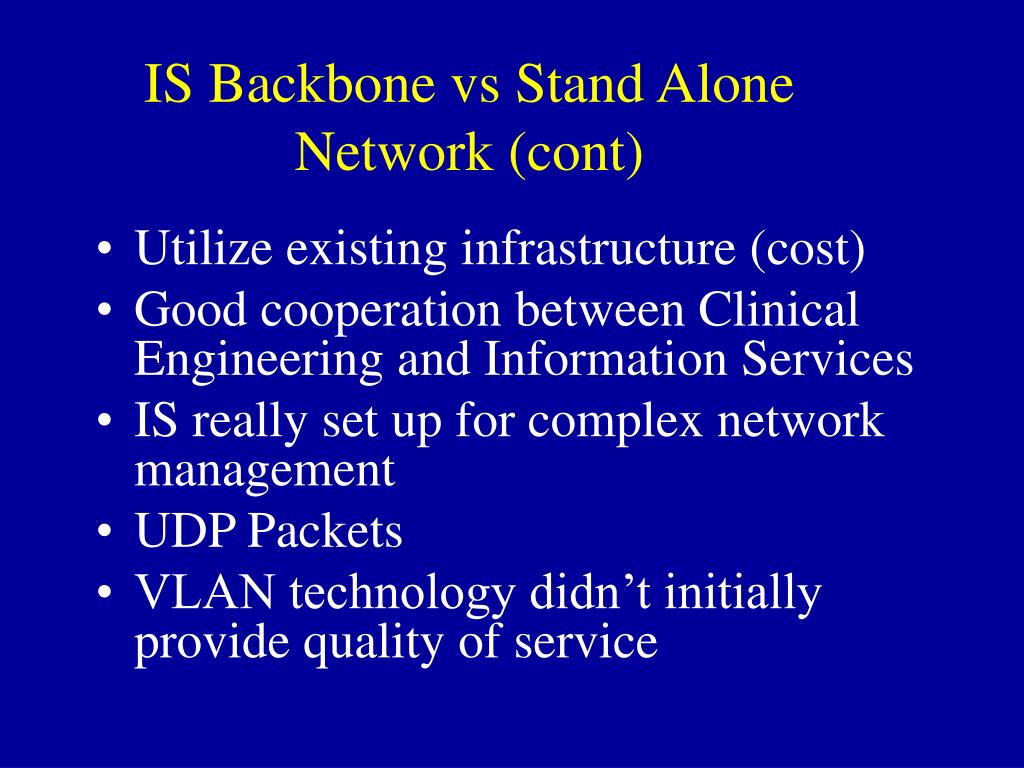

  12. IS Backbone vs Stand Alone Network (cont) • Utilize existing infrastructure (cost) • Good cooperation between Clinical Engineering and Information Services • IS really set up for complex network management • UDP Packets • VLAN technology didn’t initially provide quality of service

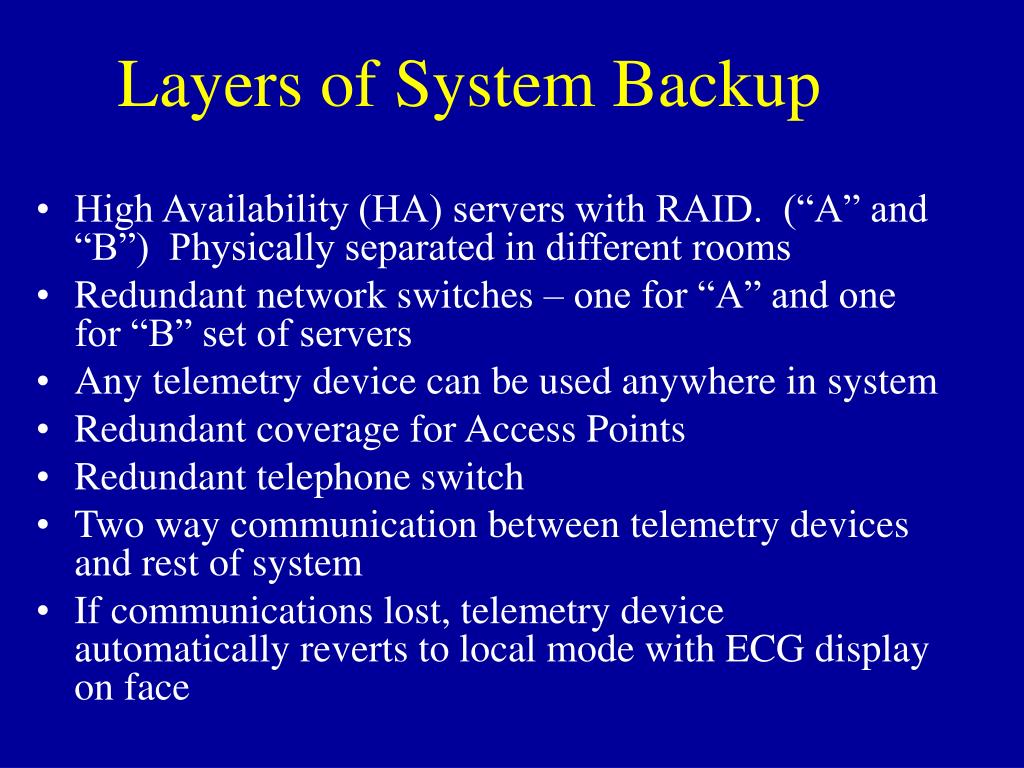

  13. Layers of System Backup • High Availability (HA) servers with RAID. (“A” and “B”) Physically separated in different rooms • Redundant network switches – one for “A” and one for “B” set of servers • Any telemetry device can be used anywhere in system • Redundant coverage for Access Points • Redundant telephone switch • Two way communication between telemetry devices and rest of system • If communications lost, telemetry device automatically reverts to local mode with ECG display on face

  14. Implementation • Process/cultural changes much more difficult than technical implementation • First CMR adjacent to nursing unit

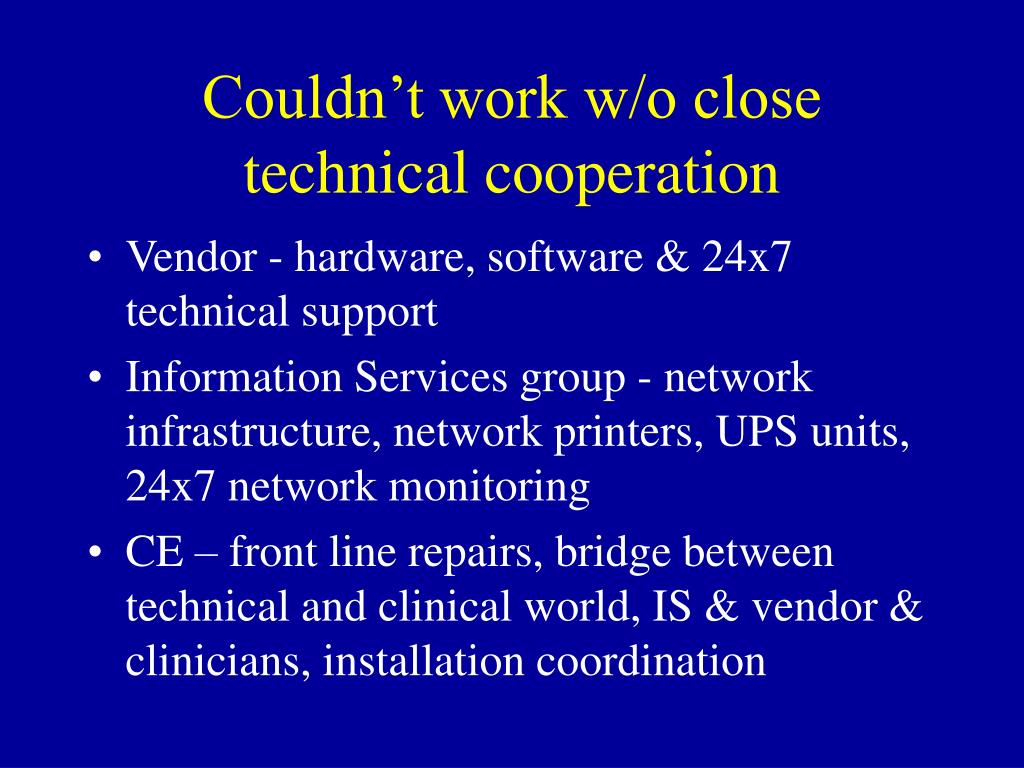

  15. Couldn’t work w/o close technical cooperation • Vendor - hardware, software & 24x7 technical support • Information Services group - network infrastructure, network printers, UPS units, 24x7 network monitoring • CE – front line repairs, bridge between technical and clinical world, IS & vendor & clinicians, installation coordination

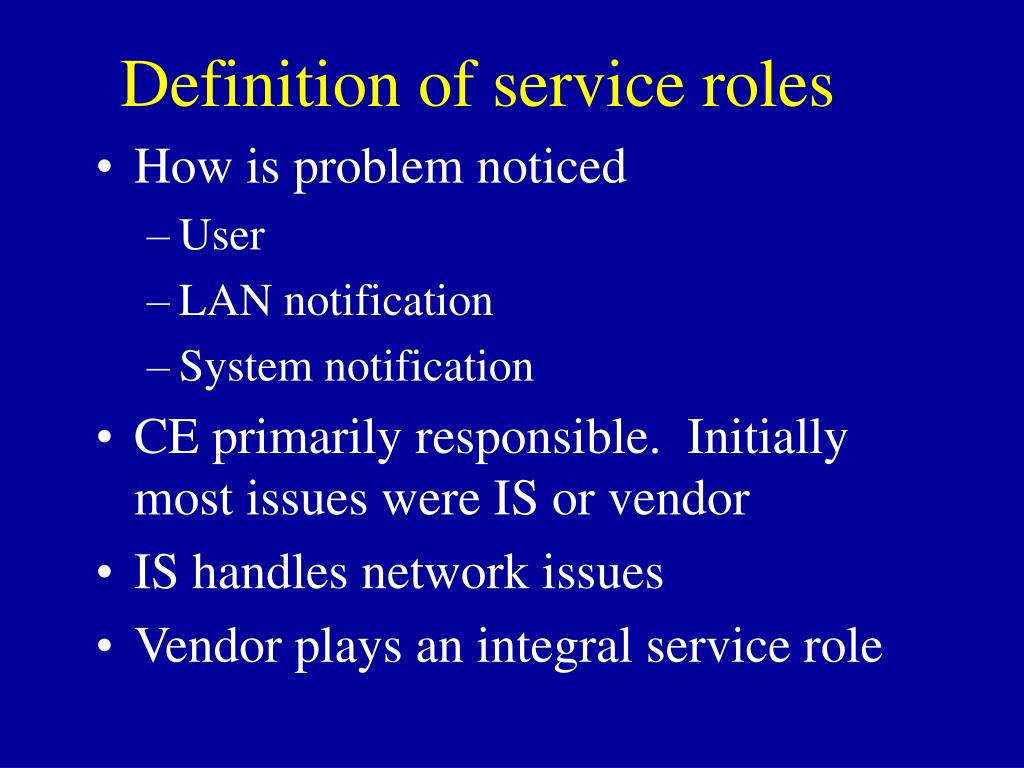

  16. Definition of service roles • How is problem noticed • User • LAN notification • System notification • CE primarily responsible. Initially most issues were IS or vendor • IS handles network issues • Vendor plays an integral service role

  17. Communications is the key!

  18. QUESTIONS?
