XTree for Declarative XML Querying

1. XTree for Declarative XML Querying Zhuo Chen, Tok Wang Ling, Mengchi Liu, and Gillian Dobbie January 2004

2. Outlines • Introduction • Preliminaries • XTree • Algorithm to transform XTree query to XQuery • Conclusion and future works

3. Outlines • Introduction • Preliminaries • XTree • Algorithm to transform XTree query to XQuery • Conclusion and future works

4. Introduction • How to query XML documents is an important issue in XML research • Various query languages proposed: • XPath, XQuery, Lorel, XML-GL, XQL, XML-QL, XSLT, YATL, XDuce, a rule-based semantic querying, a declarative XML querying, etc • XQuery based on XPath is selected as the basis for an official W3C query language for XML

5. Introduction • In this paper, we will • Analyze the limitations of XPath • Propose a new set of syntax rules called XTree, which is a generalization of XPath • Show how XTree can efficiently replace the notations of XPath • Give algorithms to convert queries based on XTree expressions to standard XQuery queries

6. Outlines • Introduction • Preliminaries • Background on XPath • Limitations of XPath • XTree • Algorithm to transform XTree query to XQuery • Conclusion and future works

7. Preliminaries • XPath • A W3C standard • A set of syntax rules for defining parts of an XML document • It uses paths to identify nodes (elements and attributes) in XML documents • These path expressions look very much like computer file system

8. Background on XPath <bib name=“IT”> <book id=“b001” year=“1994”> <title>TCP/IP Illustrated</title> <author><last>Stevens</last><first>W.</first></author> <publisher>Addison-Wesley</publisher> </book> <book id =“b002” year=“1992”> <title>Advanced Programming in the Unix Environment</title> <author><last>Stevens</last><first>W.</first></author> <publisher>Addison-Wesley</publisher> </book> <book id=“b003” year=“2000”> <title>Data on the Web</title> <edition>3</edition> <author><last>Abiteboul</last><first>Serge</first></author> <author><last>Buneman</last><first>Peter</first></author> <author><last>Suciu</last><first>Dan</first></author> <publisher>Morgan Kaufmann</publisher> </book> <journal id=“j001” year=“1998”> <title>XML</title> <editor><last>Date</last><first>C.</first></editor> <editor><last>Gerbarg</last><first>M.</first></editor> <publisher>Morgan Kaufmann</publisher> </journal> </bib> • Sample XML document of a bibliography

9. Background on XPath • XPath examples • /bib/book/@year • Get attribute “year” of each book • /bib/book/author • Get element “author” of each book • //author • Get all elements named “author”, regardless of their absolute paths • /bib/book/* • Get all sub-elements of each book • /bib/book/@* • Get all attributes of each book • /bib/book[2] • Get the second book element • /bib/book[last()] • Get the last book element

10. Background on XQuery • XQuery • An XML querying language to search XML documents • Based on XPath • FLWOR statements • For – Let – Where – Order by – Return • For clause iterate the variable over the result of its expression • Let clause bind the variable to the result of its expression • Complex queries (nested clauses) • Complex result constructions • User-defined functions

11. Background on XQuery • XQuery example • List year an title of all books published after 1995 XQuery: for $book in /bib/book where $book/@year > 1995 return <book> { $book/@year } { $book/title } </book> Result: <book year=“2000”> <title>Data on the Web</title> </book>

12. Limitations of XPath • XPath has some limitations: 1. We can only assign one variable for each XPath expression • It is just a linear path, which is not like the XML’s tree structure • Inefficient • If a query needs to get values from several places, it has to use several paths 2. It is difficult to reveal the relationship among correlated XPaths • This may cause mistakes if a user does not pay attention when writing a query • Eg, if we want to output title and author of each book XPath 1: /bib/book/title, XPath 2: /bib/book/author Wrong! The above two paths are not correlated

13. Limitations of XPath • XPath has some limitations: 3. XPath is inefficient to express query that returns elements at path A while the condition is in a distant path B • Difficult to distinguish condition branch from target branch • Especially for multiple conditions and nested conditions • Eg, find the value of publisher id of a book which has an author with last name as “Stevens” and first name as “W.” /bib/book/author[last=“Stevens” and first=“W.”]/../publisher/@pubid 4. XPath expressions are only used in the querying part of XQuery, not in the result construction part • In XQuery, the result construction part mixes literal text, variable evaluation and even nested sub-queries • The whole query is difficult to read and comprehend

14. Limitations of XPath • XPath has some limitations: 5. XPath can only bind variable on the whole node (element or attribute) structure, which is a name-value pair • If we want to get the substructure of the node, we have to invoke built-in functions • local-name() to get node name • string() to get string value • Difficult to query XML documents with unknown structure, or to rename the nodes in the result for $book in /bib/book let $attrib := $book/@* return <book> { $book/text(), $book/* } <attribute name={ local-name($attrib)} value={ string($attrib) }/> </book> • Eg, Suppose we do not know the sub-structure of book element, we want to re-structure books in this way: keep text nodes and sub-elements unchanged, but convert attributes to sub-elements:

15. Outlines • Introduction • Preliminaries • XTree • Basic syntax • XTree for querying • XTree for result construction • Algorithm to transform XTree query to XQuery • Conclusion and future works

16. XTree • XTree is a generalization of XPath • XTree has a tree structure like XML • XTree is more efficient than XPath • In the querying part, one XTree expression can bind multiple variables • In XQuery, one XPath expression can only bind one variable • In the result construction part, one XTree expression can be used to define the result format • Avoid nested structure in the query • Make the whole query easier to read and understand • Supports list-valued variables explicitly, and determines their values uniquely

17. XTree syntax • Similar to that of XPath • / means parent-child hierarchy • // means no matter how many levels down (ancestor-descent) • ( ) in front to indicate the URL of the document • Sibling tree nodes are enclosed by { }, and separated by commas • { } can be nested • In XTree, conditions are written directly without { } • Use logic variables as place holders to bind/match the values at their places • → to assign variables in the querying part • ← to get values from variables in the result construction part • Only interested sub-trees are written in XTree, not the whole XML tree structure

18. XTree for querying • Symbol → will assign values of nodes on the left side to the variable on the right side • Example. For the sample bibliography document, suppose we want to get the year and title of each book, and its authors’ last names and first names • We can use the variables $y, $t, $first, $last to bind them respectively as in the following XTree expression: • /bib/book/{@year→$y, title→$t, author/{last→$last, first→$first}} • We can instantiate many variables in one XTree expression • The above XTree expression corresponds to the following 6 XPath expressions in XQuery: for $book in /bib/book, $y in $book/@year, $t in $book/title, $author in $book/author, $last in $author/last, $first in $author/first

19. XTree for querying • Example. Suppose we want to get the last name and first name elements at whatever depth in the document, we can write the following XTree expression: /bib//{last→$last, first→$first} • The square braces enclosing two elements last and first specifies that these two elements are sibling. • According to the XML document, the parent of sibling elements last and first is /bib/book/author or /bib/journal/editor • XTree allows a user to use path abbreviation as in XPath

20. XTree for querying • Example. Suppose we want to obtain some attribute with value “2000” in some book element, and bind variable $b to that book: /bib/book→$b/@$attr=“2000” • According to the sample document, $b will bind to the third book, and $attr will bind to the attribute name “year”. • XTree allows a user to bind variables on the structure of XML document • A user can assign variable $var on the left side of → symbol • Here $var will bind to the name of the corresponding node

21. XTree • Two types of variables • Single-valued variables • $X • An element instance of the specified path • List-valued variables • {$X} • A list of all $X instances • Explicitly indicated by a pair of curly braces • Note that both sibling nodes and list-valued variables are enclosed by curly braces • Sibling nodes will have commas as separators in the braces • List-valued variables does not have commas in the braces

22. List-valued variables • Object-oriented functions of list-valued variables: • Aggregate functions Suppose list-valued variable {$nums} binds to a list of numbers • {$nums}.count() returns the number of items in the list • {$nums}.avg() returns the average value of items in the list • {$nums}.min() returns the minimum value in the list • {$nums}.max() returns the maximum value in the list • {$nums}.sum() returns the sum of values in the list

23. List-valued variables • Object-oriented functions of list-valued variables: • List operations Suppose list-valued variable {$names} binds to a list of name elements • {$names}.[1-3, 6] returns a sublist of 1st to 3rd items, and 6th item • {$names}.last() returns the last item in the list • {$names}.sort() sorts the items in the list in ascending order • {$names}.sort_desc() sorts the items in the list in descending order • {$names}.distinct() eliminates duplicate items in the list • {$names}.random(3) picks out 3 items randomly • $name  {$names} check whether an item is in the list • {$names’}  {$names} check whether the first list is a sub-list of the second list

24. Semantics of list-valued variables • Definition 1. The associated path of variable $a (or {$a}) is the absolute path expression from root to the nodes represented by $a (or {$a}). • /bib/book→$b/title→$t • the associated path of $t is /bib/book/title. • Definition 2. Variable $a is an ancestor variable of $b if $a and $b are defined in the same XTree expression, and the associated path of $a is a prefix of the associated path of $b. • /bib/book→$b/{title→$t, author→$a} • $b is an ancestor variable of $t and $a, but $t is not an ancestor variable of $a.

25. Semantics of list-valued variables • Definition 3. In an XTree expression, when a variable is bound to a value in the query evaluation, the variable is instantiated. • /bib/book/{author→$a/first→$first, title→$t} • In the evaluation, when we have reach /bib/book/author, $a is instantiated; when reach /bib/book/author/first, $first is instantiated. • Definition 4. The value of list-valued variable {$a} is a list of all instances of $a with all its ancestor variables instantiated. • /bib/book/author→{$a} {$a} means all the author elements of all the books • /bib/book→$b/author→{$a} {$a} means all the authors of a certain book $b value of {$a} value of {$a}

26. XTree for result construction • XTree expression can also be used to define the result format • Symbol ← will get values of variables from right side and assign them to the expression on the left side • The result construction part is just one XTree expression • No nested structure as the return clause of XQuery • Since XTree already has a tree structure • Easy to read and understand • Must be concrete • No condition checking or uncertainty in the structure • Unlike XTree expressions in the querying part

27. XTree for result construction • Example. We want to list the titles and publishers of books which are published after 1993, suppose we have bound the variables by the following XTree expression: /bib/book/{@year>1993, title→$t, publisher→$p} We can write the following XTree expression to define the result format: /result/recentbook/{title←$t, publisher←$p} • The result format is defined as: under the root result, each recentbook element will store the title and publisher of that book <result> <recentbook> <title>TCP/IP Illustrated</title> <publisher>Addison-Wesley</publisher> </recentbook> <recentbook> <title>Data on the web</title> <publisher>Morgan Kaufmann</publisher> </recentbook> <result>

28. XTree for result construction • Example. For each book, show the title, the number of authors and the first author, suppose the variable bindings are defined in the following XTree expression: /bib/book/{title→$t, author→{$a}} We can write the following XTree expression to return the result: /result/book/{title←$t, authNum←{$a}.count(), author←{$a}[1]} • {$a}.count() counts the number of items in the {$a} list • {$a}[1] returns the first item in the {$a} list • Output: <result> <book> <title>TCP/IP Illustrated</title> <authNum>1</authNum> <author><last>Stevens</last><first>W.</first></author> </book> <book> <title>Advanced Programming in the Unix Environment</title> <authNum>1</authNum> <author><last>Stevens</last><first>W.</first></author> </book> <book> <title>Data on the Web</title>> <authNum>3</authNum> <author><last>Abiteboul</last><first>Serge</first></author> </book> </result>

29. XTree for result construction • The right side of ← symbol can be: • A pre-defined variable or invocation of functions on variables • Literal text, indicating static content • Omitted, indicating an empty value • Example. Suppose we want to return a book whose title is “Computer Architecture”, and which does not have a specified author, we can write the following XTree expression: /bib/book/{title←“Computer Architecture”, no-author} It will output the following XML segment: <bib> <book> <title>Computer Architecture</title> <no-author/> </book> </bib>

30. XTree for result construction • Query based on XTree expressions has QWOC (Query-Where-Order by-Construct) statements • Query clause contains one or more XTree expressions for selection and variables binding • Where clause is optional, it defines constraints • Order by clause is optional, it defines the ordering • Construct clause contains one XTree expression to define the output format

31. Outlines • Introduction • Preliminaries • XTree • Algorithm to transform XTree query to XQuery • An algorithm to transform an XTree expression in the query part to a set of XPath expressions • An algorithm to transform an XTree expression in the result construction part to some nested XQuery expressions • Conclusion and future works

32. Transformation algorithm for querying part • Transform an XTree expression in the querying part to a set of XPath expressions • Not as trivial as just extracting each path associated with a variable to be an XTree expression • Variables may correlate to each other by some common ancestors • We have to use such common ancestors to constrain the descendent variables • The common ancestors we want are just those branching nodes (the nodes just before every pair of square braces for branching) • Use stack to store such common ancestors for later use

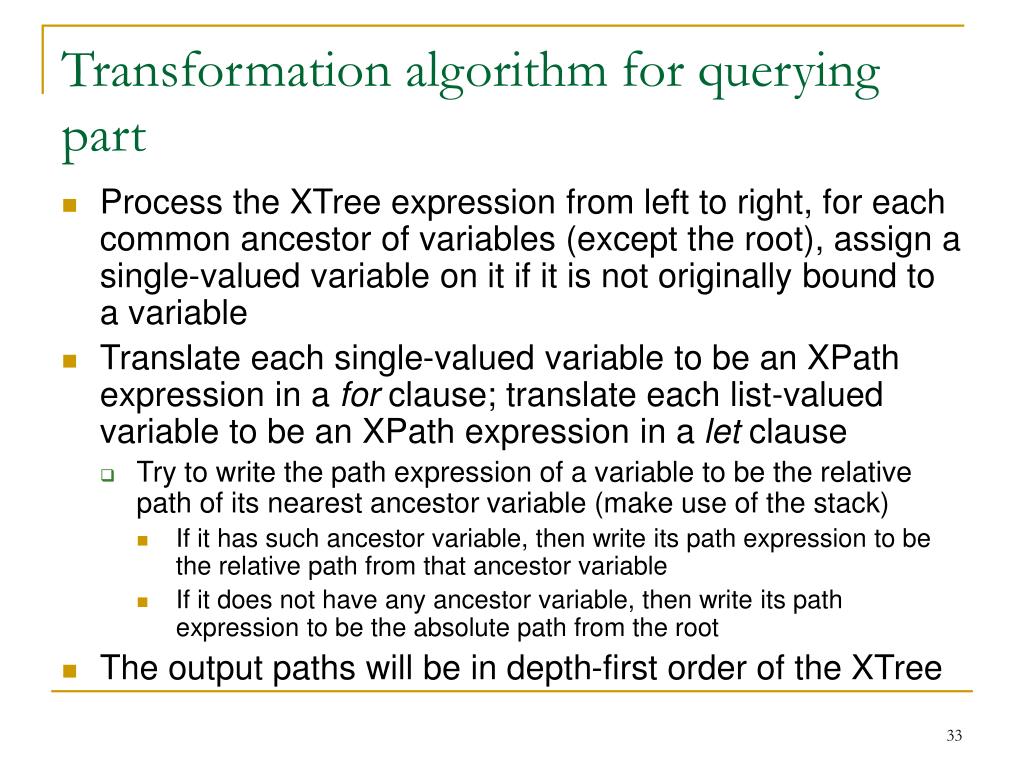

33. Transformation algorithm for querying part • Process the XTree expression from left to right, for each common ancestor of variables (except the root), assign a single-valued variable on it if it is not originally bound to a variable • Translate each single-valued variable to be an XPath expression in a for clause; translate each list-valued variable to be an XPath expression in a let clause • Try to write the path expression of a variable to be the relative path of its nearest ancestor variable (make use of the stack) • If it has such ancestor variable, then write its path expression to be the relative path from that ancestor variable • If it does not have any ancestor variable, then write its path expression to be the absolute path from the root • The output paths will be in depth-first order of the XTree

34. Transformation algorithm for querying part • Example: /bib/{book→$b/{title→$t,author→{$a}}, journal→$j/{title→$jt,editor→$e/{last→$last, first→$first}}} /bib/{book→$b/{title→$t,author→{$a}}, journal→$j/{title→$jt, editor/{last→$last, first→$first}}} /bib/{book→$b/{title→$t,author→{$a}}, journal/{title→$jt, editor/{last→$last, first→$first}}} /bib/{book→$b/{title→$t, author→{$a}}, journal/{title→$jt, editor/{last→$last, first→$first}}} /bib/{book→$b/{title→$t,author→{$a}}, journal→$j/{title→$jt, editor/{last→$last, first→$first}}} /bib/{book/{title→$t, author→{$a}}, journal/{title→$jt, editor/{last→$last, first→$first}}} /bib/{book→$b/{title→$t,author→{$a}}, journal→$j/{title→$jt,editor→$e/{last→$last, first→$first}}} /bib/{book→$b/{title→$t,author→{$a}}, journal→$j/{title→$jt,editor→$e/{last→$last, first→$first}}} /bib/{book→$b/{title→$t, author→{$a}}, journal/{title→$jt, editor/{last→$last, first→$first}}} • XPaths generated: for $b in /bib/book for $t in $b/title let $a := $b/author for $j in /bib/journal for $jt in $j/title for $e in $j/editor for $last in $e/last for $first in $e/first

35. Transformation algorithm for result construction part • Transform an XTree expression in the result construction part to some XQuery expressions • More complicated • We will often encounter nested sub-queries in XQuery • Consider the case that the node name to get the variable value is different from the node name where the variable was bound in the querying part • Process the XTree expression step by step • Find the corresponding XPath expression of each variable in the XPaths generated from last algorithm • Translate each variable value substitution to some XQuery statement • Use curly braces { } to form sub-query blocks according to the structure of the XTree expression in construct clause

36. Transformation algorithm for result construction part • Example: query /bib/{book/{title→$t, author→{$a}}, journal/{title→$jt, editor/{last→$last, first→$first}}} construct /result/{book/{name←$t, authors/{@count←{$a}.count( ), au←{$a}}}, journal/{title←$jt, editor/{first←$first, last←$last}}} • Generated XPath expressions of the querying part: for $b in /bib/book for $t in $b/title let $a := $b/author for $j in /bib/journal for $jt in $j/title for $e in $j/editor for $last in $e/last for $first in $e/first

37. <result> { for $b in /bib/book return <book> { for $t in $b/title return <name> {$t/*} {$t/@*} {$t/text()} </name> } { let $a := $b/author return <authors count={count($a)}> { for $x in $a return <au> {$x/*} {$x/@*} {$x/text()} </au> } </authors> } </book> } { for $j in /bib/journal return <journal> { for $jt in $j/title return {$jt} } { for $e in $j/editor return <editor> { for $first in $e/first return {$first} } { for $last in $e/last return {$last} } </editor> } </journal> } </result> Transformation algorithm for result construction part • Output:

38. Outlines • Introduction • Preliminaries • XTree • Algorithm to transform XTree query to XQuery • Conclusion and future works • Conclusion • Future works

39. Conclusion • Discussed the limitations of XPath • Proposed a new set of syntax rules called XTree • XTree has a tree structure • In the querying part, one XTree expression can bind multiple variables • In the result construction part, one XTree expression can define the result format • List-valued variables are explicitly indicated, and their values are uniquely determined • XTree is more compact and convenient to use than XPath • Designed algorithms to transform a query based on XTree expressions to a standard XQuery query

40. Future works • Implement an XTree query parser • Queries based on XTree expressions can be executed directly • The query evaluation will be more efficient on this approach, since we will have a global view of the whole query tree • Extend the transformation algorithms to support queries with join, negation, grouping and recursion • Optimize the output XQuery queries of our transformation algorithms according to the schema of the XML document • Observe the progressive development of XPath to continuously enhance our XTree

41. References • S.Abiteboul, D.Quass, J.McHugh, J.Widom, and J.L. Wiener. The Lorel Query Language for Semistructured Data. International Journal of Digital Library 1(1):68-99, 1997. • S.Ceri, S.Comai, E.Damiani, P.Fraternali, S.Paraboschi, and L.Tanca. XML-GL: a Graphical Language for Querying and Restructuring WWW data. In Proceedings of the 8th International World Wide Web Conference, Toronto, Canada, 1999. • S.Cluet and J.Simeon. YATL: a Functional and Declarative Language for XML. Draft manuscript, March 2000. • H.Hosoya and B.Pierce. XDuce: A Typed XML Processing Language (Preliminary Report). In Proceedings of WebDB Workshop, 2000. • M.Liu and T.W.Ling. Towards Declarative XML Querying. In Proceedings of WISE 2002, 127-138, Singapore, 2002. • P.Chippimolchai, V.Wuwongse and C.Anutariya. Semantic Query Formulation and Evaluation for XML Databases. In Proceedings of WISE 2002, 205-214, Singapore, 2002. • D.Chamberlin, P. Fankhauser, M.Marchiori, and J.Robie. XML Query Requirements. W3C Working Draft, In http://www.w3.org/TR/xquery-requirements/, June 2003. • J. Clark and S.DeRose. XML Path Language (XPath) Version 1.0. W3C Recommendation, In http://www.w3.org/TR/xpath, November 2001. • D.Chamberlin, D.Florescu, J.Robie, J.Simon, and M.Stefanescu. XQuery 1.0: A Query Language for XML. W3C Working Draft, In http://www.w3.org/TR/xquery/, May 2003. • J.Robie, J.Lapp, and D.Schach. XML Query Language (XQL). In • http://www.w3.org/TandS/QL/QL98/pp/xql.html, 1998. • A. Deutsch, M.Fernandez, D.Florescu, A.Levy, and D.Suciu. XML-QL: A Query Language for XML. In http://www.w3.org/TR/NOTE-xml-ql/, August 1998. • J.Clark. XSL Transformations (XSLT) Version 1.0. W3C Recommendation, In http://www.w3.org/TR/xslt, November 1999.

42. Thank you

43. <bib name=“IT”> <book id=“b001” year=“1994”> <title>TCP/IP Illustrated</title> <author><last>Stevens</last><first>W.</first></author> <publisher>Addison-Wesley</publisher> </book> <book id =“b002” year=“1992”> <title>Advanced Programming in the Unix Environment</title> <author><last>Stevens</last><first>W.</first></author> <publisher>Addison-Wesley</publisher> </book> <book id=“b003” year=“2000”> <title>Data on the Web</title> <edition>3</edition> <author><last>Abiteboul</last><first>Serge</first></author> <author><last>Buneman</last><first>Peter</first></author> <author><last>Suciu</last><first>Dan</first></author> <publisher>Morgan Kaufmann</publisher> </book> <journal id=“j001” year=“1998”> <title>XML</title> <editor><last>Date</last><first>C.</first></editor> <editor><last>Gerbarg</last><first>M.</first></editor> <publisher>Morgan Kaufmann</publisher> </journal> </bib> {$a} back

44. <bib name=“IT”> <book id=“b001” year=“1994”> <title>TCP/IP Illustrated</title> <author><last>Stevens</last><first>W.</first></author> <publisher>Addison-Wesley</publisher> </book> <book id =“b002” year=“1992”> <title>Advanced Programming in the Unix Environment</title> <author><last>Stevens</last><first>W.</first></author> <publisher>Addison-Wesley</publisher> </book> <book id=“b003” year=“2000”> <title>Data on the Web</title> <edition>3</edition> <author><last>Abiteboul</last><first>Serge</first></author> <author><last>Buneman</last><first>Peter</first></author> <author><last>Suciu</last><first>Dan</first></author> <publisher>Morgan Kaufmann</publisher> </book> <journal id=“j001” year=“1998”> <title>XML</title> <editor><last>Date</last><first>C.</first></editor> <editor><last>Gerbarg</last><first>M.</first></editor> <publisher>Morgan Kaufmann</publisher> </journal> </bib> $b {$a} {$a} $b {$a} $b back
