Accelerated Motion Problems

Accelerated Motion Problems. 1. An automobile manufacturer claims that its sports car can accelerate from rest to a speed of 39.0 m/s in 8.0 seconds. Determine the acceleration of the car a = v f –v i / Δ t = 39.0 m/s/8.0 seconds = 4.9 m/s 2

tate-carver
Télécharger la présentation

Accelerated Motion Problems

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

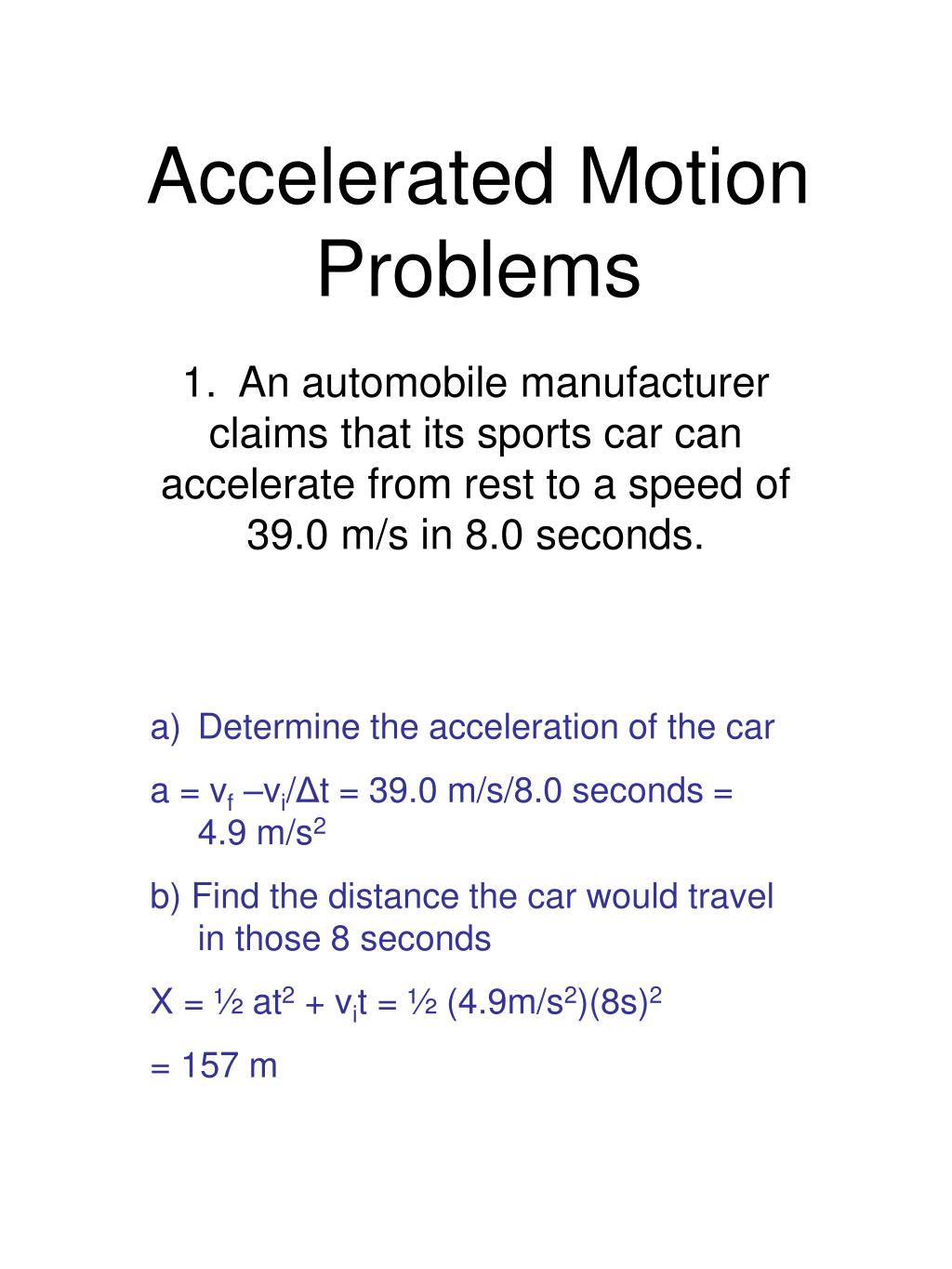

  1. Accelerated Motion Problems 1. An automobile manufacturer claims that its sports car can accelerate from rest to a speed of 39.0 m/s in 8.0 seconds. • Determine the acceleration of the car • a = vf –vi/Δt = 39.0 m/s/8.0 seconds = 4.9 m/s2 • b) Find the distance the car would travel in those 8 seconds • X = ½ at2 + vit = ½ (4.9m/s2)(8s)2 • = 157 m

  2. Problem #2 • A racing car starting from rest accelerates at a rate of 4.5 m/s2. What is the velocity after it has traveled for 10 seconds? Vf = at + vi = 4.5 m/s2 (10s) = 45 m/s+ 0

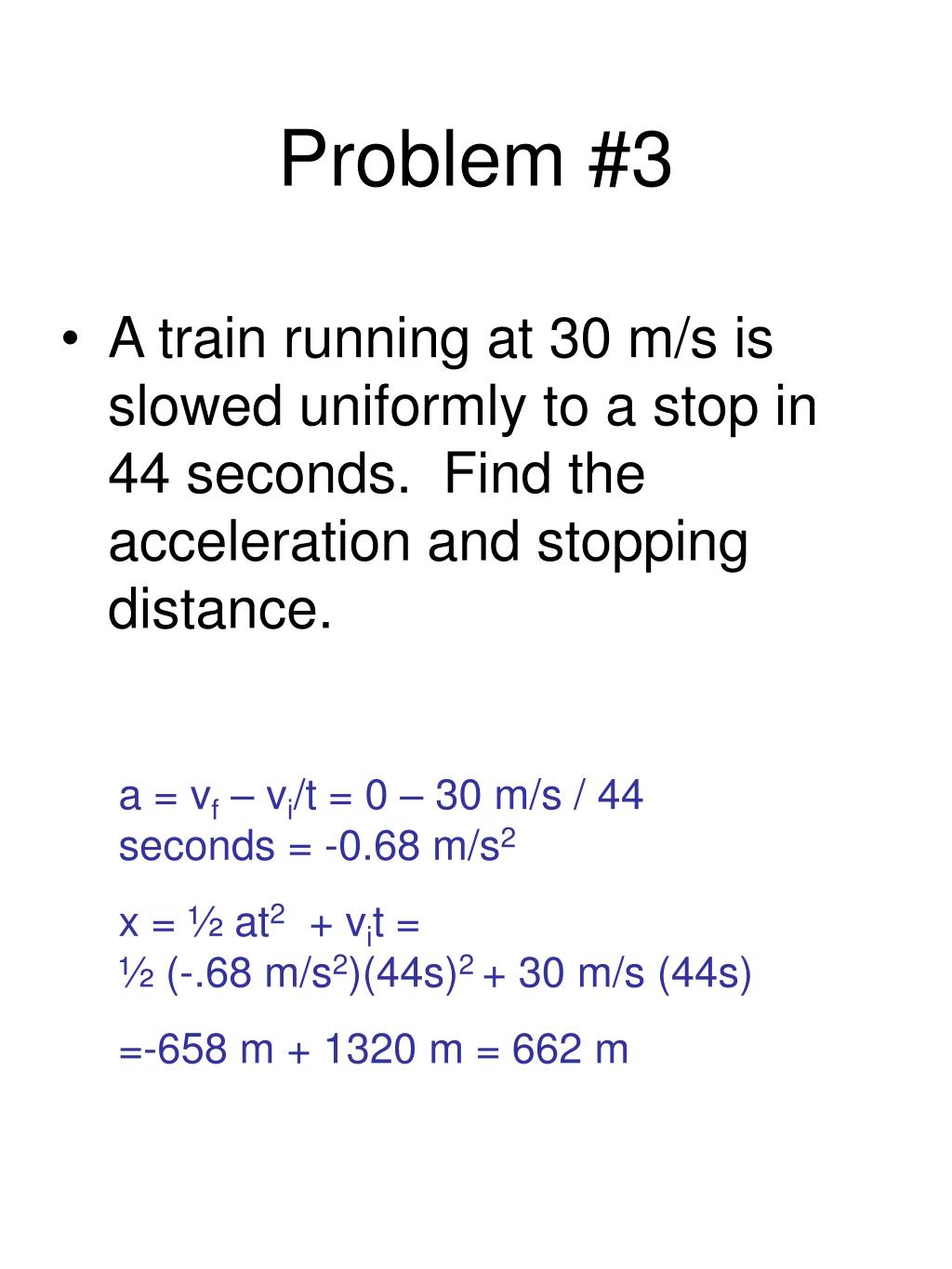

  3. Problem #3 • A train running at 30 m/s is slowed uniformly to a stop in 44 seconds. Find the acceleration and stopping distance. a = vf – vi/t = 0 – 30 m/s / 44 seconds = -0.68 m/s2 x = ½ at2 + vit = ½ (-.68 m/s2)(44s)2 + 30 m/s (44s) =-658 m + 1320 m = 662 m

  4. Problem #4 • A car is traveling at 60 km/h. It accelerates at 3m/s2 for 5 seconds. What speed does it reach? 60 km/h x 1000m/1km x 1h/3600 s = 16.7 m/s vf = at + vi = 3m/s2 (5s) + 16.7 m/s = 31.7 m/s

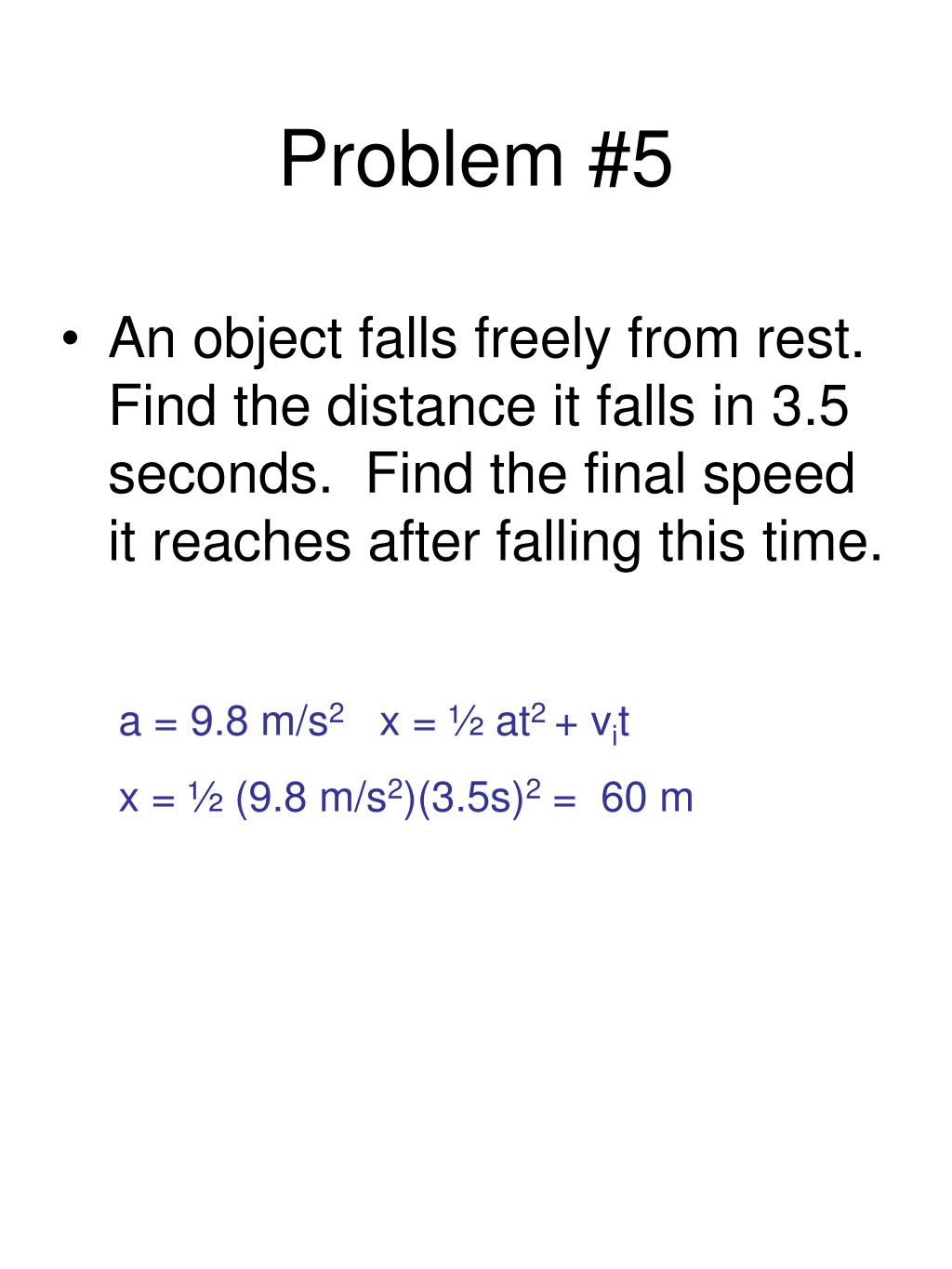

  5. Problem #5 • An object falls freely from rest. Find the distance it falls in 3.5 seconds. Find the final speed it reaches after falling this time. a = 9.8 m/s2 x = ½ at2 + vit x = ½ (9.8 m/s2)(3.5s)2 = 60 m

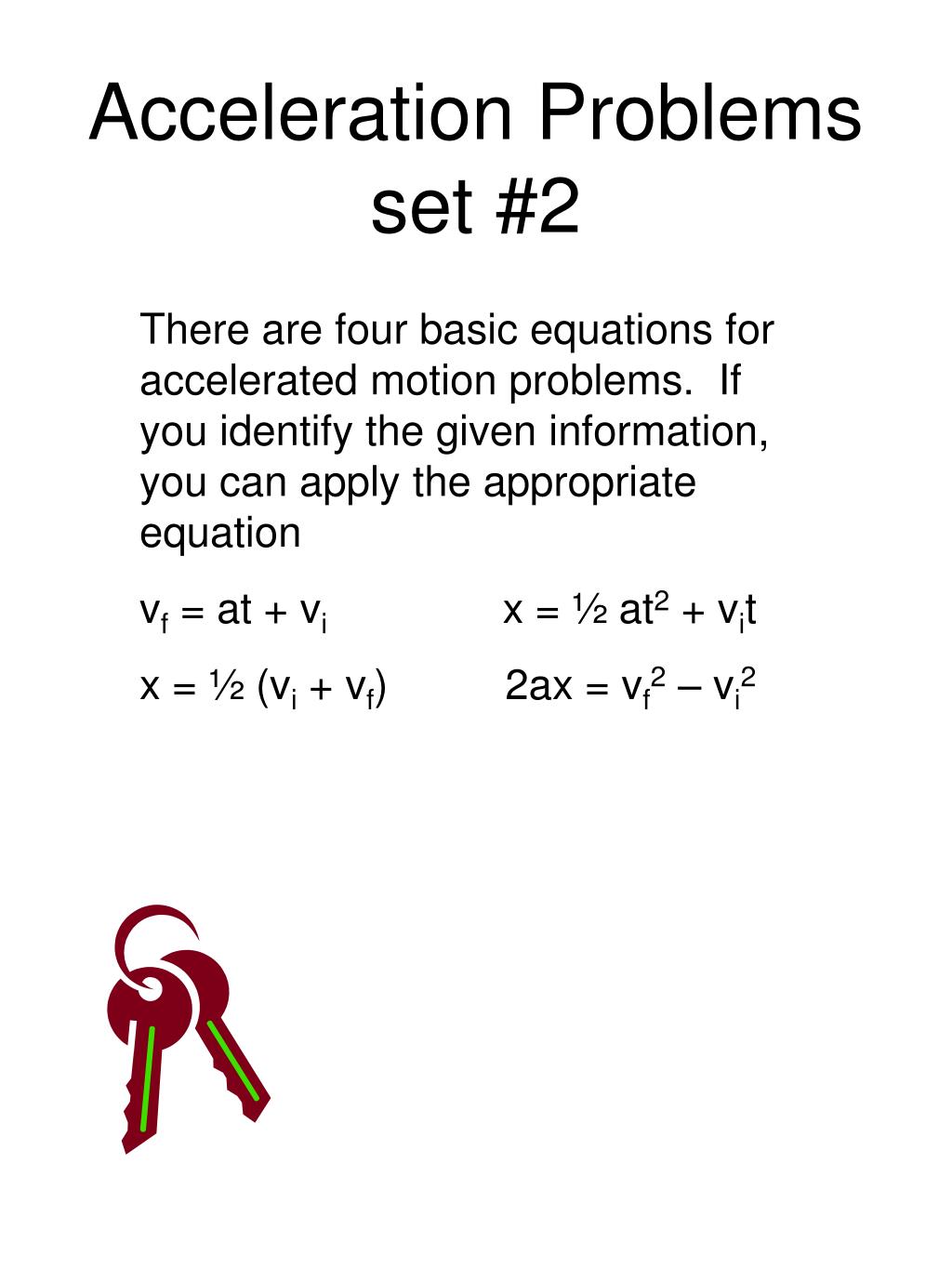

  6. Acceleration Problems set #2 There are four basic equations for accelerated motion problems. If you identify the given information, you can apply the appropriate equation vf = at + vi x = ½ at2 + vit x = ½ (vi + vf) 2ax = vf2 – vi2

  7. Acceleration problemsset #2 • An airplane must have a velocity of 50 m/s in order to take off. What must be the airplane’s acceleration if the runway is 500 meters long? vf = 50 m/s x= 500 m vi = 0 a=? 2ax = vf2 –vi2 a = vf2 –vi2/2x a = 2.5 m/s2

  8. Acceleration problemsset #2 • A car traveling 10 m/s accelerates to a speed of 25 m/s in 12 seconds. What distance does it cover in that time? vi = 10 m/s vf = 25 m/s t = 12 seconds x=? X = ½( vf + vi)t = ½( 10m/s + 25m/s) 12 seconds x = 210 meters

  9. Acceleration problemsset #2 • A car moving at 35 m/s is brought to a stop in 12 seconds. What is the acceleration? What distance does it cover? vf=0 vi = 35 m/s t = 12 s a = vf – vi/t = -35 m/s/12 s a = -2.9 m/s2 x = ½(vf+vi)t = 210 meters

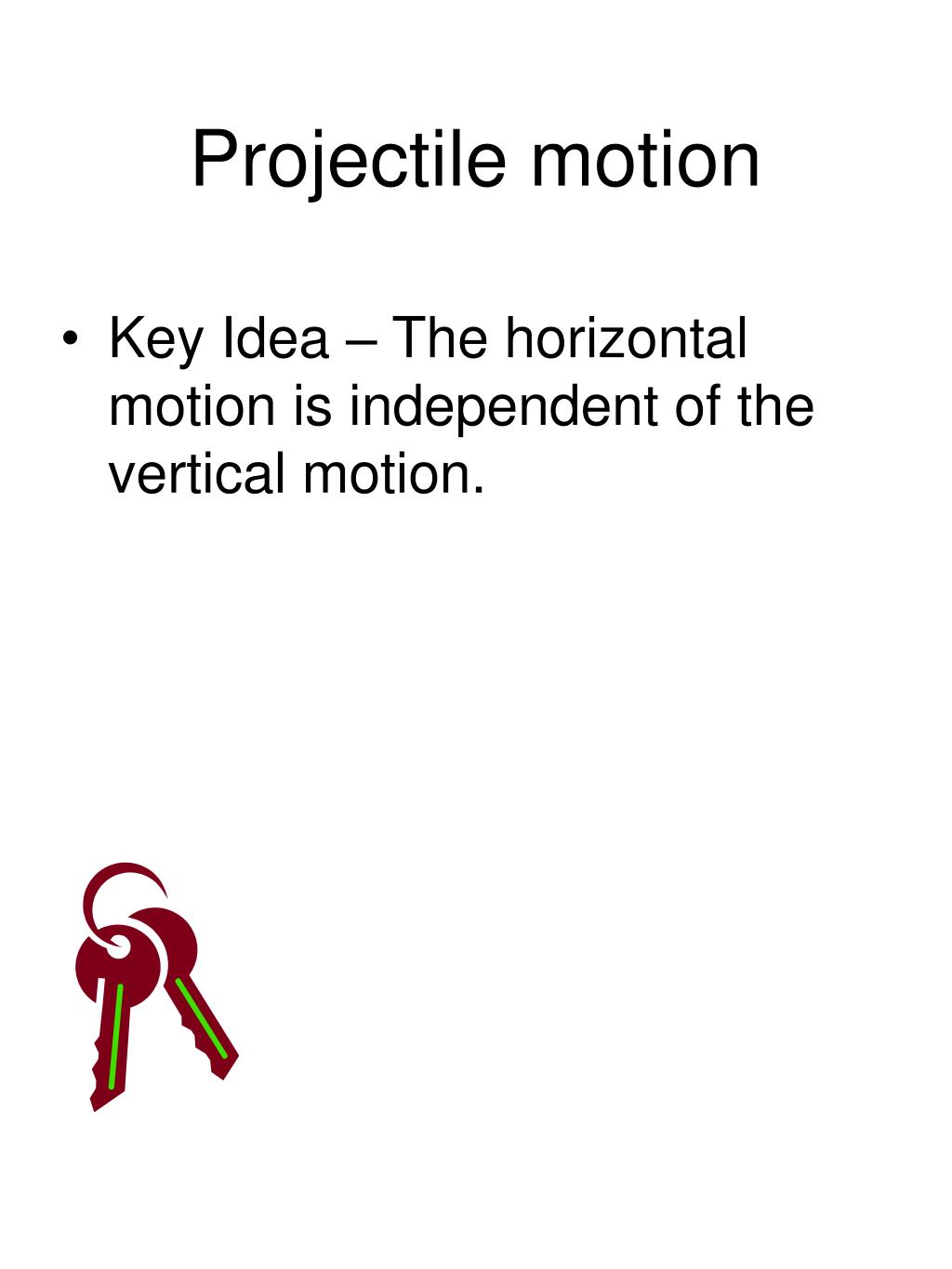

  10. Projectile motion • Key Idea – The horizontal motion is independent of the vertical motion.

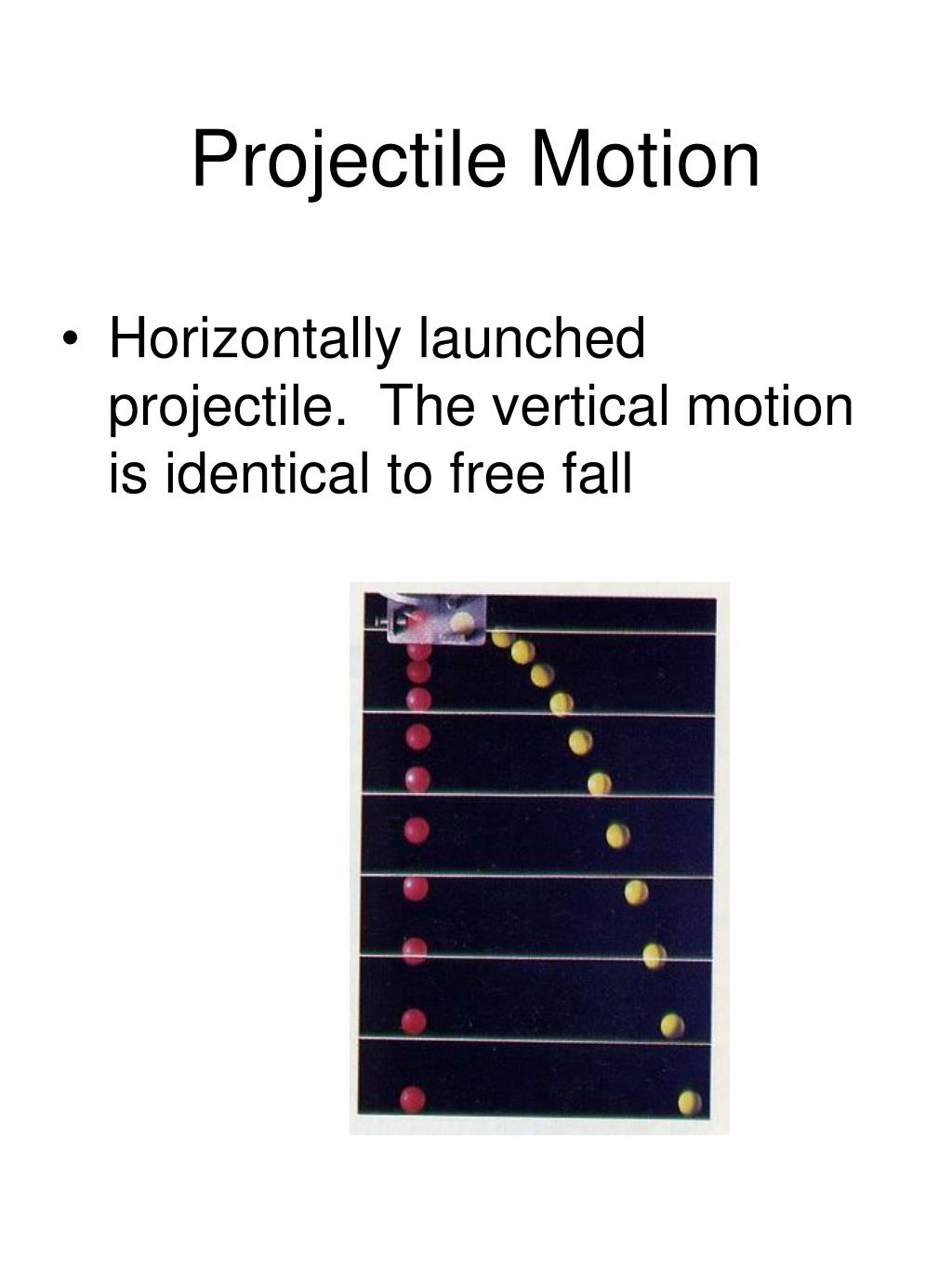

  11. Projectile Motion • Horizontally launched projectile. The vertical motion is identical to free fall

  12. Projectile Motion • Example: A motorcycle rider jumps off a cliff. His horizontal motion is described by: • X=vxt • His vertical motion is described by Y = 1/2gt2

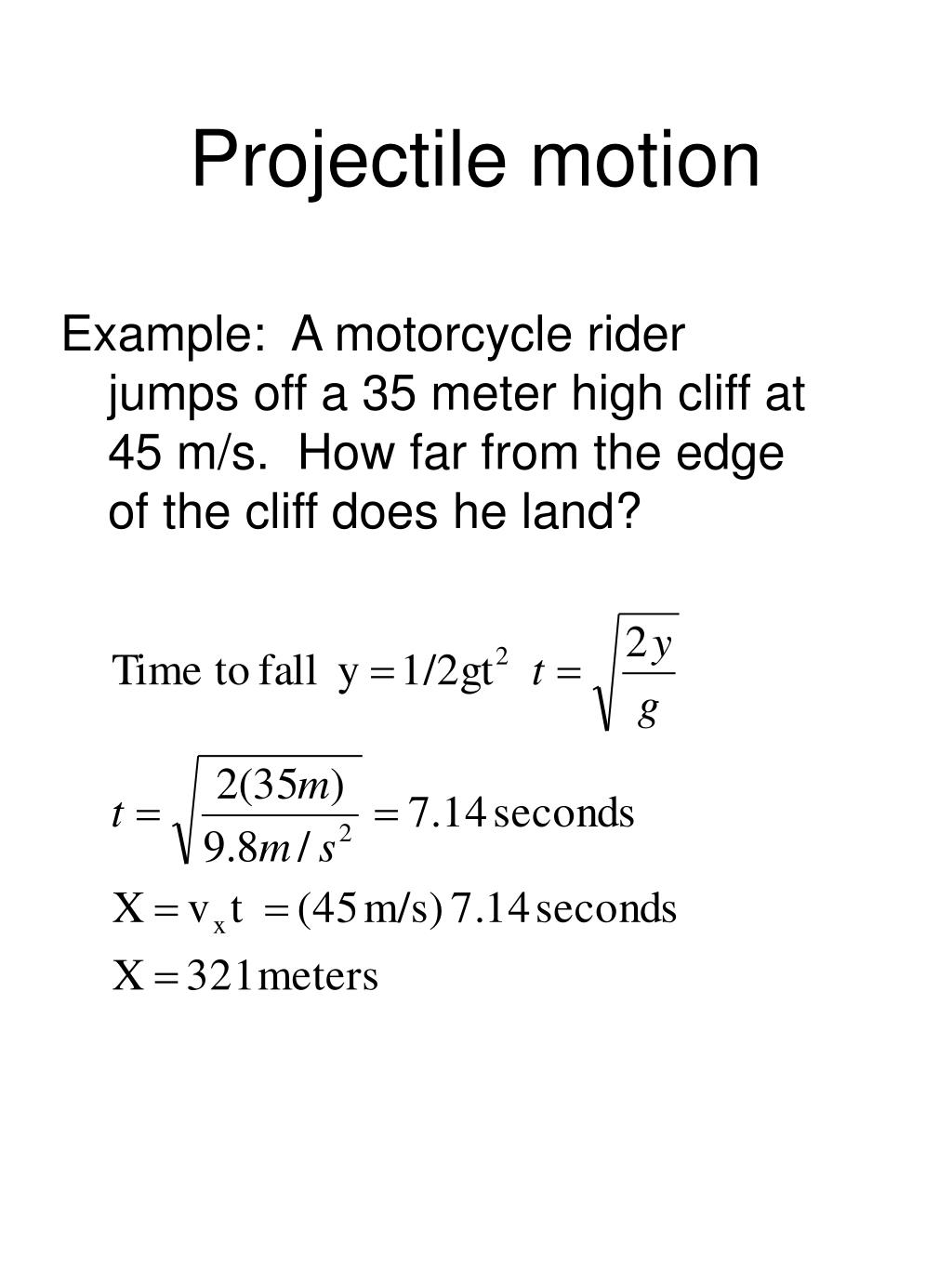

  13. Projectile motion Example: A motorcycle rider jumps off a 35 meter high cliff at 45 m/s. How far from the edge of the cliff does he land?

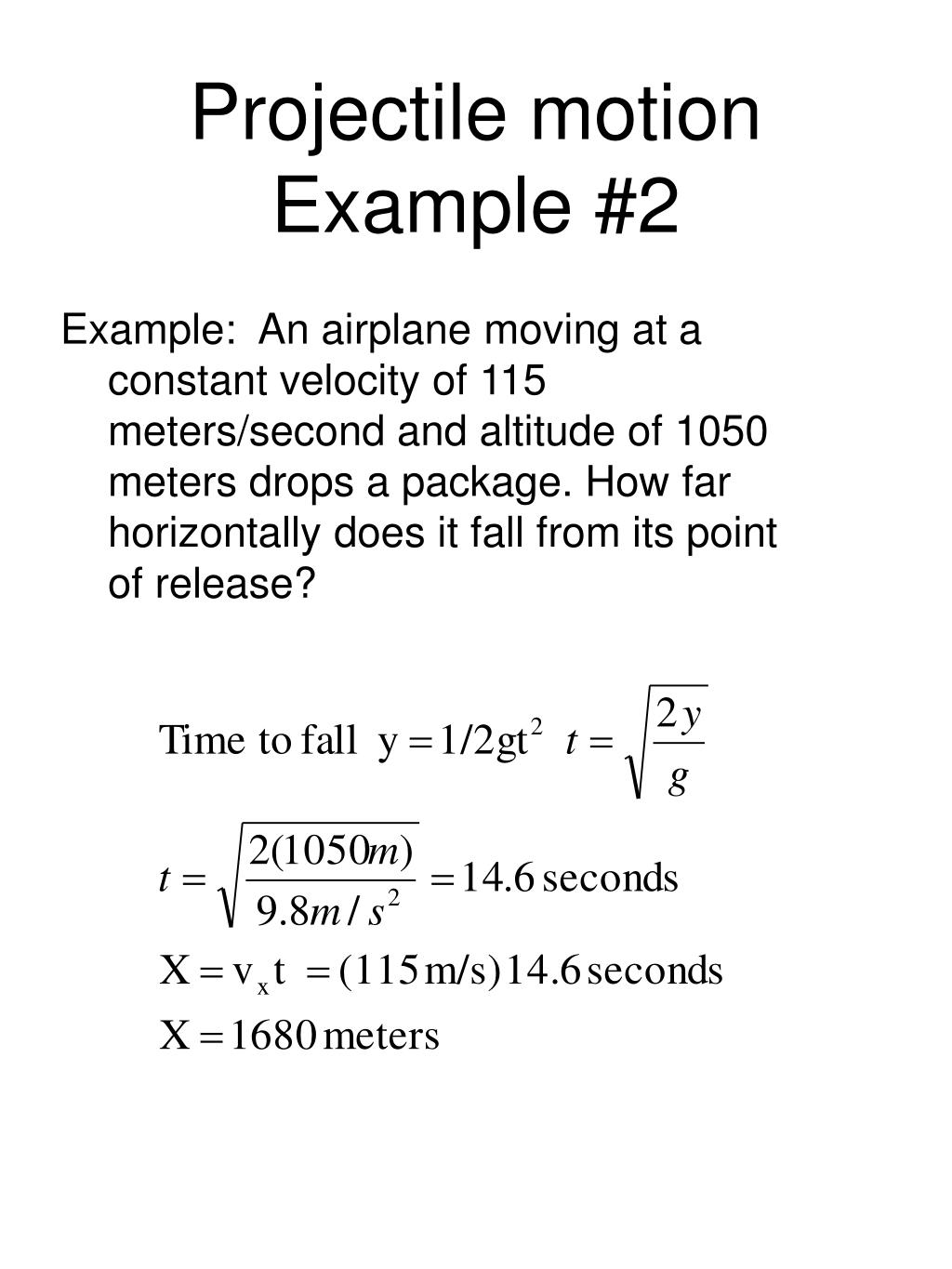

  14. Projectile motion Example #2 Example: An airplane moving at a constant velocity of 115 meters/second and altitude of 1050 meters drops a package. How far horizontally does it fall from its point of release?

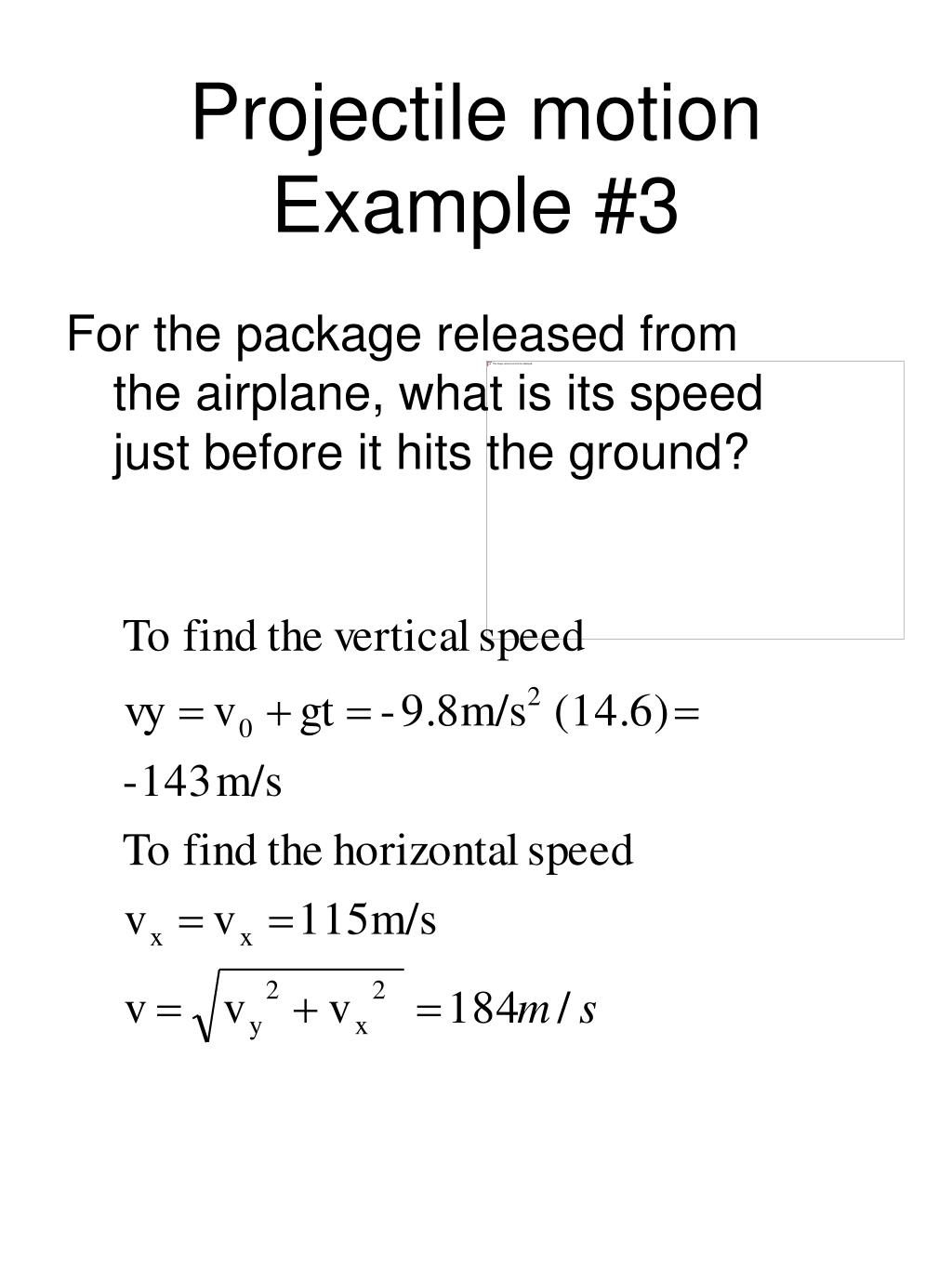

  15. Projectile motion Example #3 For the package released from the airplane, what is its speed just before it hits the ground?

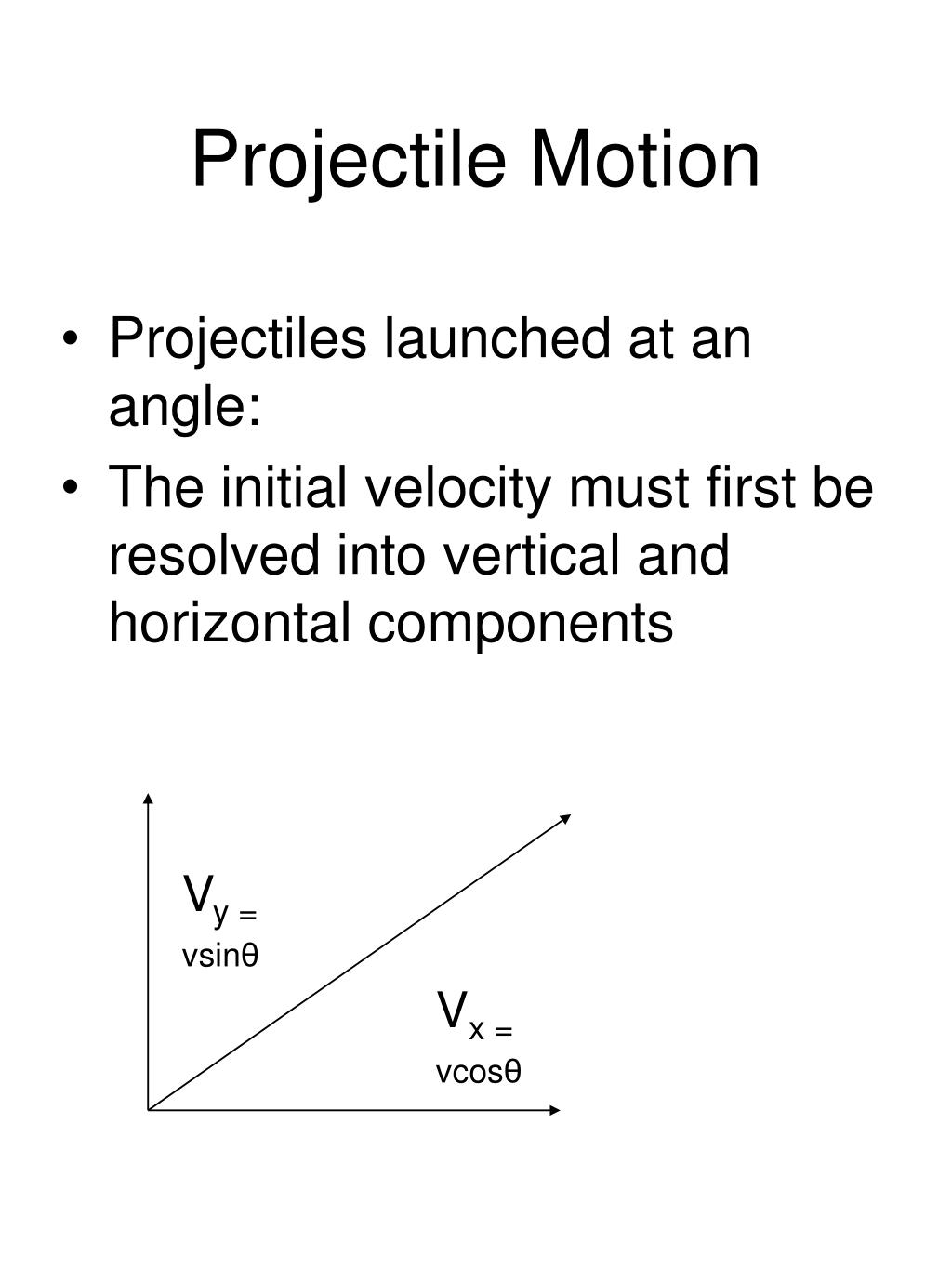

  16. Projectile Motion • Projectiles launched at an angle: • The initial velocity must first be resolved into vertical and horizontal components Vy = vsinθ Vx = vcosθ

  17. Projectile Motion • Example#4 A placekicker kicks a football at an angle of 40 degrees with a speed of 22 m/s. Find the time of flight, range, and maximum height. Vx = vcosθ = 22m/s(cos40) = 16.9 m/s Vy = vsinθ = 22m/s(sin40) = 14.1 m/s T (time to highest point) = vy/g = 1.4 seconds Time of flight = 2T = 2.8 seconds Range = vx 2T = 16.9 m/s (2.8 seconds) = 47.3 meters Maximum height Y = 1/2gt2 + vyt =-1/2 (9.8m/s2)(1.4s)2 + 14.1m/s(1.4 s) = 10.1 meters

  18. Home Run? • A ball player hits a pitch 30m/s at 20o, does it clear a fence 5 meters high, 90 meters away? First resolve the velocity into x and y components • vx = vcos20o = 28.2 m/s • Vy = vsin20o = 10.3 m/s • The time we need to find is the time to the fence tf tf = 90m/ 28.2 m/s = 3.2 seconds How high is the ball at that time? Y =-1/2 gt2 +vyt = -50.1 m + 33 m = -17.1 m The ball never reaches the fence.
