Properties of Parallelograms

Properties of Parallelograms. Students will be able to apply properties of parallelograms. Parallelogram. Any polygon with 4 sides is called a quadrilateral . Some quadrilaterals have special properties. These special quadrilaterals are given their own names.

tate-dennis
Télécharger la présentation

Properties of Parallelograms

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Properties of Parallelograms Students will be able to apply properties of parallelograms

  2. Parallelogram • Any polygon with 4 sides is called a quadrilateral. • Some quadrilaterals have special properties. These special quadrilaterals are given their own names. • A quadrilateral with two pairs of parallel sides is called a parallelogram. This is property 1. • “ ABCD” means “parallelogram ABCD” A B D C Unit G

  3. Property 2 of Parallelograms • If a quadrilateral is a parallelogram, then both pairs of opposite sides are congruent. • If ABCD is a parallelogram, then A B D C Unit G

  4. Property 3 of Parallelograms • If a quadrilateral is a parallelogram, then both pairs of opposite angles are congruent. • If ABCD is a parallelogram, then A B D C Unit G

  5. Property 4 of Parallelograms • If a quadrilateral is a parallelogram, then its consecutive angles are supplementary. • If ABCD is a parallelogram, then A B D C Unit G

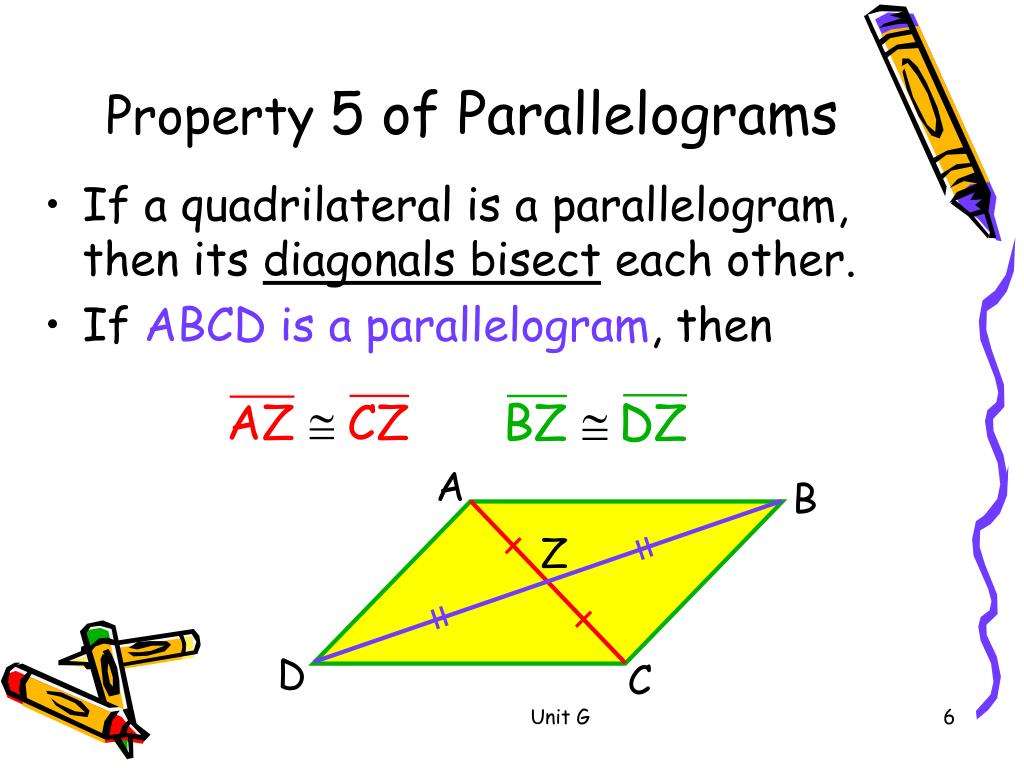

  6. Property 5 of Parallelograms • If a quadrilateral is a parallelogram, then its diagonals bisect each other. • If ABCD is a parallelogram, then A B Z D C Unit G

  7. Using these Properties • ABCD is a parallelogram. Find each measure. How do we know this is true? 4x + 2 = 5x – 3 5 = x So AB and DC = 22 4x + 2 A B (5y - 5)º How do we know this is true? (5y - 5) + (8y – 23) = 180 y = 16 So ∠A = 75˚ and ∠D = 105˚ (8y – 23)º D C 5x - 3 Unit G

  8. Check It Out! Example 3 • QRST is a parallelogram. • Find TQ. • Find ∠T. Unit G
