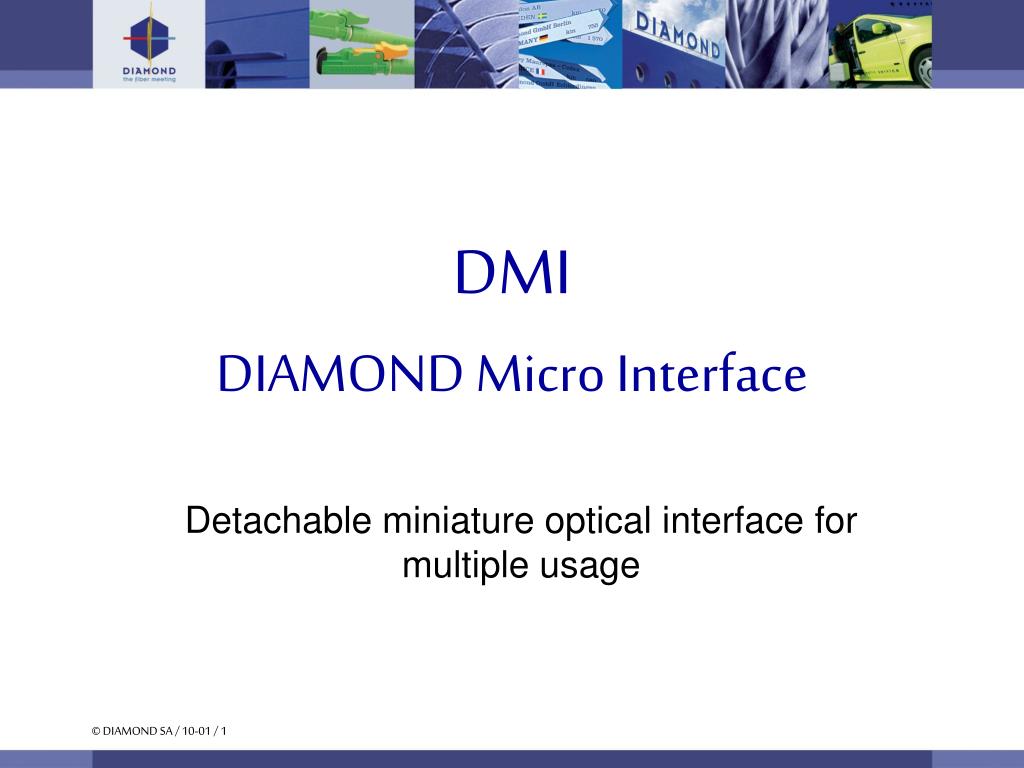

  1. DMIDIAMOND Micro Interface Detachable miniature optical interface for multiple usage

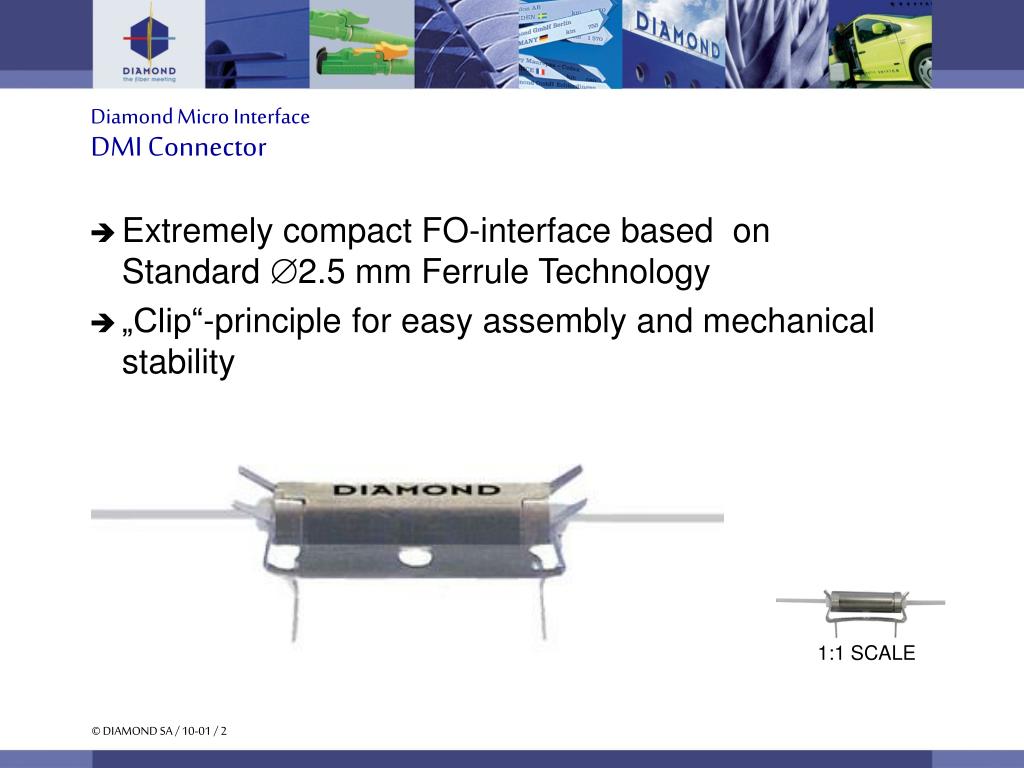

  2. 1:1 SCALE Diamond Micro InterfaceDMI Connector • Extremely compact FO-interface based on Standard Æ2.5 mm Ferrule Technology • „Clip“-principle for easy assembly and mechanical stability

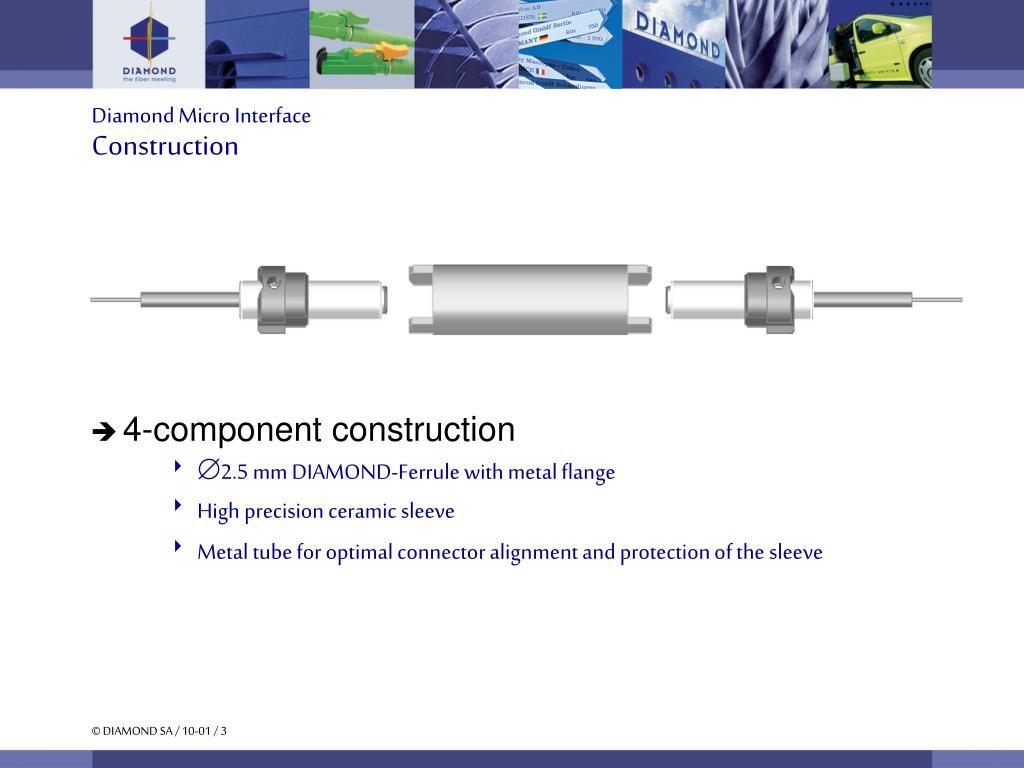

  3. Diamond Micro InterfaceConstruction • 4-component construction • Æ2.5 mm DIAMOND-Ferrule with metal flange • High precision ceramic sleeve • Metal tube for optimal connector alignment and protection of the sleeve

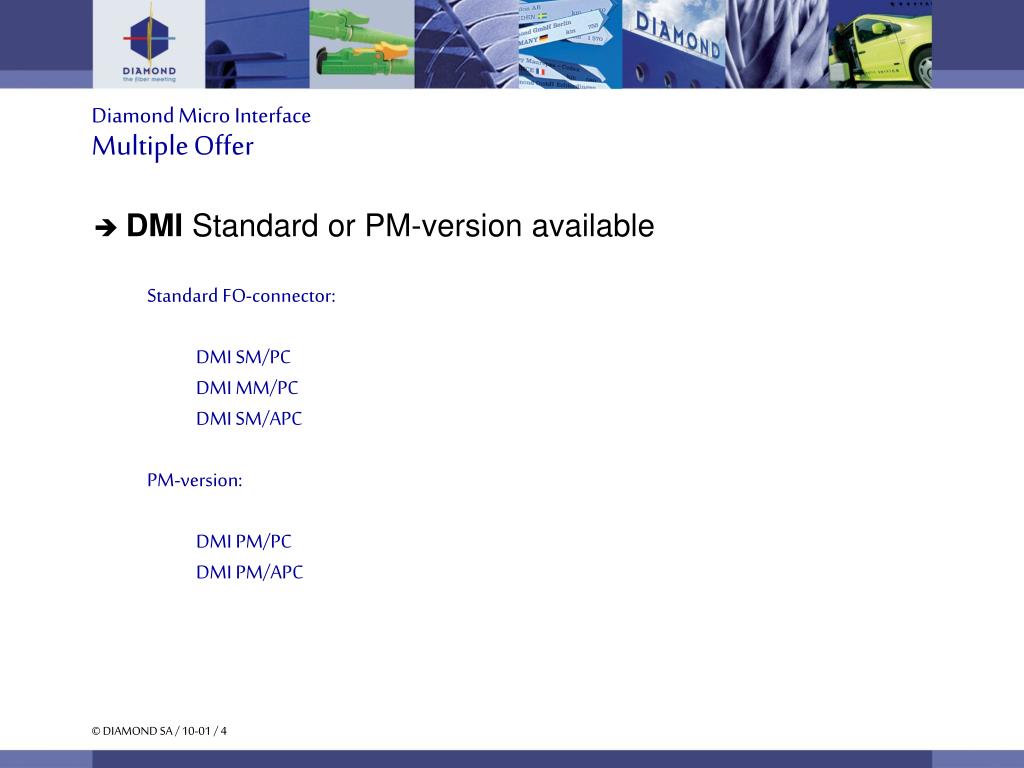

  4. Diamond Micro InterfaceMultiple Offer • DMI Standard or PM-version available • Standard FO-connector: • DMI SM/PC • DMI MM/PC • DMI SM/APC • PM-version: • DMI PM/PC • DMI PM/APC

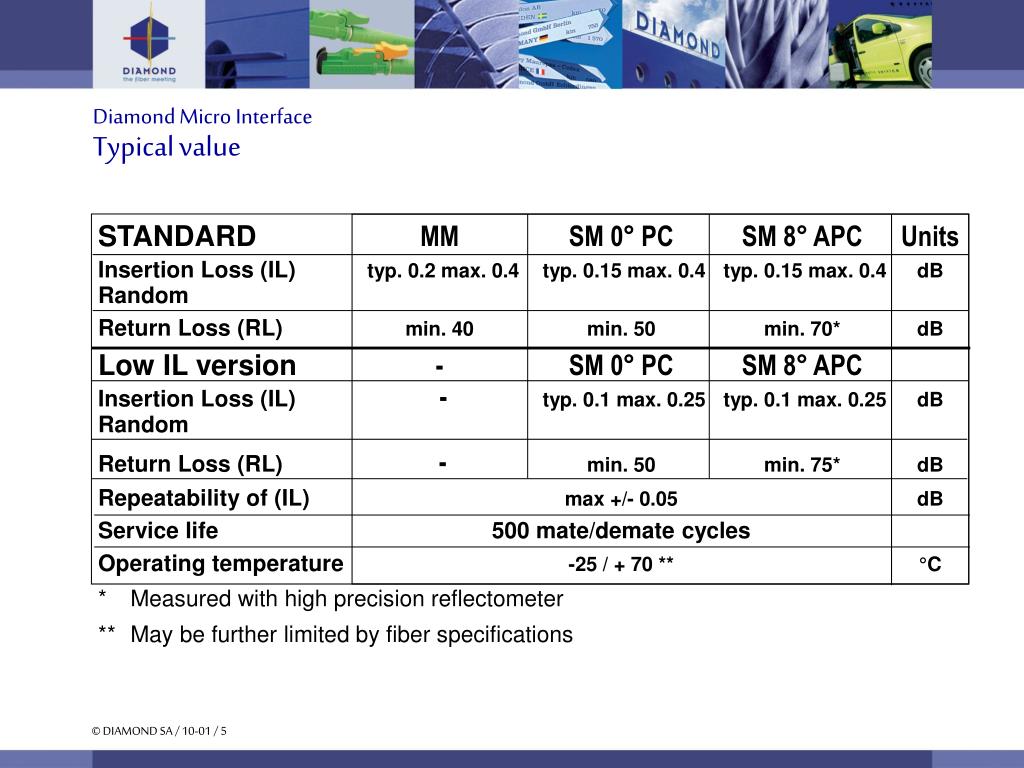

  5. Diamond Micro InterfaceTypical value STANDARDMM SM 0° PC SM 8° APC Units Insertion Loss (IL) typ. 0.2 max. 0.4 typ. 0.15 max. 0.4 typ. 0.15 max. 0.4 dB Random Return Loss (RL) min. 40 min. 50 min. 70* dB Low IL version- SM 0° PC SM 8° APC Insertion Loss (IL) - typ. 0.1 max. 0.25 typ. 0.1 max. 0.25 dB Random Return Loss (RL) - min. 50 min. 75* dB Repeatability of (IL) max +/- 0.05 dB Service life 500 mate/demate cycles Operating temperature -25 / + 70 ** °C * Measured with high precision reflectometer ** May be further limited by fiber specifications

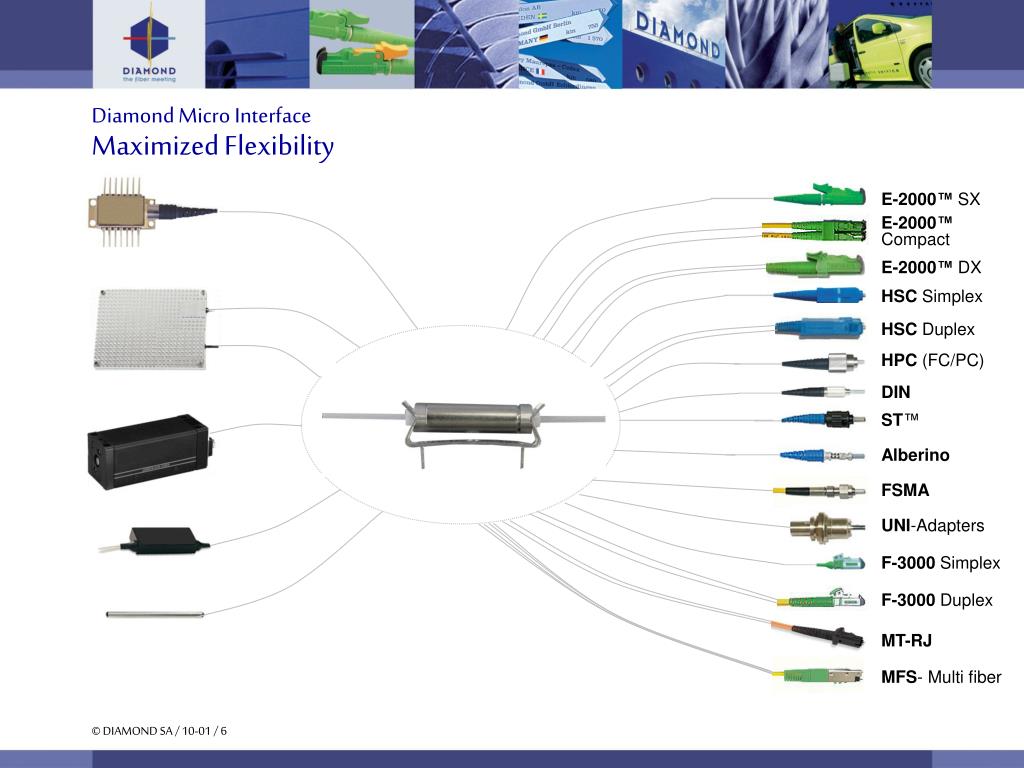

  6. Diamond Micro InterfaceMaximized Flexibility E-2000™ SX E-2000™ Compact E-2000™ DX HSC Simplex HSC Duplex HPC (FC/PC) DIN ST™ Alberino FSMA UNI-Adapters F-3000 Simplex F-3000 Duplex MT-RJ MFS- Multi fiber

  7. Diamond Micro InterfaceFeatures and Benefits • Simple installation thanks to standard „Clip/Pin“ design • High packing density • High performance detachable FO-interface • Large offer and high flexibility

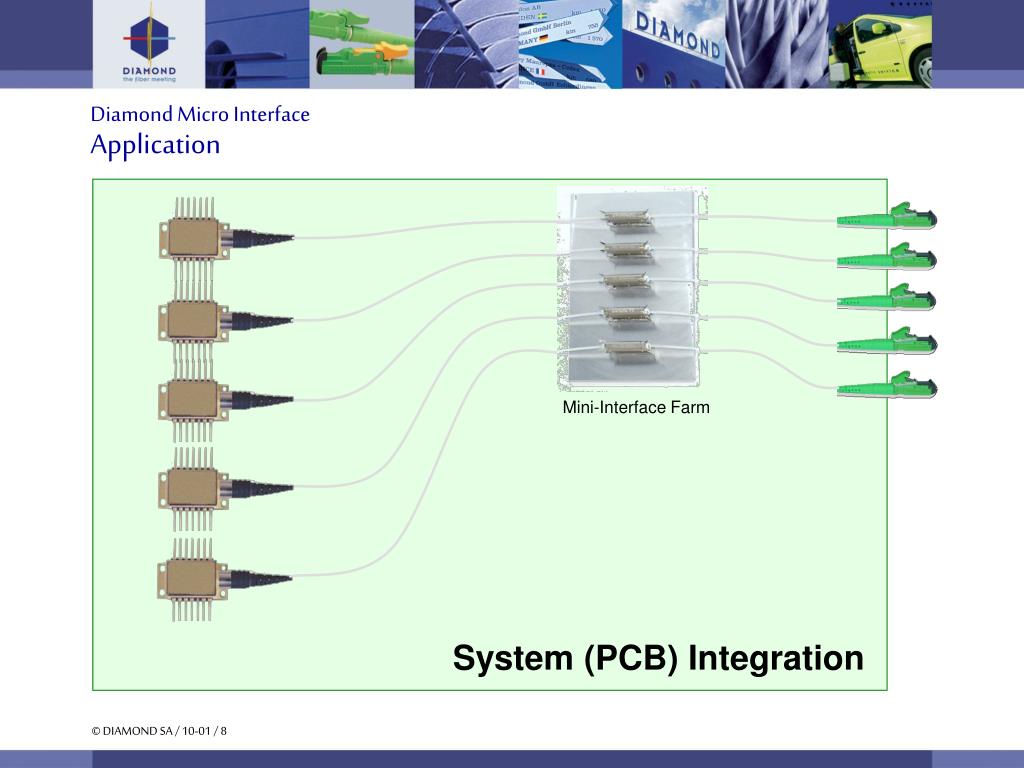

  8. Diamond Micro InterfaceApplication Mini-Interface Farm System (PCB) Integration

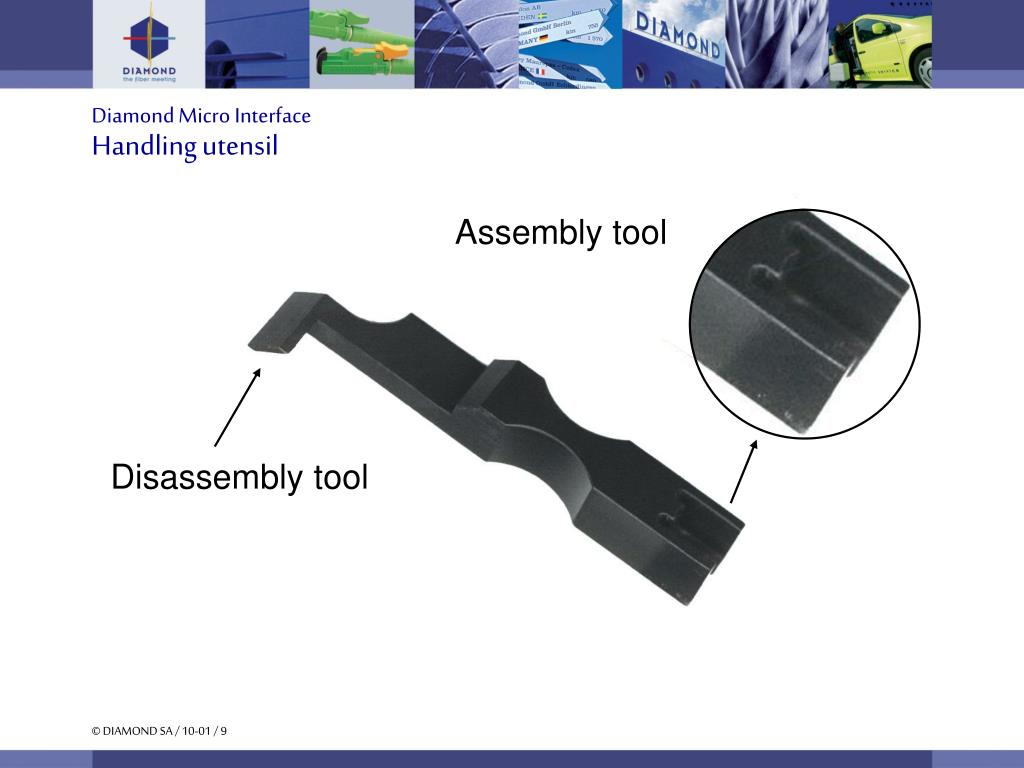

  9. Diamond Micro InterfaceHandling utensil Assembly tool Disassembly tool
