Introduction to Assembly Language IA32-III

1. Introduction to Assembly Language IA32-III Summer2014 COMP 2130 Intro Computer Systems Computing Science Thompson Rivers University

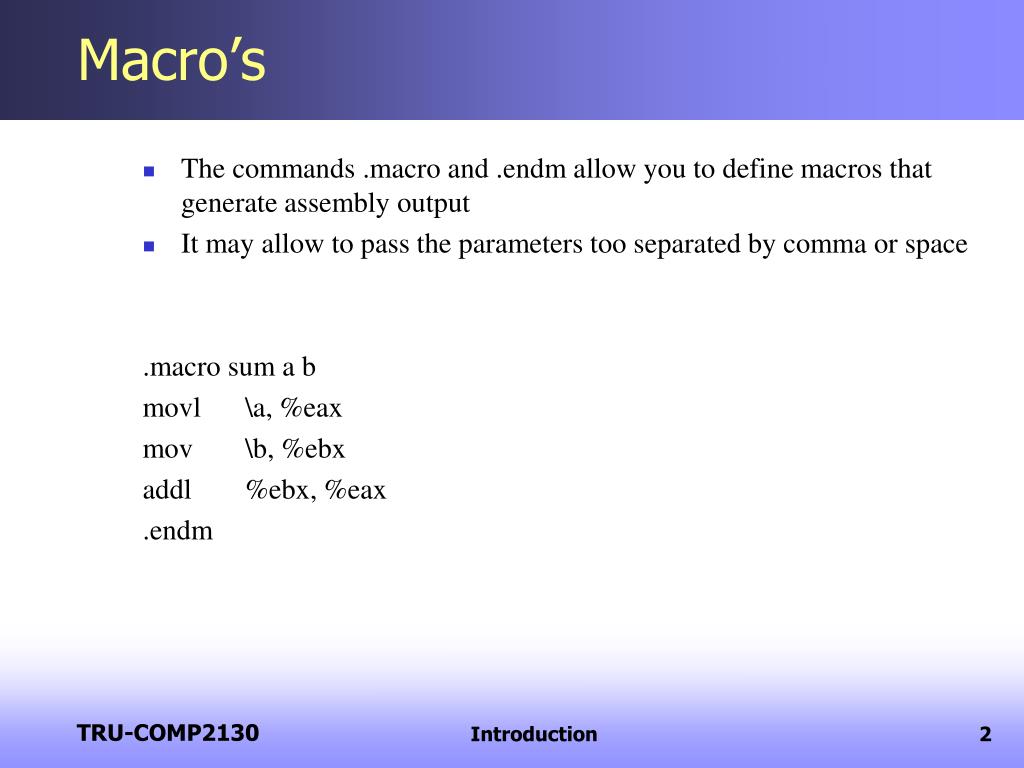

2. Macro’s • The commands .macro and .endm allow you to define macros that generate assembly output • It may allow to pass the parameters too separated by comma or space .macro sum a b movl \a, %eax mov \b, %ebx addl %ebx, %eax .endm Introduction

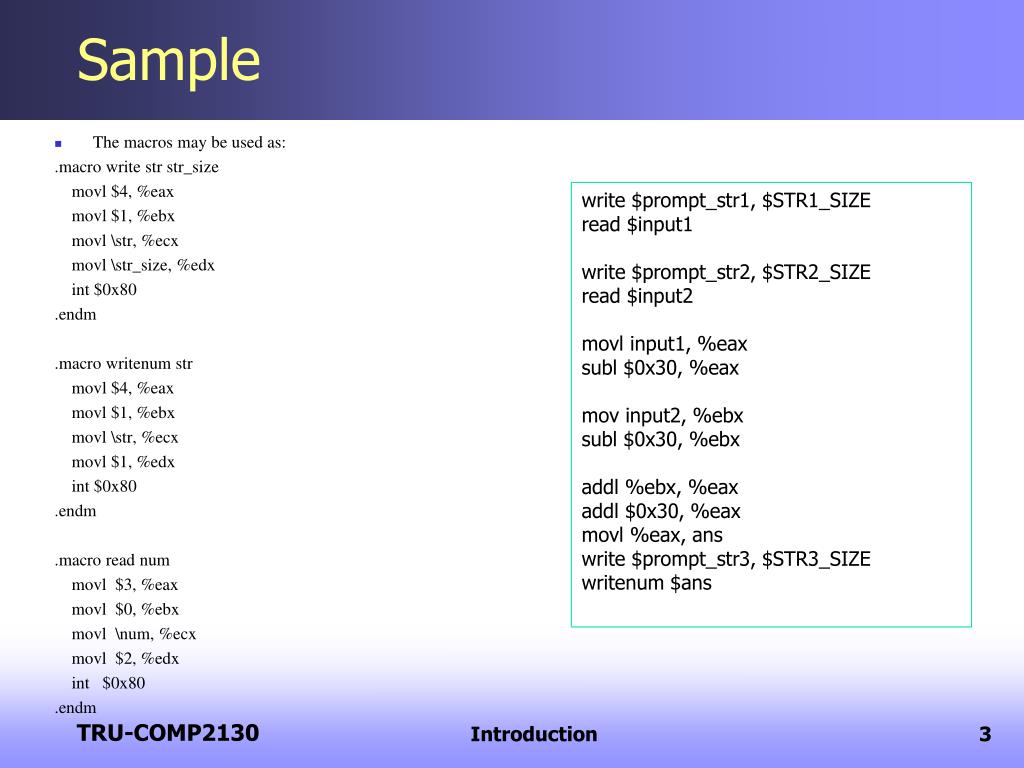

3. Sample • The macros may be used as: .macro write strstr_size movl $4, %eax movl $1, %ebx movl \str, %ecx movl \str_size, %edx int $0x80 .endm .macro writenumstr movl $4, %eax movl $1, %ebx movl \str, %ecx movl $1, %edx int $0x80 .endm .macro read num movl $3, %eax movl $0, %ebx movl \num, %ecx movl $2, %edx int $0x80 .endm write $prompt_str1, $STR1_SIZE read $input1 write $prompt_str2, $STR2_SIZE read $input2 movl input1, %eax subl $0x30, %eax mov input2, %ebx subl $0x30, %ebx addl %ebx, %eax addl $0x30, %eax movl %eax, ans write $prompt_str3, $STR3_SIZE writenum$ans Introduction

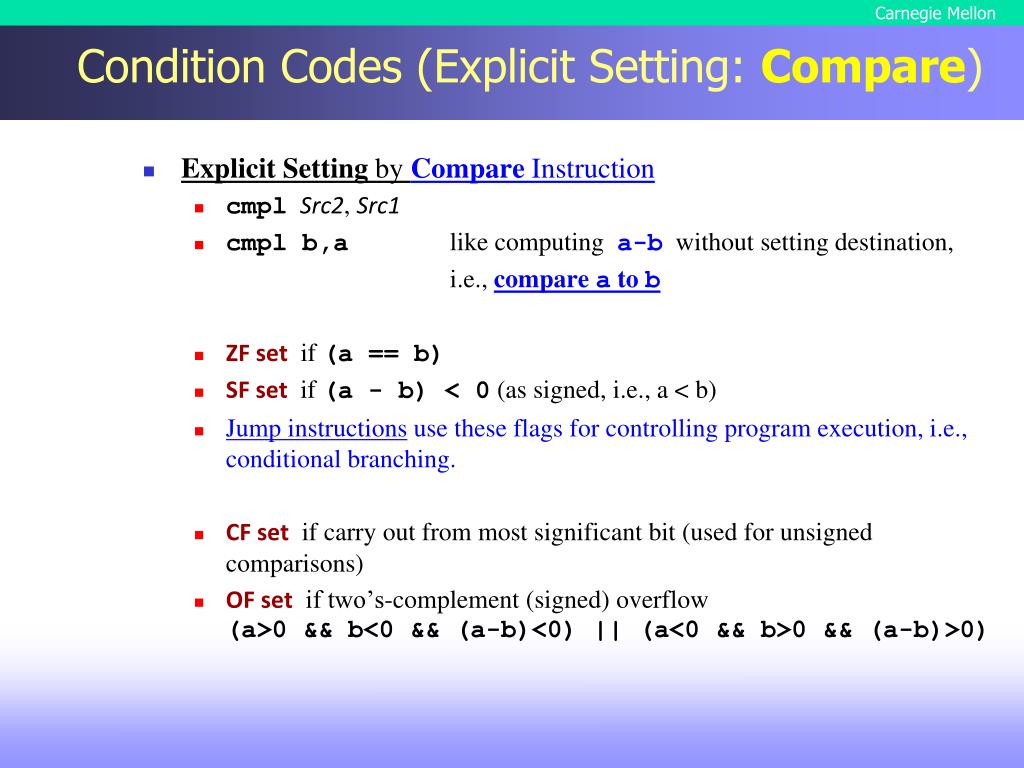

4. Carnegie Mellon Condition Codes (Explicit Setting: Compare) • Explicit Setting by Compare Instruction • cmplSrc2, Src1 • cmplb,a like computing a-b without setting destination, i.e., compare a to b • ZF set if (a == b) • SF set if (a - b) < 0 (as signed, i.e., a < b) • Jump instructions use these flags for controlling program execution, i.e., conditional branching. • CF set if carry out from most significant bit (used for unsigned comparisons) • OF set if two’s-complement (signed) overflow(a>0 && b<0 && (a-b)<0) || (a<0 && b>0 && (a-b)>0)

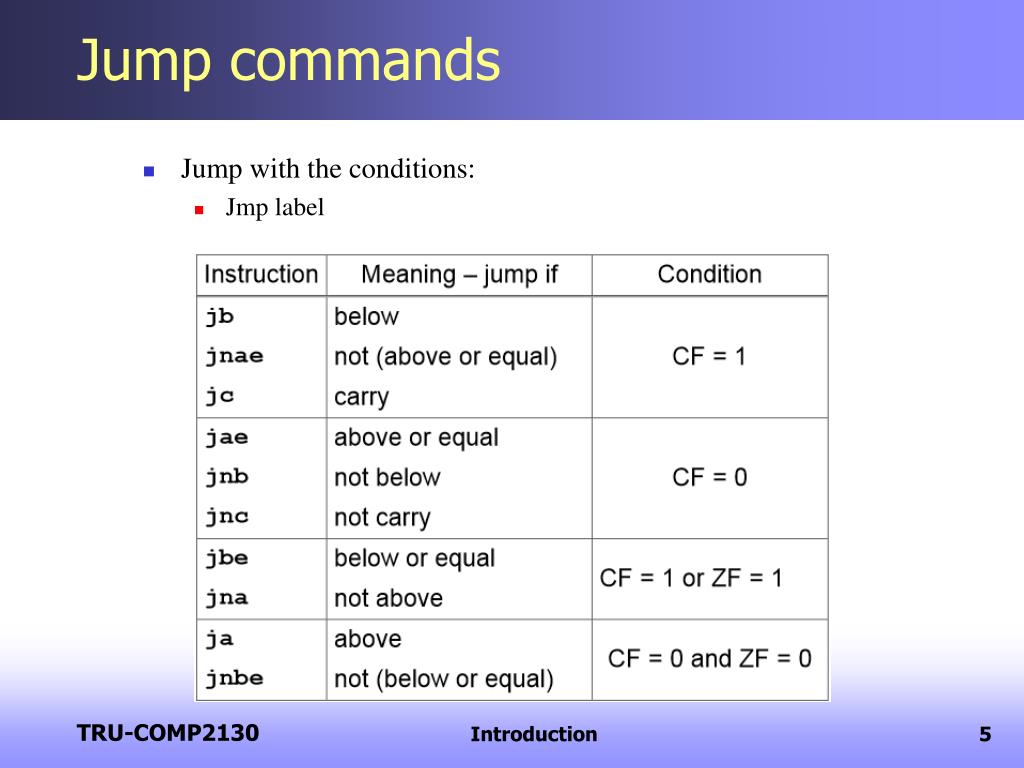

5. Jump commands • Jump with the conditions: • Jmp label Introduction

6. Carnegie Mellon Condition Codes (Explicit Setting: Test) • Explicit Setting by Testinstruction • testlSrc2, Src1testl b,a like computing a&b without setting destination • Sets condition codes based on value of Src1 & Src2 • Useful to have one of the operands be a mask • ZF set when a&b == 0 • SF set when a&b < 0

7. Jump commands • Loop commands Introduction

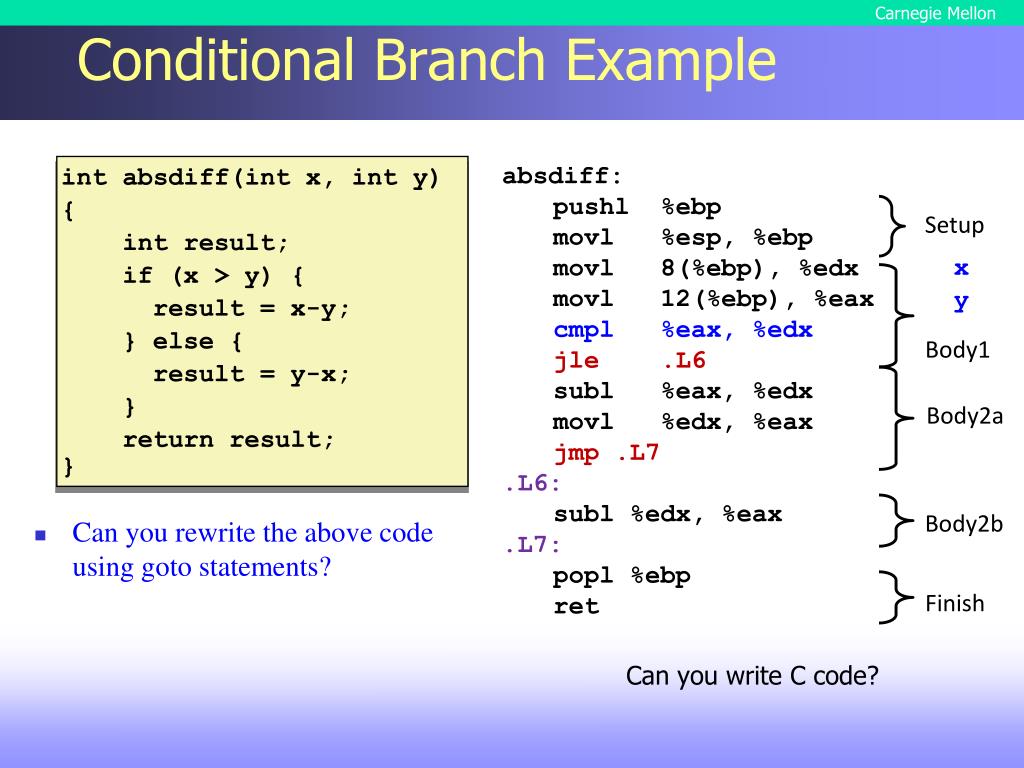

8. Carnegie Mellon Conditional Branch Example int absdiff(int x, int y) { int result; if (x > y) { result = x-y; } else { result = y-x; } return result; } absdiff: pushl %ebp movl %esp, %ebp movl 8(%ebp), %edx movl 12(%ebp), %eax cmpl %eax, %edx jle .L6 subl %eax, %edx movl %edx, %eax jmp .L7 .L6: subl %edx, %eax .L7: popl %ebp ret Setup x y Body1 Body2a Body2b • Can you rewrite the above code using goto statements? Finish Can you write C code?

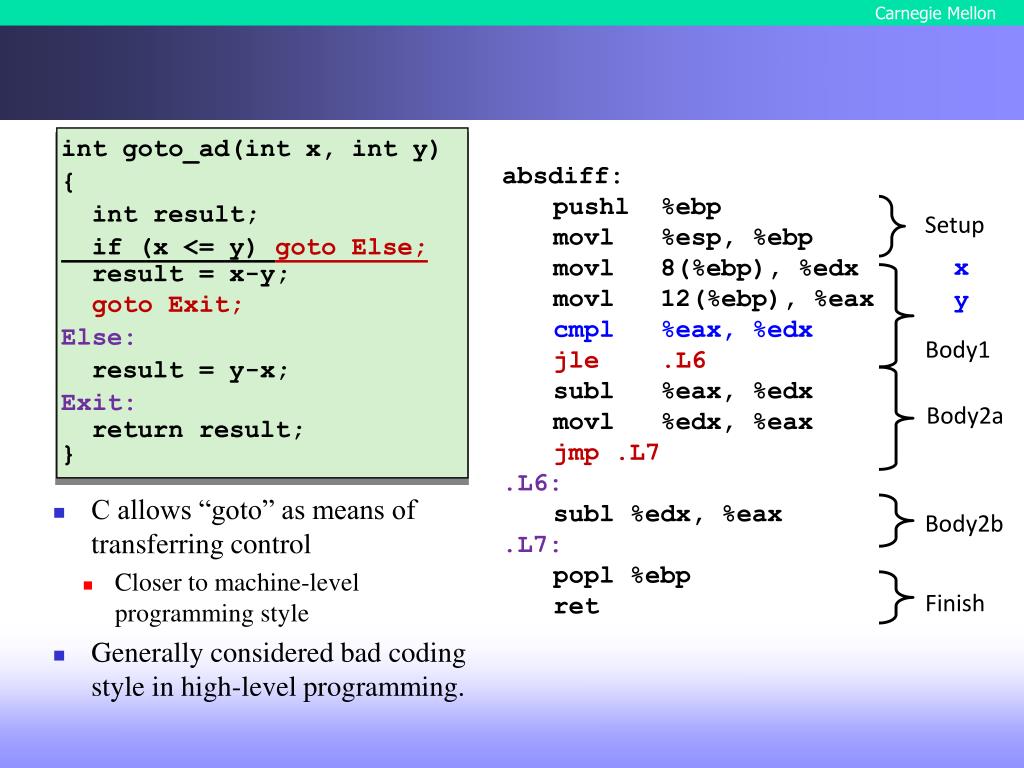

9. Carnegie Mellon intgoto_ad(int x, int y) { int result; if (x <= y) gotoElse; result = x-y; goto Exit; Else: result = y-x; Exit: return result; } • C allows “goto” as means of transferring control • Closer to machine-level programming style • Generally considered bad coding style in high-level programming. absdiff: pushl %ebp movl %esp, %ebp movl 8(%ebp), %edx movl 12(%ebp), %eax cmpl %eax, %edx jle .L6 subl %eax, %edx movl %edx, %eax jmp .L7 .L6: subl %edx, %eax .L7: popl %ebp ret Setup x y Body1 Body2a Body2b Finish

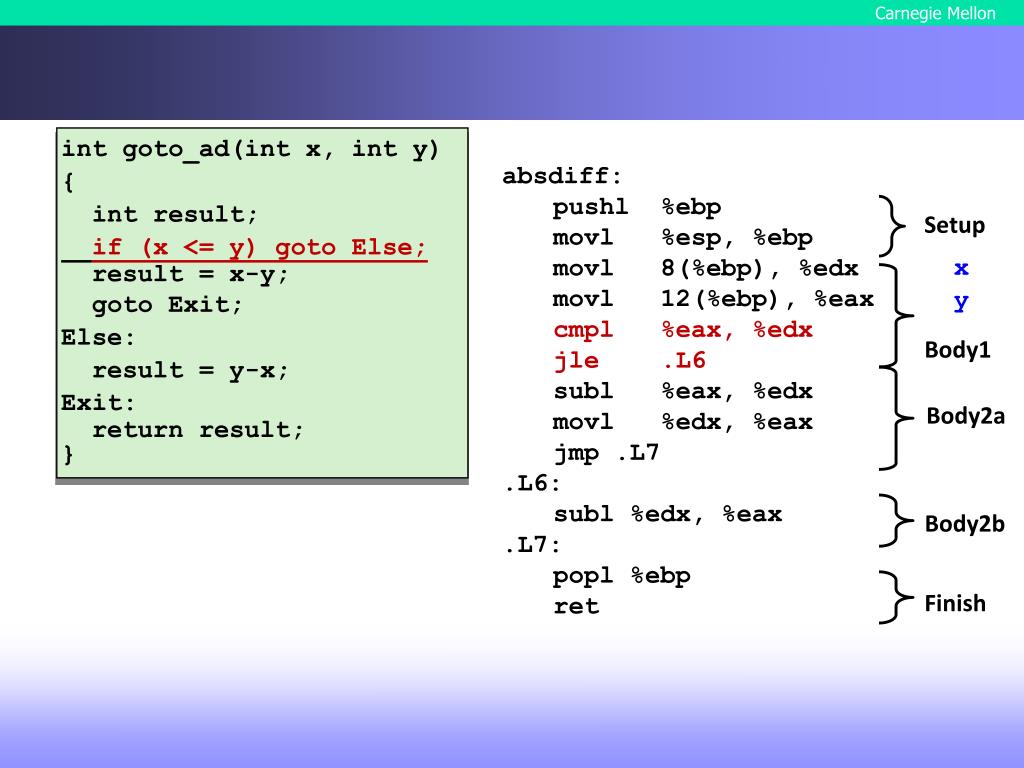

10. Carnegie Mellon int goto_ad(int x, int y) { int result; if (x <= y) goto Else; result = x-y; goto Exit; Else: result = y-x; Exit: return result; } absdiff: pushl %ebp movl %esp, %ebp movl 8(%ebp), %edx movl 12(%ebp), %eax cmpl %eax, %edx jle .L6 subl %eax, %edx movl %edx, %eax jmp .L7 .L6: subl %edx, %eax .L7: popl %ebp ret Setup x y Body1 Body2a Body2b Finish

11. Carnegie Mellon int goto_ad(int x, int y) { int result; if (x <= y) goto Else; result = x-y; goto Exit; Else: result = y-x; Exit: return result; } absdiff: pushl %ebp movl %esp, %ebp movl 8(%ebp), %edx movl 12(%ebp), %eax cmpl %eax, %edx jle .L6 subl %eax, %edx movl %edx, %eax jmp .L7 .L6: subl %edx, %eax .L7: popl %ebp ret Setup x y Body1 Body2a Body2b Finish

12. Carnegie Mellon int goto_ad(int x, int y) { int result; if (x <= y) goto Else; result = x-y; goto Exit; Else: result = y-x; Exit: return result; } absdiff: pushl %ebp movl %esp, %ebp movl 8(%ebp), %edx movl 12(%ebp), %eax cmpl %eax, %edx jle .L6 subl %eax, %edx movl %edx, %eax jmp .L7 .L6: subl %edx, %eax .L7: popl %ebp ret Setup x y Body1 Body2a Body2b Finish

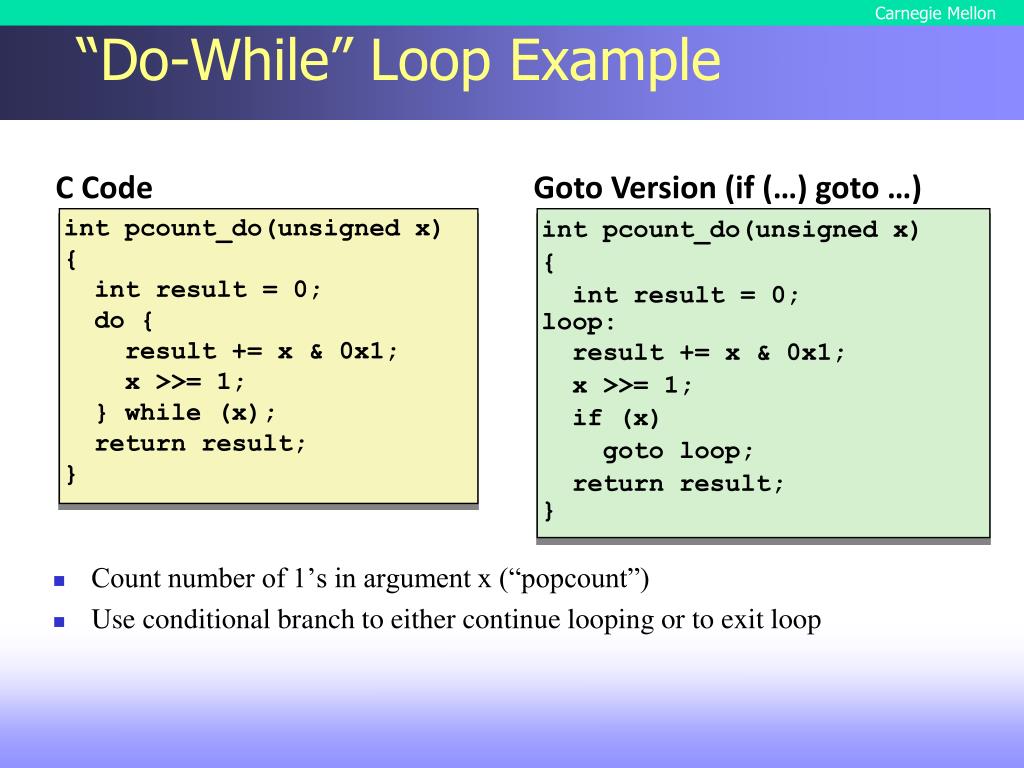

13. Carnegie Mellon “Do-While” Loop Example • Count number of 1’s in argument x (“popcount”) • Use conditional branch to either continue looping or to exit loop C Code Goto Version (if (…) goto …) int pcount_do(unsigned x) { int result = 0; do { result += x & 0x1; x >>= 1; } while (x); return result; } int pcount_do(unsigned x) { int result = 0; loop: result += x & 0x1; x >>= 1; if (x) goto loop; return result; }

14. Carnegie Mellon “Do-While” Loop Compilation Goto Version (if (…) goto …) Non-goto Version (if (…) goto …) • Registers: %edxx %ecxresult int pcount_do(unsigned x){ int result = 0; loop: result += x & 0x1; x >>= 1; if (x) goto loop; return result; } int pcount_do(unsigned x){ int result = 0; do { result += x & 0x1; x >>= 1; } while (x); return result; } movl $0, %ecx # result = 0 .L2: # loop: movl %edx, %eax andl $1, %eax # t = x & 1 addl %eax, %ecx # result += t shrl %edx # x >>= 1 jne .L2 # If !0, goto loop

15. Carnegie Mellon General “Do-While” Translation Goto Version (if (…) goto …) C Code • Body: • Test returns integer • = 0 interpreted as false • ≠ 0 interpreted as true loop: Body if (Test) goto loop do Body while (Test); { Statement1; Statement2; … Statementn; }

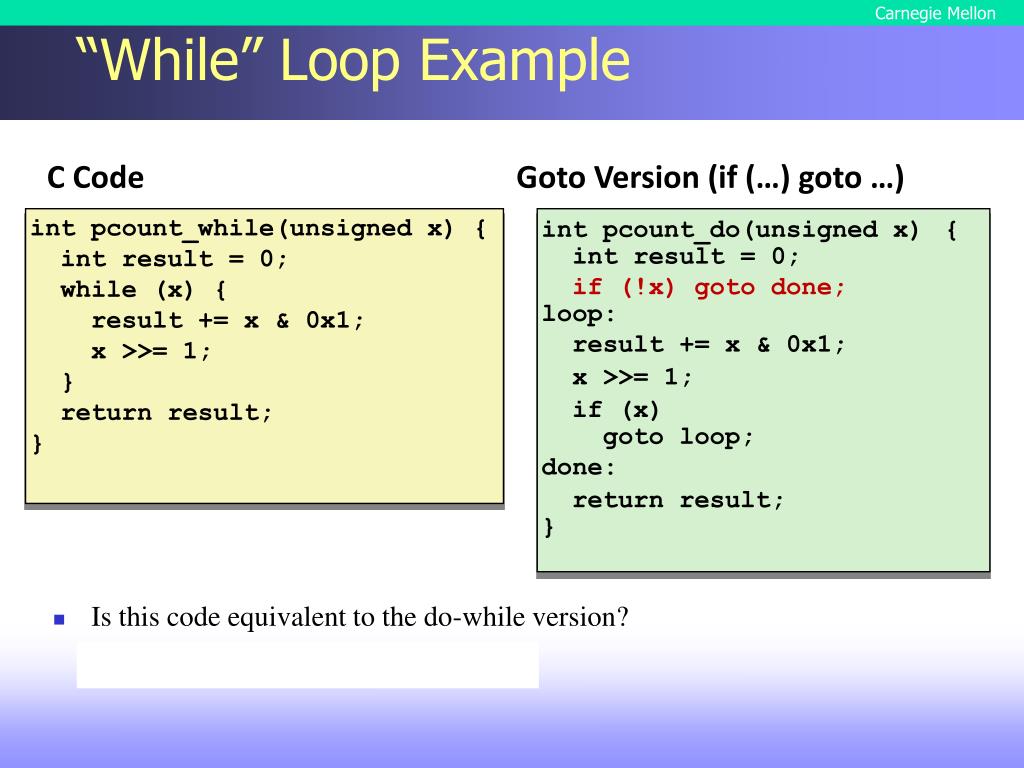

16. Carnegie Mellon “While” Loop Example • Is this code equivalent to the do-while version? • Must jump out of loop if test fails C Code Goto Version (if (…) goto …) int pcount_while(unsigned x) { int result = 0; while (x) { result += x & 0x1; x >>= 1; } return result; } int pcount_do(unsigned x){ int result = 0; if (!x) goto done; loop: result += x & 0x1; x >>= 1; if (x) goto loop; done: return result; }

17. Carnegie Mellon General “While” Translation While version while (Test) Body Goto Version Do-While Version if (!Test) goto done; loop: Body if (Test) goto loop; done: if (!Test) goto done; do Body while(Test); done:

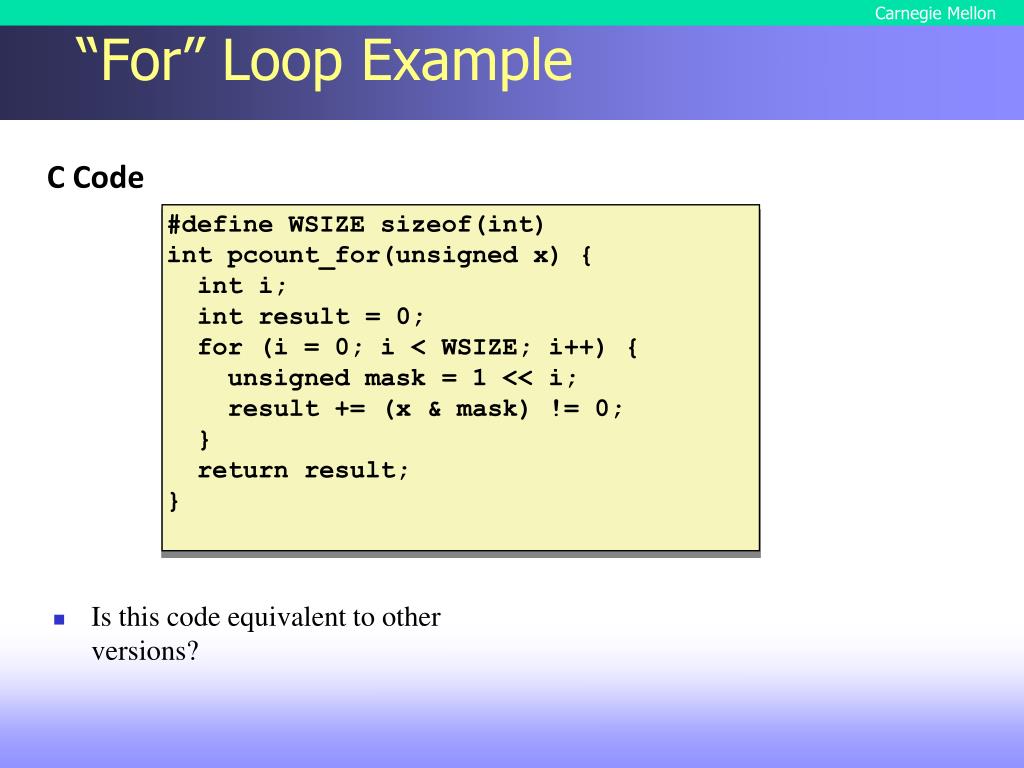

18. Carnegie Mellon “For” Loop Example • Is this code equivalent to other versions? C Code #define WSIZE sizeof(int) int pcount_for(unsigned x) { int i; int result = 0; for (i = 0; i < WSIZE; i++) { unsigned mask = 1 << i; result += (x & mask) != 0; } return result; }

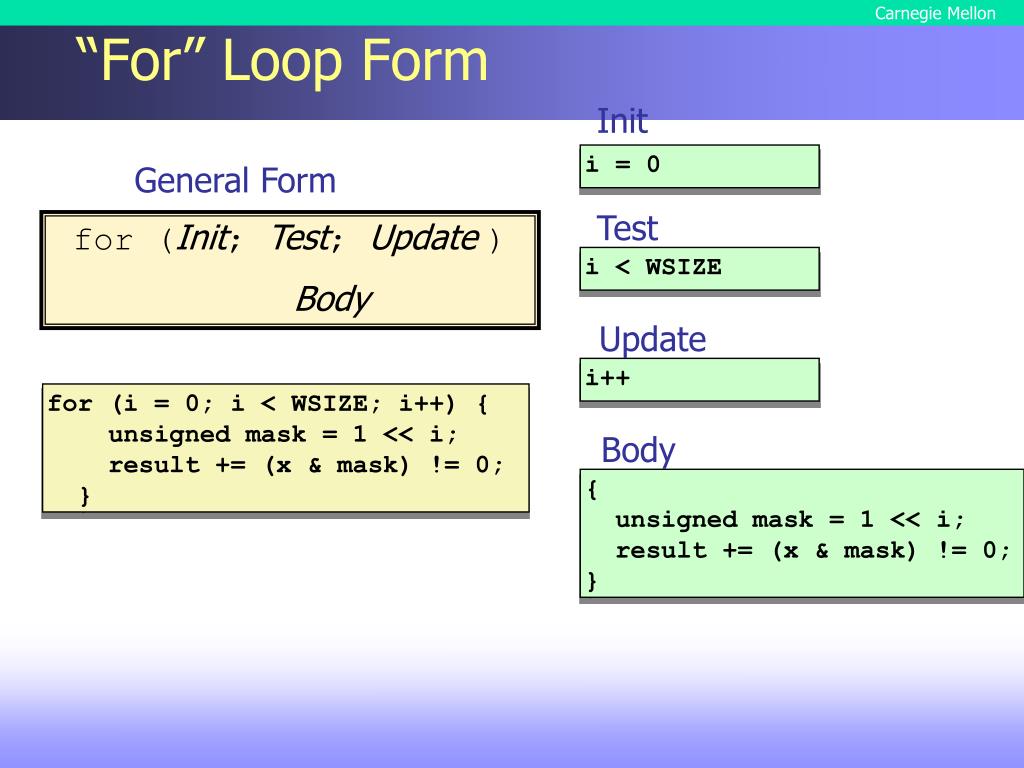

19. Carnegie Mellon “For” Loop Form Init i = 0 General Form Test for (Init; Test; Update ) Body i < WSIZE Update i++ for (i = 0; i < WSIZE; i++) { unsigned mask = 1 << i; result += (x & mask) != 0; } Body { unsigned mask = 1 << i; result += (x & mask) != 0; }

20. Carnegie Mellon “For” Loop  While Loop For Version for (Init; Test; Update) Body While Version Init; while (Test ) { Body Update; }

21. Carnegie Mellon “For” Loop  …  Goto Init; if (!Test) goto done; loop: Body Update if (Test) goto loop; done: For Version for (Init; Test; Update) Body While Version Init; while (Test ) { Body Update; } Init; if (!Test) goto done; do Body Update while(Test); done:

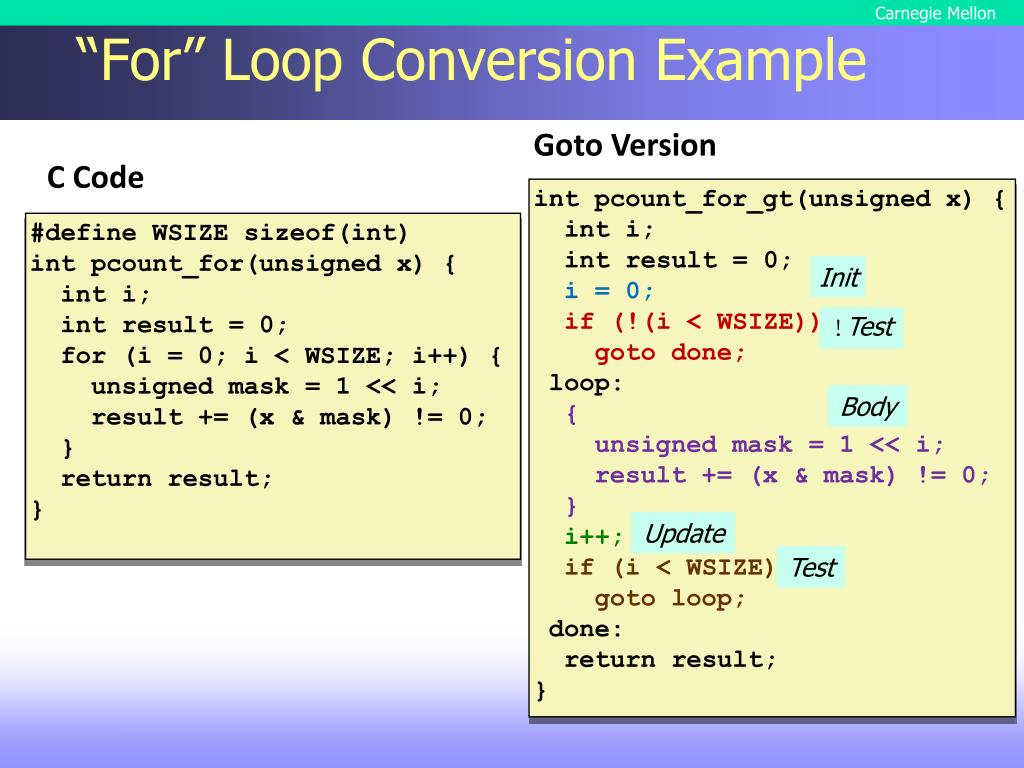

22. Carnegie Mellon “For” Loop Conversion Example Goto Version C Code int pcount_for_gt(unsigned x) { int i; int result = 0; i = 0; if (!(i < WSIZE)) goto done; loop: { unsigned mask = 1 << i; result += (x & mask) != 0; } i++; if (i < WSIZE) goto loop; done: return result; } #define WSIZE sizeof(int) int pcount_for(unsigned x) { int i; int result = 0; for (i = 0; i < WSIZE; i++) { unsigned mask = 1 << i; result += (x & mask) != 0; } return result; } Init !Test Body Update Test

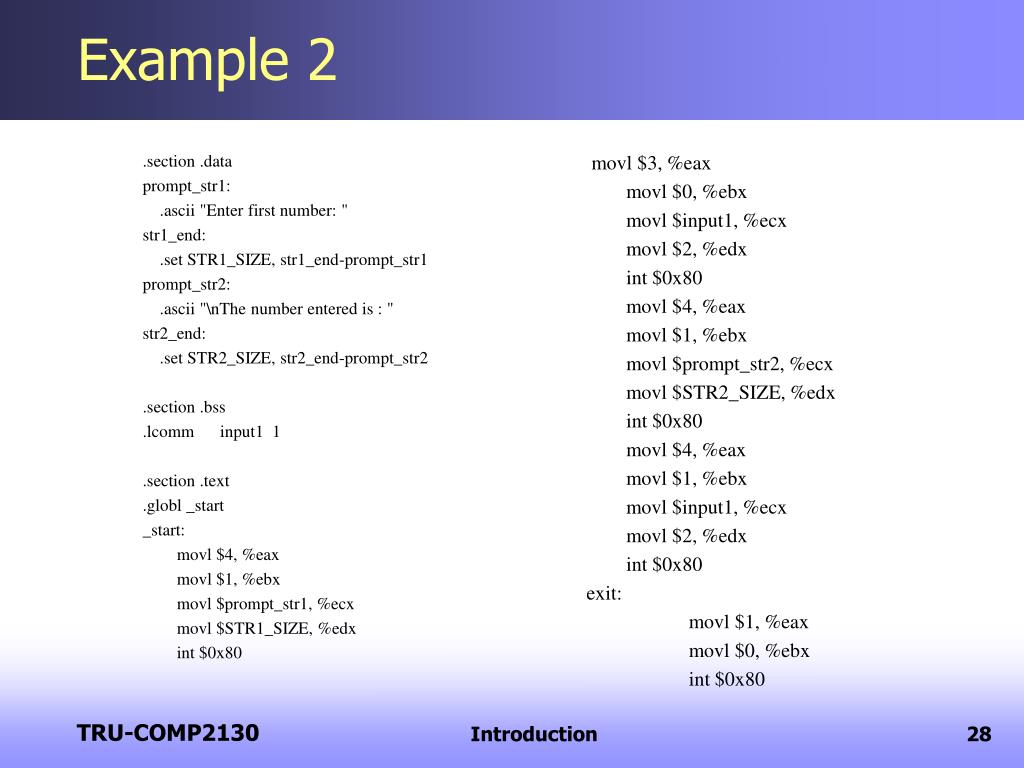

23. Example 2 .section .data prompt_str1: .ascii "Enter first number: " str1_end: .set STR1_SIZE, str1_end-prompt_str1 prompt_str2: .ascii "\nThe number entered is : " str2_end: .set STR2_SIZE, str2_end-prompt_str2 .section .bss .lcomm input1 1 .section .text .globl _start _start: movl $4, %eax movl $1, %ebx movl $prompt_str1, %ecx movl $STR1_SIZE, %edx int $0x80 movl $3, %eax movl $0, %ebx movl $input1, %ecx movl $2, %edx int $0x80 movl $4, %eax movl $1, %ebx movl $prompt_str2, %ecx movl $STR2_SIZE, %edx int $0x80 movl $4, %eax movl $1, %ebx movl $input1, %ecx movl $2, %edx int $0x80 exit: movl$1, %eax movl$0, %ebx int$0x80 Introduction
