  1. PAP 14 Working Session

  2. PAP 14 Agenda PAP 14 Background Scope Redefinition Discussion Existing PAP 14 Objectives Strategies for Prioritizing Prioritizing Criteria Critique and Tool Development Nokhum Presentation Candidate Use Case Lists Next Steps

  3. PAP 14 Objectives Develop strategies to expand and integrate MultiSpeak, IEC 61850, IEC 61968, IEC 61970, IEEE PC37.237 (Time Tagging), IEEE PC37.239 (COMFEDE) and the future IEEE Common Settings file format for Smart Grid Applications. Develop a summary of information required from the power system for various Smart Grid applications. Map that information with the already defined models from MultiSpeak, IEC 61970, IEC 61968-11, and IEC 61850. Coordinate with the SDOs to extend the existing models.

  4. PAP 14 Objectives Continued Identify setting information that is required to perform an automatic verification of the power system configuration to prevent failures due to mis configurations. This information shall include both settings in the devices as well as parameters of the power network that need to be available for verification. – long-term issue (two-year effort) and is Use Case-based; step one: IEEE group work PSRC H5; Coordinate with the SDO to extend the existing standards as a result of defining next generation Smart Grid T&D functions.

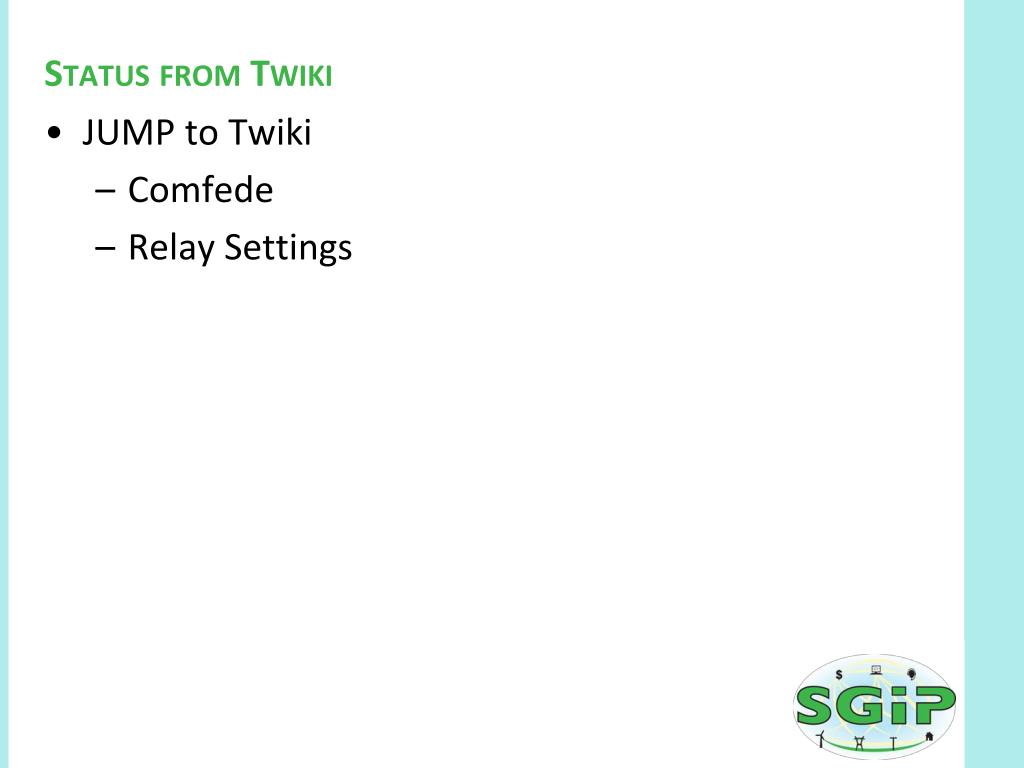

  5. Status from Twiki • JUMP to Twiki • Comfede • Relay Settings

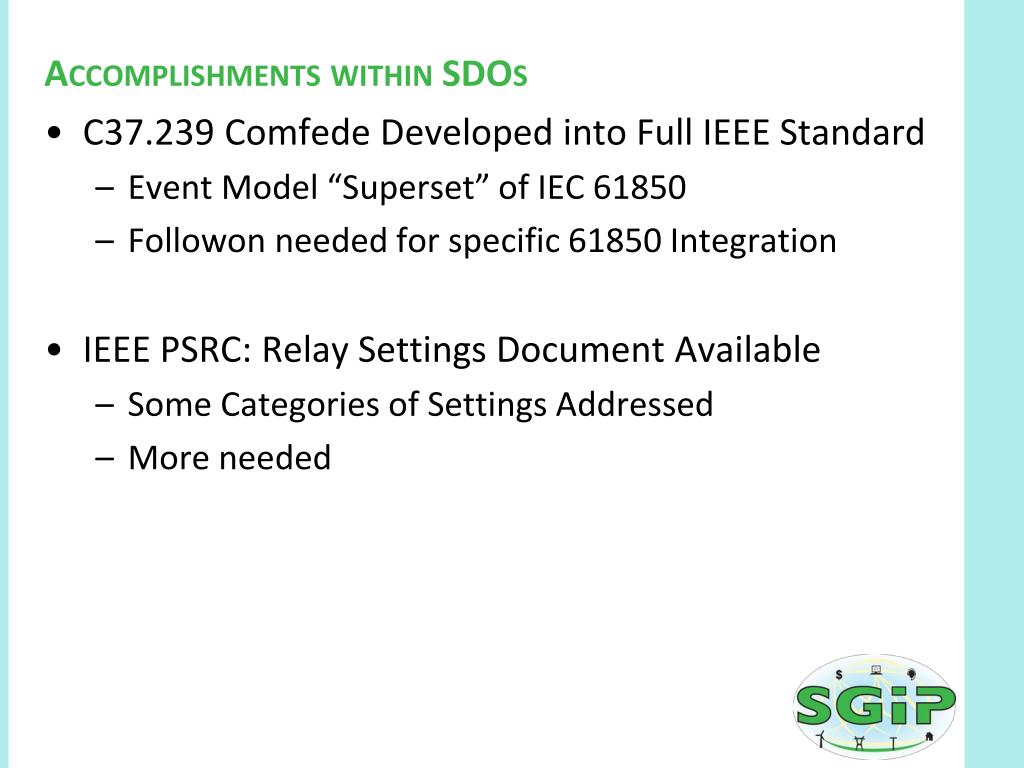

  6. Accomplishments within SDOs • C37.239 Comfede Developed into Full IEEE Standard • Event Model “Superset” of IEC 61850 • Followon needed for specific 61850 Integration • IEEE PSRC: Relay Settings Document Available • Some Categories of Settings Addressed • More needed

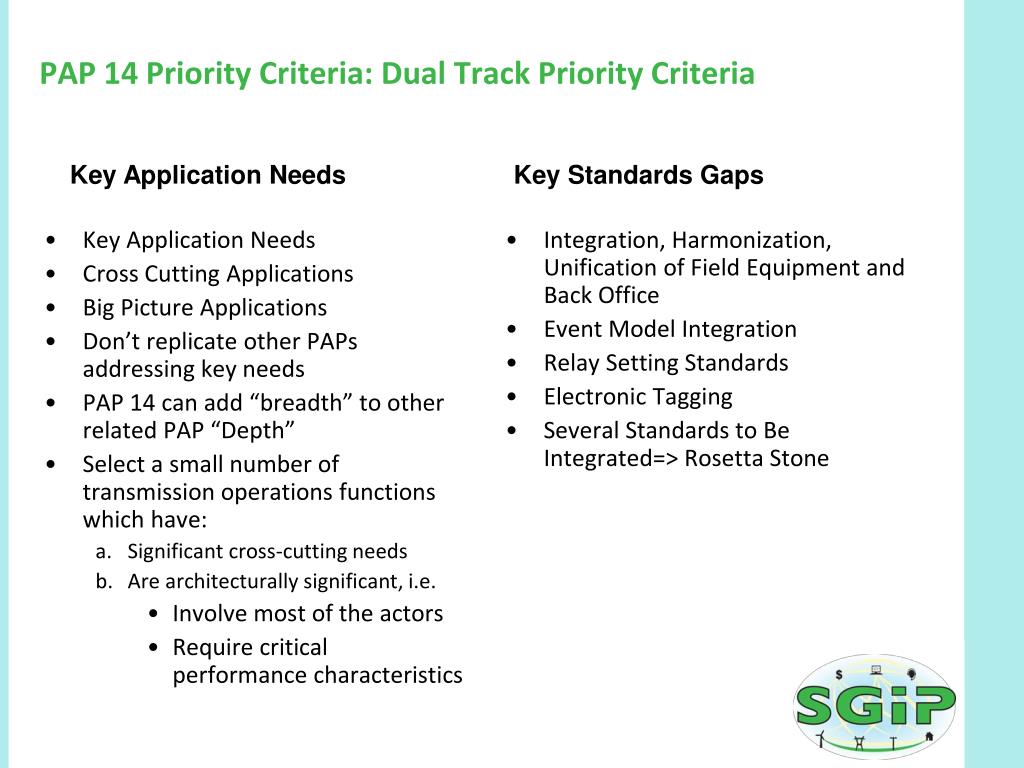

  7. PAP 14 Priority Criteria: Dual Track Priority Criteria Key Application Needs Cross Cutting Applications Big Picture Applications Don’t replicate other PAPs addressing key needs PAP 14 can add “breadth” to other related PAP “Depth” Select a small number of transmission operations functions which have: Significant cross-cutting needs Are architecturally significant, i.e. Involve most of the actors Require critical performance characteristics Integration, Harmonization, Unification of Field Equipment and Back Office Event Model Integration Relay Setting Standards Electronic Tagging Several Standards to Be Integrated=> Rosetta Stone Key Application Needs Key Standards Gaps

  8. PAP 14: Transmission and Distribution Power Systems Model Mapping: Scope Perspectives Multispeak IEC 61970 Applications Regional TransmissionOperator Distribution Control Center External corporations Power procurementMarket operations IEC 61968 Data integration Communication Infrastructure Controls sensors Wind integration WAMAC Distribution automation Substation automation AMI IEEE C37.239 DER integration ASHRAE SSPC 201 Power SystemResources IEC 61850 IEC 61400-25

  9. SSOs Executing PAP 14 Related Work • IEEE Power System Relay Committee • H5 Relay Settings • H2 Event Model IEEE C37.239 (Comfede) • H2 Smart Grid Applications • C2 Relay Information For Smart Grid • International Electrotechnical Commission • TC 57 WG 10 Substations (IEC 61850) • TC 57 WG 19 Architecture/Harmonization • TC 57 WG 13 Unified T&D Modeling (CIM) • NASPI net • Use Cases

  10. Strategy • Rescope to Key Priority Areas • Cross Cutting Standards Issues • Key Application Development • Focus on Transmission Applications and Integration with Distribution and Customers • Initial Focus on Transmission Bus Load Model • Scope PAP 14 Against the Backdrop of the Following • Other PAP work related to Transmission • Work taking place (or not taking place within SDO’s) • Use Priority Process to Rescope

  11. PAPs related to PAP 14 Wind Distribution Automation 16 8 Storage 11 7 Vehicles PAP 14 “Breadth” 17 Customer Data DNP/61850 12 1 9 13 3 DR Phasors/Time 2 Pricing

  12. PAP 14 Scoping Criteria and Scoring System Applications Track 1A Critical Applications Development 1B Supports Cross Cutting Applications 1C Provides Breadth to Complement Depth of Other PAPs 1D Supports Applications not Covered by Others Key Standards Issues 2A Complements SDO Work Underway 2B Assists in Development of Key Interfaces Between Standards/Application Domains 2C Assists Harmonization/Integration/Unification 2D Specifically Identified Priority in PAP Charter: Relay Settings 2E Specifically Identified Priority in PAP Charter: Events

  13. Applications Track Scoring • 1A Critical Applications Development • Critical to SG:”5”….Not Critical to SG: “0” • 1B Supports Cross Cutting Applications • Cuts Domain/Environments “5” No Cross: “0” • 1C Provides Breadth to Complement Depth of Other PAPs • Breadth: “5” Narrowly focused “0” • 1D Supports Applications not Covered by Others • No One Else Covering: “5”, Covered by Others “0”

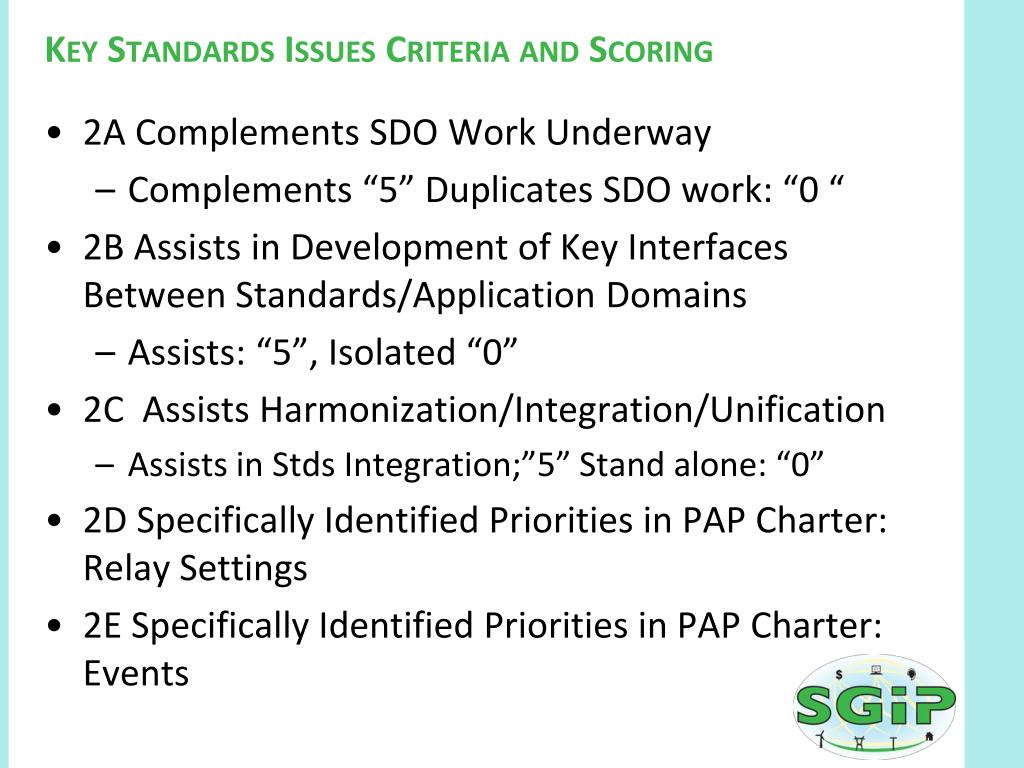

  14. Key Standards Issues Criteria and Scoring • 2A Complements SDO Work Underway • Complements “5” Duplicates SDO work: “0 “ • 2B Assists in Development of Key Interfaces Between Standards/Application Domains • Assists: “5”, Isolated “0” • 2C Assists Harmonization/Integration/Unification • Assists in Stds Integration;”5” Stand alone: “0” • 2D Specifically Identified Priorities in PAP Charter: Relay Settings • 2E Specifically Identified Priorities in PAP Charter: Events

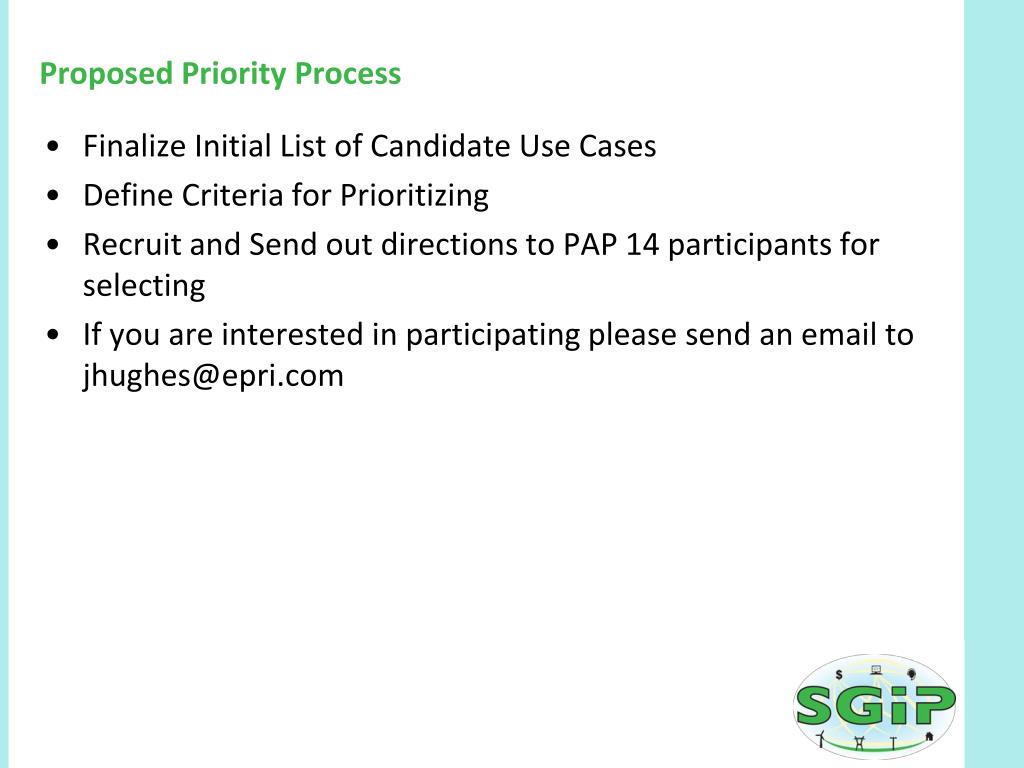

  15. Proposed Priority Process Finalize Initial List of Candidate Use Cases Define Criteria for Prioritizing Recruit and Send out directions to PAP 14 participants for selecting If you are interested in participating please send an email to jhughes@epri.com

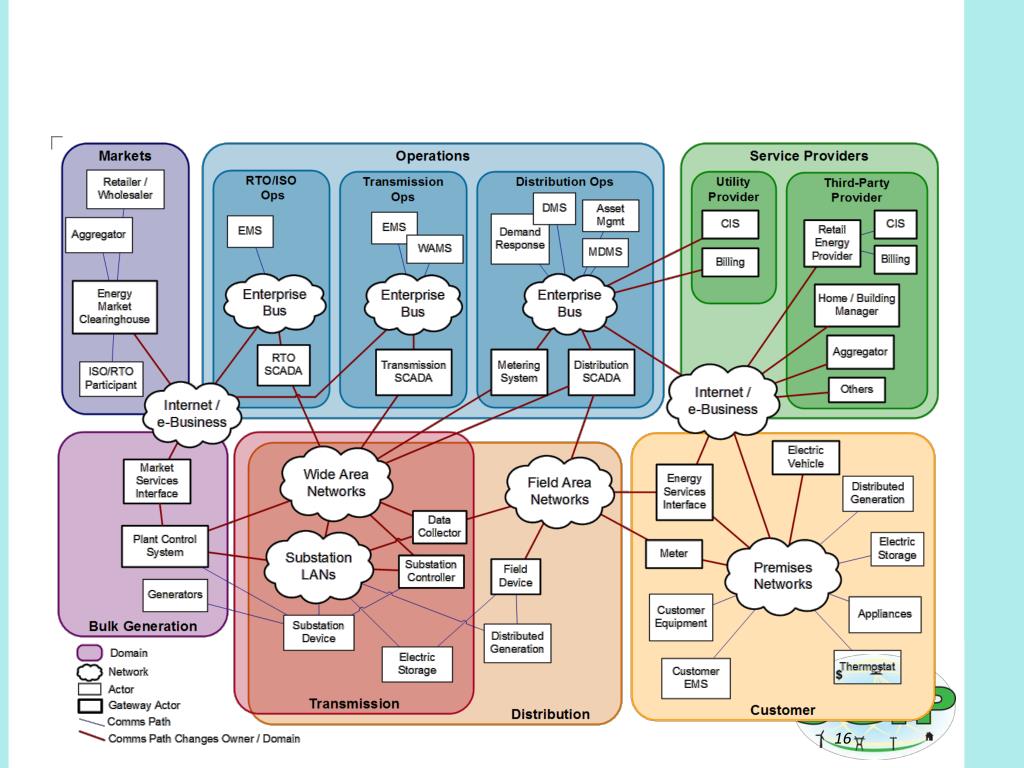

  16. 16

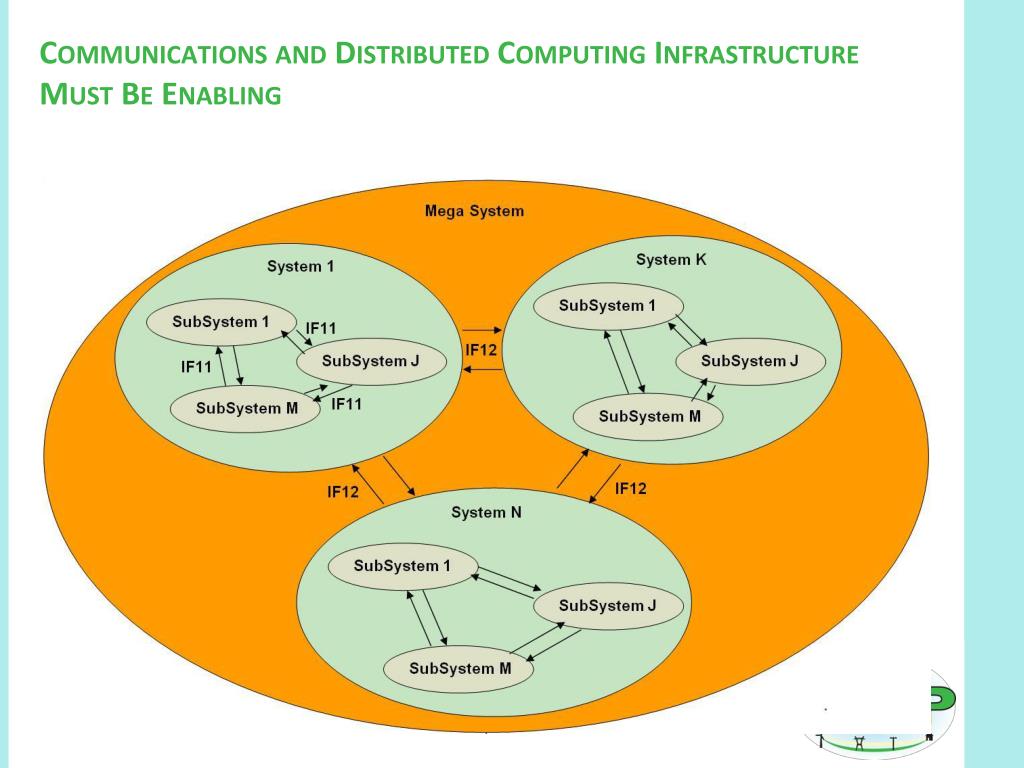

  17. Communications and Distributed Computing Infrastructure Must Be Enabling

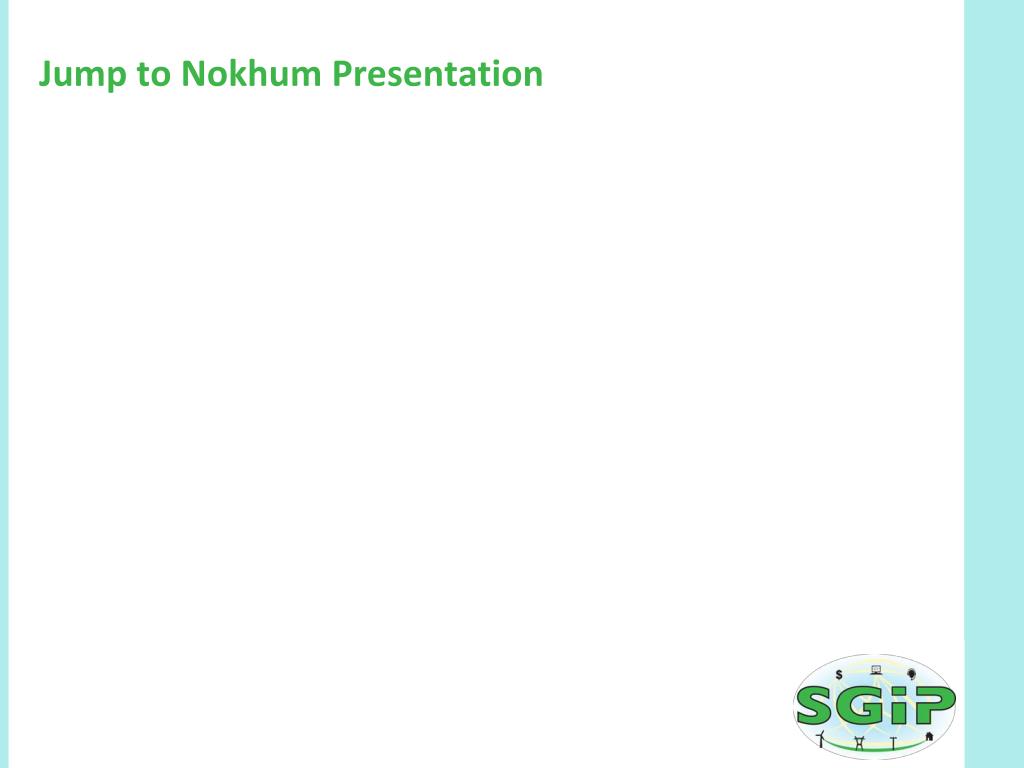

  18. Jump to Nokhum Presentation

  19. Use cases for the Self-healing Grid n.markushevich@smartgridoperations.com www.smartgridoperations.com 12/2/2010

  20. Active Distribution Networks (ADN)High penetration of: • Load dependent on • Real-time pricing • Embedded DER • Demand Response • PEV • Technology • Other • Large DER/ES/MG dependent on • Weather • Technology • Maintenance • Price • Volt/var control mode and settings • Protection settings • Load Shedding Remedial Action Schemes dependent on • Operations of MG (connected – autonomous) • Load behavior (see above) • Overlapping with other schemes • Changing priorities • Pre-armed settings • DMS applications dependent on • Objectives • Available tolerances • Available controls

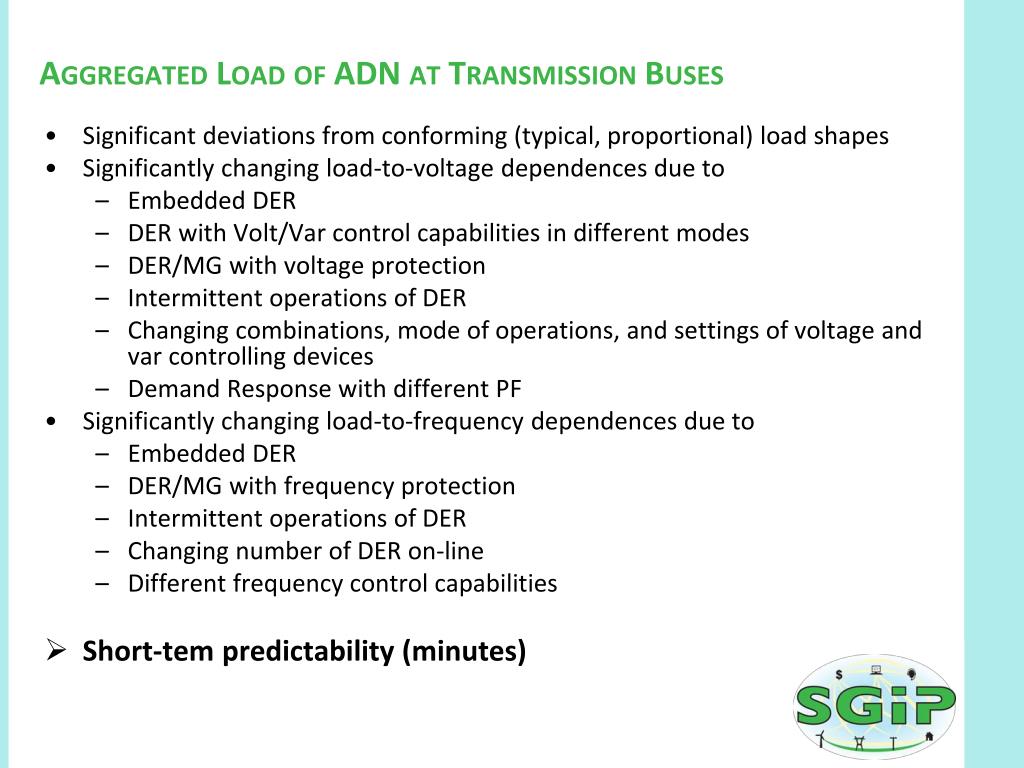

  21. Aggregated Load of ADN at Transmission Buses • Significant deviations from conforming (typical, proportional) load shapes • Significantly changing load-to-voltage dependences due to • Embedded DER • DER with Volt/Var control capabilities in different modes • DER/MG with voltage protection • Intermittent operations of DER • Changing combinations, mode of operations, and settings of voltage and var controlling devices • Demand Response with different PF • Significantly changing load-to-frequency dependences due to • Embedded DER • DER/MG with frequency protection • Intermittent operations of DER • Changing number of DER on-line • Different frequency control capabilities • Short-tem predictability (minutes)

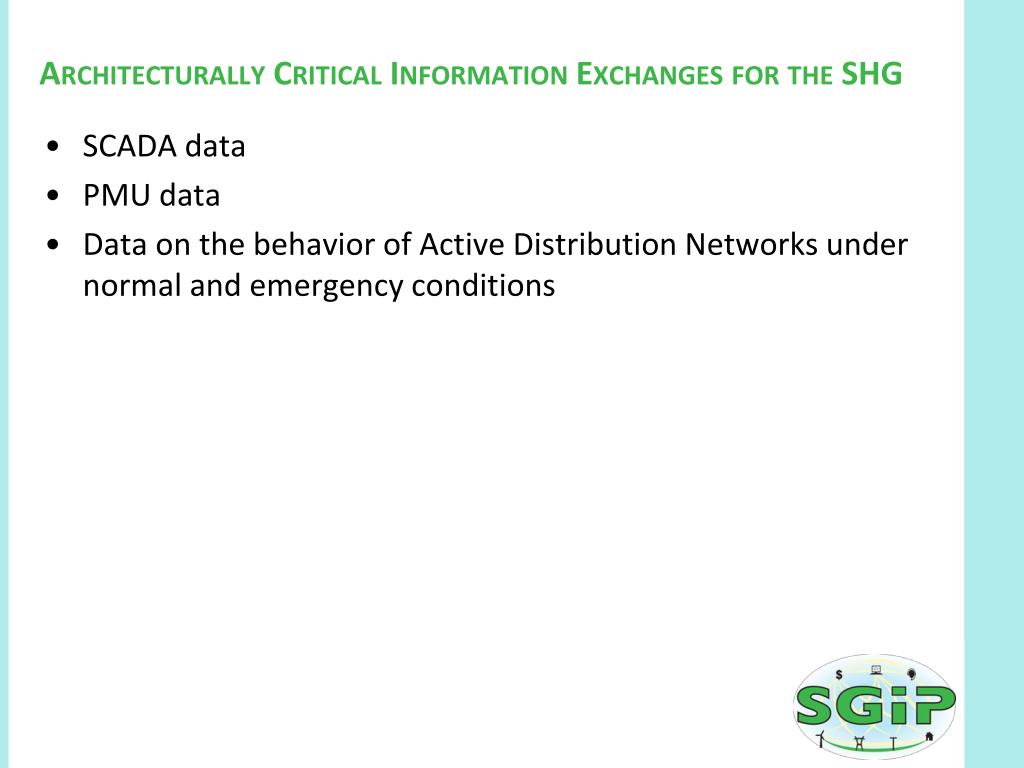

  22. Architecturally Critical Information Exchanges for the SHG • SCADA data • PMU data • Data on the behavior of Active Distribution Networks under normal and emergency conditions

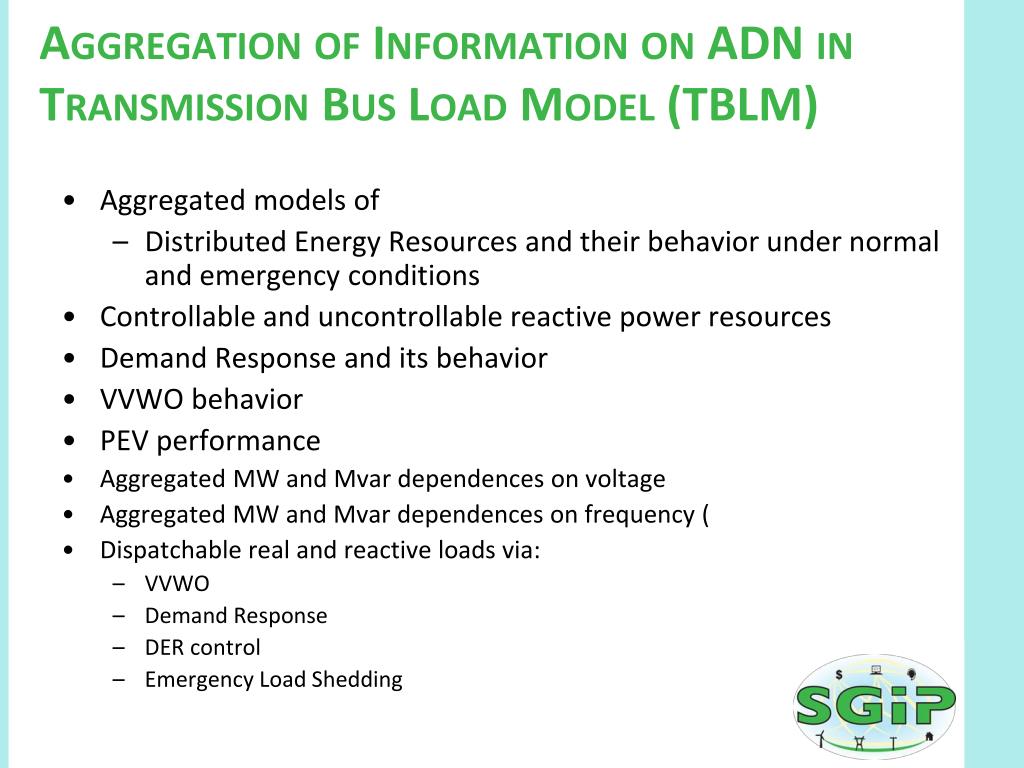

  23. Aggregation of Information on ADN in Transmission Bus Load Model (TBLM) • Aggregated models of • Distributed Energy Resources and their behavior under normal and emergency conditions • Controllable and uncontrollable reactive power resources • Demand Response and its behavior • VVWO behavior • PEV performance • Aggregated MW and Mvar dependences on voltage • Aggregated MW and Mvar dependences on frequency ( • Dispatchable real and reactive loads via: • VVWO • Demand Response • DER control • Emergency Load Shedding

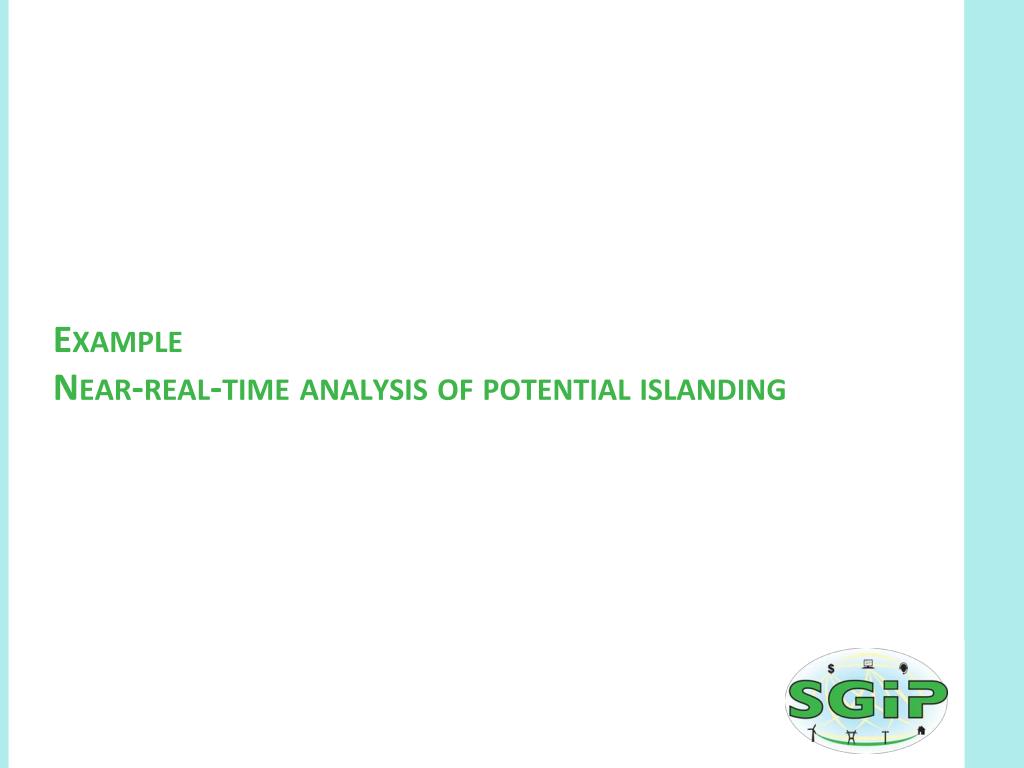

  24. ExampleNear-real-time analysis of potential islanding

  25. Pre-arming of Islanding requires • Prediction of real power balance in the potential island (frequency) • Prediction of reactive power balance in the potential island (voltage) • Islands are formed to minimize the load-generation imbalance • Prediction of the reaction of the Active Distribution Network (~ 20% of DER, Micro-grids, Demand Response, VVWO, etc.) • Adaptive near-real-time analyses based on • Transmission model update • PMU data • Reaction of the Active Distribution Network

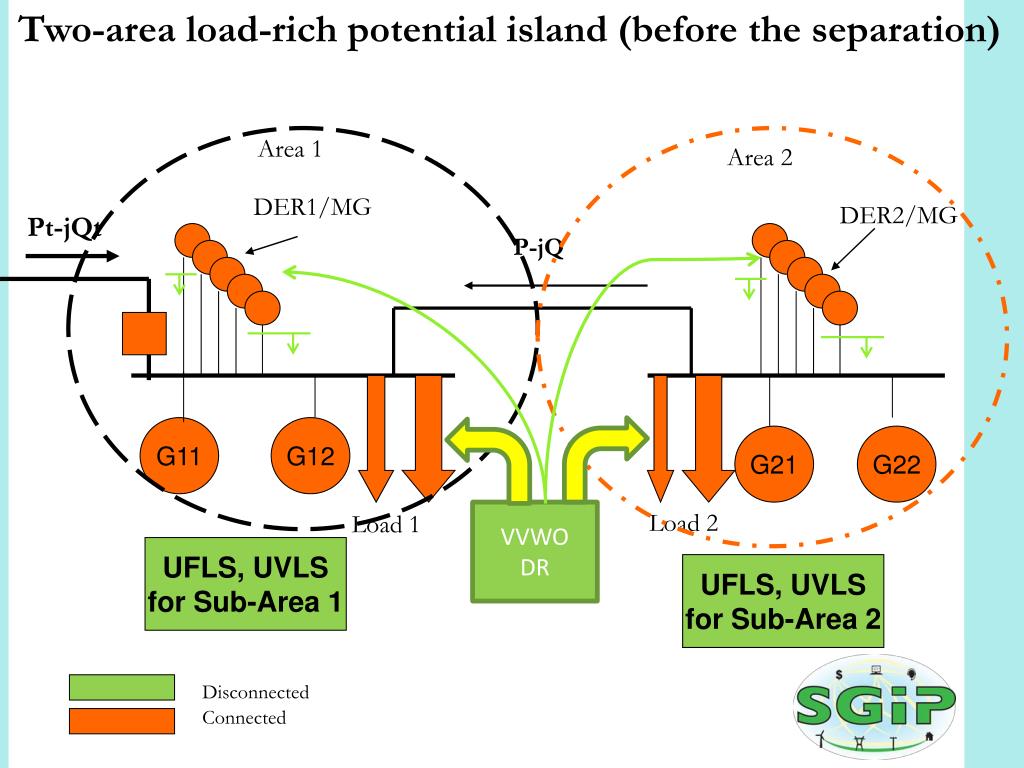

  26. Two-area load-rich potential island (before the separation) Area 1 Area 2 DER1/MG DER2/MG Pt-jQt P-jQ G11 G12 G21 G22 VVWO DR Load 2 Load 1 UFLS, UVLS for Sub-Area 1 UFLS, UVLS for Sub-Area 2 Disconnected Connected

  27. Two-area load-rich island (after the separation) Area 1 Area 2 DER1/MG DER2 /MG P-jQ G11 G12 G21 G22 VVWO DR Load 2 Load 1 UFLS, UVLS for Sub-Area 1 UFLS, UVLS for Sub-Area 2 Disconnected Connected

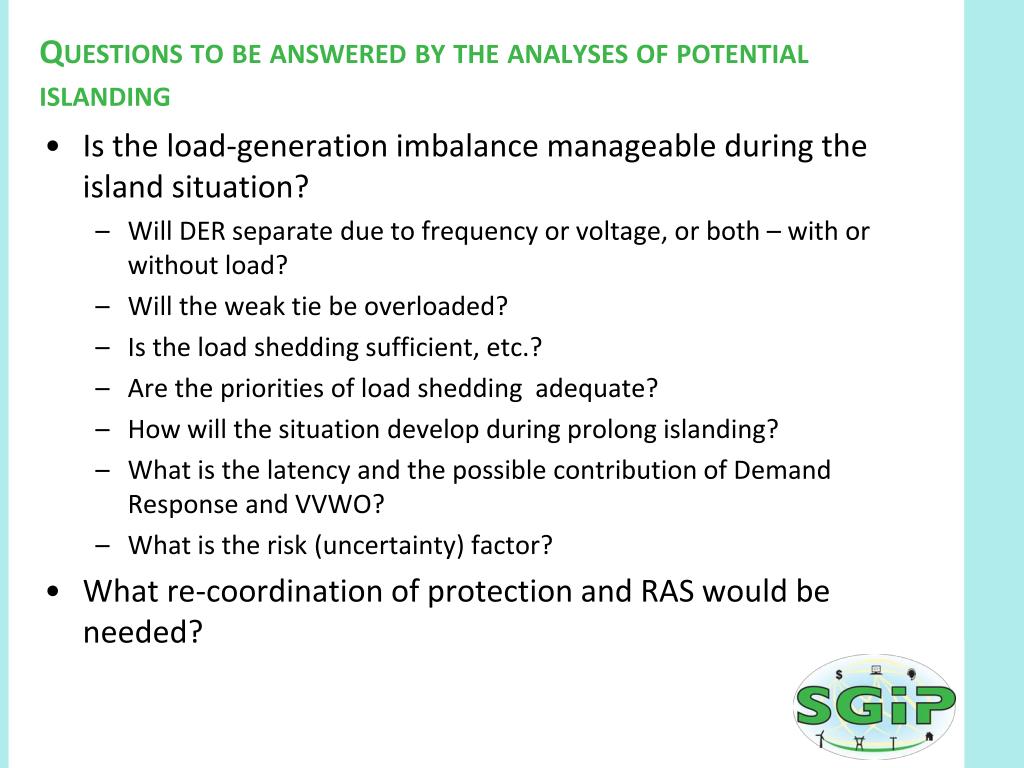

  28. Questions to be answered by the analyses of potential islanding • Is the load-generation imbalance manageable during the island situation? • Will DER separate due to frequency or voltage, or both – with or without load? • Will the weak tie be overloaded? • Is the load shedding sufficient, etc.? • Are the priorities of load shedding adequate? • How will the situation develop during prolong islanding? • What is the latency and the possible contribution of Demand Response and VVWO? • What is the risk (uncertainty) factor? • What re-coordination of protection and RAS would be needed?

  29. ??? Questions Continued • What is the expected cold-load pickup? • What is the latency and possibilities of DER resynchronization? • What should be the priorities of load restoration? • The TBLM should contain information that is needed to answer these questions.

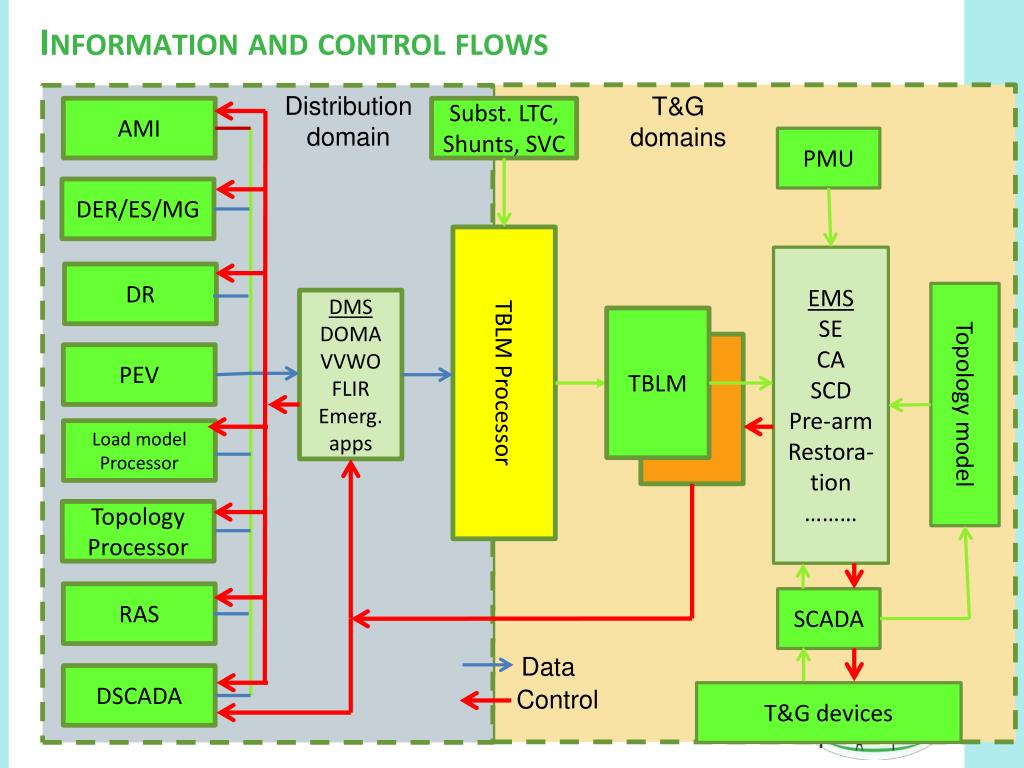

  30. Information and control flows Distribution domain T&G domains AMI Subst. LTC, Shunts, SVC PMU DER/ES/MG TBLM Processor EMS SE CA SCD Pre-arm Restora-tion ……… DR Topology model DMS DOMA VVWO FLIR Emerg. apps TBLM PEV Load model Processor Topology Processor RAS SCADA Data DSCADA Control T&G devices

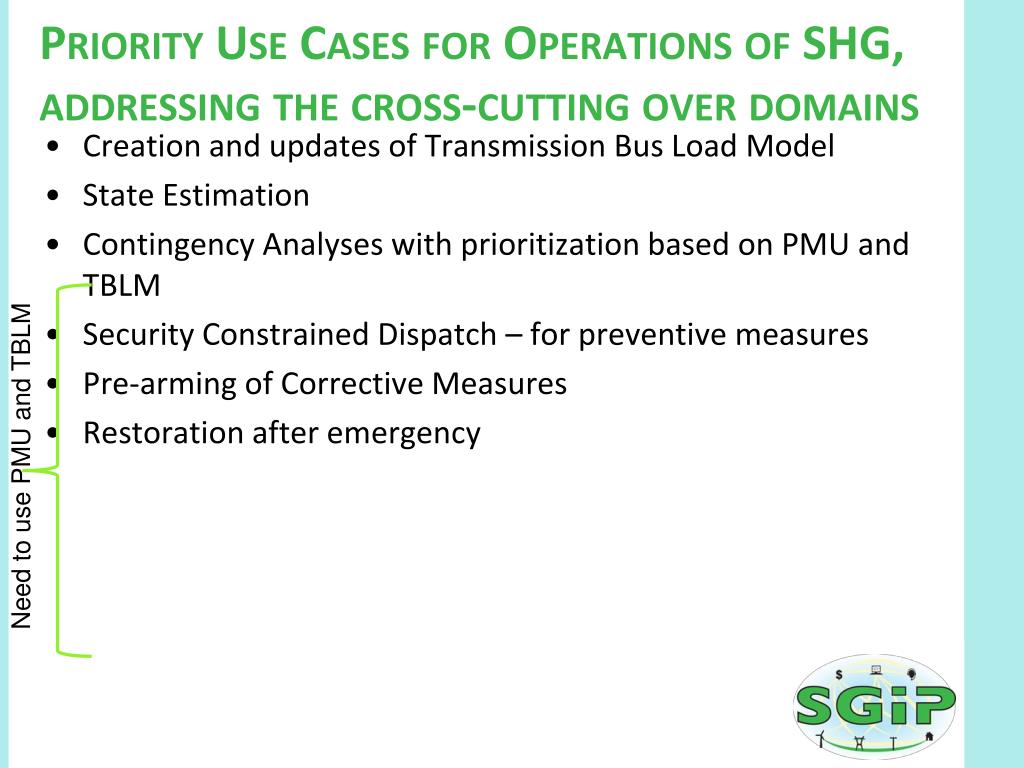

  31. Priority Use Cases for Operations of SHG, addressing the cross-cutting over domains • Creation and updates of Transmission Bus Load Model • State Estimation • Contingency Analyses with prioritization based on PMU and TBLM • Security Constrained Dispatch – for preventive measures • Pre-arming of Corrective Measures • Restoration after emergency Need to use PMU and TBLM

  32. Thank you!

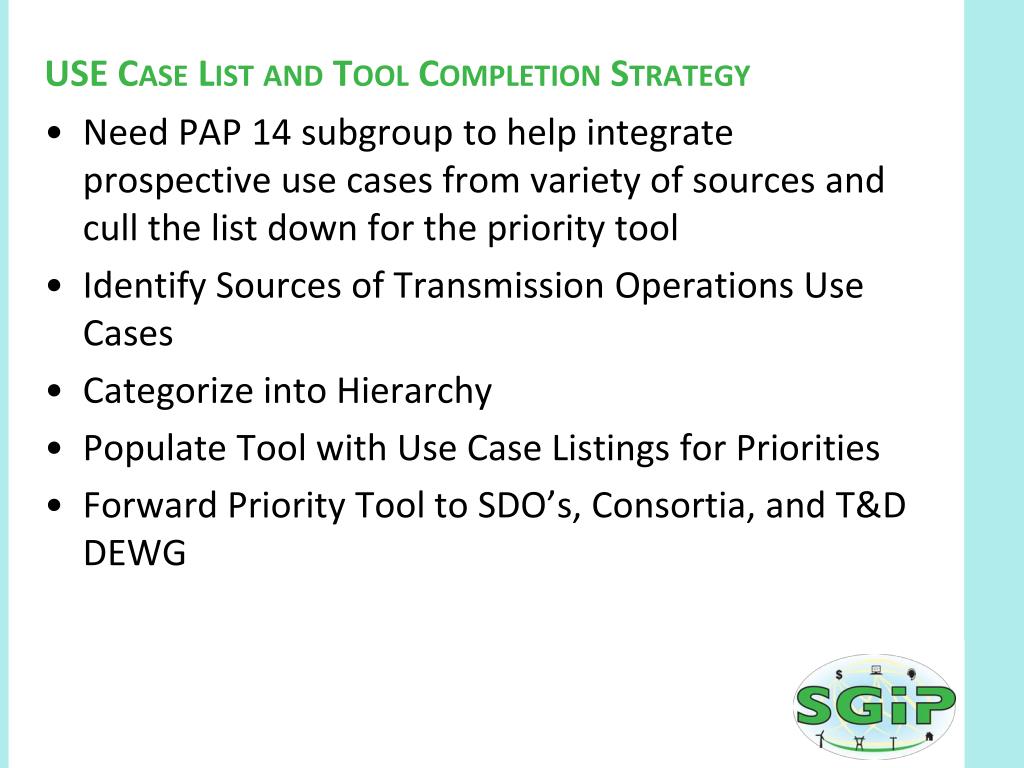

  33. USE Case List and Tool Completion Strategy • Need PAP 14 subgroup to help integrate prospective use cases from variety of sources and cull the list down for the priority tool • Identify Sources of Transmission Operations Use Cases • Categorize into Hierarchy • Populate Tool with Use Case Listings for Priorities • Forward Priority Tool to SDO’s, Consortia, and T&D DEWG

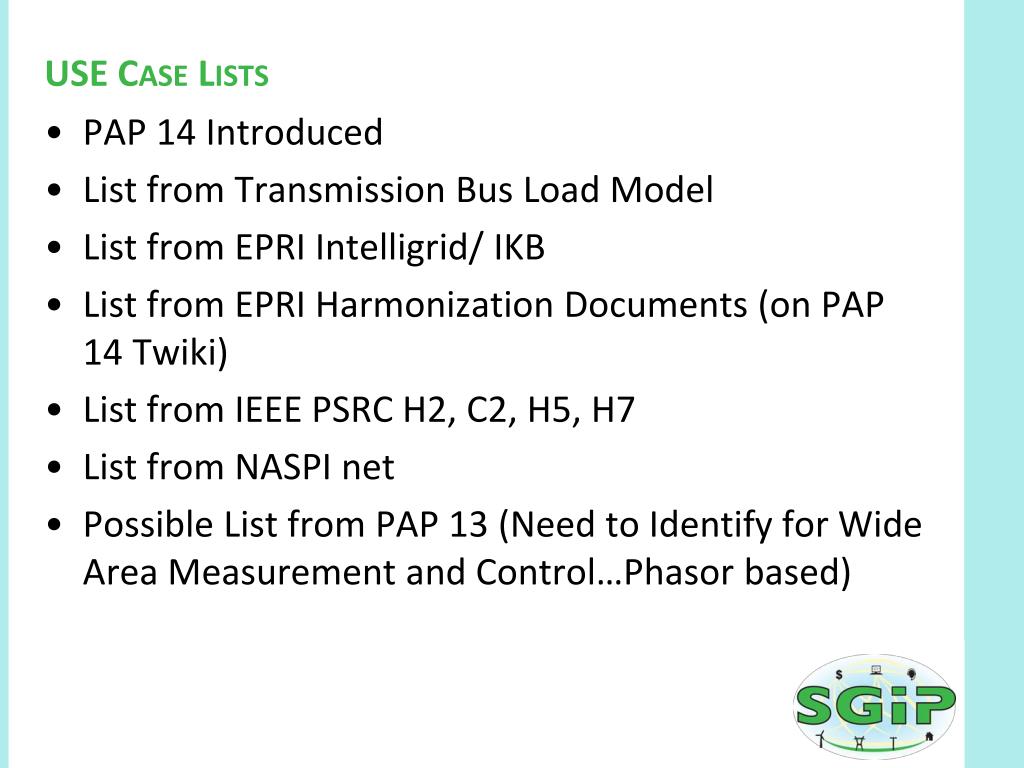

  34. USE Case Lists • PAP 14 Introduced • List from Transmission Bus Load Model • List from EPRI Intelligrid/ IKB • List from EPRI Harmonization Documents (on PAP 14 Twiki) • List from IEEE PSRC H2, C2, H5, H7 • List from NASPI net • Possible List from PAP 13 (Need to Identify for Wide Area Measurement and Control…Phasor based)

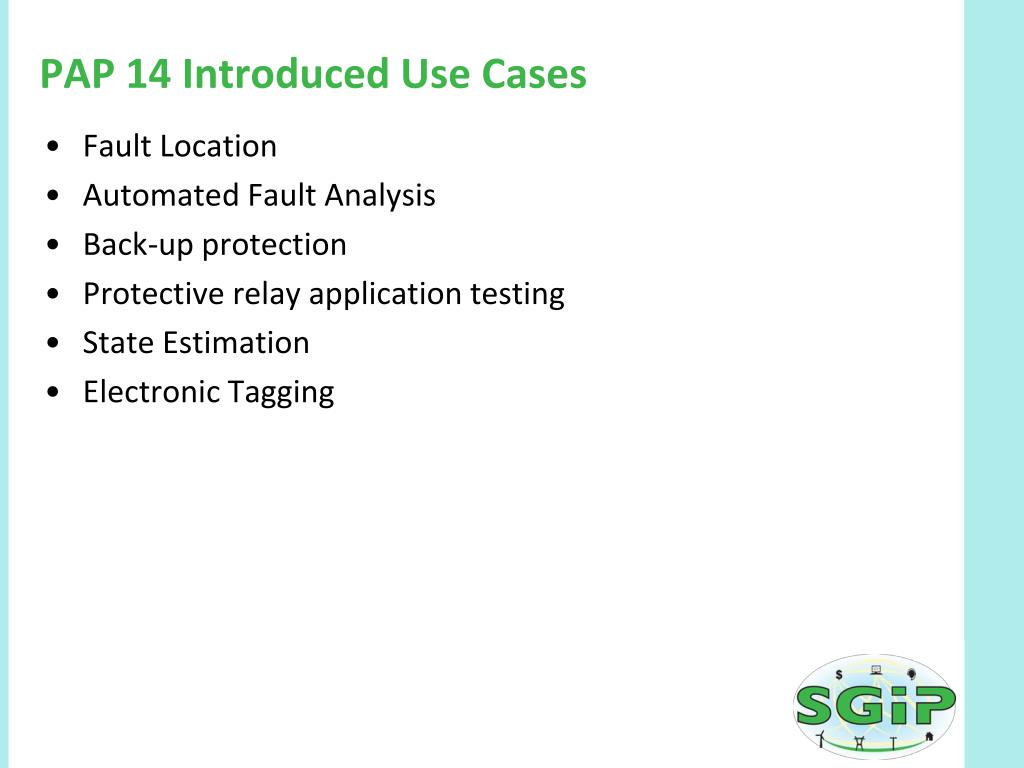

  35. PAP 14 Introduced Use Cases Fault Location Automated Fault Analysis Back-up protection Protective relay application testing State Estimation Electronic Tagging

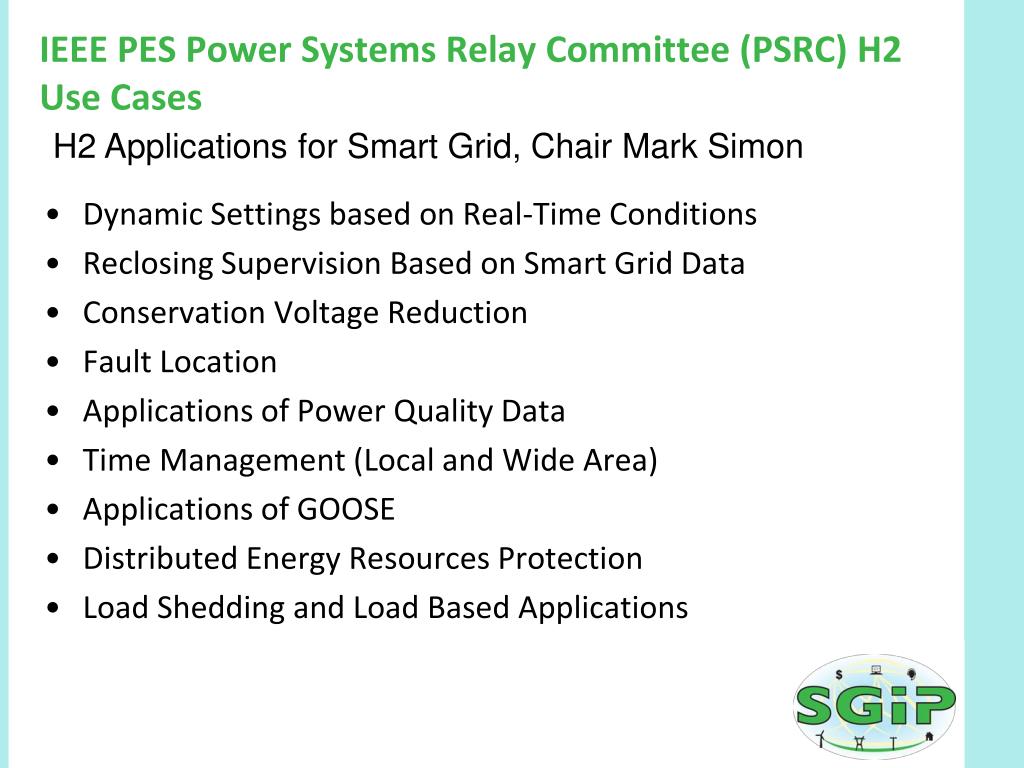

  36. IEEE PES Power Systems Relay Committee (PSRC) H2 Use Cases Dynamic Settings based on Real-Time Conditions Reclosing Supervision Based on Smart Grid Data Conservation Voltage Reduction Fault Location Applications of Power Quality Data Time Management (Local and Wide Area) Applications of GOOSE Distributed Energy Resources Protection Load Shedding and Load Based Applications H2 Applications for Smart Grid, Chair Mark Simon

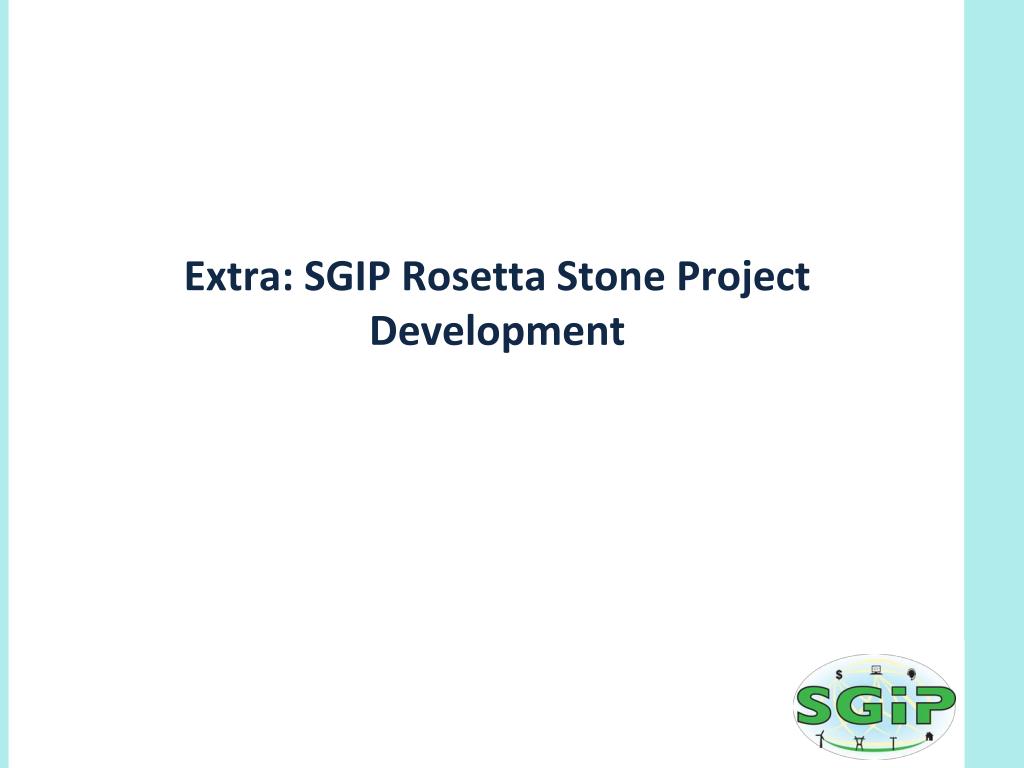

  37. Extra: SGIP Rosetta Stone Project Development

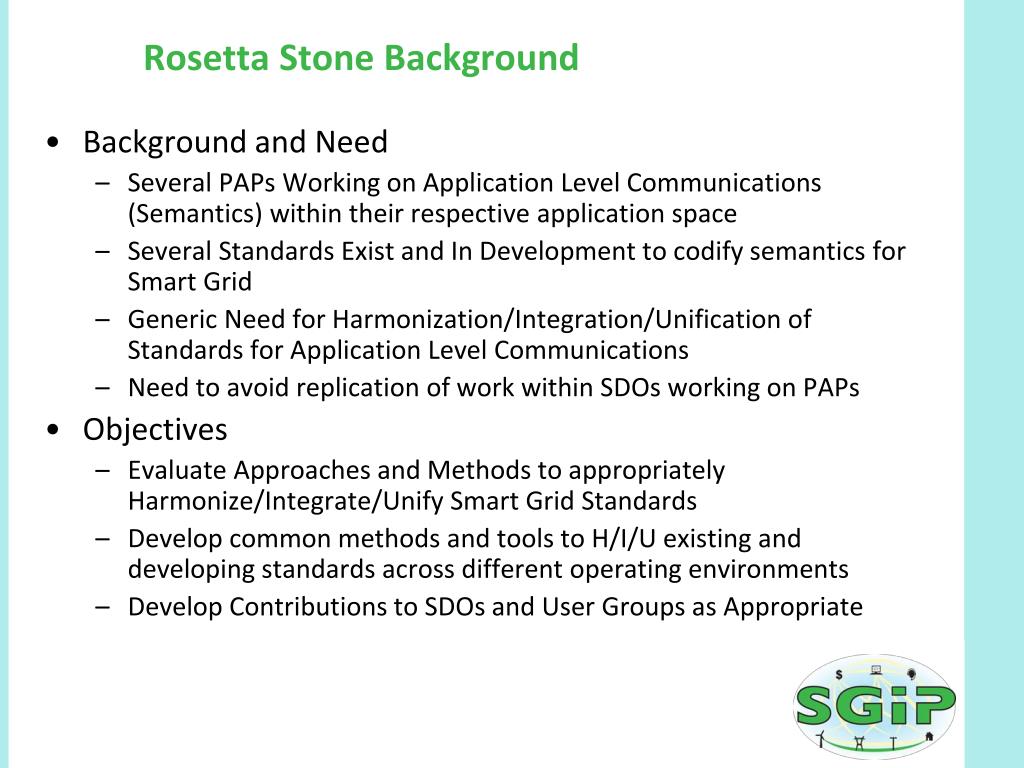

  38. Rosetta Stone Background Background and Need Several PAPs Working on Application Level Communications (Semantics) within their respective application space Several Standards Exist and In Development to codify semantics for Smart Grid Generic Need for Harmonization/Integration/Unification of Standards for Application Level Communications Need to avoid replication of work within SDOs working on PAPs Objectives Evaluate Approaches and Methods to appropriately Harmonize/Integrate/Unify Smart Grid Standards Develop common methods and tools to H/I/U existing and developing standards across different operating environments Develop Contributions to SDOs and User Groups as Appropriate

  39. Rosetta Stone Project In Development Approach Identify Standards from PAP Requirements and documentation needing H/I/U Evaluate Prior Work related to Harmonization, Integration or Unification (i.e. IEC 61400-25 under TC88 has mappings to five other standards) Identify Key Related SDO Activity (i.e. IEC TC57 WG 19, Other) Close Cooperation with SGAC Semantic Working Party Investigate Methods to Integrate Standards as Appropriate Use of Unified Modeling Language, Use of OWL, Development of XML Schema, Id Syntax and Structure and Remaining Issues Develop Recommendations for H/I/U development that can be applied by respective PAP development work Status: Initial Draft Statement of Work: Discussed in T&D DEWG, Tech Champions. Next Draft…May develop under SGAC Semantics

  40. PAP Relationships: SGIP SGAC Activities Continued Semantic Working Group Whitepaper Semantic Terms Paper Technical Approach Development in Progress http://collaborate.nist.gov/twiki-sggrid/bin/view/SmartGrid/SGIPSemanticModelSGAC Security Working Group NISTIR Integration PAP Specific Work Items

  41. PAP Development and Relationships Activity Cross PAP Issues Twiki:http://collaborate.nist.gov/twiki-sggrid/bin/view/SmartGrid/CrossPAPIssues Cross PAP Dependency Matrix with Narratives Some PAP Descriptions Contain PAP to PAP Relationship Narratives Rosetta Stone Project Draft

  42. IKB Information Objects: Applications Level Communications Integration Currently Identifying Targeted Standards by PAP IKB Use Cases Requirements Archiving by PAP Model Development http://collaborate.nist.gov/twiki-sggrid/bin/view/SmartGrid/InteroperabilityKnowledgeBase

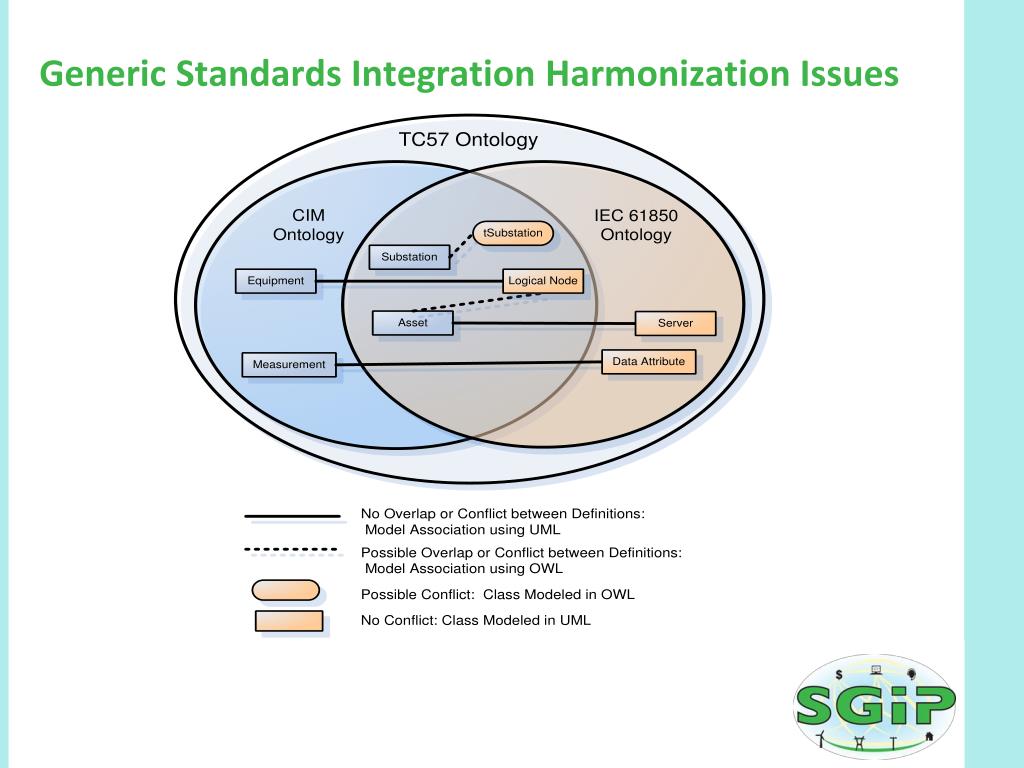

  43. Generic Standards Integration Harmonization Issues

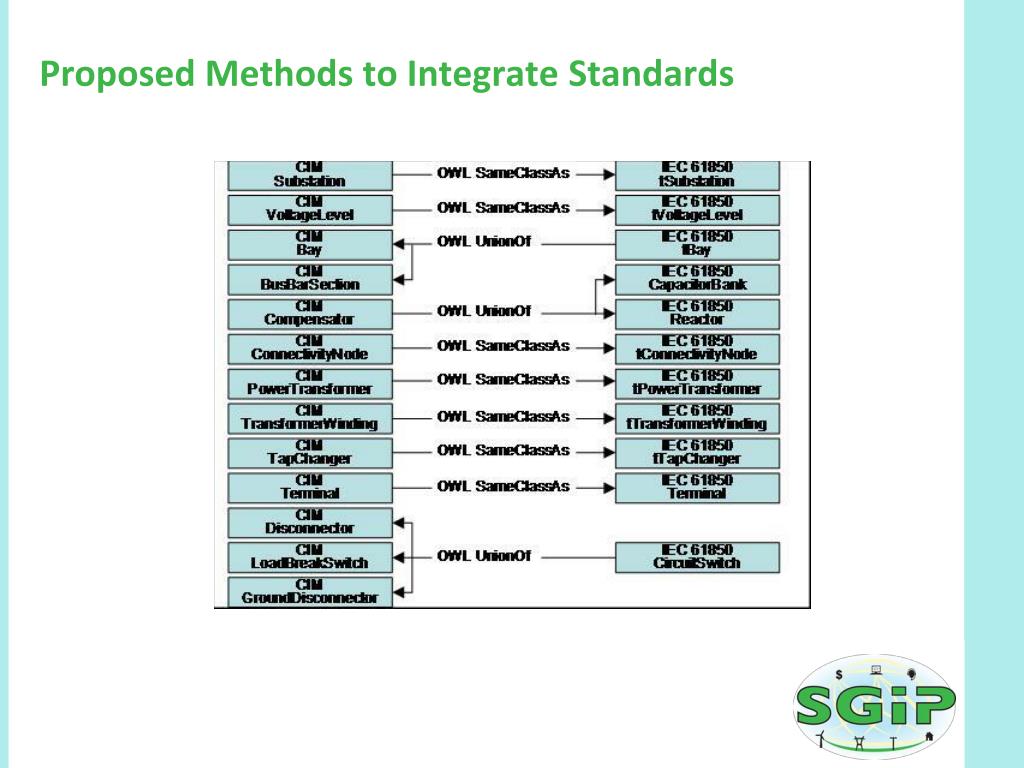

  44. Proposed Methods to Integrate Standards

  45. IEC 61968 / 61970 IEC 61850-6 IEC 61850-7 Configuration Run Time

  46. Generic Harmonization Strategy Development

  47. Modeling Difference For How Measurements are Associated with Topology
