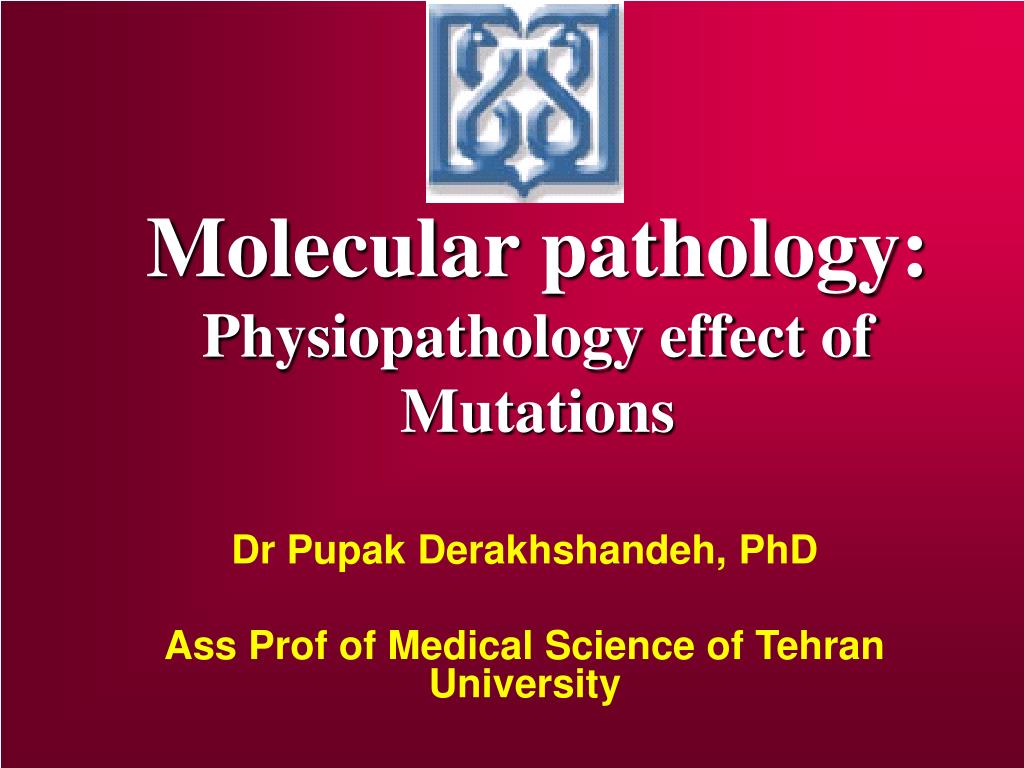

  1. Molecular pathology:Physiopathology effect of Mutations Dr PupakDerakhshandeh, PhD Ass Prof of Medical Science of Tehran University

  2. Mutations • changes to the either DNA or RNA • caused by copying errors in the genetic material: • Cell division • Ultraviolet • Ionizingradiation • chemical mutagens • Viruses

  3. By aspect of phenotype affectedMorphological mutations • usually affect the outward appearance of an individual • Mutations can change the height of a plant or change it from smooth to rough seeds. • Biochemical mutations result in lesions stopping the enzymatic pathway • Often, morphological mutants are the direct result of a mutation due to the enzymatic pathway

  4. Special classesConditional mutation • wild-type or less severe phenotype under certain "permissive" environmental conditions • a mutant phenotype under certain "restrictive" conditions • For example: a temperature-sensitive mutation can cause cell death at high temperature (restrictive condition), but might have no deletirious consequences at a lower temperature (permissive condition).

  5. Nomenclature • Nomenclature of mutations specify the type of mutation • and base or amino acid changes • Amino acid substitution: (e.g. D111E) • The first letter is the one letter code of the wildtype amino acid • the number is the position of the amino acid from the N terminus • the second letter is the one letter code of the amino acid present in the mutation • If the second letter is 'X', any amino acid may replace the wild type

  6. Nomenclature • Amino acid deletion: (e.g. ΔF508) • The Greek symbol Δ or 'delta' indicates a deletion • The letter refers to the amino acid present in the wildtype • the number is the position from the N terminus of the amino acid were it to be present as in the wildtype

  7. Harmful mutations • Changes in DNA caused by mutation can cause errors in protein sequence • creating partially or completely non-functional proteins • To function correctly, each cell depends on thousands of proteins to function in the right places at the right times • a mutation alters a protein that plays a critical role in the body • A condition caused by mutations in one or more genes is called a genetic disorder • only a small percentage of mutations cause genetic disorders • most have no impact on health • For example, some mutations alter a gene's DNA base sequence but don’t change the function of the protein made by the gene

  8. DNA repair system • Often, gene mutations that could cause a genetic disorder • repaired by the DNA repair system of the cell • Each cell has a number of pathways through which enzymes recognize and repair mistakes in DNA • Because DNA can be damaged or mutated in many ways: • the process of DNA repair is an important way in which the body protects itself from disease

  9. Beneficial mutations • A very small percentage of all mutations : • have a positive effect • lead to new versions of proteins that help an organism and its future generations better adapt to changes in their environment: • For example, a specfic 32 base pair deletion in human Chemokine ReceptorCCR5 (CCR5-32) confers HIV resistance to homozygotes • delays AIDS onset in heterozygotes • The CCR5 mutation is more common in those of European descent • One theory for the etiology of the relatively high frequency of CCR5-32 in the european population is that it conferred resistance to the bubonic plaque in mid-14th century Europe

  10. Selection at the CCR5 locus • CCR532/CCR532 homozygotes are resistant to HIV and AIDS • The high frequency and wide distribution of the 32 allele suggest past selection by an unknown agent

  11. The Role of the Chemokine Receptor Gene CCR5 and Its Allele (del32 CCR5) • Since the late 1970s • 8.4 million people worldwide • including 1.7 million children, have died of AIDS • an estimated 22 million people are infected with human immunodeficiency virus (HIV)

  12. CCR5 and Its Allele ( del32 CCR5) monocyte/macrophage (M), T-cell line (Tl) a circulating T-cell (T)

  13. Mutations In multicellular organisms • can be subdivided into: • Germline mutations • can be passed on to descendants • Somatic mutations • cannot be transmitted to descendants in animals

  14. Germ & Somatic cell • a mutation is present in a germ cell • can give rise to offspring that carries the mutation in all of its cells • Such mutations will be present in all descendants of this cell • This is the case in hereditary disease • a mutation can occur in a somatic cell of an organism • certain mutations can cause the cell to become malignant • cause cancer

  15. ClassificationBy effect on structure • Gene mutations have varying effects on health: • where they occur • whether they alter the function of essential proteins

  16. Structurally, mutations can be classified as:

  17. Point mutations • caused by chemicals/malfunction of DNA replication • exchange a single nucleotide for another • Most common is the transition that exchanges a purine for a purine (A ↔ G) • or a pyrimidine for a pyrimidine, (C ↔ T)

  18. Transition • caused by: • Nitrous acid • base mispairing • 5-bromo-2-deoxyuridine (BrdU): • mutagenic base analogs

  19. base analog(C ↔ T)

  20. Bromodeoxyuridine & Thymine CH3

  21. Transversion • Less common • exchanges a purine for a pyrimidine • or a pyrimidine for a purine (C/T ↔ A/G)

  22. Point mutations that occur within the protein coding region of a gene • depending upon what the erroneous codon codes for: • Silent mutations: • which code for the same amino acid • Missense mutations : • which code for a different amino acid • Nonsense mutations : • which code for a stop and can truncate the protein

  23. Insertions • add one or more extra nucleotides into the DNA • usually caused by transposable elements • or errors during replication of repeating elements (e.g. AT repeats) • in the non/coding region of a gene may alter: • splicing of the mRNA (splice site mutation) • or cause a shift in the reading frame (frame shift) • significantly alter the gene product • Insertions can be reverted by excision of the Transposable element

  24. Deletion • remove one or more nucleotides from the DNA • Like insertions, these mutations can alter the reading frame of the gene • Deletions of large chromosomal regions, leading to loss of the genes within those regions • They are irreversible

  25. Deletions/insertions/duplications • Out of frame • In frame

  26. Deletions/insertions/duplications • Out of frame: • result in frameshifts giving rise to stop codons. • no protein product or truncated protein product • deletions/insertions in DMD patients : truncated dystrophins of decreased stability • RB1 gene - usually no protein product in retinoblastoma

  27. Deletions/insertions/duplications • In frame: • loss or gain of amino acid(s) • depending on the size and may give rise to altered protein product with changed properties • eg CF Delta F508 loss of single amino acid • In some genes loss or gain of a single amino acid: mild

  28. In frame: • In some regions of RB1 a single amino acid loss: • rise to mild retinoblastoma or incomplete penetrance • BMD patients: • Some times in-frame deletions/duplications • DMD deletions: • mostly disrupt the reading frame

  29. Deletions/insertions/duplications • In untranslated regions: • these might affect transcription/expression and/or stability of the message: • Fragile X • MD expansions

  30. Large-scale mutations in chromosomal structure

  31. Amplifications(gene duplications) • leading to multiple copies of all chromosomal regions • double-minute chromosomes: • Sometimes, so many copies of the amplified region are produced • they can actually form their own small pseudo-chromosomes • increasing the dosage of the genes

  32. Amplifications

  33. Chromosomal translocations: • Fusion genes: • Mutations: to juxtapose previously separate pieces of DNA • potentially bringing together separate genes to form functionally distinct (e.g. bcr-abl) • Chromosomal translocation: • interchange of genetic parts from nonhomologous chromosomes

  34. Lethal mutations • lead to a phenotype: • incapable of effective reproduction

  35. Interstitial deletions: • an intra-chromosomal deletion: • removes a segment of DNA from a single chromosome • For example, cells isolated from a human astrocytoma, a type of brain tumor • have a chromosomal deletion removing sequences between the "fused in glioblastoma" (fig) gene and the receptor tyrosine kinase "ros", producing a fusion protein (FIG-ROS) • The abnormal FIG-ROS fusion protein has constitutively active kinase activity • causes oncogenic transformation (a transformation from normal cells to cancer cells)

  36. Astrocytoma • a primary tumor of the central nervous system • develops from the large, star-shaped glial cells known as astrocytes • Most frequently astrocytomas occur in the brain • but occasionally they appear along the spinal cord • occur most often in middle-aged men • Symptoms of an astrocytoma, similar to other brain tumors: • depend on the precise location of the growth • For instance, if the frontal lobe is affected • mood swings and changes in personality may occur • a temporal lobe tumor is more typically associated with speech and coordination difficulties

  37. Astrocytoma & Astrocyte

  38. AA: anaplastic astrocytomas(60.6%) GBM: glioblastoma multiforme (65%)

  39. Chromosomal inversions: • Reversing the orientation of a chromosomal segment • Loss of heterozygosity: • loss of one allele: • either by a deletion • recombination event

  40. By effect on function • Loss-of-function mutations • Gain-of-function mutations • Dominant negative mutations • Lethal mutations

  41. Loss-of-function mutations • Wild type alleles typically encode a product necessary for a specific biological function • If a mutation occurs in that allele, the function for which it encodes is also lost • The degree to which the function is lost can vary

  42. Loss-of-function mutations • gene product having less or no function: • Phenotypes associated with such mutations are most often recessive: • to produce the wild type phenotype! • Exceptions are when the organism is haploid • or when the reduced dosage of a normal gene product is not enough for a normal phenotype (haploinsufficiency)

  43. Loss-of-function mutations • mutant allele will act as a dominant: • the wild type allele may not compensate for the loss-of-function allele • the phenotype of the heterozygote will be equal to that of the loss-of-function mutant (as homozygote) • to produce the mutant phenotype !

  44. Loss-of-function mutations • Null allele: • When the allele has a complete loss of function • it is often called an amorphic mutation • Leaky mutations: • If some function may remain, but not at the level of the wild type allele • The degree to which the function is lost can vary
