  1. Improving Security Using Extensible Lightweight Static Analysis David Evans and David Larochelle Presented by Joe Combs - 12 April 2006

  2. Topics • Static analysis concepts • Splint Described • Splint Limitations/Analysis • Real world results

  3. Static Analysis Concepts • Ways of eliminating flaws: • Human code reviews • Testing • Static Analysis • Most attacks stem from repeated exploits of well-known problems • Tools can help codify what is known about common vulnerabilities

  4. Static Analysis Concepts • Low end - standard compilers performing type checking and other simple analysis • Other extreme - formal specification with theorem prover • Lightweight analysis seeks a happy medium

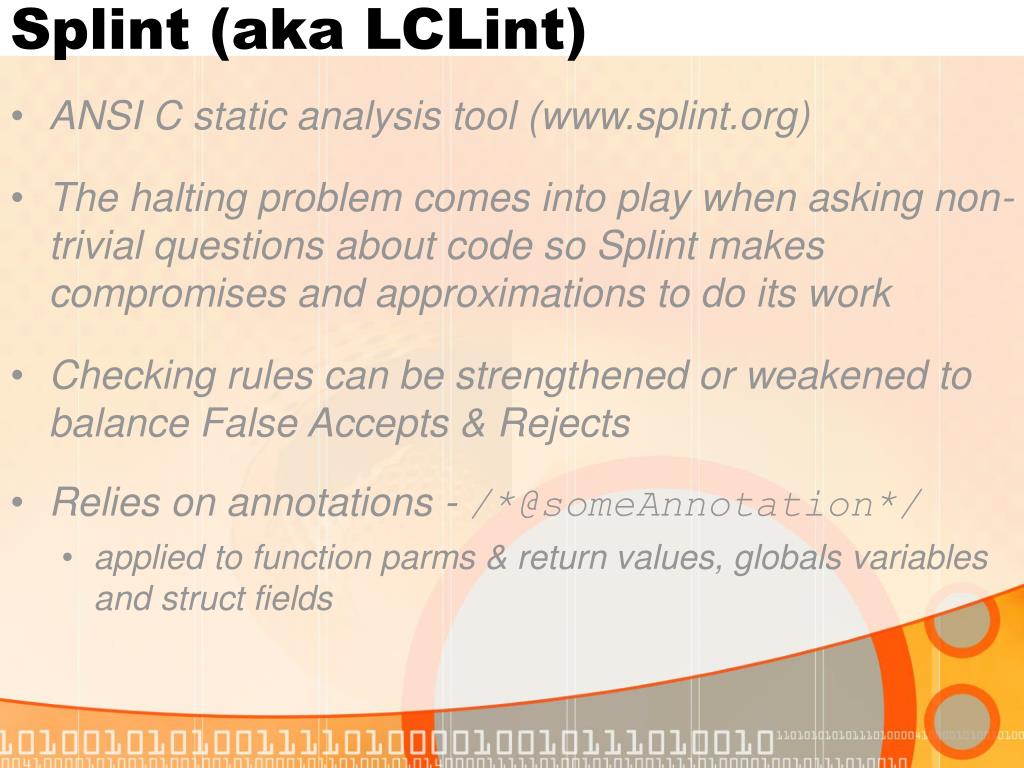

  5. Splint (aka LCLint) • ANSI C static analysis tool (www.splint.org) • The halting problem comes into play when asking non-trivial questions about code so Splint makes compromises and approximations to do its work • Checking rules can be strengthened or weakened to balance False Accepts & Rejects • Relies on annotations - /*@someAnnotation*/ • applied to function parms & return values, globals variables and struct fields

  6. Splint Limitations/Analysis • Analysis limited to data flow within procedure bodies • Control flow paths considered but to limit combinatorial explosion paths are merged at break points • Loops checked for common idioms but convoluted code can throw it off (a challenge for human readers as well!)

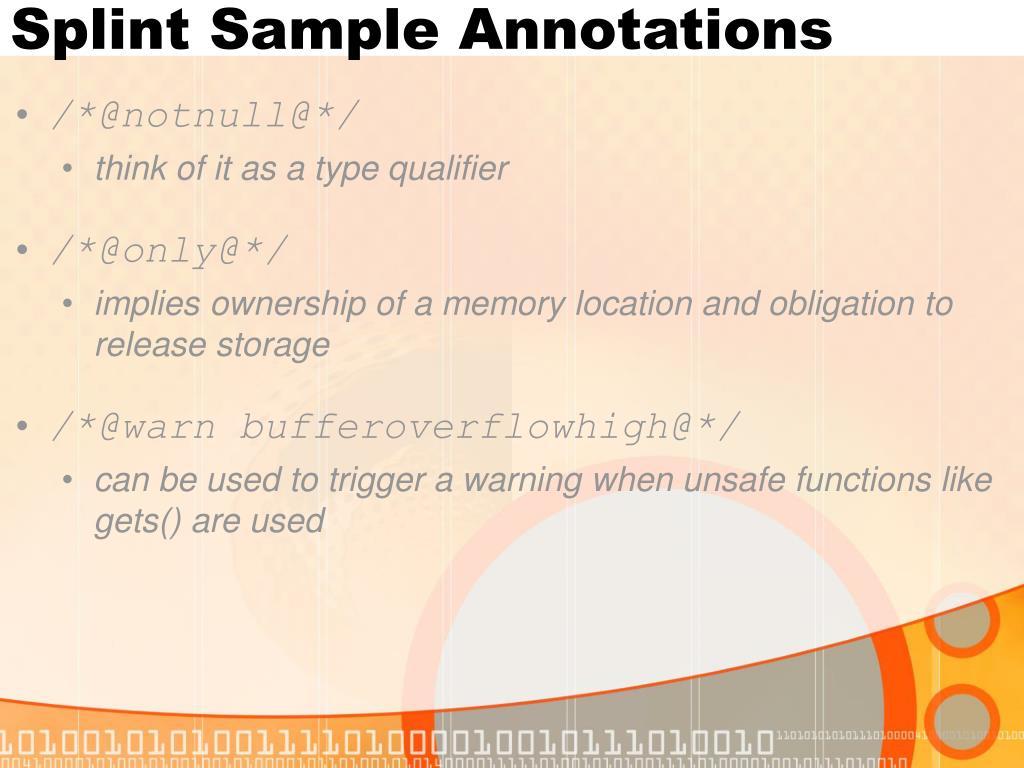

  7. Splint Sample Annotations • /*@notnull@*/ • think of it as a type qualifier • /*@only@*/ • implies ownership of a memory location and obligation to release storage • /*@warn bufferoverflowhigh@*/ • can be used to trigger a warning when unsafe functions like gets() are used

  8. Splint Sample Annotations • /*@nullterminated@*/ • /*@requires maxSet(s1)>=maxRead(s2)@*/ • useful for ensuring things like strcpy don’t result in a buffer overflow • Extensibility! • /*@tainted@*/

  9. Splint Metrics • A real world example: the Washington University FTP daemon (8000 Lines of code) • first pass - 166 warnings • 66 annotations added • final pass - 101 warnings • 25 legitimate errors • 76 false positives

  10. Conclusions • Lightweight static analysis is important but no replacement for runtime controls, systematic testing and security assessments • Splint only catches code inconsistencies, language conventions, and assumptions documented in annotations • Building up annotations and checking rules will take time • Can’t detect design flaws
