Simulation of Self-Assembly of Ampiphiles Using Molecular Dynamics

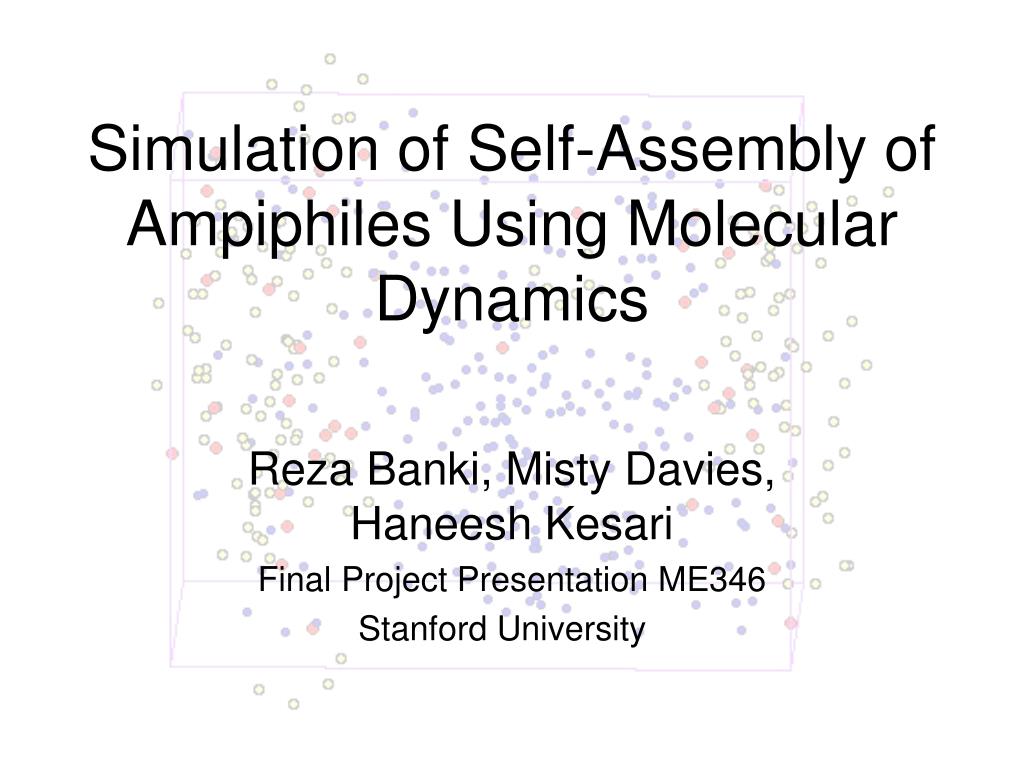

1. Simulation of Self-Assembly of Ampiphiles Using Molecular Dynamics Reza Banki, Misty Davies, Haneesh Kesari Final Project Presentation ME346 Stanford University

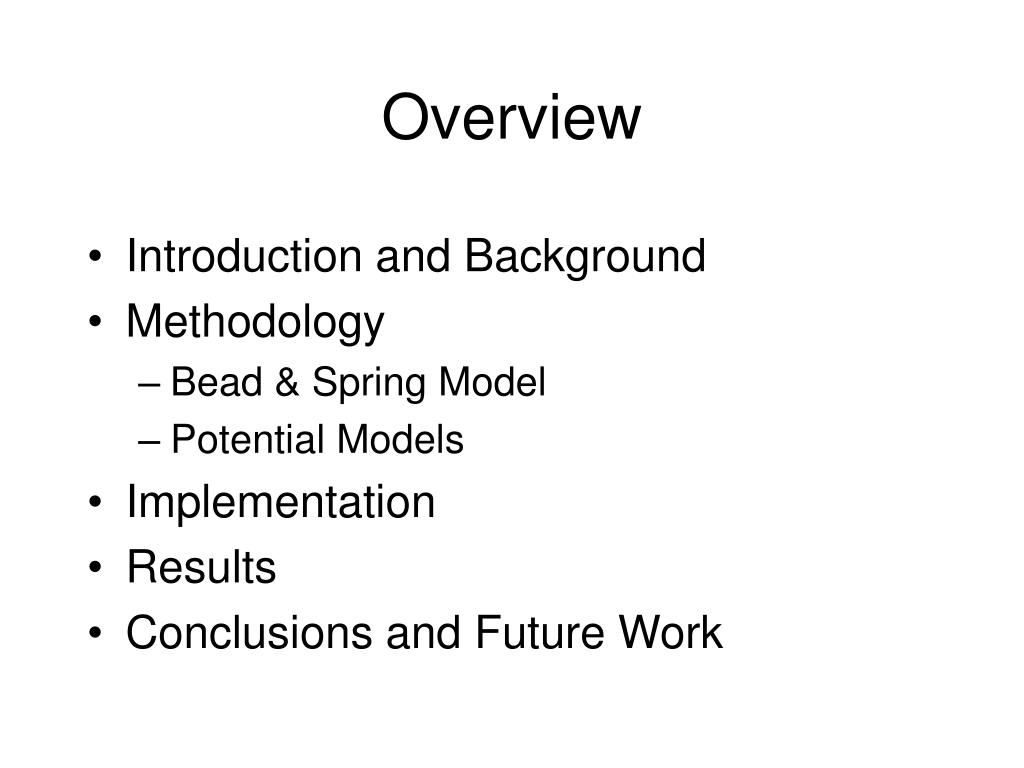

2. Overview • Introduction and Background • Methodology • Bead & Spring Model • Potential Models • Implementation • Results • Conclusions and Future Work

3. Introduction Ampiphiles--large molecule with one or more hydrophilic “head” groups and hydrophobic “tail” groups Lipids, “fat molecules” which create cell membranes and micelles, do so because they are ampiphiles Images from Nielsen and Klein

4. Motivation • Cell membranes are composed of lipids • Drug delivery • Protobiological evolution • Nanomechanical Synthesis by Self-Assembly library.thinkquest.org/.../cell_membranes.html mrsec.uchicago.edu/Nuggets/Nanostructures/

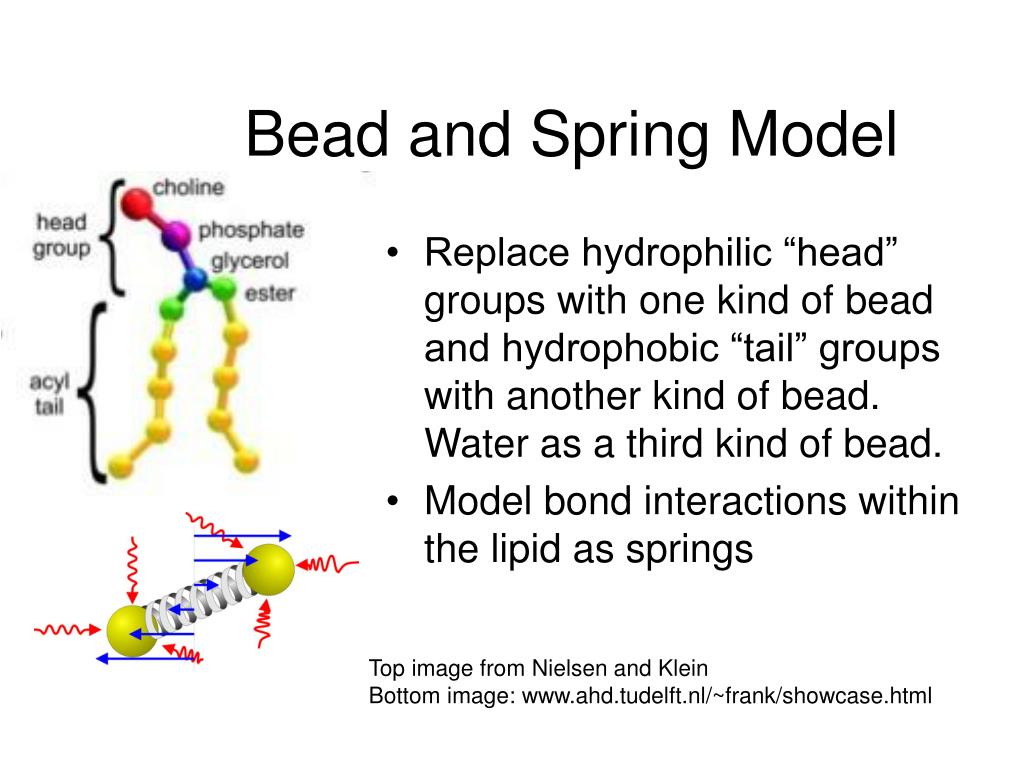

5. Bead and Spring Model • Replace hydrophilic “head” groups with one kind of bead and hydrophobic “tail” groups with another kind of bead. Water as a third kind of bead. • Model bond interactions within the lipid as springs Top image from Nielsen and Klein Bottom image: www.ahd.tudelft.nl/~frank/showcase.html

6. Potential Models: LJ 6-12 • Used for all unbonded non-hydrophobic reactions • hh • tt • ww • hw www.lsbu.ac.uk/water/models.html

7. Potential Models: LJ 9 • Used for all unbonded hydrophobic (purely repulsive) reactions • ht • tw

8. Top image: www.ahd.tudelft.nl/~frank/showcase.html Bottom image from Goetz and Lipowsky Potential Models: Bond Stretching and bending energies in the bonds (modeled as springs)

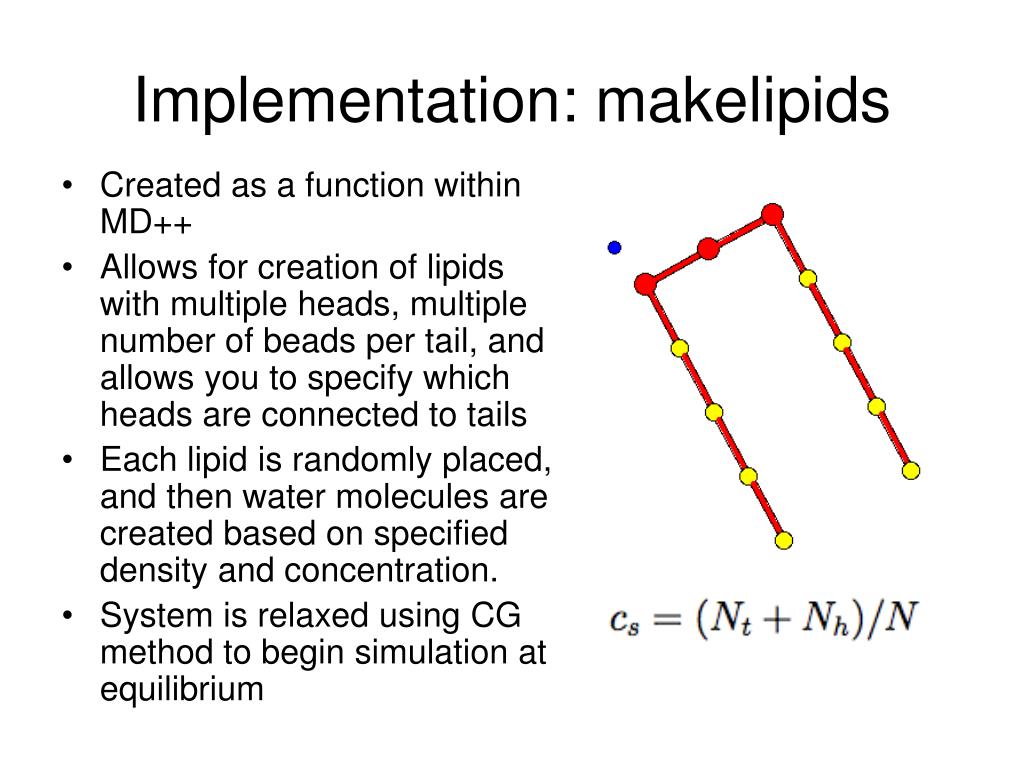

9. Implementation: makelipids • Created as a function within MD++ • Allows for creation of lipids with multiple heads, multiple number of beads per tail, and allows you to specify which heads are connected to tails • Each lipid is randomly placed, and then water molecules are created based on specified density and concentration. • System is relaxed using CG method to begin simulation at equilibrium

10. Implementation: Connectivity 6 • Each bead is assigned an index corresponding to a row in an array that lists neighbor beads that it is connected to. The columns of the array identify the structure and the bead type. • Also identifies which lipid each bead belongs to. This allows the entire molecule to be moved across a periodic boundary for visualization. 5 7 0 8 1 9 2 10 3 4

11. Implementation: lennard_jones_bond • Created as a function within MD++ • Calculates bond and bending energies for bonded particles (LJ potentials for bonded particles are neglected.) • Calculates appropriate LJ potential energy for unbonded particles. • Calculates and sums forces between particles within the cutoff radius (used same cutoff radius for all particles). Uses neighbor list implementation within MD++

12. Results: Current Model • Used molecules with completely flexible tails (ht4) and semi-rigid tails (HT4) • =0.006 particles/Å3 • Cs=0.069, 0.208, 0.347, 0.417 • Lx=Ly=40Å, Lz=50Å • t=0.001ps, total simulation time=100ps • 0=3.321e-24 kJ • =3.33 Å, rep=1.05  • rc=2.5  • kbond=5000* 0 /sqrt(), kbend=50* 0

13. Results: Conjugate Gradient • Conjugate gradient failed more often for higher densities. Current model approximately 1/3 the density of the desired model. • Conjugate gradient converged much more slowly for HT4. • Much faster simulation times than those reported in previous simulations may be due to conjugate gradient creating excellent initial conditions.

14. Results: 0.069 Concentration ht4 HT4

15. Results: 0.208 Concentration ht4 HT4

16. Results: 0.347 Concentration ht4 HT4

17. Results: 0.417 Concentration ht4 HT4

18. Conclusions • Using very simple models for the molecular structures and for the potential interactions it is possible to simulate lipid self-assembly • More complicated structures are formed with higher lipid concentration • Bending potentials assist aggregate formation • Relaxation may speed total simulation times • CG Relaxation may not be suitable for high density simulations
